Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 61
Arpeggiator/sequencerarpeggiator, sequencer
Computer integration none
Control sustain (input), expression (input), aftertouch
Synthesizer inputs none
Sound sourceanalogue
MIDI & CV/gate MIDI in, MIDI out, MIDI thru, CV/gate in
Synthesizer outputs line out jack, headphone
Type of keys semi-weighted
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)12.1 kg
Dimensions (incl. packaging)105.0 x 47.0 x 23.0 cm
Product specifications

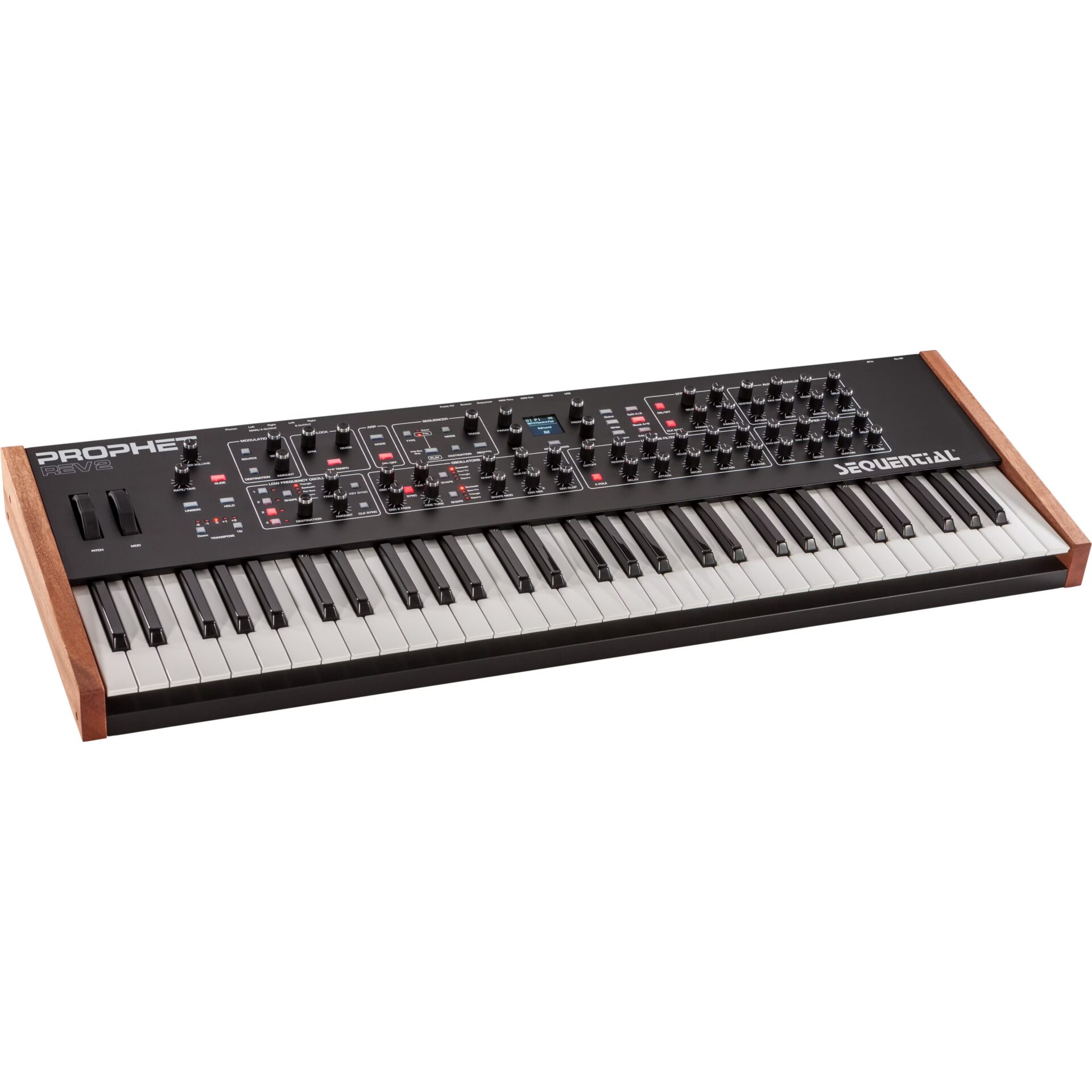

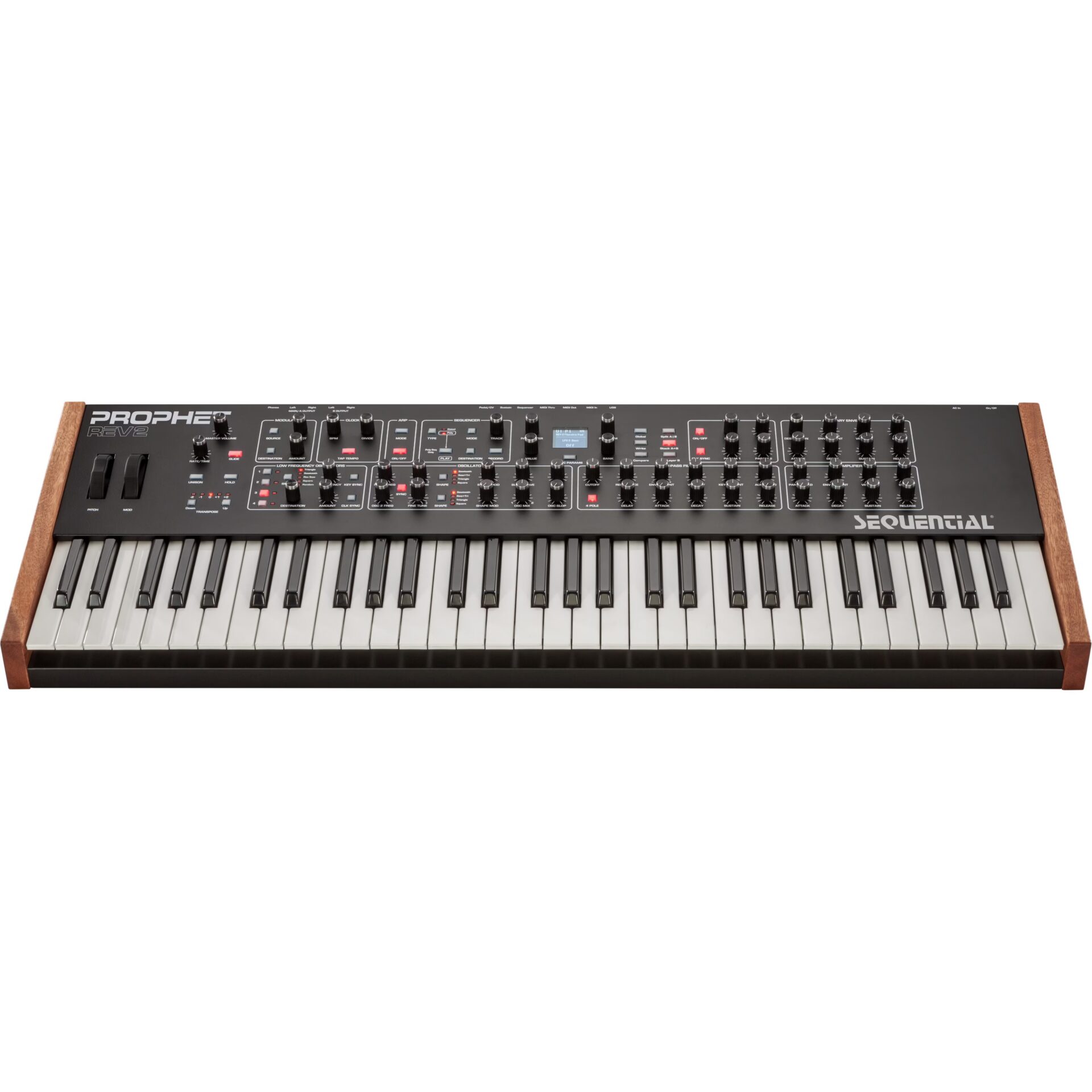

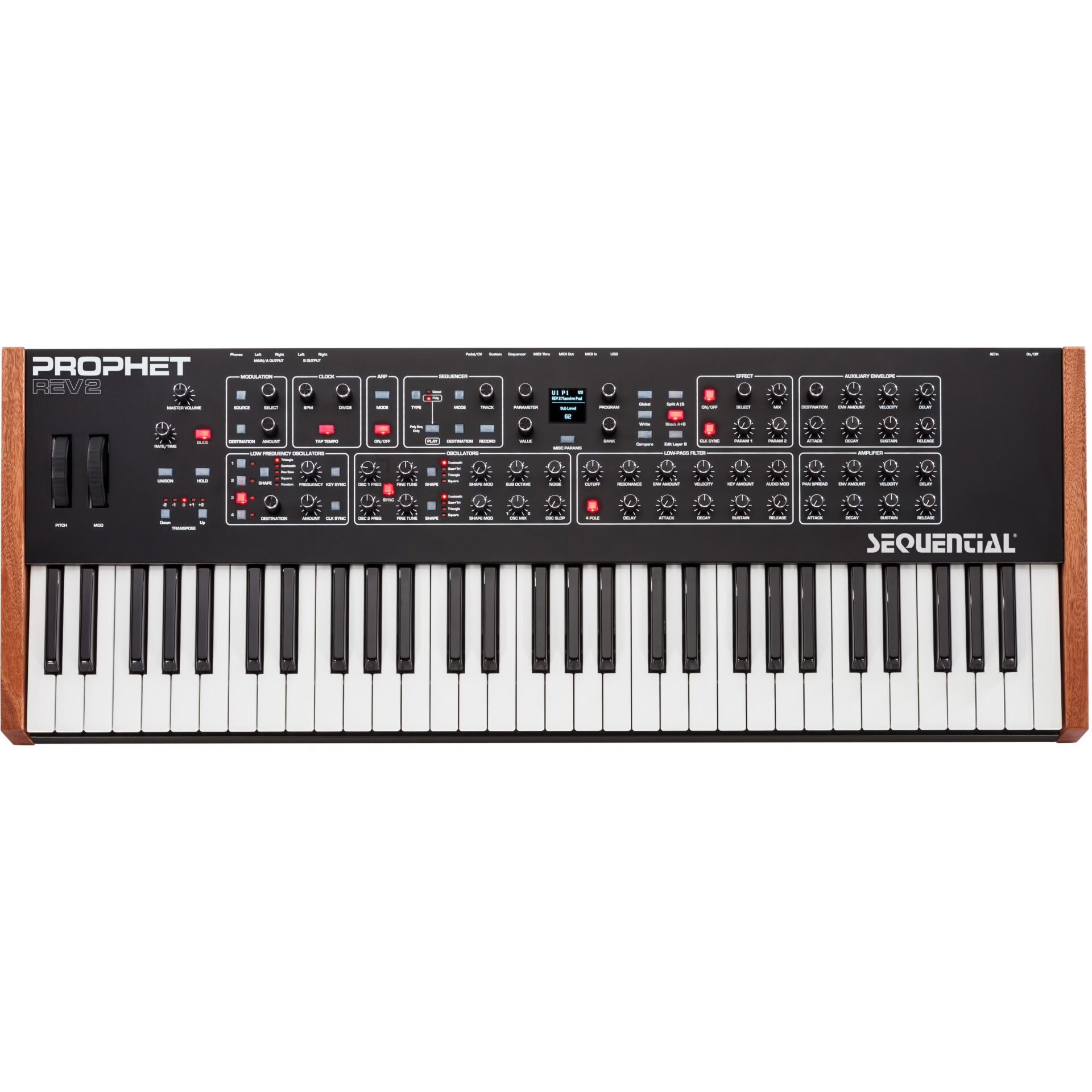

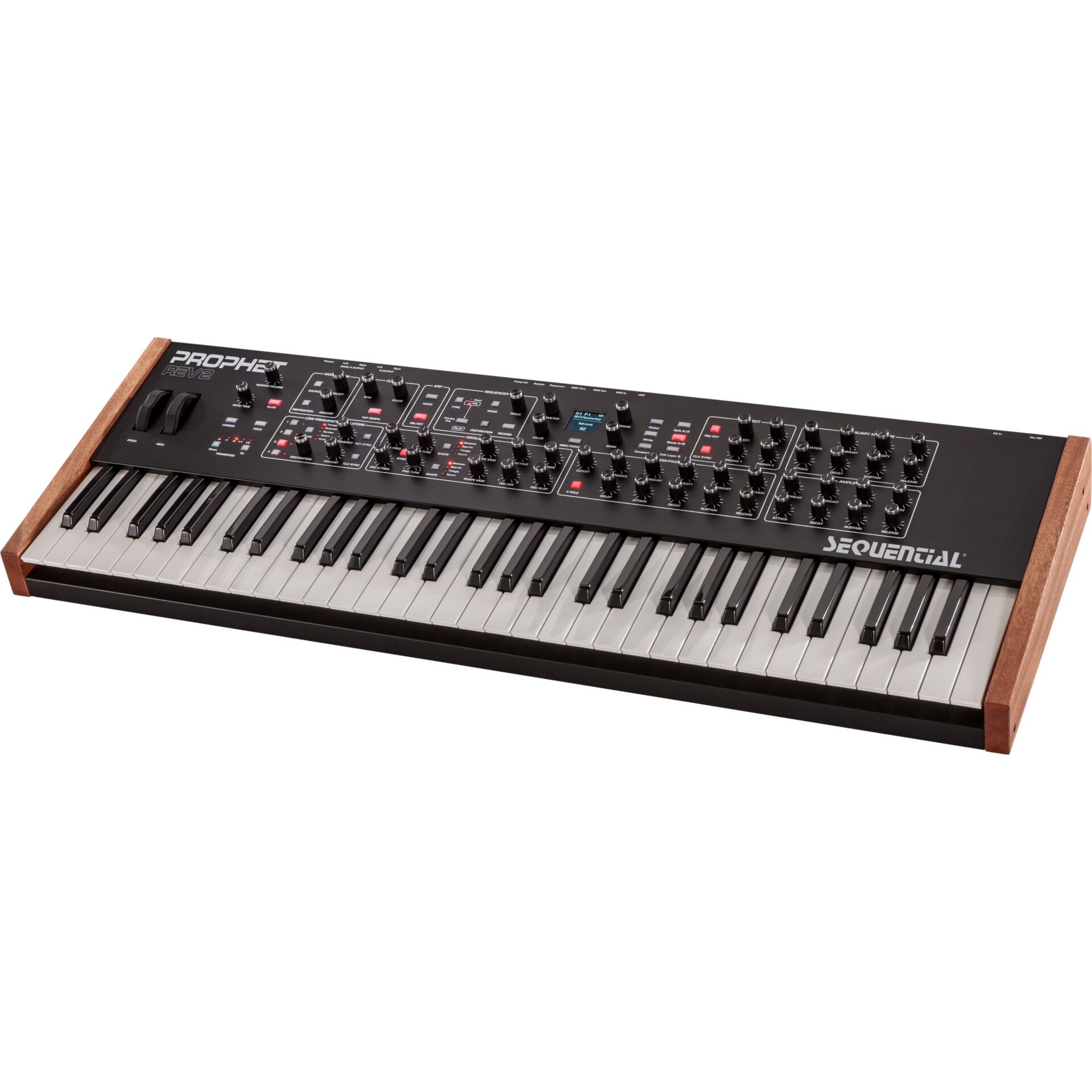

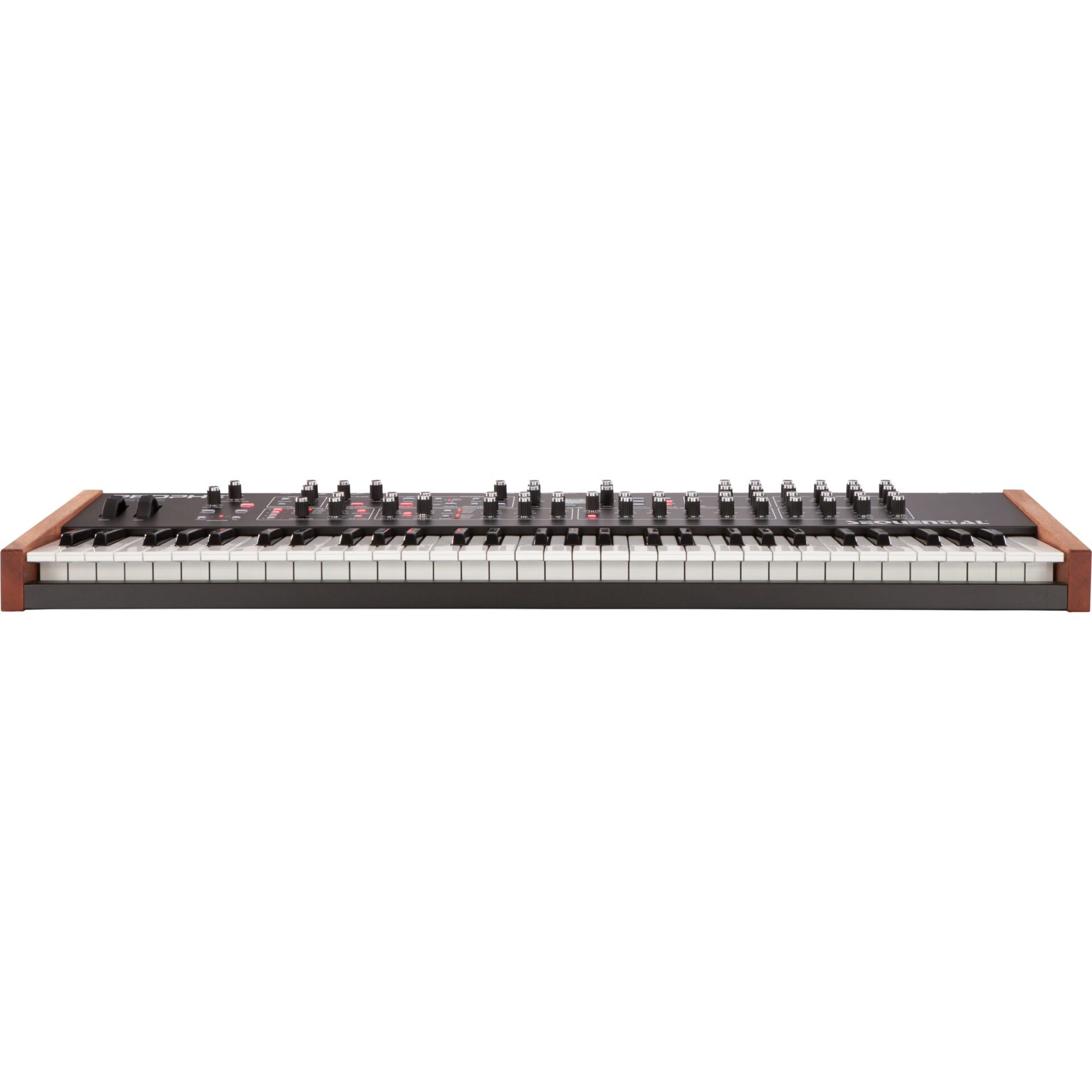

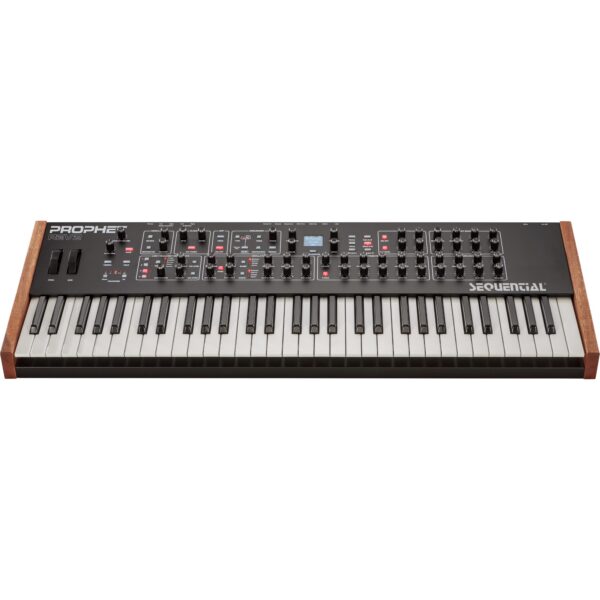

Sequential REV2
16-voice polyphonic analogue synthesizer
improved version of Dave Smith Instruments Prophet ’08

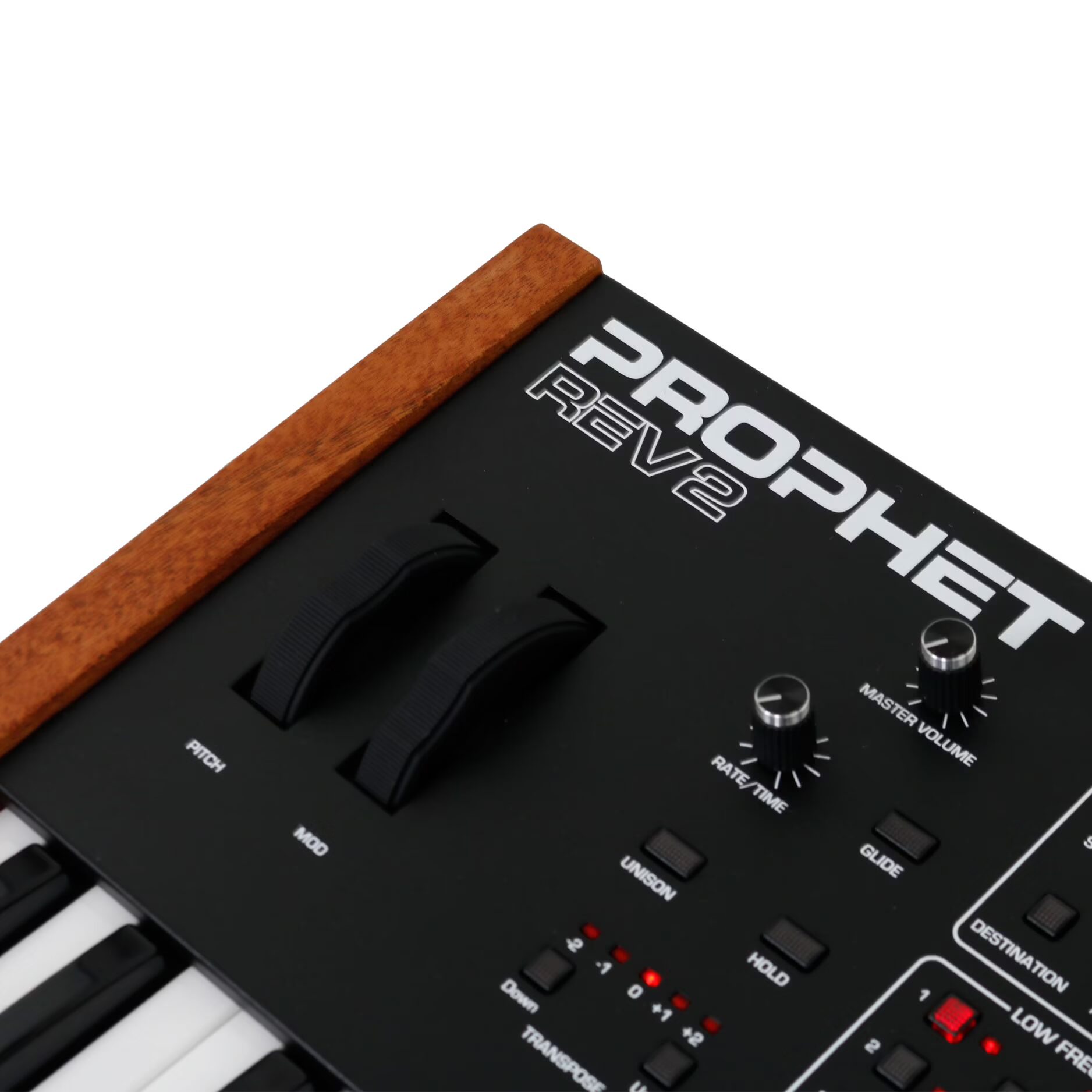

oiled African mahogany wood end panels

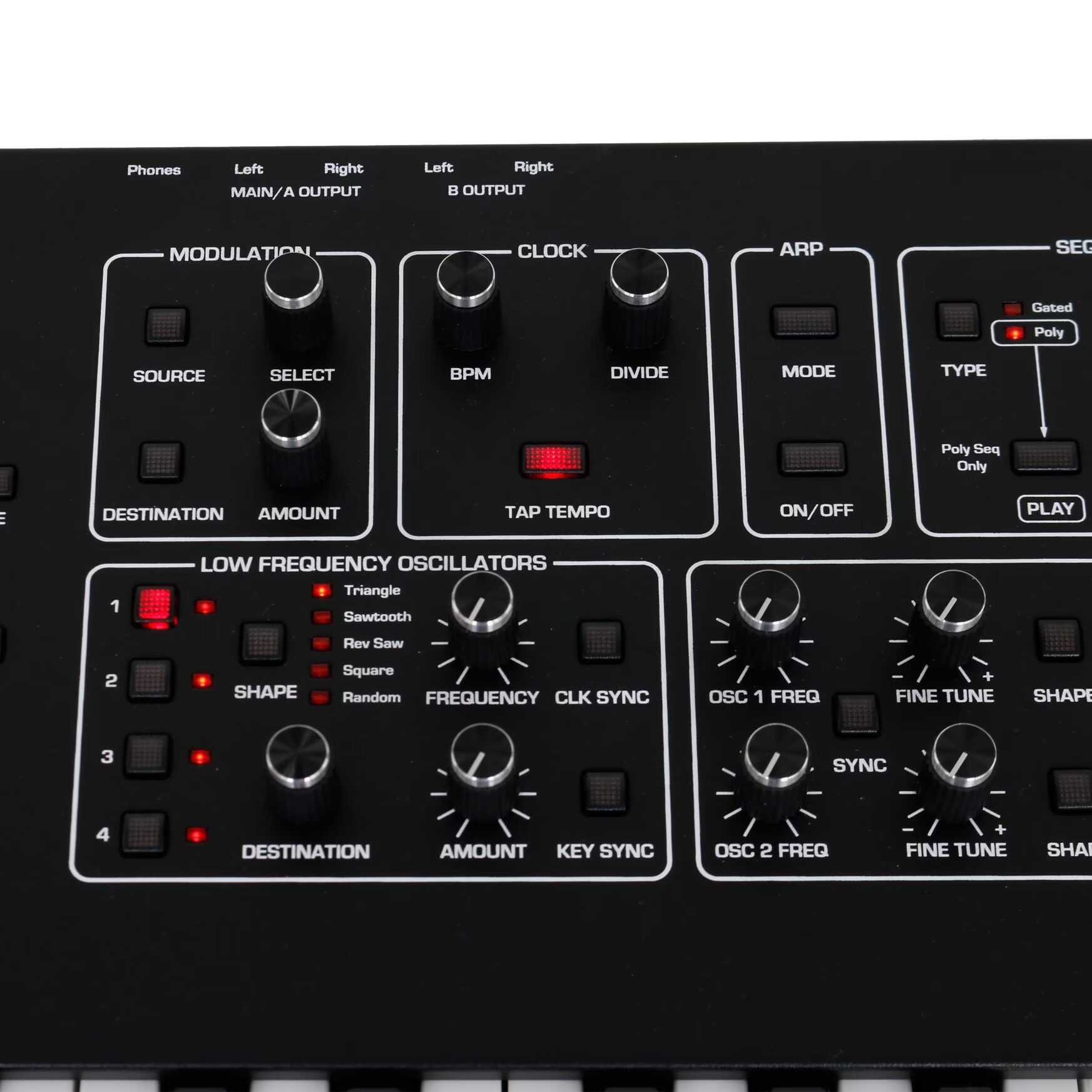

controls

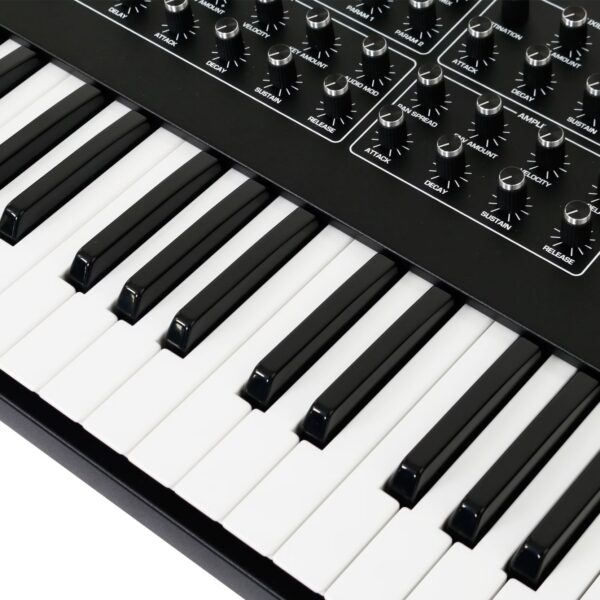

5-octave keyboard with semi-weighted action, velocity and aftertouch
52 controls and 20 buttons for deep editing

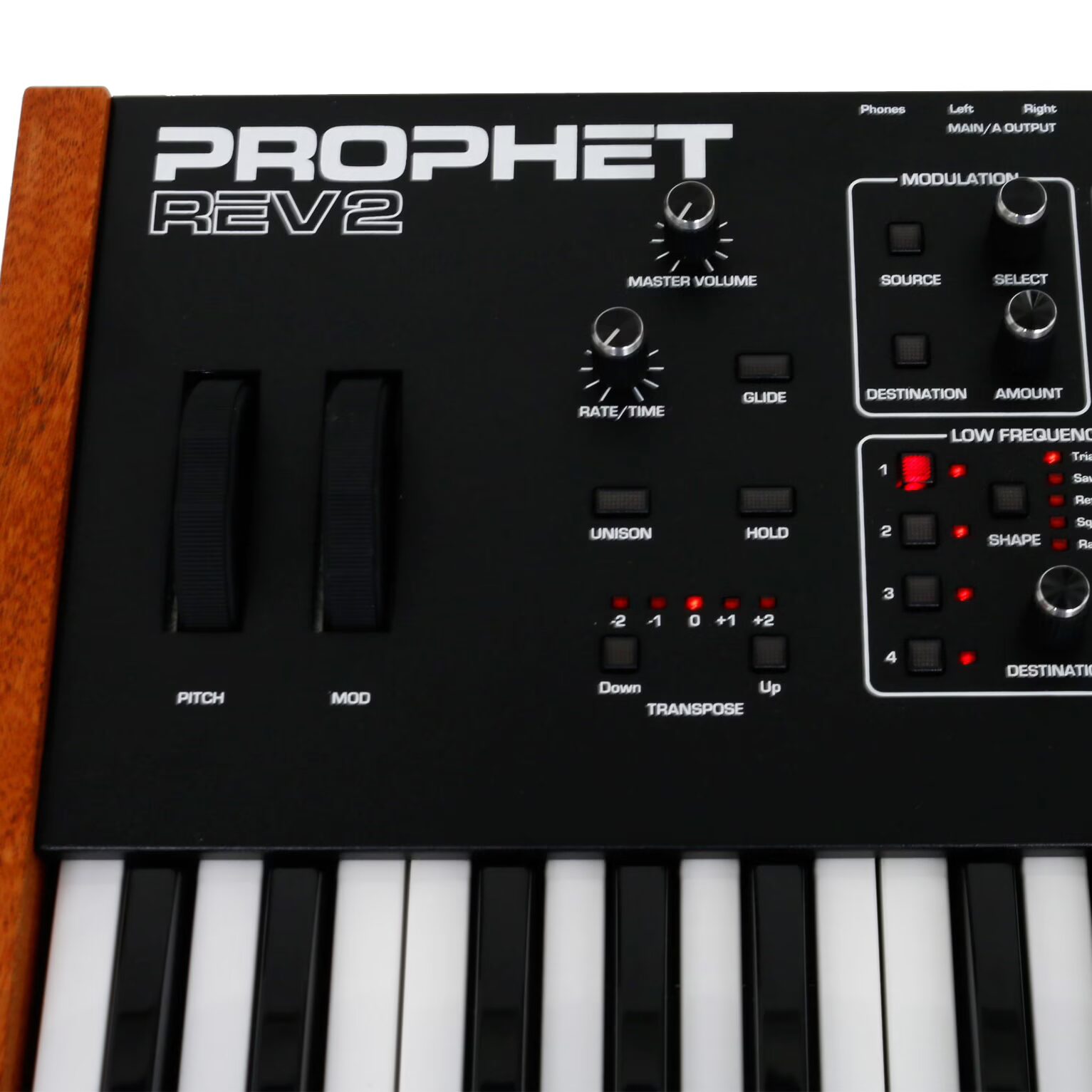

spring-loaded pitch wheel and assignable mod wheel
oscillators
2 DCOs per voice
waveforms: sawtooth, triangle, saw/triangle, pulse waves
glide (portamento)
white noise generator
analogue VCAs
hard sync

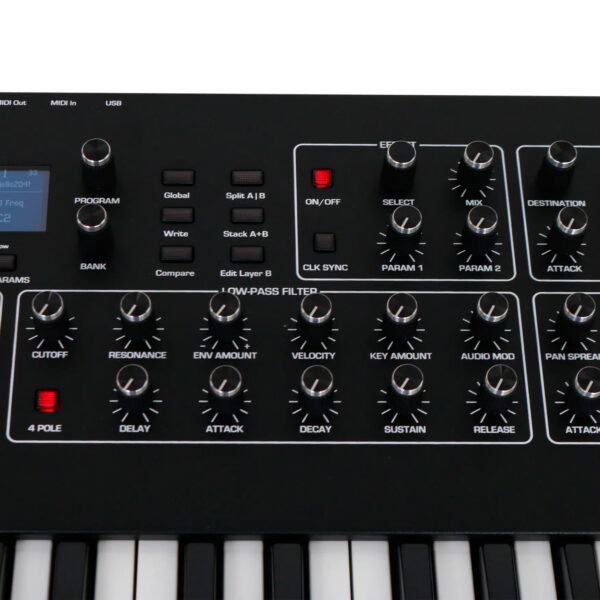

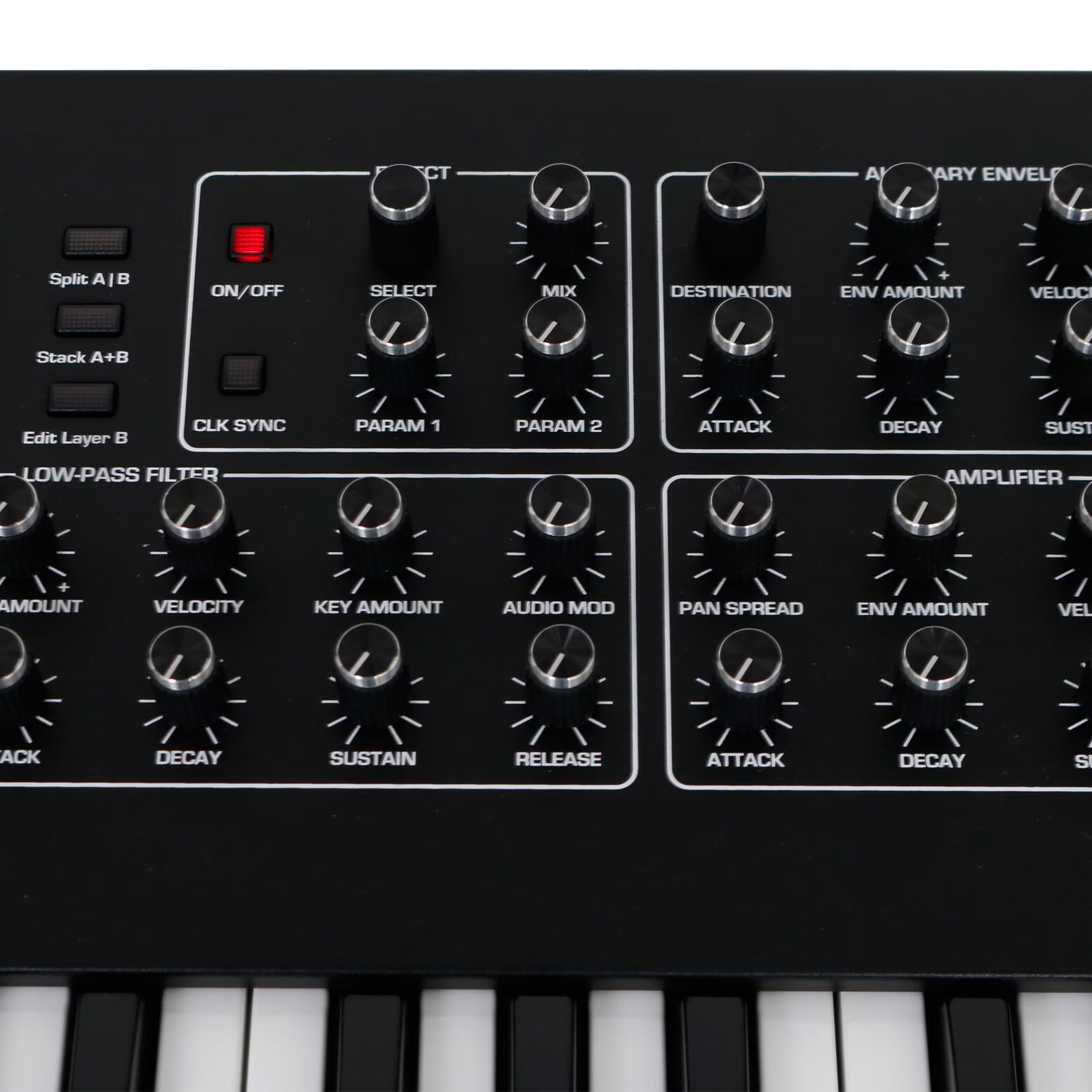

filters: 1 analogue Curtis low-pass filter per voice (2 and 4-pole)
3x envelope generators: filter, VCA, assignable (four-stage ADSR + delay)
sequencer: 16 x 4 gated step sequencer

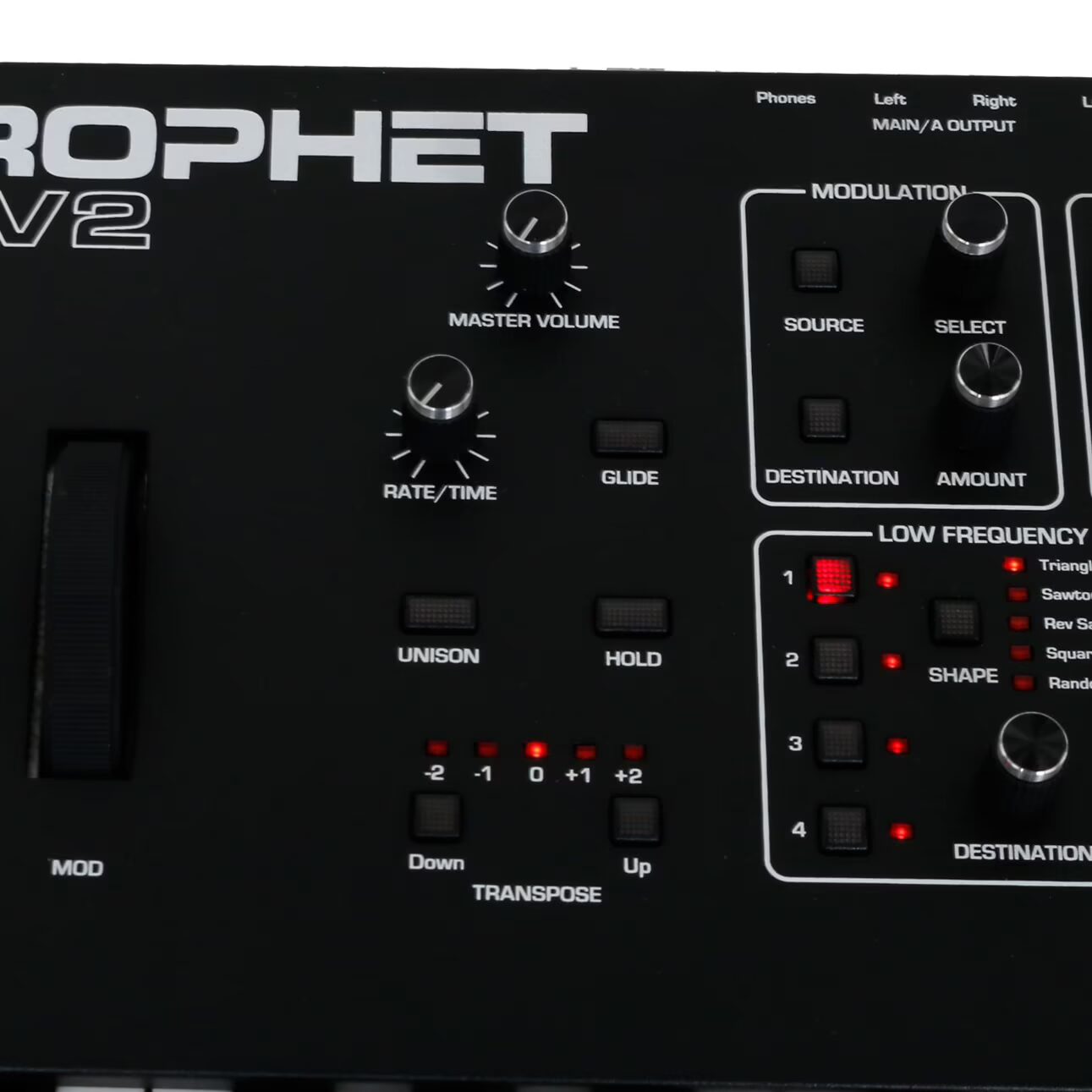

LFOs: 4 LFOs with key sync per LFO
modulation: 4 x 2 modulation matrix with 20 mod sources and 43 mod destinations
arpeggiator
programmable arpeggiator with up, down, up+down, random, assign
re-latching arpeggiation
memory: 1024 programs (4x 128 factory, 4x 128 user) with 2 layers

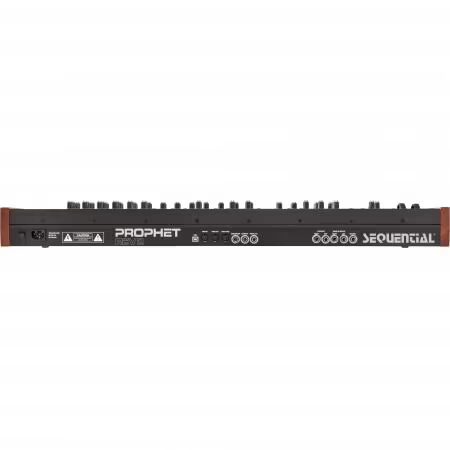

connectors:
USB B
MIDI In, Out, Thru, and Poly Chain
2x stereo output (4x mono jack)
sequencer (jack)
sustain pedal input (stereo jack)
pedal/cv input (jack)
headphone: stereo jack
dimensions: 32.26 x 89.20 x 9.65cm
weight: 9.3 kg
