Description
Specifications
Product features
19-inch rack size not applicable
Number of keys none
Arpeggiator/sequencerarpeggiator, sequencer
Computer integration none
Control sustain (input), expression (input)
Synthesizer inputs none
Sound sourceanalogue
MIDI & CV/gate MIDI in, MIDI out, MIDI thru, CV/gate in
Synthesizer outputs line out jack, headphone
Type of keys not applicable
Synthesizer type desktop module
Weight and dimensions including packaging
Weight (incl. packaging)4.7 kg
Dimensions (incl. packaging)63.5 x 31.5 x 18.5 cm
Product specifications

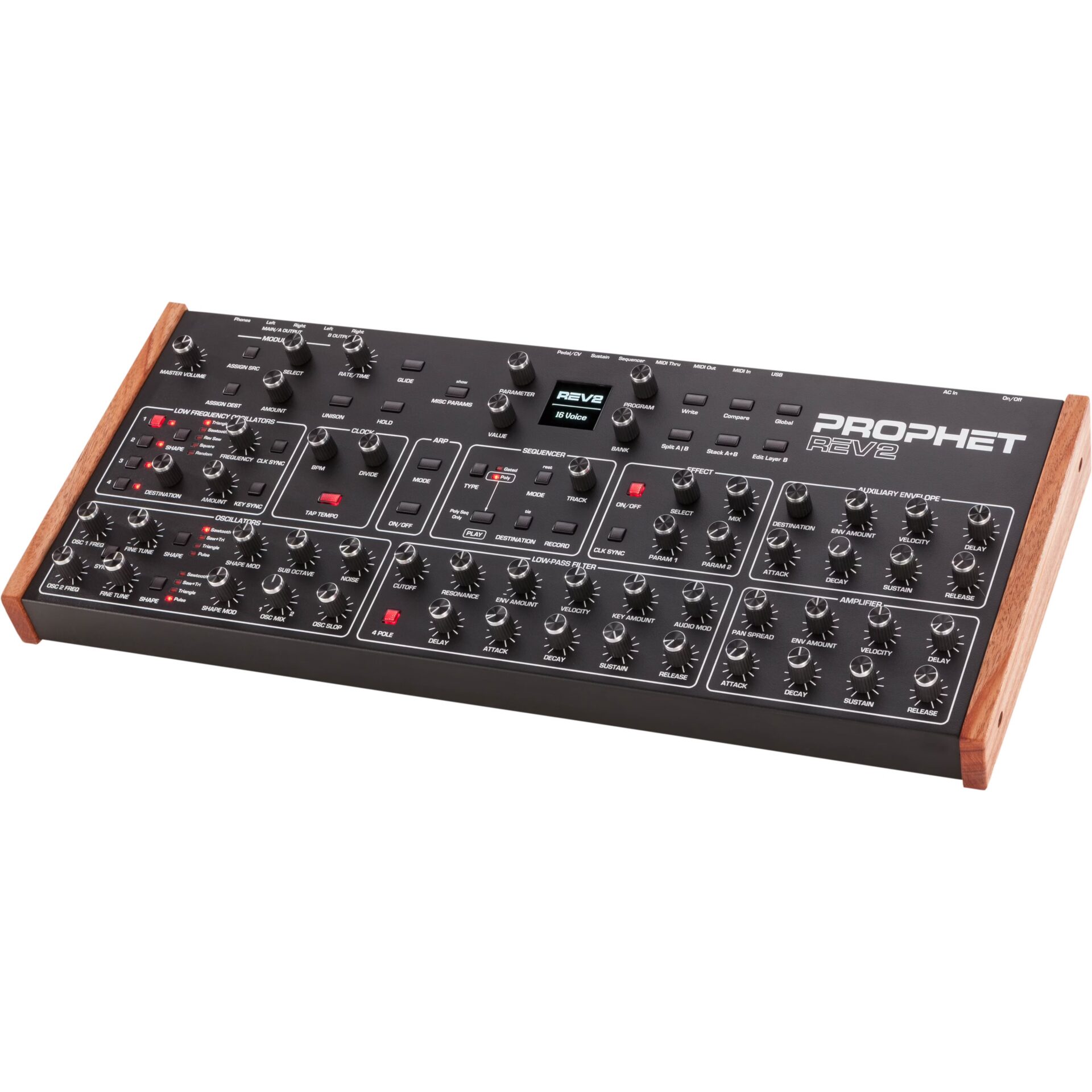

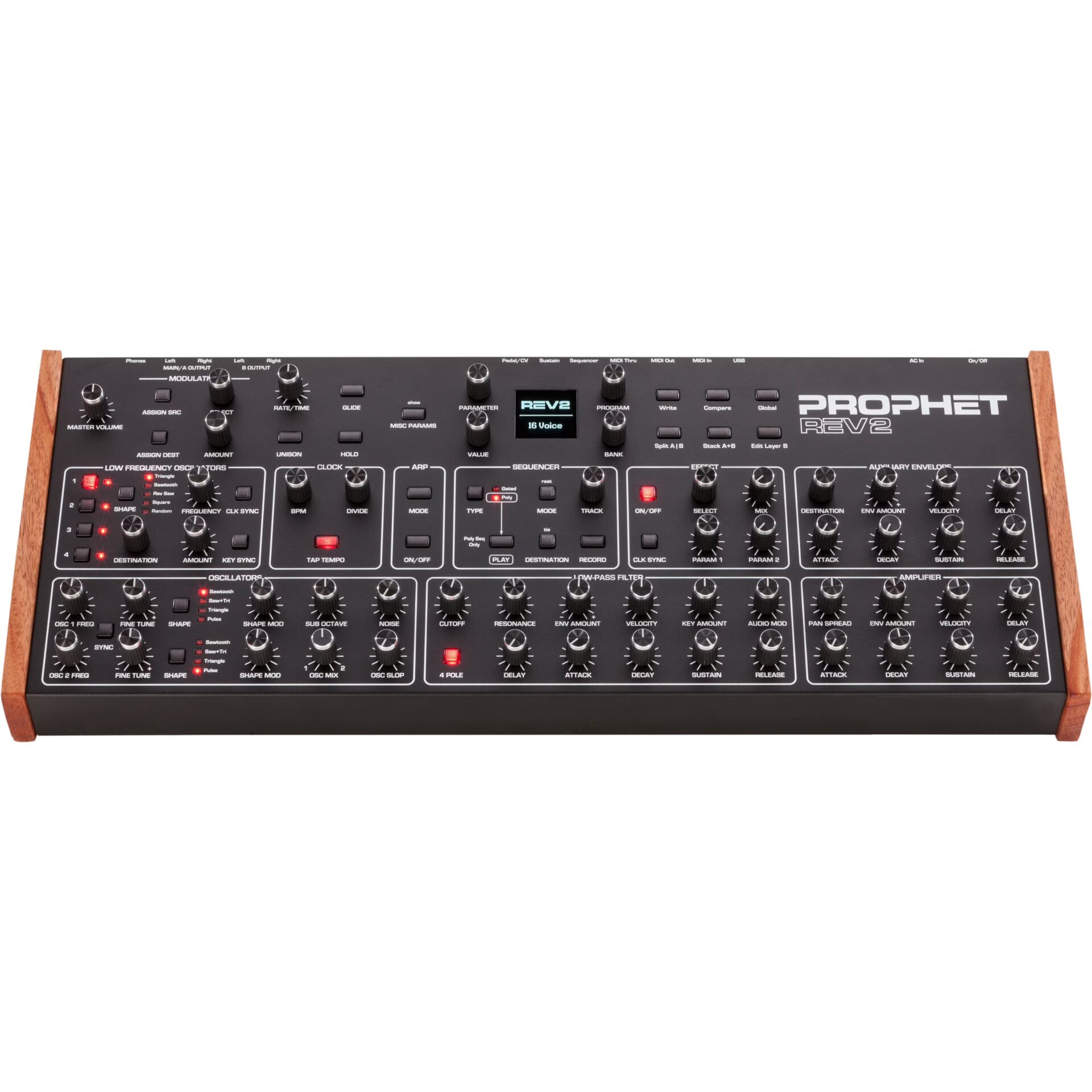

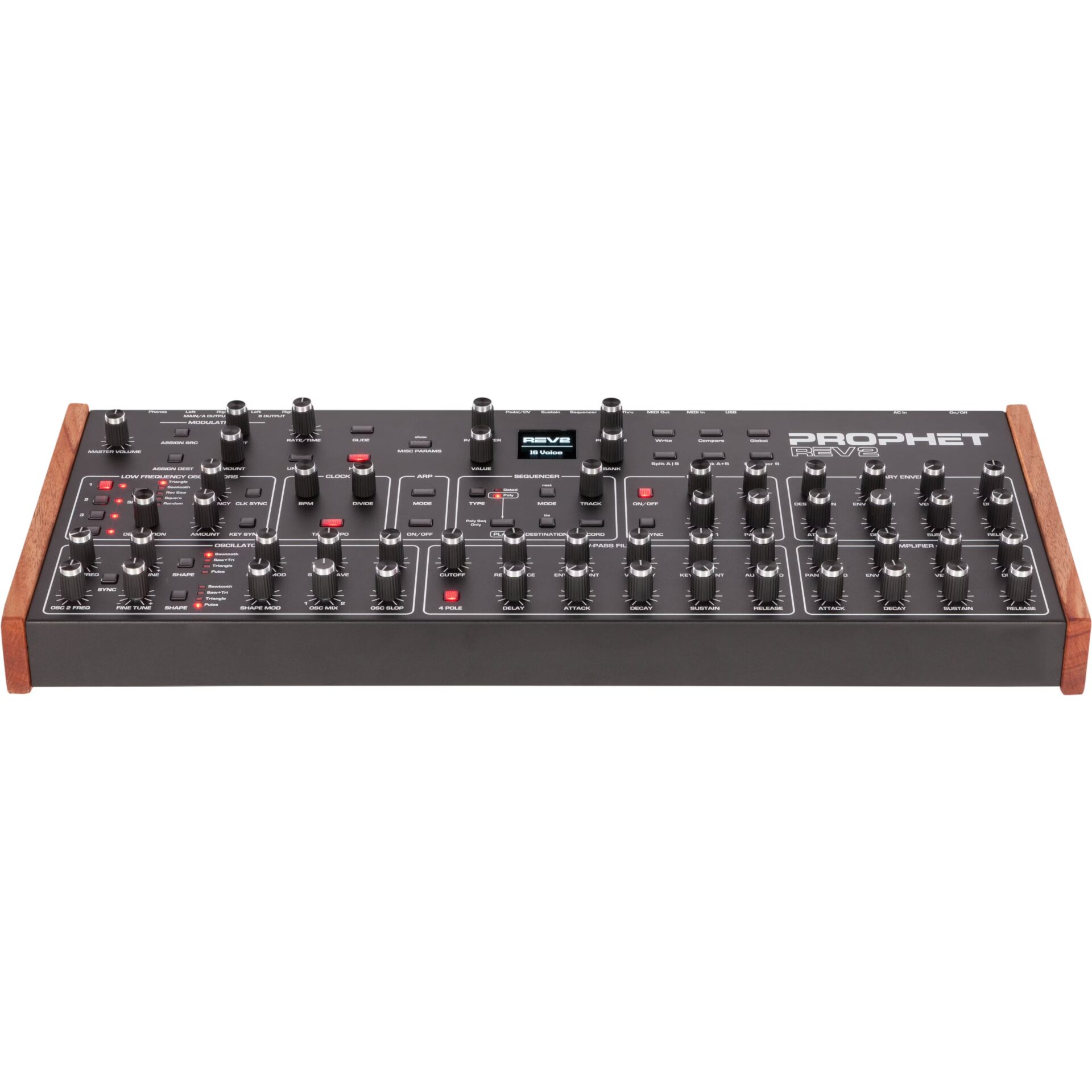

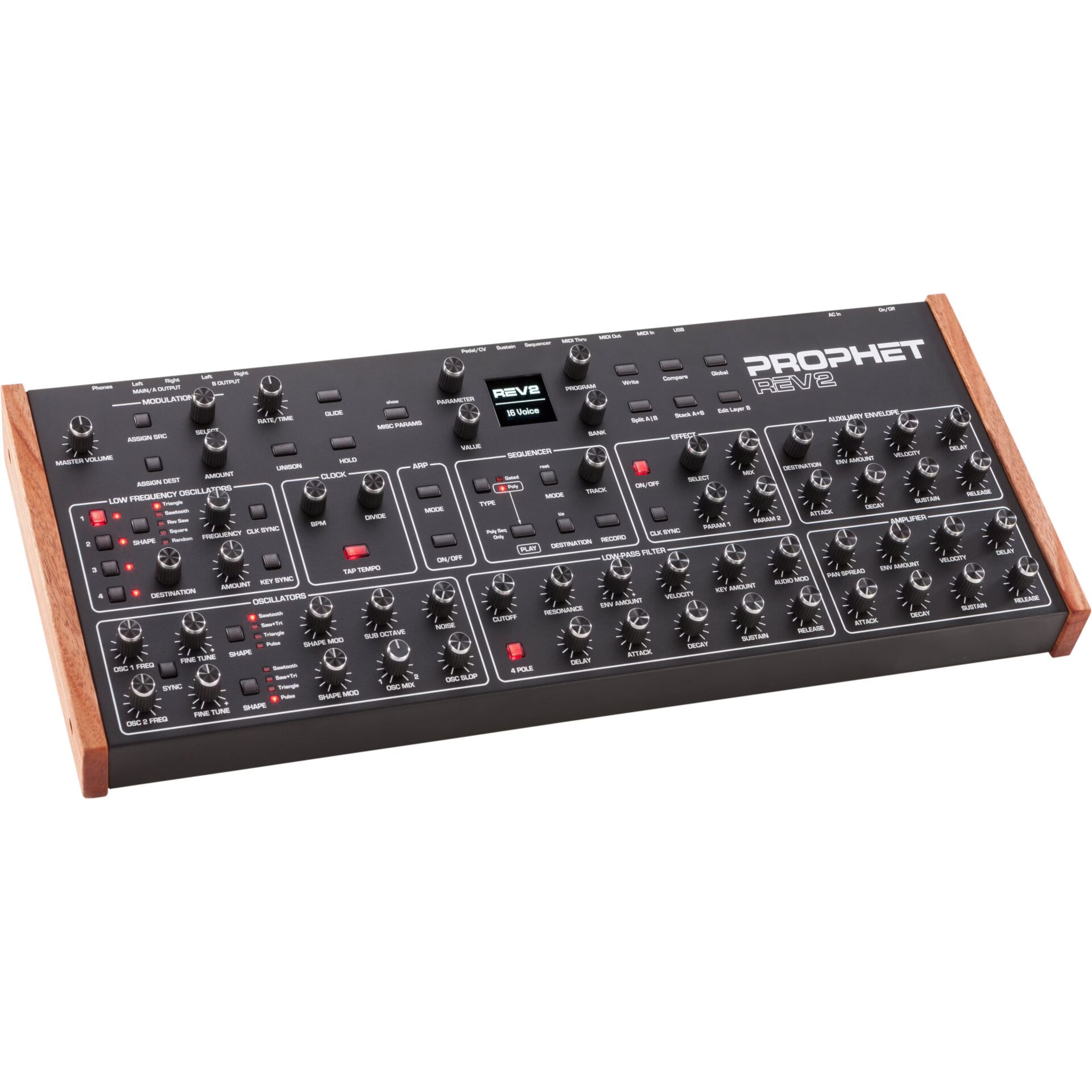

Sequential REV2 Desktop
8-voice polyphonic analogue synthesizer
inspired by the Prophet ’08
oiled African mahogany wood end panels
52 controls and 20 buttons for deep editing
oscillators
2 DCOs per voice
waveforms: sawtooth, triangle, saw/triangle, pulse waves
glide (portamento)
white noise generator
analogue VCAs
hard sync
filters: 1 analogue Curtis low-pass filter per voice (2 and 4-pole)
3x envelope generators: filter, VCA, assignable (four-stage ADSR + delay)
sequencer: 16 x 4 gated step sequencer
LFOs: 4 LFOs with key sync per LFO
modulation: 4 x 2 modulation matrix with 20 mod sources and 43 mod destinations
arpeggiator
programmable arpeggiator with up, down, up+down, random, assign
re-latching arpeggiation
memory: 256 programs (2 banks of 128) with 2 layers

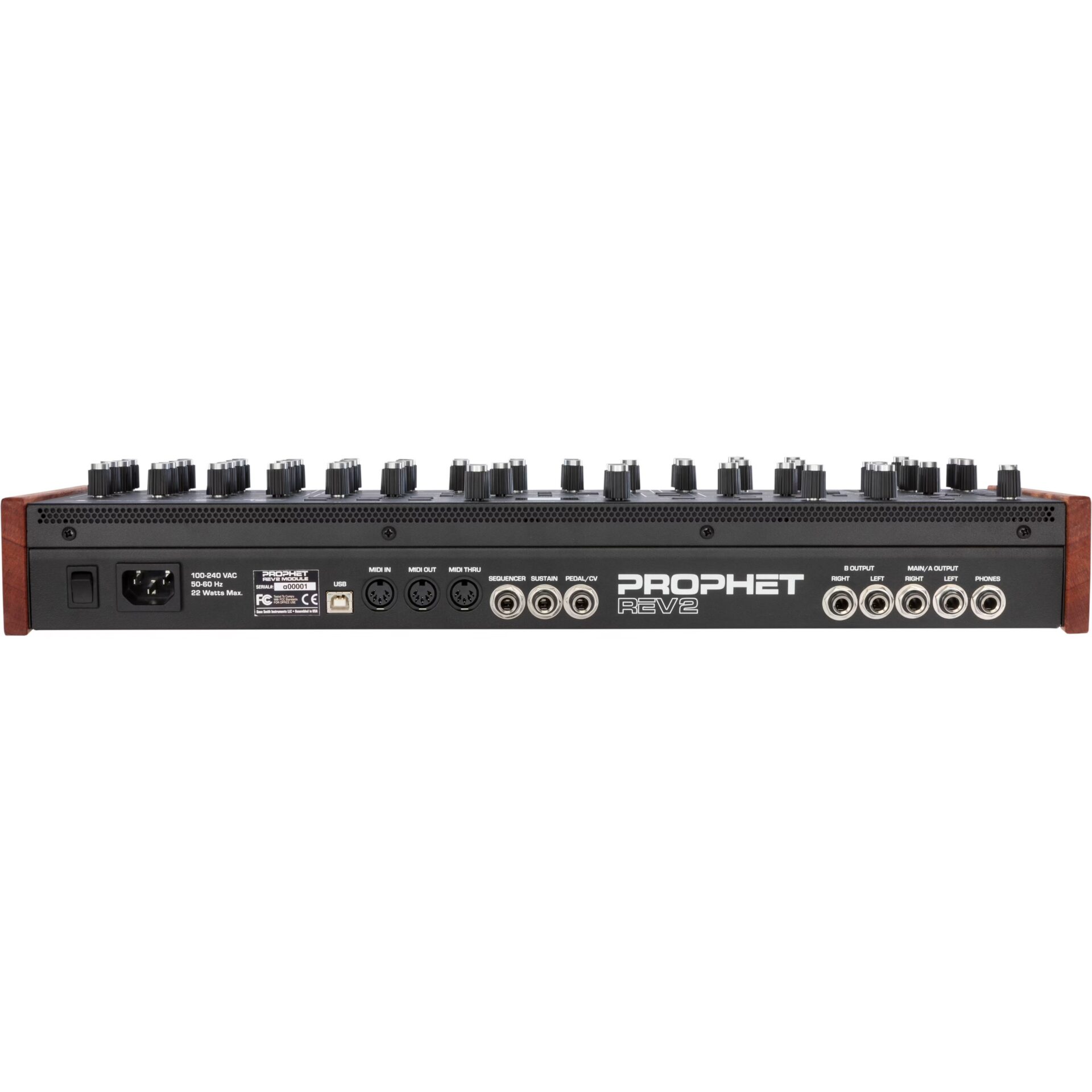

connectors:
USB-B
MIDI In, Out, Thru, and Poly Chain
2x stereo output (4x mono jack)
sequencer (jack)
sustain pedal input (stereo jack)
pedal/cv input (jack)
headphone: stereo jack
