Description
Specifications
Product features
Power adapterEuroplug, Schucko or CEE 7/7 plug
Weight and dimensions including packaging
Weight (incl. packaging)28.0 kg
Dimensions (incl. packaging)67.0 x 53.0 x 44.0 cm
Product specifications

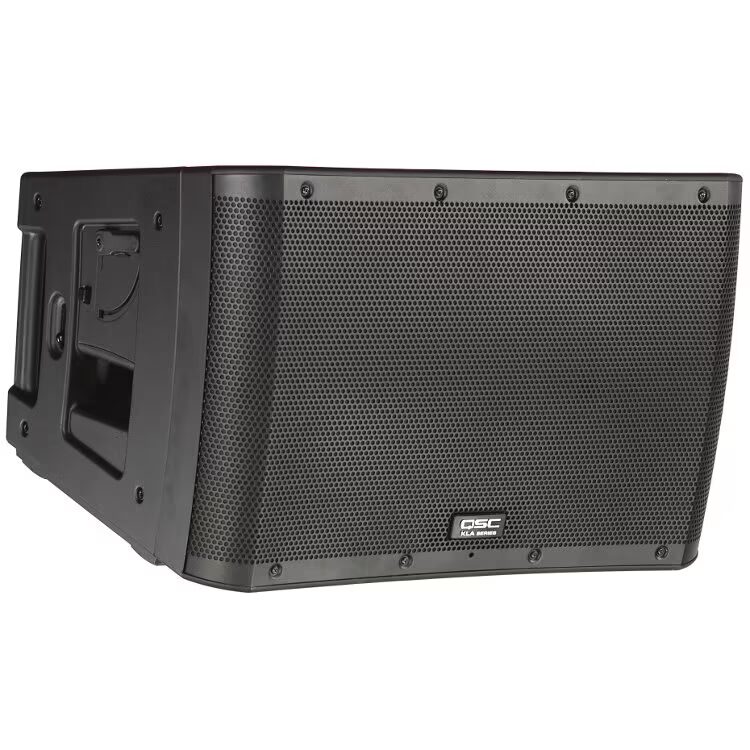

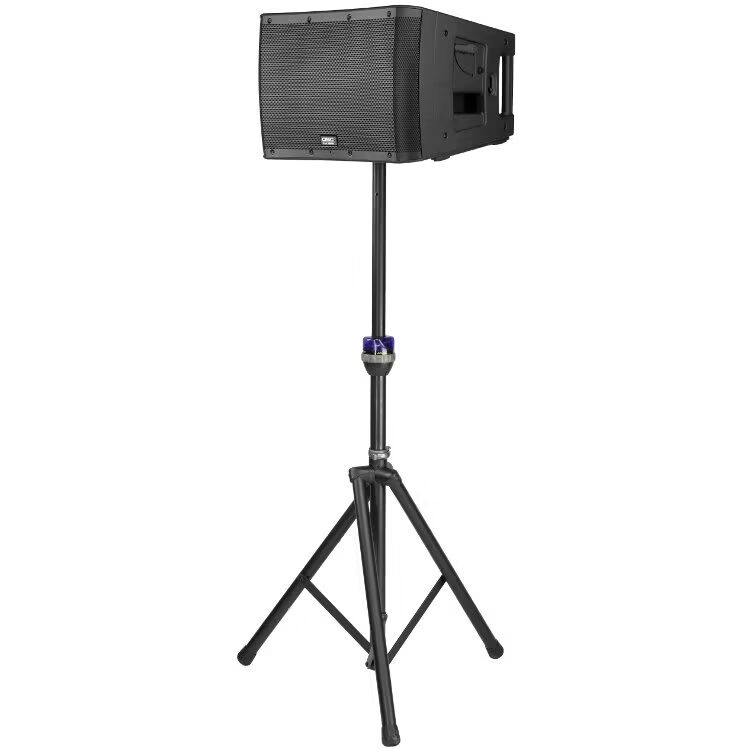

12-inch active line array speaker
2-way system

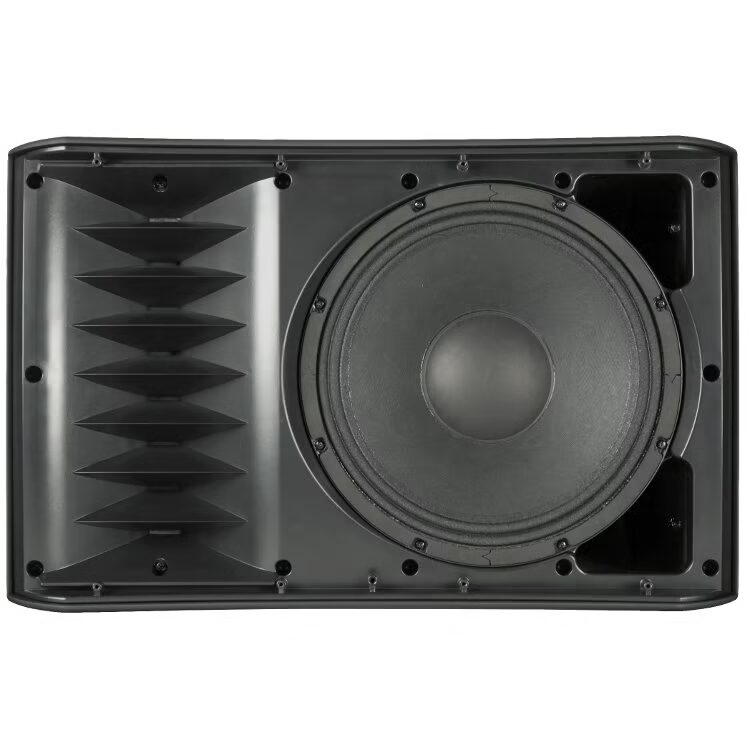

woofer: 12-inch cone transducer
driver: 1.75-inch compression driver
frequency response (-6 dB): 49 Hz – 18 kHz
frequency range (-10 dB): 44 Hz – 20 kHz
bi-amplified, separate amplifier for bass and trebles
amplifier bass: 500 Watts continuous, class D digital
amplifier trebles: 500 Watts continuous, class D digital
nominal range: 90° x 18°
max. SPL: 128 dB
amplifier protection: Guardrailâ„¢ system

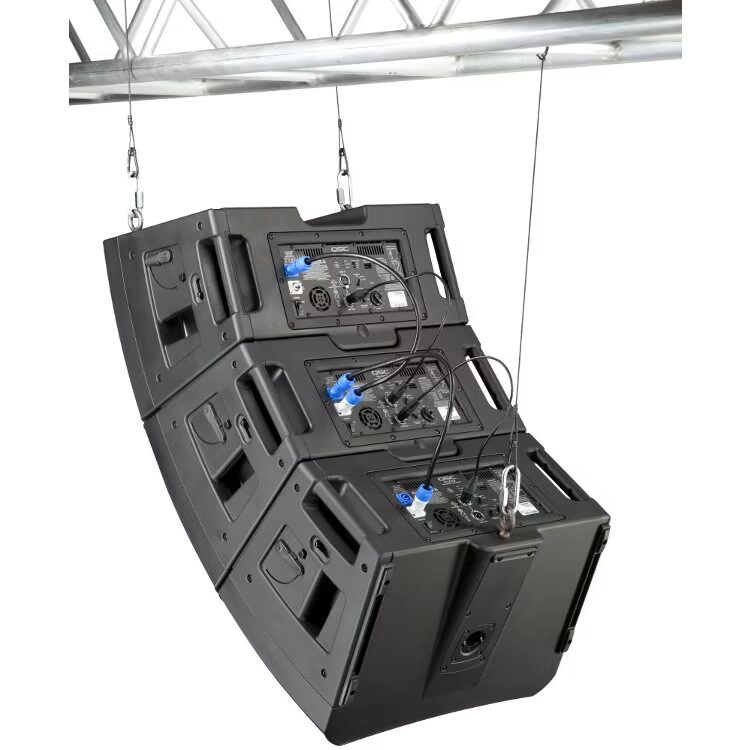

SOLOâ„¢ rigging system for easy rigging
Ar-Qâ„¢ frequency optimisation

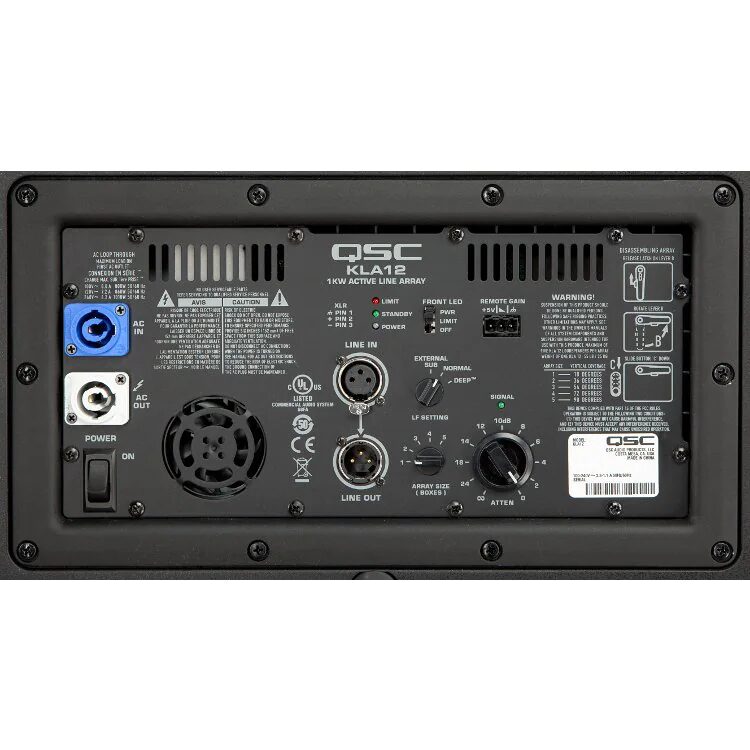

connectors: balanced XLR (can be daisy-chained)
PowerCon connector (can be daisy-chained)
built-in attenuator
LF setting: external subwoofer, standard, deepâ„¢
durable ABS housing
dimensions: 15 x 23.3 x 16.6 inches (382 x 593 x 422 mm)
weight: 55.1 lbs (25 kg)
