Description
Specifications
Product features
19-inch rack size 3U
2-ohm compatible yes
Number of amplifier channels 2
Audio loop output no
Bridge mode yes
Input connector jack (6.3 mm), XLR
Built-in filter HPF
Built-in protection thermal, short circuit, square wave / DC voltage, peak limiter, clip indicator
Built-in DSP processor no
Cooling ventilator
RMS power (4 ohms) per channel 1400 – 1499 watts
RMS power (8 ohms) per channel 800 – 899 watts
Amplifier class H
Amplifier outputlocking speaker connector, wire clamps
Equipped with crossover yes, fixed
Weight and dimensions including packaging
Weight (incl. packaging)34.9 kg
Dimensions (incl. packaging)61.0 x 55.9 x 22.9 cm
Product specifications
PA amplifier
power capacity:
2x 850 watts @ 8 ohms stereo
2x 1400 watts @ 4 ohms stereo
1x 2800 watts @ 8 ohms bridged
1x 4000 watts @ 4 ohms bridged
frequency response: 20 Hz to 20 kHz

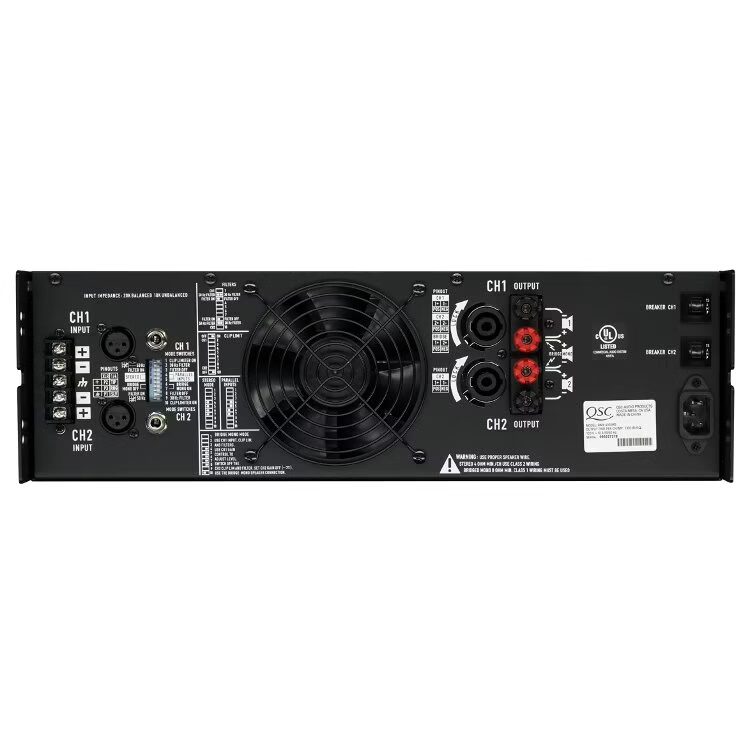

connectors:
2x XLR in
2x TRS jack in
2x SpeakOn output
4x double terminal

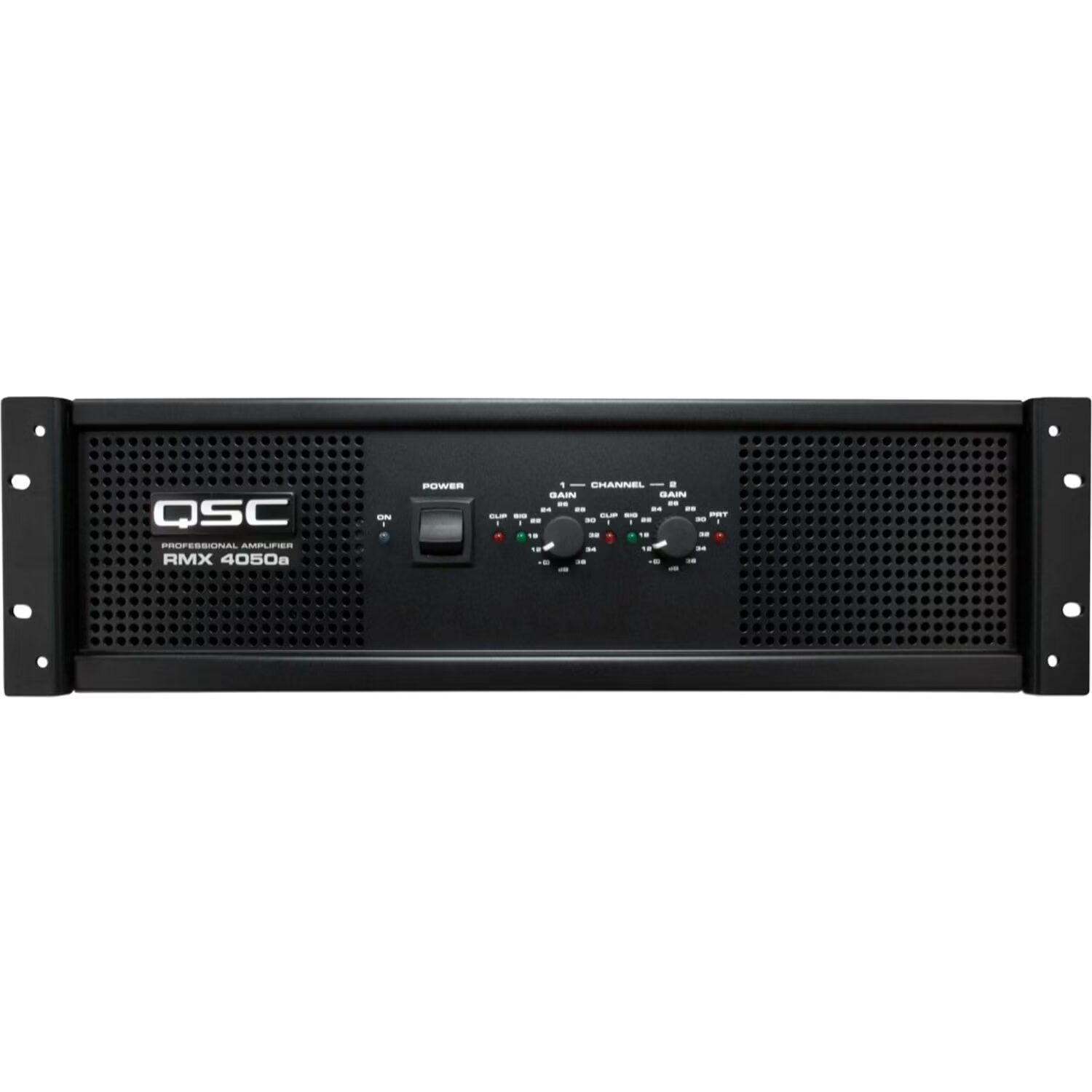

controllers:
volume (L/R individually adjustable)
on/off switch
mode adjustable via dip switch
Class H
rack: 19-inch, 3 U
dimensions: 133 x 482 x 404 mm
weight: 30.8 kg
