Description
Specifications
Product features
Number of cymbals (excl. hi-hat) 4
Number of toms 3
Includes bass drum pedal no
Includes cymbals yes
Includes drum stool no
Includes drum sticks no
Includes headphones no
Includes rack no
Built-in speakers no
Mesh-head drum pads yes
Also acoustic yes

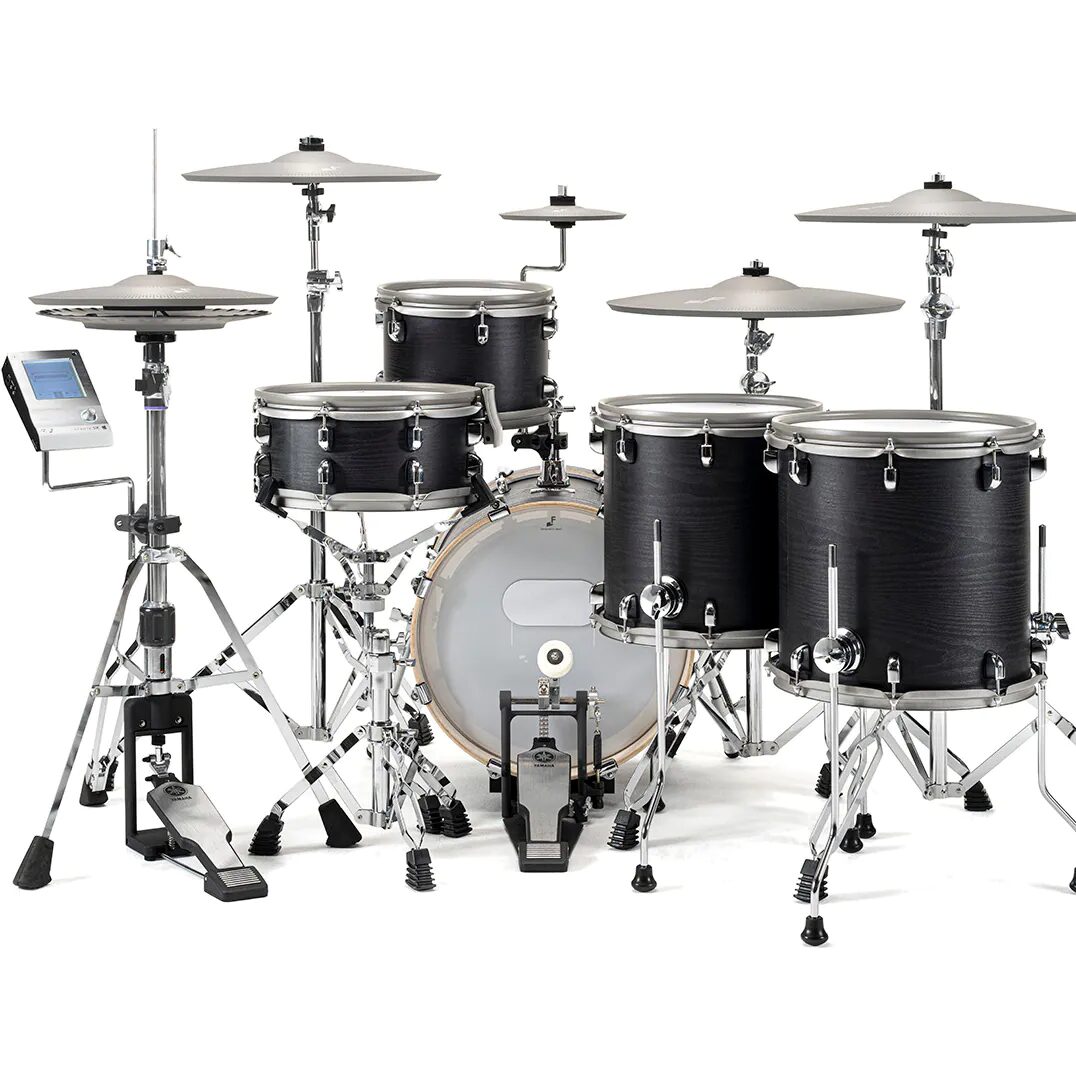

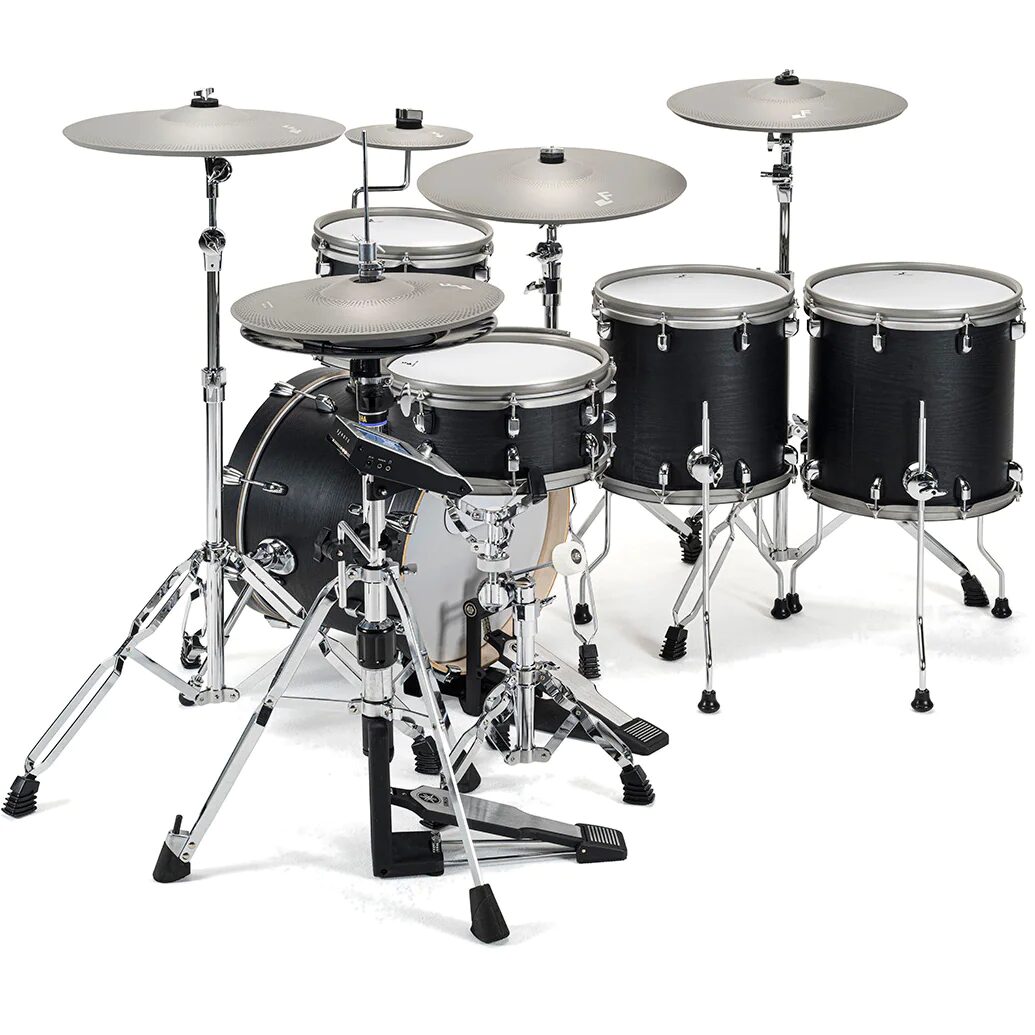

Type electronic drum kitfull-size
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)52.0 kg
Dimensions (incl. packaging)120.0 x 70.0 x 60.0 cm
Product specifications

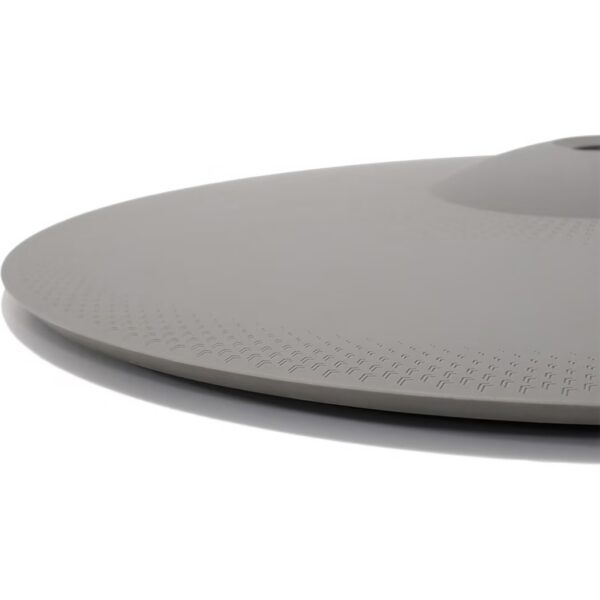

drum/cymbal pads:

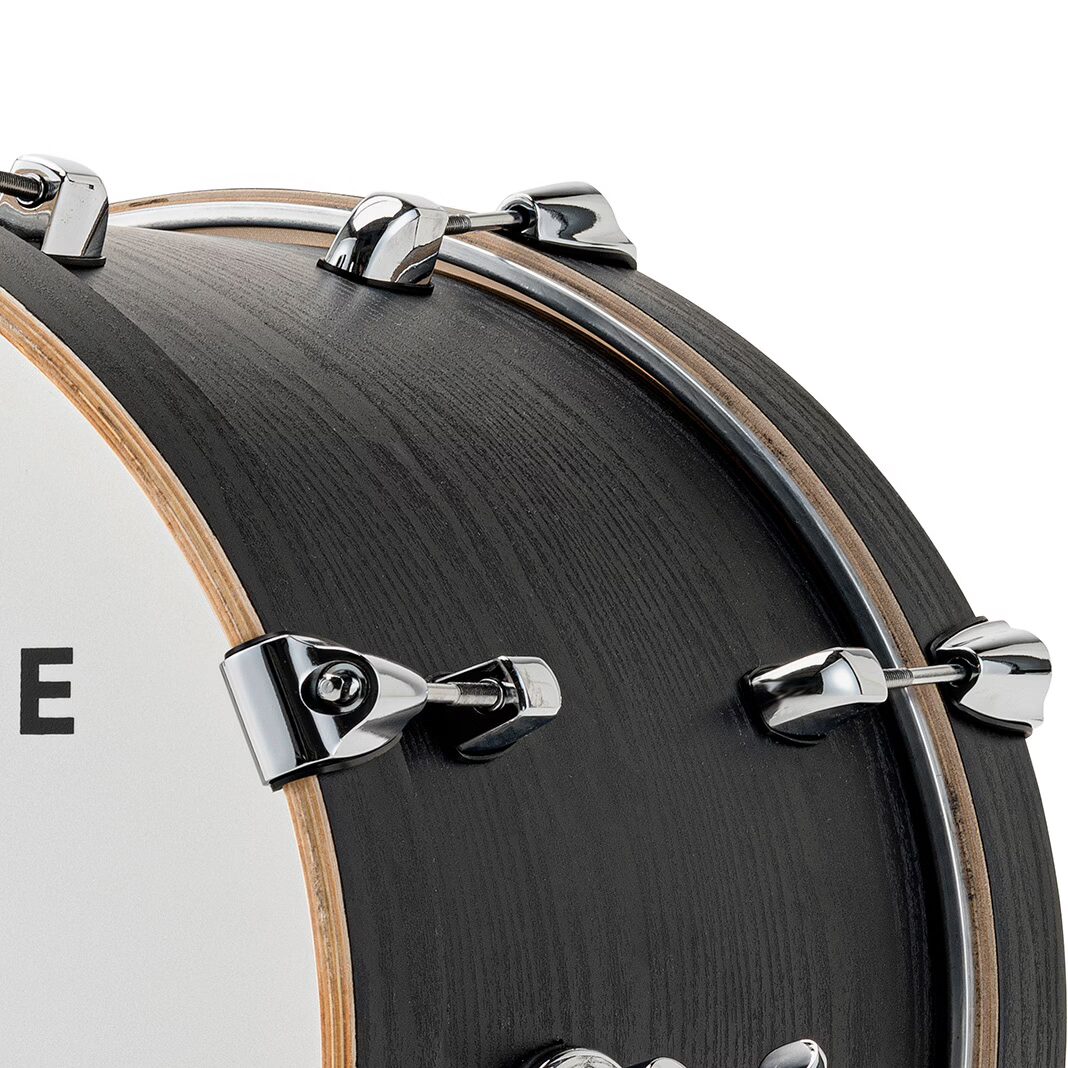

kick: 16″ x 12″

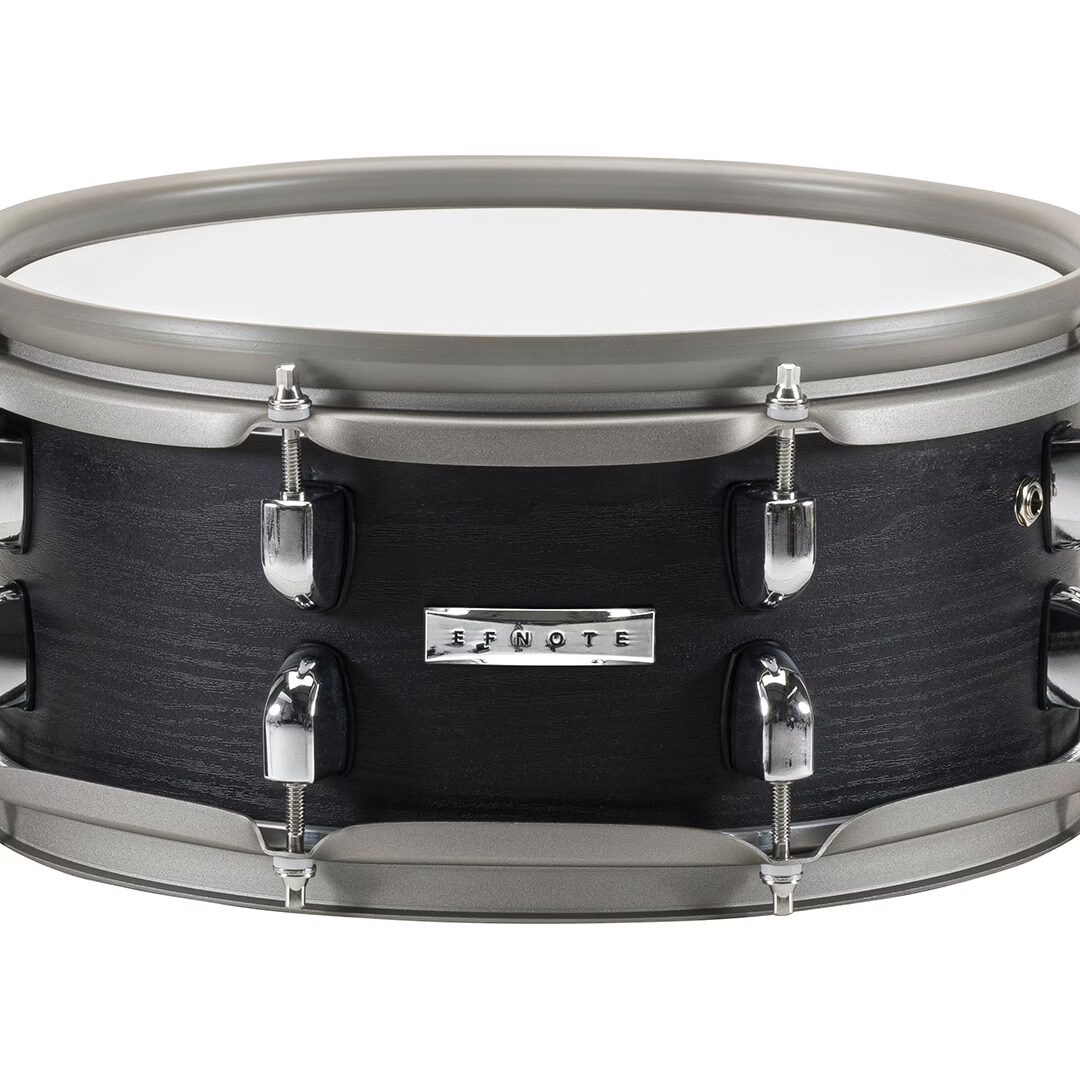

snare: 12″ x 5″
tom: 10″ x 7″

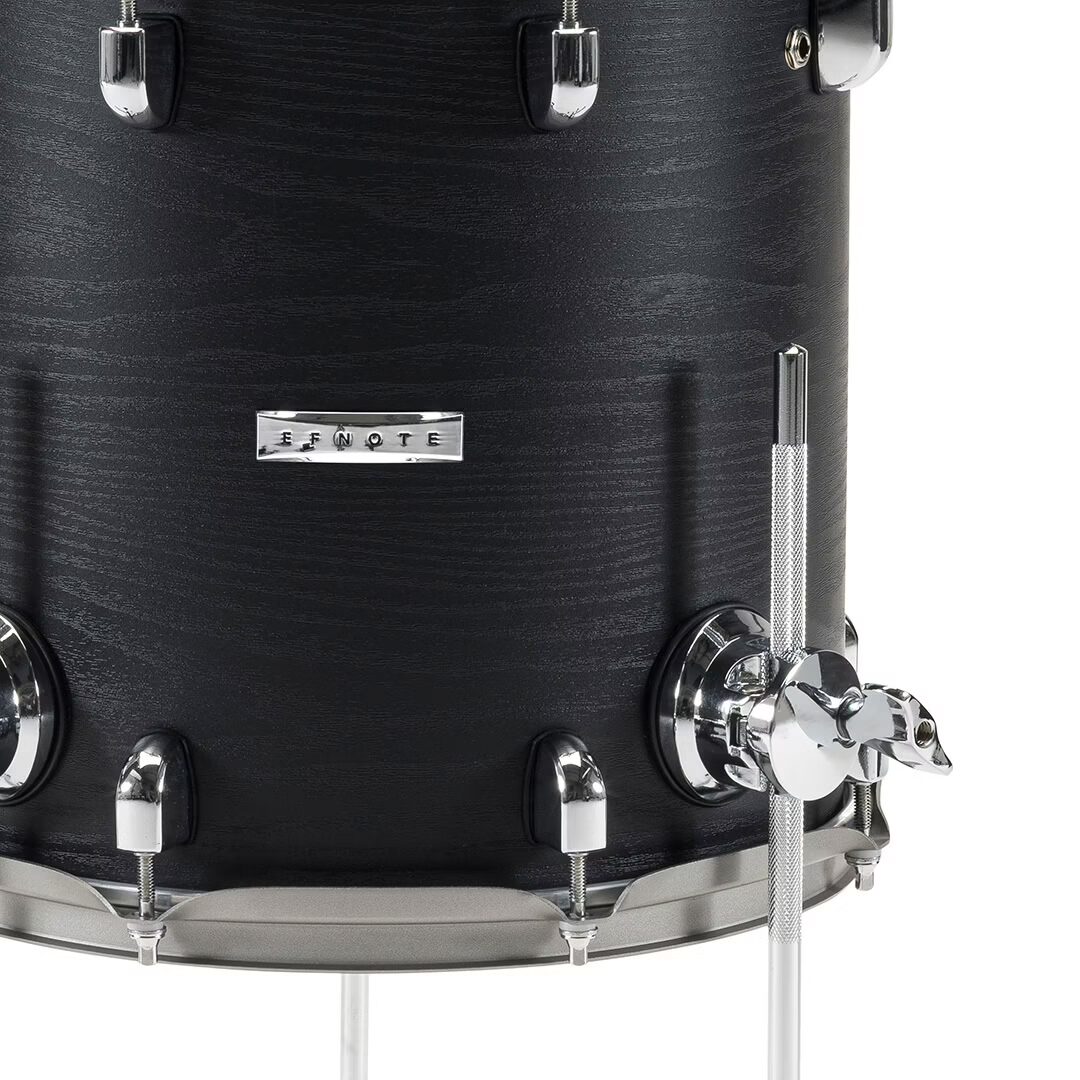

floor tom 1: 12″ x 12″
floor tom 2: 13″ x 13″

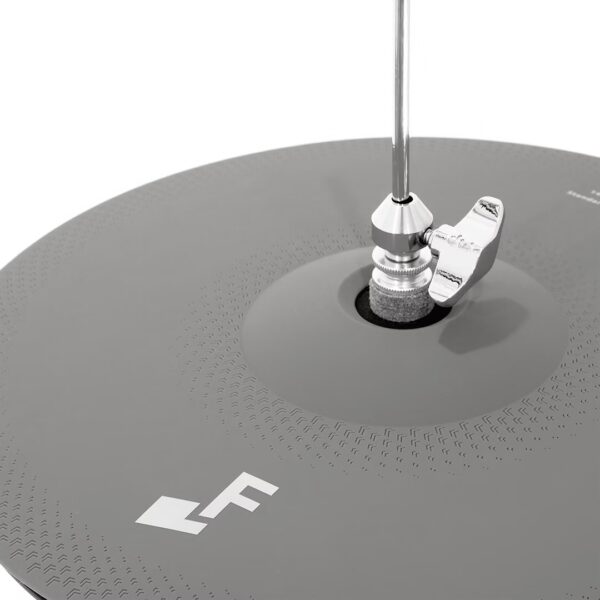

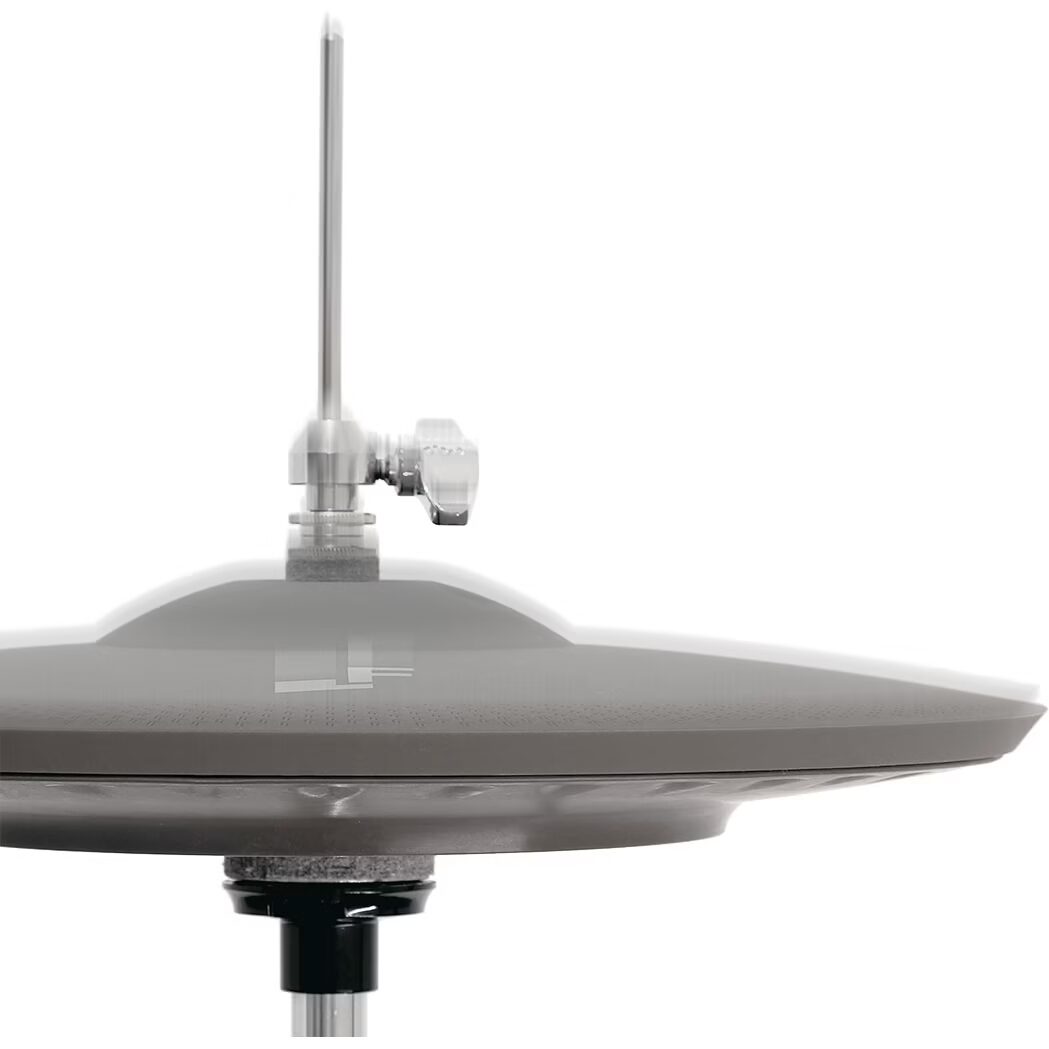

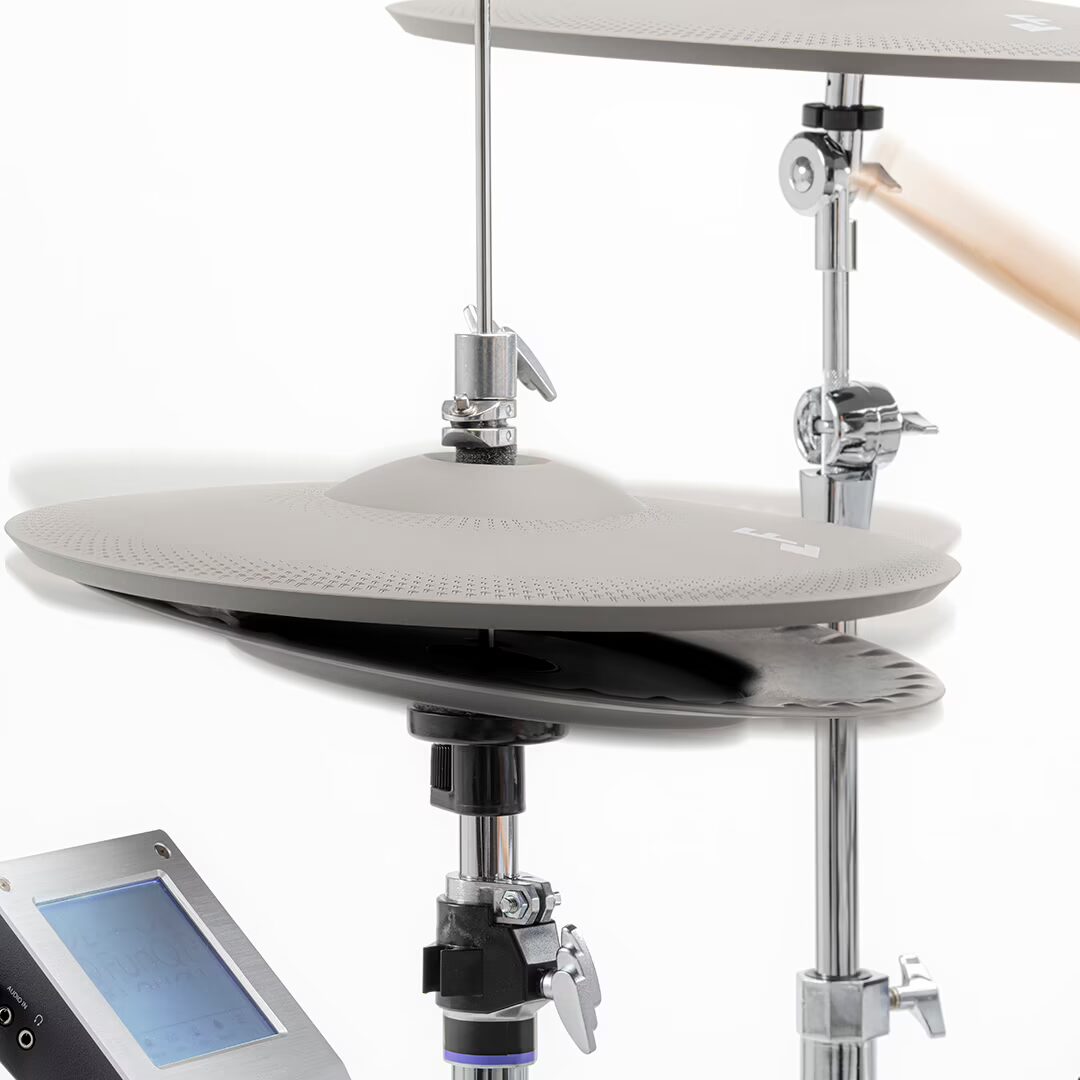

hi-hat: 14″ (upper, lower)

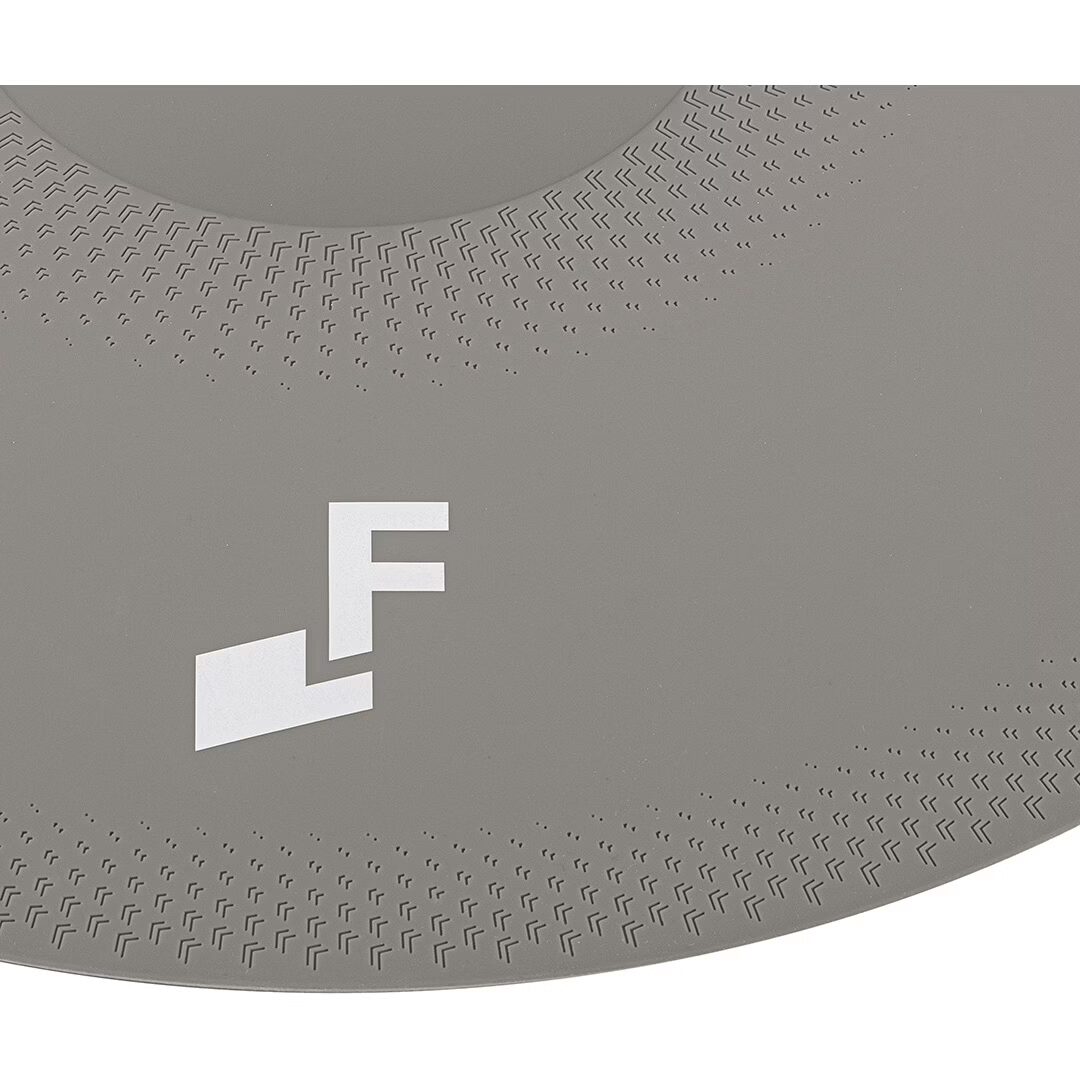

crash 1/2: 16″
ride: 18″

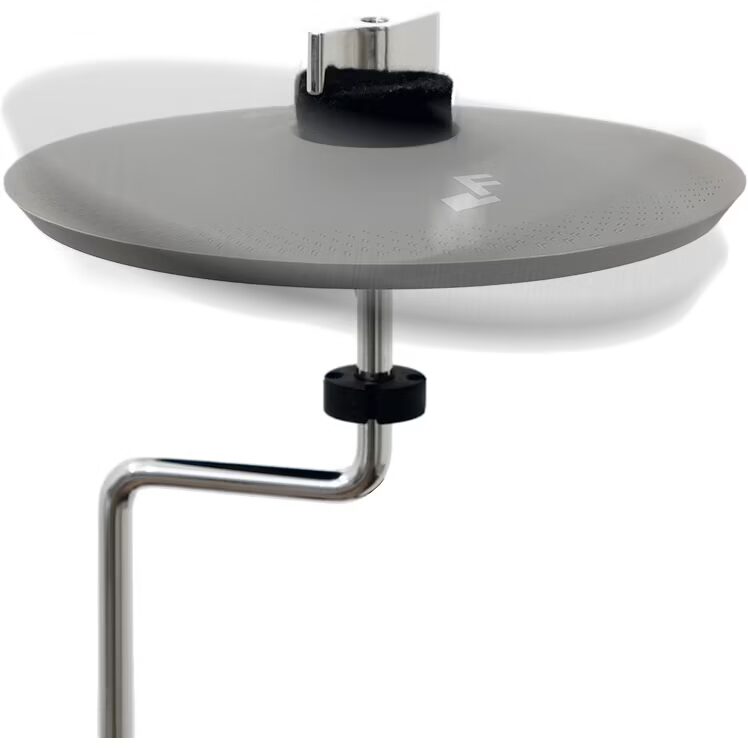

splash: 8″

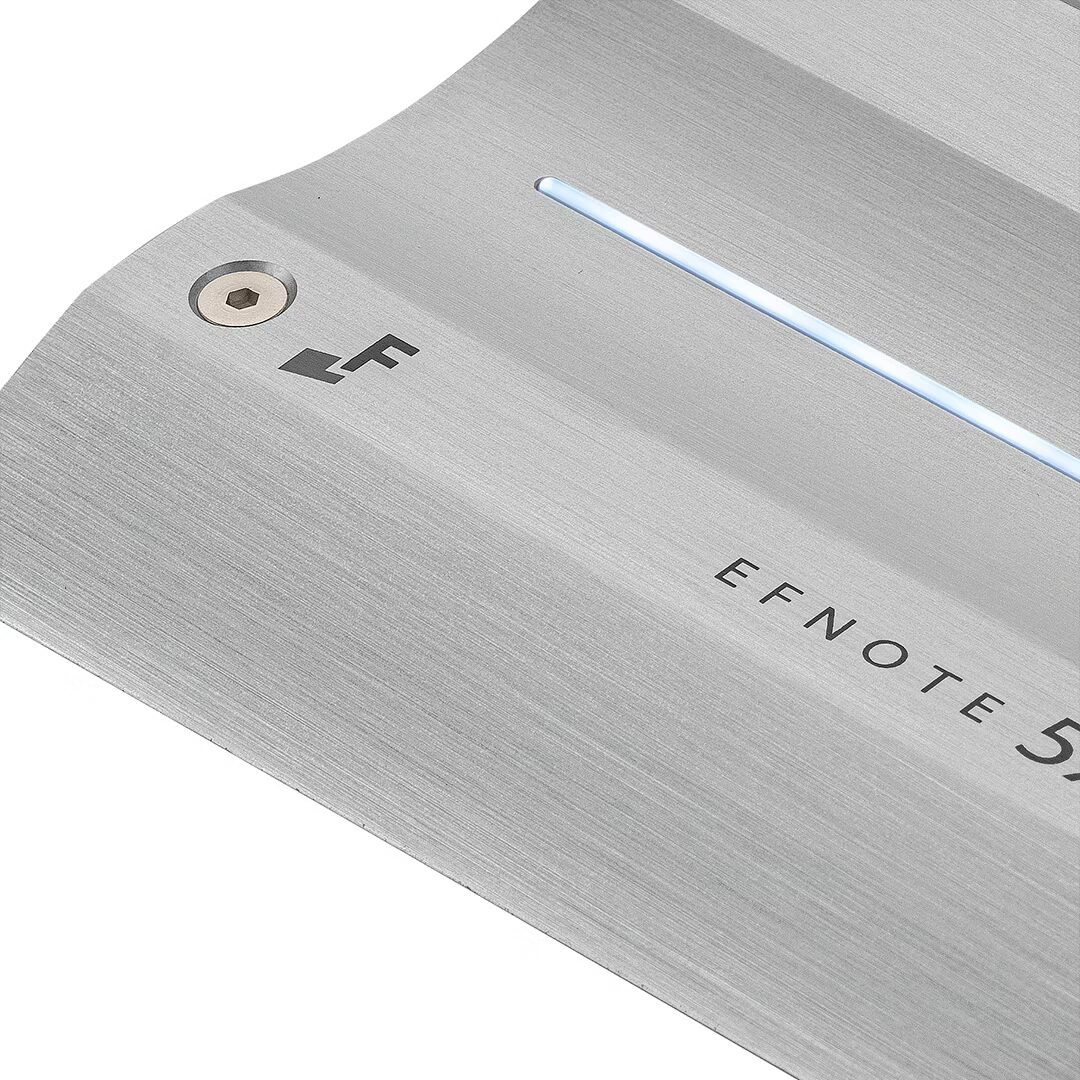

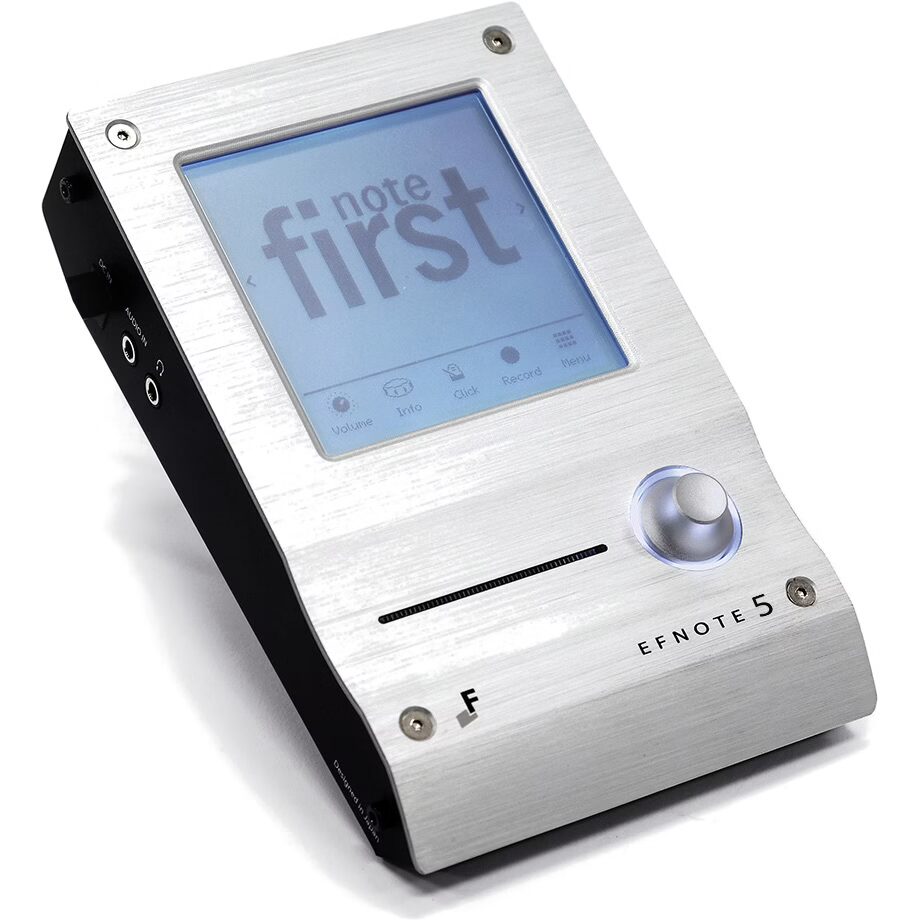

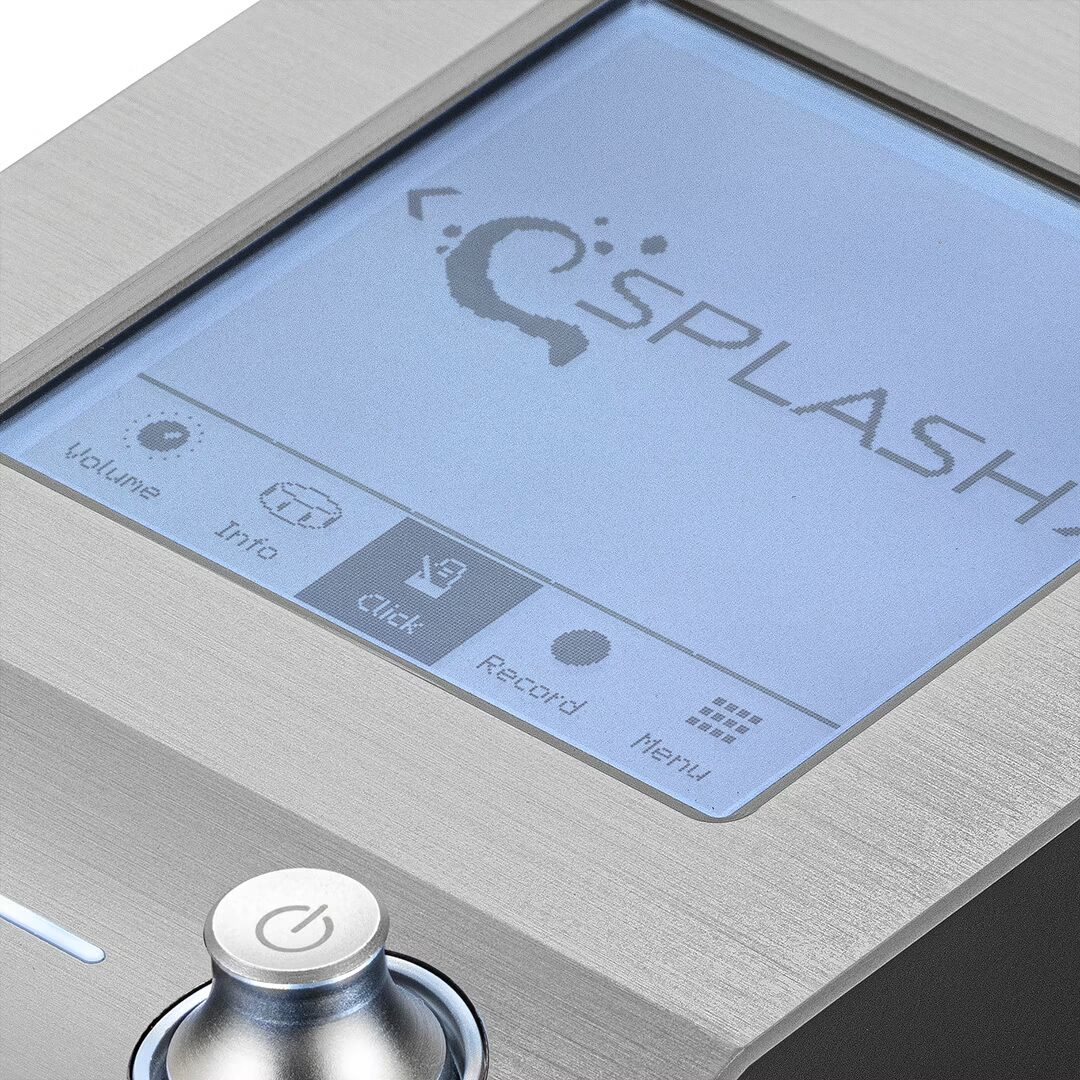

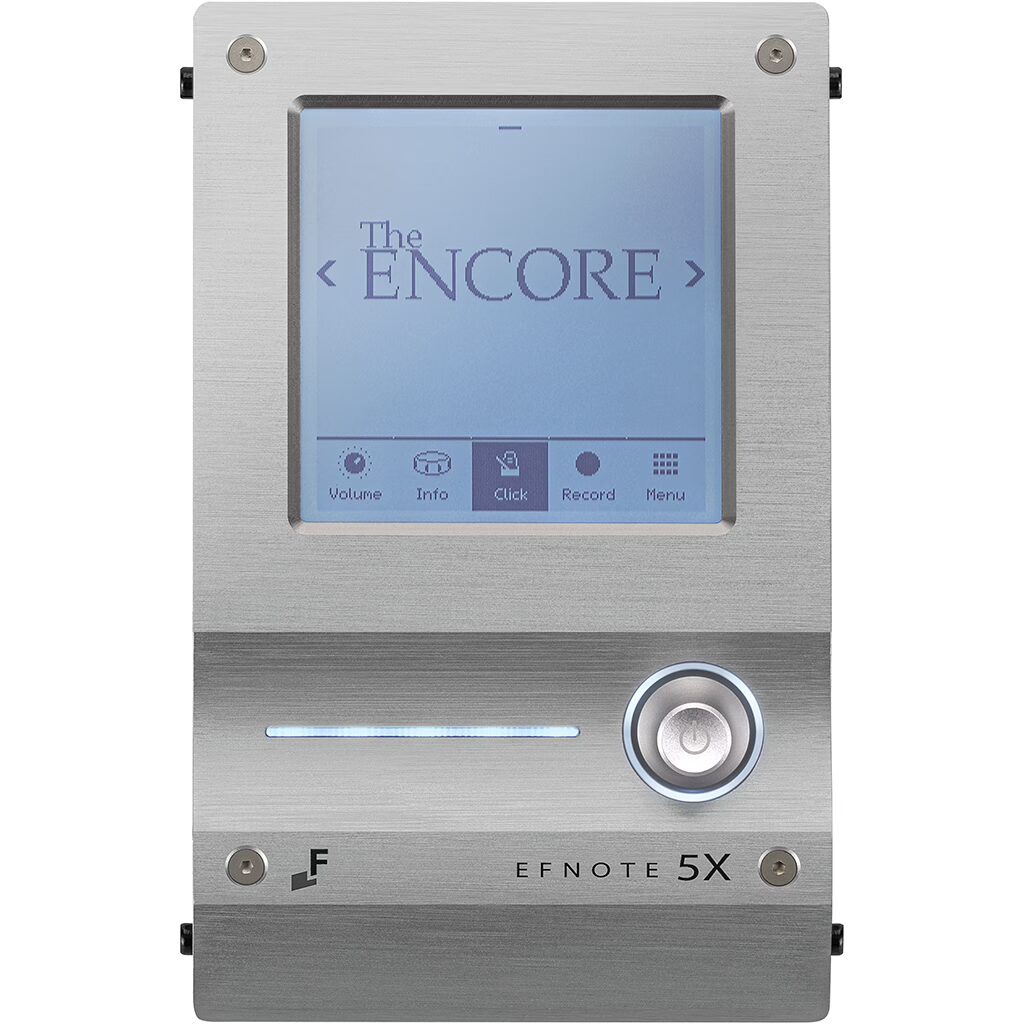

drum module: EFD-5X
trigger interface:
3-Zone: Snare, Crash 1/2*, Ride
2-Zone: Tom 1/2/3/4, HH, Crash 3
1-Zone: Kick
Crash 1/2 support 3-zone via Tom 4/Crash 3 cables
The EFNOTE 5X configuration does not support the Crash 2 cymbal when the Crash 3 cymbal is in use.

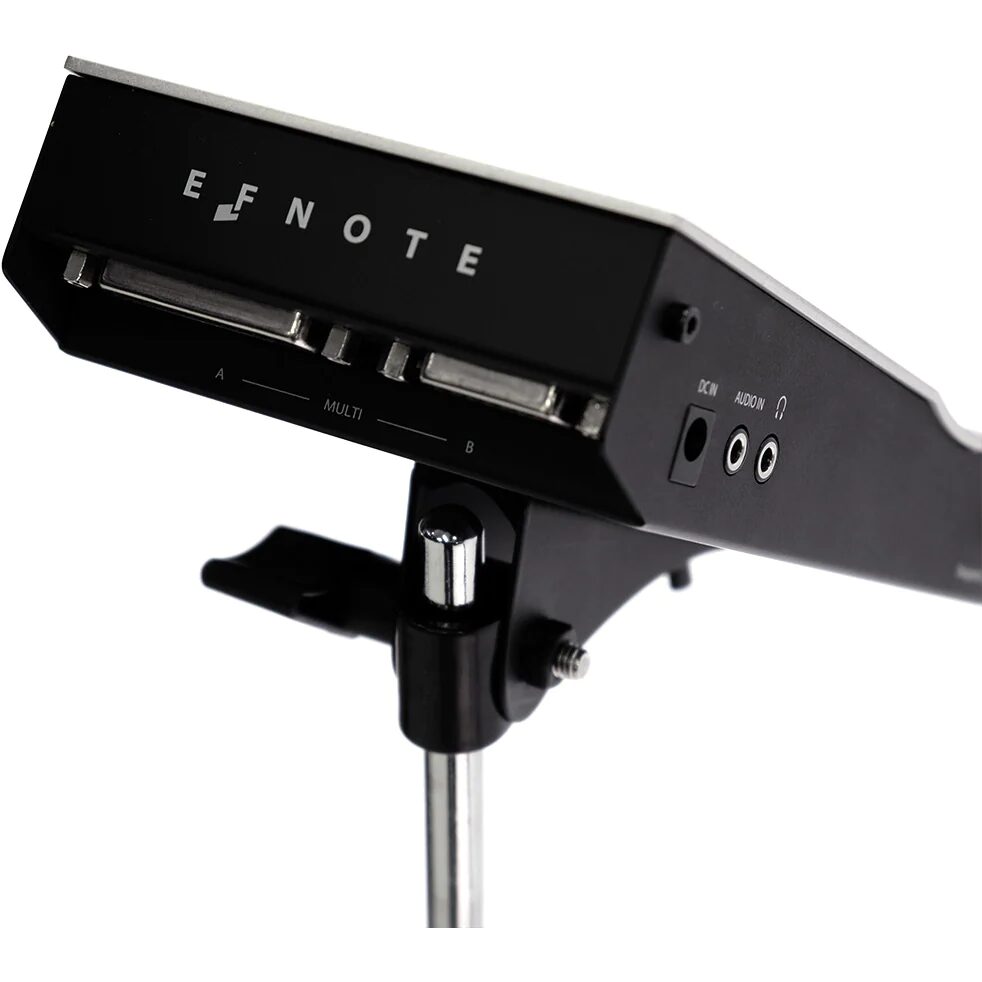

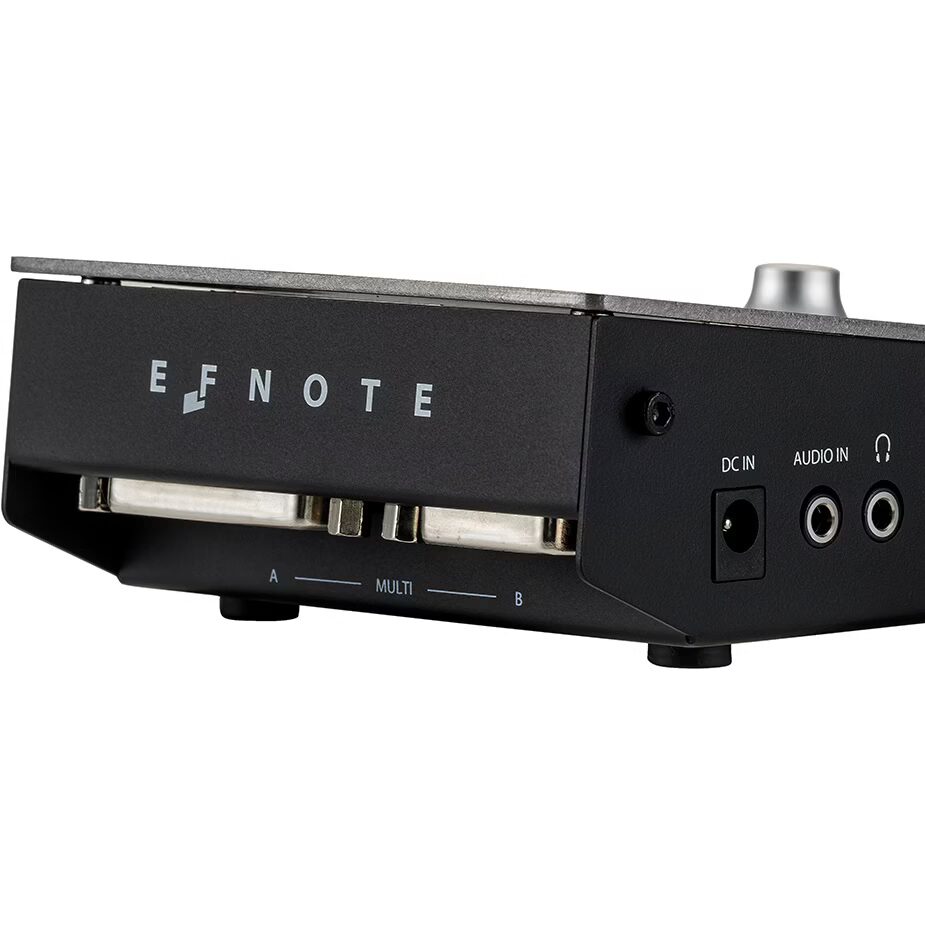

Audio/MIDI-interface:
Line (1/2) Output: 2x TS Phone (+4dBu, unbalanced)
headphone (3/4) output: stereo mini-jack (320 mW + 320 mW @32Ω)
audio input: stereo mini-jack (+2dBu Max)

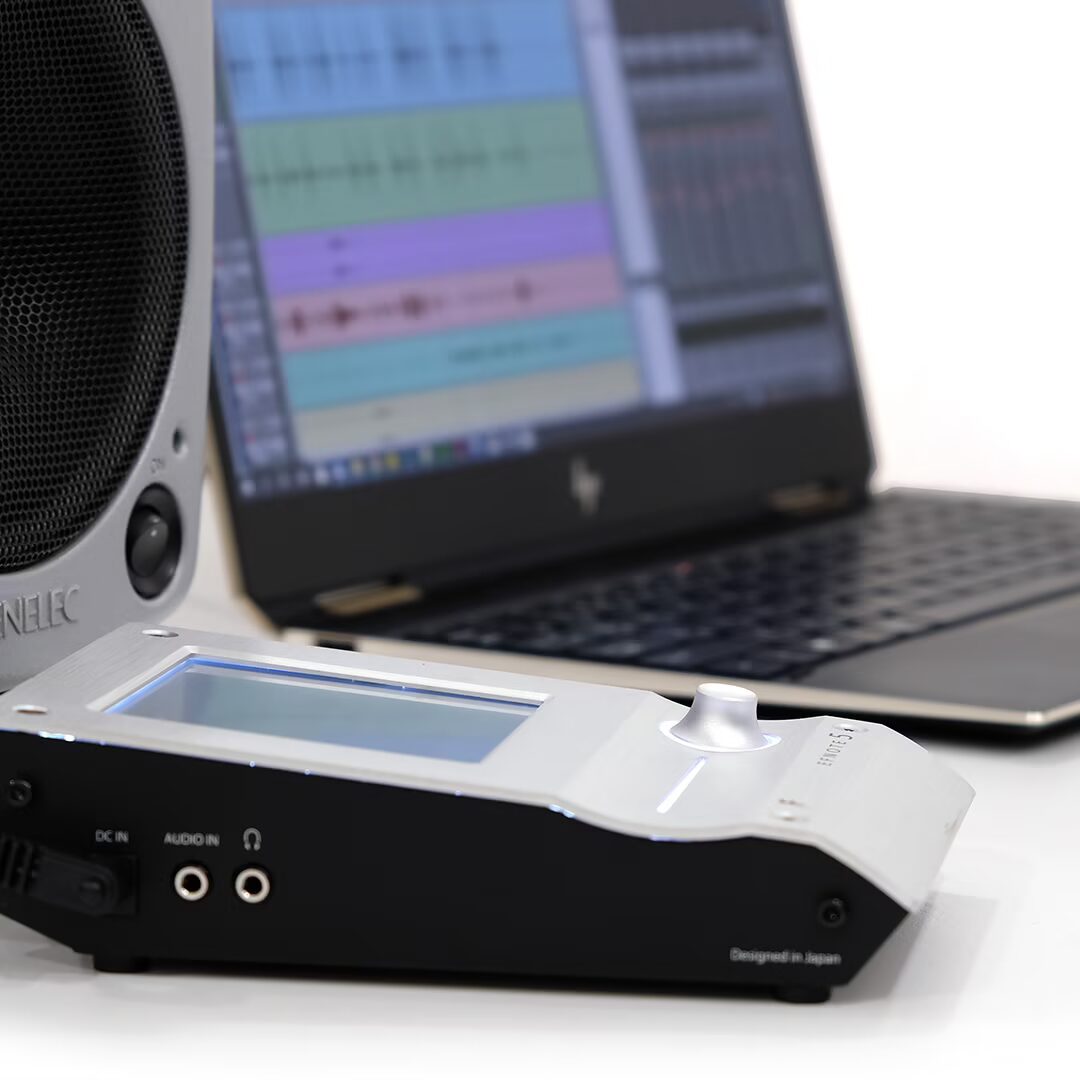

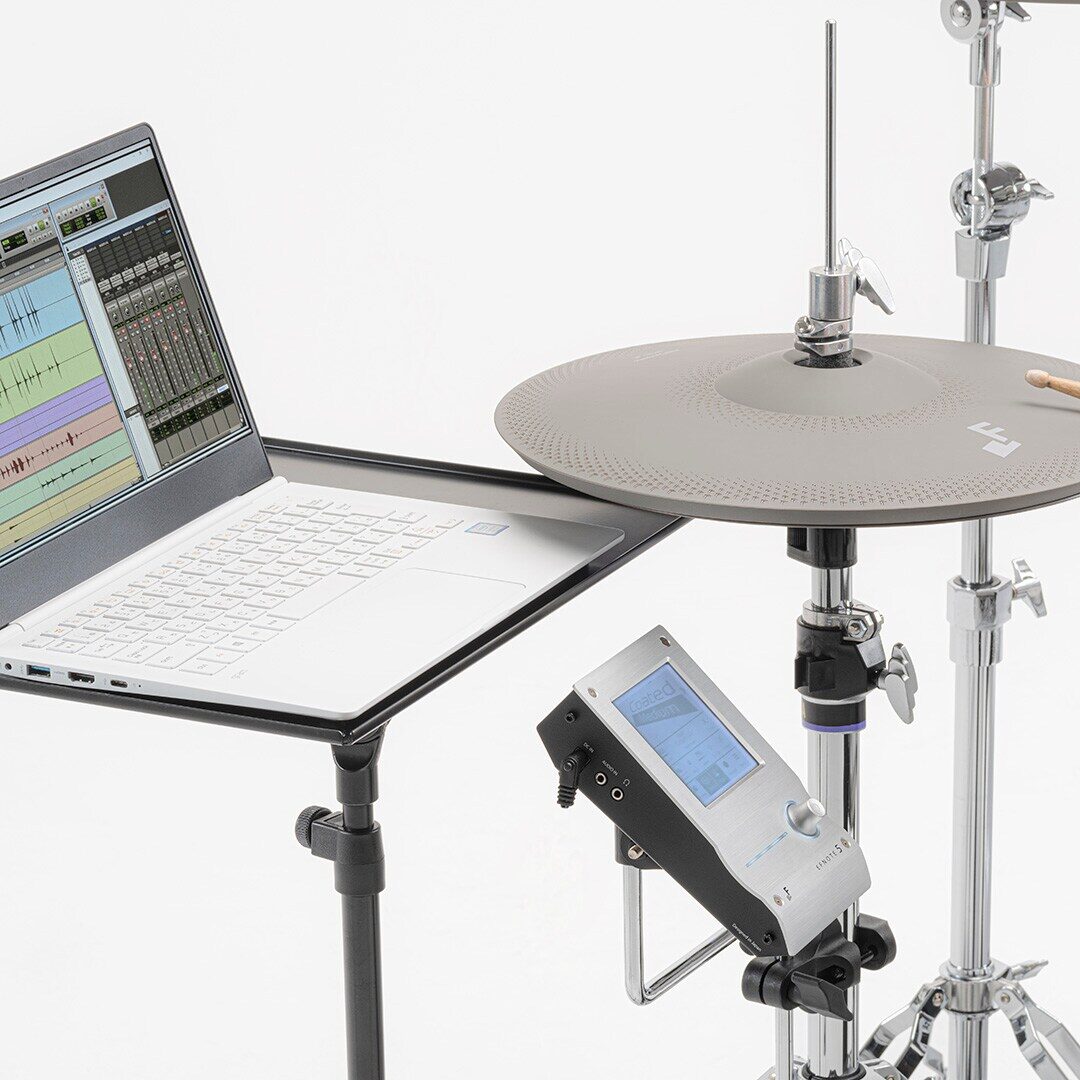

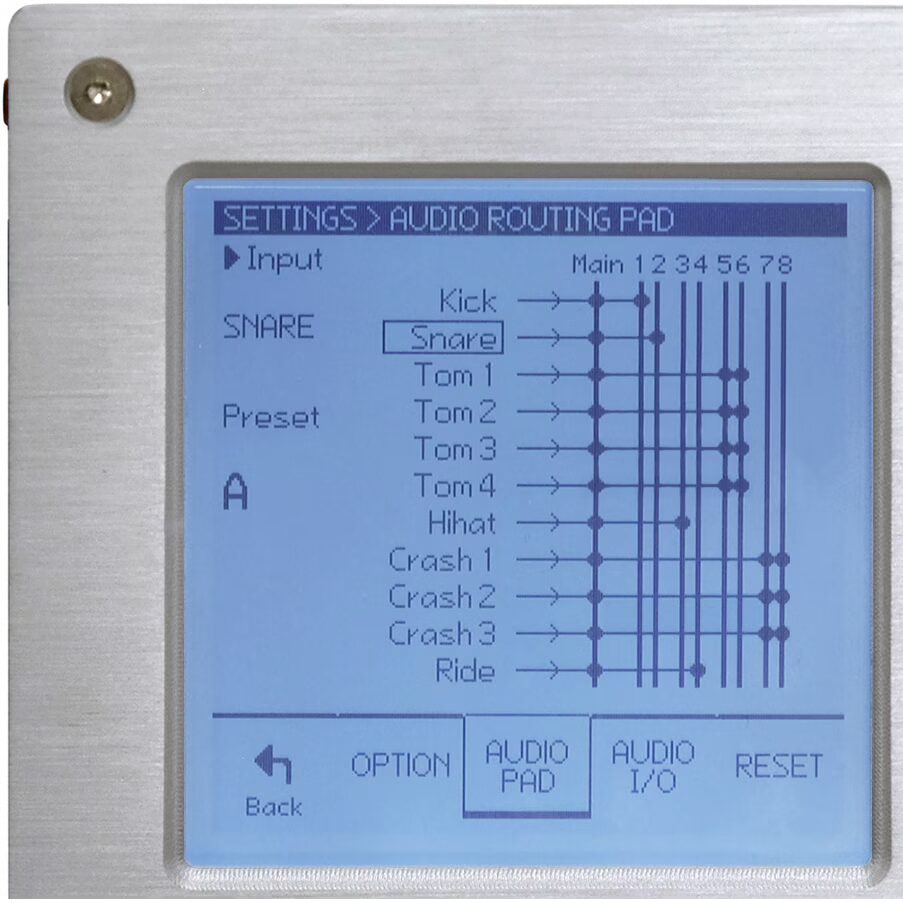

USB Audio: 8-ch Output / 2-ch Input (Mac/Windows ASIO)
USB MIDI I/O
Bluetooth audio input
Bluetooth MIDI (BLE) In/Out
MIDI Out: 5-pin DIN
drum kits:
Preset Drum Kits: 17 (customisable)
User Drum Kits: 83
Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements
User Instrument Library: 128
parameters:

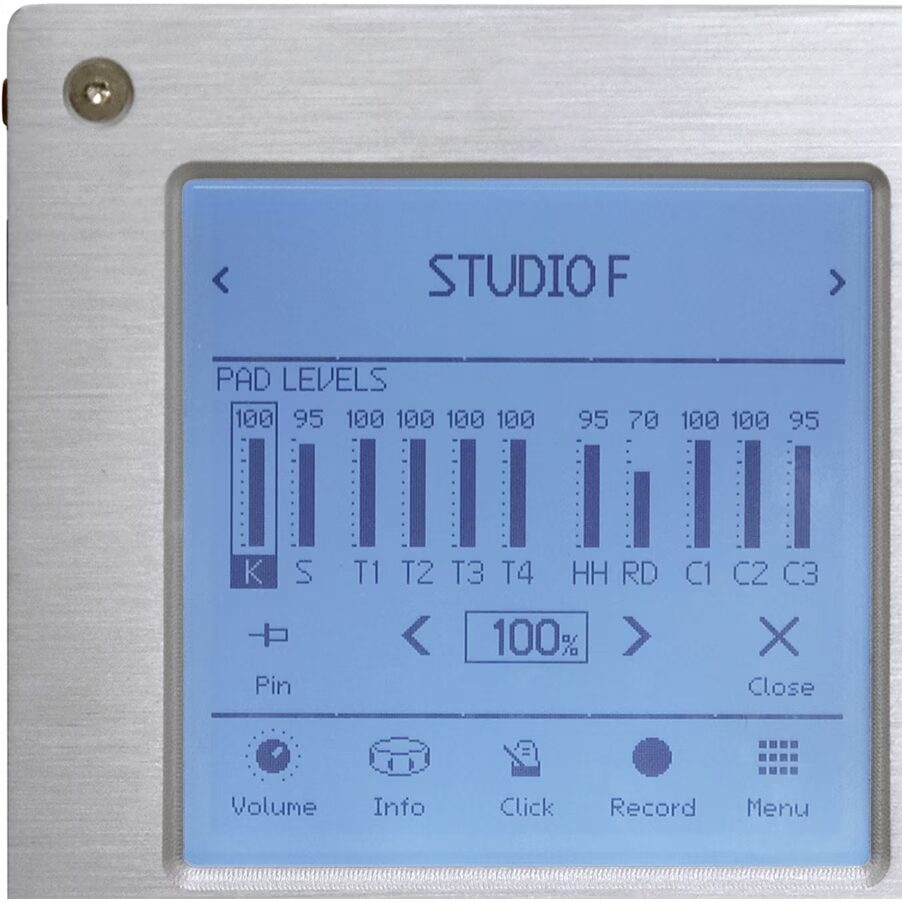

Level, Pan, Tuning, Muffling (per pad)
2-Band EQ (per pad)
Ambience Effect (8 types)
Pad Layer
power supply: DC 12V, 500mA (nominal) / 800mA (max)
module dimensions: 17.2 x 10.6 x 4.7cm
module weight: 700g
hardware
tom mount:
height adjustable: 70 – 90cm

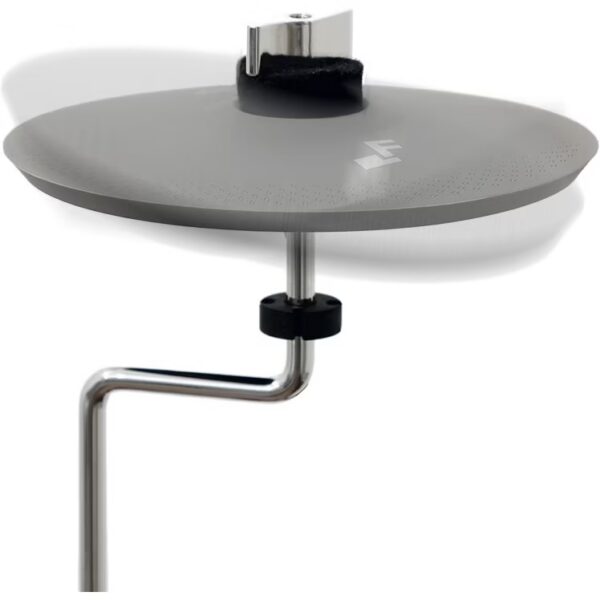

splash cymbal arm: 1x Z-rod short, 1x Z-rod long
module arm inc. smartphone tray
dimensions (set up): 170 x 110cm
included:

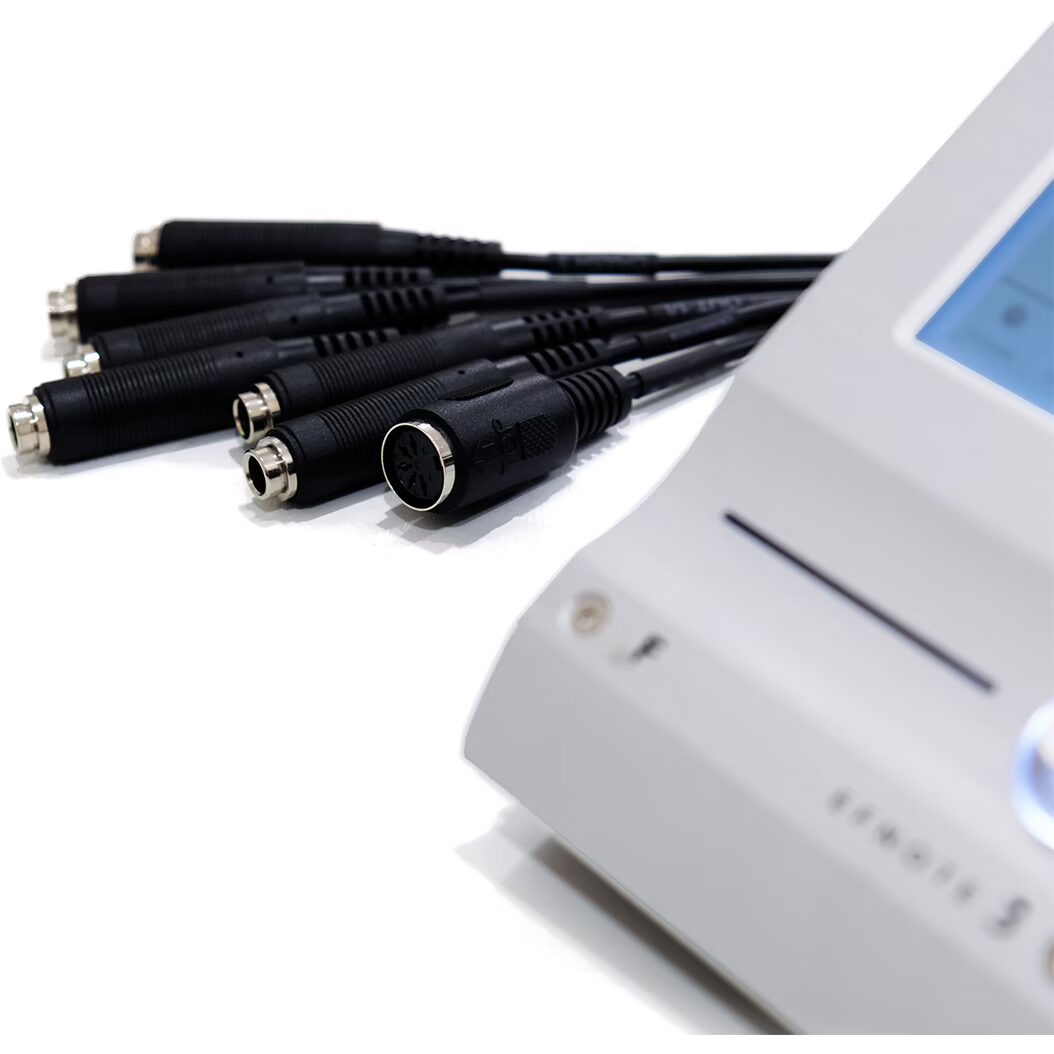

break-out cable: EFD-MULTI-A3,
break-out cable: EFD-MULTI-B,
4x trigger cable, 3m: EFD-TRS-LL3,
cable binders,
quick start guide
