Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 73
Arpeggiator/sequencerarpeggiator, sequencer
Computer integration not specified
Control switch pedal (input), dampening pedal (input)
Synthesizer inputs line in, audio over usb
Sound source digital
MIDI & CV/gate MIDI in, MIDI out, MIDI thru, MIDI over USB
Synthesizer outputs line out jack, headphone, audio over USB
Type of keys semi-weighted
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)14.6 kg
Dimensions (incl. packaging)122.7 x 38.6 x 11.6 cm
Product specifications

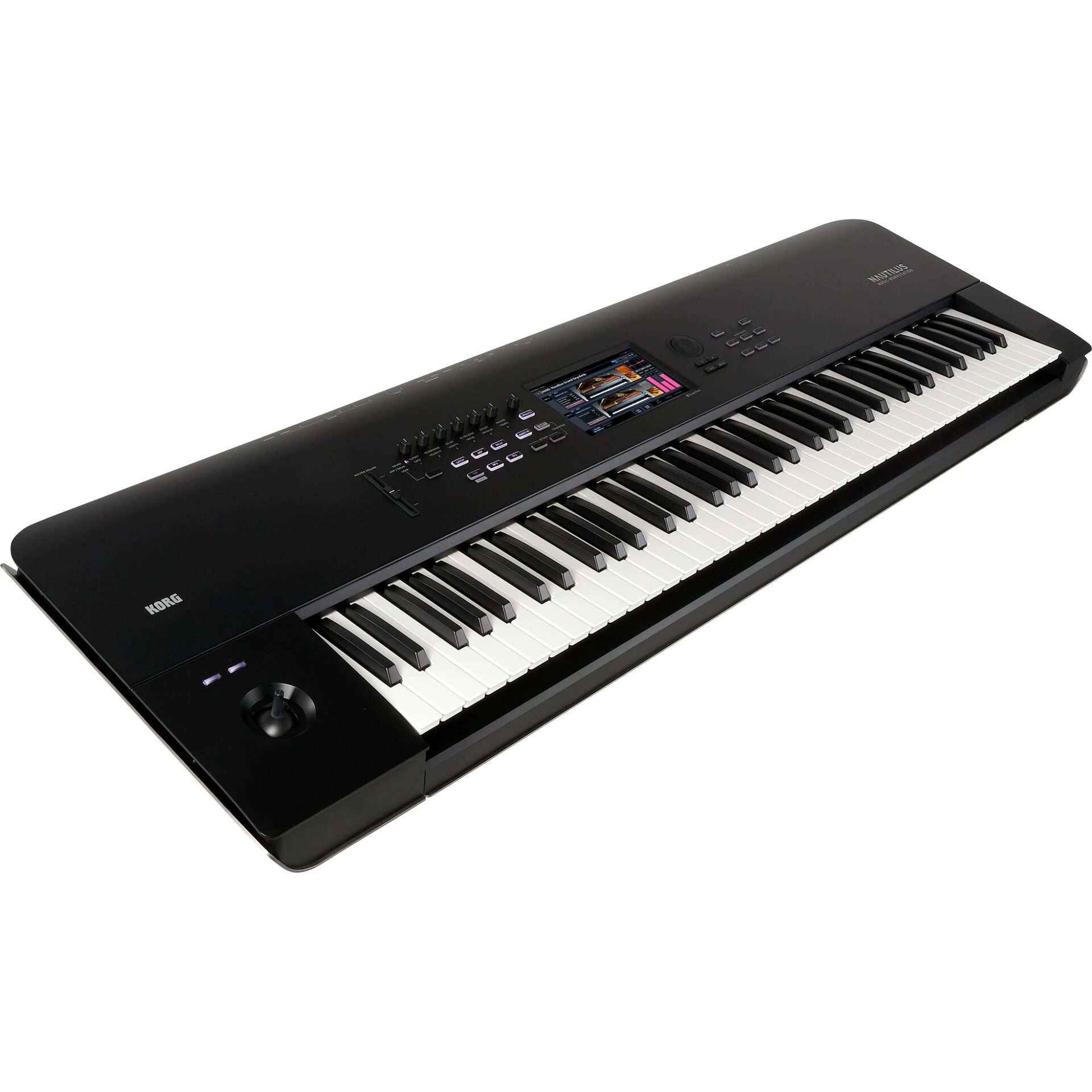

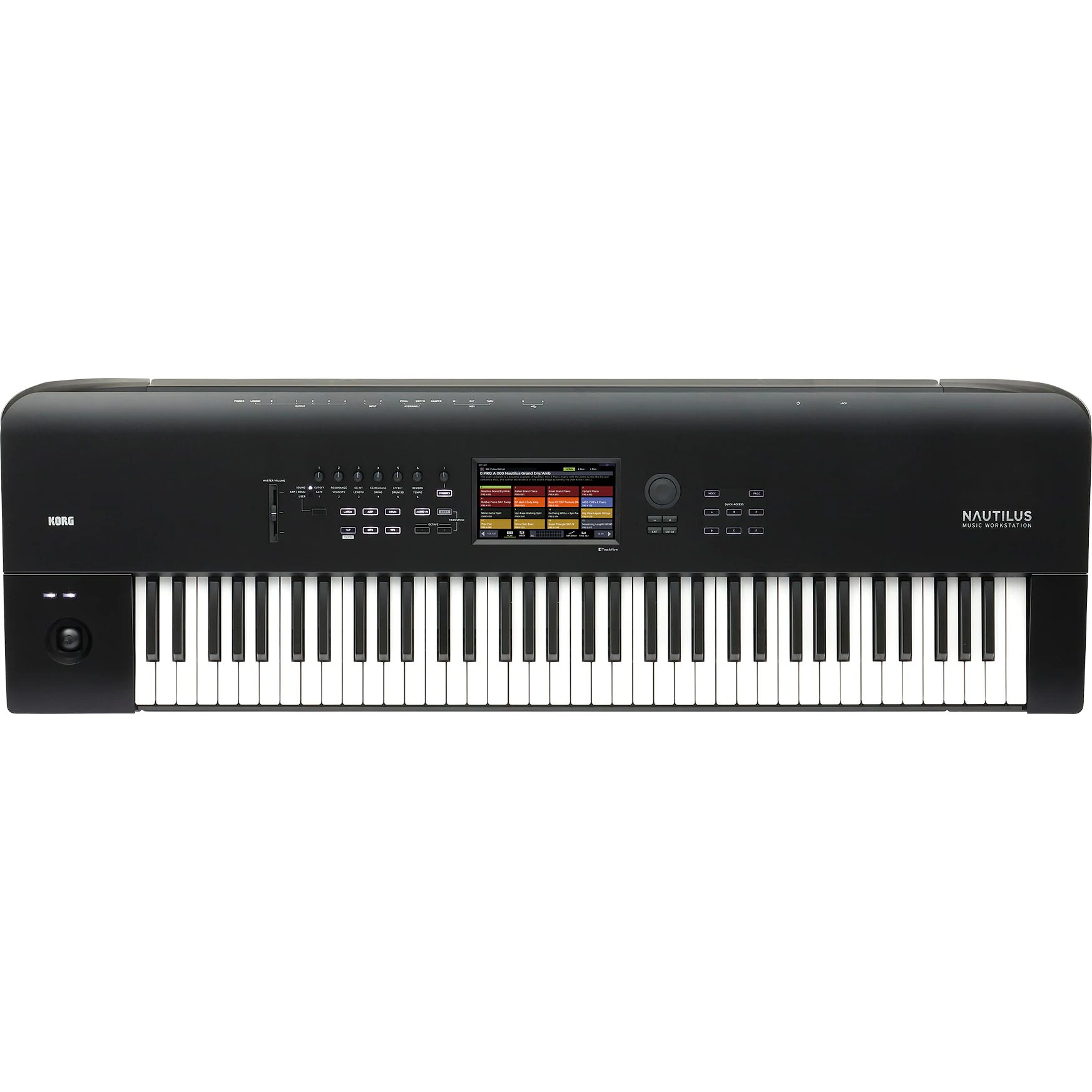

Korg Nautilus synthesizer workstation
73-note keyboard
9 sound engines
SGX-2 Premium Piano
EP-1 Electric MDS piano
CX-3 Tonewheel Organ
HD-1 High Definition Synthesizer PCM
MS-20EX analogue modelling (Legacy Analog Collection)
PolysixEX analogue modelling (Legacy Analog Collection)
AL-1High-fidelity analogue modelling
MOD-7 VPM/FM synthesis
STR-1 physical modelling
preset PCM: RAM 496 MB / DISK 2.3G (ROM 1771 multi-samples, 3955 drum samples)
built-in Expansion PCM library:
EXs301: German2 D Piano
EXs302: Italian F Piano
EXs303: Japanese Upright U Piano
EXs304: Prepared Piano
EXs305: Historical Keyboards
EXs306: Vintage Keyboards 2
EXs307: Strings & Synths
EXs308: Guitar Collection
EXs309: Bass Collection
EXs310: World Essence
EXs311: Background Loops
EXs312: SFX & Hits
EXs313: Found Percussion
EXs314: Expansion Drums
user memory programmes: 2560 (1280 pre-loaded)
user memory combinations: 1792 (256 pre-loaded)
user memory drum kits: 264 (104 pre-loaded)
max. number of setlists: 128
sampling:
Open Sampling System (resampling, In-Track sampling)
fast sample speed possible, in Program, Combination as well as Sequencer mode
RAM: 16-bit/48 kHz stereo/mono sampling
Disk: 16 of 24-bit/48 kHz
file formats: Korg format, AKAI S1000/S3000 data, SoundFont 2.0, AIFF and WAV
effects:
insert fx: 12 stereo in/out
master fx: 2 stereo in/out
total fx: 2 stereo in/out
one 3-band EQ per timbre/track
effect types: 197
modulation: Dynamic Modulation & Common LFO
effect-presets: total 783 , max. 32 per 1 effect
arpeggiator with 5 presets
sequencer/HDR:
16-track MIDI sequencer + 16-track hard disk recorder + 1 master track
tonal number of songs: 200
resolution: 1/480
tempo: 40 – 300 BPM
max. memory: 400.000 MIDI events or 300.000 audio-events
display:
7-inch touch colour display TFT
800 x 480 dots
adjustable brightness
equipped with TouchView GUI
controls:
joystick (pitch bend & modulation)
switch 1 & 2
arpeggiator control: on/off, latch, gate, velocity, length, swing, tempo
drum track: on/off, swing, drum SD, tempo
outputs:
L/MONO + R output, 6.3mm jack
1 – 4 individual outputs , 6.3mm jack
output impedance: 350 Ohms stereo, 175 Ohms mono (L/MONO only)
‘main volume’ slider only applies to L/MONO+R outputs (max. volume +16dB)
stereo headphone output, 6.3mm jack
USB-B (24-bit audio, sample rate 48kHz, two channels)
inputs:
balanced input 1+2, 6.3mm jack
(damper)pedal, 6.3mm jack (half-damper supported)
switch, 6.3mm jack (assignable to pedal)
USB-B (24-bit audio, sample rate 48 kHz, two channels)
USB-A for QWERTY keyboards, MIDI controllers, ethernet adapters, storage medium, etc.
MIDI:
in
out
thru
USB-B (16-channels in/output)
internal memory: 60GB SSD (2.5″)
dimensions: 122.7 x 38.6 x 11.6cm
weight: 4.6 lbs (14.6 kg)
power consumption: 40W
power supply included
quick start guide included
included software: Izotope Ozone Elements, Skoove, Reason Lite, many software-synths
