Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 88
Arpeggiator/sequencerarpeggiator, sequencer
Computer integration not specified
Control switch pedal (input), dampening pedal (input)
Synthesizer inputs line in, audio over usb
Sound source digital
MIDI & CV/gate MIDI in, MIDI out, MIDI thru, MIDI over USB
Synthesizer outputs line out jack, headphone, audio over USB
Type of keys hammer action
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)23.1 kg
Dimensions (incl. packaging)143.7 x 38.7 x 13.9 cm
Product specifications

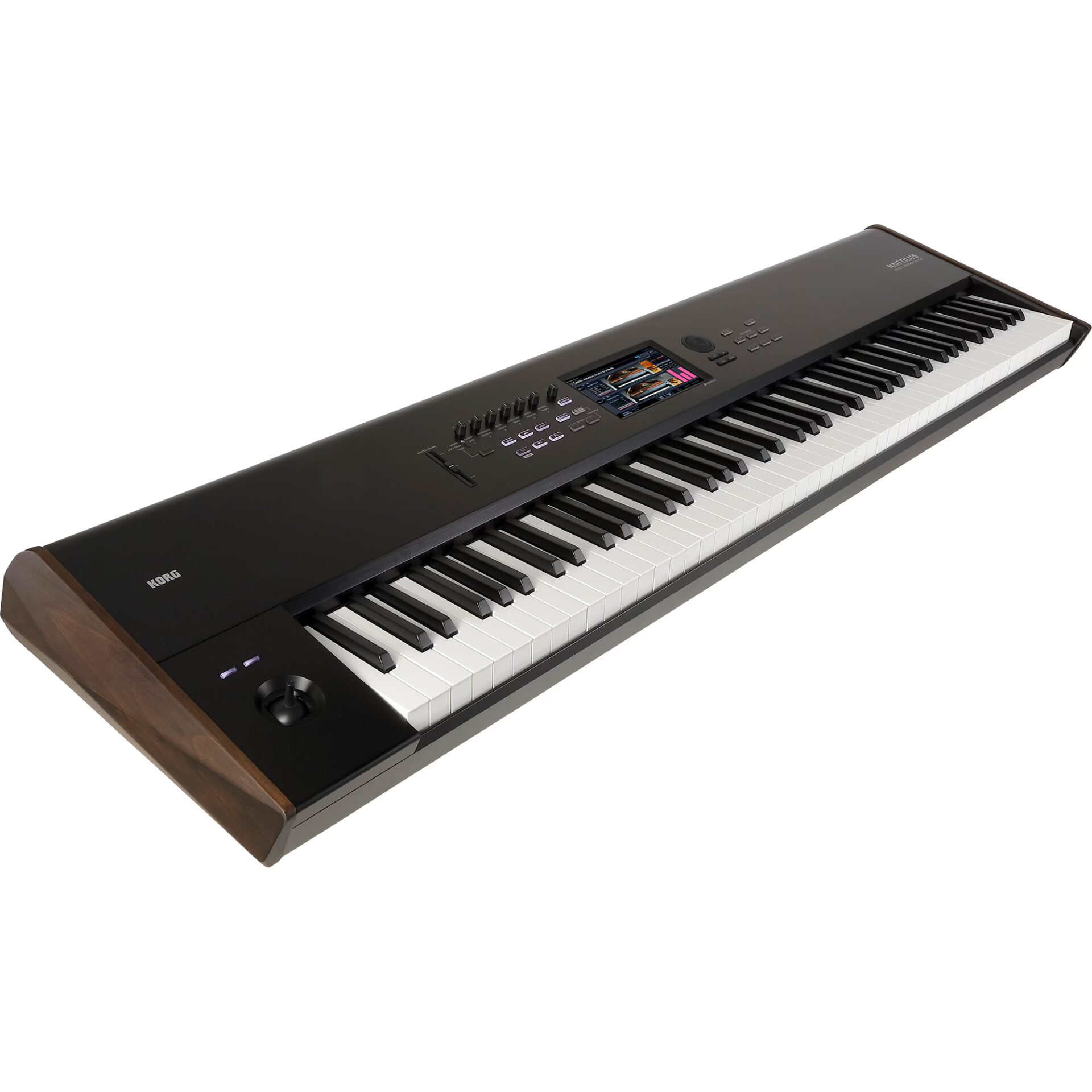

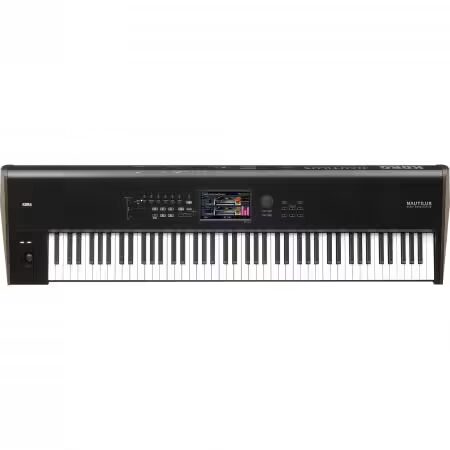

Korg Nautilus synthesizer workstation
keys: 88 hammer-action, RH-3 keys
9 sound engines
SGX-2 Premium Piano
EP-1 Electric MDS piano
CX-3 Tonewheel Organ
HD-1 High Definition Synthesizer PCM
MS-20EX analogue modelling (Legacy Analog Collection)
PolysixEX analogue modelling (Legacy Analog Collection)
AL-1High-fidelity analogue modelling
MOD-7 VPM/FM synthesis
STR-1 physical modelling
preset PCM: RAM 496 MB / DISK 2.3G (ROM 1771 multi-samples, 3955 drum samples)
built-in Expansion PCM library:
EXs301: German2 D Piano
EXs302: Italian F Piano
EXs303: Japanese Upright U Piano
EXs304: Prepared Piano
EXs305: Historical Keyboards
EXs306: Vintage Keyboards 2
EXs307: Strings & Synths
EXs308: Guitar Collection
EXs309: Bass Collection
EXs310: World Essence
EXs311: Background Loops
EXs312: SFX & Hits
EXs313: Found Percussion
EXs314: Expansion Drums
user memory programmes: 2560 (1280 pre-loaded)
user memory combinations: 1792 (256 pre-loaded)
user memory drum kits: 264 (104 pre-loaded)
max. number of setlists: 128
sampling:
Open Sampling System (resampling, In-Track sampling)
fast sample speed possible, in Program, Combination as well as Sequencer mode
RAM: 16-bit/48 kHz stereo/mono sampling
Disk: 16 of 24-bit/48 kHz
file formats: Korg format, AKAI S1000/S3000 data, SoundFont 2.0, AIFF and WAV
effects:
insert fx: 12 stereo in/out
master fx: 2 stereo in/out
total fx: 2 stereo in/out
one 3-band EQ per timbre/track
effect types: 197
modulation: Dynamic Modulation & Common LFO
effect-presets: total 783 , max. 32 per 1 effect
arpeggiator with 5 presets
sequencer/HDR:
16-track MIDI sequencer + 16-track hard disk recorder + 1 master track
tonal number of songs: 200
resolution: 1/480
tempo: 40 – 300 BPM
max. memory: 400.000 MIDI events or 300.000 audio-events
display:
7-inch touch colour display TFT
800 x 480 dots
adjustable brightness
equipped with TouchView GUI
controls:
joystick (pitch bend & modulation)
switch 1 & 2
arpeggiator control: on/off, latch, gate, velocity, length, swing, tempo
drum track: on/off, swing, drum SD, tempo

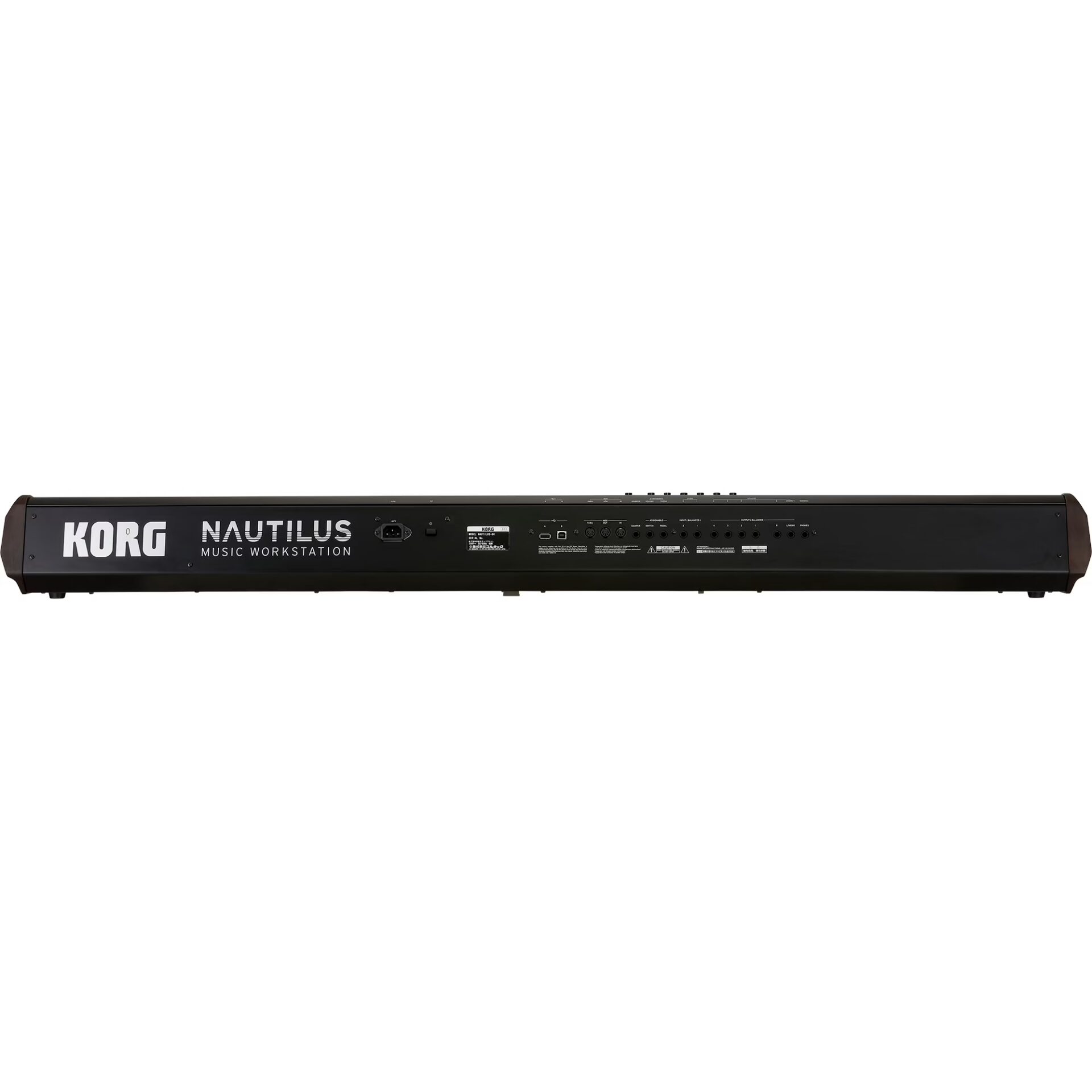

outputs:
L/MONO + R output, 6.3mm jack
1 – 4 individual outputs , 6.3mm jack
output impedance: 350 Ohms stereo, 175 Ohms mono (L/MONO only)
‘main volume’ slider only applies to L/MONO+R outputs (max. volume +16dB)
stereo headphone output, 6.3mm jack
USB-B (24-bit audio, sample rate 48kHz, two channels)
inputs:
balanced input 1+2, 6.3mm jack
(damper)pedal, 6.3mm jack (half-damper supported)
switch, 6.3mm jack (assignable to pedal)
USB-B (24-bit audio, sample rate 48 kHz, two channels)
USB-A for QWERTY keyboards, MIDI controllers, ethernet adapters, storage medium, etc.
MIDI:
in
out
thru
USB-B (16-channels in/output)
internal memory: 60GB SSD (2.5″)
dimensions: 143.7 x 38.7 x 13.9cm
weight: 23.1kg
power consumption: 40W
power supply included
quick start guide included
included software: Izotope Ozone Elements, Skoove, Reason Lite, many software-synths
