Description
Specifications
Product features
19 inches yes
Number of auxiliaries 1 – 2
Number of microphone inputs 5 – 8
Number of mono channels 6
Number of stereo channels 8
Number of submasters none
Phantom power yes
Headphone output yes
Built-in audio interface USB (multi track)
Built-in audio player no
Built-in effects no
Built-in mixer effects channel EQ
Insert connectors 4 channels
Type of mixer inputs microphone input (XLR), unbalanced line input (RCA), Hi-Z input (TS jack), telephone input (RJ11)
Type of mixer radio / broadcasting mixer
Type of mixer outputs balanced line output (XLR), unbalanced line output (RCA), stereo headphone output (TRS jack or mini jack), telephone output (RJ11)
Volume control knobs, faders, faders + knobs
Weight and dimensions including packaging
Weight (incl. packaging)10.6 kg
Dimensions (incl. packaging)57.0 x 45.0 x 21.0 cm
Product specifications

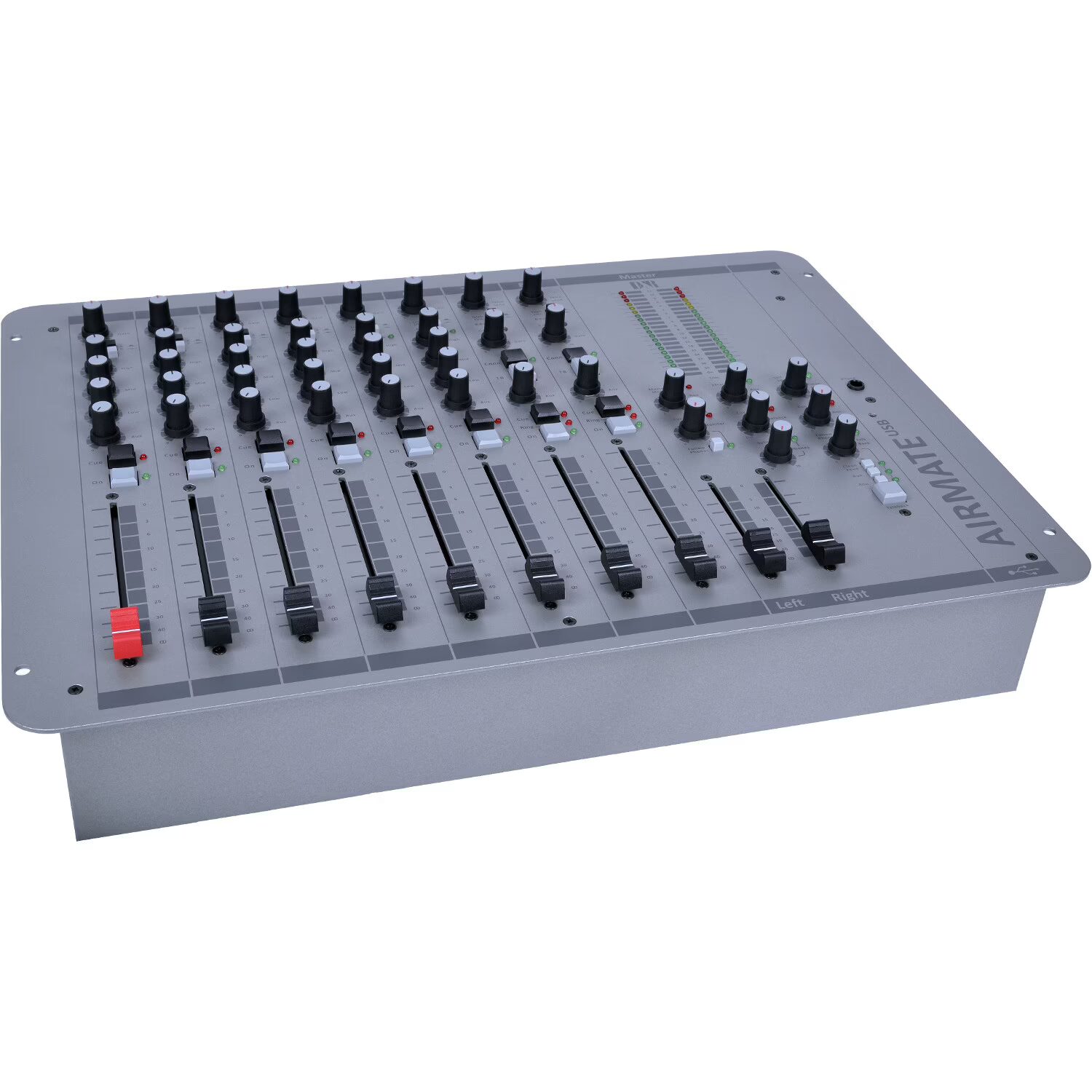

D&R Airmate-USB
8-channel broadcast mixer
2 built-in telephone inputs

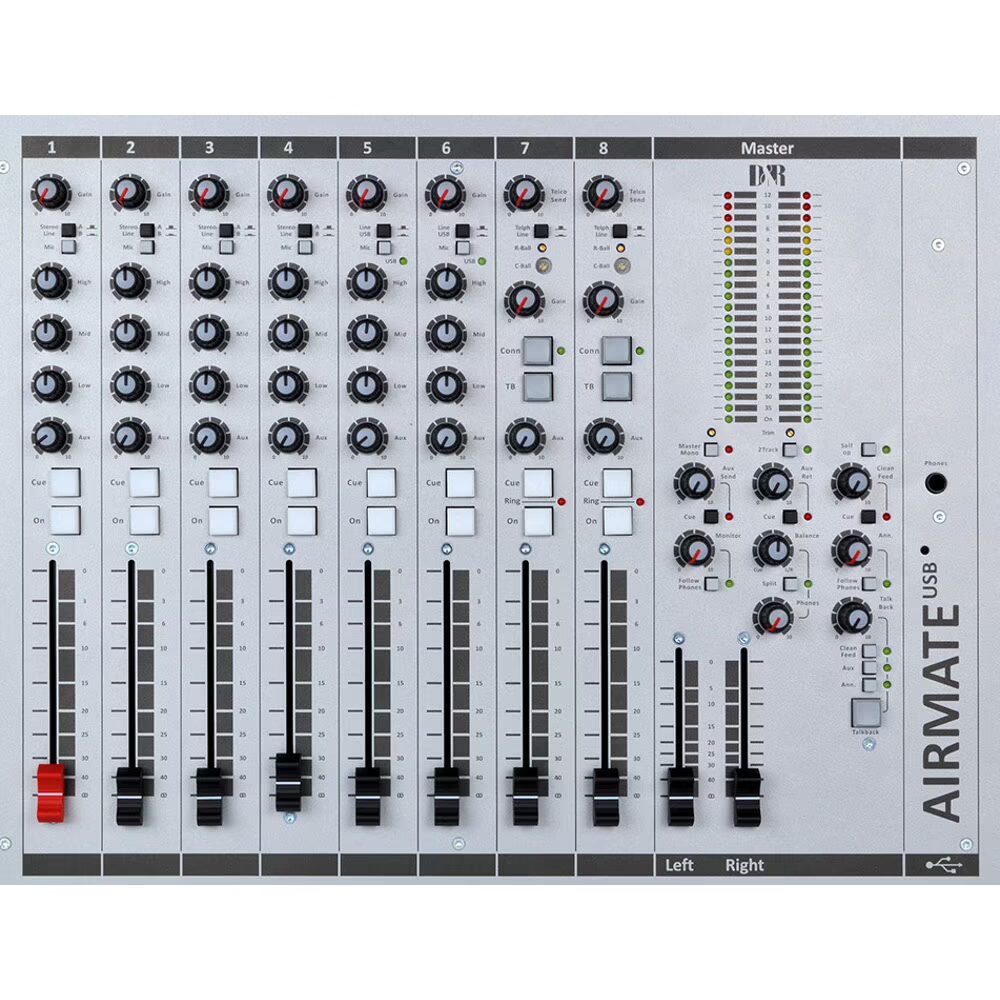

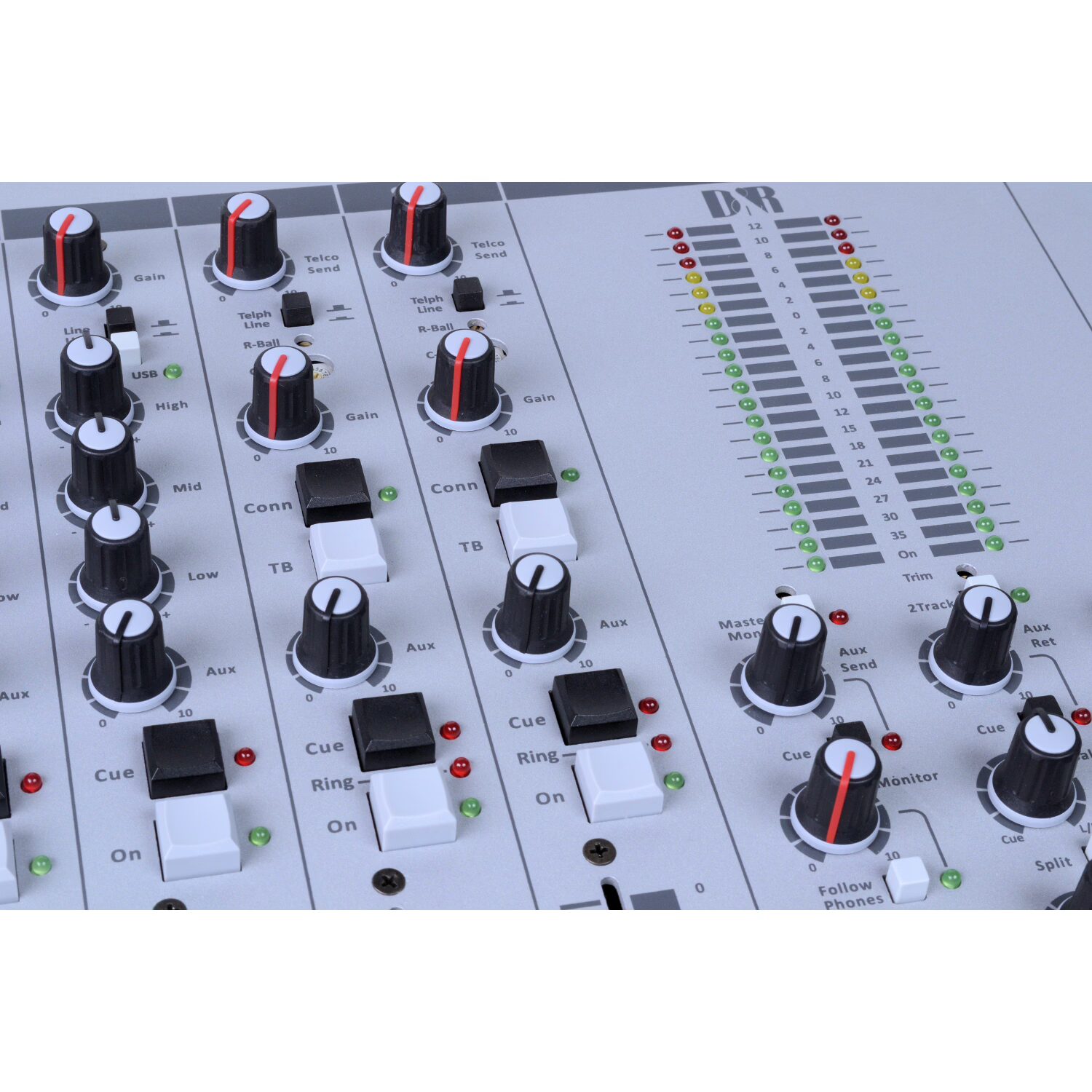

panel with clear layout
adjustable setup
technical information
frequency range: 10 Hz – 60 kHz
THD: <0.009%

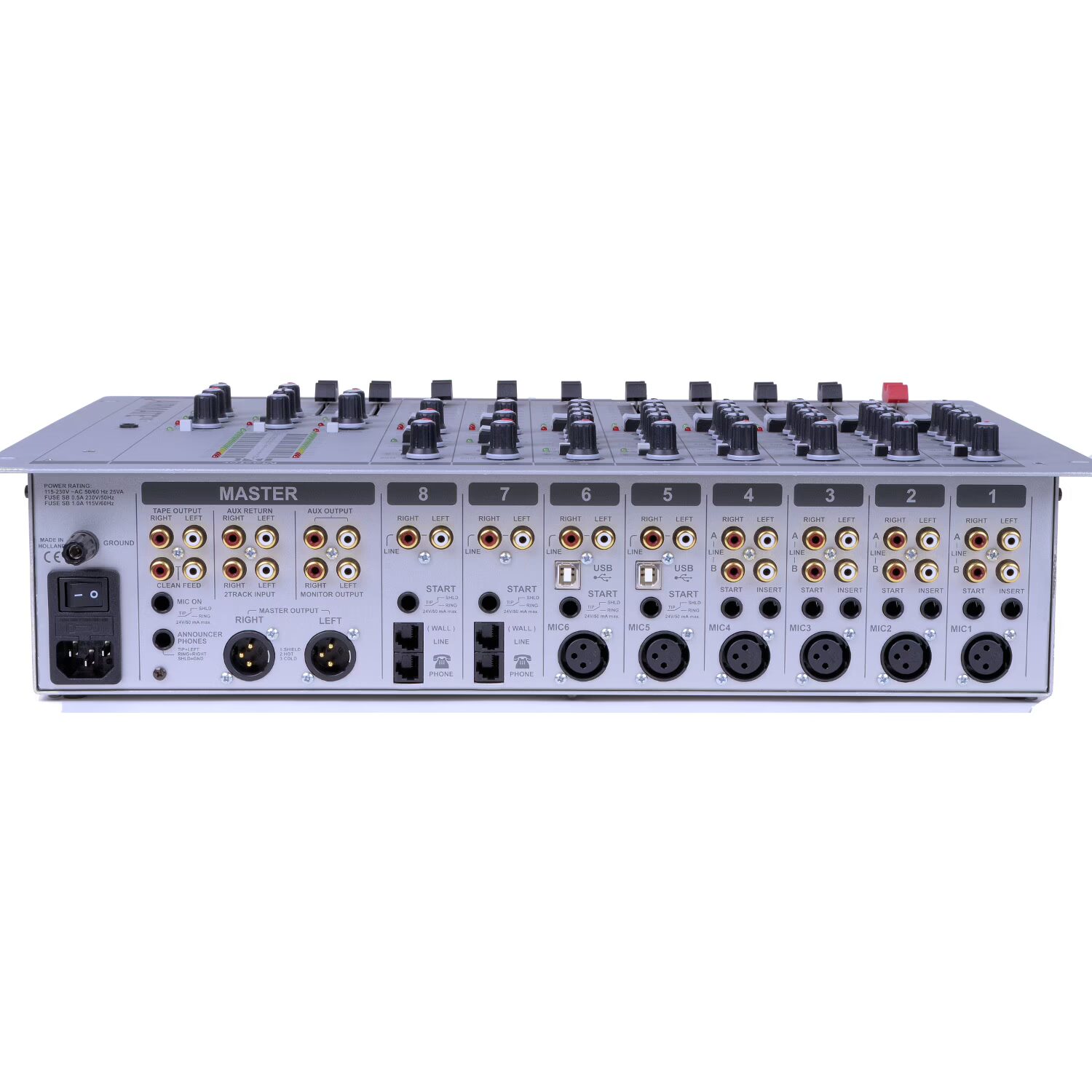

connectors:
14x RCA input (line, CH1 – 4 A/B, 2Track)
12x jack (start/insert)
6x XLR (mic in)
2x USB B
4x RJ11 (telephone input)
6x RCA output (aux out, aux return, tape out, clean feed, monitor out)
2x jack (mic on/announcer phones)
2x XLR (master out, L/R)
power cable
jack out (headphones, on top)
housing
durable 19-inch housing
table cut-out: 450 x 330 mm
dimensions: 483 x 356 x 105 mm
weight: 11 kg
