Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 49
Arpeggiator/sequencer arpeggiator, sequencer
Computer integration functions as audio interface
Control sustain (input), expression (input)
Synthesizer inputs line in
Sound sourcevirtual analogue
MIDI & CV/gate MIDI in, MIDI out, CV/gate out
Synthesizer outputs line out jack, headphone, audio over USB
Type of keys keyboard action
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)8.4 kg
Dimensions (incl. packaging)103.0 x 49.0 x 19.0 cm
Product specifications

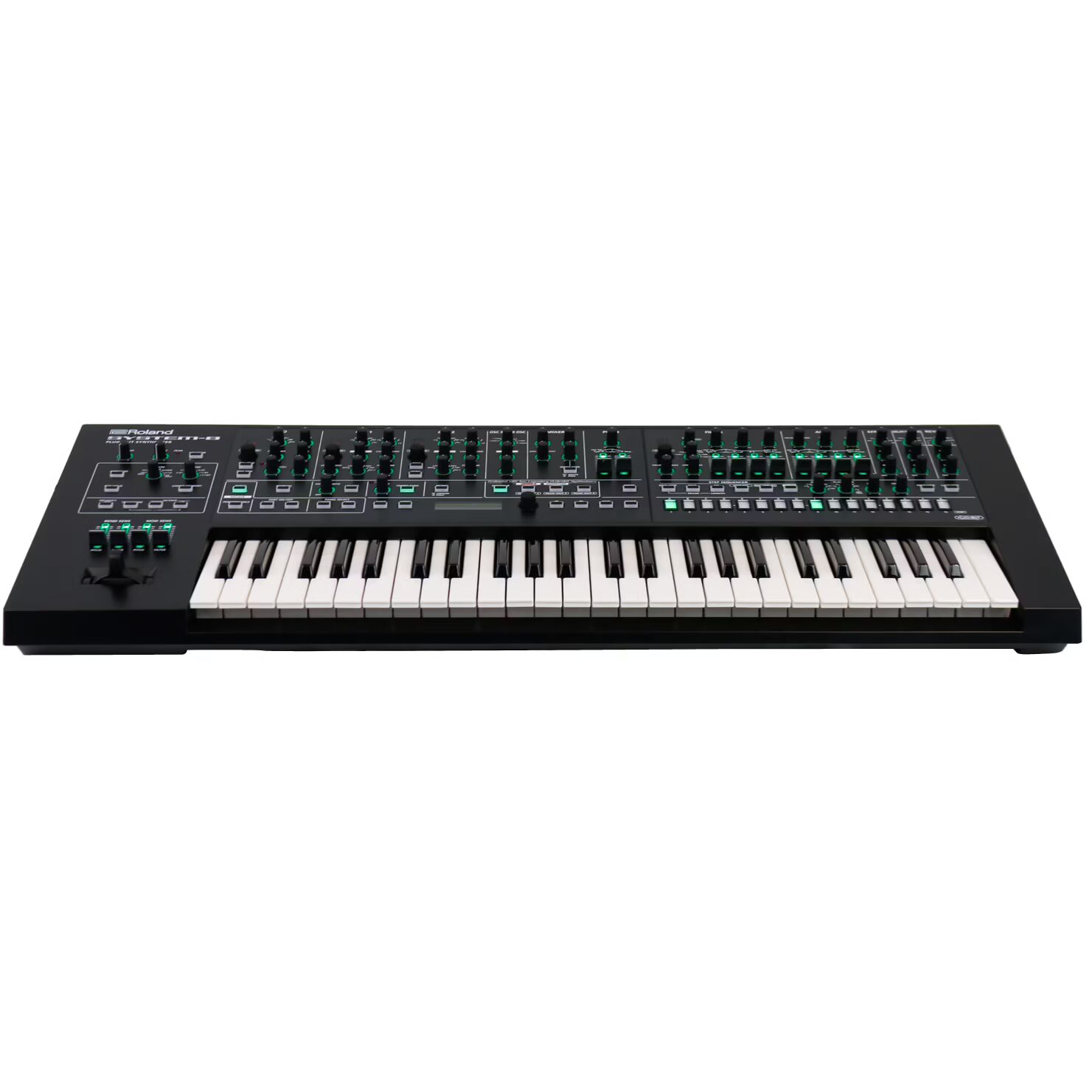

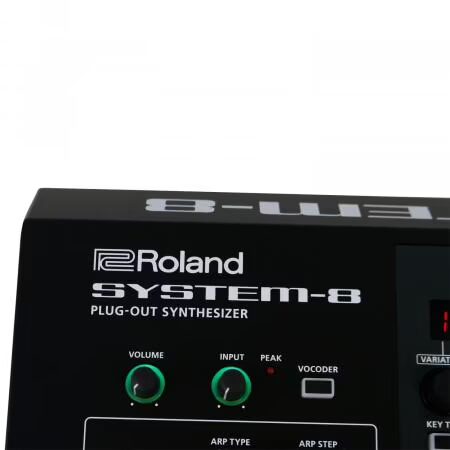

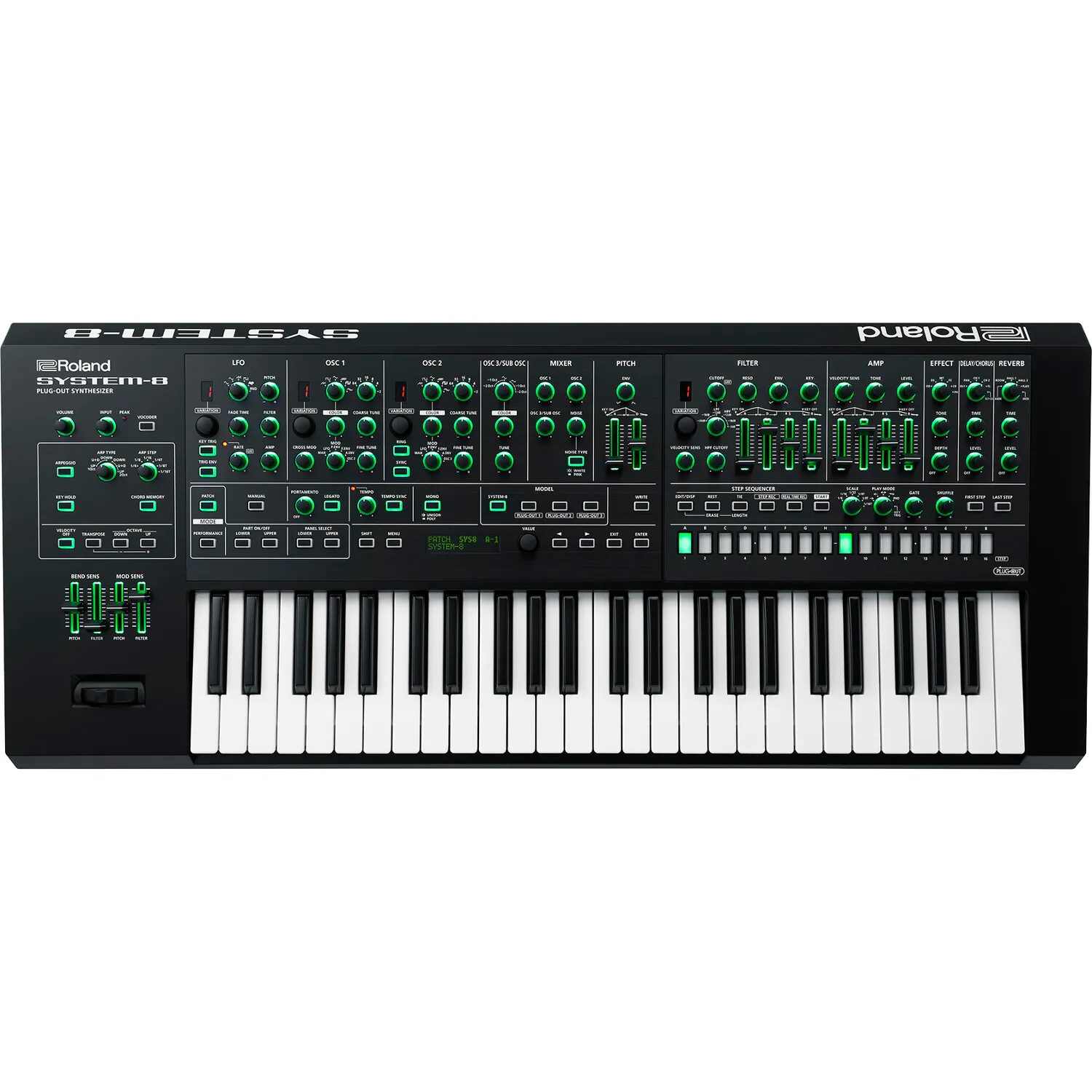

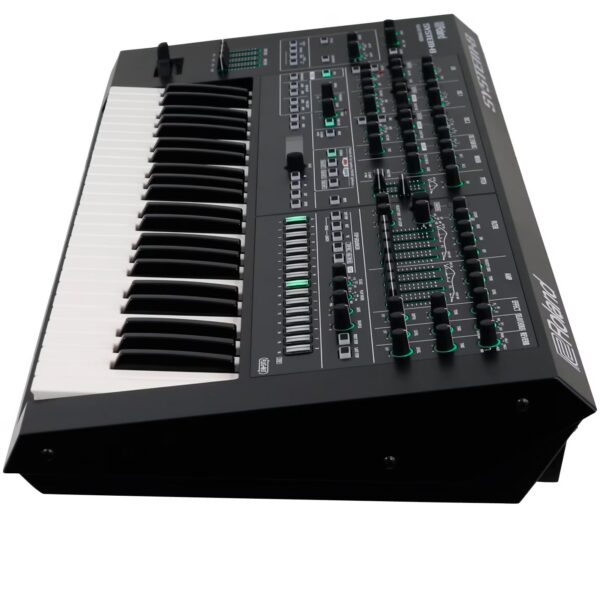

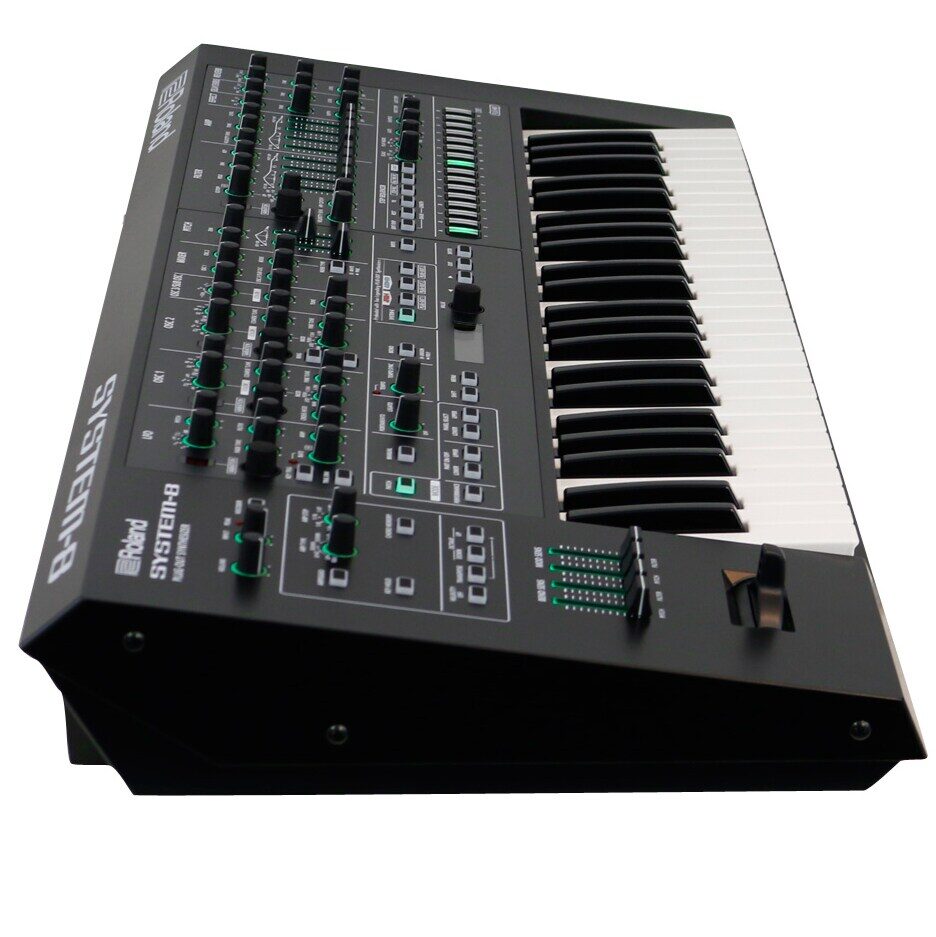

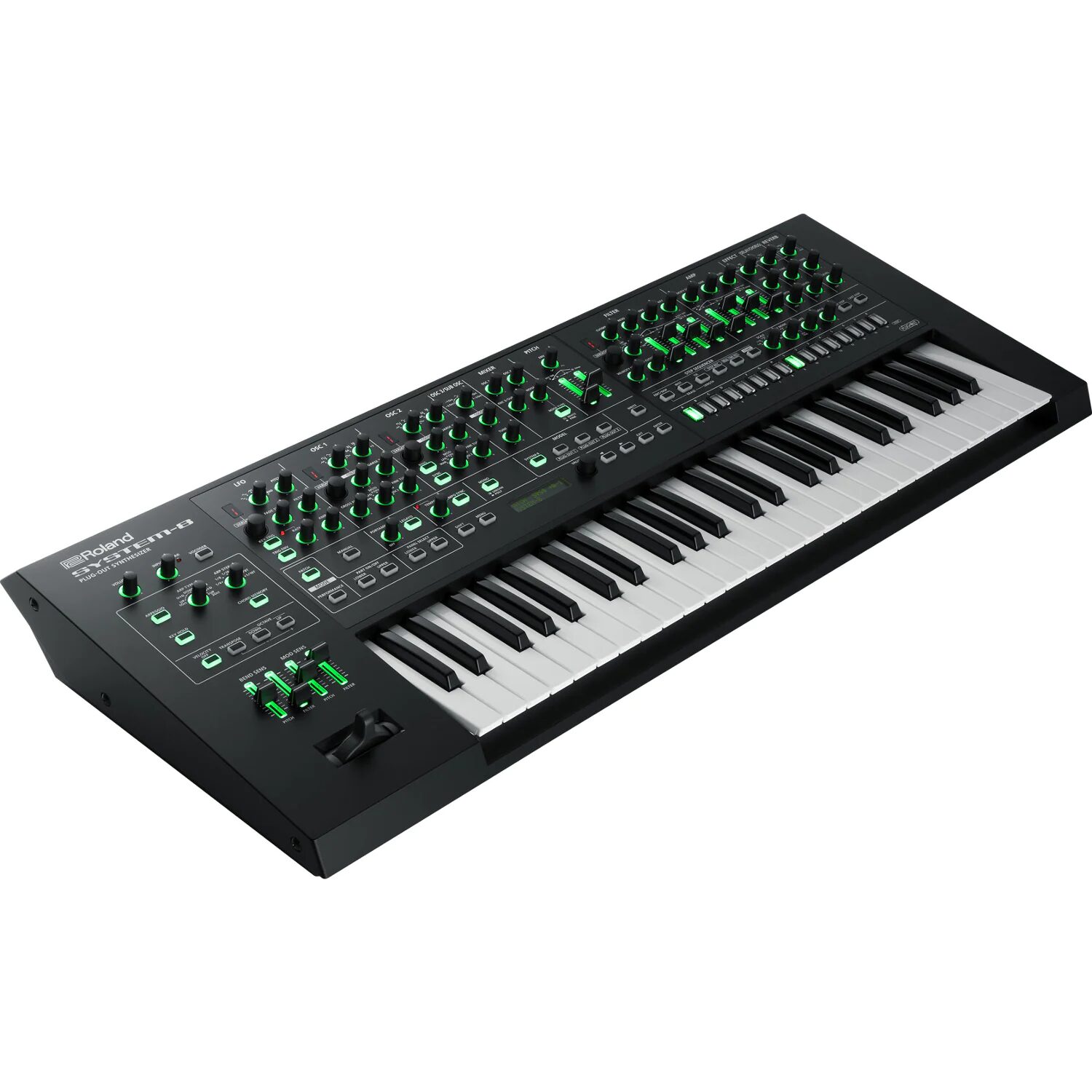

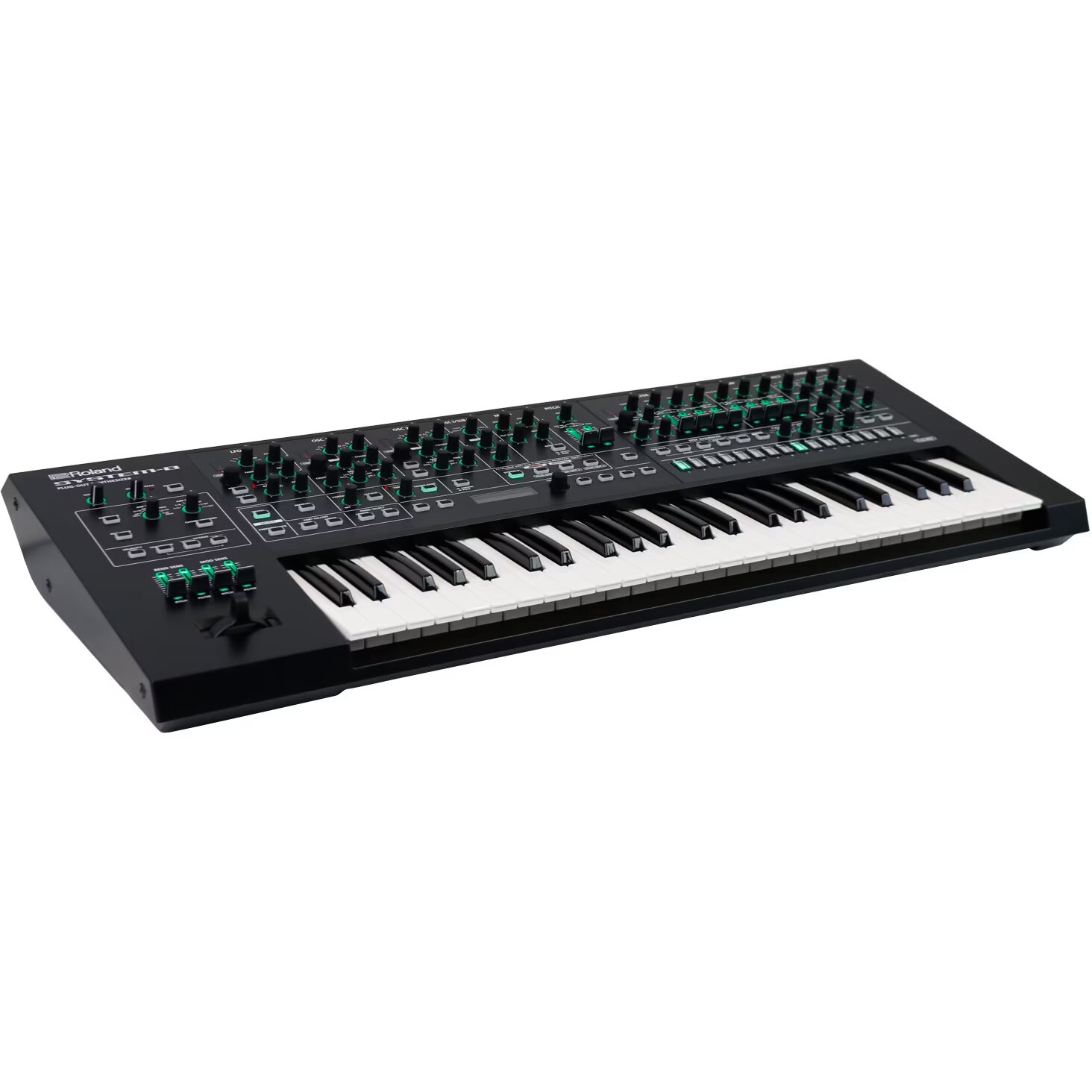

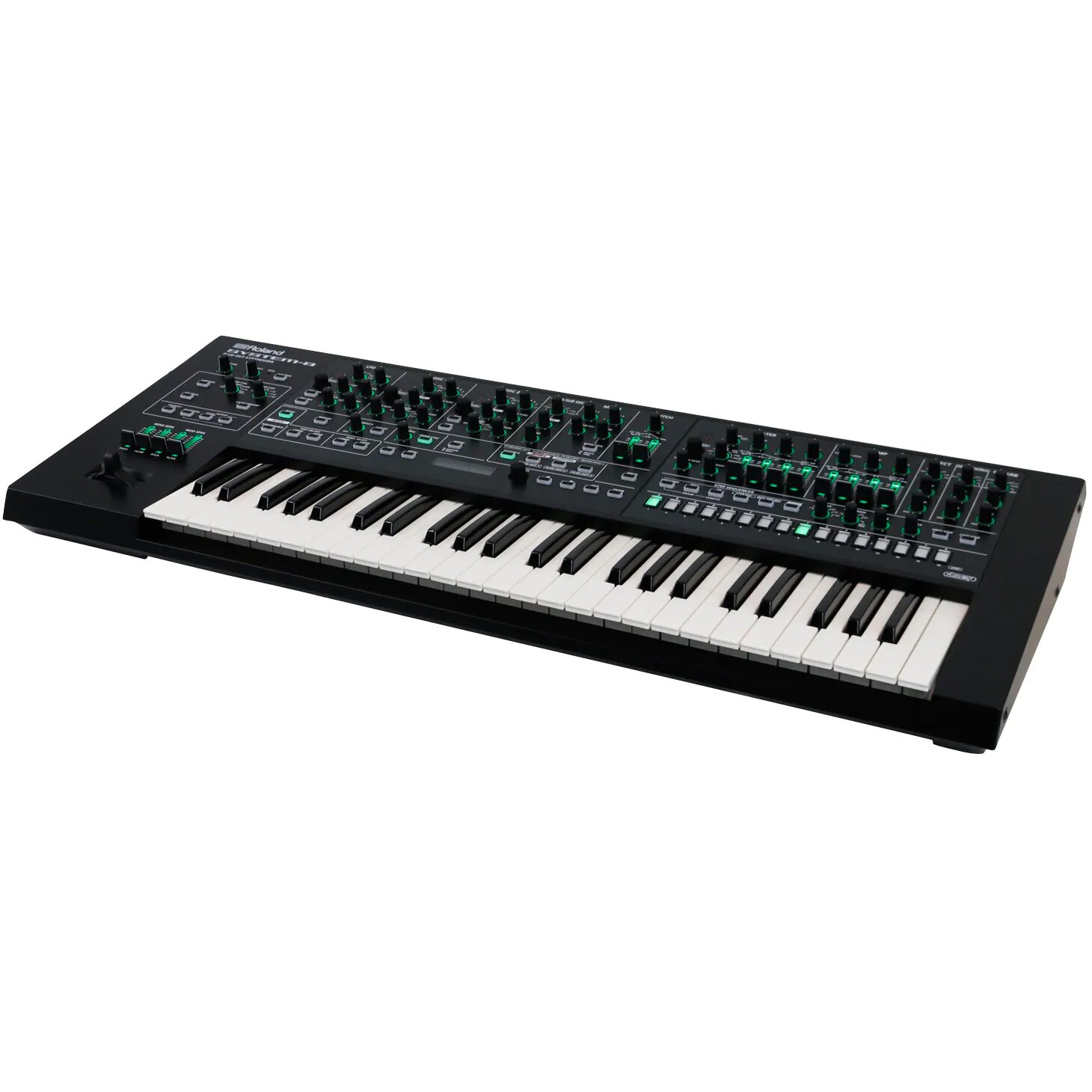

Roland SYSTEM-8
PLUG-OUT Synthesizer
keys: 49, velocity-sensitive

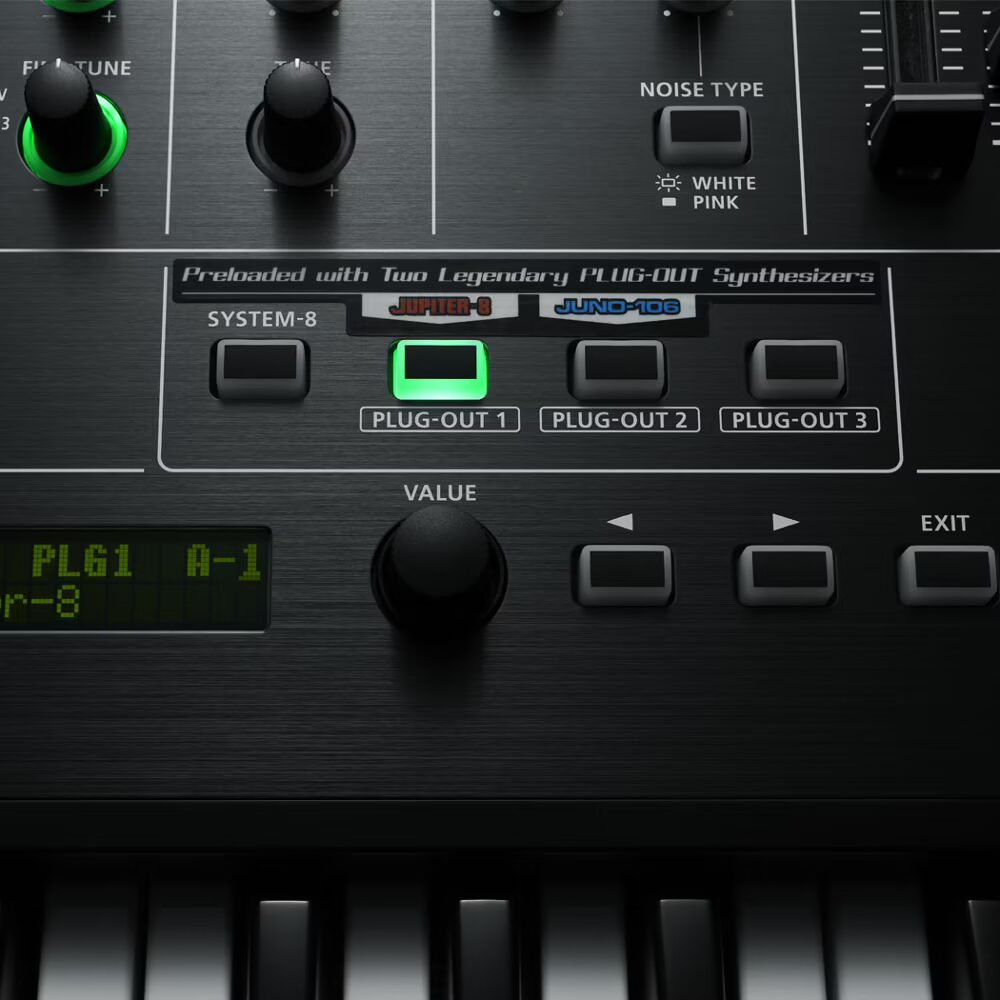

sound generator models: SYSTEM-8, PLUG-OUT1, PLUG-OUT2, PLUG-OUT3
maximum polyphony: 8 voices (SYSTEM-8), PLUG-OUT depends on software
memory:
patch: 64 (8 memories x8 banks, per model)
performance: 64 (8 memories x8 banks)

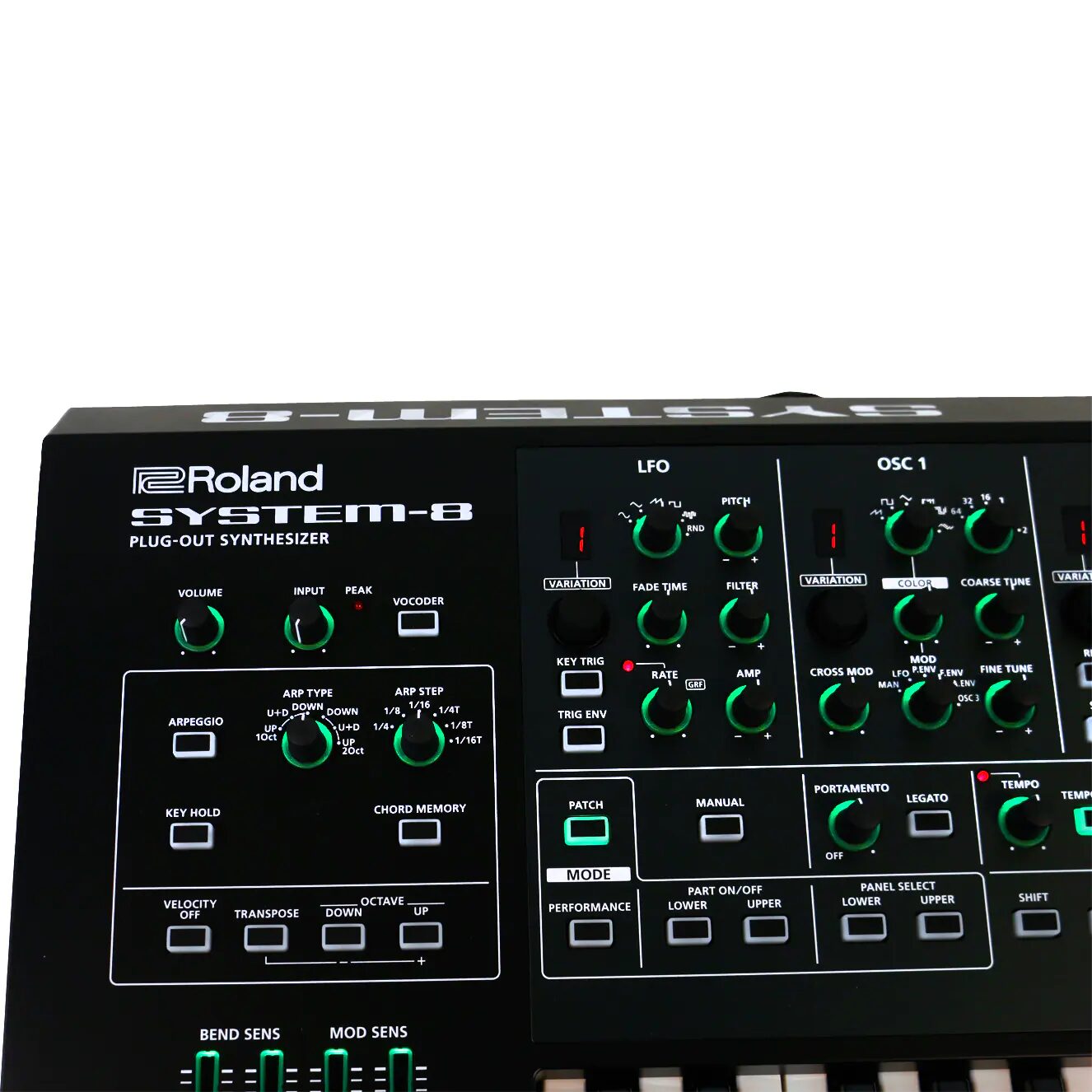

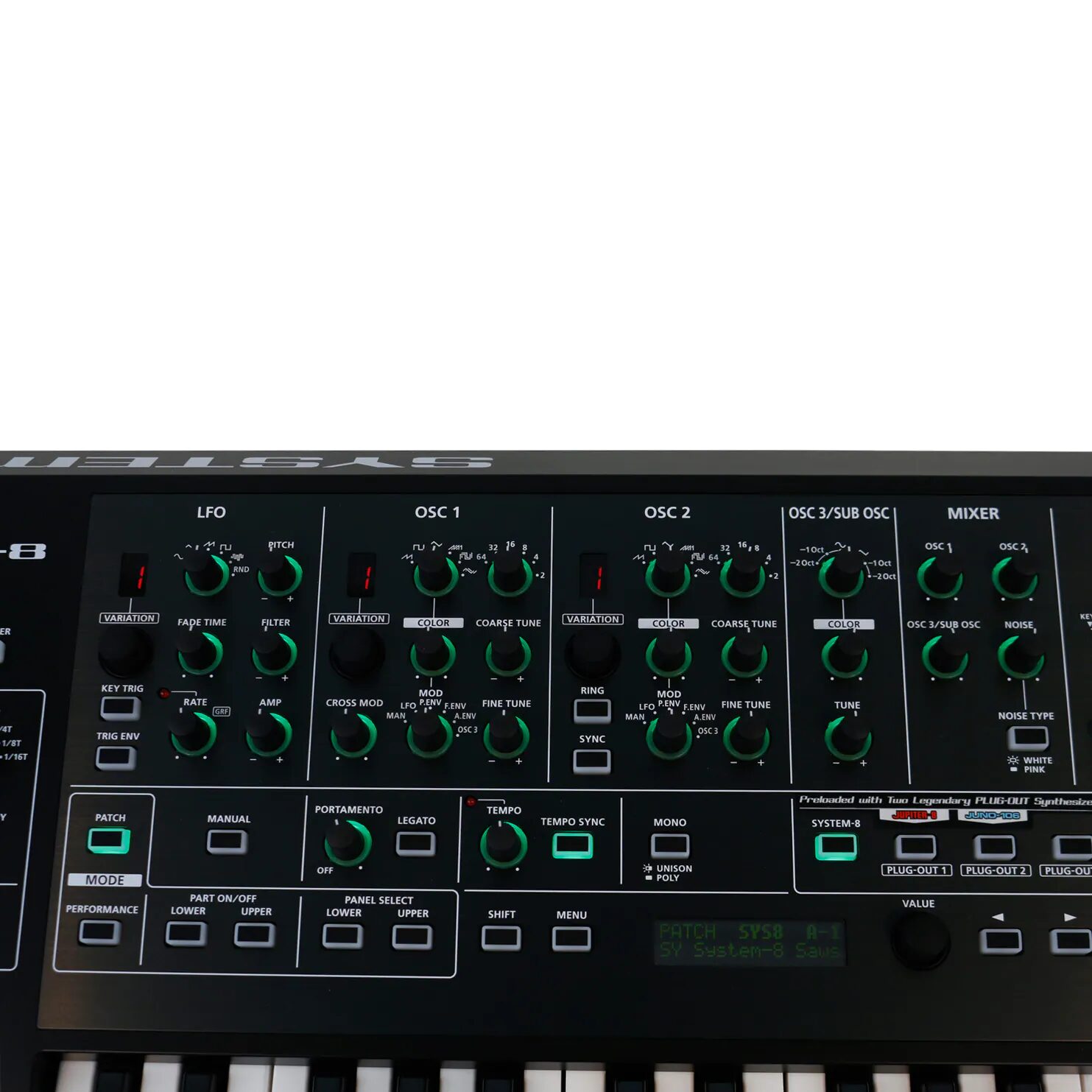

LFO:
variations: 1 (single LFO), 2 (dual LFO), 3 (resonanced pulse LFO)
waveform: sine, triangle, saw, square, sample&hold, random
knobs: fade time, rate, pitch, filter, amp
controllers: key trigger, trigger envelope

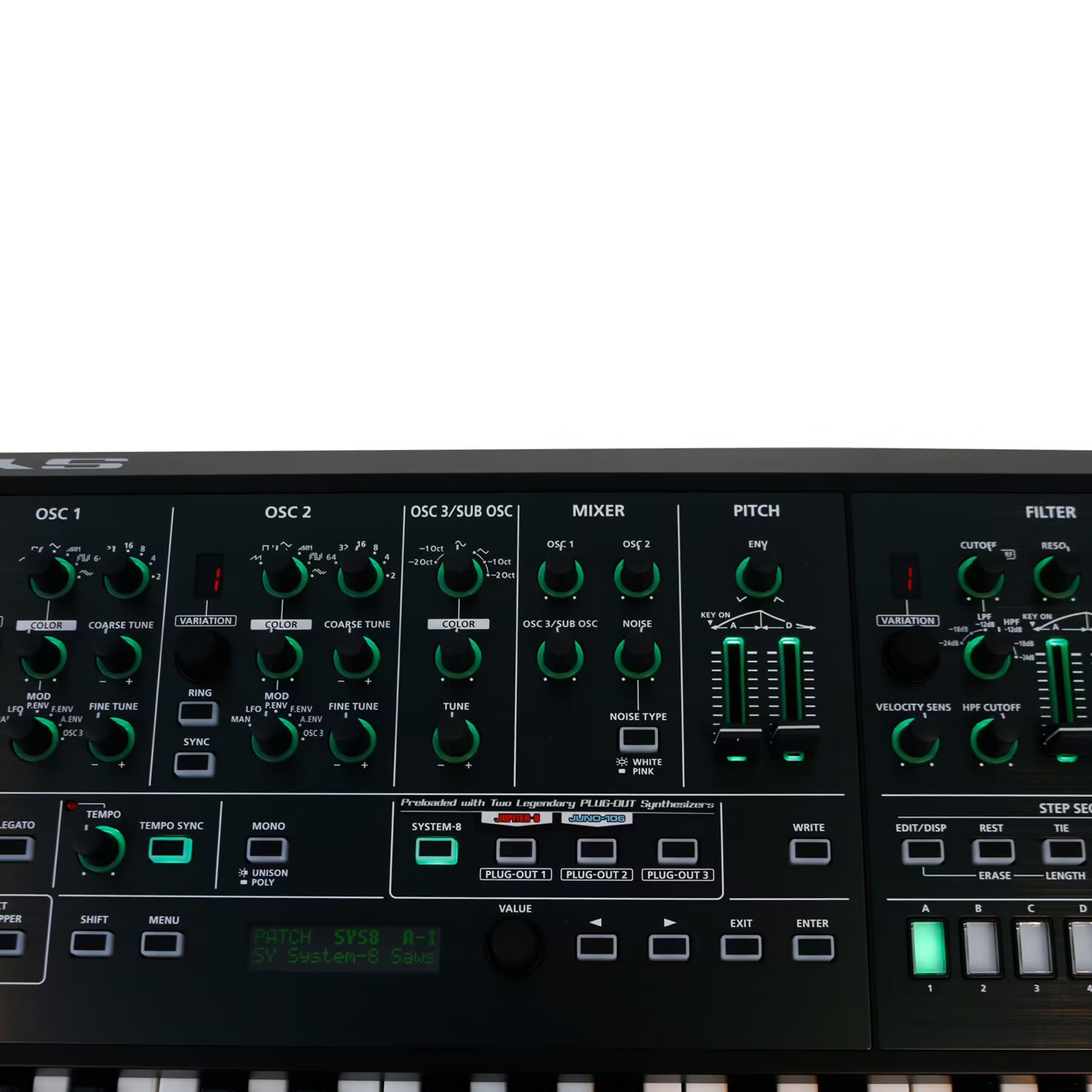

oscillator 1:
variation: 1, 2
wave form: saw, square, triangle, saw2, square2, triangle2
knobs: colour, modulation source (manual, LFO, p.env, f.env, a.env, osc 3), octave (64, 32, 16, 8, 4, 2), coarse tune, fine tune
modulation: cross modulator
oscillator 2:
variation: 1, 2
waveform: saw, square, triangle, saw2, square2, triangle2
knobs: colour, modulation source (manual, LFO, p.env, f.env, a.env, osc 3), octave (64, 32, 16, 8, 4, 2), coarse tune, fine tune
modulation: ring modulator, oscillator sync

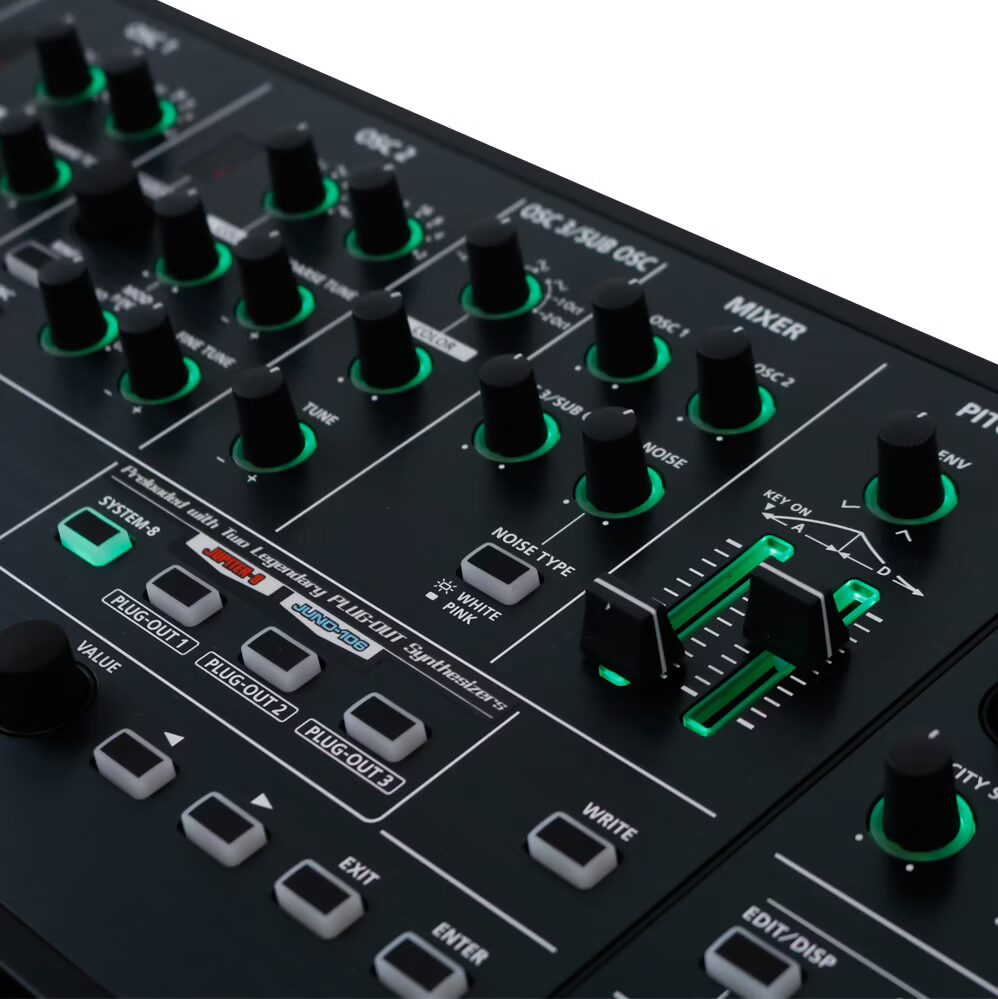

oscillator 3/sub-oscillator:
wave form: sine (-2 octave), sine (-1 octave), sine, triangle, triangle (-1 octave) triangle (-2 octave)
knobs: colour, tune

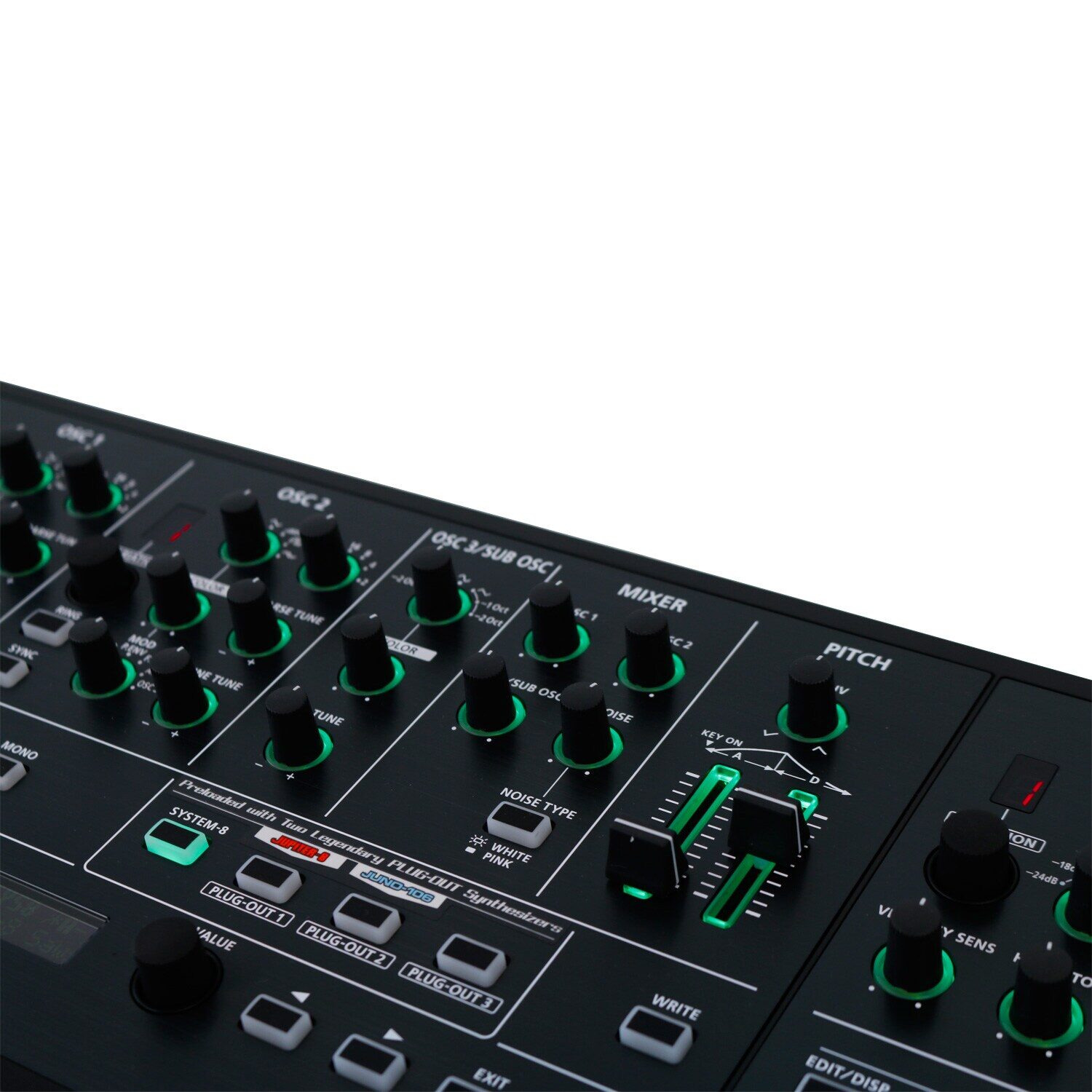

mixer:
level: osc 1, osc 2, osc 3/sub osc, noise
noise: white noise/pink noise
pitch:
knob: envelope depth
envelope: attack time, decay time

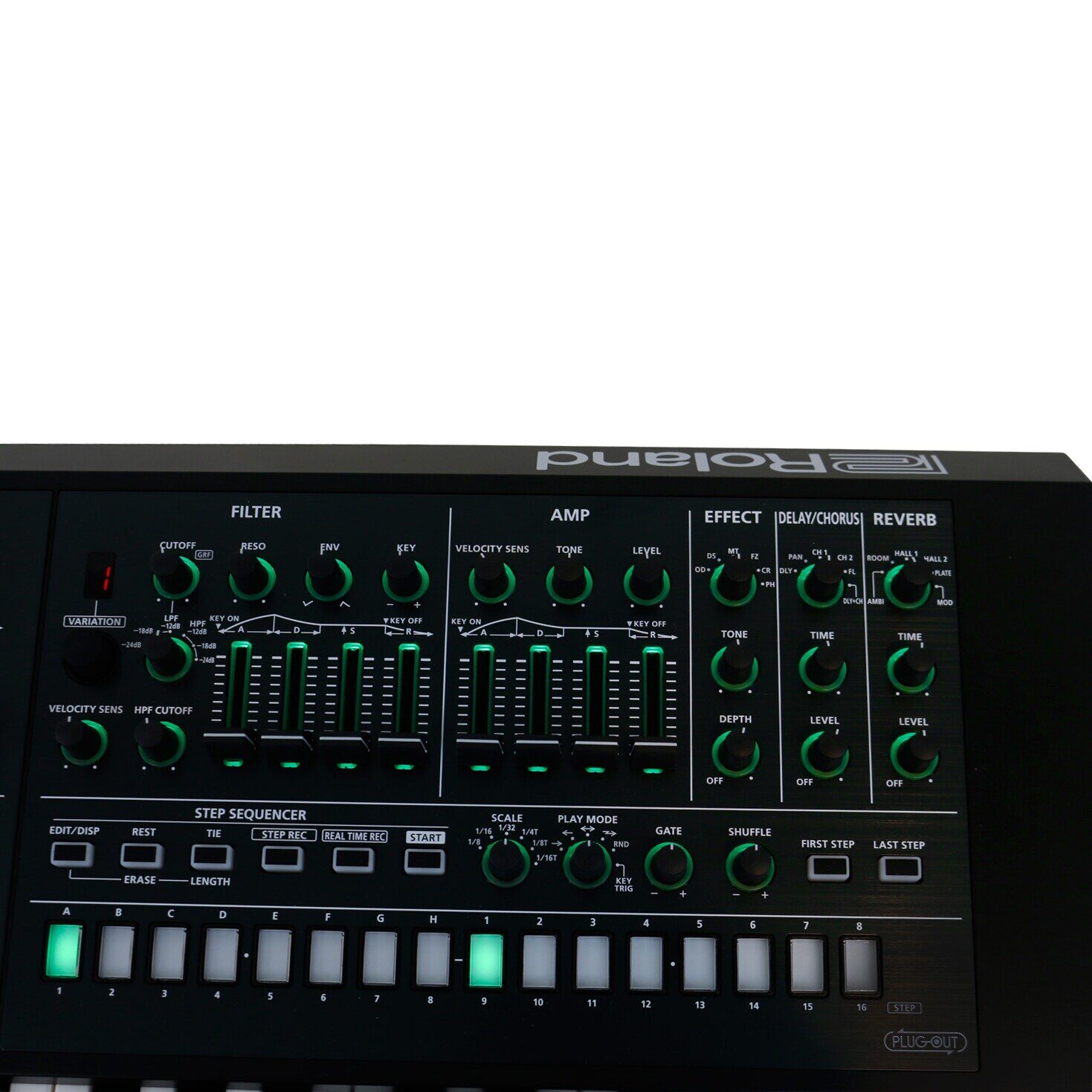

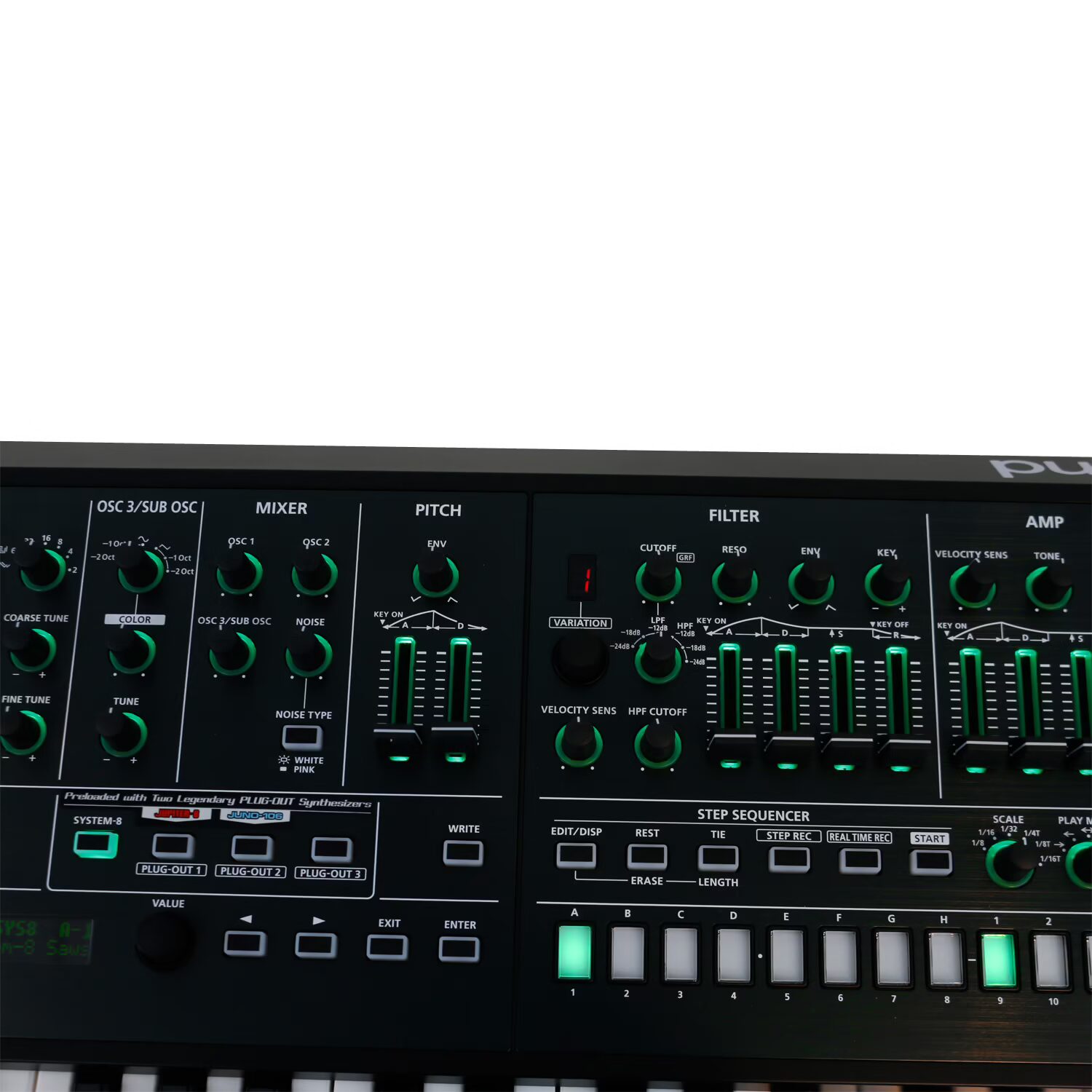

filter:
variation: 1, 2
filter type: LPF (-24 dB), LPF (-18 dB), LPF (-12 dB), HPF (-12 dB), HPF (-18 dB), HPF (-24 dB)
knobs: cutoff, resonance, velocity sens, envelope depth, key follow, HPF cutoff
envelope: attack time, decay time, sustain level, release time

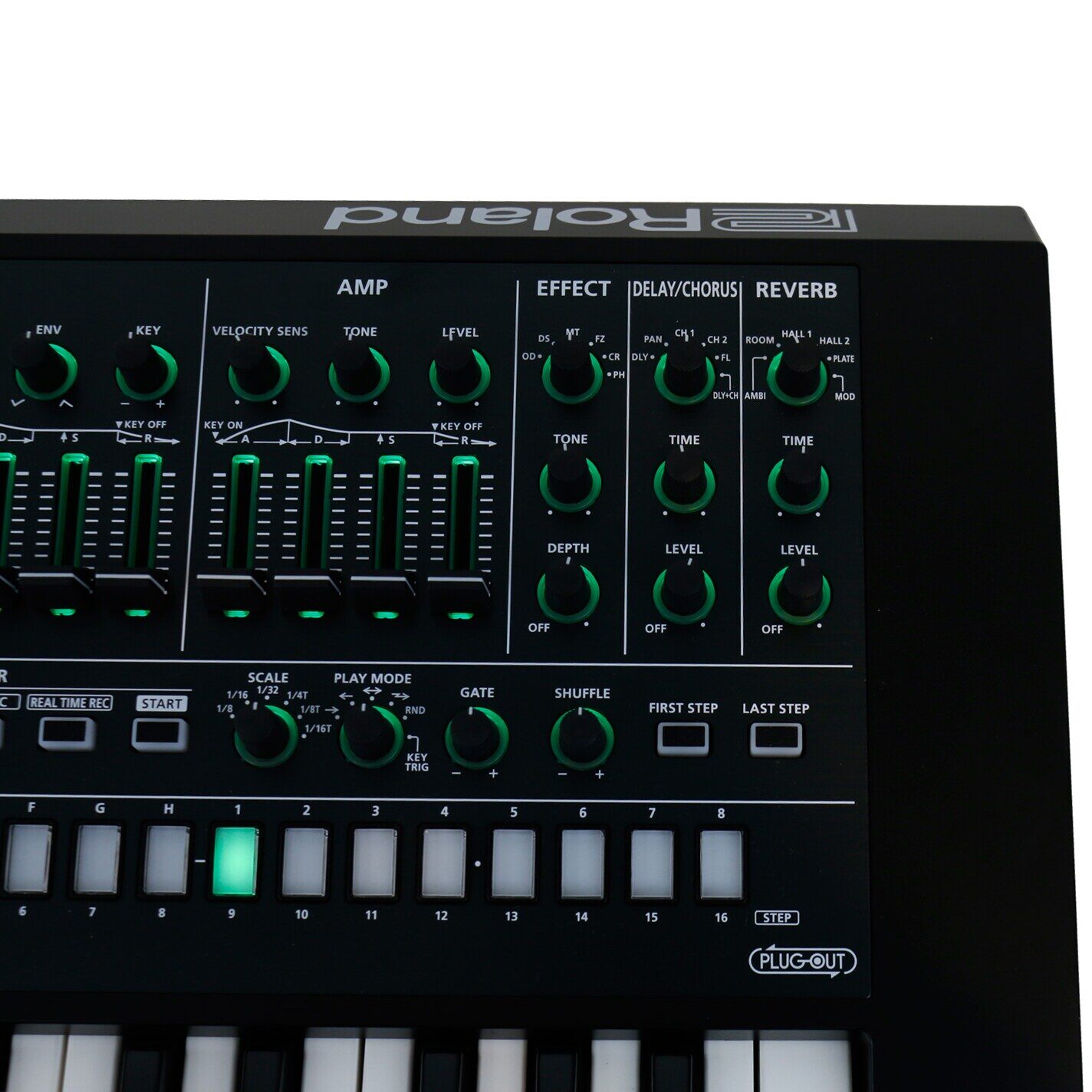

amplifier:
knobs: velocity sens, tone, level
envelope: attack time, decay time, sustain level, release time
effects:
type: overdrive, distortion, metal, fuzz, crusher, phaser
knobs: tone, depth
delay/chorus:
type: delay, panning delay, chorus 1, chorus 2, flanger, delay + chorus
knobs: time, level
reverb
type: ambience, room, hall 1, hall 2, plate, modulation
knobs: time, level
other:
knobs: portamento, tempo
controller: legato, tempo sync
key mode: mono/unison/poly

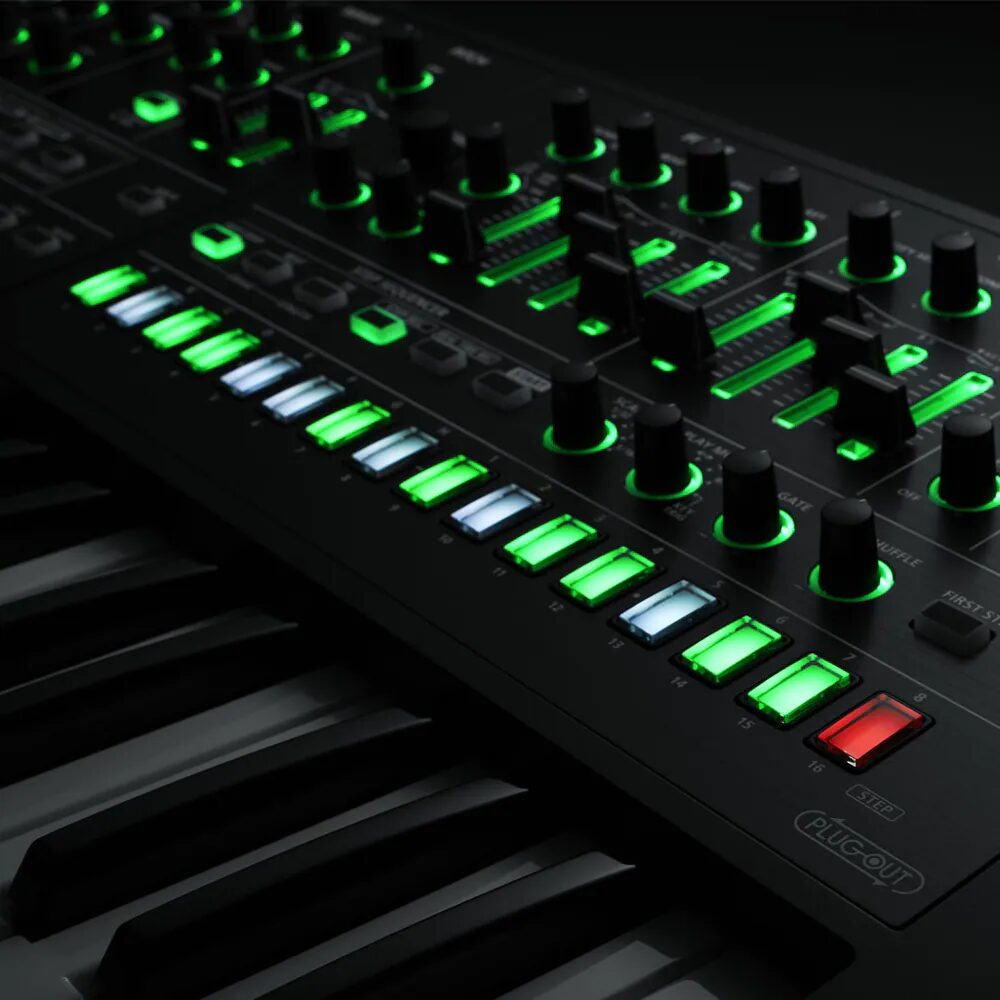

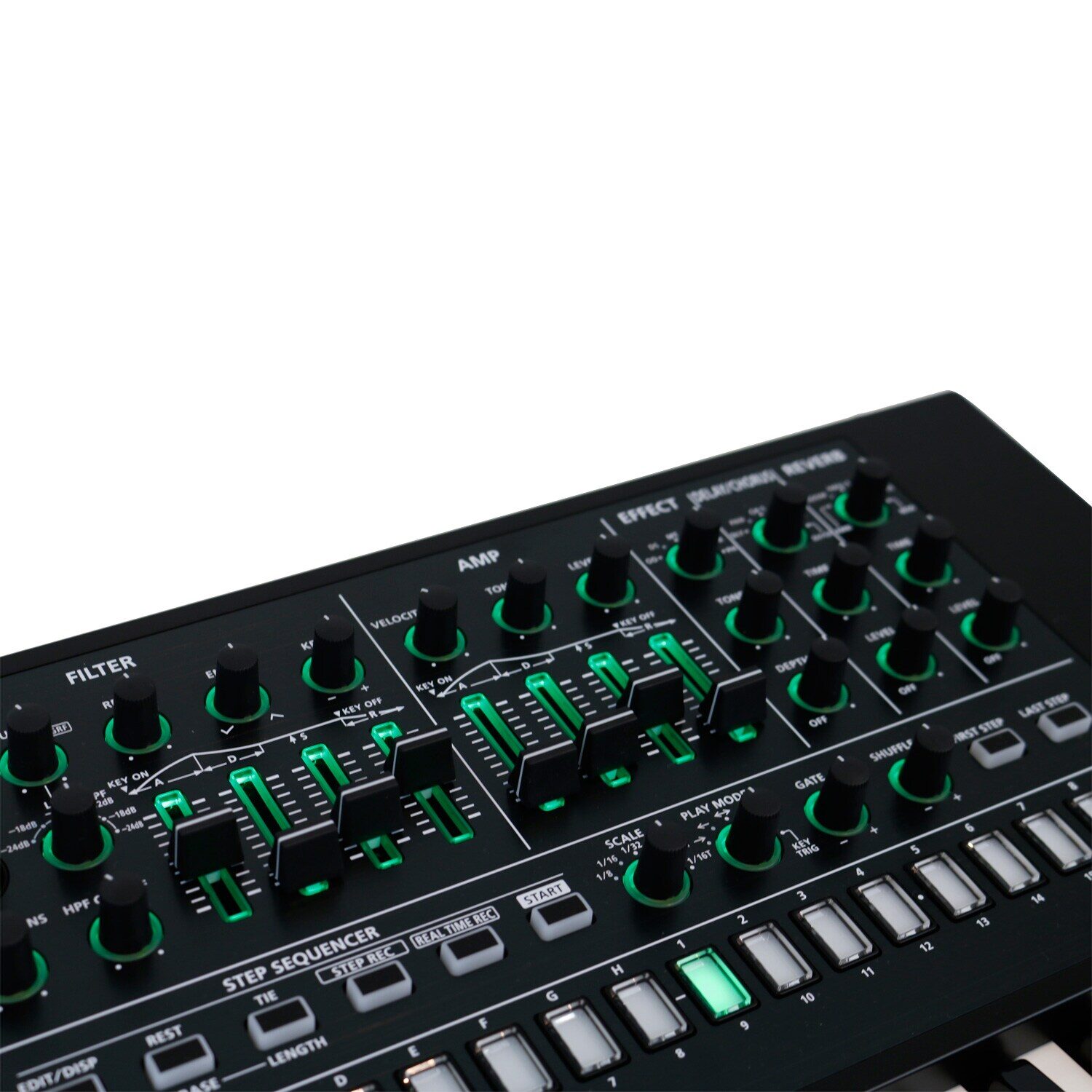

Step sequencer:
track: 1 per patch
step: 1 – 64 steps
recording method: step recording, realtime recording
controllers: scale, play mode, gate, shuffle, first step, last step
other control knobs: volume, input volume, arpeggio, chord memory, vocoder, keyhold, velocity off, transpose, octave

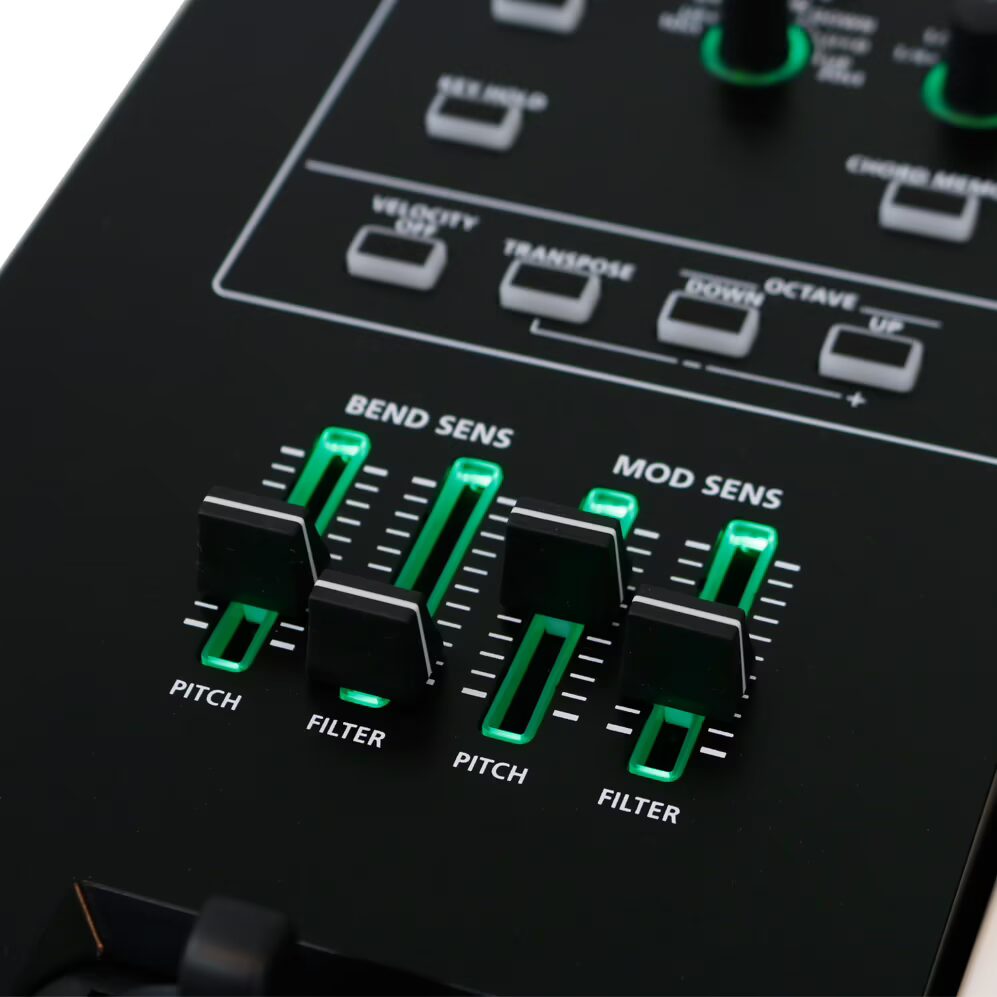

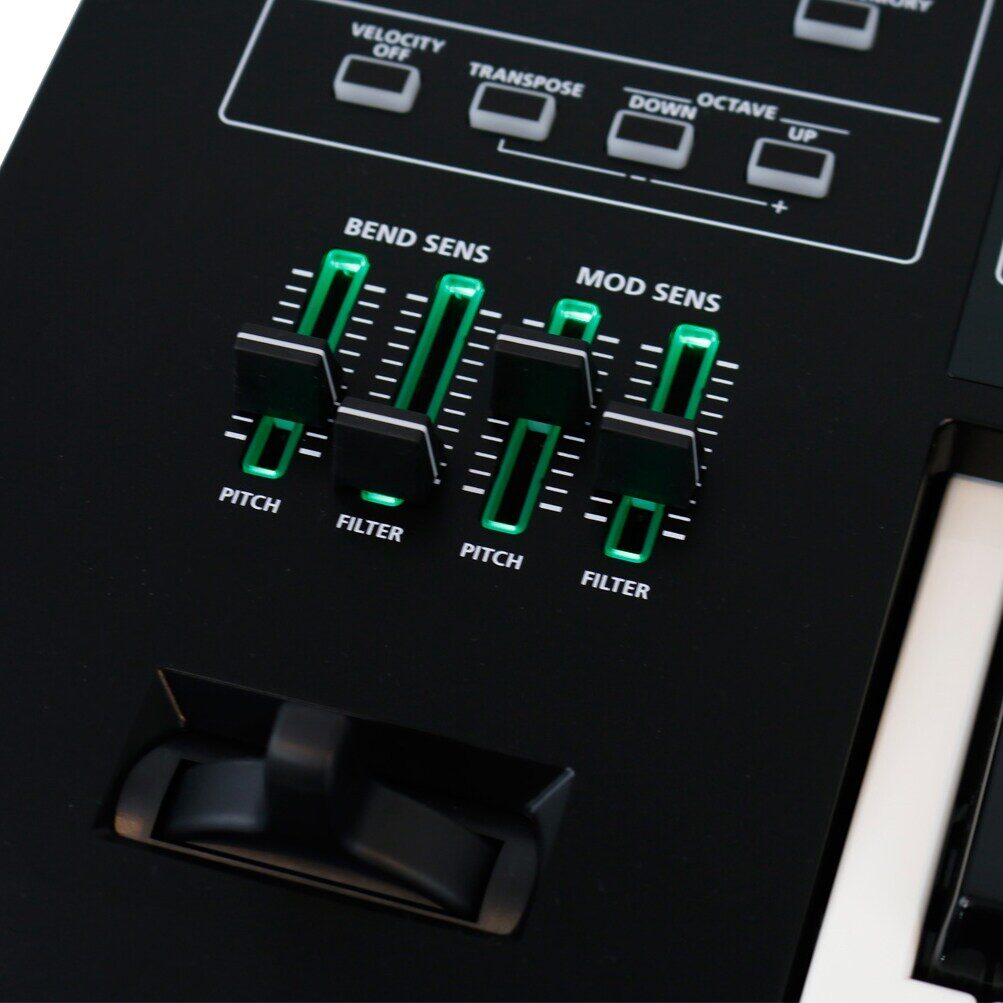

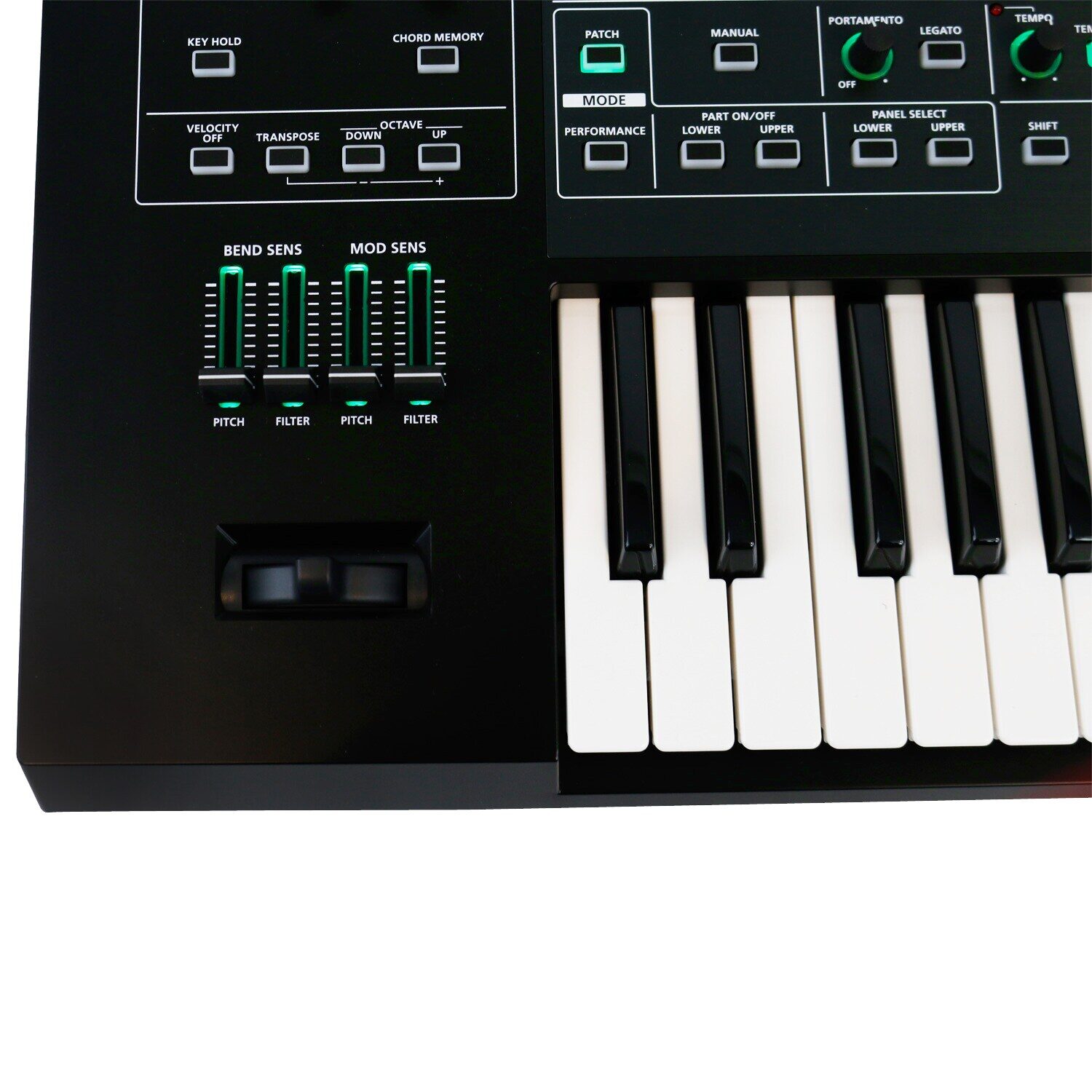

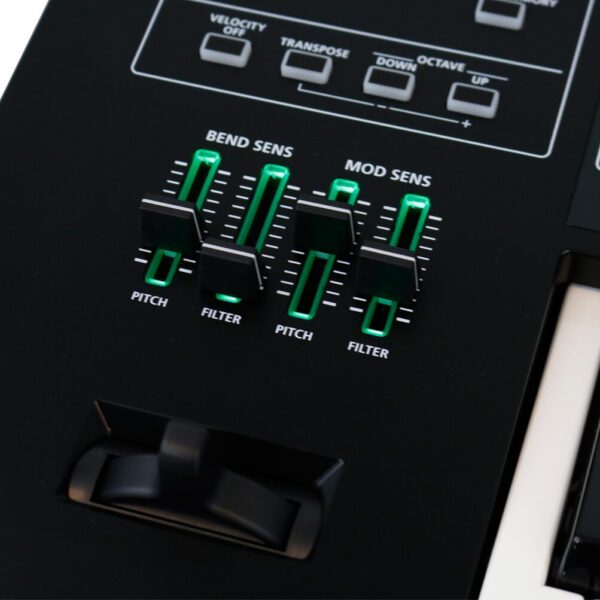

controllers: pitch bend wheel, modulation wheel, bend sens pitch, bend sens filter, mod sens pitch, mod sens filter

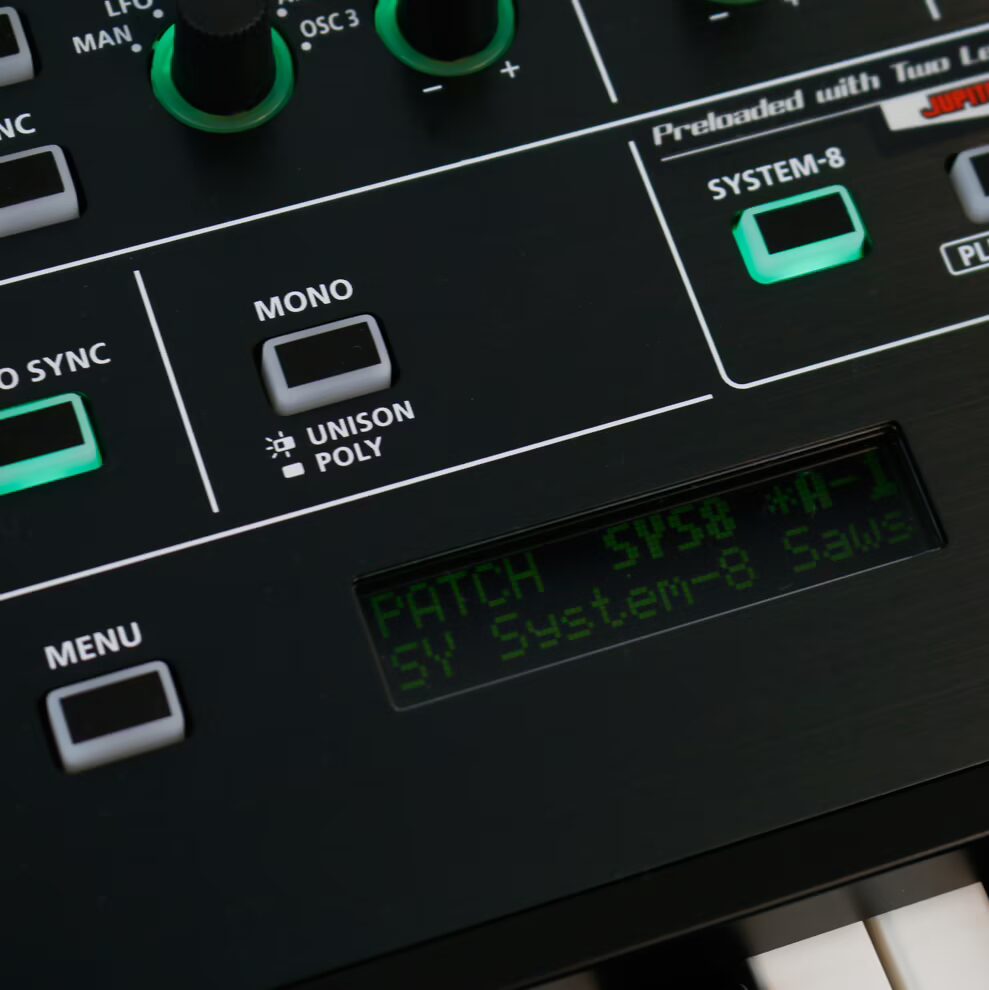

display: 16 characters, 2 lines, LCD

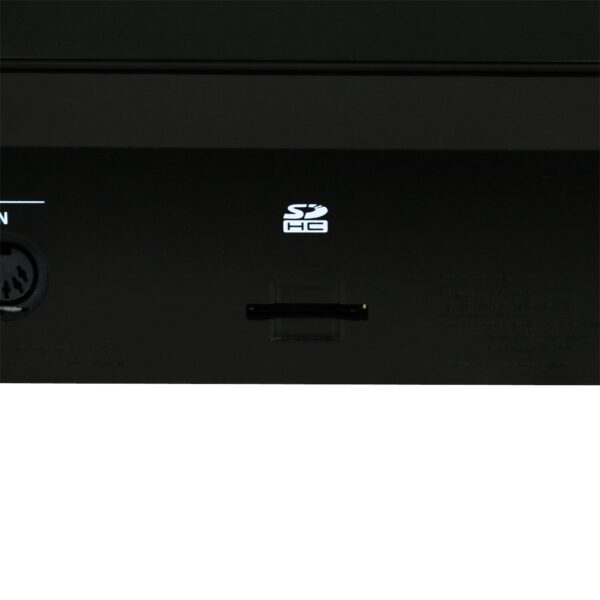

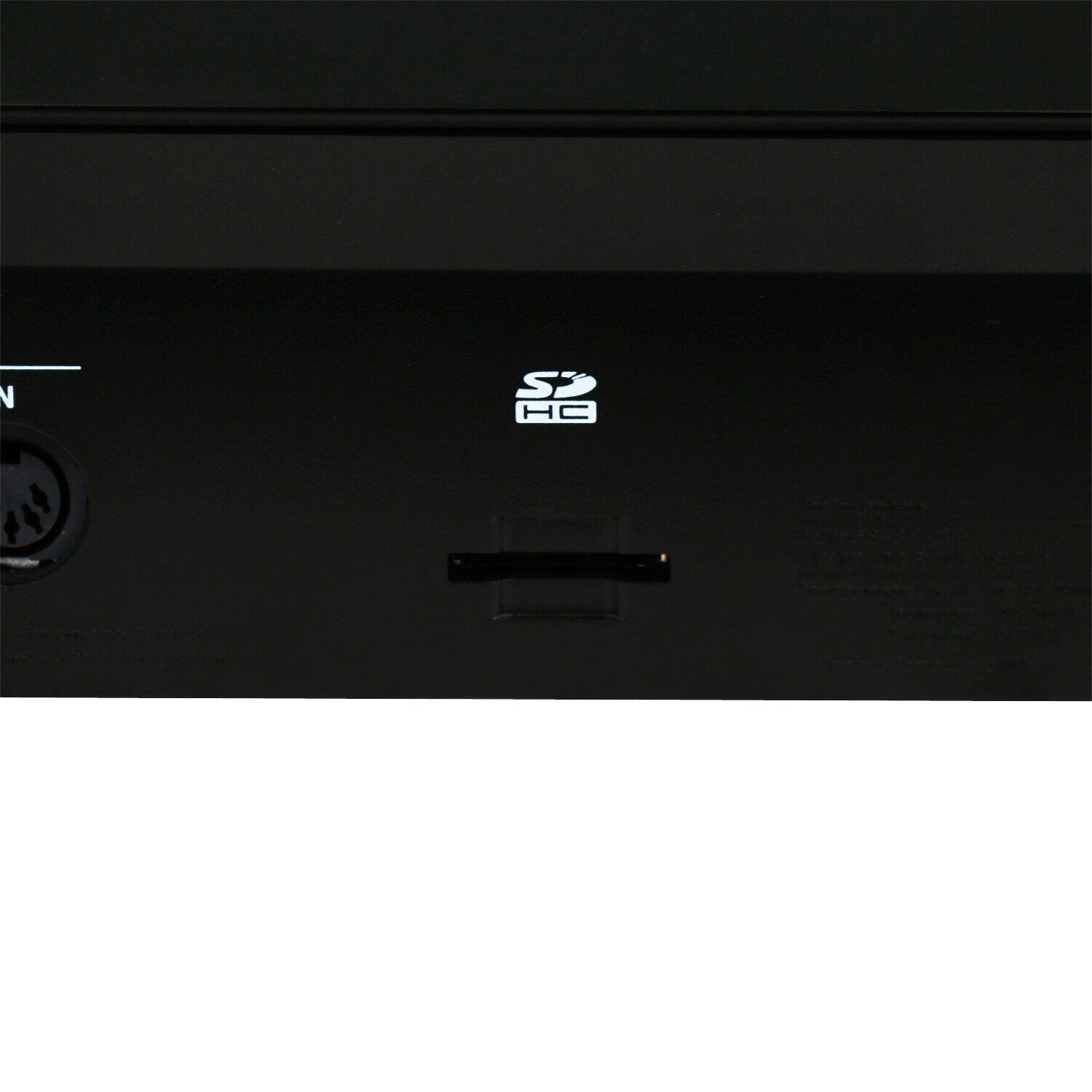

external memory: SD Card (SDHC supported) for backup/recovery

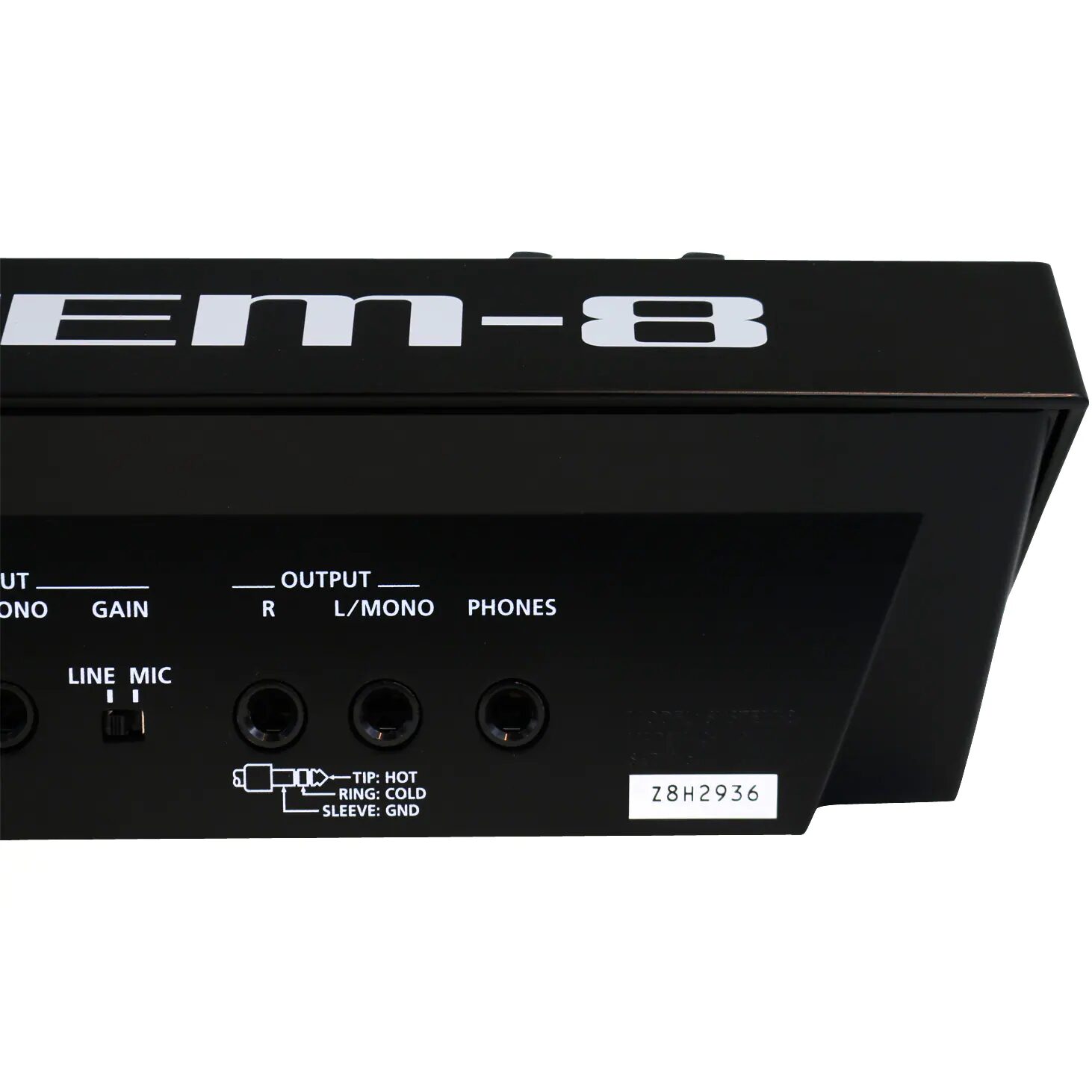

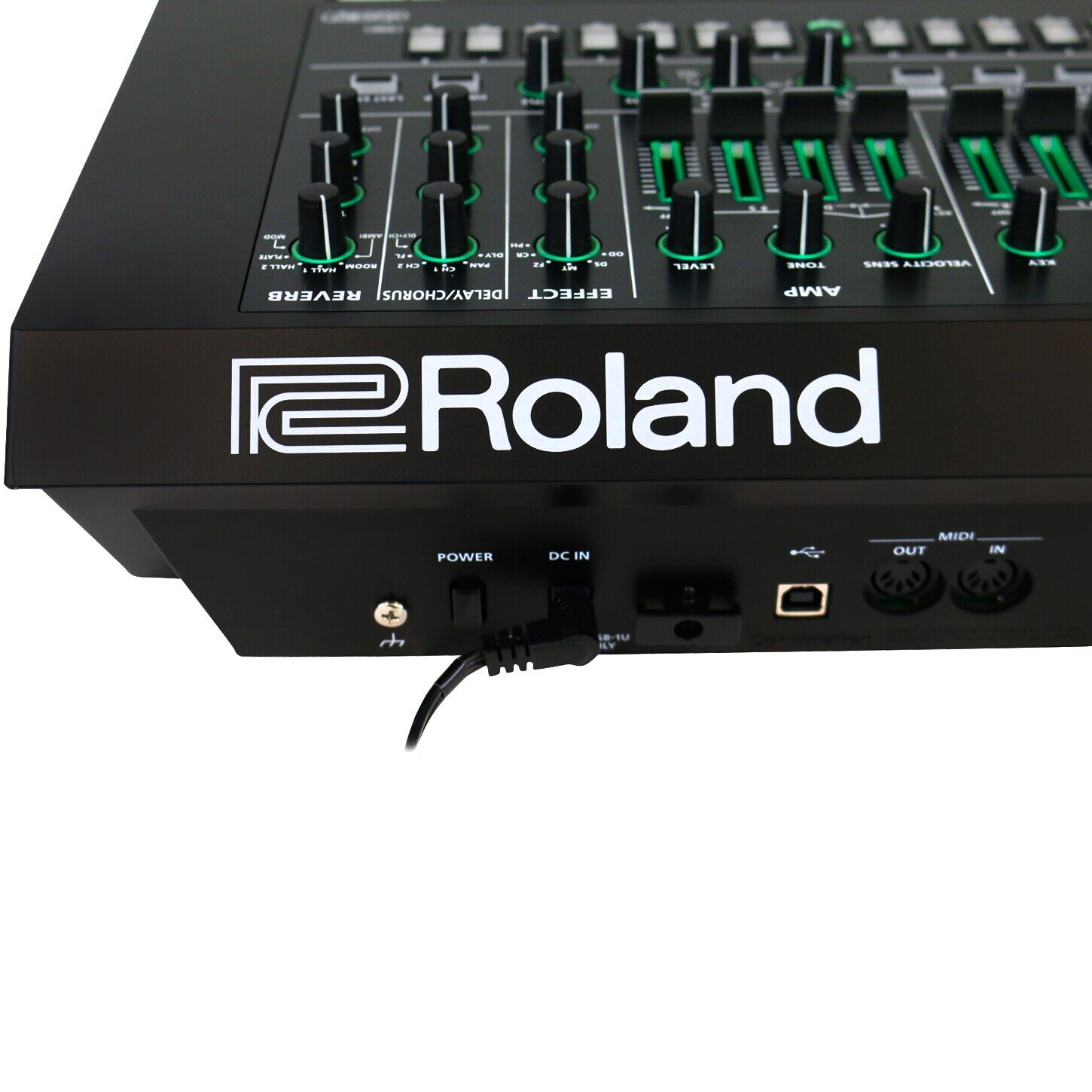

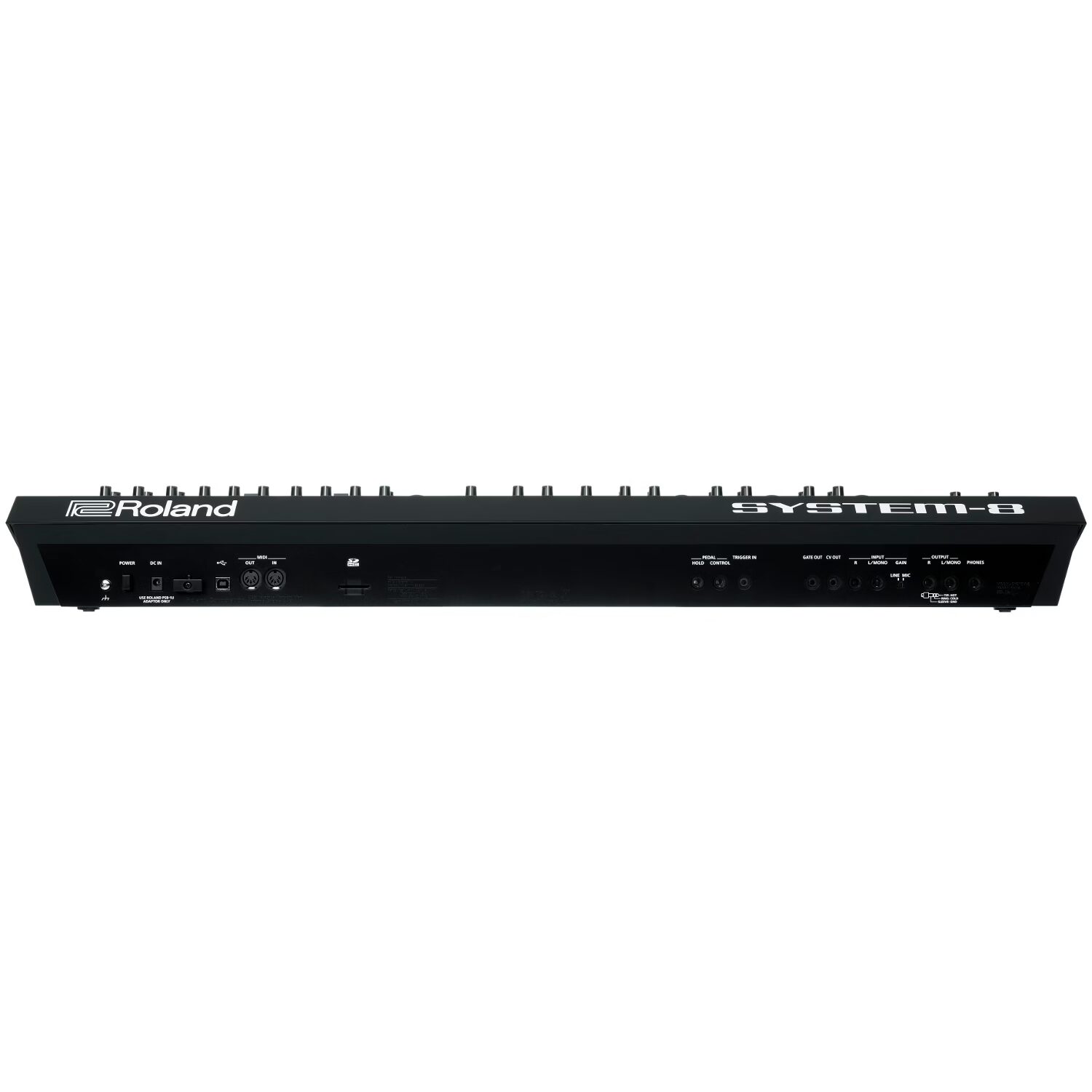

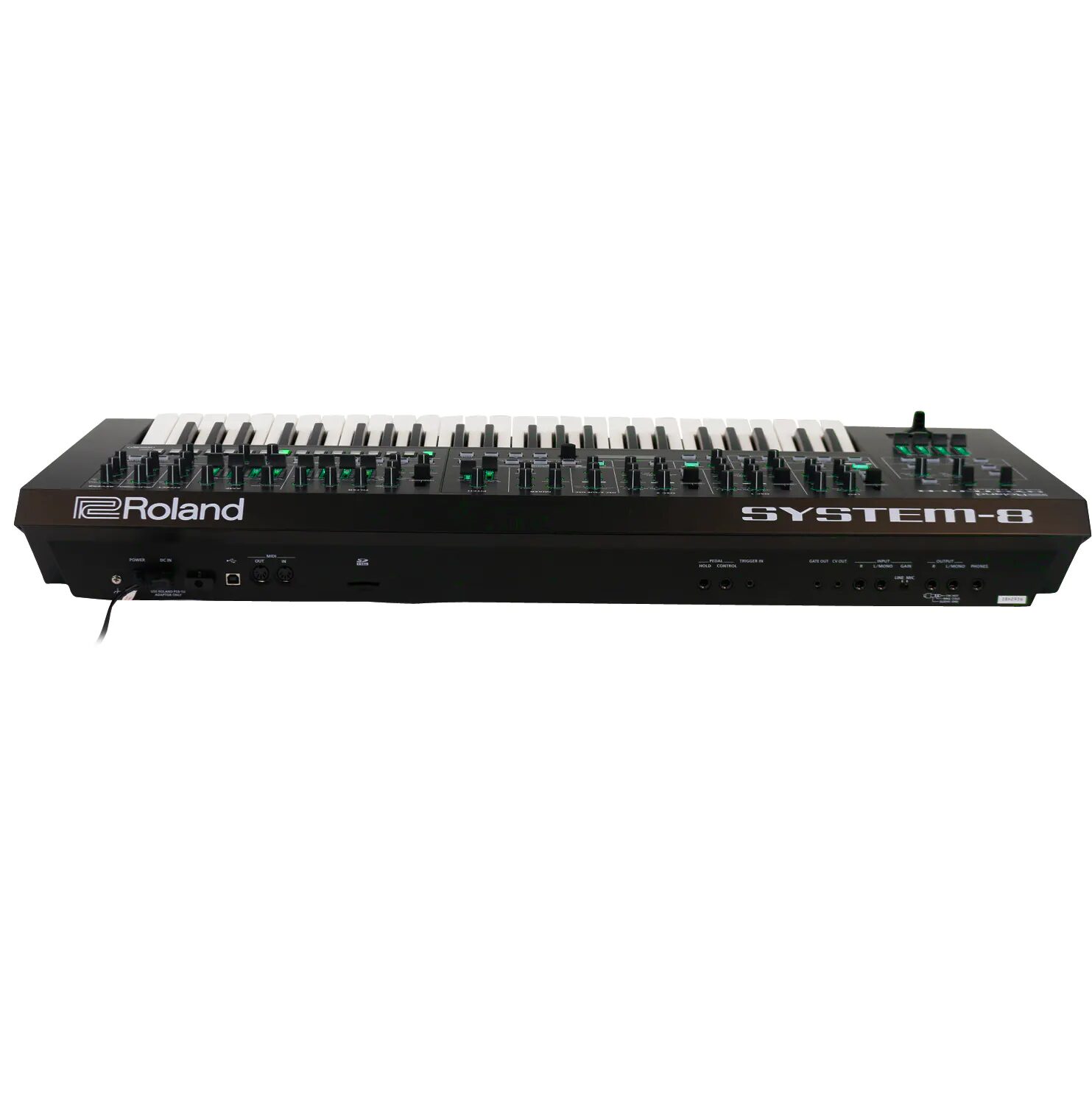

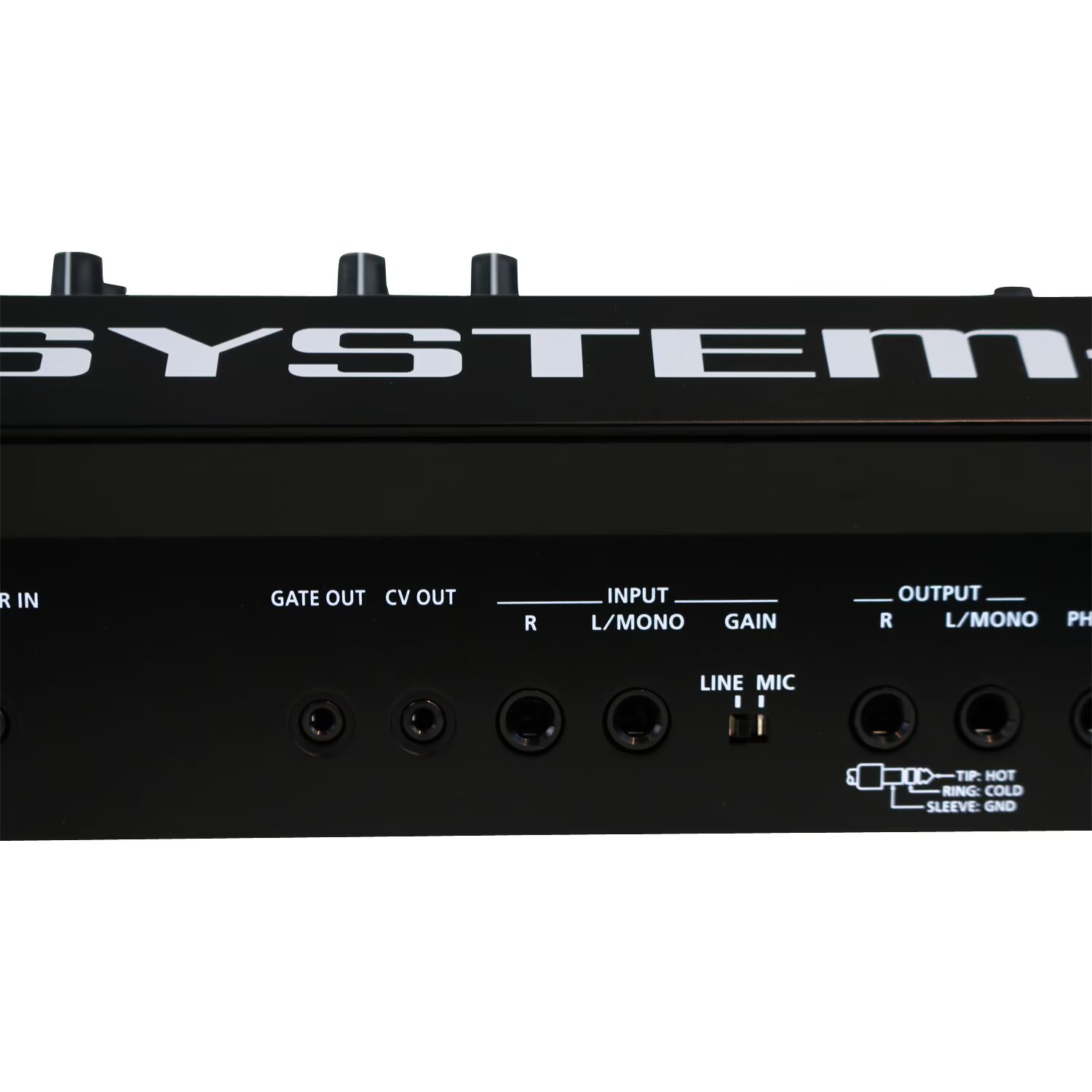

connectors:
headphones: stereo jack
output (L/MONO, R): 2x mono jack
input (L/MONO, R): 2x mono jack

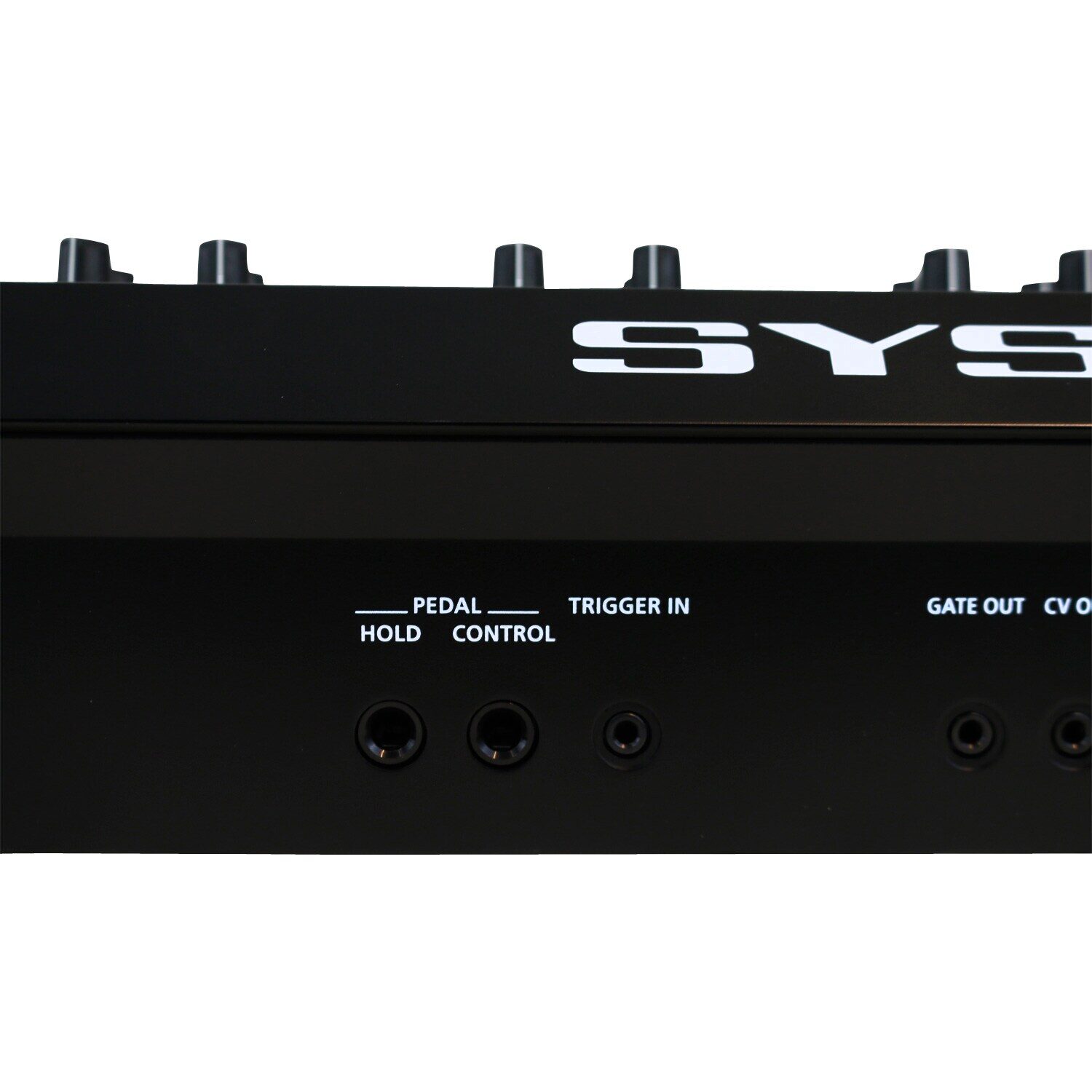

CV/GATE output: mini jack (+10 V)
trigger in: mini jack
pedal (hold, control): jack

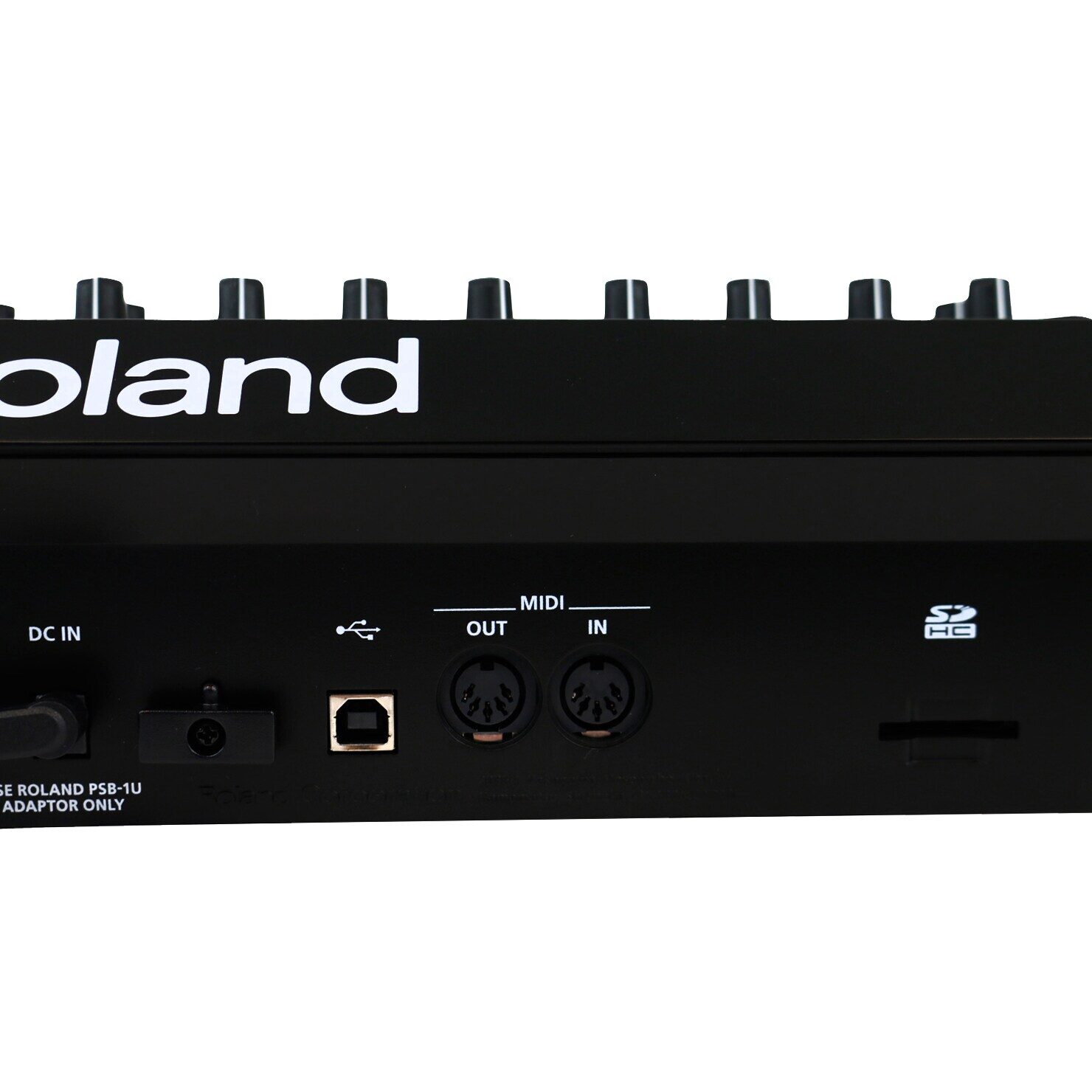

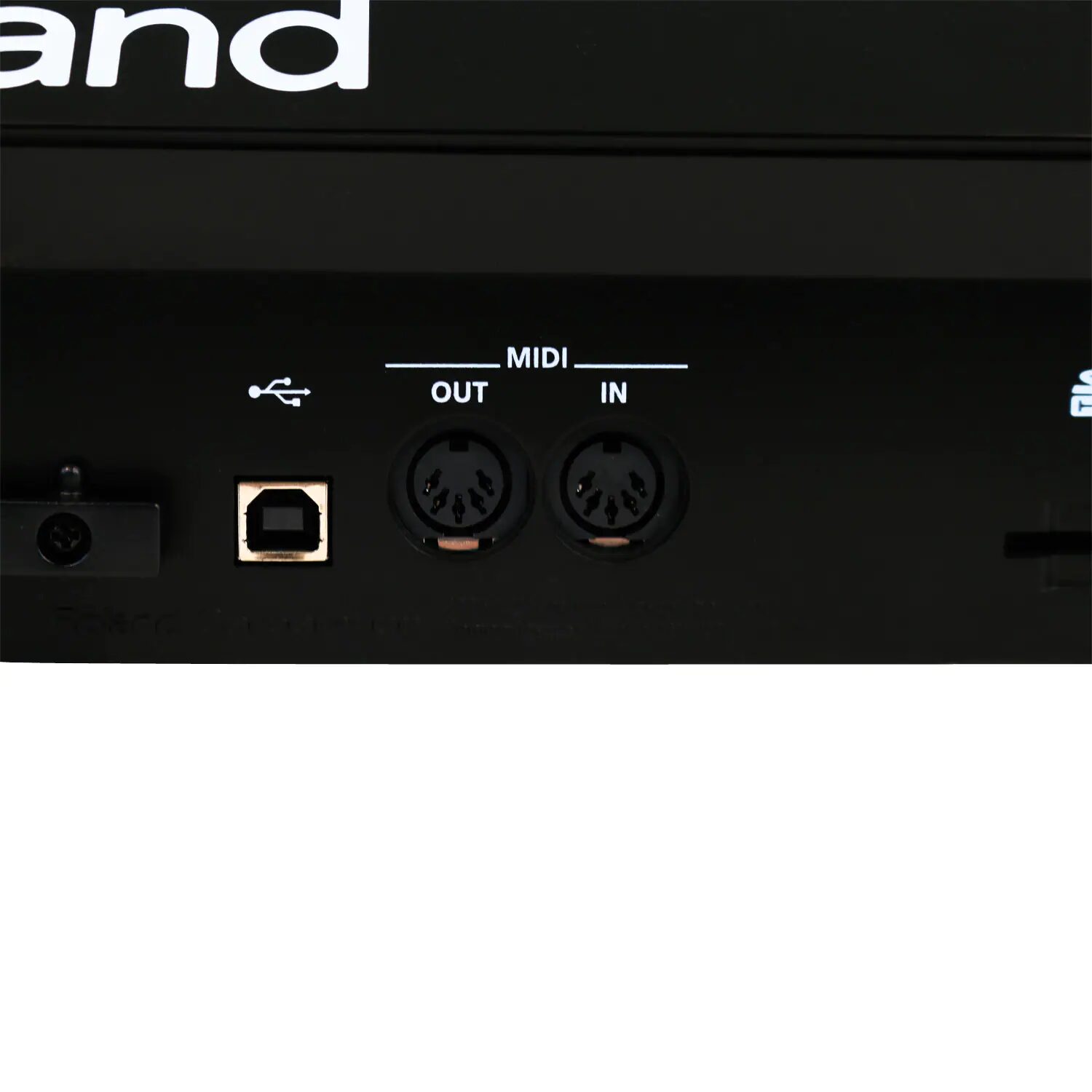

MIDI (in, out)
USB port: USB type B (audio/MIDI)

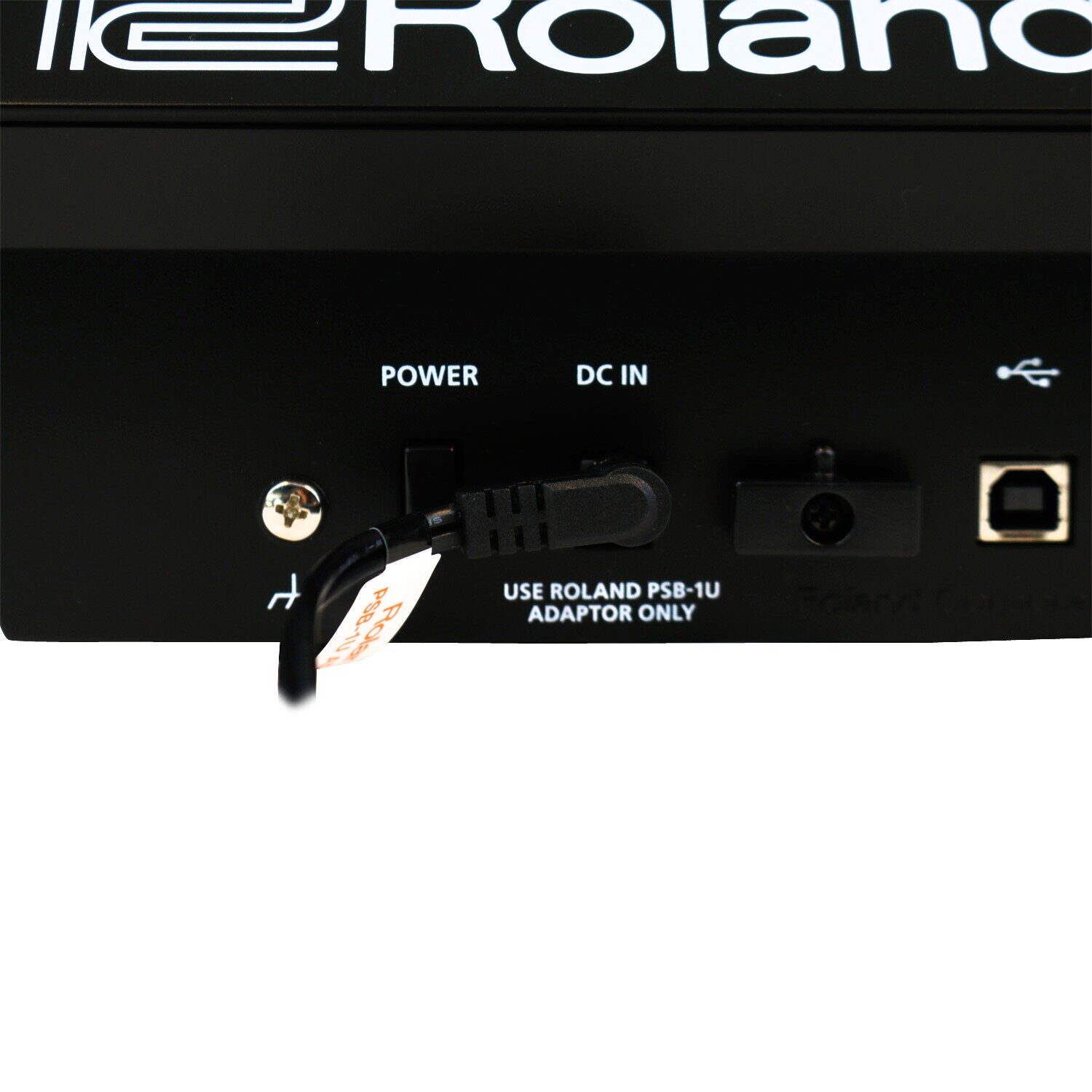

DC IN
power supply: adapter (included)
power consumption: 2 A
dimensions (BxLxH): 881 x 364 x 109 mm
weight (without adapter): 5.9 kg
compatible with: Roland DP-series, Roland EV-5 (neither are included)
included: user manual, power adapter with cable
