Description
Specifications
Product features
19 inches no
Number of auxiliaries 1 – 2
Number of microphone inputs 9 – 12
Number of mono channels not applicable
Number of stereo channels 12
Number of submasters none
Phantom power yes
Headphone output yes
Built-in audio interface USB (2×2 I/O)
Built-in audio player USB
Built-in effects no
Built-in mixer effects none, not applicable
Insert connectors 8 channels
Type of mixer inputs microphone input (XLR), unbalanced line input (TS jack), unbalanced line input (RCA), telephone input (RJ11)
Type of mixer radio / broadcasting mixer
Type of mixer outputs balanced line output (XLR), unbalanced line output (RCA), stereo headphone output (TRS jack or mini jack), telephone output (RJ11)
Volume control knobs, faders, faders + knobs
Weight and dimensions including packaging
Weight (incl. packaging)14.0 kg
Dimensions (incl. packaging)62.2 x 35.6 x 10.5 cm
Product specifications

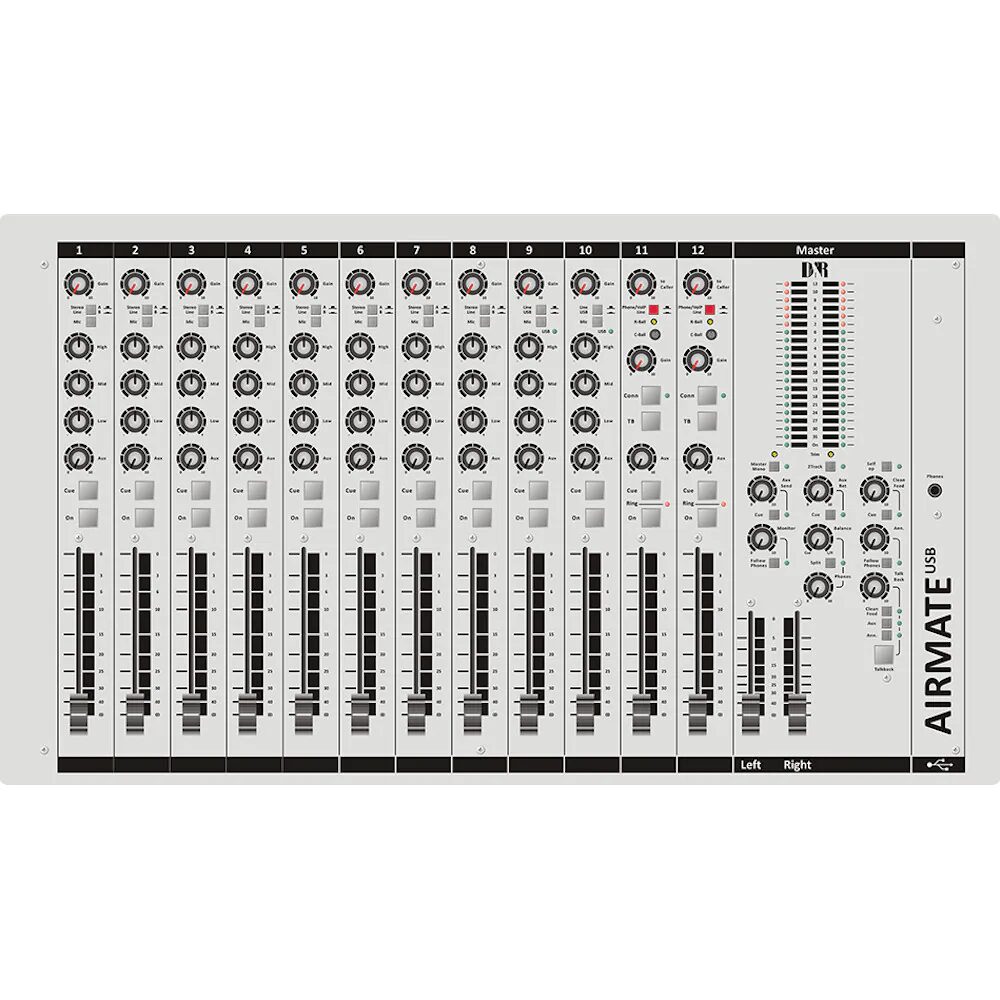

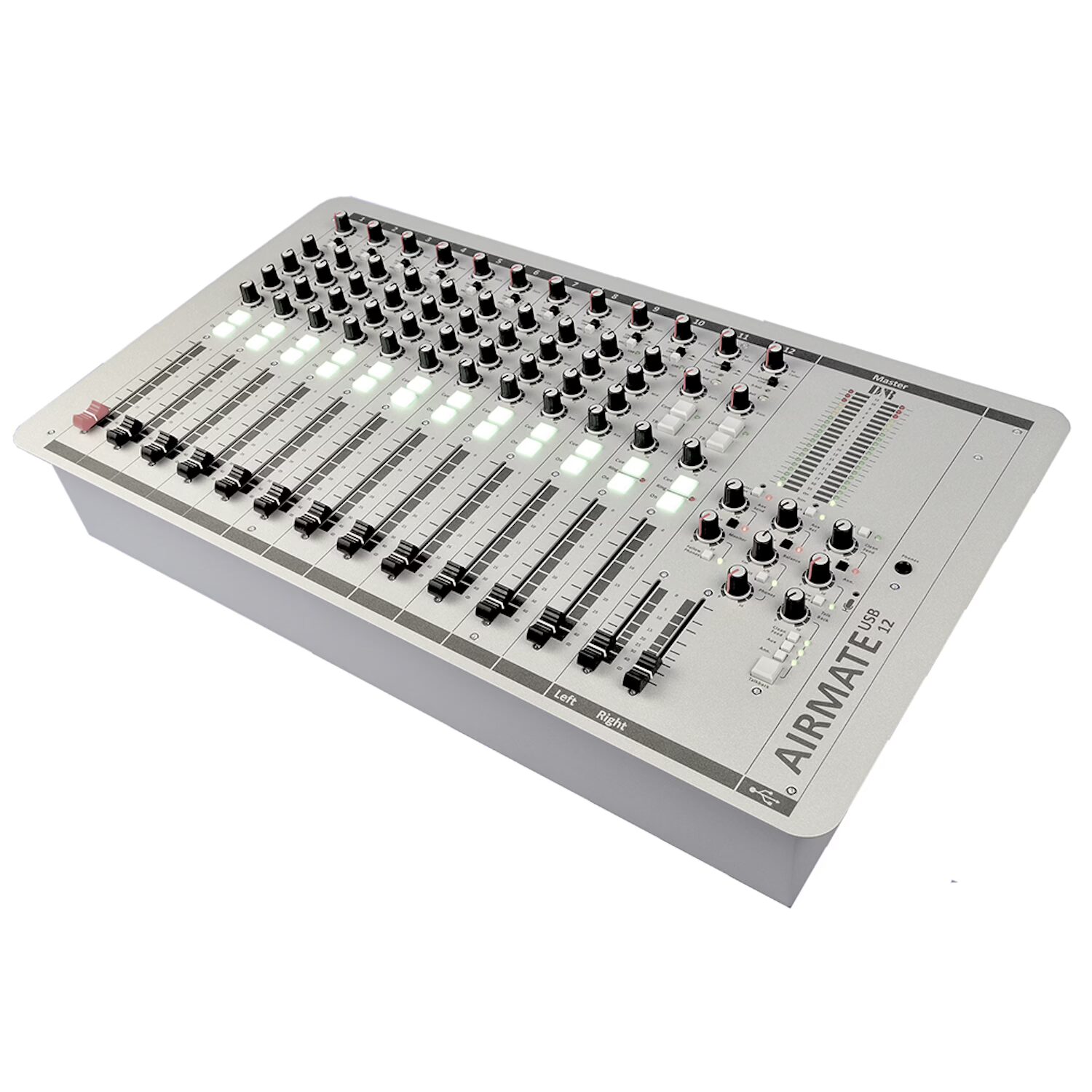

D&R Airmate-12-USB
12-channel broadcast mixer
2 built-in telephone inputs
panel with clear layout
adjustable setup
technical information
frequency range: 10 Hz – 60 kHz
THD: <0.009%

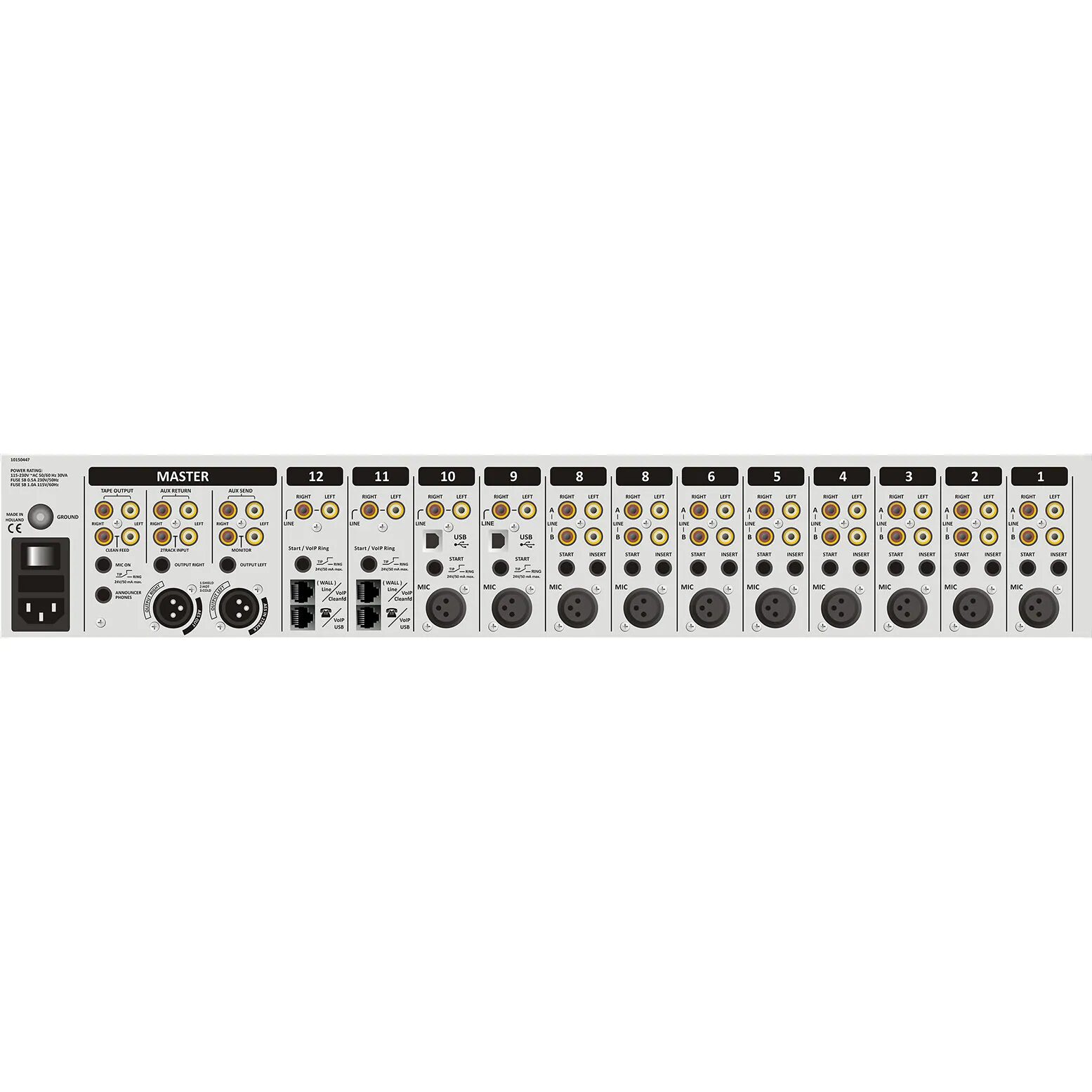

connectors:
22x RCA input (line, CH1 – 4 A/B, 2Track)
20x jack (start/insert)
10x XLR (mic in)
2x USB B
4x RJ11 (telephone input)
6x RCA output (aux out, aux return, tape out, clean feed, monitor out)
2x jack (mic on/announcer phones)
2x XLR (master out, L/R)
power cable
jack out (headphones, on top)
housing
table cut-out: 590 x 325 mm
dimensions: 622 x 356 x 105 mm
weight: 14 kg
