Description
Specifications
Product features
19-inch rack size 2U
2-ohm compatible yes
Number of amplifier channels 4
Audio loop output no
Bridge mode yes
Input connector XLR
Built-in filter not specified
Built-in protectiono verload, thermal, square wave / DC voltage, clip indicator
Built-in DSP processor no
Cooling not specified
RMS power (4 ohms) per channel 2200 – 2299 watts
RMS power (8 ohms) per channel 1300 – 1399 watts
Amplifier class TD
Amplifier outputlocking speaker connector
Equipped with crossover yes, fixed
Weight and dimensions including packaging
Weight (incl. packaging)16.0 kg
Dimensions (incl. packaging)88.0 x 49.0 x 45.0 cm
Product specifications

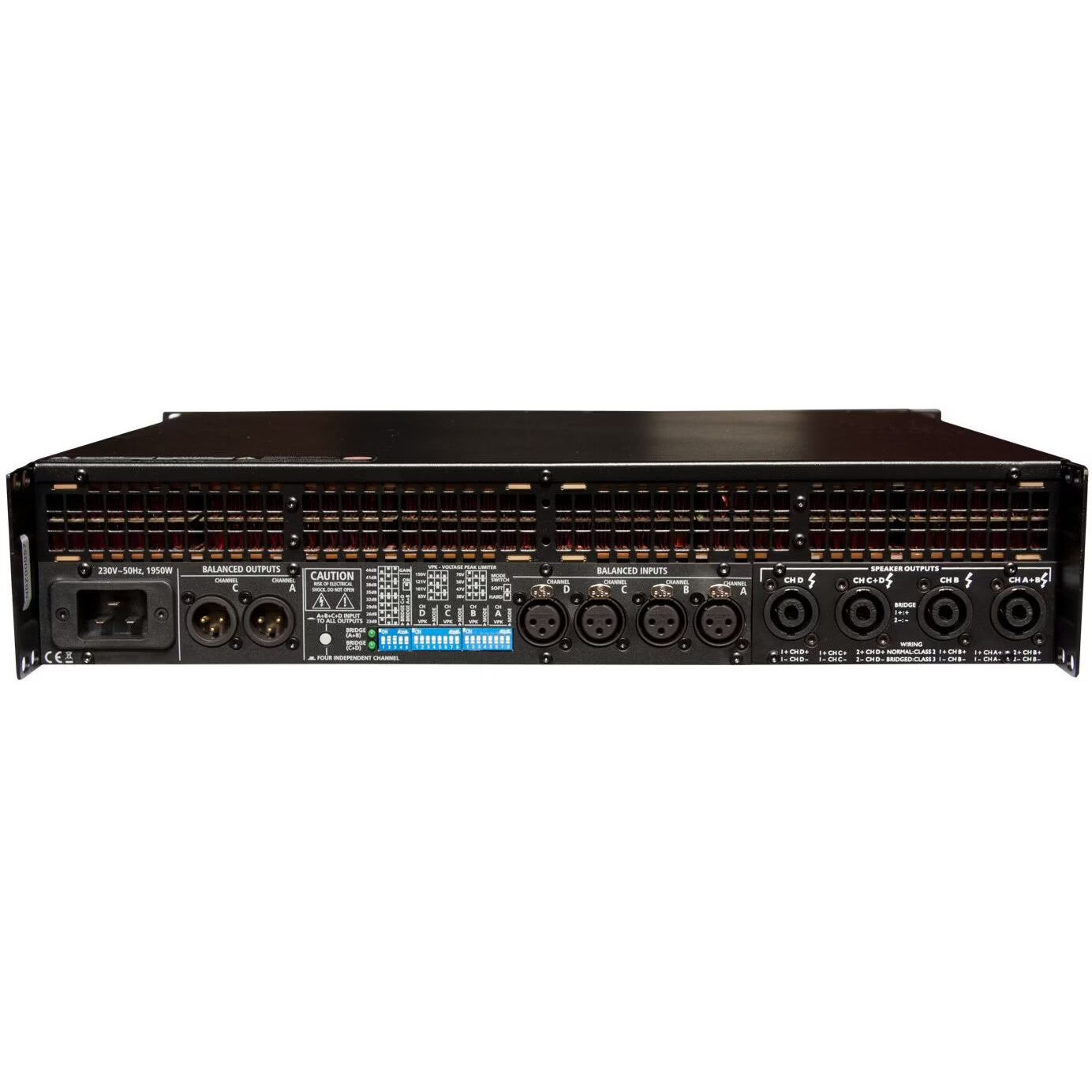

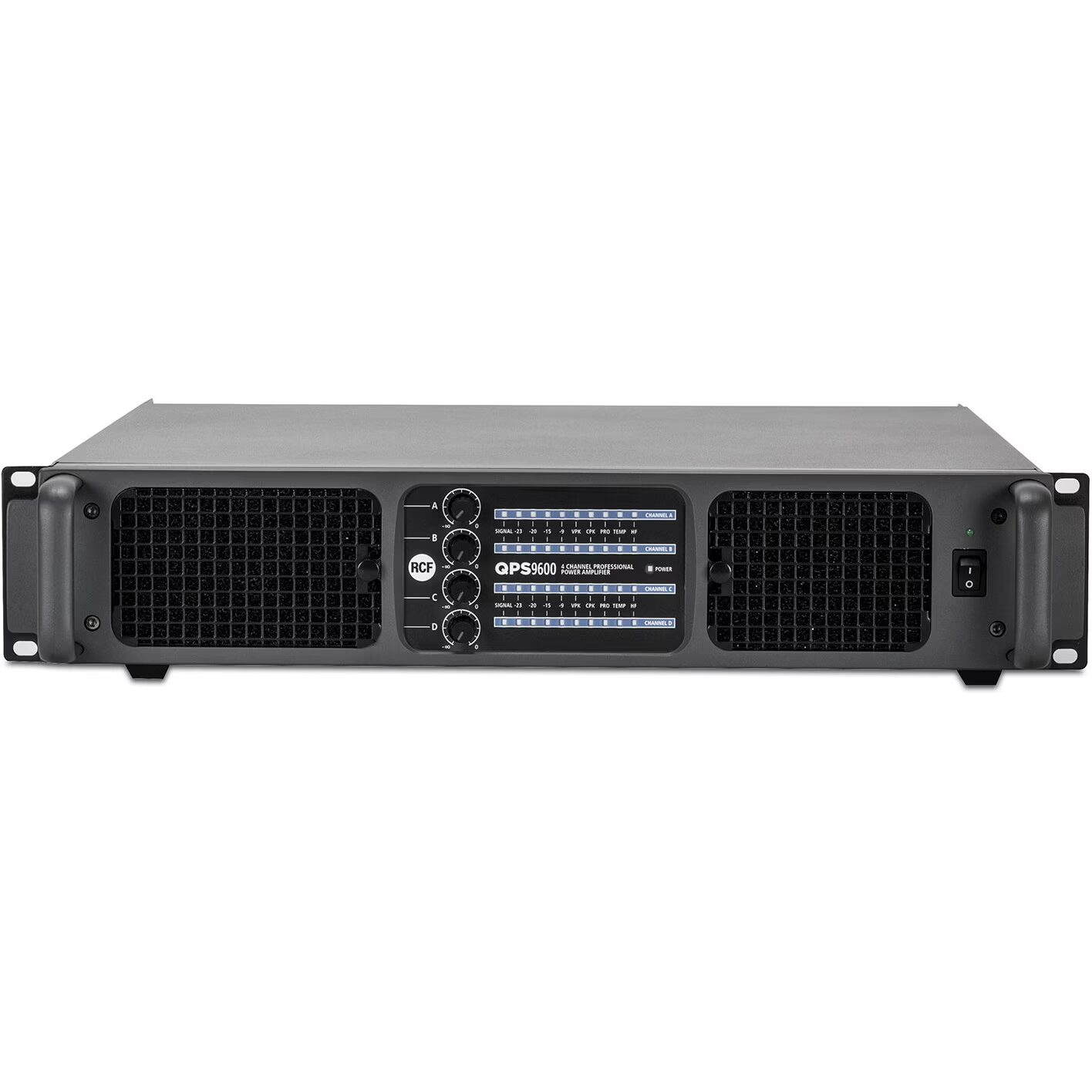

RCF QPS 9600 high-power amplifier
output stereo 2 ohms: 4x 2400W RMS
output stereo 4 ohms: 4x 2200W RMS
output stereo 8 ohms: 4x 1300W RMS
output bridged 4 ohms: 2x 4800W RMS
output bridged 8 ohms: 2x 4400W RMS
frequency response (-3 dB): 20 Hz – 25 kHz
signal/noise ratio: 110 dB
crosstalk: -75 dB
input
input connector: XLR
input impedance: 20 kOhms (balanced), 10 kOhms (unbalanced)
output:
output connector: SpeakON
parameters:
protection: DC, HF, current, thermal drift
amplifier: TD
power supply:
operating voltage: 115/230V (50/60 Hz)
power consumption: 1950 W
dimensions: 88 x 48.2 x 44.5 cm
weight: 16 kg
