D&R Airlite-USB 8-Channel Radio On-Air Mixer

Original price was: €1,790.Current price is: €1,250.

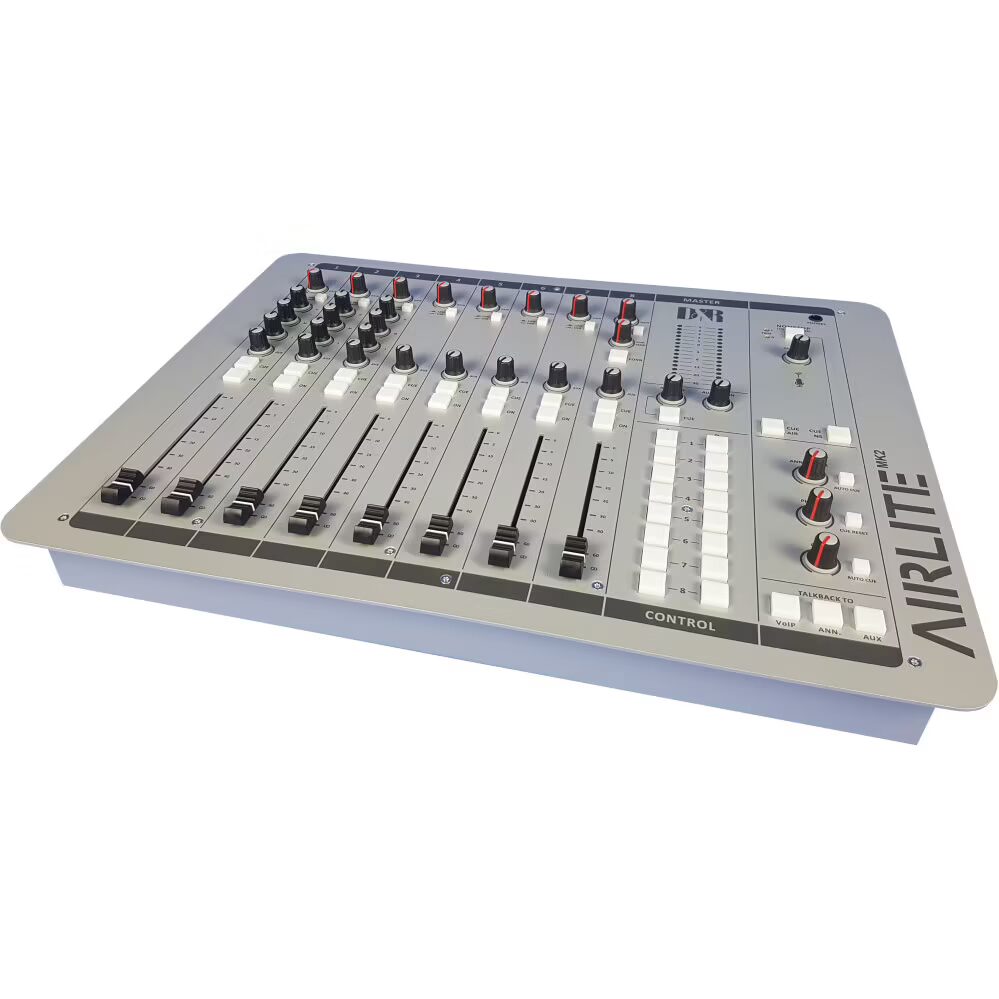

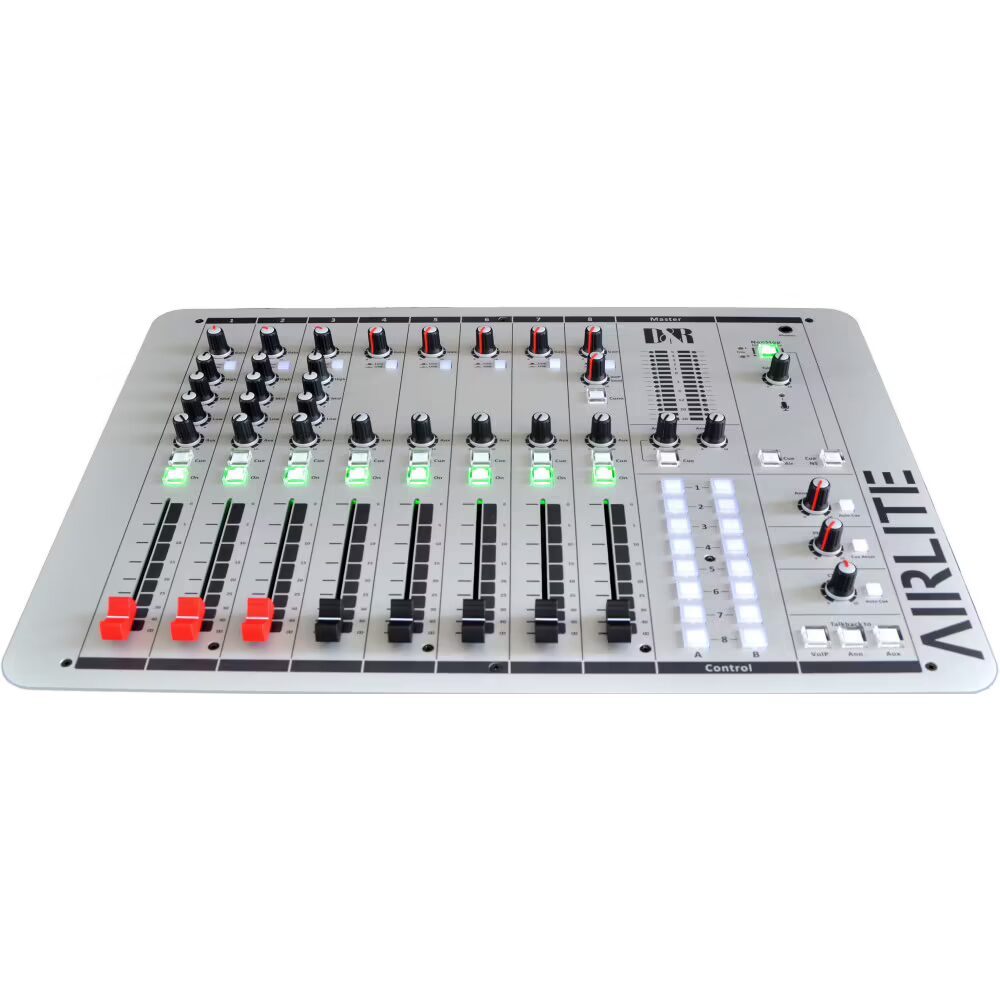

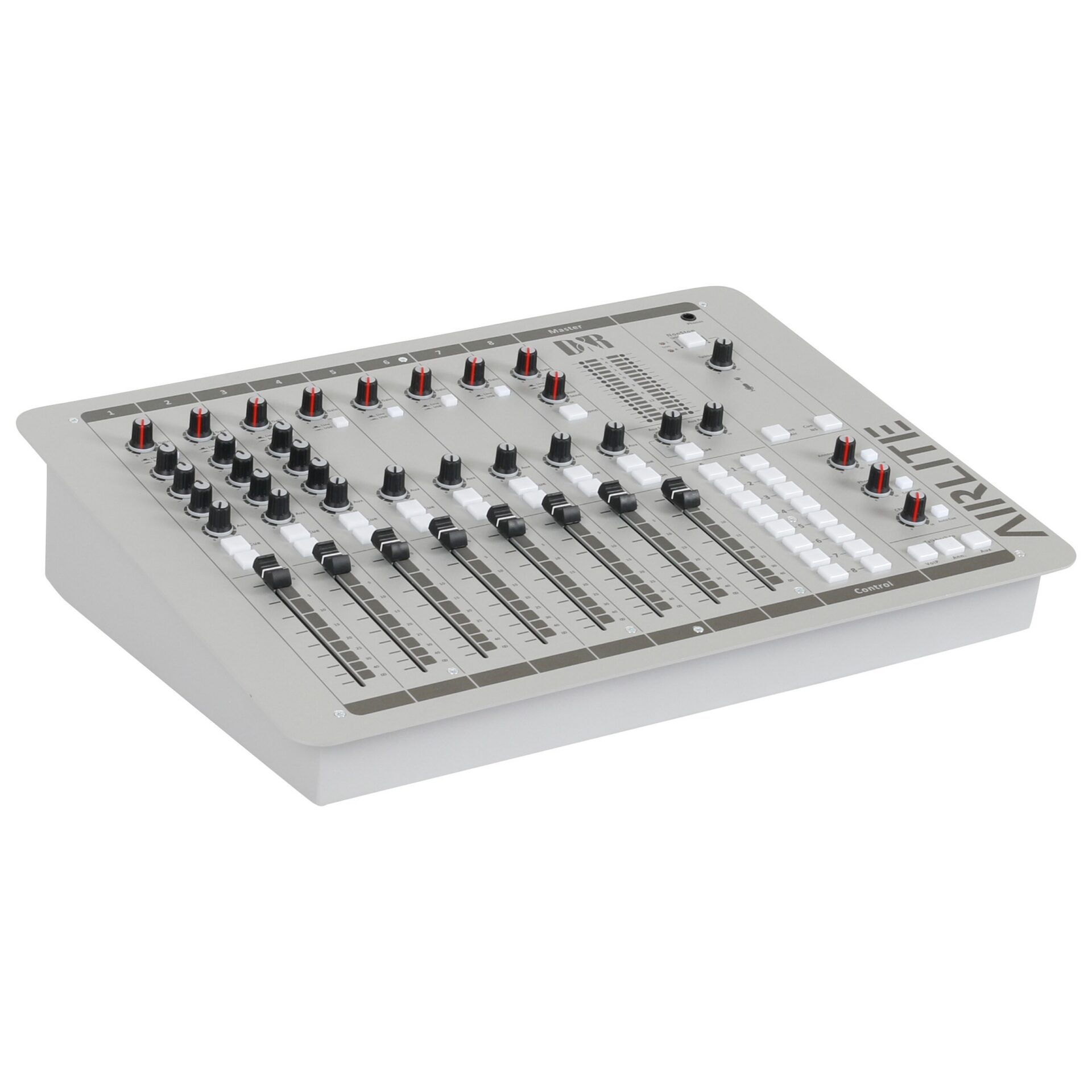

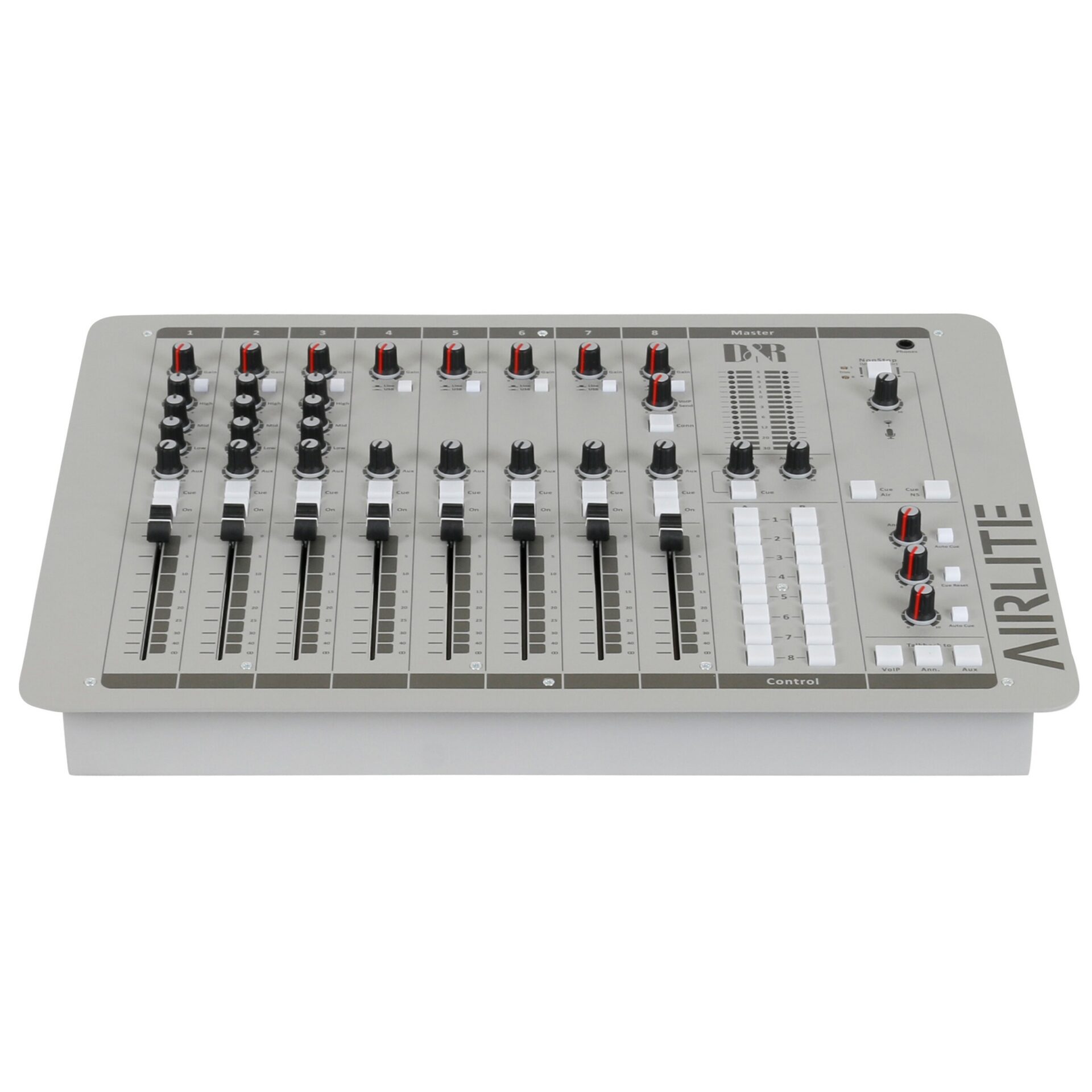

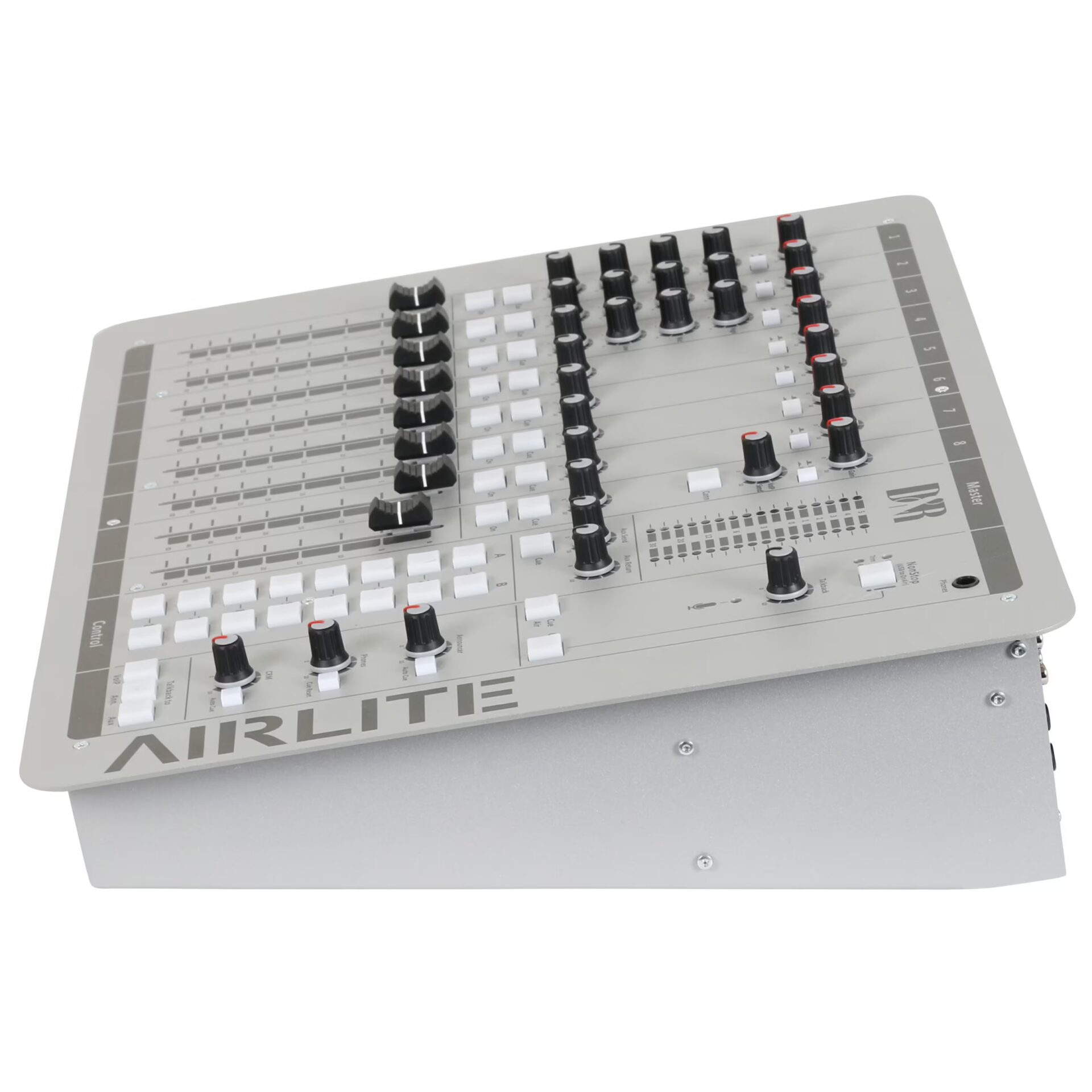

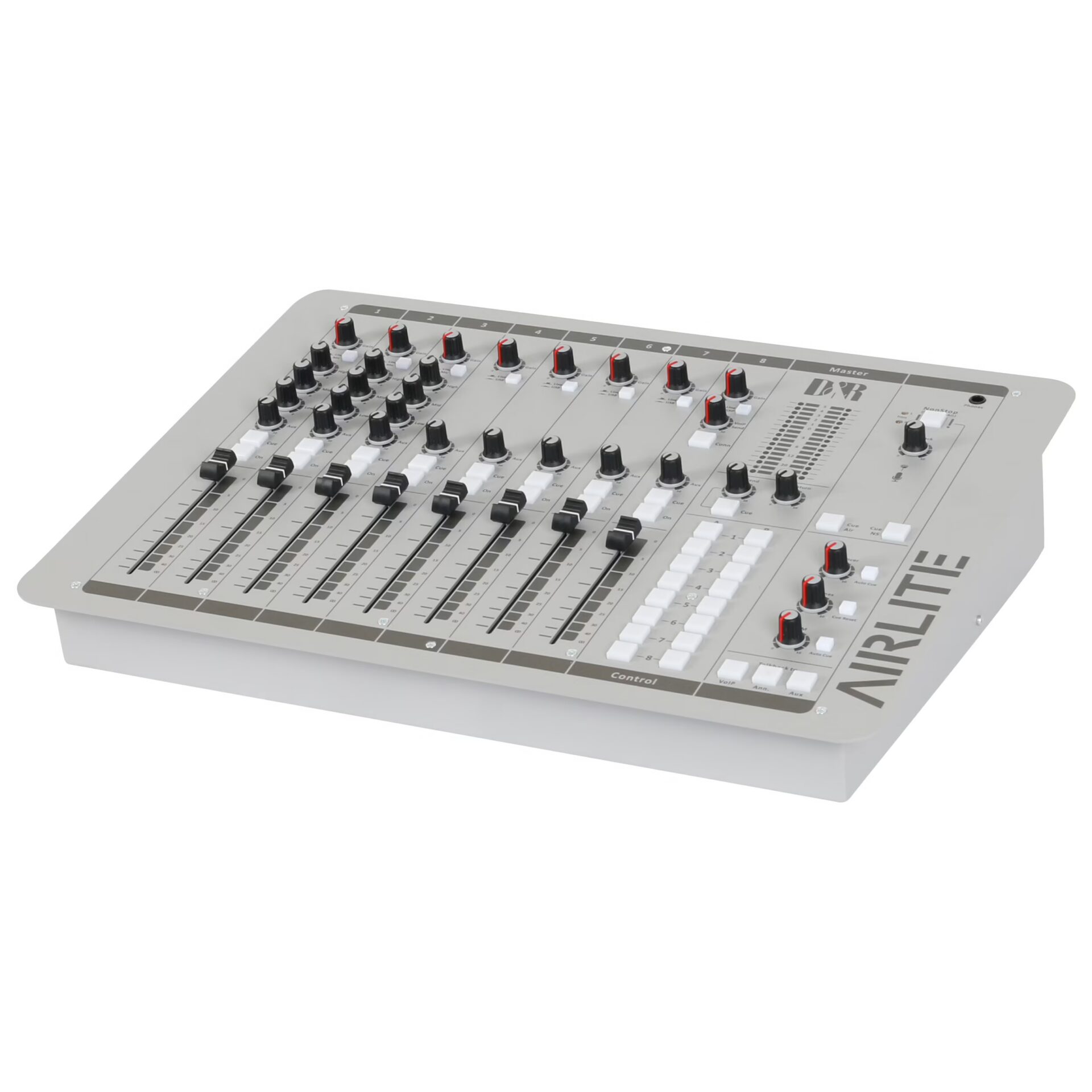

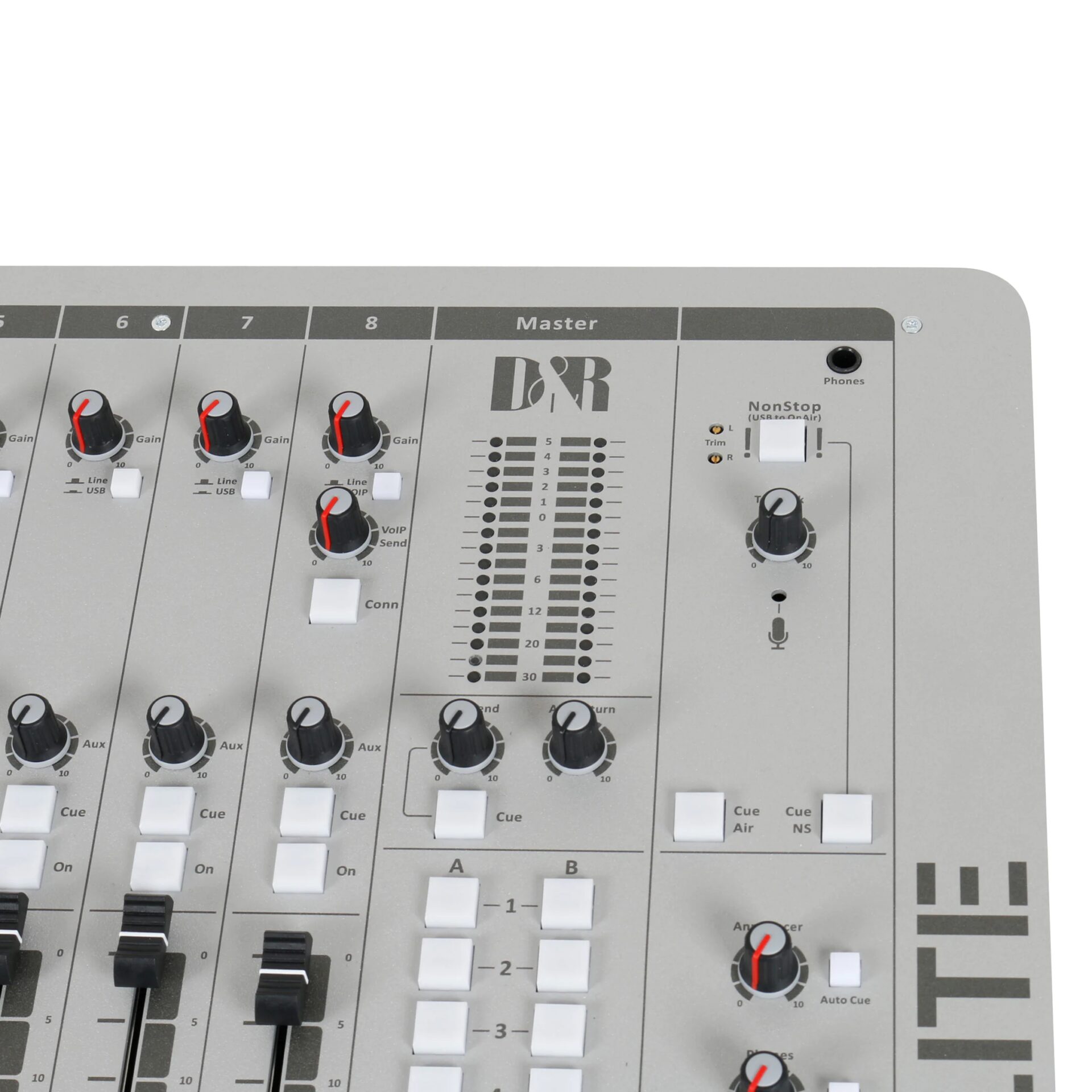

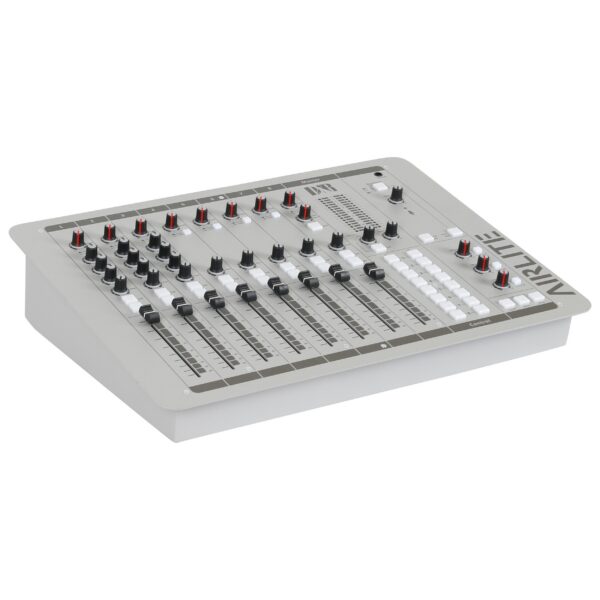

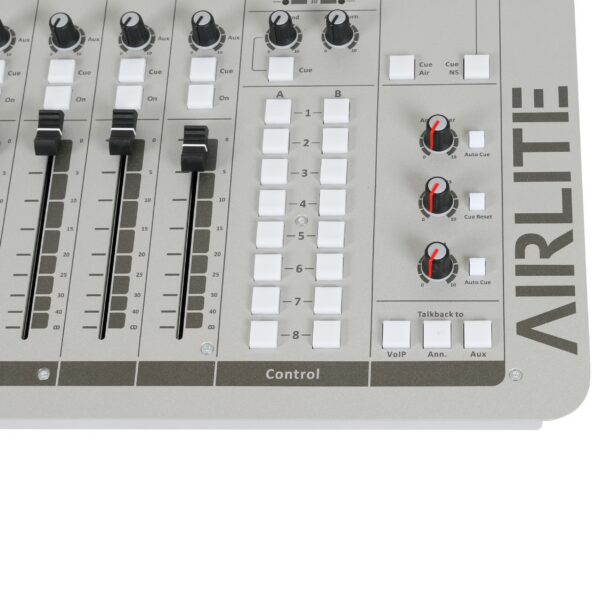

The D&R Airlite-USB is a professional, 8-channel, radio on-air mixer. It’s ideal for your master station or for starting your own internet radio station at home. It even has VoIP functionality among its range of possibilities. The mixer can handle line, microphone and USB stereo signals and the control section features 16 assignable, illuminated switches that can be used to activate jingles, for example. There’s also a stereo aux send and return, control room monitor (CRM) and announcer master controls. The CRM is automatically silenced whenever the DJ mic is active, of course. Plug a dedicated VoIP USB cable into the mixer via your PC and you can easily make a connection to a program like Skype. In short, the Airlite-USB is a serious piece of hardware designed for radio.

The D&R Airlite-USB 8-Channel Radio On-Air Mixer

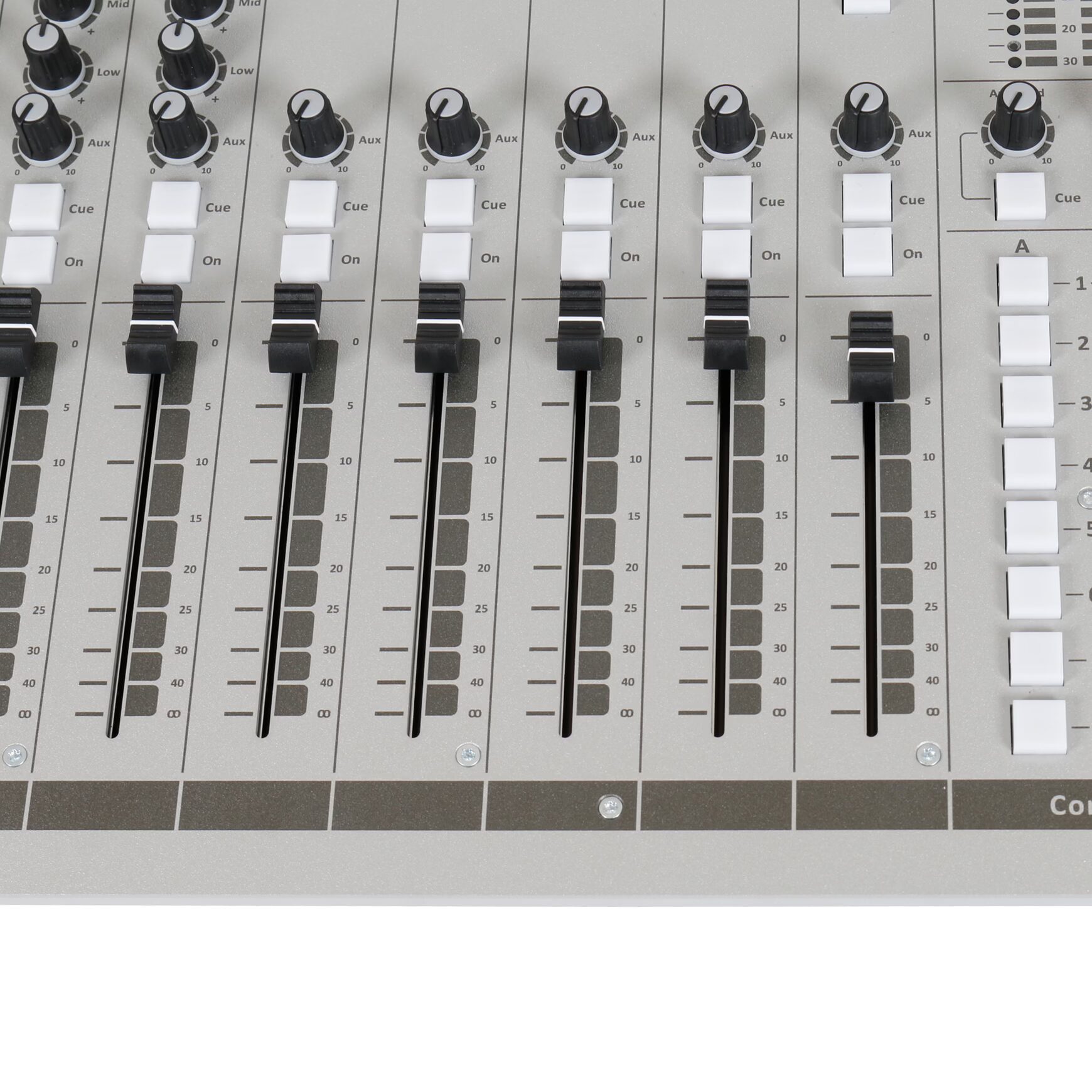

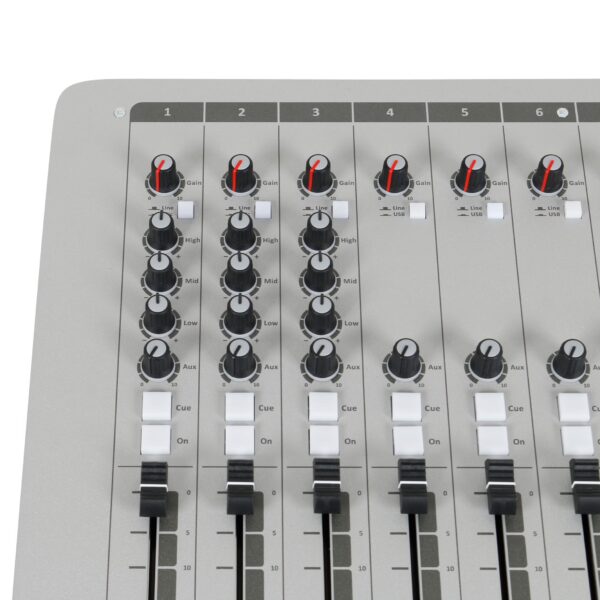

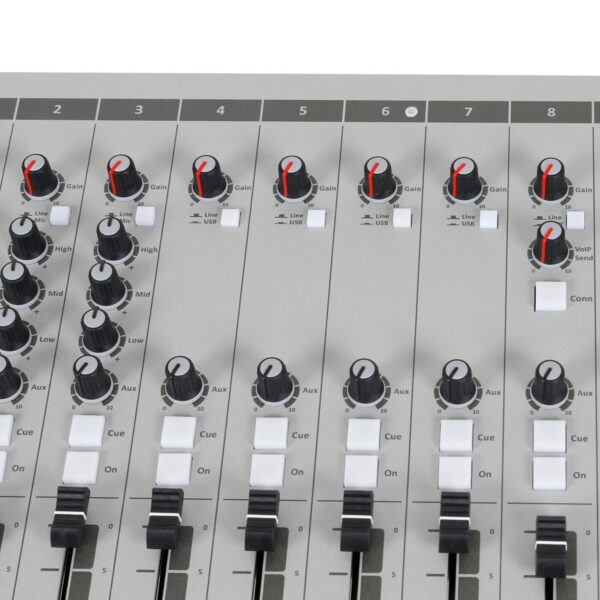

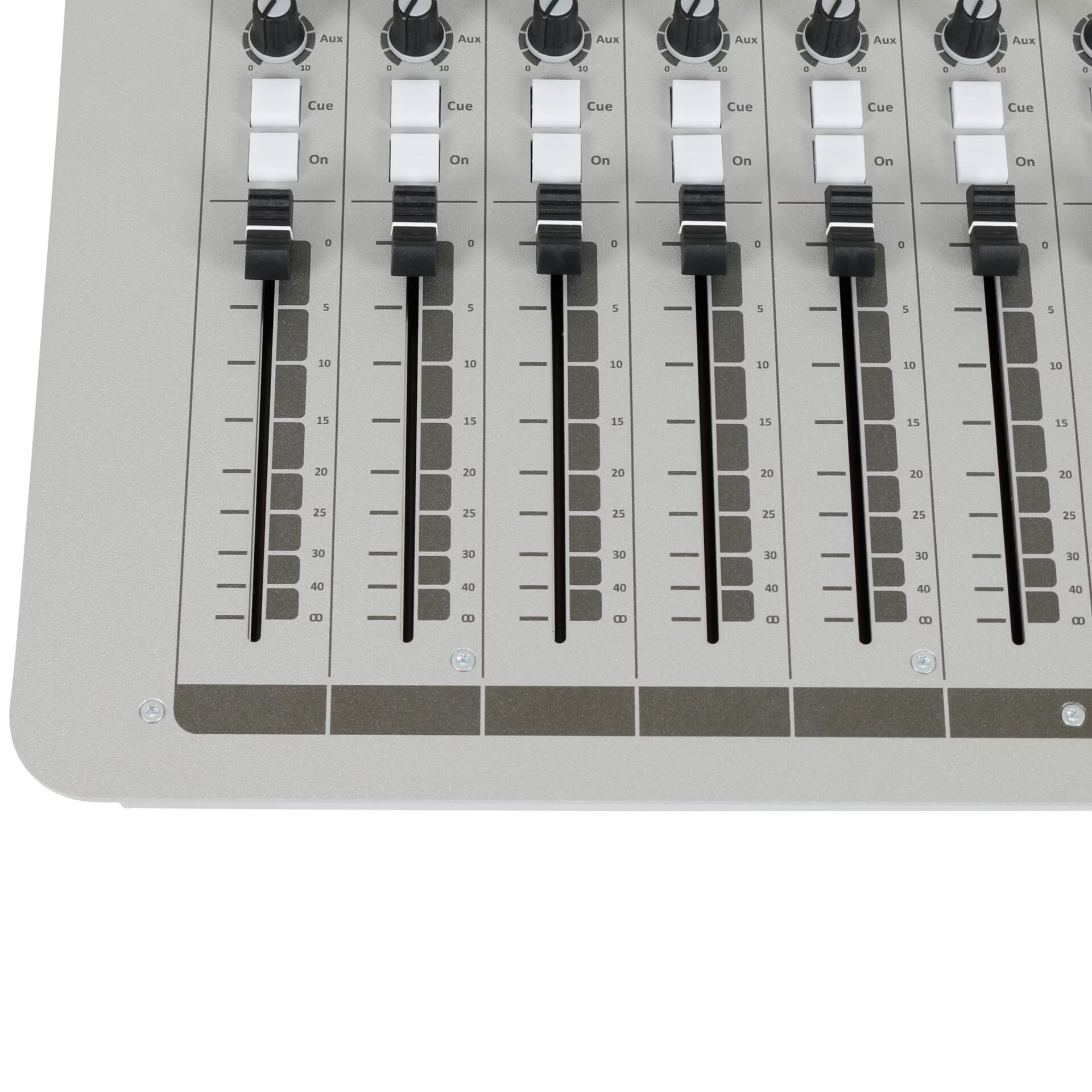

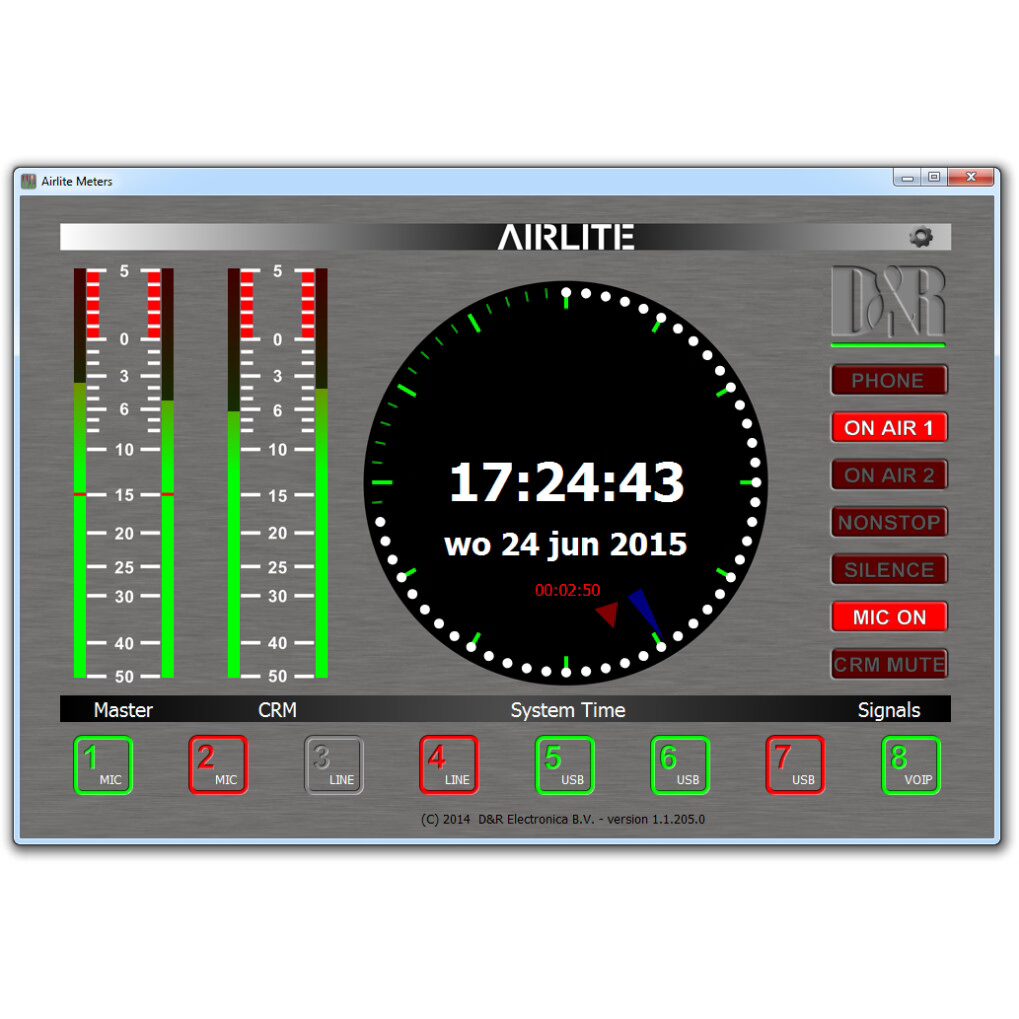

Being able to make accurate digital adjustments to the Airlite-USB’s eight modules make it a radio technician’s dream. Via the included software, where each module has its own page, you can program cue resets by line, mic, fader and so on and even program switch colours as well as controlling things like phantom power settings. Channels 1, 2 and 3 are mic/line input channels that each have their own 3-band EQ, aux, cue and on controls. The cue knob can also be used for telephone conversations while music is playing. Channels 4 to 7 are line/USB channels where stereo sources can be connected from a play-out system or a CD player via the line input, for example.

Tips or comments about this product

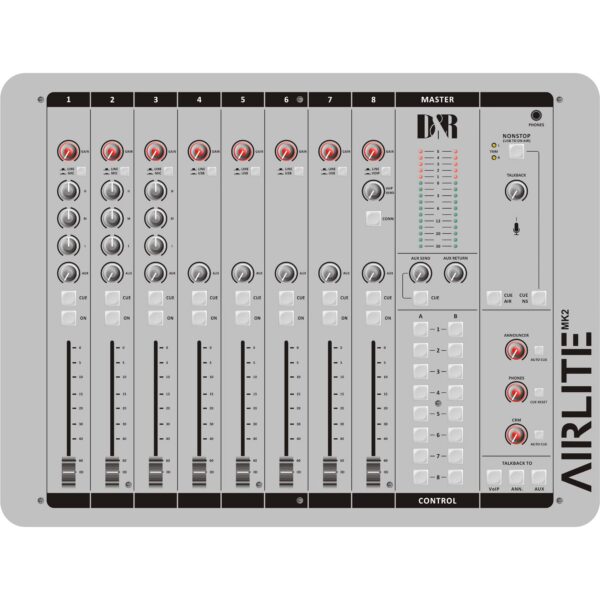

Let op: Sommige afbeeldingen tonen de originele Airlite-USB ter illustratie. Het gaat hier om de MK2-versie.

Description

Specifications

Product features
19 inches no
Number of auxiliaries> 8
Number of microphone inputs 3 – 4
Number of mono channels 3
Number of stereo channels 8
Number of submasters none
Phantom power yes
Headphone output yes
Built-in audio interface USB (multi track)
Built-in audio player no
Built-in effects no
Built-in mixer effects channel EQ
Insert connectors yes, only mono channels
Type of mixer inputs microphone input (XLR), unbalanced line input (RCA), Hi-Z input (TS jack)
Type of mixer radio / broad casting mixer
Type of mixer outputs balanced line output (XLR), unbalanced line output (RCA), stereo headphone output (TRS jack or mini jack)
Volume control knobs, faders
Weight and dimensions including packaging
Weight (incl. packaging)9.2 kg
Dimensions (incl. packaging)57.0 x 45.0 x 21.0 cm
Product specifications
D&R Airlite-USB 8-channel Radio On-Air mixer

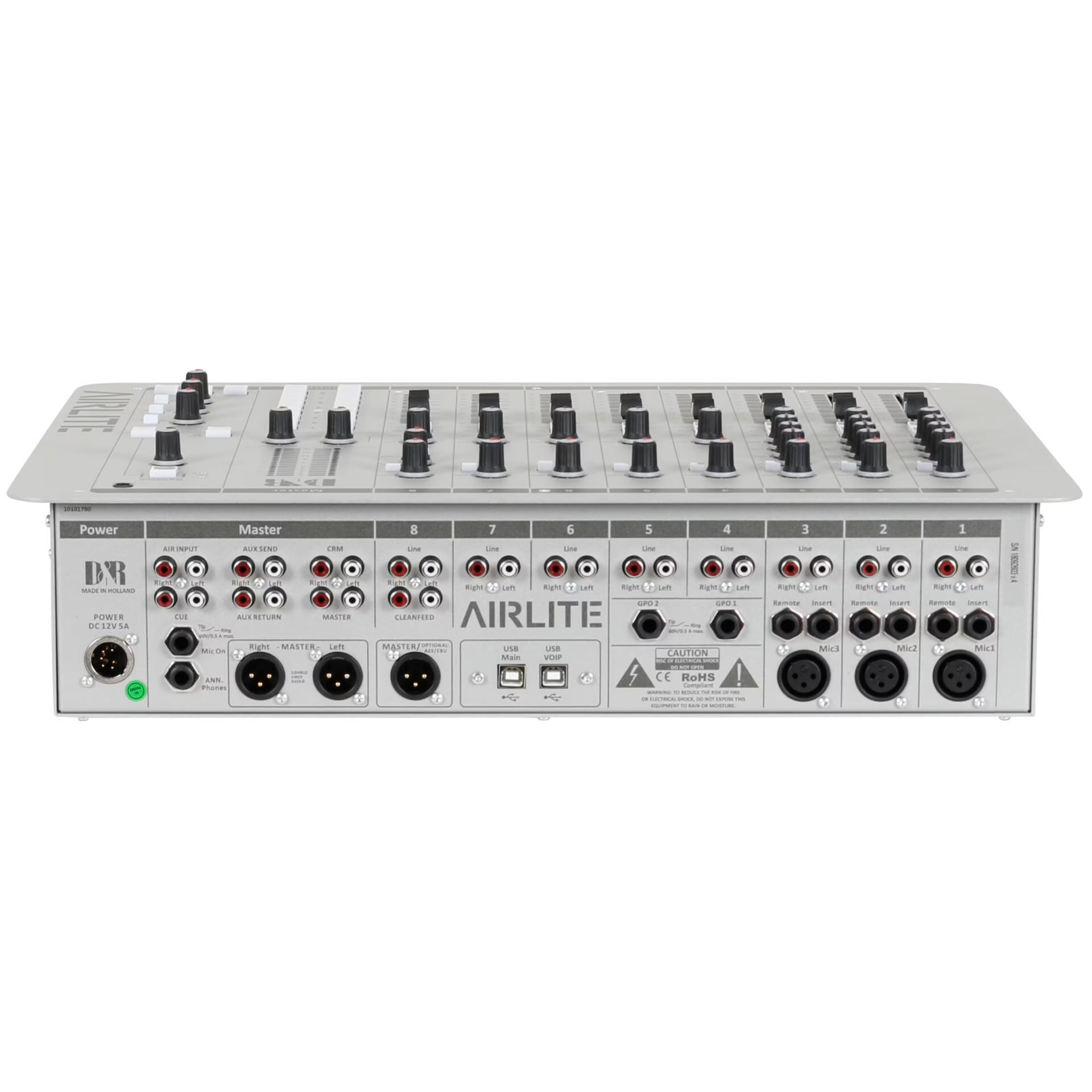

inputs:

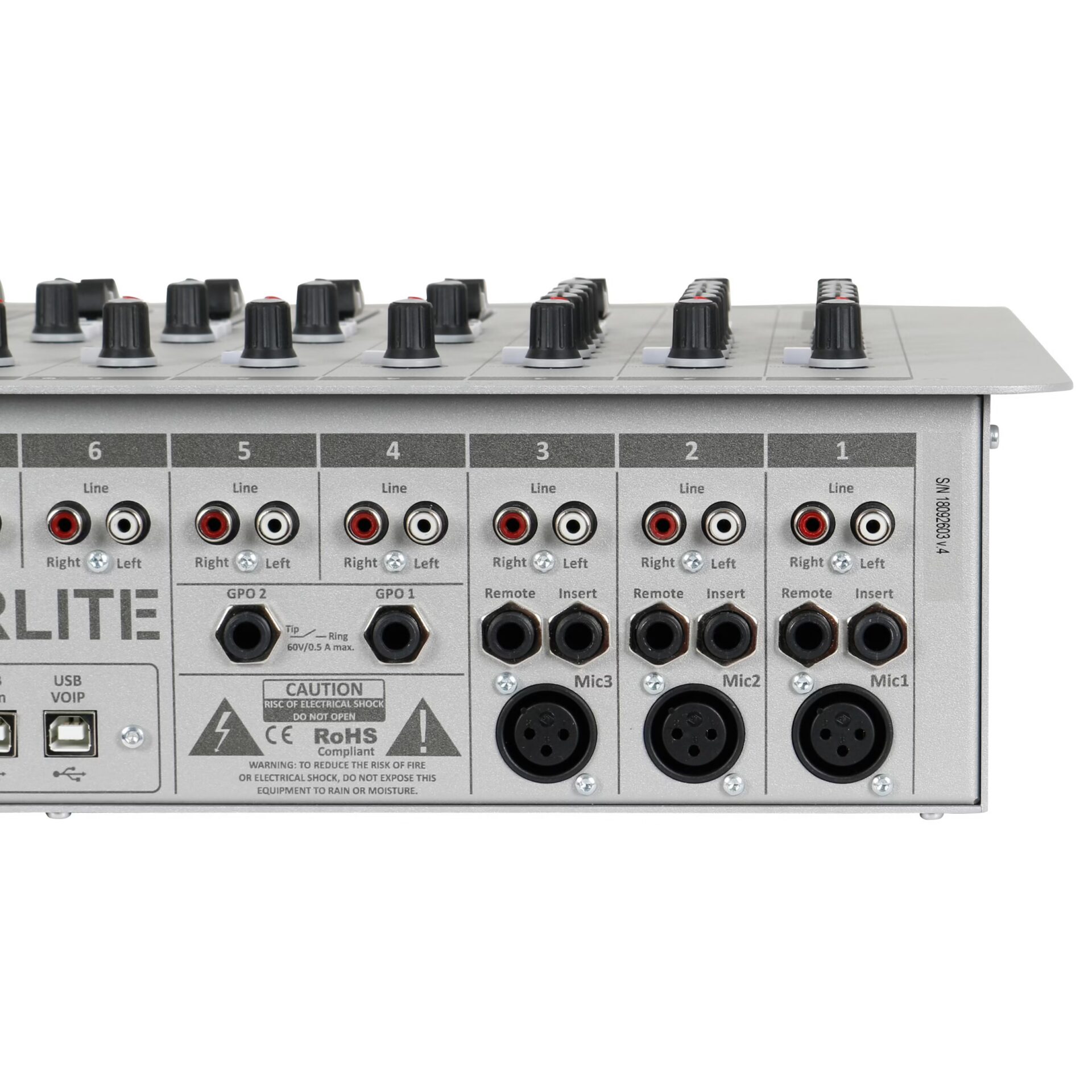

mic inputs: XLR, balanced, 2 kOhms, 48V phantom power
insert: jack, unbal, send 600 ohms
aux return: unbal, 10 kOhms
line inputs: RCA, unbal, 10 kOhms
USB: 4x stereo in & 4x stereo out
USB:
USB 2.0 compatible
playback & record mode

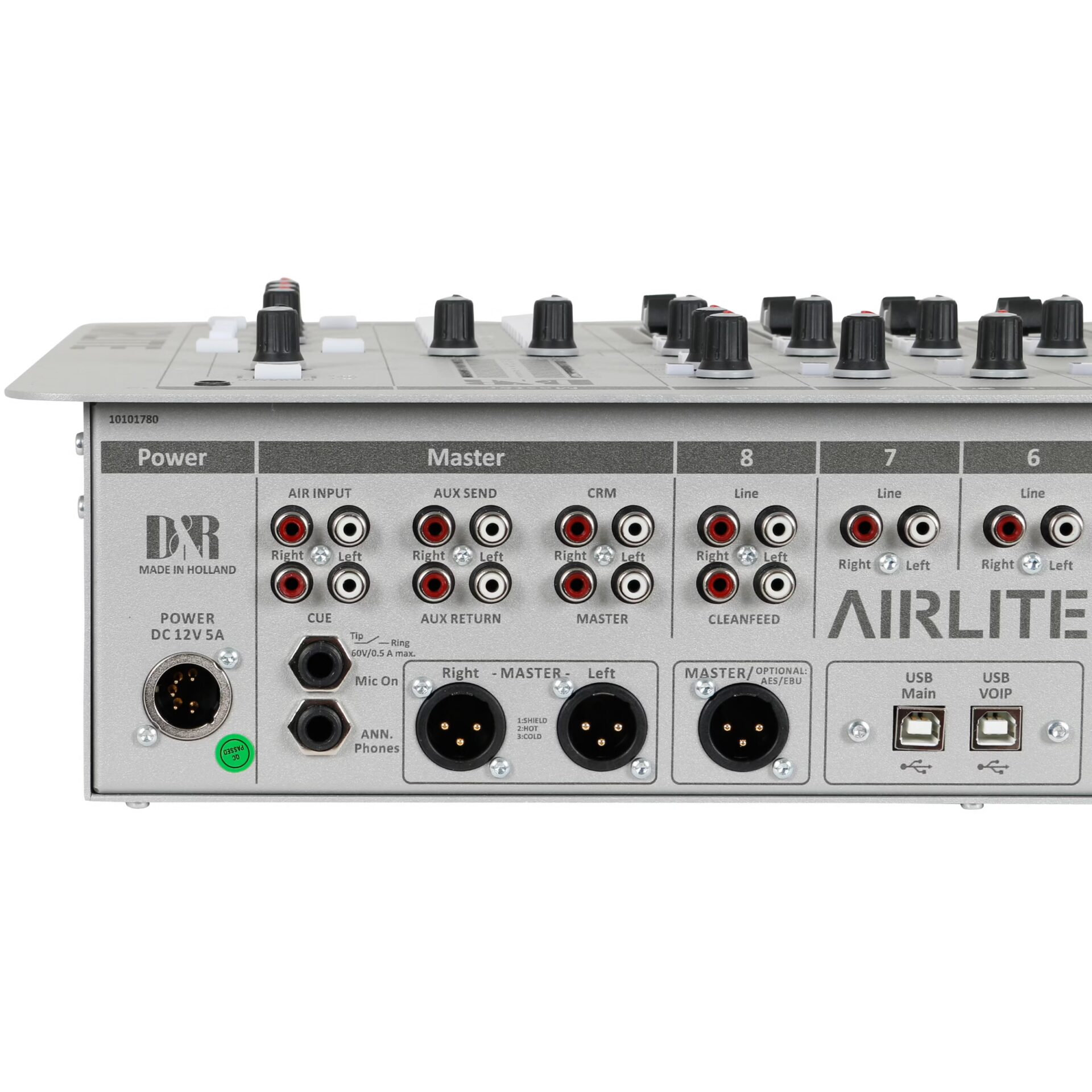

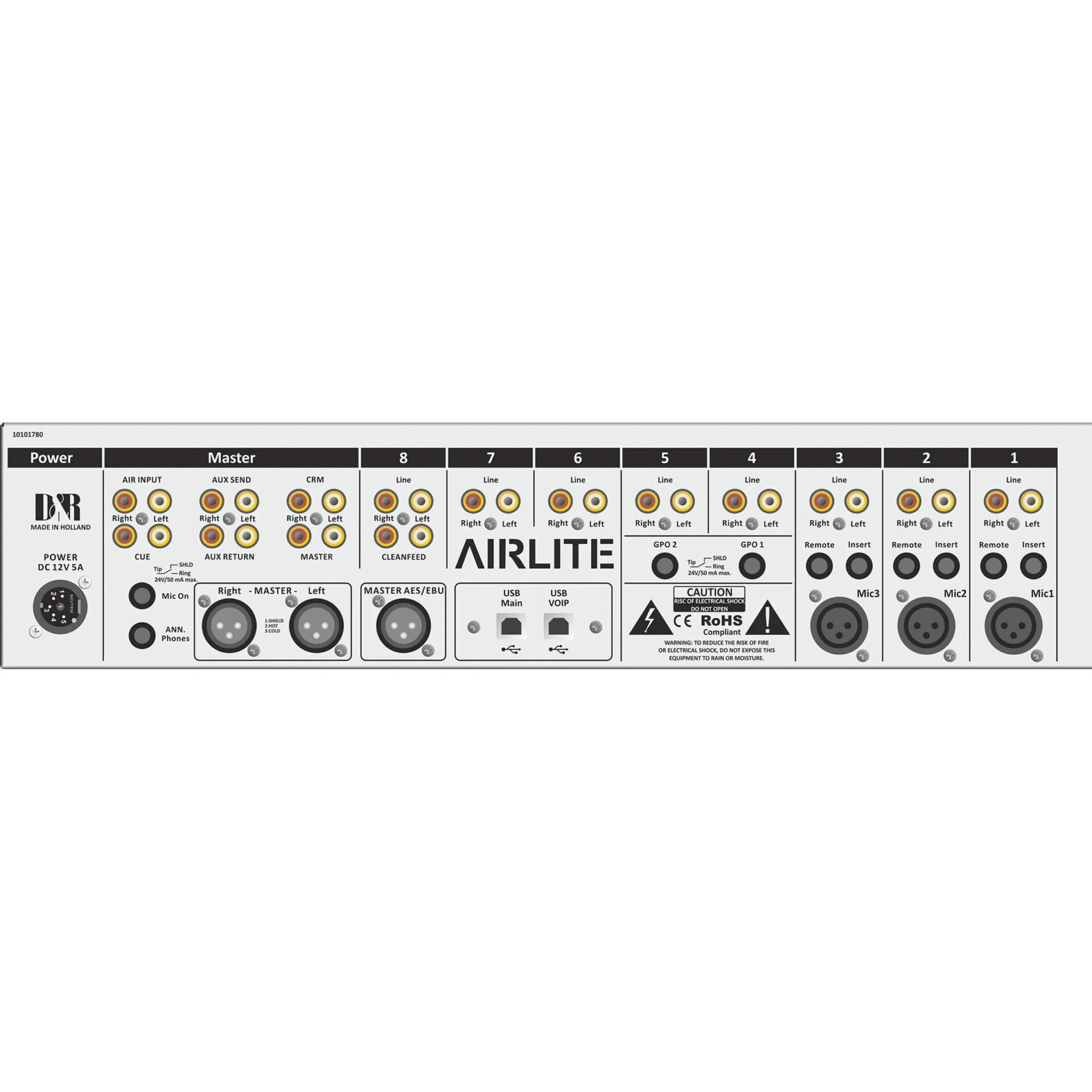

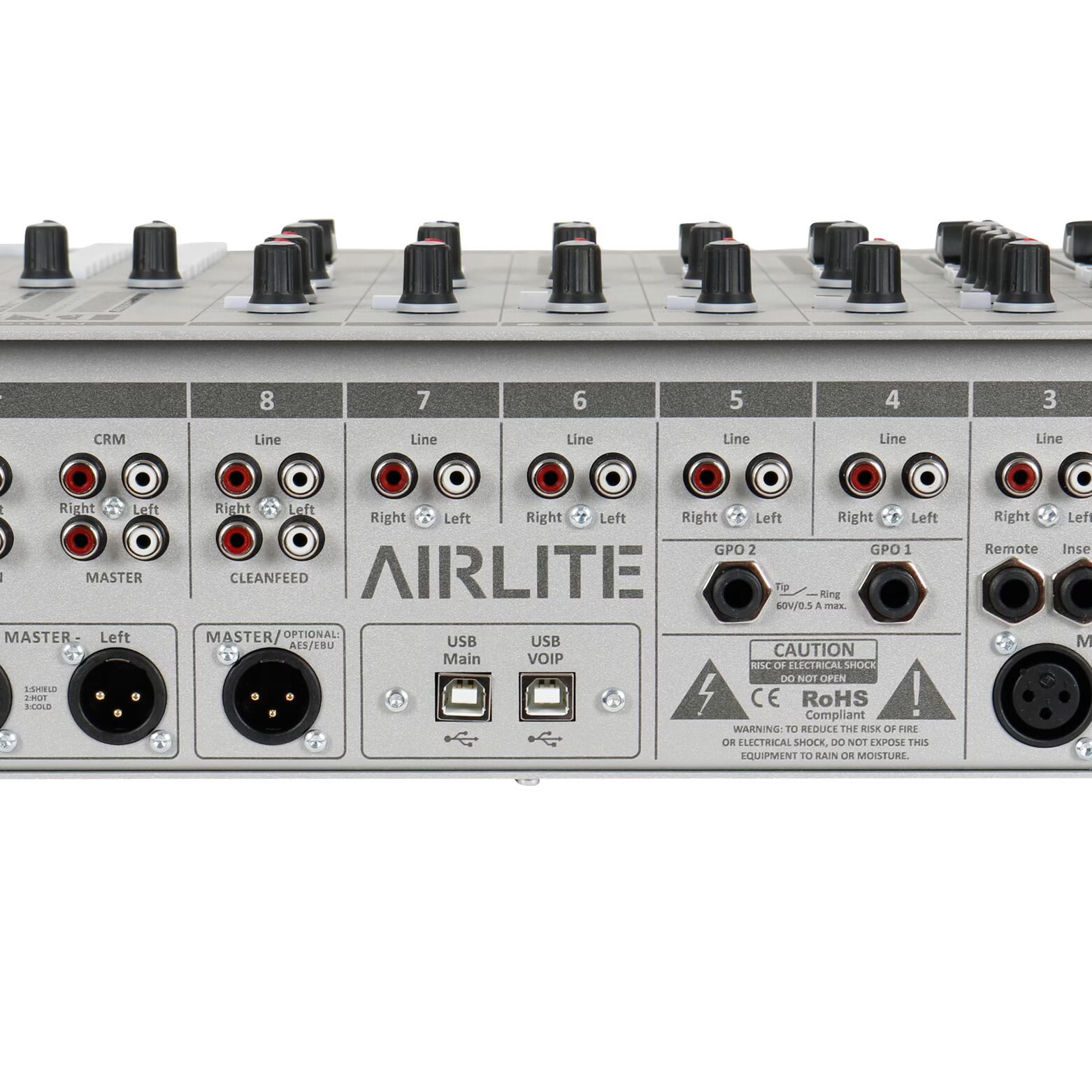

outputs:
L/R: XLR, RCA
CRM: RCA
headphone out: jack (32 – 400 ohms)
USB out: program/aux/voice track/non stop
equalizer: +/-12 dB
control software: included

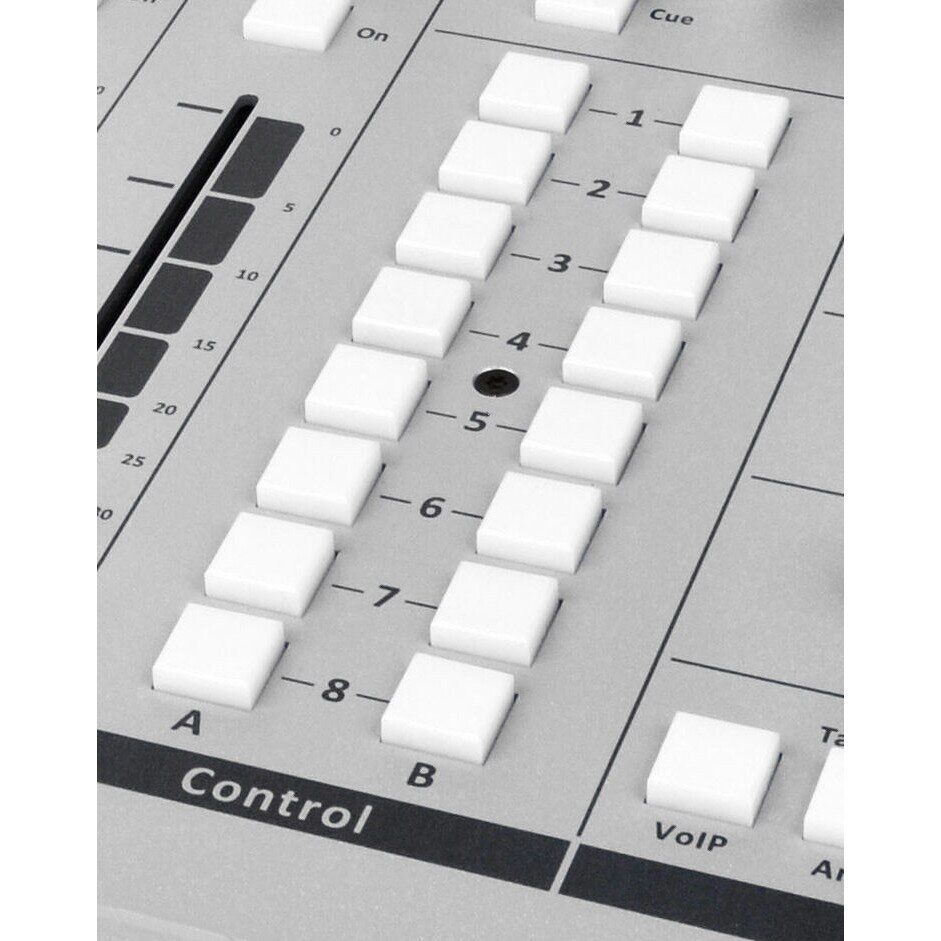

USB control section: 16x backlit assignable switches
VoIP channel: USB processing
frequency response: 10 Hz – 60 kHz
interference: < 0.01% max @ 1 kHz
dimensions: 482 x 365 x 103 mm
mounting dimensions: 449 x 344 mm
weight: 10 kg
