Description
Specifications
Product features
19 inches yes
Number of auxiliaries 0
Number of microphone inputs 3 – 4
Number of mono channels 6
Number of stereo channels 6
Number of submasters none
Phantom power yes
Headphone output yes
Built-in audio interface USB (4×4 I/O)
Built-in audio player no
Built-in effects no
Built-in mixer effects channel EQ
Insert connectors 4 channels
Type of mixer inputs microphone input (XLR), balanced line input (TRS jack), unbalanced line input (RCA), telephone input (RJ11)
Type of mixer radio / broadcasting mixer
Type of mixer outputs balanced line output (XLR), unbalanced line output (RCA), telephone output (RJ11)
Volume control knobs, faders, faders + knobs
Weight and dimensions including packaging
Weight (incl. packaging)10.6 kg
Dimensions (incl. packaging)58.0 x 45.0 x 21.0 cm
Product specifications

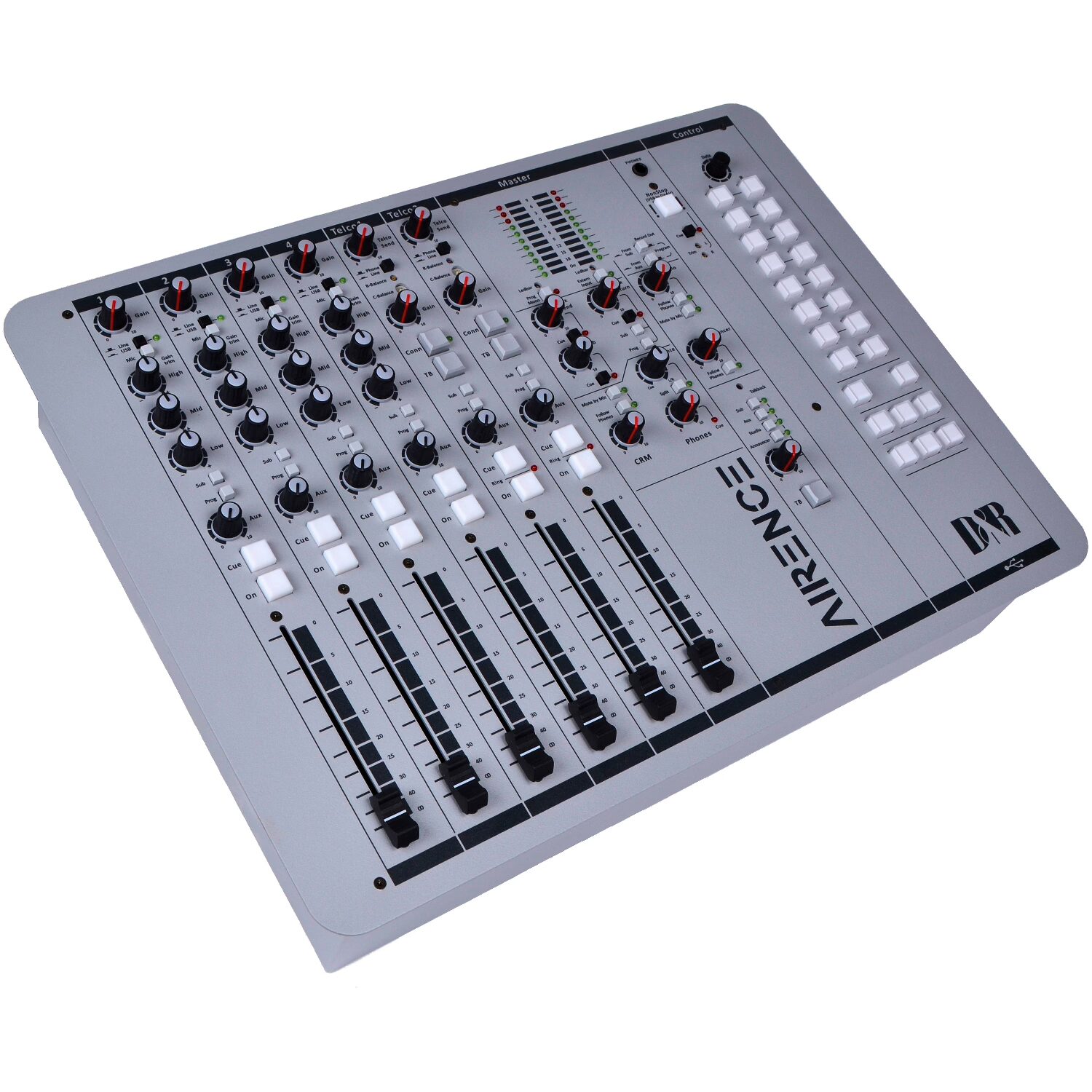

D&R Airence-USB
6-channel broadcast mixer
Two switchable telephone lines
Expandable with 6 or 12 channels using the Airence Extender
USB Control panel
Extensive master section
+48V phantom power on all microphone channels
technical details:
frequency range: 10 Hz – 60 kHz
THD: <0.01%

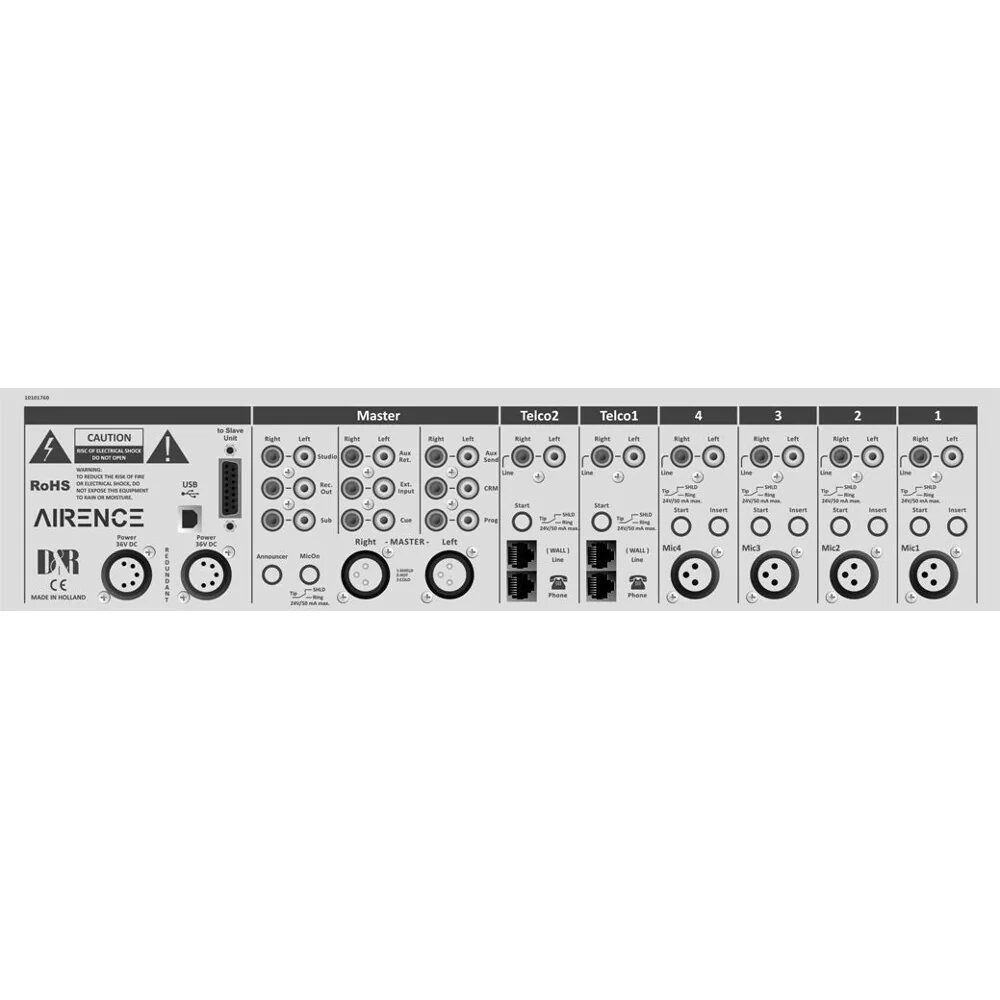

connectors:
6x line in (RCA)
6x mic (TRS jack)
4x insert (6.3 mm TRS jack, CH1-4)
4x mic in (XLR, CH 1 – 4)
4x telephone (RJ11, wall/phone)
AUX send/return (RCA)
external input (RCA)
cue (RCA)
record out (RCA)
studio/sub/CRM/prog out (RCA)
master out (XLR, L/R)
headphone output (TRS jack)
headphone output (TRS jack)
Extender out (Sub-D)
USB B
2x 5-pins XLR power cable
cut-out dimensions: 344 x 450 mm
dimensions: 355 x 482 x 101 mm
weight: 9 kg
included: VU meter, software, power adapter
