Description
Specifications
Product features
Speaker connections RCA input, XLR input
Active or passive active
Tweeter diameterribbon
Woofer diameter 1 x 10 inches + 1 x 5 inches
Maximum frequency 21 – 21.9 kHz
Minimum frequency 25 – 29 Hz
Monitor set single speaker
RMS power in watts 750 – 1,499 W
Type of studio monitor 3-way (tweeter + midrange + woofer)
Weight and dimensions including packaging
Weight (incl. packaging)38.2 kg
Dimensions (incl. packaging)74.0 x 63.0 x 56.0 cm
Product specifications

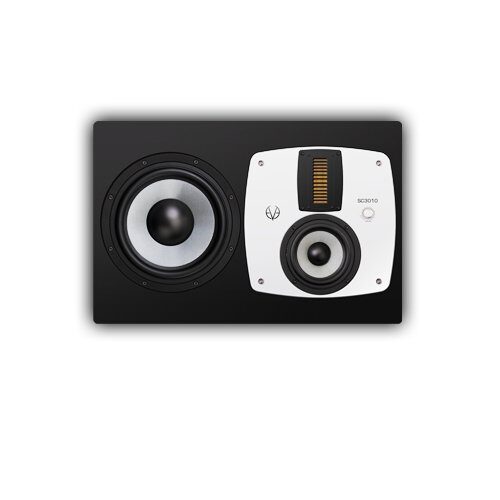

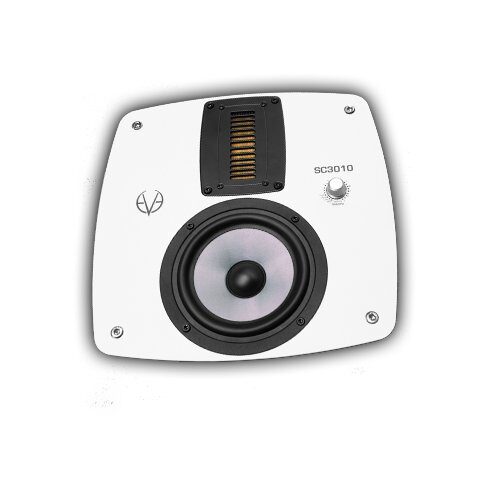

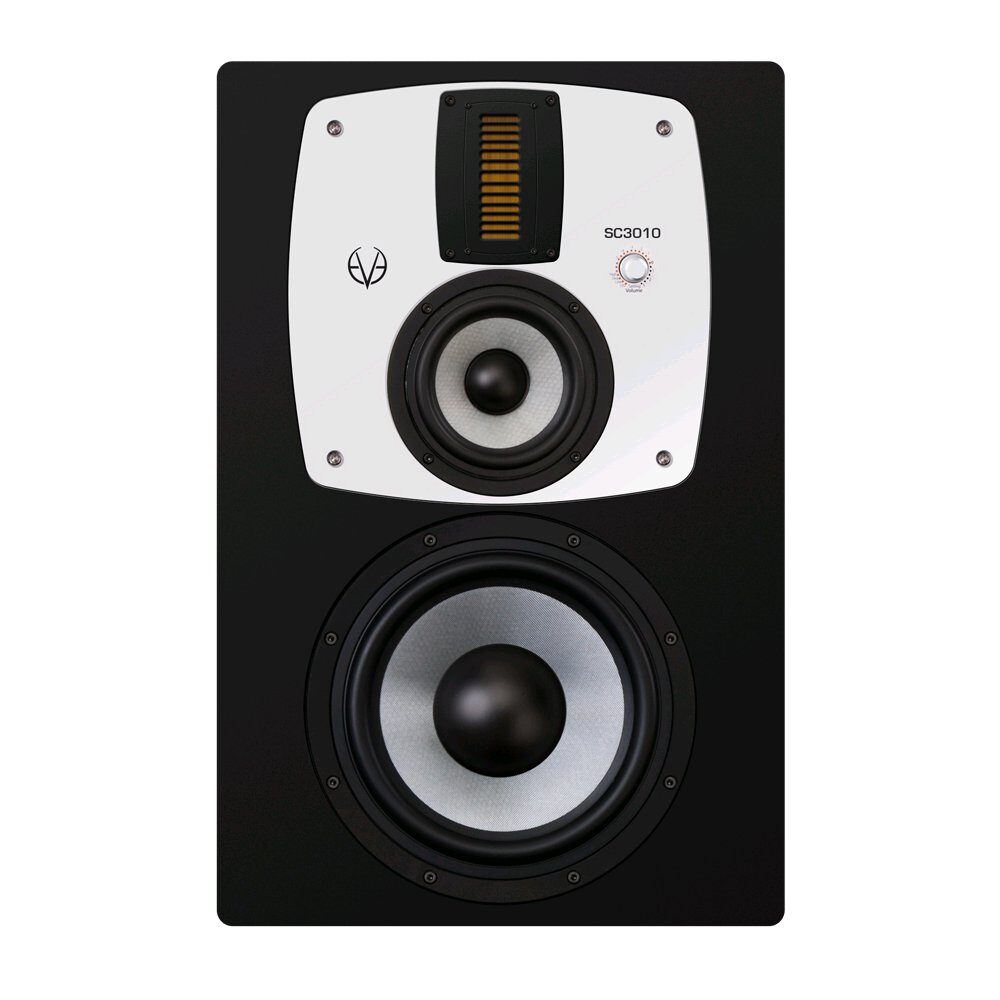

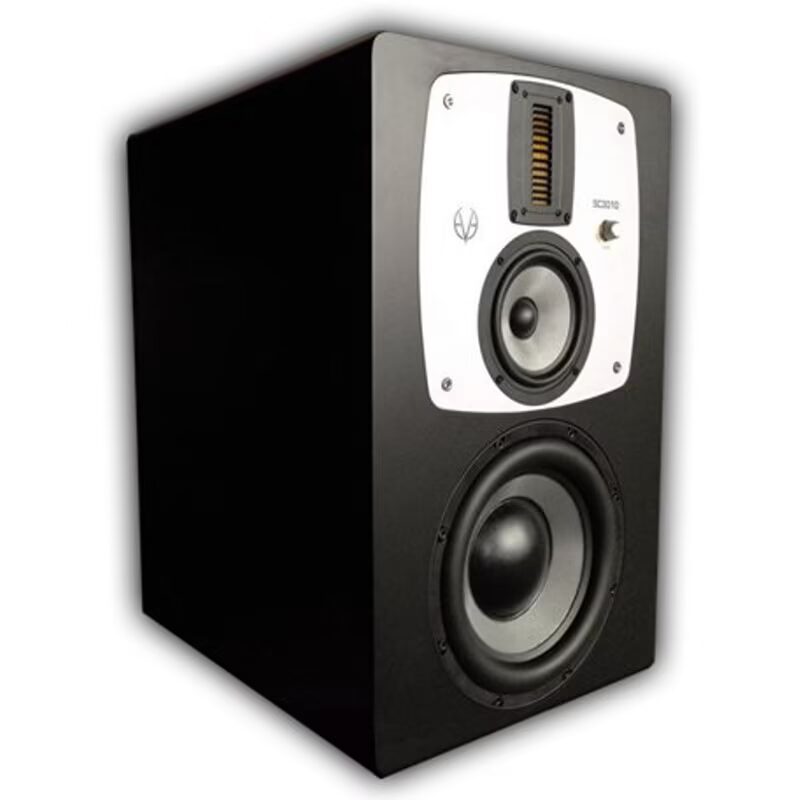

3-way active studio monitor
suitable for medium to large studios
can be used in vertical or horizontal position
high-quality DSP with one-button control
A/D converter by Burr-Brown
frequency range: (-3 dB): 29 Hz – 21 kHz
tweeter: AMT RS6
midrange speaker: 5 in
woofer: 10 in
cross-over frequencies: 240 Hz / 1800Hz
max. SPL: 114 dB
number of amplifiers: 3
power capacity: 1000 W
tweeter output power: 250 W
mid-driver output power: 250 W
woofer output power: 800 W
built-in limiter (-6 dB)
high-shelf filter (-5 dB to +3 dB): > 3 kHz
desk filter boost (0 dB to +3 dB): 80 Hz
desk filter cut (-5 dB to 0 dB): 160 Hz
low-shelf filter (-5dB to +3 dB): < 300 Hz
connectors: XLR (balanced) / RCA (unbalanced)
standby power consumption: < 1 W
maximum power consumption: 1000 VA
dimensions: 380 x 580 x 440 mm
weight: 37 kg
