Description
Specifications
Product features
Speaker connections RCA input, XLR input
Active or passive active
Tweeter diameterribbon
Woofer diameter 8 inches
Maximum frequency 21 – 21.9 kHz
Minimum frequency 35 – 39 Hz
Monitor set single speaker
RMS power in watts 750 – 1,499 W
Type of studio monitor 4-way
Weight and dimensions including packaging
Weight (incl. packaging)30.0 kg
Dimensions (incl. packaging)87.0 x 59.0 x 50.0 cm
Product specifications
4-way active monitor
Suitable for medium to large studios
Each driver has its own 180 Watt PWM amplifier
High-quality DSP with one-button control
A/D converter by Burr-Brown
1x 5-inch SilverCone midrange unit
2x 8-inch SilverCone woofer with 1.5-inch voice coil

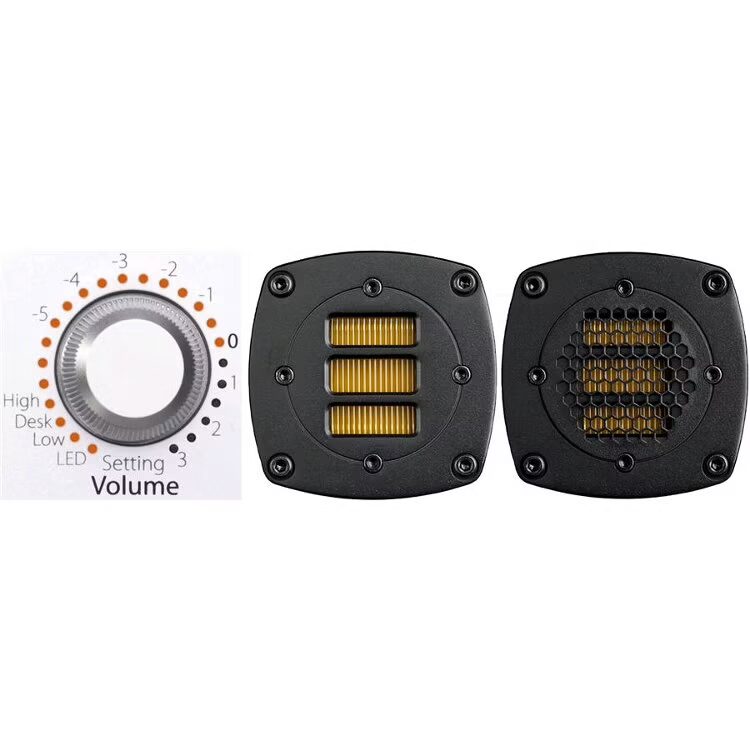

With AMT RS3 (Ribbon System 3) tweeter
Frequency range: 35 Hz – 21 kHz
Max. SPL: 118 dB SPL @ 1m
Crossover frequency: 280/3000 Hz
Tweeter: AMT RS3
Midrange unit: 5-inch
Mid-woofer: 8-inch
Woofer: 8-inch
Amplifiers: 4x
Short-term max. capacity (amplifier): 800 W
Max. capacity (woofer amp module): 2x 250 W
Max. capacity (mid-driver amp module): 250 W
Max. output capacity (tweeter amp module): 50 W
With protection limiter
High-shelf filter (-5 dB to +3 dB): > 3 kHz
Desk filter boost (0 dB to +3 dB): 80 Hz
Desk filter cut (-5 dB to 0 dB): 300 Hz
Low-shelf filter (-5 dB – +3 dB):
