Description
Specifications
Product features
Speaker connections RCA input, XLR input
Active or passive active
Tweeter diameterribbon
Woofer diameter 6.5 inches
Maximum frequency 21 – 21.9 kHz
Minimum frequency 35 – 39 Hz
Monitor set single speaker
RMS power in watts 500 – 749 W
Type of studio monitor 4-way
Weight and dimensions including packaging
Weight (incl. packaging)18.5 kg
Dimensions (incl. packaging)67.0 x 48.0 x 44.0 cm
Product specifications

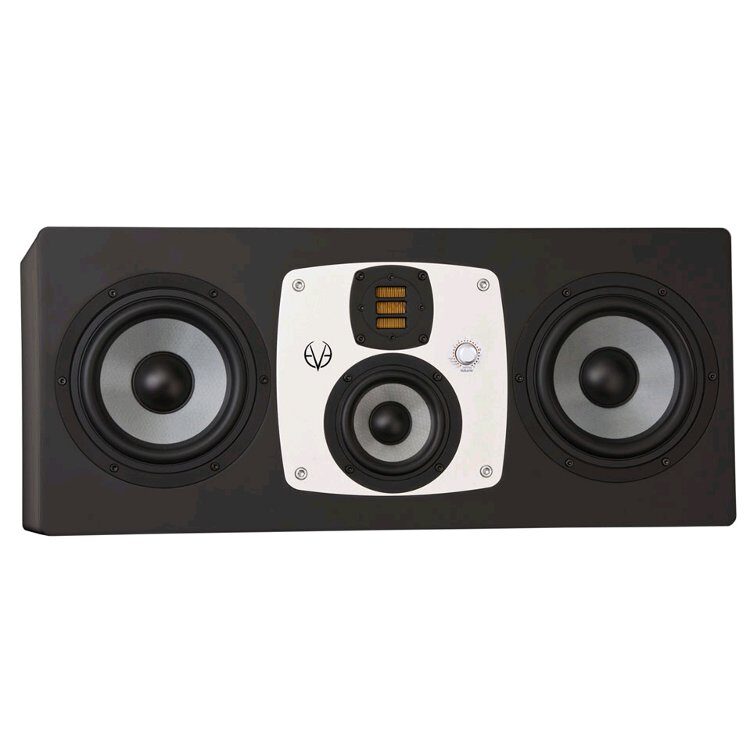

4-way active monitor
Suitable for medium to large studios
Each driver has its own 180 Watt PWM amplifier
High-quality DSP with one-button control
A/D converter by Burr-Brown
1x 4.0-inch SilverCone midrange unit
2x 6.5-inch SilverCone woofer with 1.5-inch voice coil
With AMT RS3 (Ribbon System 3) tweeter
Frequency range: 35 Hz – 21 kHz
Max. SPL: 116 dB SPL @ 1m
Crossover frequency: 280/3000 Hz
Tweeter: AMT RS3
Midrange unit: 4-inches
Mid-woofer: 6.5-inches
Woofer: 6.5-inches
Number of amplifiers: 4
Short-term max. capacity (amplifier): 590 W
Max. capacity (woofer amp module): 2x 180 W
Max. capacity (mid-driver amp module): 180 W
Max. output capacity (tweeter amp module): 50 W
With protection limiter
High-shelf filter (-5 dB to +3 dB): > 3 kHz
Desk filter boost (0 dB to +3 dB): 80 Hz
Desk filter cut (-5 dB to 0 dB): 160 Hz
Low-shelf filter (-5dB – + 3dB): < 300 Hz
