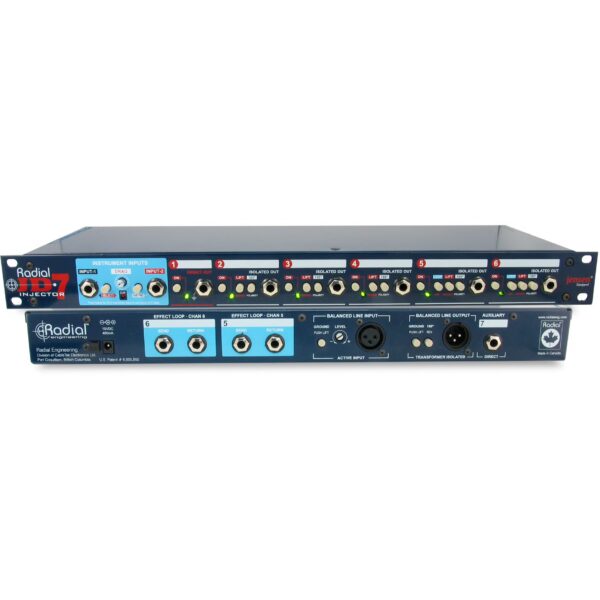

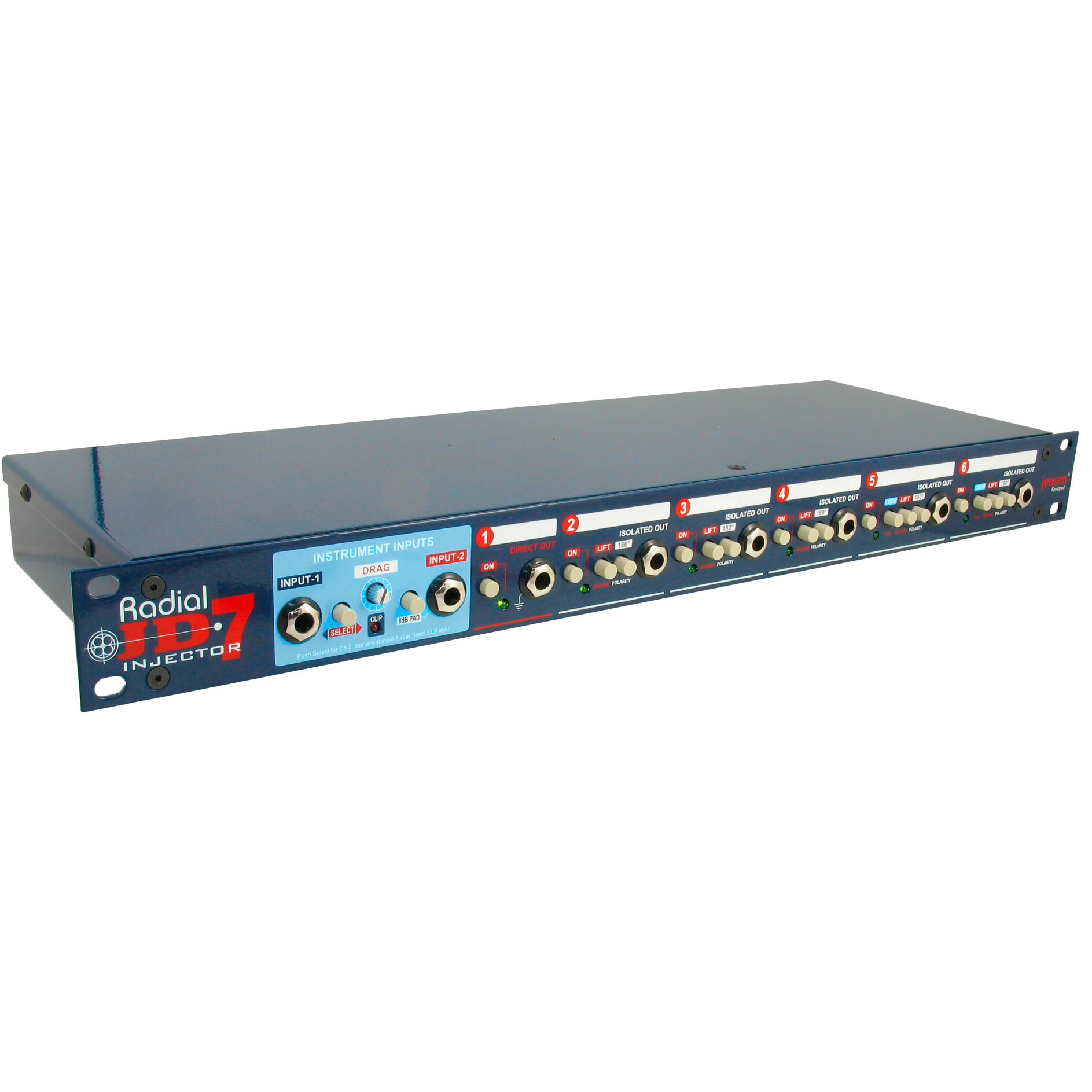

Radial JD7 Active 7-Channel Guitar Splitter

Original price was: €1,480.Current price is: €995.

Control up to seven guitar amplifiers at the same time with the help of the Radial JD7 splitter, and flip through amps without messing with your sound or even unplugging your guitar. Send the sound of your guitar through one output or multiple outputs simultaneously, so you can blend the tone and channels of different amps; build a switchable stereo setup; and come up with endless combos. While this mammoth of a splitter is any guitar tech’s dream, it’s also an excellent on-stage tool for bassists, keyboard players, and acoustic guitarists. And, no matter what instrument you set it up to serve, you’re assured of clear audio that’s clean of hum and buzz.

Recording & Re-Amping
As soon as you jack a guitar into an amp, the tone is immediately transformed, and especially when you’re using a model loaded with single-coil pickups. To mimic this, Radial have included a Drag function to add a more ‘imperfect’ edge to the sound. The Radial JD7 also provides a built-in DI box so that the fully clean guitar signal can be sent directly to recording equipment, and the Reamp input can then be used to send the recorded guitar track back through one or more of the connected amps. When effects loops are linked though channels 5 and 6, you get exactly the same result as you would looping straight through one of your amps.

Description

Specifications

Product features
19-inch rack size 1U
Number of inputs/outputs 2 x 6
Energy source AC
Ground lift function yes
Analogue audio input type unbalanced line in (TS jack), microphone input (XLR)
Analogue audio output type unbalanced line out (TS jack), balanced microphone out (XLR)
Volume control per channel no
Power adapter ungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)3.7 kg
Dimensions (incl. packaging)57.5 x 26.0 x 10.5 cm
Product specifications
guitar splitter
active
7 channels
frequency range: 20Hz – 20kHz +/- 1dB)
input impedance: variable from 10kOhms ~ 1megaOhm
input impedance: 10k Ohm (6.3mm unbalanced), 150 Ohm (balanced XLR)
functions:
input: pad
180° reverse polarity
ground-lift
drag control
effects loop
inputs:
6.35mm TS
XLR
outputs:
6.35mm TS
XLR
dimensions (L x W x D): 44.5cm x 15.25cm x 4.45cm
power supply: +15VDC/400mA (included)
