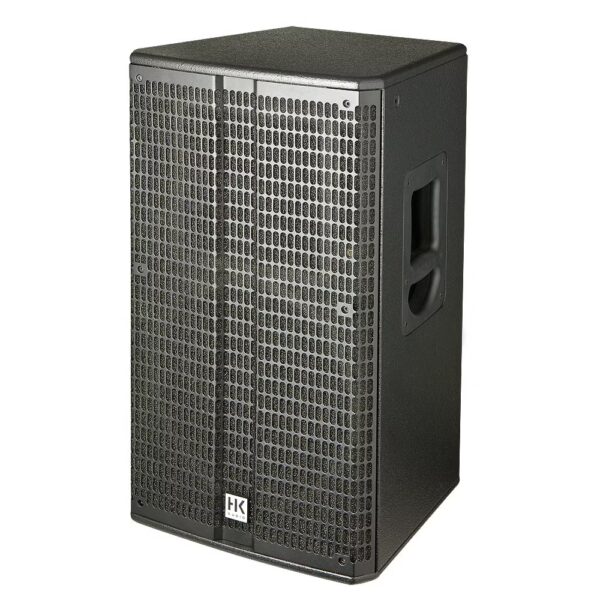

HK Audio Linear 5 L5 112 FA active speaker 2x HK Audio Linear 5 L5 112 FA active speaker
The L5 112 FA is a powerful active speaker well-equipped to function as a full-range device. It can also be used alongside a subwoofer as a satellite.
Product features
Bluetooth no
Tweeter diameter 1 inch
Woofer diameter 12 inches
Suitable as monitor yes
Weight per speaker 24 kg
Built-in equaliser yes
Maximum SPL 130 dB – 139 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 50 – 59 Hz
RMS power in watts 750 – 1,499 W
Analogue audio input type balanced line in (TRS jack), microphone input (XLR)
Analogue audio output type thru (XLR)
Passive speaker output no
Weight and dimensions including packaging
Weight (incl. packaging)26.0 kg
Dimensions (incl. packaging)72.0 x 44.0 x 44.0 cm
Product specifications
Powerful active speaker
Also suitable as a floor monitor
Frequency range (-3 dB): 64 to 18,000 Hz
Frequency range (-10 dB): 57 to 20,000 Hz
Sensitivity high: 110 dB full-space, 116 dB half-space
Sensitivity low: 98 dB full-space, 104 dB half-space
Maximum sound pressure at 10% distortion: 127 dB
Maximum sound pressure peak at 10% distortion: 134 dB
Maximum sound pressure in theory: 138 dB
Amplifier: class-D
Amplifier power: 1,000W
Power high: 350 watts at 4 ohms
Power low: 650 watts at 4 ohms
Protected from low power, thermal protection, short-circuit, too much power
Subsonic 24 dB/octave filter peak limiter
Power consumption: 3A at 230V
Connectors: 2x XLR in, 2x XLR through, 1x XLR Mix Out
Woofer: 1 inches with 2.5-inch coil
Driver: 1x 1-inch with 1,75-inch coil
Horn projection: 60 – 90 x 55 degrees, rotatable
Built-in crossover: 1,650 Hz, 24 dB/octave
Built-in flange: DuoTilt 3/7
Rigging points: 3x M8
Safety circuit with PTC and light
2 integrated handles
Rugged housing: birch plywood / MDF
Grill: 2mm steel grill with speaker foam on the inside
Scratch proof black lacquer
Dimensions: 370 x 668 x 365 mm
Weight: 23.9 kg

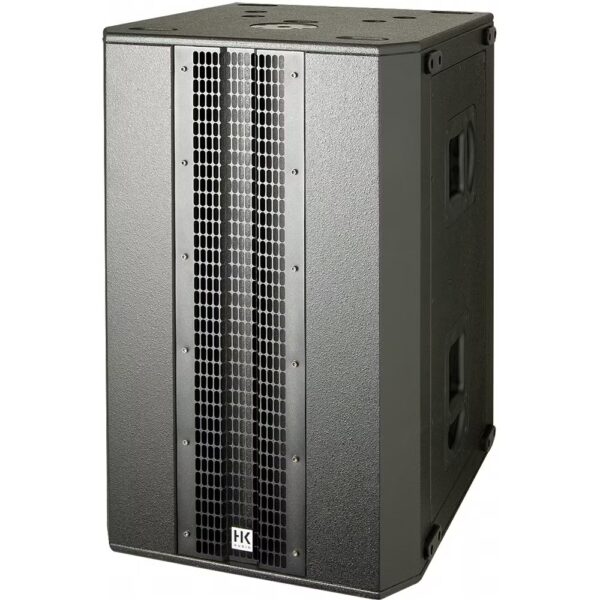

HK Audio Linear 5 L Sub 1200 A Active Subwoofer 2x HK Audio Linear 5 L Sub 1200 A Active Subwoofer
HK Audio’s Linear 5 L Sub 1200 A active amplifier has a beefy heart in the form of a 1,200W class D amplifier. Moreover, its housing is light of weight and relatively compact for added ease of use.
Product features
Speaker connectionsXLR / TRS combi input, out / link / thru
Woofer diameter2 x 10 inches
Weight per speaker31 kg
Maximum SPL130 dB – 139 dB
Maximum subwoofer frequency130 Hz
Minimum frequency35 – 39 Hz
RMS power in watts750 – 1,499 W
Locking speaker connectorsyes
Weight and dimensions including packaging
Weight (incl. packaging)32.0 kg
Dimensions (incl. packaging)66.8 x 56.0 x 38.0 cm
Product specifications
powerful active subwoofer
compact, light housing
built-in 1,200W class-D amplifier
perfect as a part of a band’s PA setup
frequency range (-3 dB): 55 Hz -crossover
frequency range (-10 dB): 38 Hz -crossover
sensitivity low: 95 dB full-space, 101 dB half-space
amplifier: class-D
amplifier power: 1,200 W
protected from low power, thermal protection, short-circuit, too much power
maximum sound pressure at 10% distortion: 128 dB half-space
maximum sound pressure peak at 10% distortion: 130 dB half-space
theoretical maximum sound pressure: 131 dB half-space
power consumption: 3.3A at 230V
connectors: 2x XLR in, 2x XLR through, 2x XLR Mix Out
woofer: 2 inches with 2-inch coil
impedance: 8 ohms
built-in crossover: 100 Hz, 130 dB/octave
built-in stand adapter
4 integrated handles
housing: birch plywood
grille: 2mm thick metal
scratch-proof black lacquer
dimensions: 380 x 668 x 560 mm (W x D x H)
weight: 30.7 kg
Konig & Meyer KM21367 M20 distance rod with Ring Lock and adjustable height 2x Konig & Meyer KM21367 M20 distance rod with Ring Lock and adjustable height
This distance rod is ideal if your subwoofer has an M20 screw adapter and if your satellite cabinets need to be placed relatively high for an optimal sound balance.
Product features
Speaker pole mountM20 screw thread
Distance rod weight capacitynot specified
Height adjustableyes
Maximum height of stand130 – 139 cm
Setno
Weight and dimensions including packaging
Weight (incl. packaging)2.7 kg
Dimensions (incl. packaging)102.5 x 13.0 x 7.0 cm
Product specifications
– distance rod with Ring Lock system on one end
– speakers are secured from the inside by means of an expanding mandrel system
– offers stability for your sound system
– resonance-free connection
– bottom is fitted with an M20 screw thread
– adjustable in height by means of a locking screw and safety pin
– height: 900 to 1380 mm
– weight: 2.5 kg
HK Audio Linear 5 112 FA active speaker cover 2x HK Audio Linear 5 112 FA active speaker cover
This HK Audio cover was designed specially for their Linear 5 112 FA active speaker. The cover protects against damaging during transport and bad weather conditions.
Product features
Suitable for during useno
Speaker protection type12 inch speaker (specific brand/type)
Method of transportnot applicable
Weight and dimensions including packaging
Weight (incl. packaging)659 gr
Dimensions (incl. packaging)66.8 x 37.0 x 36.5 cm
Product specifications
cover for the HK Audio Linear 5 112 FA active speaker
protects your speaker
front unzips
HK Audio Linear 5 L Sub 1200 (A) cover 2x HK Audio Linear 5 L Sub 1200 (A) cover
HK Audio’s Linear 5L Sub 1200 (A) cover protects your subwoofer against numerous potential threats. The cover fits both the standard Linear 5L Sub 1200 and the A version of the subwoofer.
Product features
Suitable for during useyes
Speaker protection type12 inch subwoofer (specific brand/type)
Method of transportnot applicable
Weight and dimensions including packaging
Weight (incl. packaging)1.5 kg
Dimensions (incl. packaging)66.8 x 56.0 x 38.0 cm
Product specifications
cover for the passive HK Audio Linear 5L Sub 1200 and the active Linear 5 L Sub 1200 A subwoofer
protects your speaker
front unzips
