-20%

HK Audio Linear Speaker Set 4

Name: HK Audio Linear Speaker Set 4
SKU: 11966
Availability: InStock

Original price was: €6,100.Current price is: €4,890.

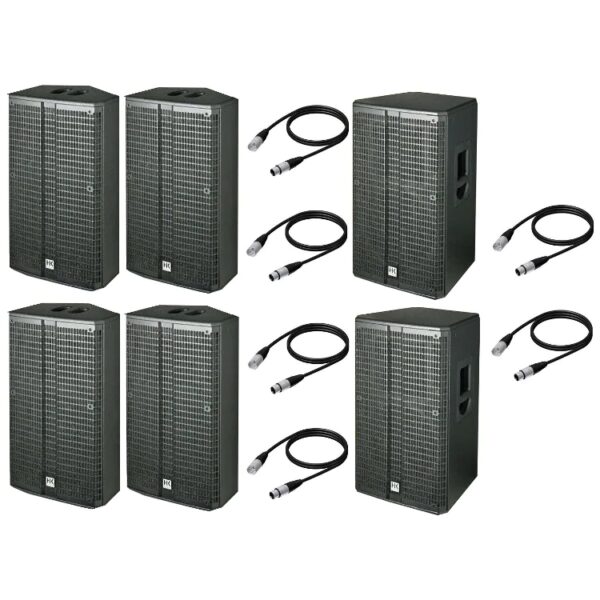

The HK Audio Linear Speaker Set 4 ensures a remarkably neutral and varied sound. It’s an affordable set that consists of four HK Audio Linear 5 L5 112 XA active speakers and two HK Audio Linear 5 L5 115 FA active speakers, as well as six Procab XLR cables for connecting everything together. The active speakers treat your ears to a powerful, clear sound and the advanced technology inside each speaker delivers nothing short of excellent audio. What’s more, the speakers are have durable cabinets for listening pleasure that’s sure to last for years to come.

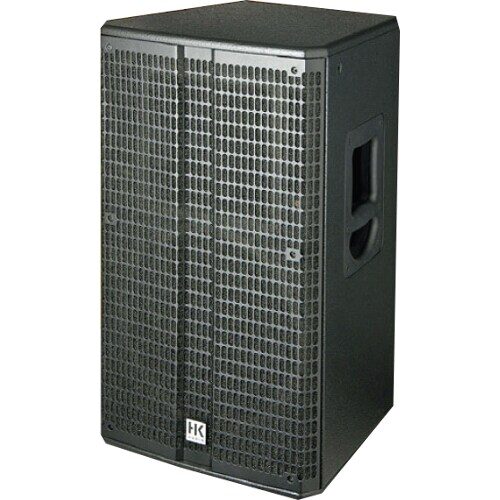

Under the bonnet of the L5 115 FA
The L5 115 FA active speaker is remarkably versatile due to its flexible design and powerful technology. It has a top-notch 1000-watt bi-amp module that delivers the necessary output, which powers the 15-inch woofer and 1-inch tweeter for auditive performance that will blow you away. The module has plenty of output to handle peaks and deep bass tones without distorting or clipping. The 15-inch woofer and driver provide the high range, giving you a balanced mix that remains intact even at high volume levels. What’s more, there is new protective circuitry in the speakers that make them even more reliable than ever without sacrificing audio quality.

L5 112 XA speaker: integrated amp
The HK Audio L5 112 XA speaker has a powerful heart. Inside its robust housing, there’s a 12-inch woofer, an accurate 1-inch driver and a powerful amplifier that together produce an SPL of maximum 135 dB. The L5 112 XA can also be used as a floor monitor, since the sound it produces cuts easily through the PA mix. A 60×40-degree rotatable cone ensures balanced audio dispersion.

Categories: Pro Audio, Speaker Systems, Speakers Tag: HK Audio

Description

Description

Specifications

HK Audio Linear 5 L5 115 FA active speaker 2x HK Audio Linear 5 L5 115 FA active speaker
The L5 115 FA speaker is fitted with a 15-inch woofer, 1-inch driver and a comprehensive 1000W amplifier module. The result is an impressive SPL, great tone and excellent versatility.
Product features
Bluetoothno
Tweeter diameter 1 inch
Woofer diameter 15 inches
Suitable as monitor yes
Weight per speaker 31 kg
Built-in equaliser no
Maximum SPL 130 dB – 139 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 40 – 49 Hz
RMS power in watts 750 – 1,499 W
Analogue audio input type balanced line in (TRS jack), microphone input (XLR)
Analogue audio output type thru (XLR)
Passive speaker output no
Weight and dimensions including packaging
Weight (incl. packaging)33.7 kg
Dimensions (incl. packaging)73.6 x 50.2 x 44.5 cm
Product specifications
Powerful active speaker
Also suitable as a floor monitor
Frequency range (-3 dB): 57 to 18,000 Hz
Frequency range (-10 dB): 48 to 20,000 Hz
Sensitivity high: 110 dB full-space, 116 dB half-space
Sensitivity low: 100 dB full-space, 106 dB half-space
Maximum sound pressure at 10% distortion: 129 dB
Maximum sound pressure peak at 10% distortion: 139 dB
Maximum sound pressure in theory: 139 dB
Amplifier: class-D
Amplifier power: 1,000W
Power high: 350 watts at 4 ohms
Power low: 650 watts at 4 ohms
Protected from low power, thermal protection, short-circuit, too much power
Subsonic 24 dB/octave filter peak limiter
Power consumption: 3A at 230V

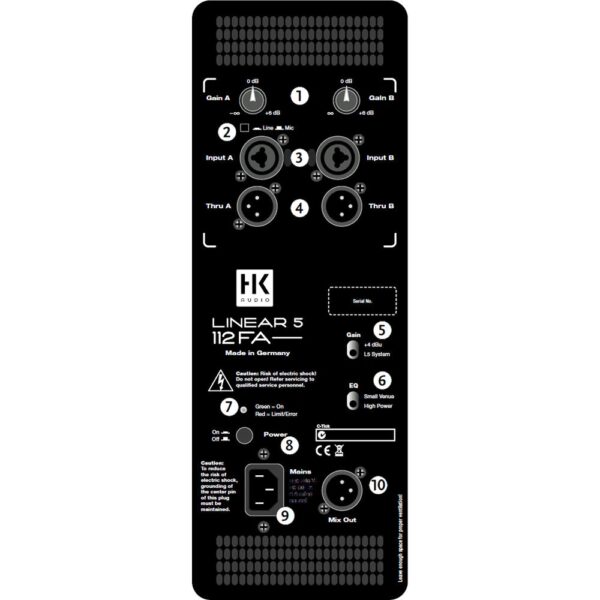

Connectors: 2x XLR in, 2x XLR through, 1x XLR Mix Out
Woofer: 1 inches with 3-inch coil
Driver: 1x 1-inch with 1,75-inch coil
Horn projection: 60 – 90 x 55 degrees, rotatable
Built-in crossover: 1,650 Hz, 24 dB/octave
Built-in flange: DuoTilt 3/7
Rigging points: 3x M8
Safety circuit with PTC and light
2 integrated handles
Rugged housing: birch plywood / MDF
Grill: 2mm steel grill with speaker foam on the inside
Scratch proof black lacquer
Dimensions: 449 x 708 x 450 mm
Weight: 30.7 kg

HK Audio Linear 5 L5 112 XA active speaker 4x HK Audio Linear 5 L5 112 XA active speaker
HK Audio gives us the Linear 5 system, a multifunctional line of products suitable for numerous applications. The L5 112 XA is an active speaker that can be used as a floor monitor.
Product features
Bluetoothno
Tweeter diameter1 inch
Woofer diameter12 inches
Suitable as monitoryes
Weight per speaker21 kg
Built-in equaliseryes
Maximum SPL130 dB – 139 dB
Maximum frequency20 – 20.9 kHz
Minimum frequency60 – 79 Hz
RMS power in watts750 – 1,499 W
Analogue audio input typebalanced line in (TRS jack), microphone input (XLR)
Analogue audio output typethru (XLR)
Passive speaker outputno
Weight and dimensions including packaging
Weight (incl. packaging)22.0 kg
Dimensions (incl. packaging)72.5 x 44.5 x 38.7 cm
Product specifications
Powerful active speaker
Also suitable as a floor monitor
Frequency range (-3 dB): 100 to 18,000 Hz
Frequency range (-10 dB): 72 to 20,000 Hz
Sensitivity high: 110 dB full-space, 116 dB half-space
Sensitivity low: 98 dB full-space, 104 dB half-space
Maximum sound pressure at 10% distortion: 129 dB
Maximum sound pressure peak at 10% distortion: 135 dB
Maximum sound pressure in theory: 138 dB
Amplifier: class-D
Amplifier power: 1,000W
Power high: 350 watts at 4 ohms
Power low: 650 watts at 4 ohms
Protected from low power, thermal protection, short-circuit, too much power
Subsonic 24 dB/octave filter peak limiter
Power consumption: 3A at 230V
Connectors: 2x XLR in, 2x XLR through, 1x XLR Mix Out
Woofer: 1 inches with 2.5-inch coil
Driver: 1x 1-inch with 1,75-inch coil
Horn projection: 60 x 40 degrees, rotatable
Built-in crossover: 1,650 Hz, 24 dB/octave
Built-in flange: DuoTilt 3/7
Rigging points: 3x M8
Safety circuit with PTC and light
2 integrated handles
Rugged housing: birch plywood / MDF
Grille: 2mm steel grille with speaker foam on the inside
Scratch-proof black lacquer
Dimensions: 370 x 668 x 300 mm
Weight: 21.1 kg

Devine MIC100/1.5 XLR Microphone/Signal Cable, 1.5m 4x Devine MIC100/1.5 XLR Microphone/Signal Cable, 1.5m
Fitted with robust plugs and wrapped up inside a flexible yet durable outer shell, the Devine MIC100 is the ideal cable for optimally transferring any XLR audio signal from point A to point B. This is the 1.5-metre model.
Product features
(partially) coiledno
Right angled or straightstraight – straight
Colourblack
Length1.50 m
Setno
Type of audio connector3-pin XLR
Weight and dimensions including packaging
Weight (incl. packaging)100 gr
Dimensions (incl. packaging)20.0 x 13.0 x 4.0 cm
Product specifications
XLR male – XLR female
can be used as a microphone cable or as an all-round signal cable
supple, rugged cable
high-grade connectors with locking option
connectors with pull relief to retain contact integrity
length: 1.5m
filling: cotton
oxygen-free copper
isolation diameter: 1.4mm
isolation colours: red and white
number of conductors: 2
inner conductor diameter: 0.226mm²
conductor dimensions: 20 x 0.12mm
helical sheathing: 0.12 x 64
cable diameter: 6mm
sheathing material: flexible PVC
operating temperature: -20 – +70°C
capacity @ 1 kHz:
cond.-cond.: 131pF/m
cond.-shield.: 178pF/m

Devine MIC100/10 XLR Microphone/Signal Cable, 10m 2x Devine MIC100/10 XLR Microphone/Signal Cable, 10m
Close any huge XLR signal-based gap with this 10-metre microphone/signal cable from Devine! Equipped with durable plugs and wrapped up inside fully flexible and protective sheathing, the MIC100/10 ensures solid, reliable signal transfer.
Product features
(partially) coiledno
Right angled or straightstraight – straight
Colourblack
Length10.00 m
Setno
Type of audio connector3-pin XLR
Vlog accessory typecable
Weight and dimensions including packaging
Weight (incl. packaging)498 gr
Dimensions (incl. packaging)25.0 x 18.0 x 4.5 cm
Product specifications
XLR male – XLR female
can be used as a microphone cable or as an all-round signal cable
supple, rugged cable
high-grade connectors with locking option
connectors with pull relief to retain contact integrity
length: 10m
filling: cotton
oxygen-free copper
isolation diameter: 1.4mm
isolation colours: red and white
number of conductors: 2
inner conductor diameter: 0.226mm²
conductor dimensions: 20 x 0.12mm
helical sheathing: 0.12 x 64
cable diameter: 6mm
sheathing material: flexible PVC
operating temperature: -20 – +70°C
capacity @ 1 kHz:
cond.-cond.: 131pF/m
cond.-shield.: 178pF/m
