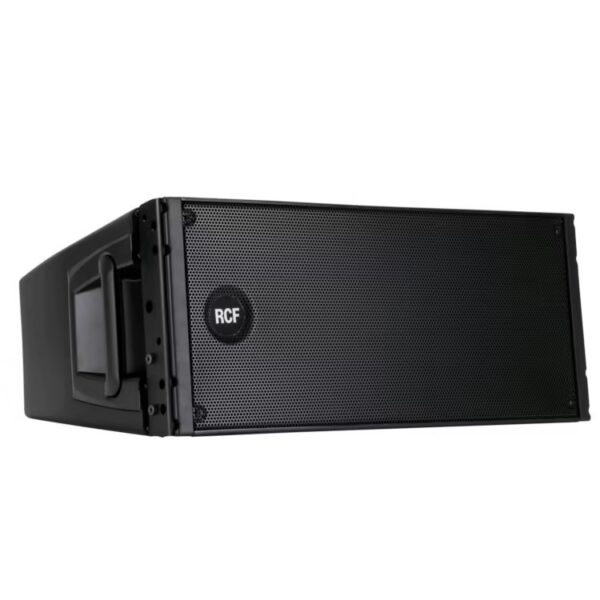

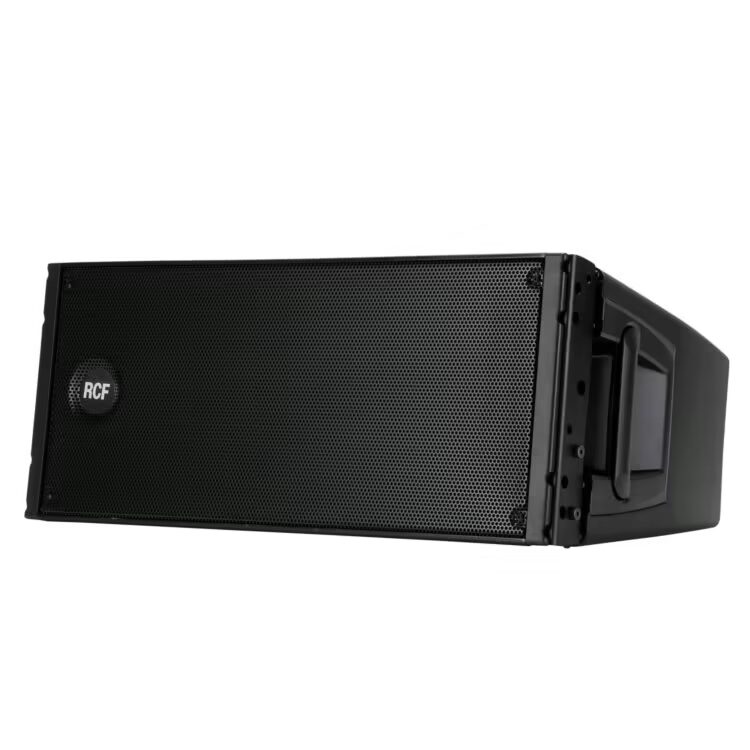

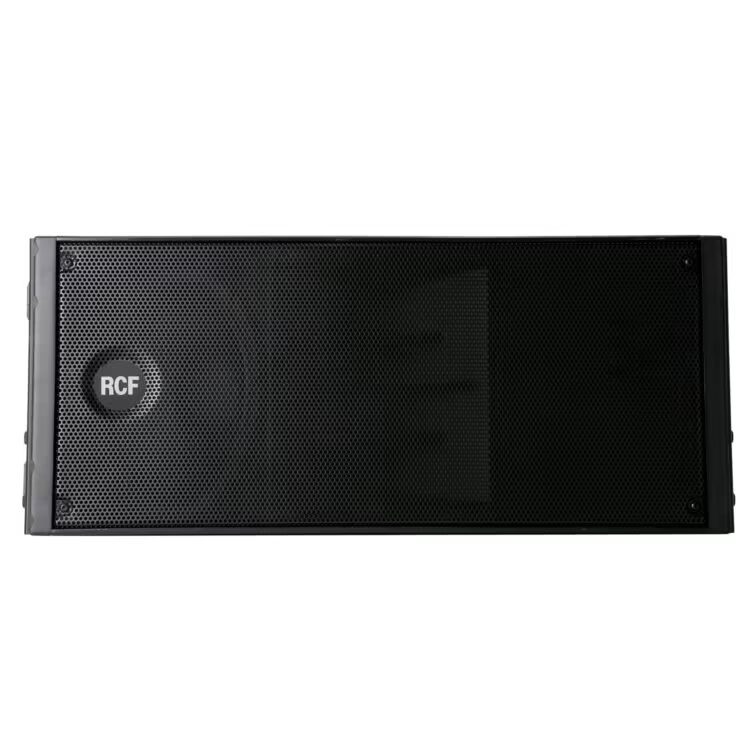

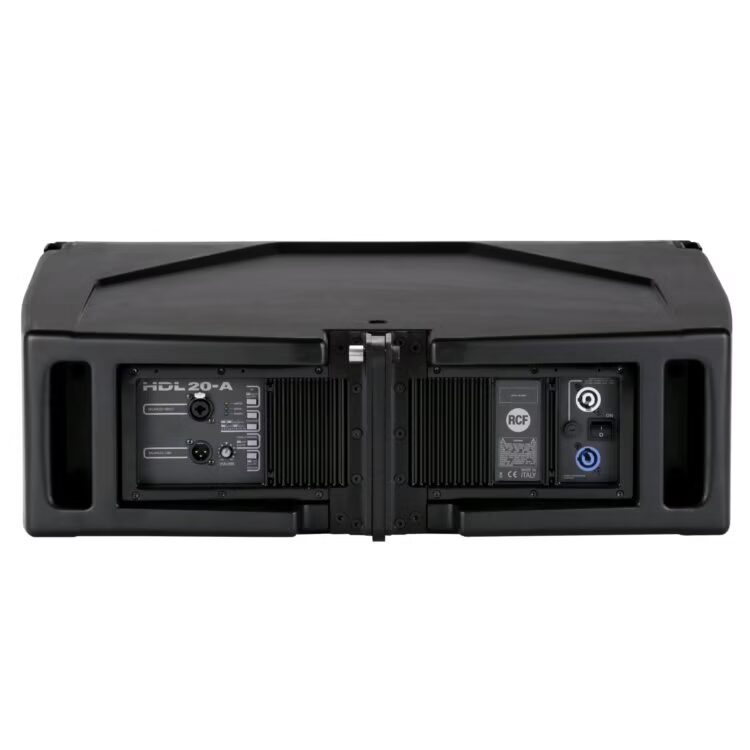

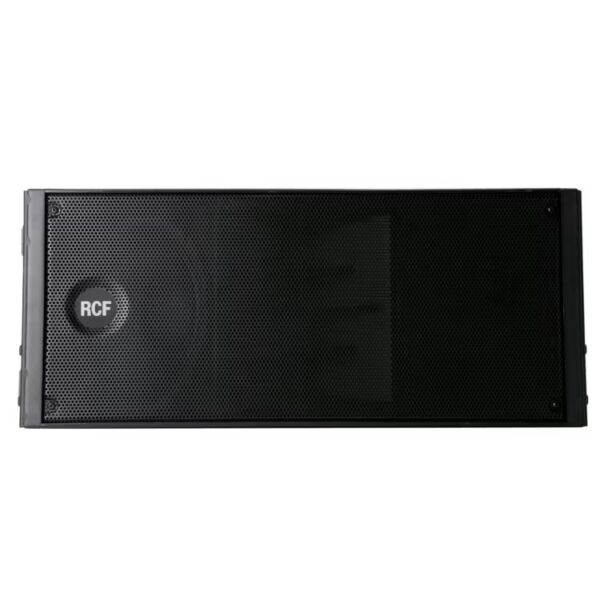

RCF HDL 20-A active line array speaker

Original price was: €2,480.Current price is: €1,890.

The RCF HDL 20-A from RCF’s D line is a powerful, high-quality active line array speaker. The two 10-inch woofers, the 2-inch driver and the unique housing have all been designed with the utmost care. An RCF HDL-20A is perfect for amplifying large live events or for fixed installations.

The sound of the RCF HDL20 A
Two 10-inch woofer ensure a tight, punchy bass while the 2-inch compression driver with its 3-inch voice coil cover the entire vocal range, resulting in excellent vocal clarity. Moreover, the driver ensures fantastic definition and power, along with impressive, lively dynamics.

The built-in digital amplifier featured in the RCF HDL 20A delivers up to 700 watts RMS of power, and the sound is processed through a powerful processor. Cluster and HF projection correction are available, and special presets have been implemented for indoor use and for using the array at a steep angle.

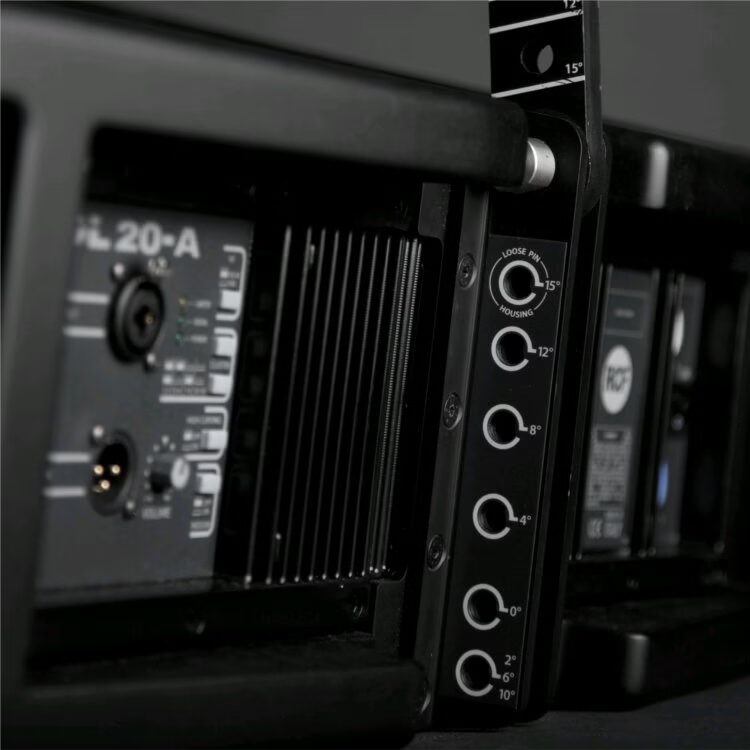

The RCF HDL20-A line array speakers are easy to set up and can be configured in more positions than the typical fixed curve that you so often see in other line arrays. The angle between the different cabinets can be adjusted in 2-degree increments, so J-shaped and spiral arrays can be built

Categories: , , Tag:



Weight and dimensions including packaging
Weight (incl. packaging)35.0 kg
Dimensions (incl. packaging)79.0 x 49.0 x 36.0 cm
Product specifications
line array speaker
power: 700 W RMS, 1400 W peak
maximum sound pressure: 135 dB
frequency response: 55 Hz – 20 kHz
2x 10-inch woofers with 2.5-inch voice coil
1x 2-inch compression driver with 3-inch voice coil
dispersion angle: 100 x 15 degrees
input: XLR
output: XLR
crossover frequency: 1,000 Hz
safety: thermal, RMS
limiter: soft limiter
settings: cluster, HF, high curving, indoor
amplifier: 700 W (high: 200 W, low: 500 W)
convection cooling
amplifier connections: professional locking power in/out
housing: composite PP, strengthened with wood
rigging flyware
handles: 2x sides, 2x back
dimensions: 294 x 705 x 445 mm
weight: 29 kg
