-19%

HK Audio Linear Speaker Set 3

Name: HK Audio Linear Speaker Set 3
SKU: 11961
Price: 4890 EUR
Availability: InStock

Original price was: €6,000.Current price is: €4,890.

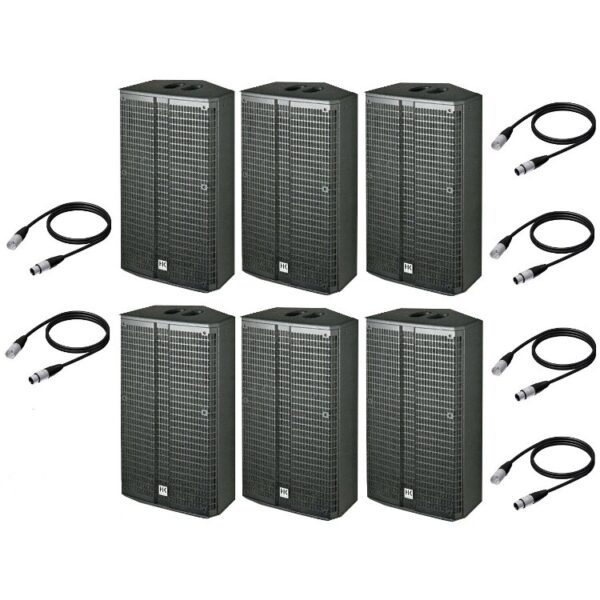

Give your ears a real treat with the HK Audio Linear Speaker Set 3, which includes six HK Audio Linear 5 L5 112 XA active speakers! This set also includes six Procab XLR cables for hooking everything up. The advanced technology of these speakers means you’ve got a powerful amp at your disposal that provides accurate and full-sounding audio. What’s more, the speakers are equipped with a durable housing for optimal listening enjoyment.

L5 112 XA speaker with built-in amp
The HK Audio L5 112 XA speakers are remarkably powerful thanks to their robust housing. Under the bonnet, each speaker is equipped with a 12-inch woofer, an accurate 1-inch driver and a powerful amplifier that produces an impressive SPL of maximum 135 dB. The L5 112 XA is ideal as a floor monitor, as it’s able to surpass the sound of your PA with ease. Each speaker also has a 60 x 40-degree rotatable cone for excellent dispersion of the high tones as well as new protective circuitry (with PTCs and a light) to ensure they are even more reliable than ever without sacrificing audio quality.

Solid construction
The HK Audio L5 112 XA speakers have a strong, durable construction that won’t let you down. The steel grille and speaker foam protects the interior of each speaker and keeps out harmful elements to keep your drivers in tip-top condition. For ultimate durability and to enhance the sound, the cabinet is made of a hybrid wood comprised of MDF and birch plywood.

Categories: Pro Audio, Speaker Systems, Speakers Tag: HK Audio

Description

Description

Specifications

HK Audio Linear 5 L5 112 XA active speaker 6x HK Audio Linear 5 L5 112 XA active speaker
HK Audio gives us the Linear 5 system, a multifunctional line of products suitable for numerous applications. The L5 112 XA is an active speaker that can be used as a floor monitor.
Product features
Bluetoothno
Tweeter diameter 1 inch
Woofer diameter 12 inches
Suitable as monitor yes
Weight per speaker 21 kg
Built-in equaliser yes
Maximum SPL 130 dB – 139 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 60 – 79 Hz
RMS power in watts 750 – 1,499 W
Analogue audio input type balanced line in (TRS jack), microphone input (XLR)
Analogue audio output type thru (XLR)
Passive speaker output no
Weight and dimensions including packaging
Weight (incl. packaging)22.0 kg
Dimensions (incl. packaging)72.5 x 44.5 x 38.7 cm
Product specifications
Powerful active speaker
Also suitable as a floor monitor
Frequency range (-3 dB): 100 to 18,000 Hz
Frequency range (-10 dB): 72 to 20,000 Hz
Sensitivity high: 110 dB full-space, 116 dB half-space
Sensitivity low: 98 dB full-space, 104 dB half-space
Maximum sound pressure at 10% distortion: 129 dB
Maximum sound pressure peak at 10% distortion: 135 dB
Maximum sound pressure in theory: 138 dB
Amplifier: class-D
Amplifier power: 1,000W
Power high: 350 watts at 4 ohms
Power low: 650 watts at 4 ohms
Protected from low power, thermal protection, short-circuit, too much power
Subsonic 24 dB/octave filter peak limiter
Power consumption: 3A at 230V
Connectors: 2x XLR in, 2x XLR through, 1x XLR Mix Out
Woofer: 1 inches with 2.5-inch coil
Driver: 1x 1-inch with 1,75-inch coil
Horn projection: 60 x 40 degrees, rotatable
Built-in crossover: 1,650 Hz, 24 dB/octave
Built-in flange: DuoTilt 3/7
Rigging points: 3x M8
Safety circuit with PTC and light
2 integrated handles
Rugged housing: birch plywood / MDF
Grille: 2mm steel grille with speaker foam on the inside
Scratch-proof black lacquer
Dimensions: 370 x 668 x 300 mm
Weight: 21.1 kg

Devine MIC100/1.5 XLR Microphone/Signal Cable, 1.5m 4x Devine MIC100/1.5 XLR Microphone/Signal Cable, 1.5m
Fitted with robust plugs and wrapped up inside a flexible yet durable outer shell, the Devine MIC100 is the ideal cable for optimally transferring any XLR audio signal from point A to point B. This is the 1.5-metre model.
Product features
(partially) coiledno
Right angled or straightstraight – straight
Colourblack
Length1.50 m
Setno
Type of audio connector3-pin XLR
Weight and dimensions including packaging
Weight (incl. packaging)100 gr
Dimensions (incl. packaging)20.0 x 13.0 x 4.0 cm
Product specifications
XLR male – XLR female
can be used as a microphone cable or as an all-round signal cable
supple, rugged cable
high-grade connectors with locking option
connectors with pull relief to retain contact integrity
length: 1.5m
filling: cotton
oxygen-free copper
isolation diameter: 1.4mm
isolation colours: red and white
number of conductors: 2
inner conductor diameter: 0.226mm²
conductor dimensions: 20 x 0.12mm
helical sheathing: 0.12 x 64
cable diameter: 6mm
sheathing material: flexible PVC
operating temperature: -20 – +70°C
capacity @ 1 kHz:
cond.-cond.: 131pF/m
cond.-shield.: 178pF/m

Devine MIC100/10 XLR Microphone/Signal Cable, 10m 2x Devine MIC100/10 XLR Microphone/Signal Cable, 10m
Close any huge XLR signal-based gap with this 10-metre microphone/signal cable from Devine! Equipped with durable plugs and wrapped up inside fully flexible and protective sheathing, the MIC100/10 ensures solid, reliable signal transfer.
Product features
(partially) coiledno
Right angled or straightstraight – straight
Colourblack
Length10.00 m
Setno
Type of audio connector3-pin XLR
Vlog accessory typecable
Weight and dimensions including packaging
Weight (incl. packaging)498 gr
Dimensions (incl. packaging)25.0 x 18.0 x 4.5 cm
Product specifications
XLR male – XLR female
can be used as a microphone cable or as an all-round signal cable
supple, rugged cable
high-grade connectors with locking option
connectors with pull relief to retain contact integrity
length: 10m
filling: cotton
oxygen-free copper
isolation diameter: 1.4mm
isolation colours: red and white
number of conductors: 2
inner conductor diameter: 0.226mm²
conductor dimensions: 20 x 0.12mm
helical sheathing: 0.12 x 64
cable diameter: 6mm
sheathing material: flexible PVC
operating temperature: -20 – +70°C
capacity @ 1 kHz:
cond.-cond.: 131pF/m
cond.-shield.: 178pF/m
