Description
Specifications
Product features
Speaker connections XLR input, out / link / thru, USB for controlling / Wi-Fi
Woofer diameter 12 inches
Weight per speake r27 kg
Maximum SPL 130 dB – 139 dB
Maximum subwoofer frequency 140 Hz
Minimum frequency 40 – 49 Hz
RMS power in watts 750 – 1,499 W
Locking speaker connectors no
Power adapter Europlug, Schucko or CEE 7/7 plug
Weight and dimensions including packaging
Weight (incl. packaging)15.0 kg
Product specifications
compact active subwoofer
colour: black
part of the DVA Mini series
for use with M2M/M2S array modules
ideal for bands and musicians
frequency response: (-6 dB): 45 – 140 Hz
frequency response: (-10 dB): 40 – 165 Hz
max. SPL: 131 dB
size woofer: 12 in
pickup pattern: omnidirectional
amplifier: Digipro G3, Class-D
LF output RMS: 700 W
peak power: 1400 W
convection cooling
DSP processor: 56 bits
AD/DA converter: 24-bit/48kHz
switchable crossover frequency (90 – 120 Hz)
gain control
0/180° phase difference
power supply: switching, with PFC

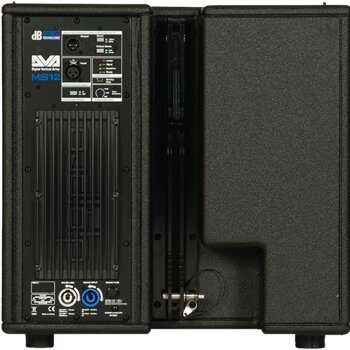

connections: XLR (in, link)
mini-USB connection for configuration
dimensions: 460 x 430 x 385 mm
weight: 26.5 kg
