Description
Specifications
Product features
Speaker connections XLR input, out / link / thru
Woofer diameter 2 x 18 inches
Weight per speaker 84 kg
Maximum SPL 130 dB – 139 dB
Maximum subwoofer frequency 120 Hz
Minimum frequency 40 – 49 Hz
RMS power in watts 1,500 – 3,000 W
Locking speaker connectors no
Power adapter Europlug, Schucko or CEE 7/7 plug
Weight and dimensions including packaging
Weight (incl. packaging)92.0 kg
Dimensions (incl. packaging)114.0 x 80.0 x 62.0 cm
Product specifications

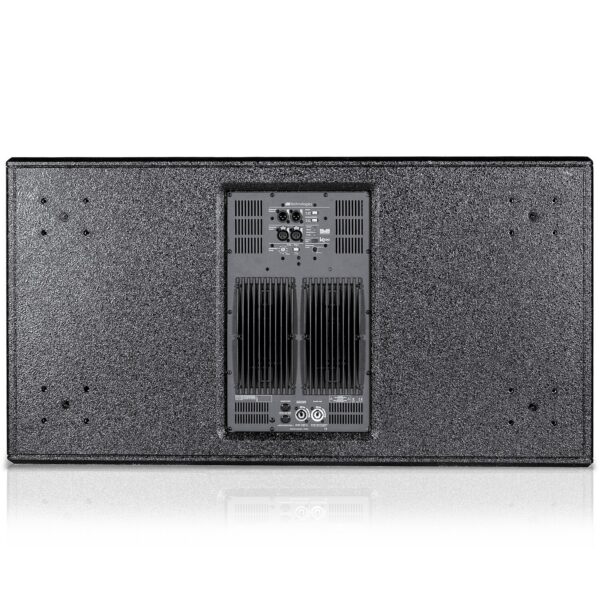

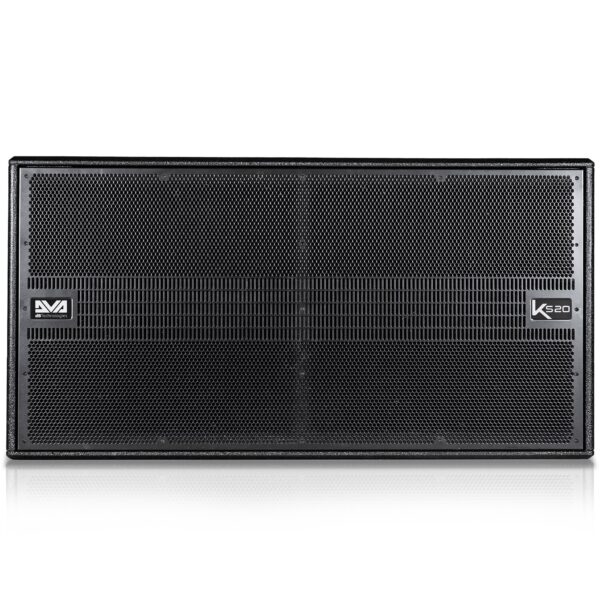

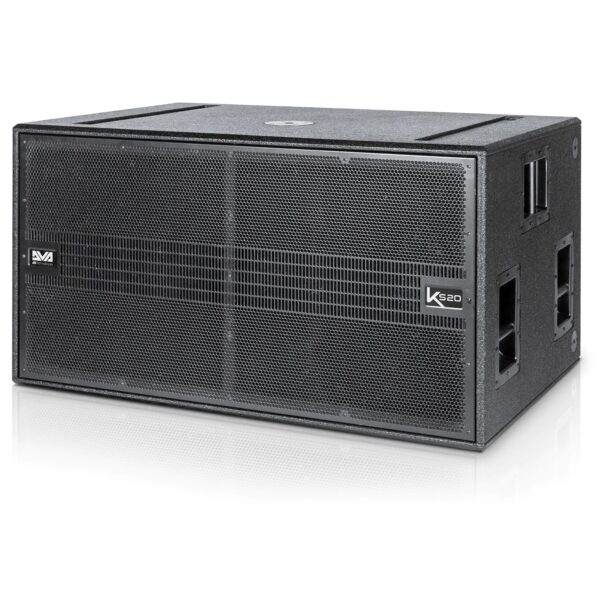

dB Technologies DVA KS20
active subwoofer
cone-loaded bass reflex
woofer: 2x 18 in, 4-inch voice coil
omnidirectional
frequency range: 41 – 120 Hz
max. SPL: 138 dB
amplifier
2x Class-D Digipro G3
capacity: 1800W RMS (3600W peak)
convection cooling
processor
56-bit DSP
AD/DA converter: 24 bits / 48 kHz
crossover frequency: 90 or 120 Hz (selectable)
connectors:
2x female XLR input
2x male XLR output
2x PowerCon (I/O)
controls
input sensitivity
DSP (max. 4.5 ms delay)
polarity inversion (180°)
crossover frequency: 90/120 Hz
output mode: link/crossover
cabinet:
material: plywood

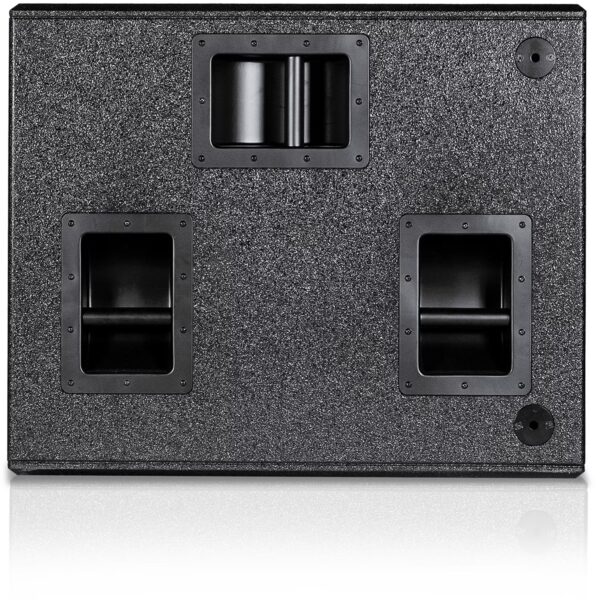

6x recessed handles
stand flange: M20
rigging: 2x for DRK10/20 rigging frame
dimensions: 1100 x 580 x 720 mm
weight: 84 kg
included: PowerCon power cable, fuses for 100 – 120 V, user manual
