Speaker connections XLR input, out / link / thru
Woofer diameter 18 inches
Weight per speaker 43 kg
Maximum SPL 130 dB – 139 dB
Maximum subwoofer frequency 120 Hz
Minimum frequency 40 – 49 Hz
RMS power in watts 750 – 1,499 W
Locking speaker connectors no
Power adapter Europlug, Schucko or CEE 7/7 plug
Weight and dimensions including packaging
Weight (incl. packaging)46.0 kg
Dimensions (incl. packaging)80.0 x 70.0 x 60.0 cm
Product specifications

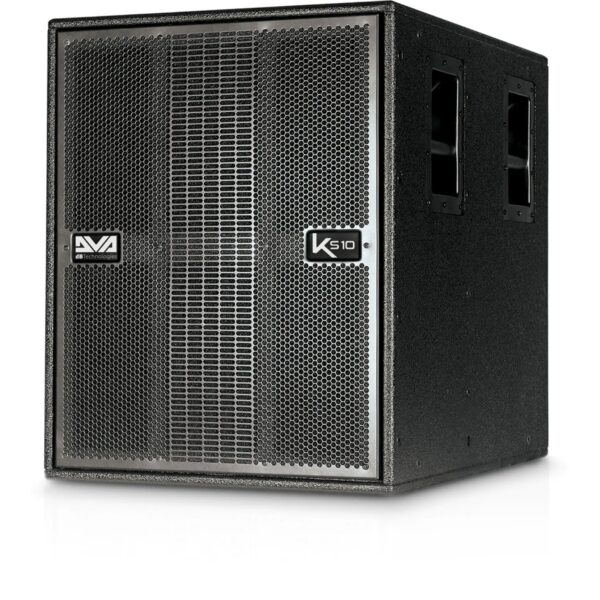

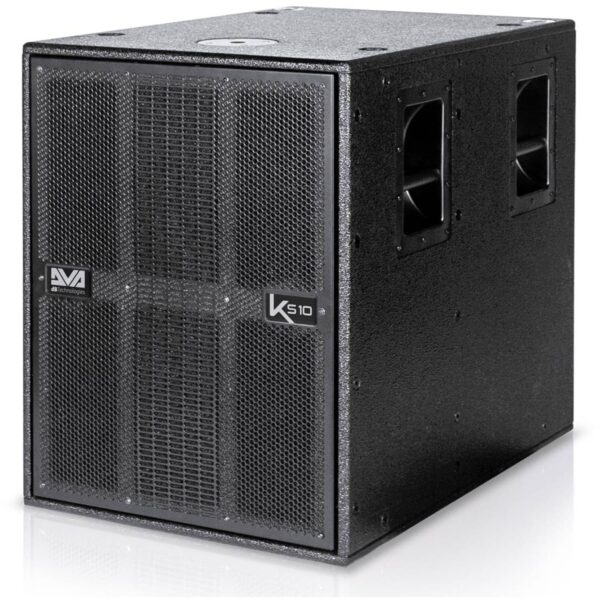

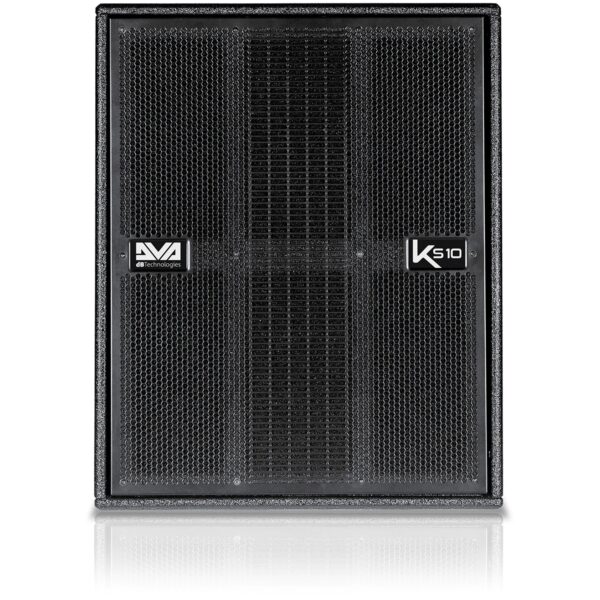

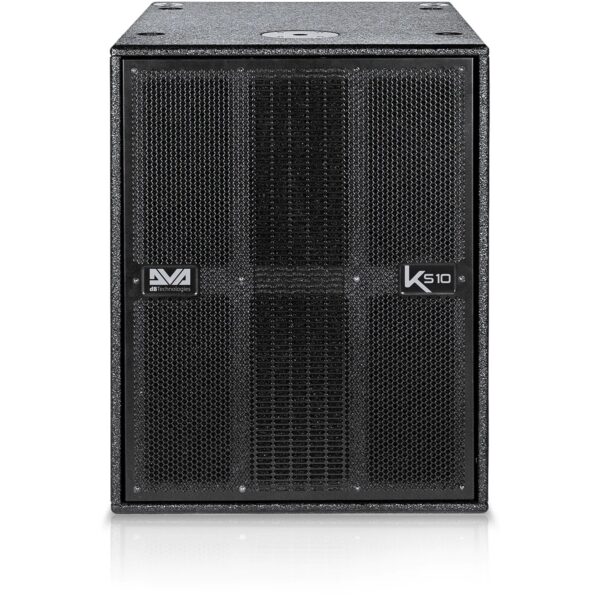

dB Technologies DVA KS10
active subwoofer
semi horn-loaded
woofer: 18 in, 4-inch voice coil
omnidirectional
frequency range: 41 – 120 Hz
max SPL: 134 dB
amplifier
Class-D Digipro G3
capacity: 900W RMS (1800W peak)
convection cooling
processor
56-bit DSP
AD/DA converter: 24 bits / 48 kHz
crossover frequency: 90 or 120 Hz (selectable)

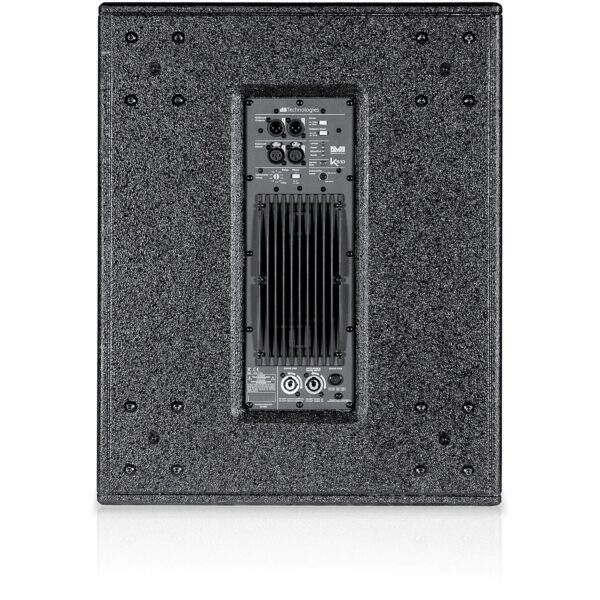

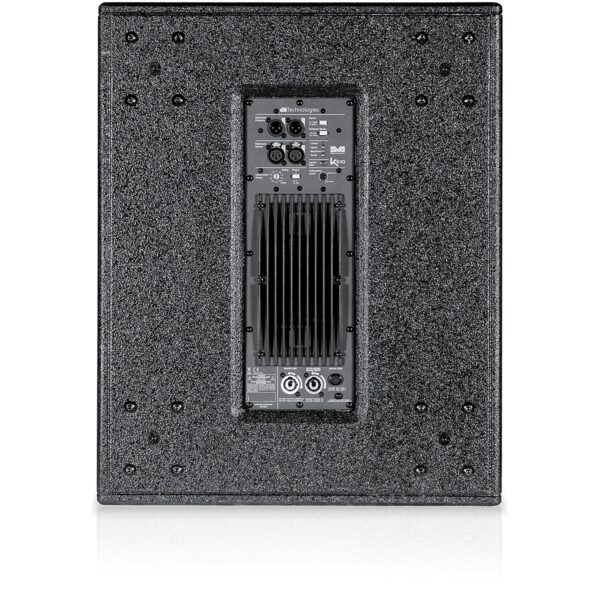

connectors:
2x female XLR input
2x male XLR output
2x PowerCon (I/O)
micro-USB (firmware update)
controls
input sensitivity
DSP (max. 4.5 ms delay)
polarity inversion (180°)
crossover frequency: 90/120 Hz
output mode: link/crossover
cabinet:
material: plywood
2x recessed handles
stand flange: M20
rigging: 2x for DRK10/20 rigging frame
dimensions: 515 x 640 x 720 mm
weight: 43.4 kg
included: PowerCon power cable, fuses for 100 – 120 V, user manual
