QSC PLD4.2 Amplifier with Built-In Processor

Original price was: €1,730.Current price is: €1,250.
Next

QSC PLD4.5 amplifier with built-in processor

Original price was: €3,050.Current price is: €2,350.
Next Product Image

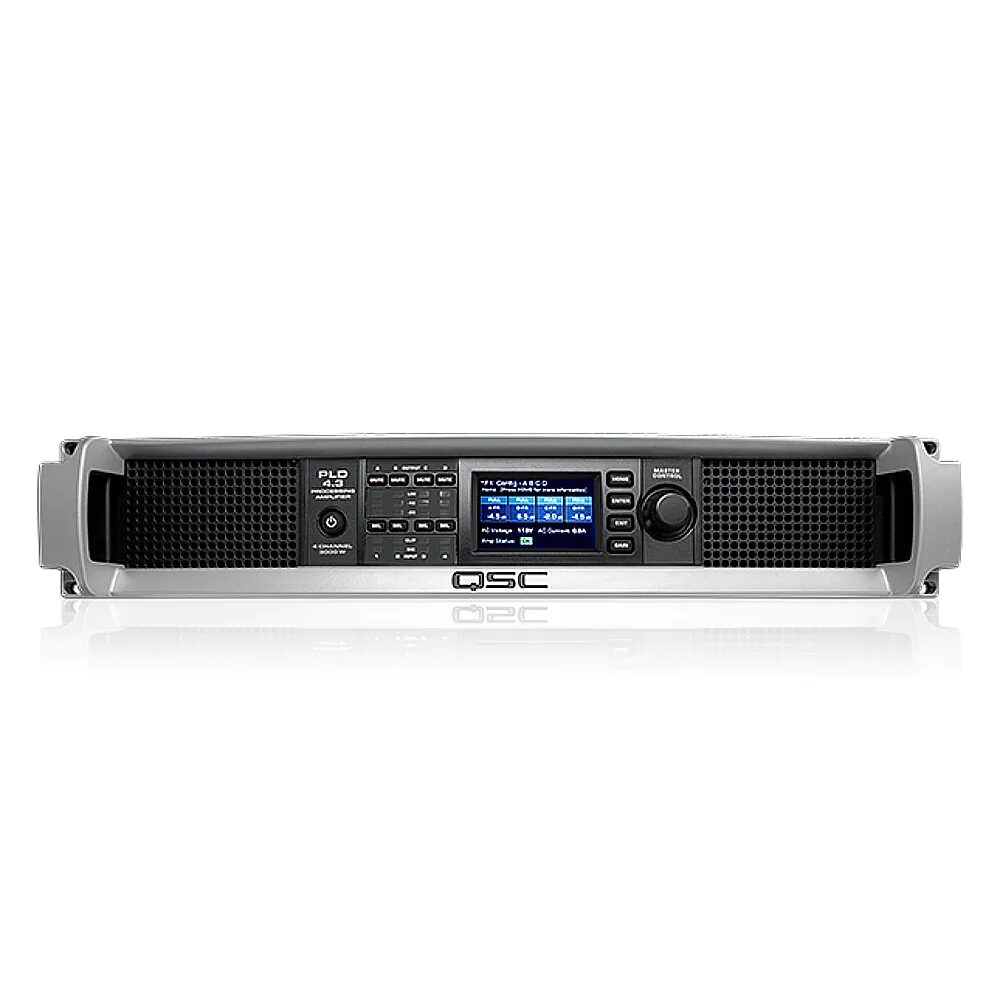

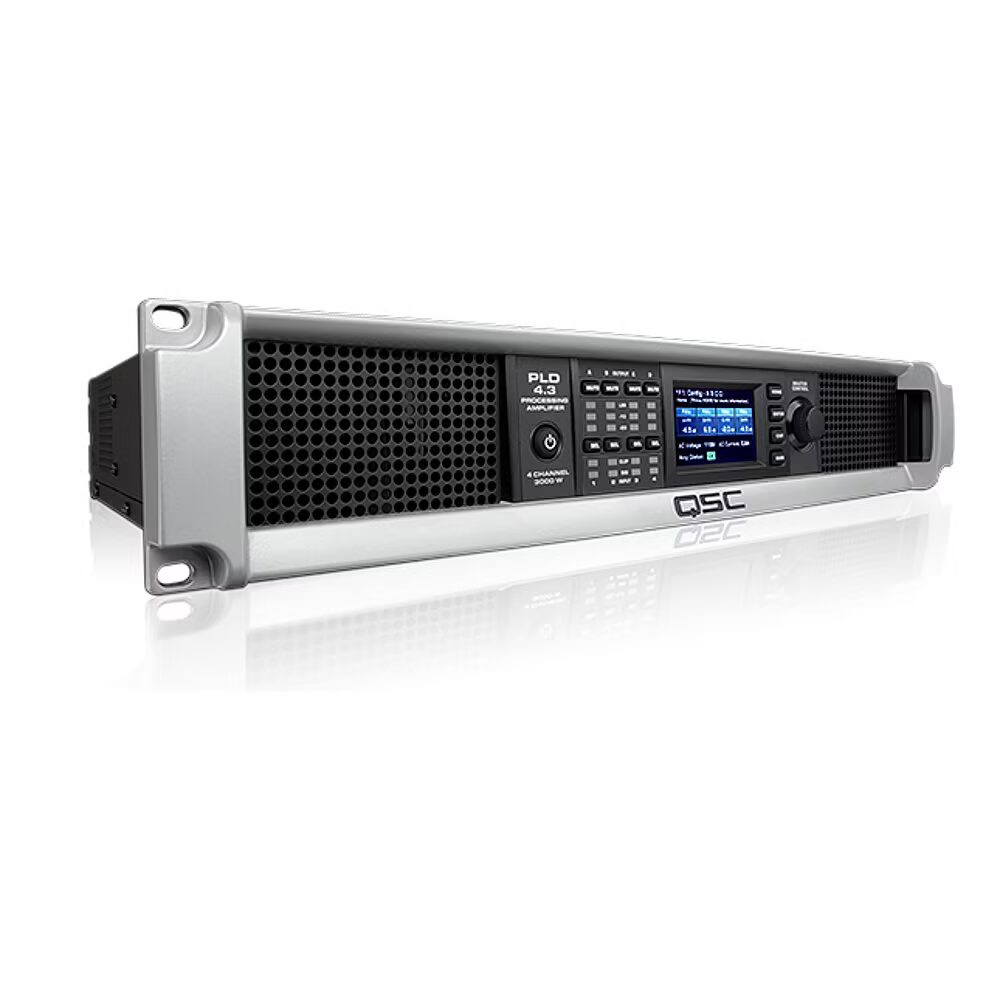

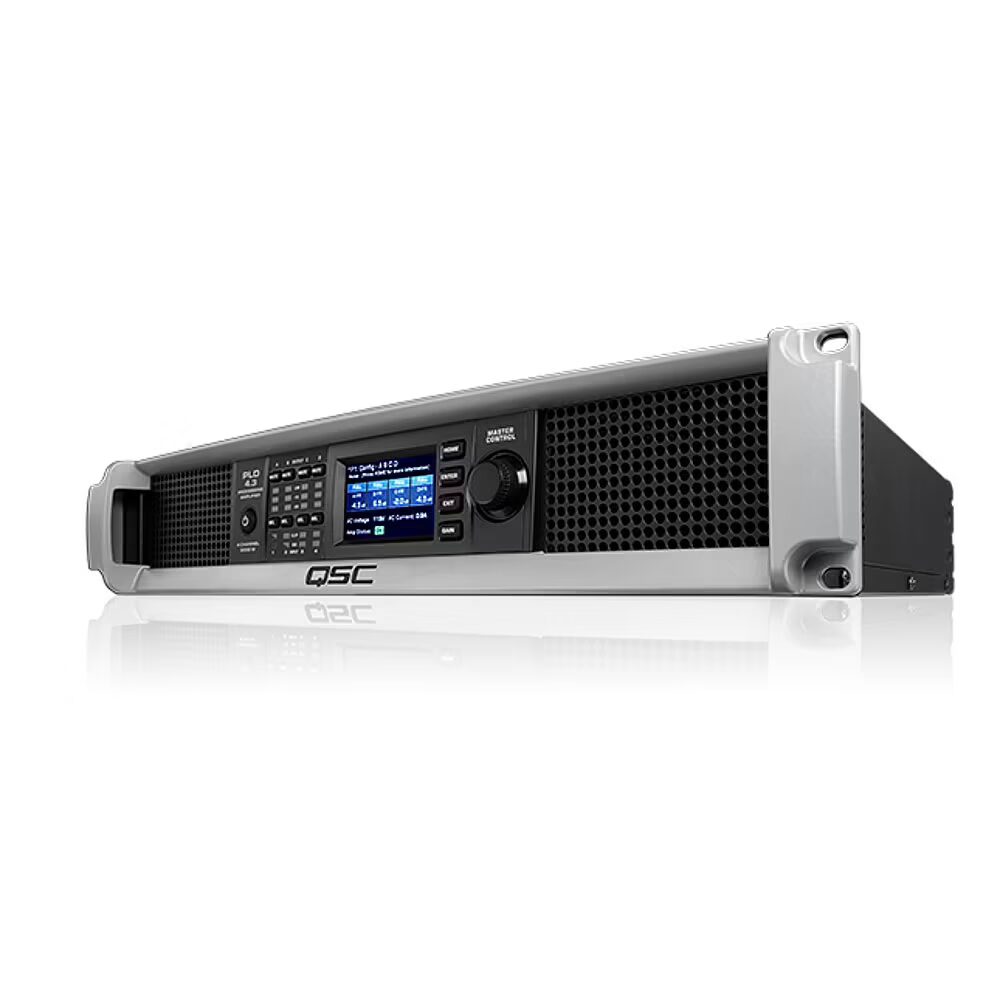

QSC PLD4.3 Amplifier with Built-In Processor

Original price was: €2,200.Current price is: €1,650.

The PLD4.3 4-channel power amp by QSC has a powerful integrated processor and is especially built for mobile applications. It offers various configurations and an output capacity of up to 2,500 Watts as well as innovative, modern features. This intelligent, lightweight powerhouse is efficient and robust and will cover all amplification needs for years to come.

Processor Professor
The PLD4.3’s built-in processor can be controlled by a number of buttons and a rotary encoder on the front control panel. Various limiters (RMS and peak) ensure that the amp and speaker combination delivers a high output without distortion or clipping and the crossovers, 5-band parametric EQ and delay make sure the system is perfectly aligned. The PLD features a number of factory presets that allow you to configure your installation in minutes. Incidentally, you don’t need to be a processor professor to create your own configuration. Use the clear menus to fine-tune this QSC amplifier to perfection and save your favourite settings in one of the fifty user presets.

Advanced Amplifier Technology
It looks as though this amplifier was built upside-down, but this is to prevent any dust, moisture or other harmful particles from falling inside the device and damaging the PCB. This amp has FAST on board, which distributes the output capacity in a clever way over 1, 2, 3 or all four outputs. This gives you various configurations with a single amplifier. Use it to power four full-range speakers or subwoofers, a bi-amped speaker and a subwoofer, a full-range speaker and a subwoofer combination or multiple heavy-duty subwoofers. The configuration is easy to adjust via the controls and the TFT screen on the front of the amp. You can choose between a number of factory presets, fine-tune them as desired, then save them in one of the fifty available user presets.

Categories: , Tag:

Description

Specifications

Product features
19-inch rack size 2U
2-ohm compatible yes
Number of amplifier channels 2
Audio loop output no
Bridge mode yes
Input connector XLR
Built-in filter HPF, LPF
Built-in protection thermal, short circuit, square wave / DC voltage, peak limiter, clip indicator
Built-in DSP processor yes
Cooling ventilator
RMS power (4 ohms) per channel 1200 – 1299 watts
RMS power (8 ohms) per channel 1200 – 1299 watts
Amplifier classD
Amplifier out putlocking speaker connector
Equipped with crossover yes, variable
Weight and dimensions including packaging
Weight (incl. packaging)11.3 kg
Dimensions (incl. packaging)59.0 x 52.0 x 17.0 cm
Product specifications
Amplifier for mobile applications
Rugged construction
Lightweight
2U rack space
Typical distortion: 0.01 – 0.03% @ 8 Ohms, 0.03 – 0.06% @ 4 Ohms
Max. distortion @ 4 – 8 Ohms: 1.0%
Frequency range: 20 Hz – 15 kHz
Damping factor: >150
Input impedance: >10k, balanced or unbalanced
Noise level: -109 dB (weighted or output-muted)
Max. input level:
400×240 TFT colour display
Power connector: 100 – 240 AC, 50 – 60 Hz

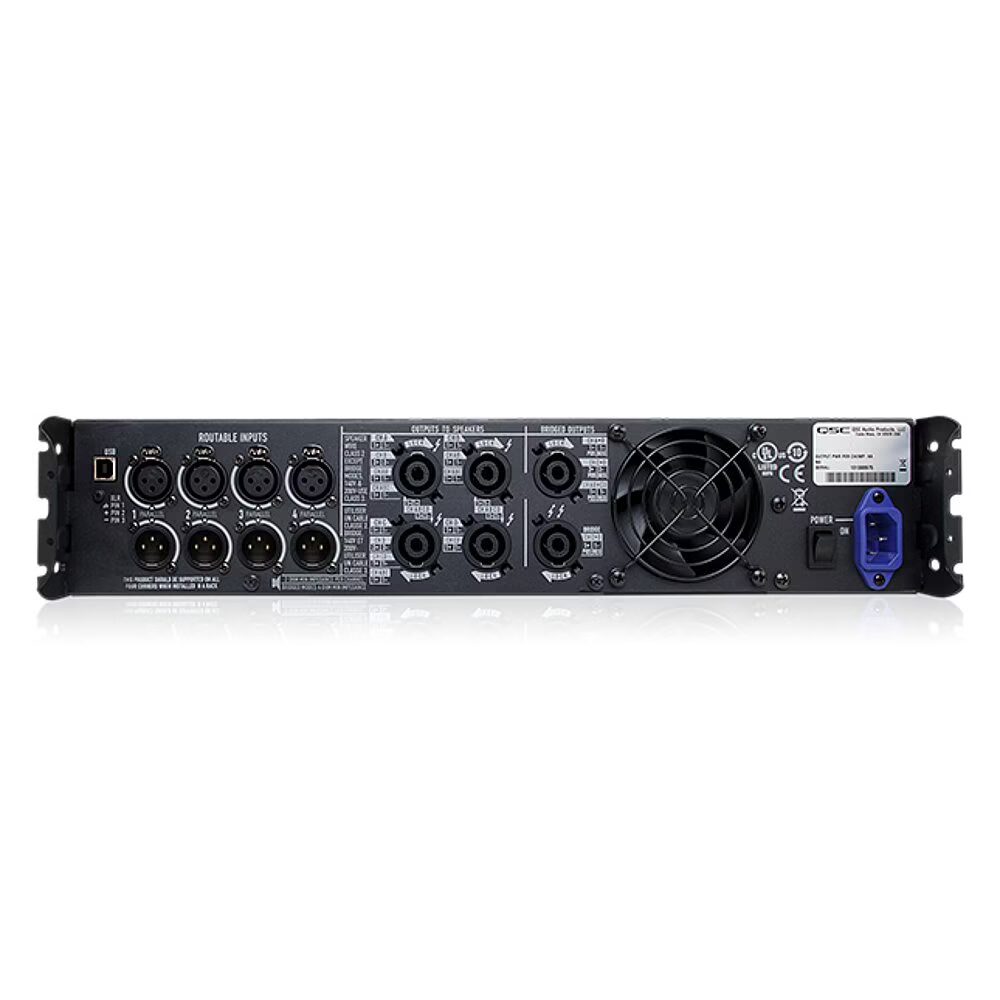

Inputs: 4x female XLR
Outputs: 6x lockable speaker connectors
Dimensions: 89 x 482 x 305 mm
Weight: 9.5 kg
Power Capacity:
4-channel continuous: 625W @ 8 Ohm, 625W @ 4 Ohm, 625W @ 2 Ohm
2-channel continuous: 1250W @ 8 Ohm, 1200W @ 4 Ohm, 1200W @ 2 Ohm
1-channel continuous: 2500W @ 8 Ohm, 2500W @ 4 Ohm, 2500W @ 2 Ohm, 2500W @ 1 Ohm
