Description
Specifications
Product features
19-inch rack size not applicable
Number of keys 37
Arpeggiator/sequencerarpeggiator, sequencer
Computer integration none
Control sustain (input), switch pedal (input)
Synthesizer inputs line in
Sound sourceanalogue
MIDI & CV/gate MIDI in, MIDI out, MIDI thru, MIDI over USB, CV/gate in, CV/gate out
Synthesizer outputs line out jack, headphone
Type of keys semi-weighted
Synthesizer type keyboard
Weight and dimensions including packaging
Weight (incl. packaging)10.0 kg
Dimensions (incl. packaging)82.5 x 50.0 x 25.0 cm
Product specifications

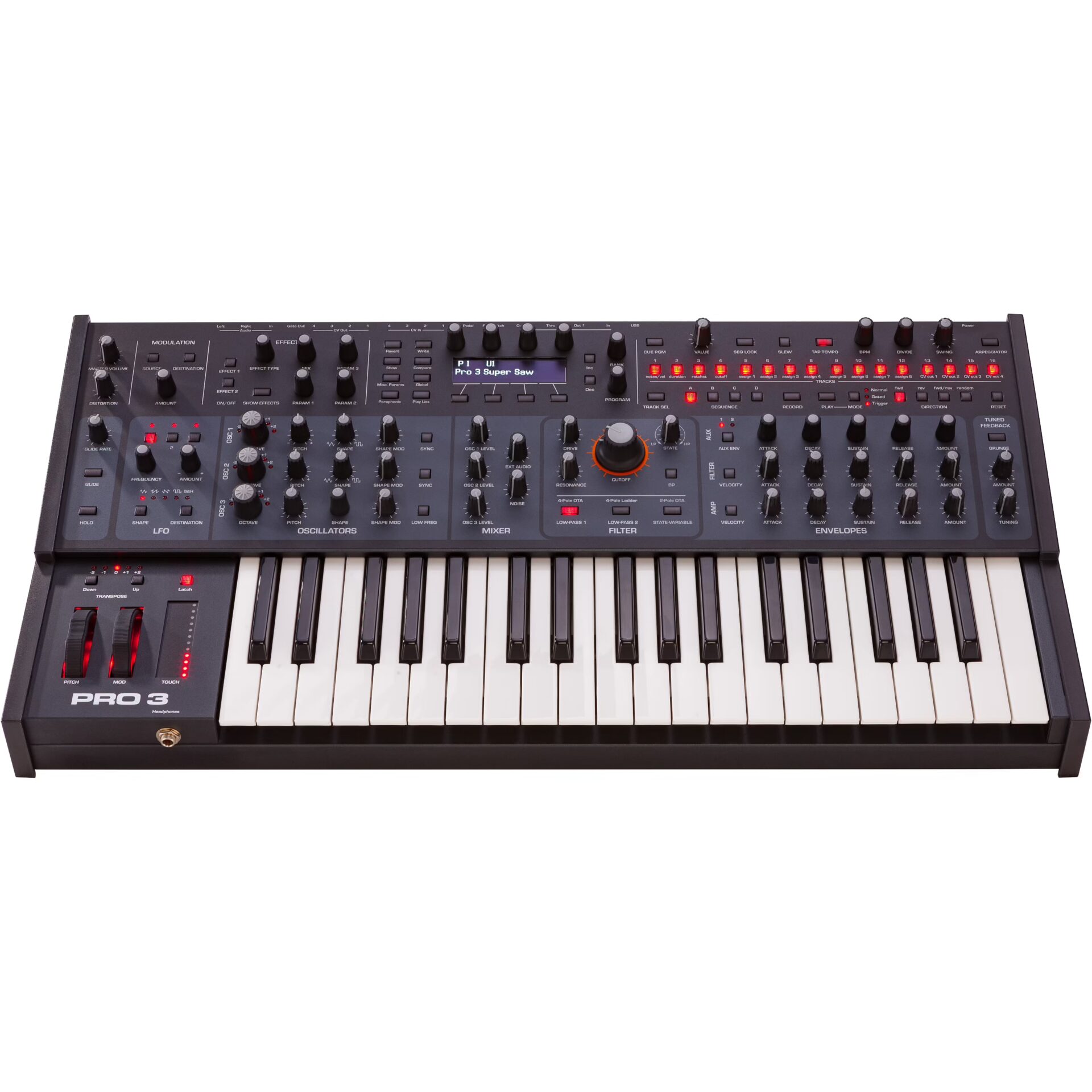

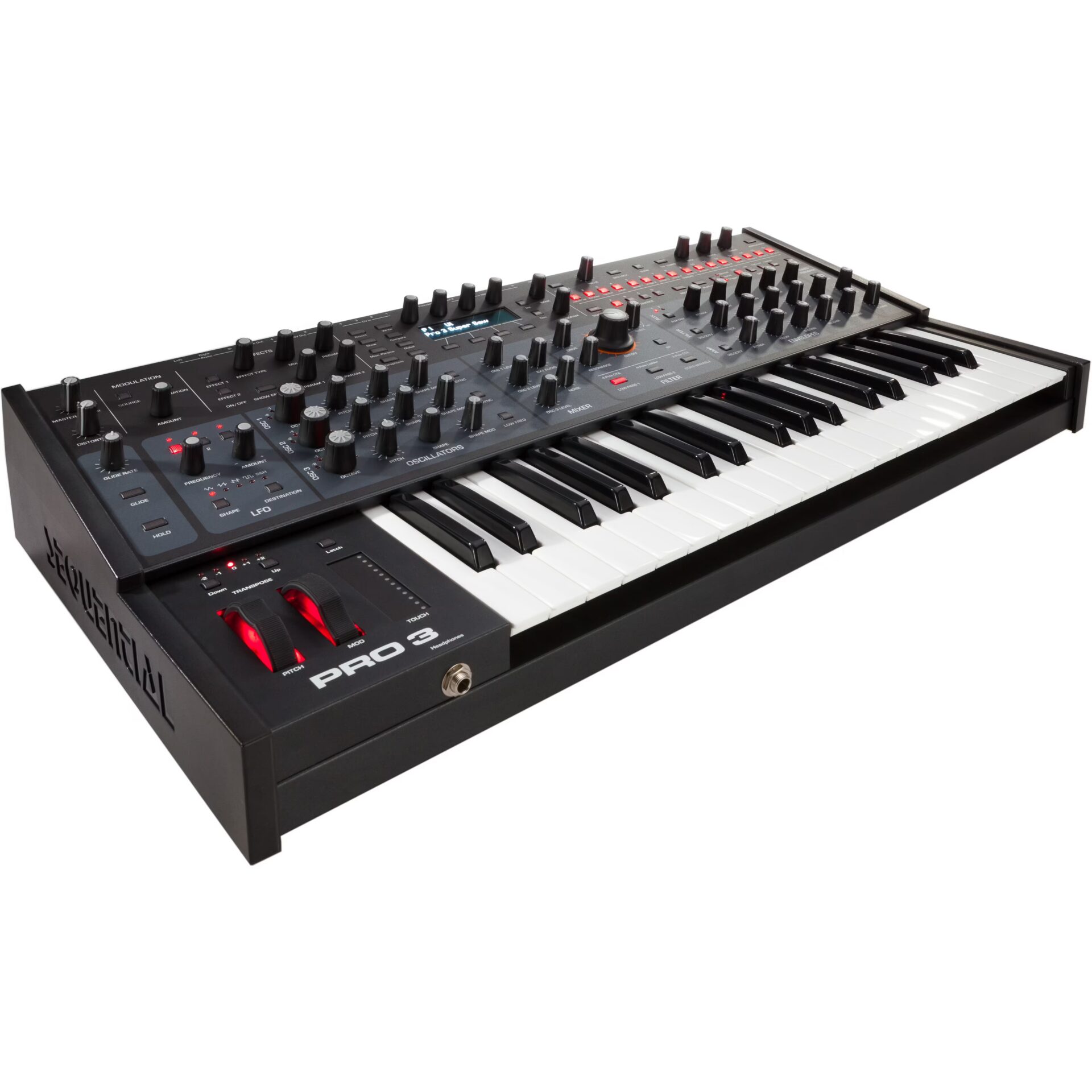

Sequential PRO 3 synthesizer
keyboard from Fatar
3-voice paraphonic
sound generator:
2x analogue oscillator (triangle, saw, pulse)
1x digital DSP-oscillator (wavetables), can also function as an LFO
noise generator
hard-sync, glide, slop
filters:
24 dB prophet-6 LPF
24 dB transistor ladder
12 dB OB-6 state-variable (LP, notch, HP, BP)
LFO:
3x LFO with fase-offset and slew
waveforms: triangle, saw, reverse saw, square, S&H
envelopes
4x ADSR with delay (including VCF and VCA)
repeat/loop support
aggressive feedback and analogue distortion
modulation matrix
46 sources
171 targets
audio-rate
sequencer:
16 tracks
4x linkable 16-step phrase
per step: ratcheting (multiple envelope-retriggers), length and velocity
sync on MIDI-clock, external audio and CV-input
sequences can be freely linked to a modulation target
arpeggiator:
direction: up, down, up/down, random
sync on MIDI-clock, external audio and CV-input
preset storage: 512 factory, 512 user

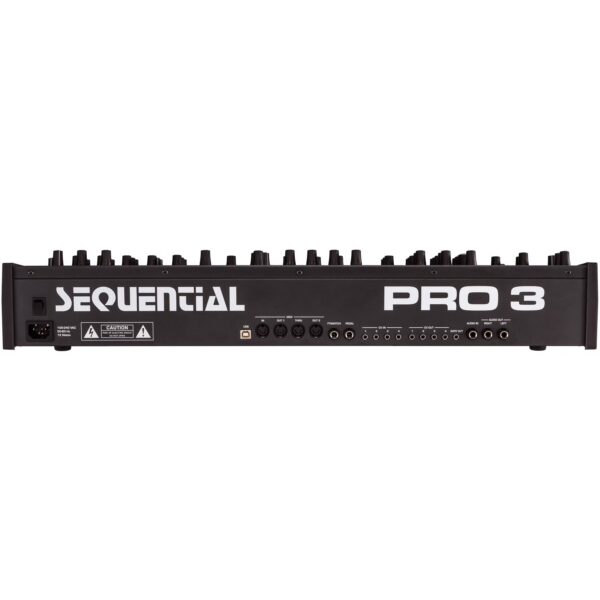

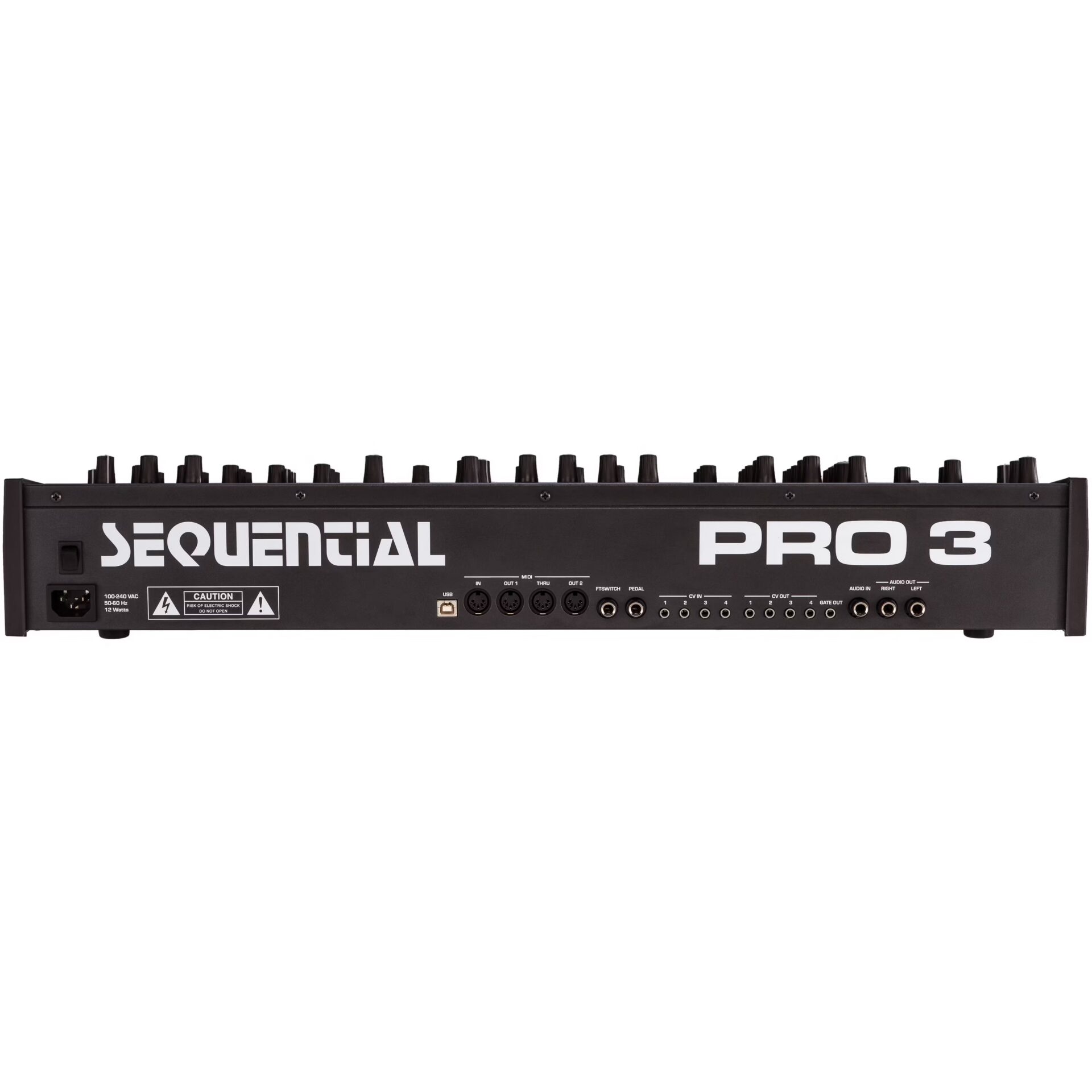

connectors:
MIDI IN, OUT, THRU/OUT2
USB MIDI
4x CV in
4x CV out
1x gate-out
1x sustain/switch
1x expression
1x audio-input 6.3 mm
2x audio, jack
headphone jack
dimensions: 673 x 330 x 890 mm
