Allen & Heath SQ6 Digital Mixer

Original price was: €3,270.Current price is: €2,570.

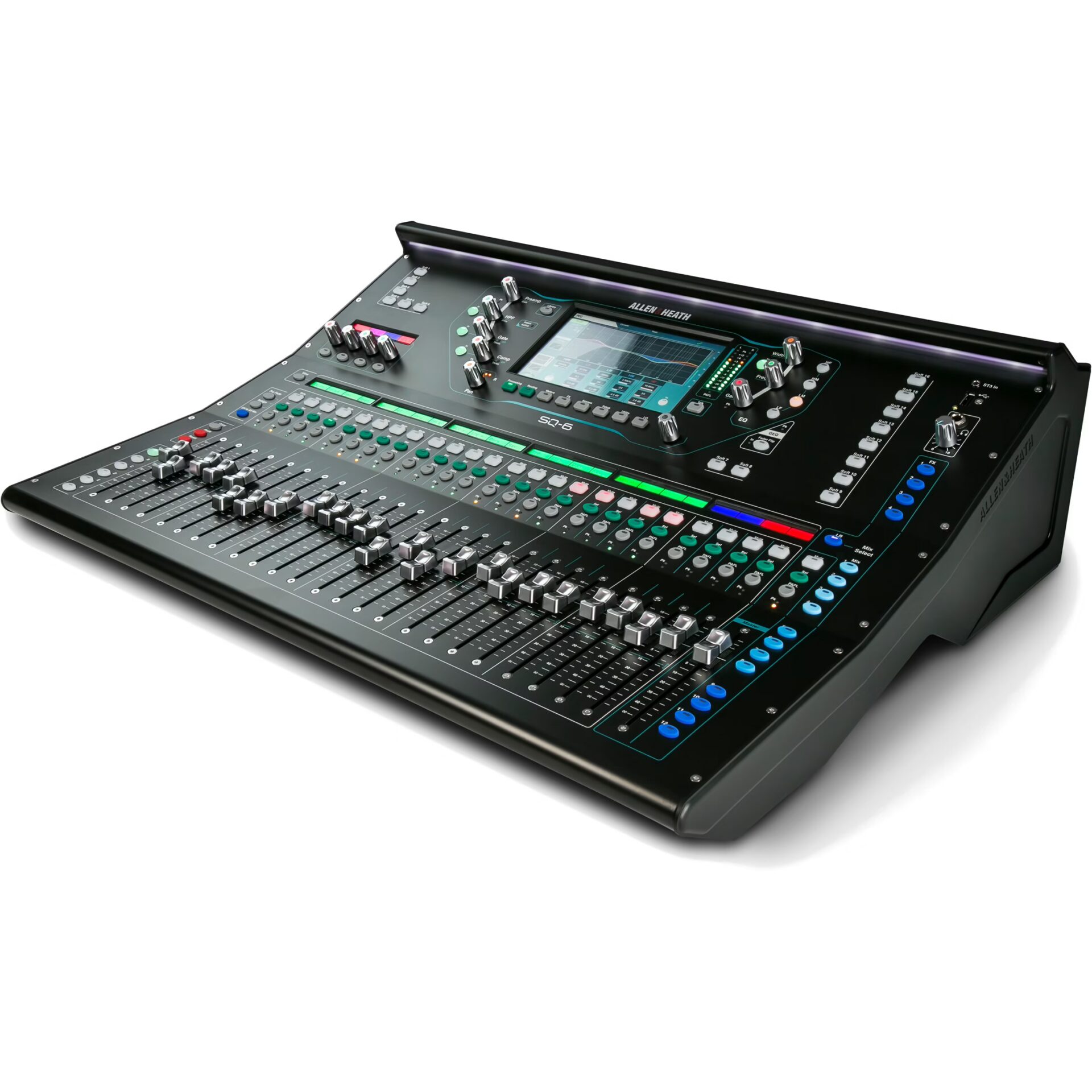

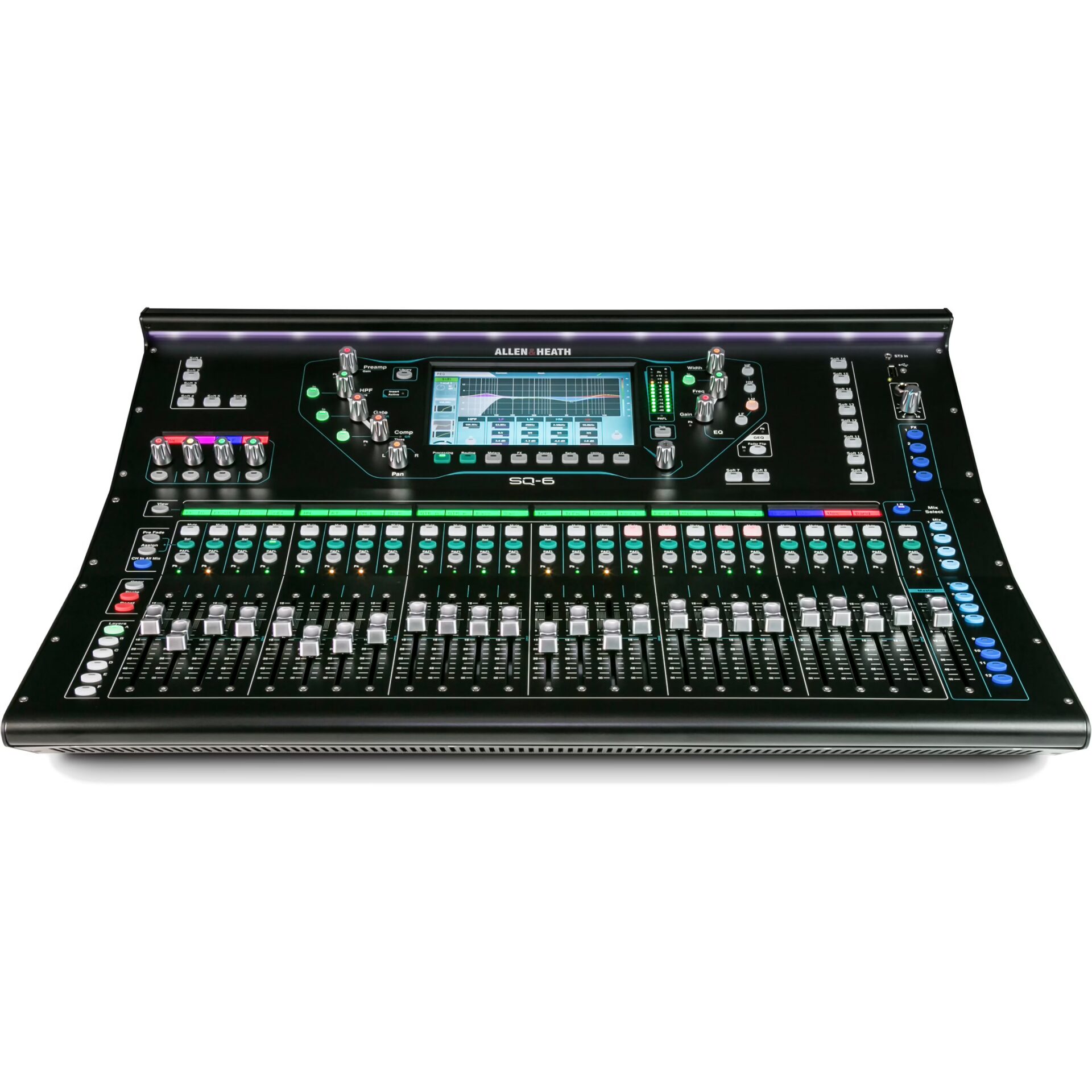

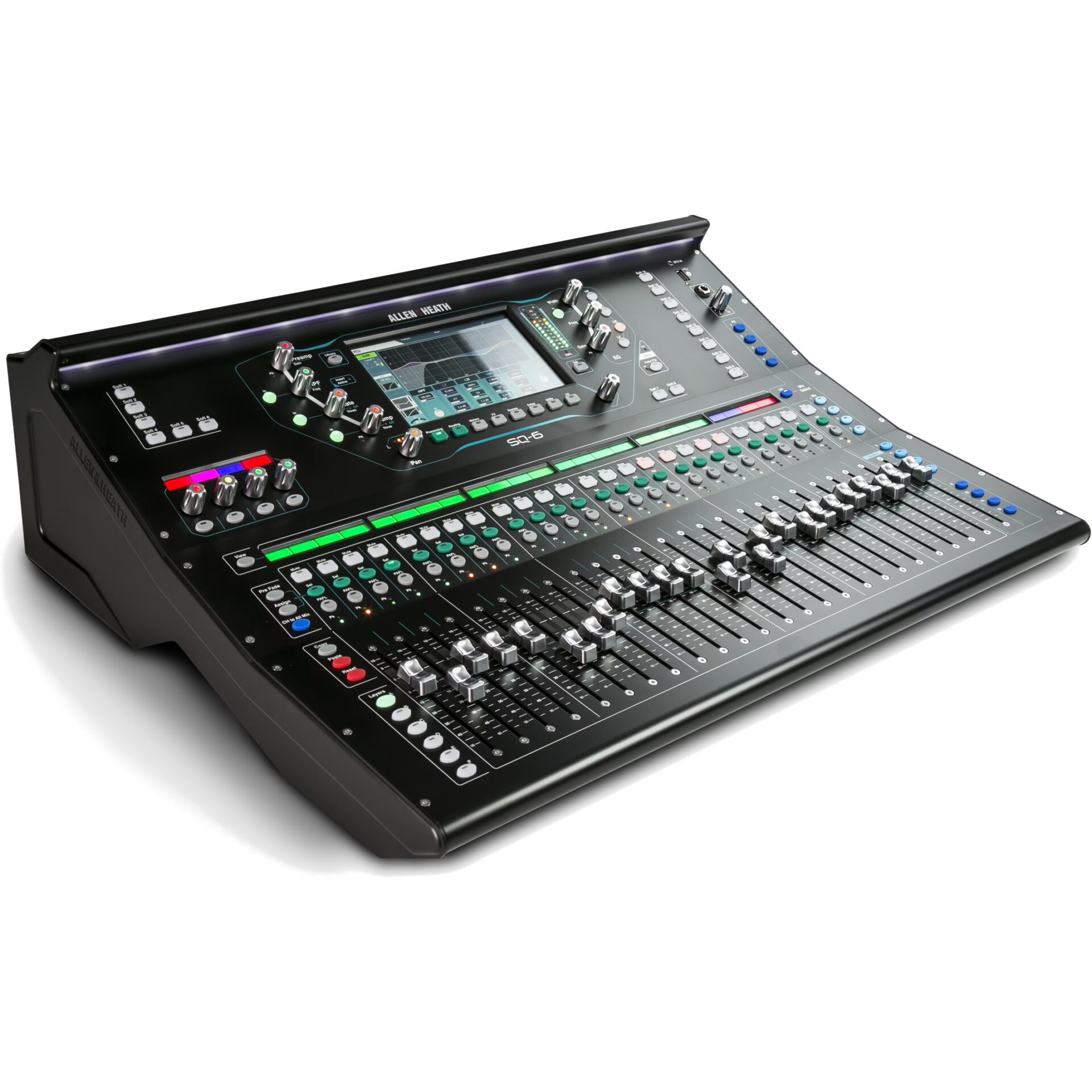

It’s easy to use, fast and flexible; in short, the SQ6 digital mixer by Allen & Heath has it all. It features 24 physical faders trips that you can stack for a total of 96 channels. It’s equipped with 48 physical input channels that you can easily expand by inserting a digital expansion card in the I/O port (Dante, Waves, etc.). There is a seven-inch touch screen that shows you parameters and lets you call up overviews that you can control using twenty Softkeys and previously-assigned buttons.

The SQ6 Digital Mixer: Ease of use
Despite its futuristic appearance, the SQ6 is very user-friendly so you can start using it straight out of the box after plugging in the power. It’s engineered for exceptional monitor and in-ear mixes and gives you twelve stereo outputs with both a graphic and parametric equalizer, plus a screen so you can easily toggle back and forth.

Description

Specifications

Product features
19 inches no
Number of analogue input channels 41 – 48
Number of analogue output channels 9 – 16
Number of channels 65 – 128
Number of microphone inputs 17 – 32
Digital inputsd Snake
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), dSnake
Dynamics compressor, expander, gate
Equalizer 8-band parametric, 15-band, Master EQ
Input connector jack (3.5 mm stereo), jack (6.3 mm stereo), Ethernet (RJ45), XLR, XLR AES/EBU, USB
Built-in audio interface USB (multi track), sold separately (via expansion card)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meter speak LED, via built-in display, via iPad / iPhone / iPod
Remote controlvia iPad, via iPhone, via Android device, via Ethernet
Connector position back
Type of display touch screen, colour
Expansion possibilities DANTE expansion card, expansion card for digitale snake, digitale snake
Output connector jack (6.3 mm stereo), XLR (3-pin), Ethernet, USB connector, XLR AES/EBU
Mixer power power cable
Volume control knobs, faders, faders + knobs, motorised faders, via PC / Mac, via iPad / iPhone / iPod, via Android, via touchscreen
Weight and dimensions including packaging
Weight (incl. packaging)17.3 kg
Dimensions (incl. packaging)82.0 x 68.0 x 36.0 cm
Product specifications
Allen & Heath SQ6
digital mixer
7-inch touch screen
96x fader strips (24+1 faders, 6 layers)
16x assignable SoftKeys, 4x assignable SoftRotaries
48x input channels with preamp, HPF, PEQ, gate, comp, delay
8x stereo FX with dedicated return channels
8x Mute groups, 8 DCA groups
32×32 USB streaming, direct to USB recording
LCDs above channel strips

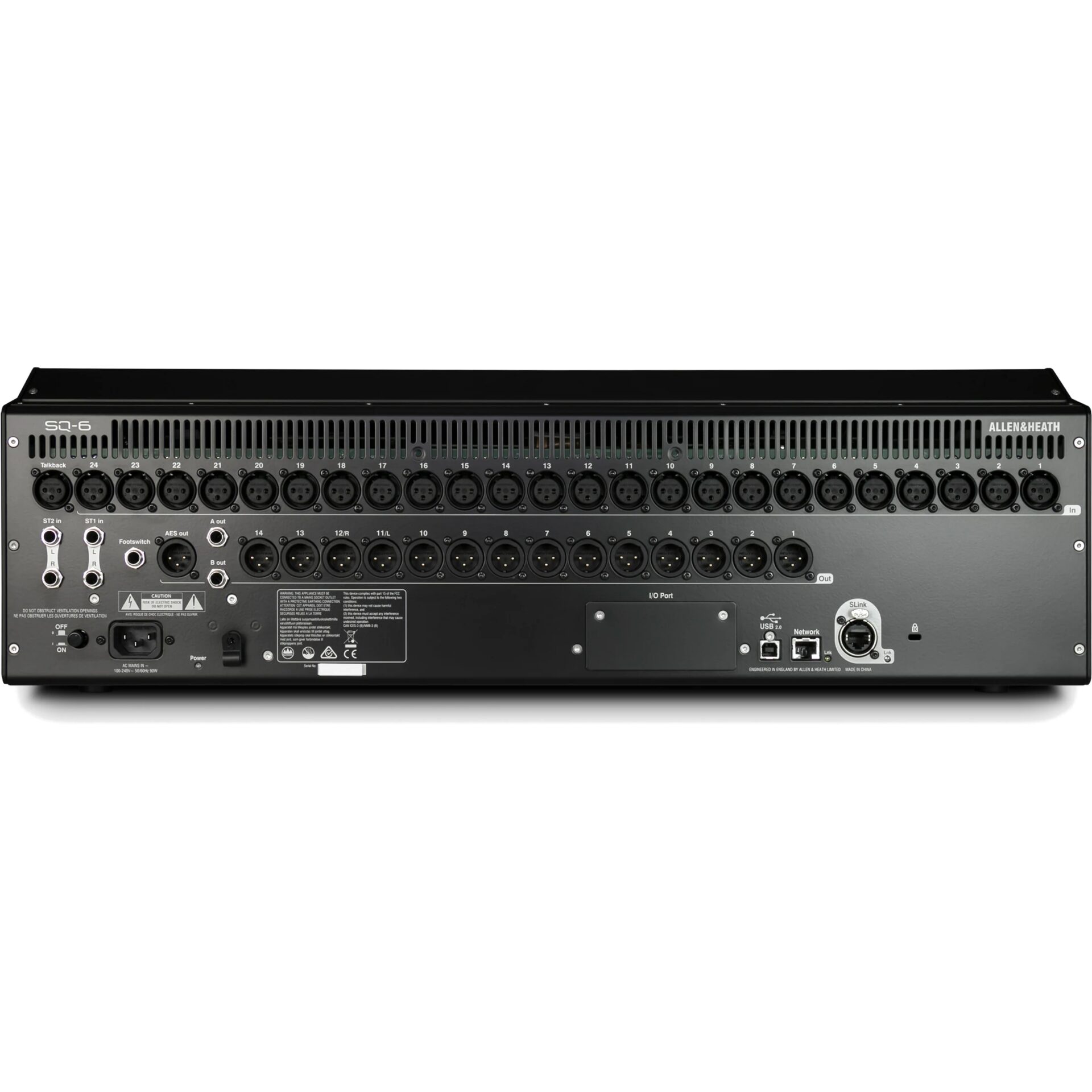

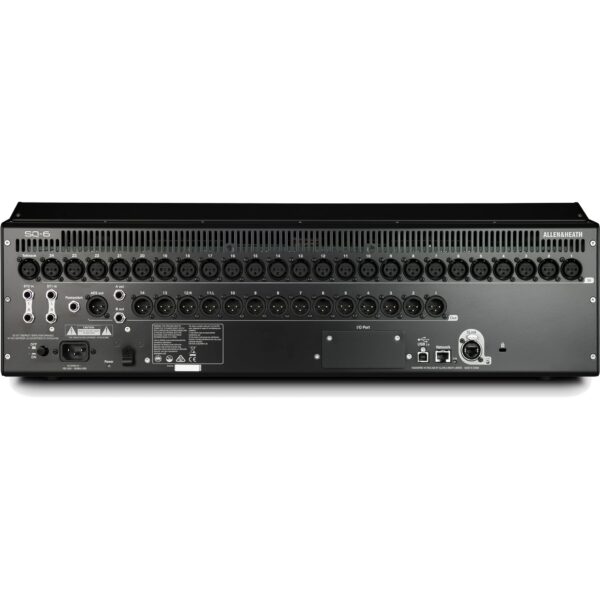

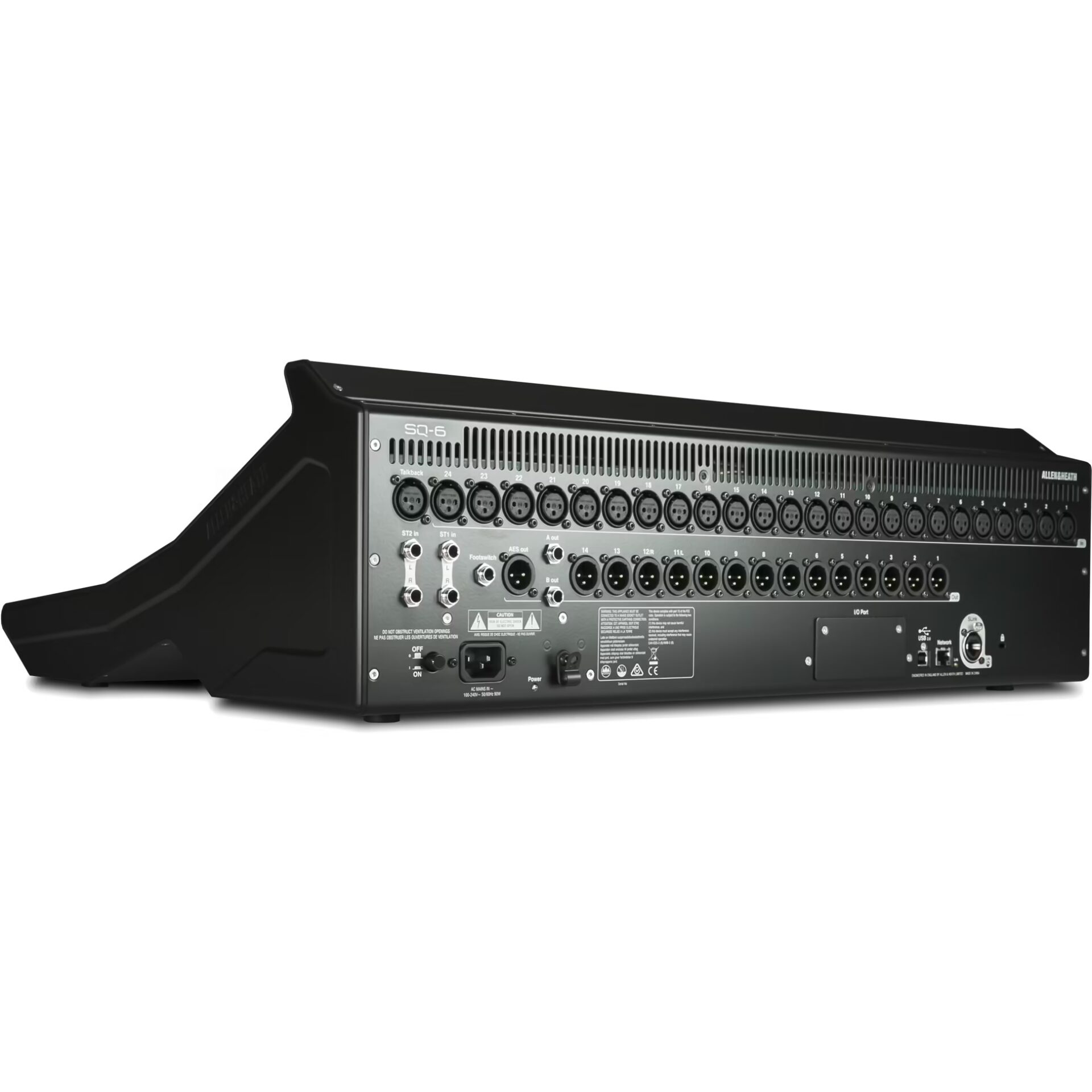

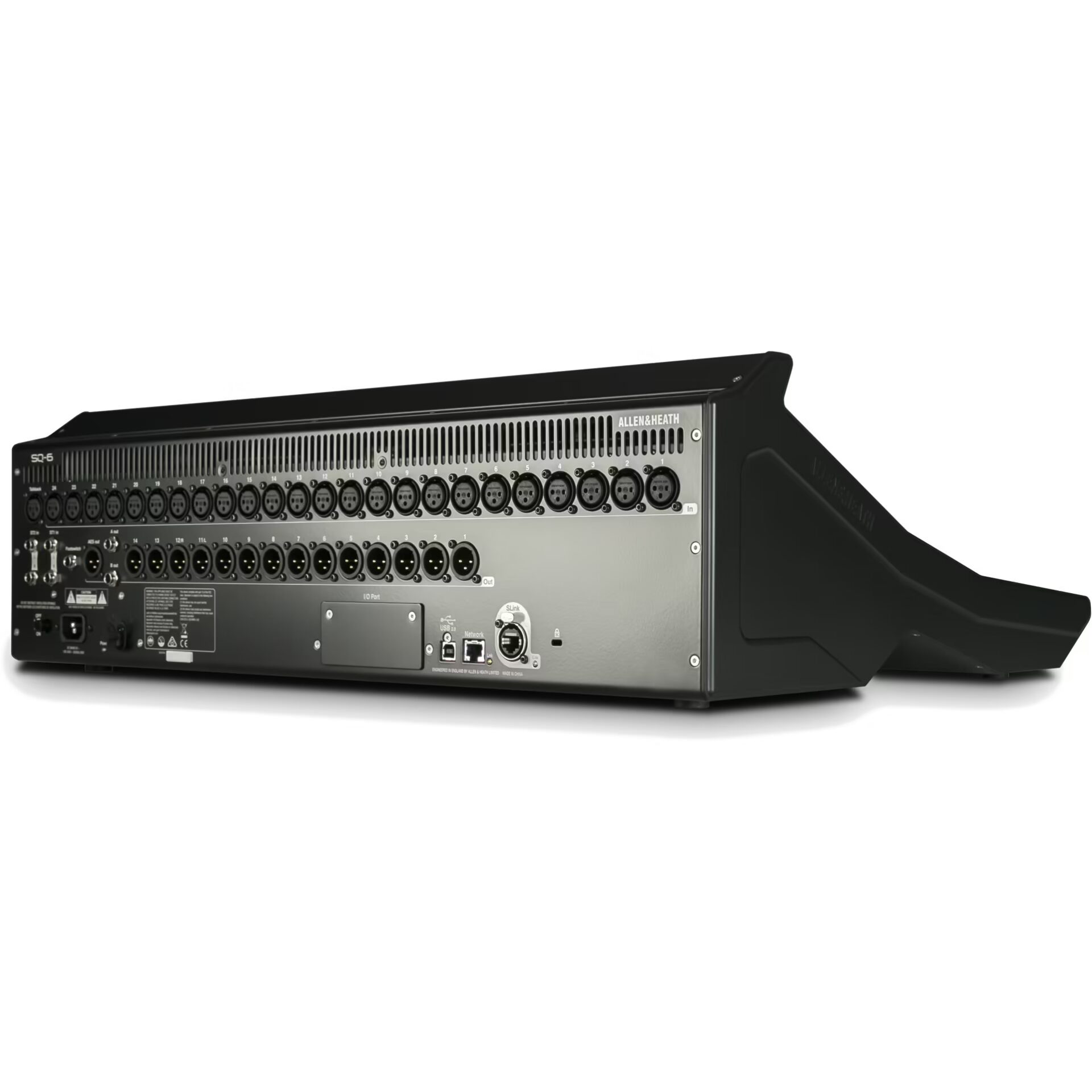

connectors:
24x local mic inputs (XLR)
2x local stereo line inputs (jack)
14x XLR outputs
2x TRS outputs
AES output
talkback (XLR)
footswitch: jack
2x RJ45 (SLink and Network)
USB B
I/O port
power cable
headphone out (jack, front)
USB A
ST3 input (mini jack)
dimensions: 514 x 638 x 198mm
weight: 13.3 kg
