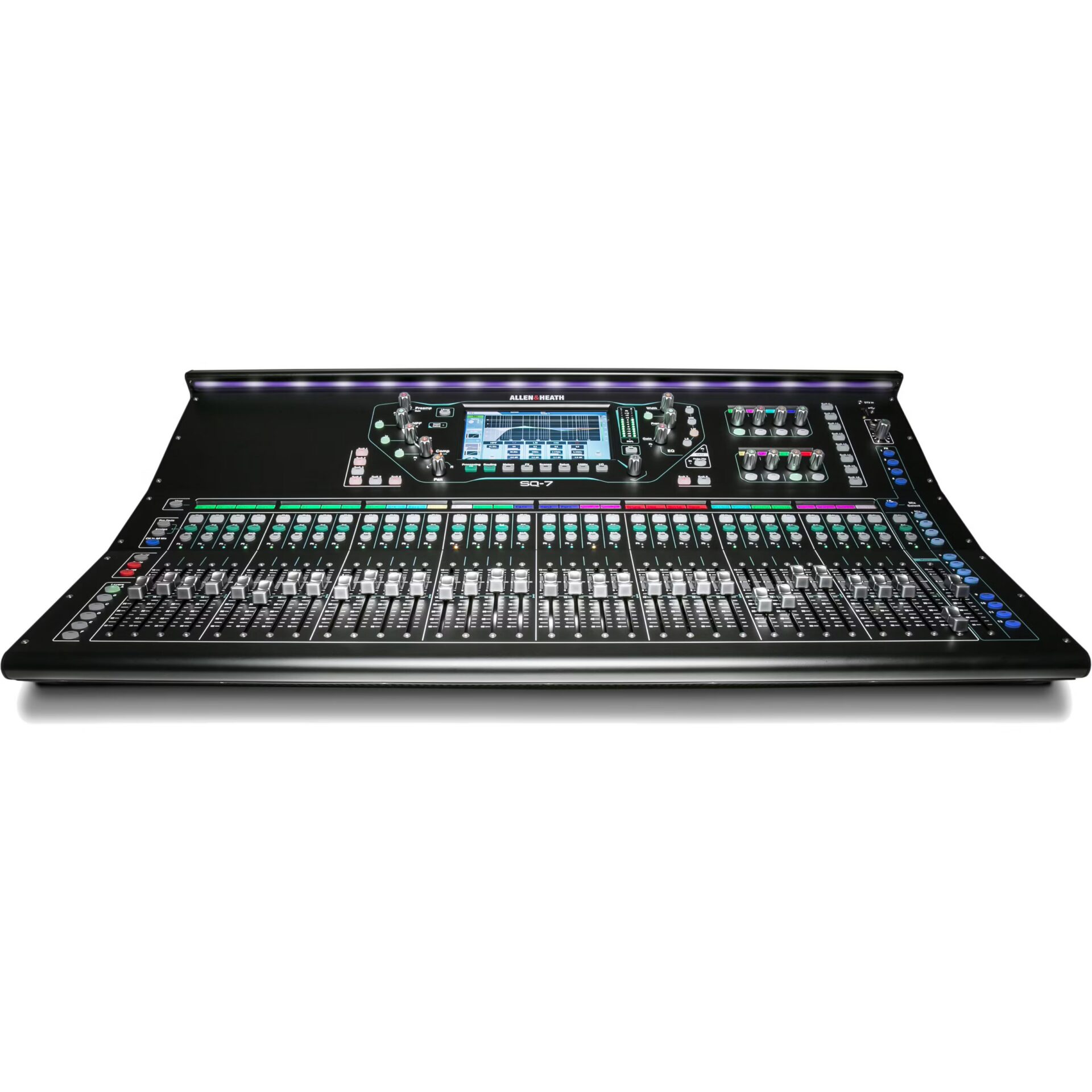

Allen & Heath SQ-7 Digital Mixer

Name: Allen &amp; Heath SQ-7 Digital Mixer
SKU: 10347
Price: 2950 EUR
Availability: InStock

Original price was: €4,200.Current price is: €2,950.

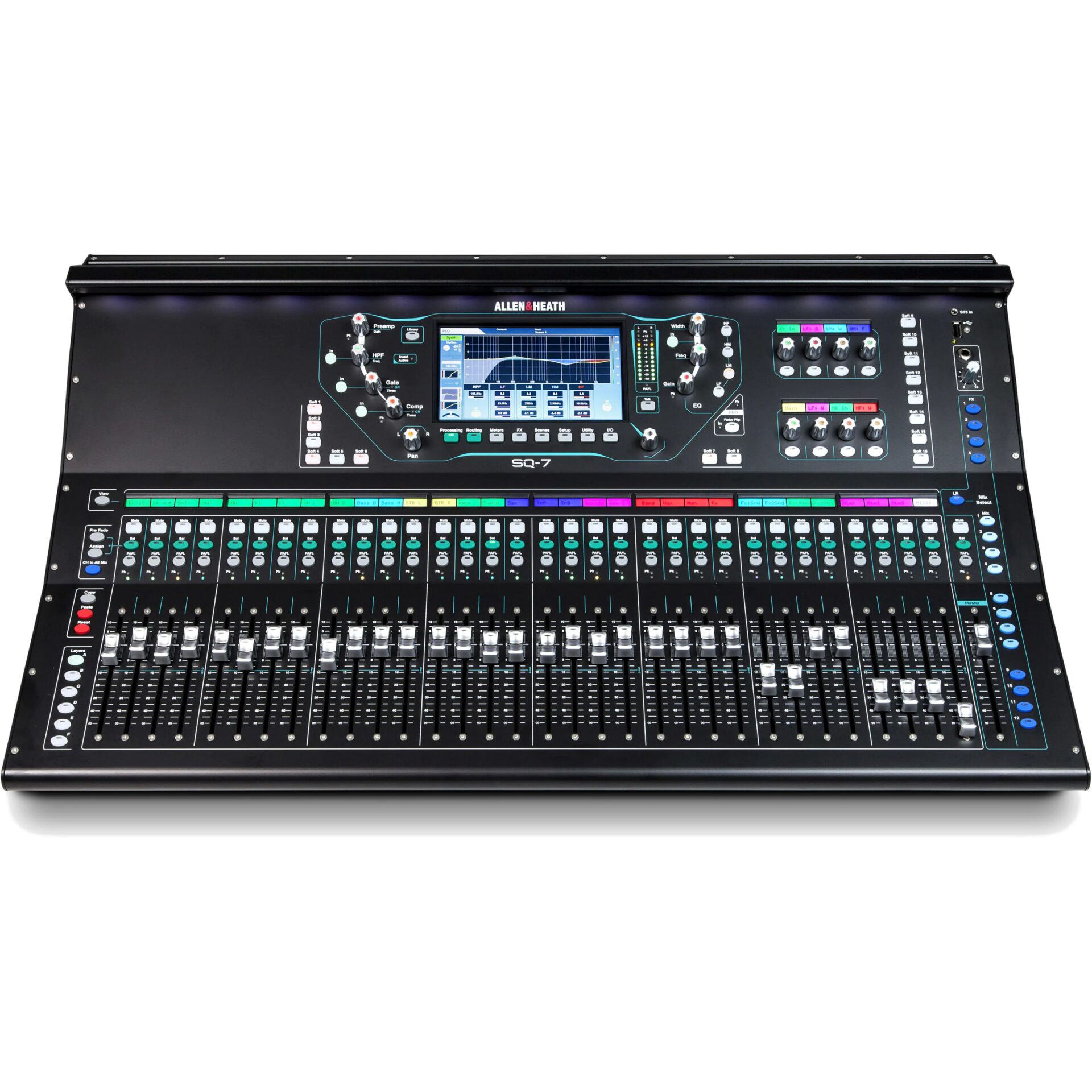

Allen & Heath’s SQ-7 is the largest digital mixer in the SQ series. It has 32 physical fader strips with 6 layers (for a total of 192), a 7-inch touchscreen that provides a clear overview, 32 XLR connectors and virtually endless expansion options thanks to the SLink and input and output ports for Dante, Waves and more! There are also 24 soft keys to adjust the parameters of various channels and settings can be edited via your tablet or smartphone using the SQ MixPad and SQ4You apps.

Plenty of Options
The SQ-7 can be used for demanding applications including live productions, AV, corporate events and any live-mixing situation you would ever want to throw at it. The automatic microphone mixers deliver instant clarity of sound for any application. The XCVI FPGA Core enables you to assign DEEP plugins to any of the inputs so you can use an effect that the mixer doesn’t have a control for. The SQ-7 is great for working with in-ear monitoring systems as you can make up to 12 different stereo mixes with a parametric and graphic equalizer per mix so that everyone on stage has the perfect sound. If that’s not quite enough, you can record 32 x 32 channels via the USB input.

Tips or comments about this product
Please note: This product includes the mixer only. The tablets and holders seen in the images serve illustrative purposes only and are not included.

Categories: Digital Mixing Desk, PA Mixers & Mixing Desks, Pro Audio Tag: Allen & Heath

Description

Description

Specifications

Product features
19 inches no
Number of analogue input channels 33 -40
Number of analogue output channels 17 – 24
Number of channels 129 – 256
Number of microphone inputs 17 – 32
Digital inputsd Snake
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), dSnake
Dynamics compressor, expander, gate, limiter, multiband compressor
Equalizer 8-band parametric, 15-band, Master EQ
Input connector jack (3.5 mm stereo), jack (6.3 mm stereo), Ethernet (RJ45), XLR, USB
Built-in audio interface USB (multi track), sold separately (via expansion card)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meterspeak LED, via built-in display, via iPad / iPhone / iPod, via Android Device, via PC/Mac
Remote control via iPad, via iPhone, via Android device, via Ethernet
Connector position back
Type of display touch screen, colour
Expansion possibilities DANTE expansion card, expansion card for analogue I/O, digitale snake
Output connector jack (6.3 mm stereo), XLR (3-pin), Ethernet, USB connector, XLR AES/EBU
Mixer power power cable
Volume control knobs, faders, faders + knobs, motorised faders, via PC / Mac, via iPad / iPhone / iPod, via Android, via touchscreen
Weight and dimensions including packaging
Weight (incl. packaging)21.9 kg
Dimensions (incl. packaging)96.0 x 68.5 x 36.0 cm
Product specifications
Allen & Heath SQ-7
digital mixer
7-inch touchscreen
192 fader strips (32+1 faders, 6 layers)
16x assignable SoftKeys, 8x assignable SoftRotaries
48x input channels with preamp, HPF, PEQ, gate, comp, delay
8x stereo FX with dedicated return channels
8x Mute groups, 8 DCA groups
32×32 USB streaming, direct to USB recording
LCDs above channel strips

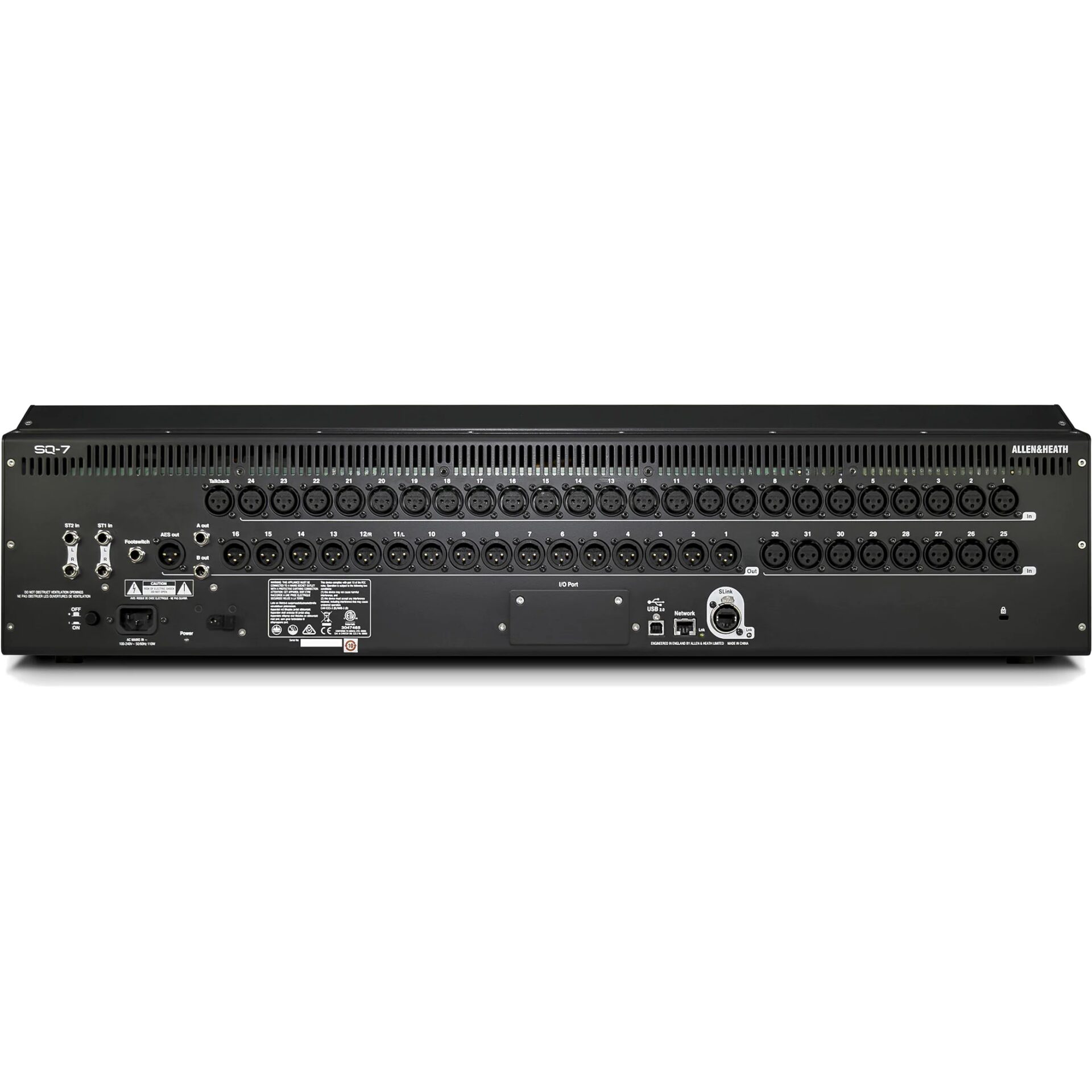

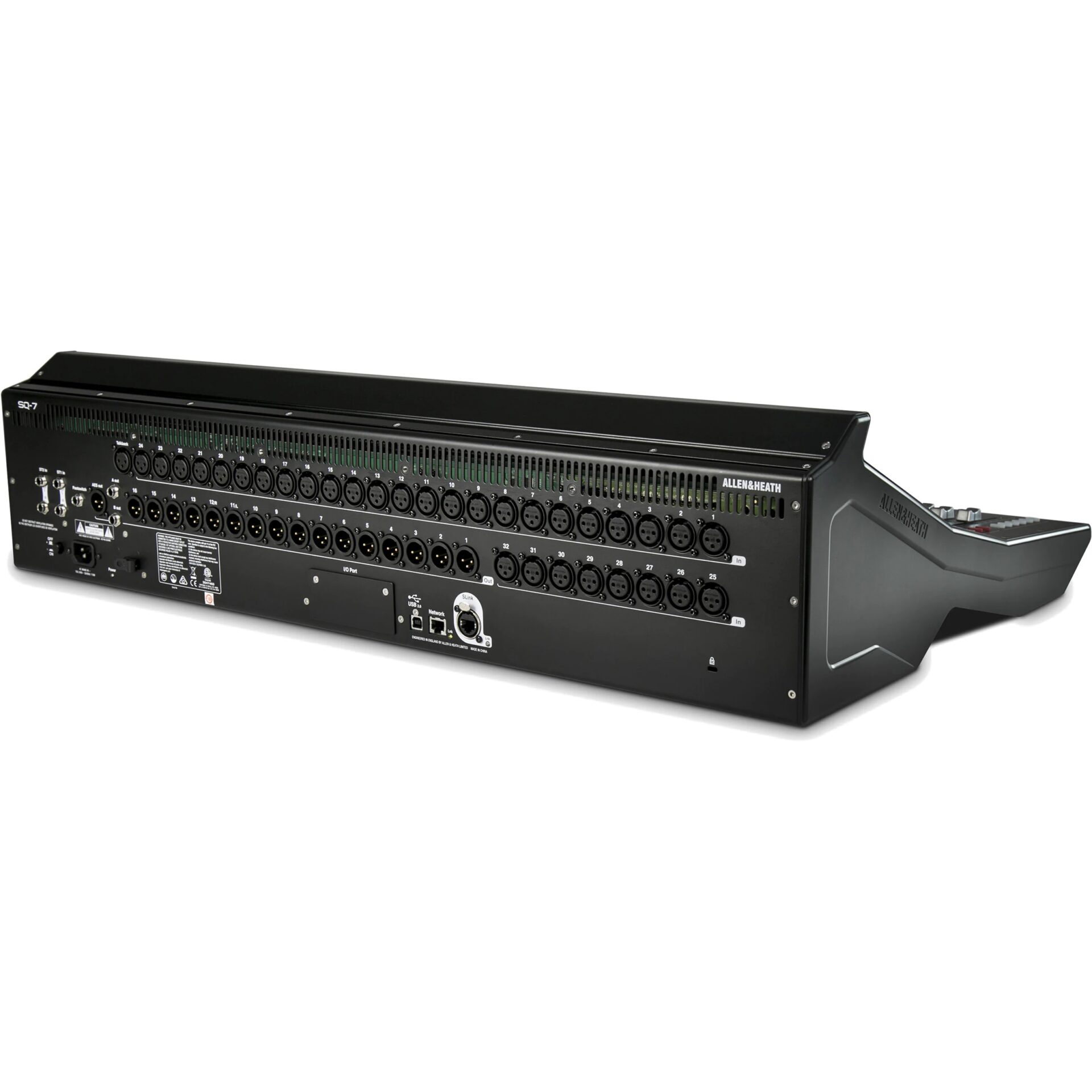

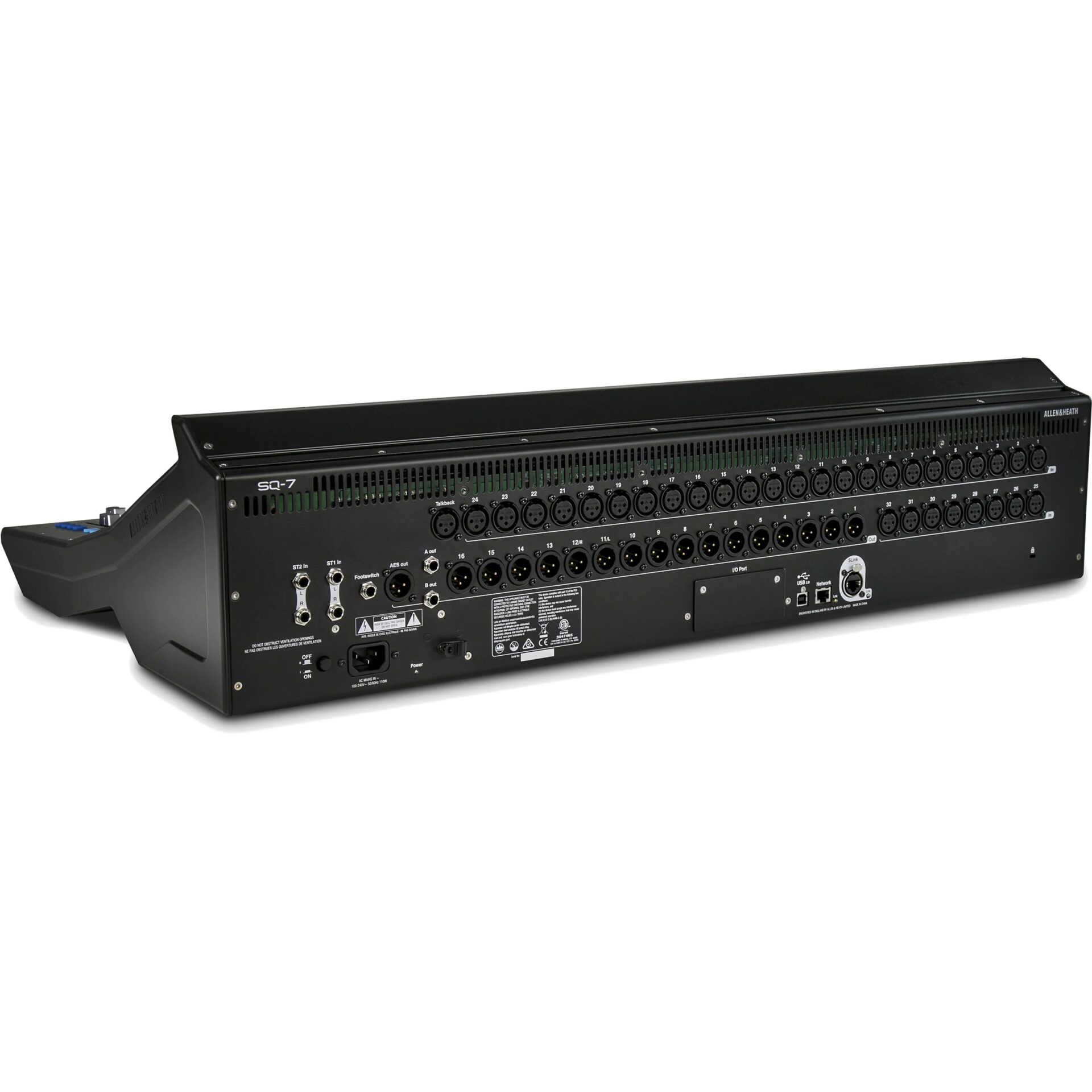

connectors:
32x local mic inputs (XLR)
2x local stereo line inputs (jack)
16x XLR outputs
2x TRS outputs
AES output
talkback (XLR)
footswitch (jack)
2x RJ45 (SLink and Network)
USB B
I/O port
power cable
headphone out (jack, front)
USB A port
ST3 input (mini jack)
dimensions: 514 x 804 x 198 mm
weight: 17.8 kg
