Allen & Heath Qu-Pac digital mixer

Original price was: €1,445.Current price is: €1,090.

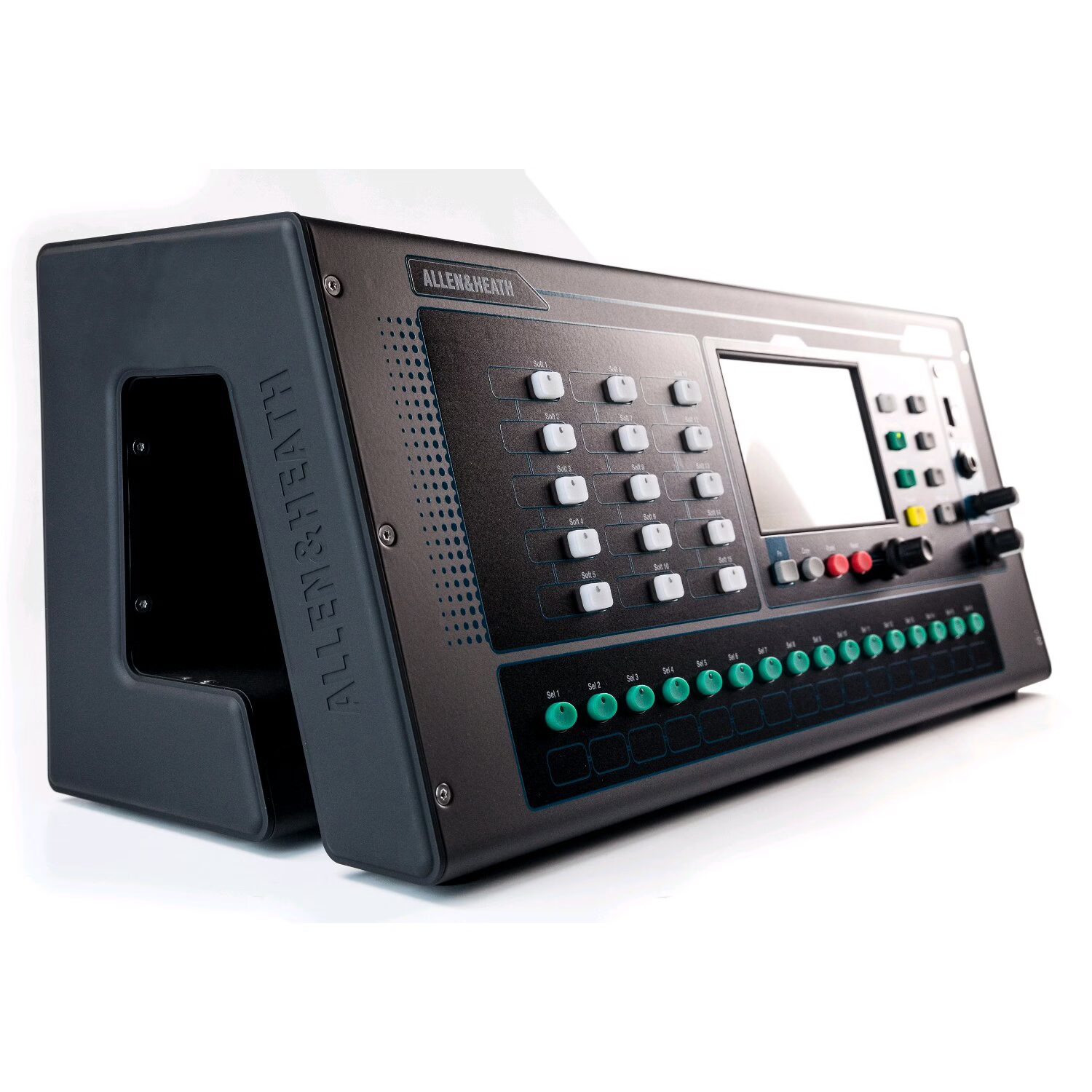

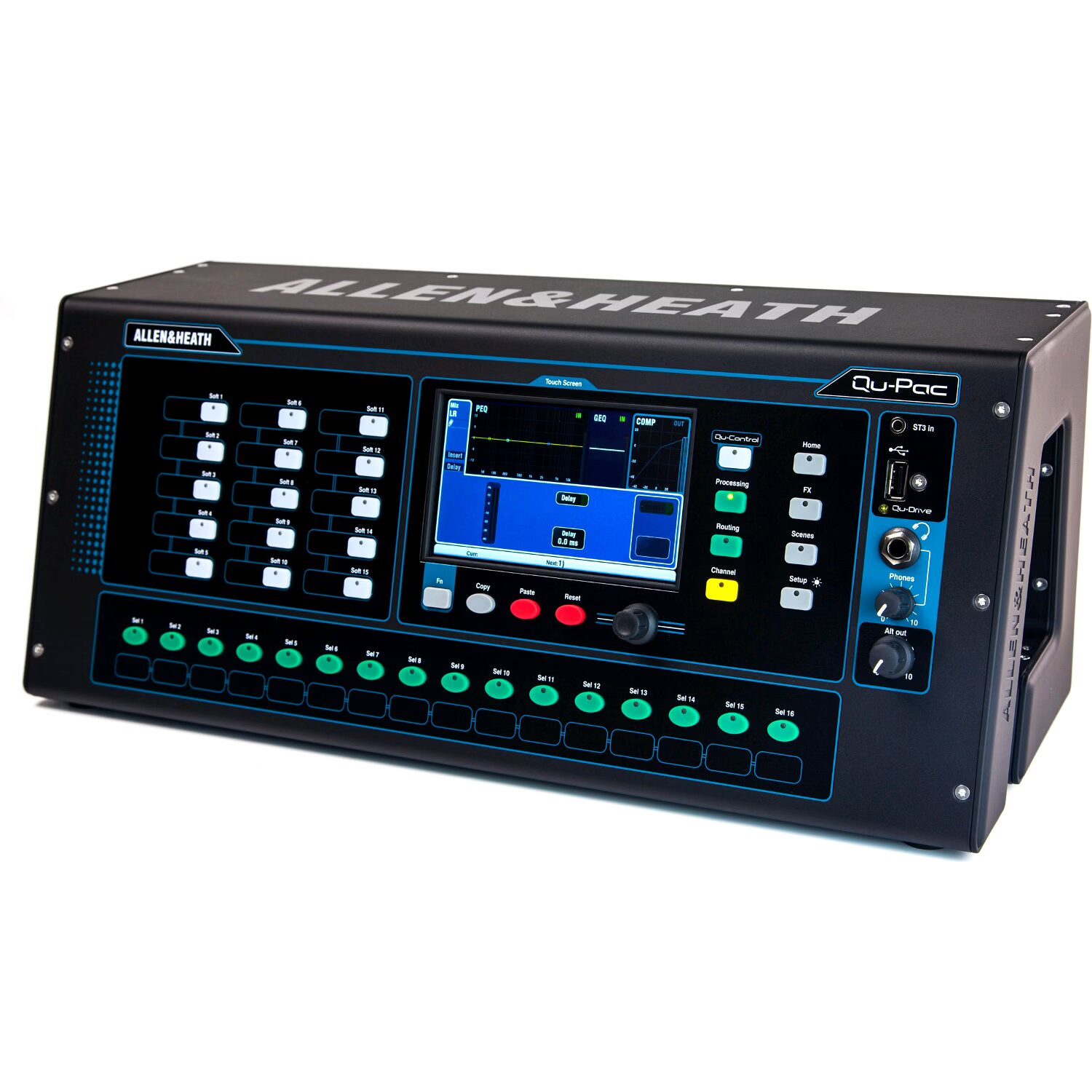

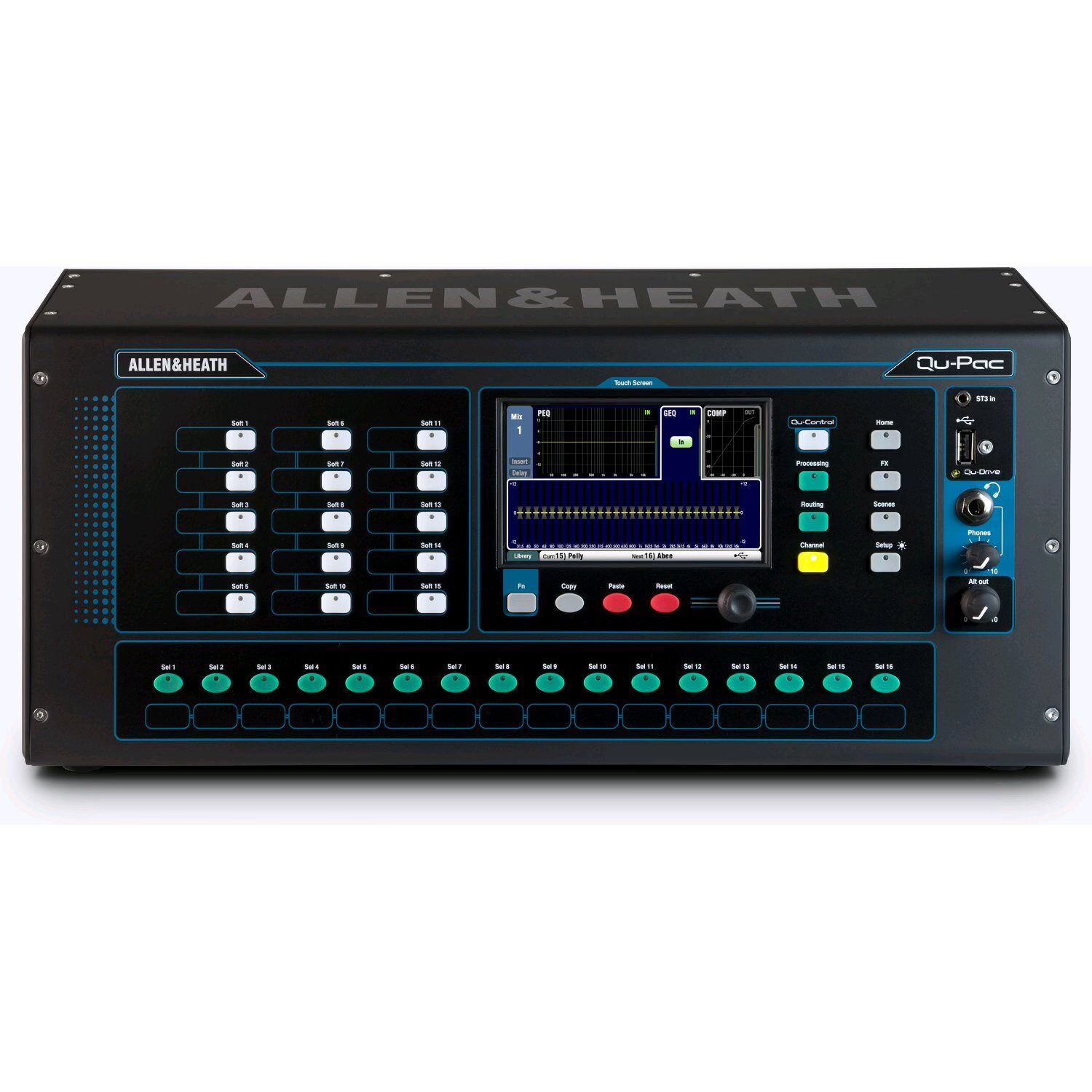

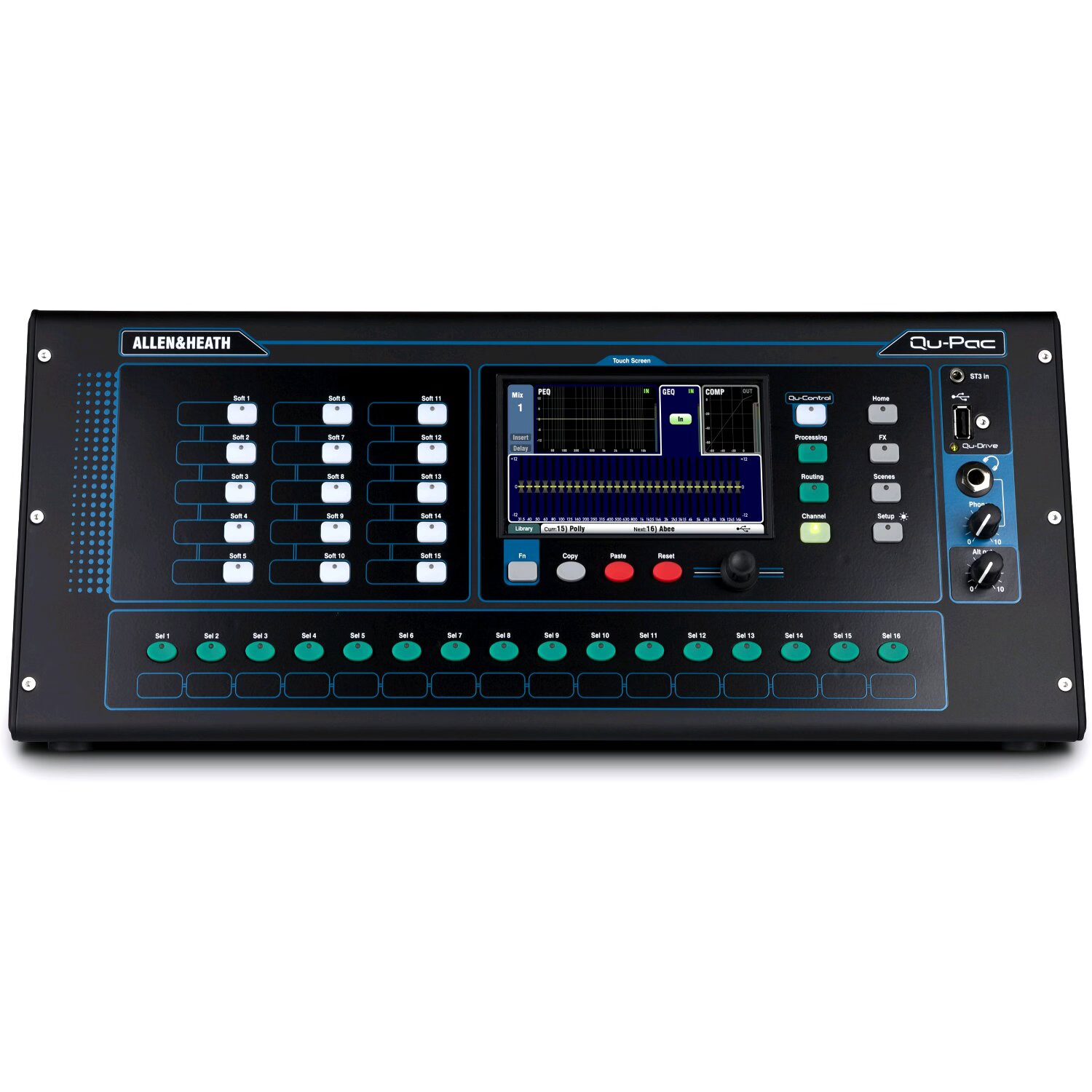

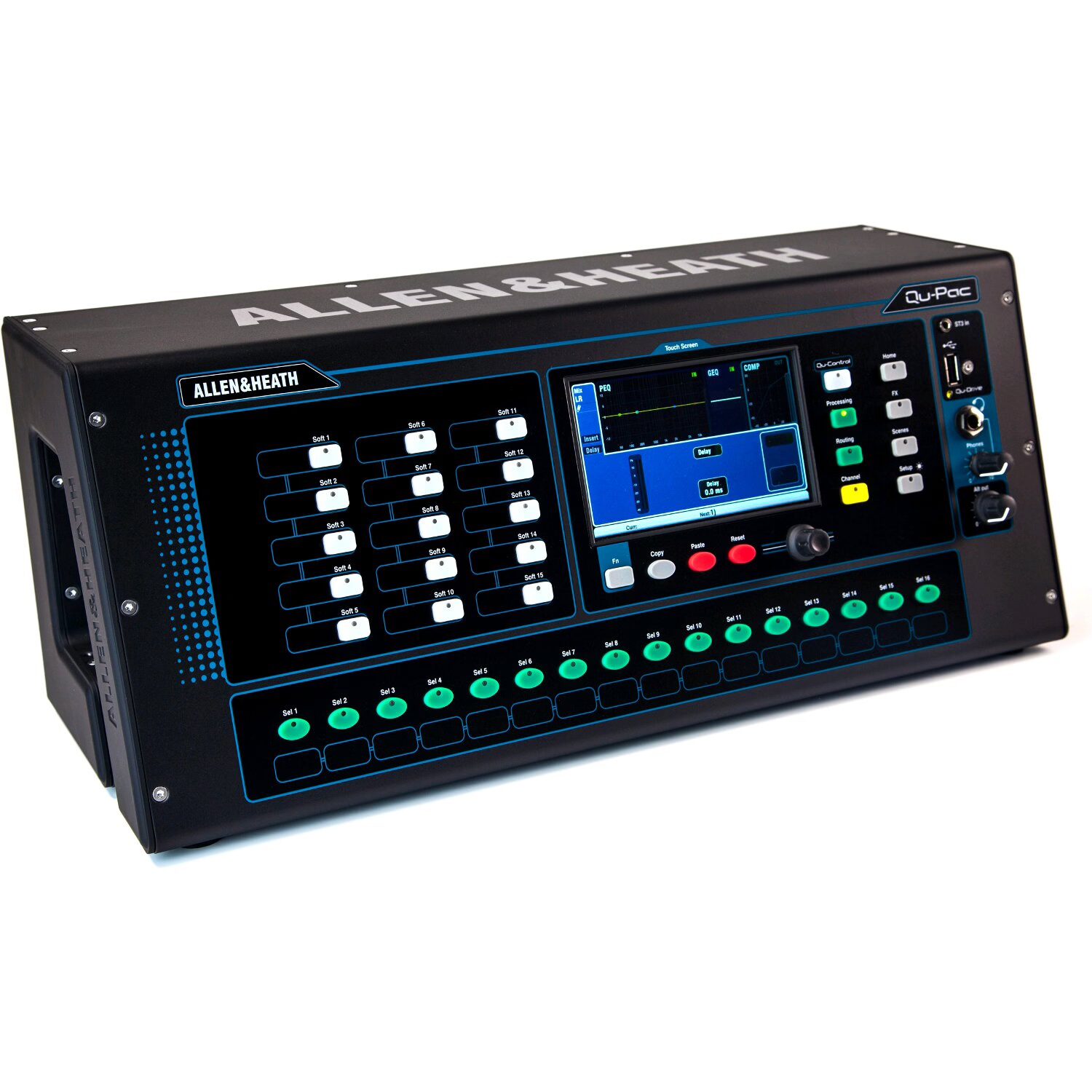

The Allen & Heath Qu-Pac with 5-inch touchscreen is a comprehensive, digital mixer that offers professional construction, functionality and audio quality. It features an impressive 16 mic/line input channels and a touch-sensitive colour display for selecting the desired inputs and outputs.

Qu-Pac: free input/output routing

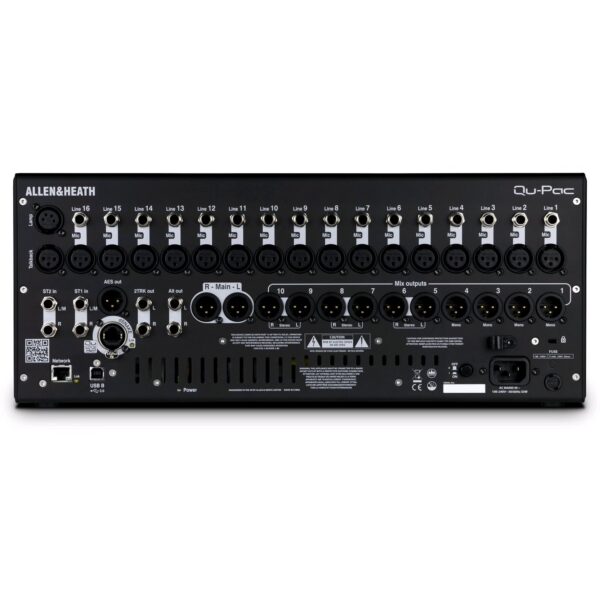

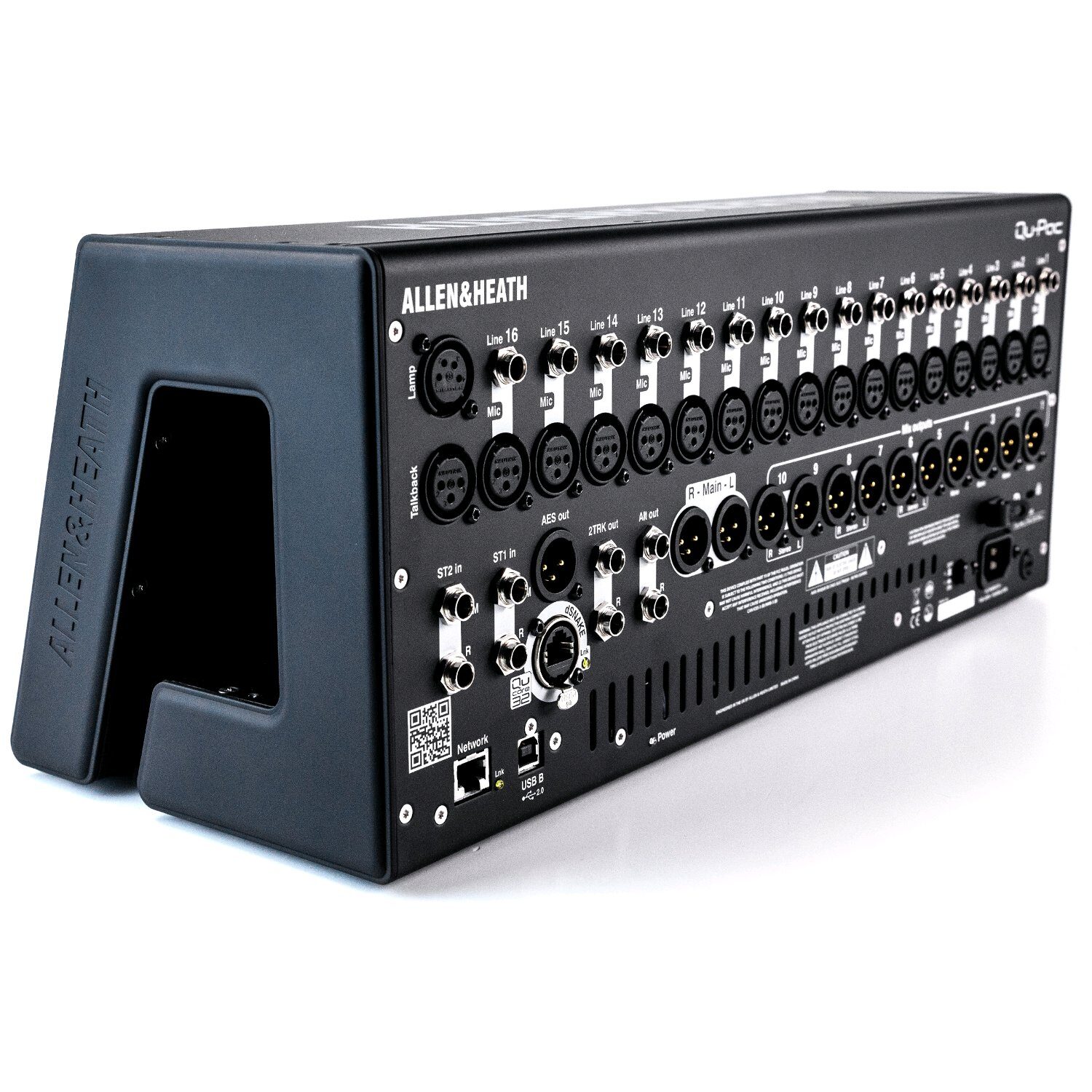

On the rear of this device, you’ll find a variety of connection options. There are sixteen XLR/jack inputs for microphones and three stereo inputs for an audio player, keyboard or other stereo source. There are ten XLR outputs for connecting multiple active speakers or amplifiers. Use the Qu-Pac as a matrix mixer and assign a specific combination of inputs to a specific set of outputs. With the 5-inch touchscreen and multiple hot keys at your disposal, you can make input and output groups with great precision.

Advanced functionality
For each input and mix output, you can adjust the 4-band EQ, compressor and delay as desired. What’s more, you can choose from the selection of high-quality iLive effects, which includes classic reverbs, flangers, chorus effects and more! The speed of the processing power gives you the feeling that you’re working with an analogue mixer. What’s more, the Qu-Pac can be expanded upon in various ways: add up to 38 inputs by means of a network cable and a dSNAKE device, connect ME 1 Personal Mixers, control it with an iPad, or make multi-track recordings via USB on your PC or Mac.



Product features
19 inches yes
Number of analogue input channels 17 – 24
Number of analogue output channels 9 – 16
Number of channels 17-32
Number of microphone inputs 13 – 16
Digital inputs AES/EBU (AES3)
Digital snake yes, available separately
Digital outputs AES/EBU (AES3)
Dynamics compressor, gate
Equalizer 4-band
Input connector jack (6.3 mm), XLR
Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level metersvia built-in display, via iPad / iPhone / iPod
Remote controlvia iPad
Connector positionback
Type of displaytouch screen, colour
Expansion possibilitiesnone
Output connectorjack (6.3 mm), XLR (3-pin)
Mixer powerpower cable
Volume controlvia iPad / iPhone / iPod, via touchscreen
Weight and dimensions including packaging
Weight (incl. packaging)7.2 kg
Dimensions (incl. packaging)62.0 x 31.0 x 30.0 cm
Product specifications
digital mixer

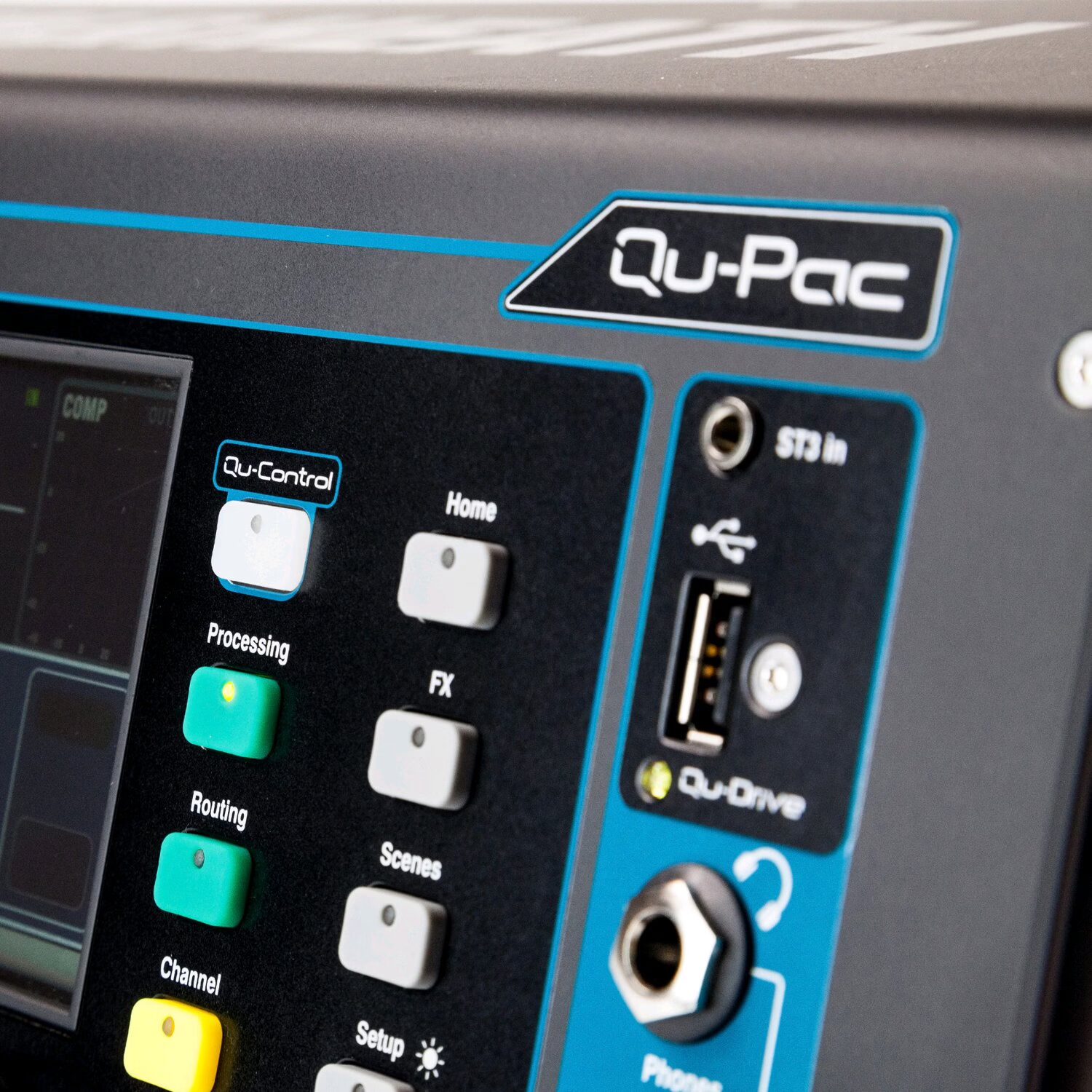

5-inch colour touchscreen

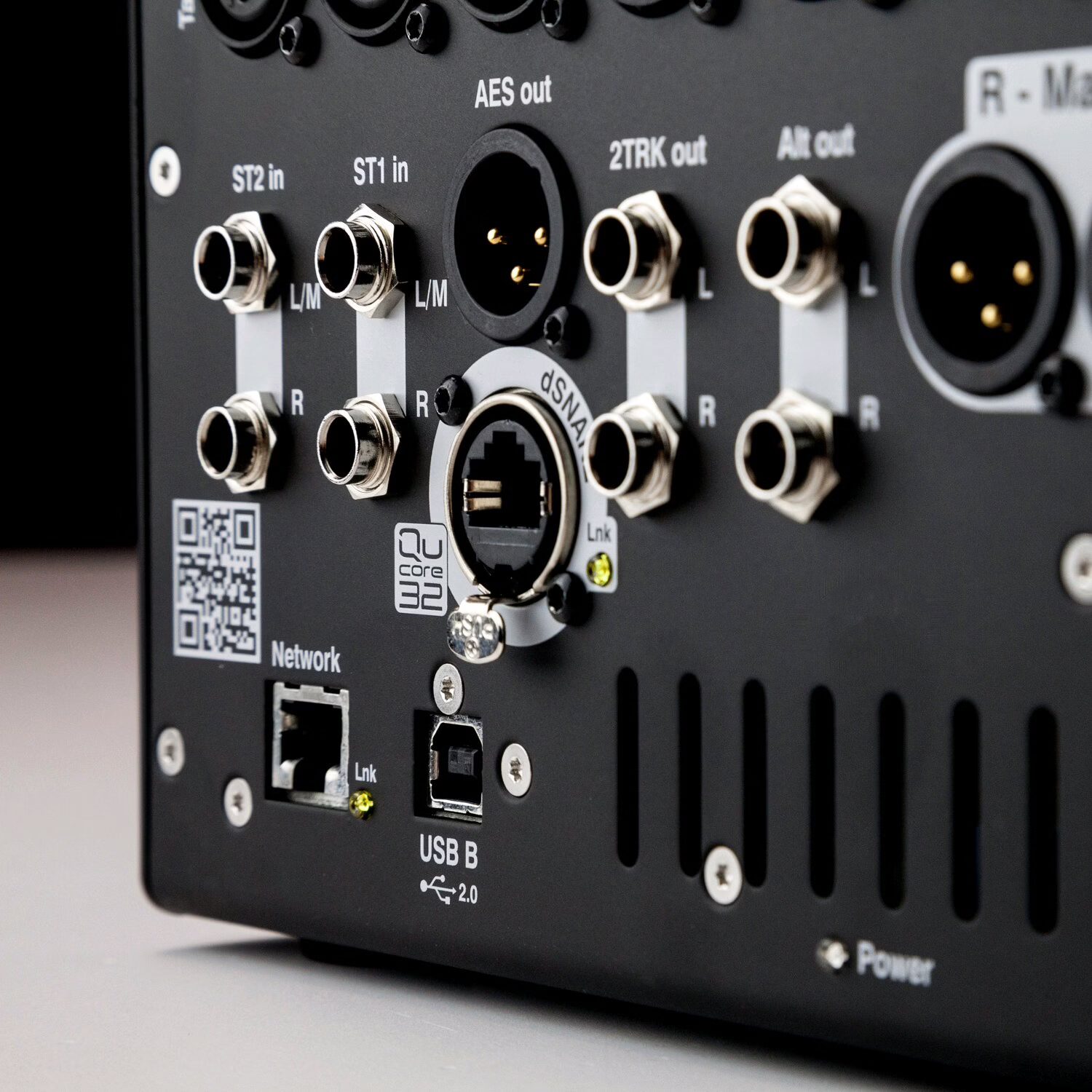

dSNAKE expansion via Ethernet input (Cat5), up to 38 inputs
operation via Qu-Pad iPad App (connect to WiFi router)
personal monitoring via Qu-You iPhone App
USB audio interface (32 I/O)
multi-track audio-recorder for USB memory

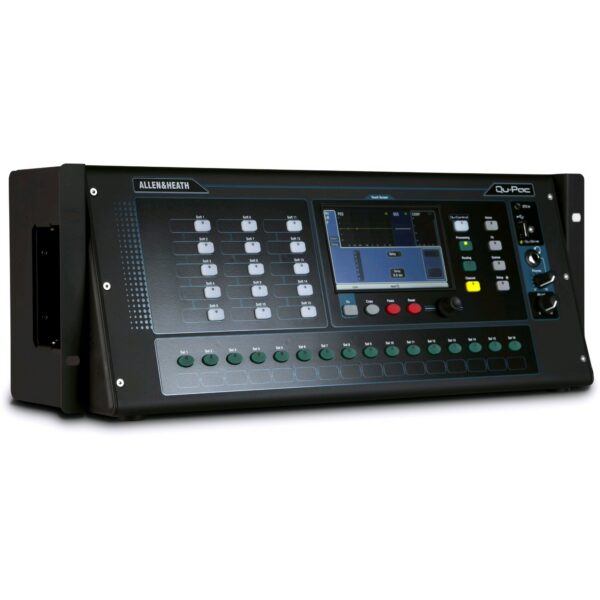

19-inch rack-mountable
16x mic/line inputs (XLR and jack TRS)
16x AnaLOGIQ preamps
3x stereo inputs (jack TRS)
12x mix outputs (XLR)
4x stereo groups
2x stereo matrix outputs
AES digital output
4x DCA groups
4x mute groups

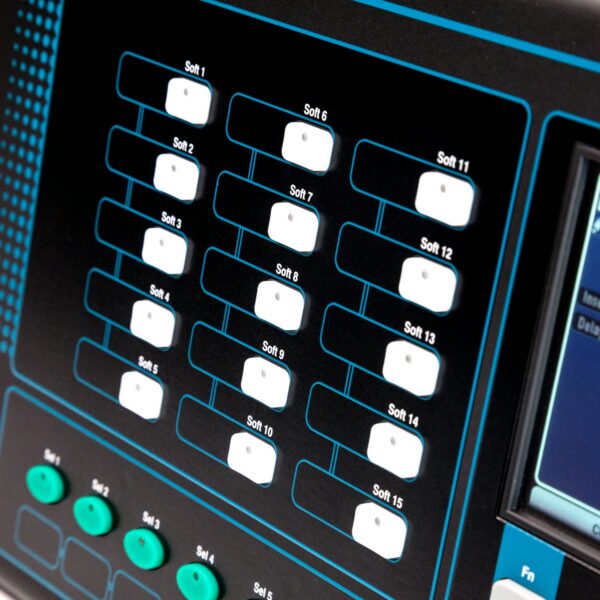

15x soft keys
16x custom select keys
Qu-Control custom screen
4x effects processors
4x effect send/returns
iLive FX Library
compatible with ME Personal Mixing System
per input: trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor, delay
per mix output: insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay
built-in signal generator
RTA with Peak Band indication
