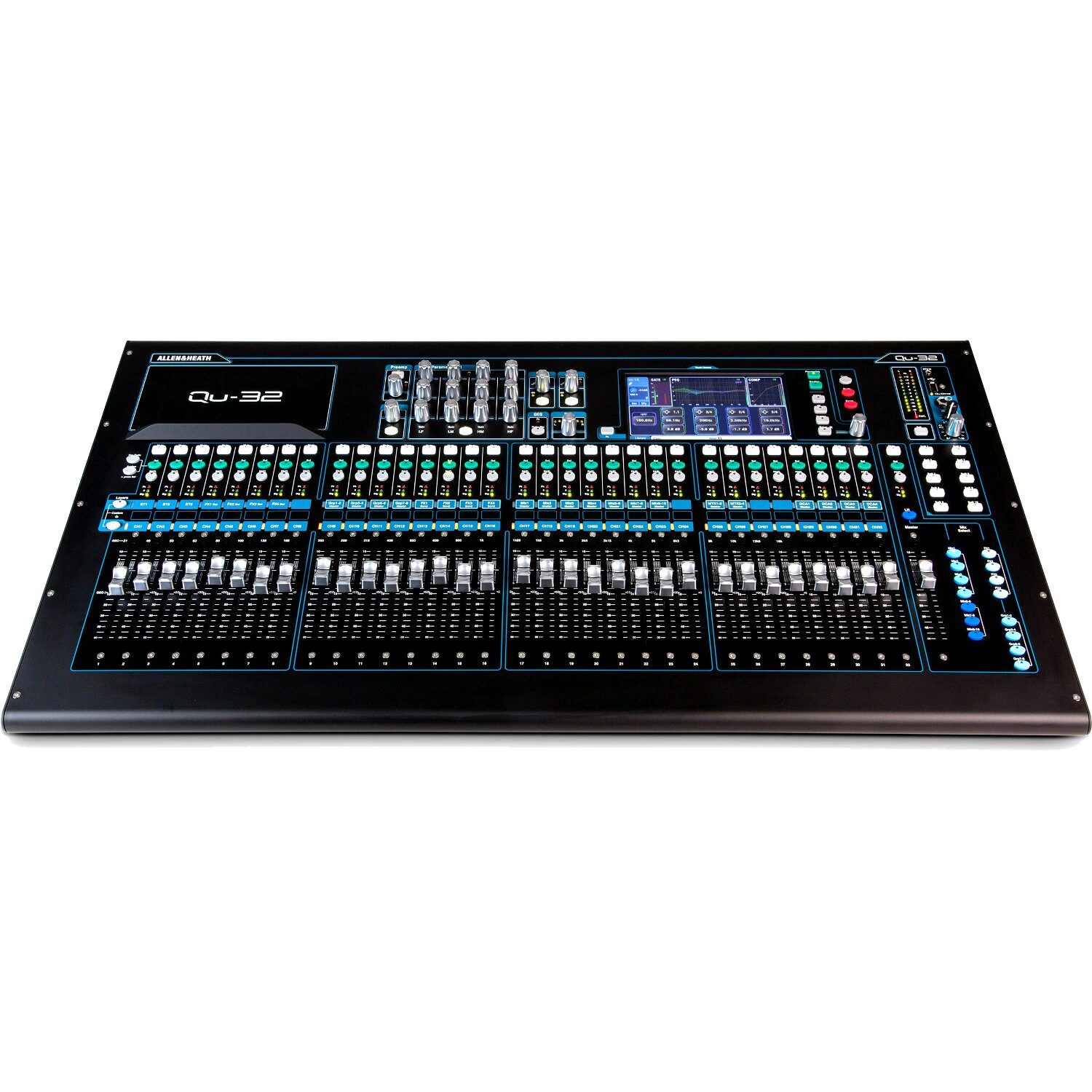

Allen & Heath QU-32 Digital Mixer

Original price was: €2,660.Current price is: €2,060.

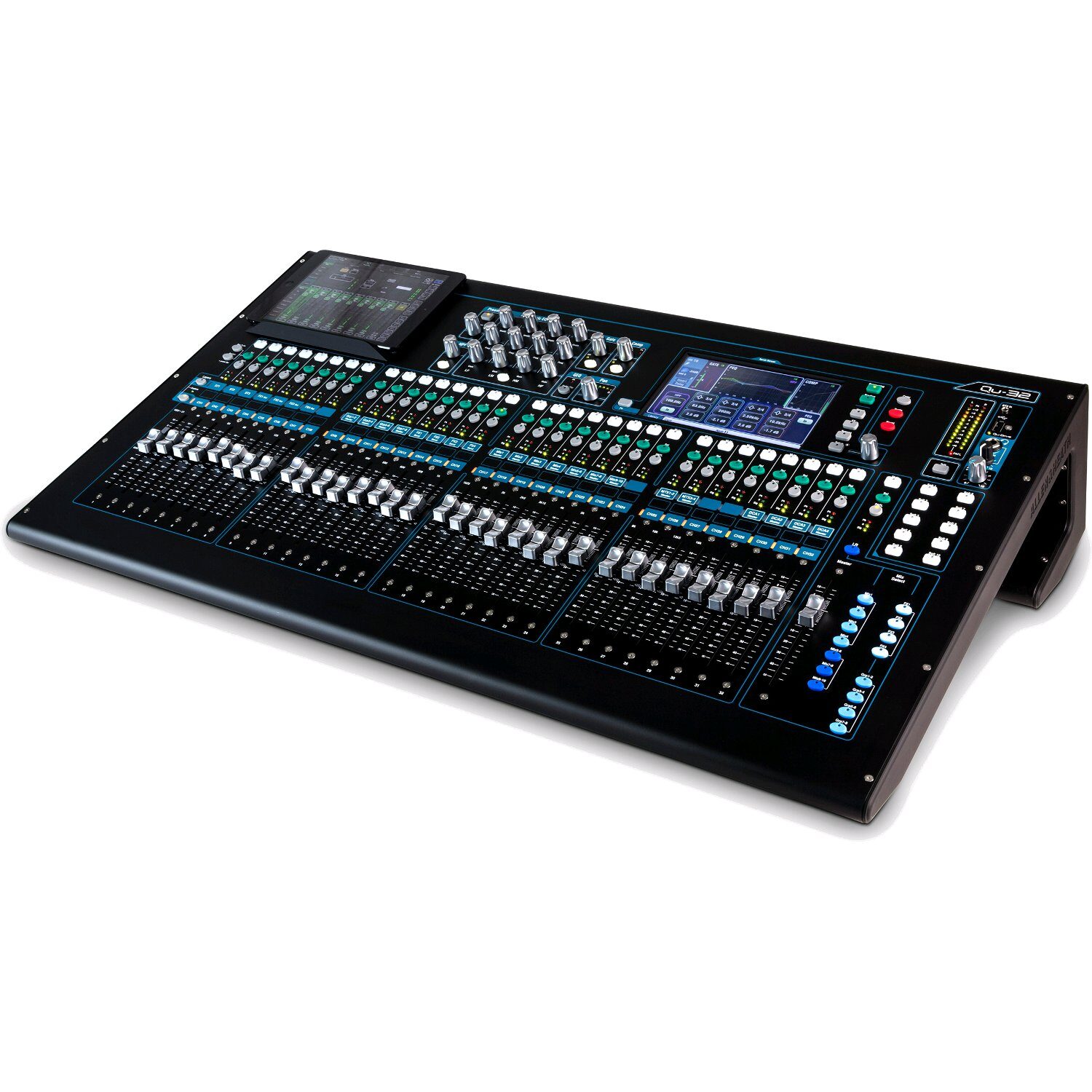

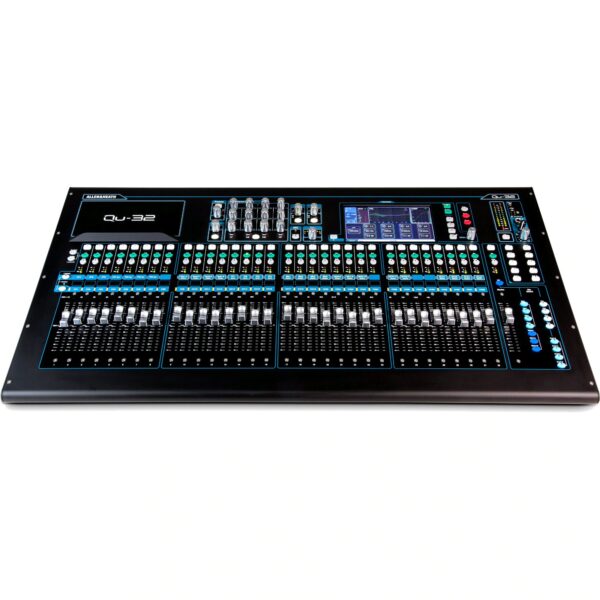

The largest unit in the Allen & Heath QU series, the QU-32, features an impressive number of inputs – no fewer than 32 mono channels and 3 stereo channels, resulting in a total of 38 28 output channels are also provided. These channels can be used directly on the QU-32, but they can also be connected via a dSnake digital multi-cable. The QU-32 has a much larger touch screen than its predecessors (the QU-16 and QU-24), making the mixer easier to operate.

Allen & Heath QU-32: A Clear Layout, Despite an Extensive Range of Channels

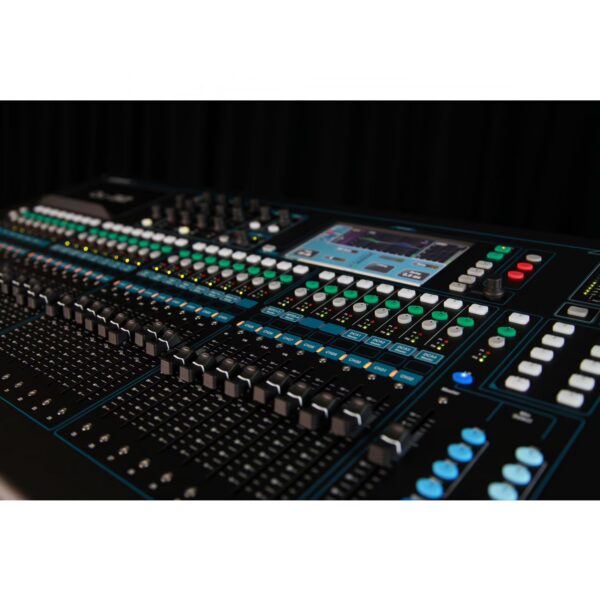

One of Allen & Heath’s great benefits is the well-organised layout of their mixers. The QU-32 is no different – at a glance, you’ll see what’s up with all the different parameters. It’s fitted with 33 motorised ALPS faders, 32 for the channels and one for the master, allowing you to adjust the volume of the various channels, as well as the volume of the buses, auxiliaries and the FX sends and returns. On top of the mixer you’ll find a clear channel strip that indicates values per selected channel.

Highly Complete Mixer
With the Allen & Heath QU-32, you are provided with a compressor, gate, EQ and a high-pass filter. Every output is fitted with a graphic EQ, and four internal FX engines with a number of high-quality effects are also at your disposal. You can also multi-track your mix via the built-in USB port. A special app allows you to operate the QU-32 at a distance via Wi-Fi. Perfect for monitoring!

Tips or comments about this product

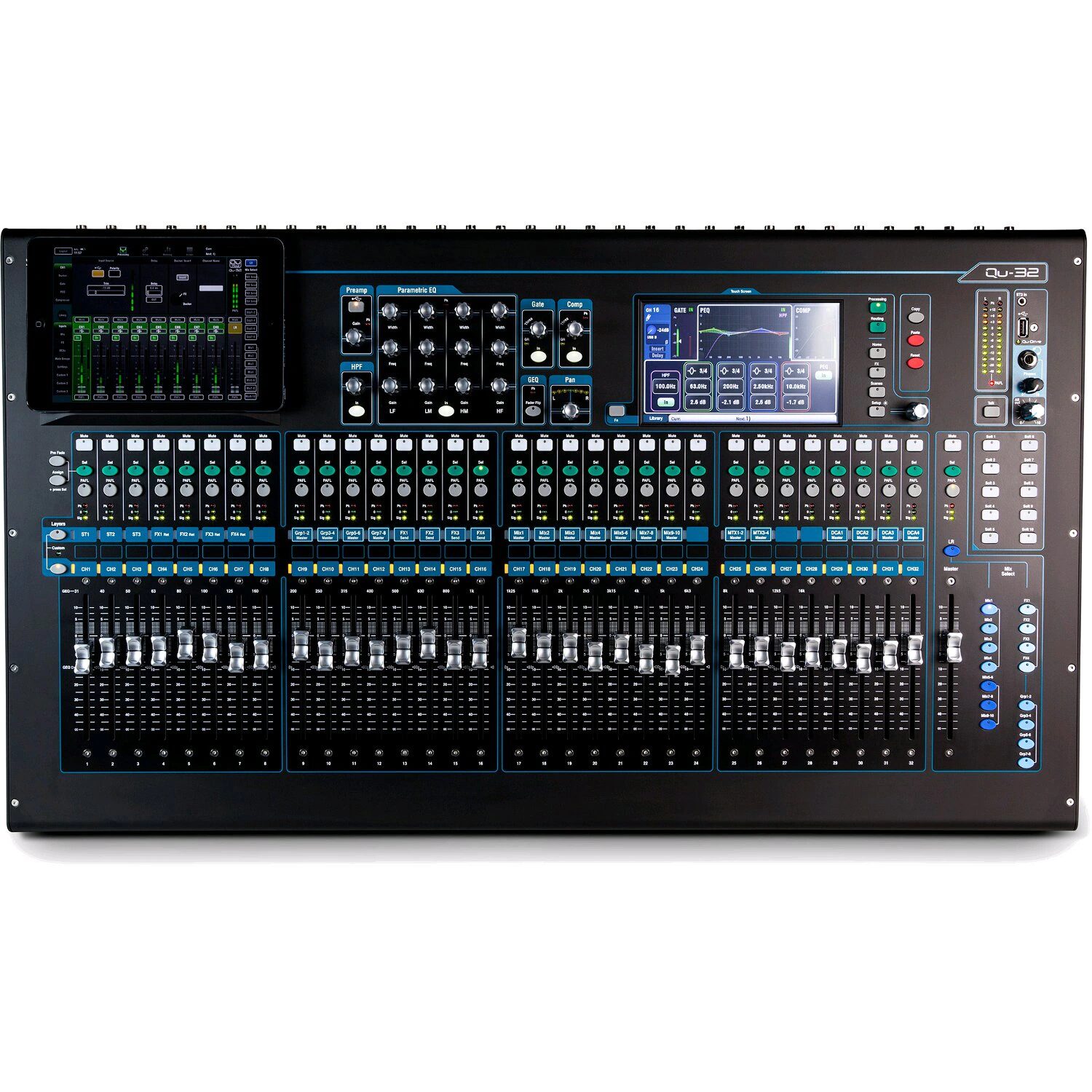

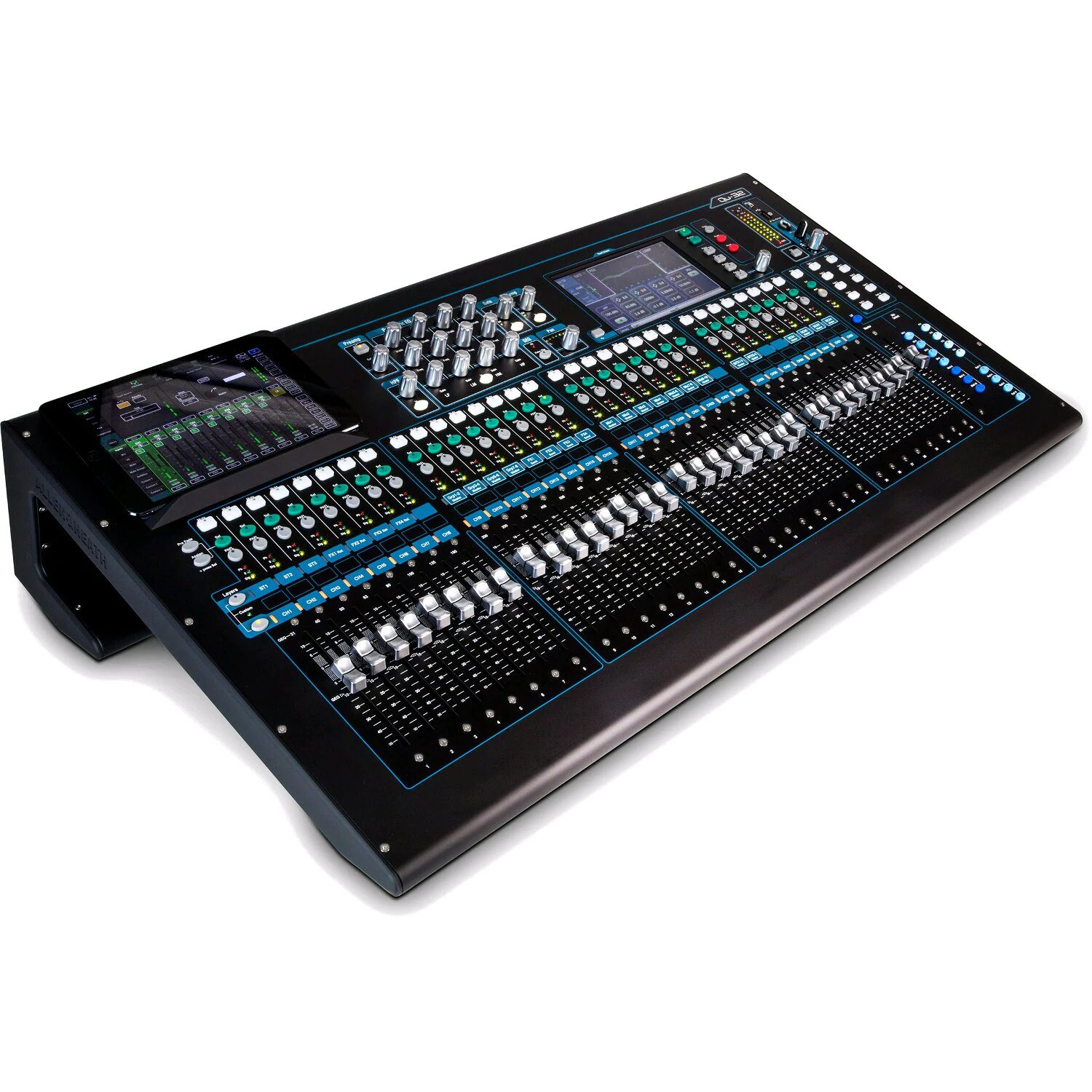

Please note: the displayed iPad only serves an illustrative purpose and is not included in the delivery.

Description

Specifications

Product features
19 inches no
Number of analogue input channels 33 -40
Number of analogue output channels 25 – 32
Number of channels 33-64
Number of microphone inputs 17 – 32
Digital inputsd Snake
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), dSnake
Dynamics compressor, expander, gate, limiter, multiband compressor
Equalizer 4-band parametric, Master EQ
Input connector jack (6.3 mm) + XLR + RCA
Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors yes, only mono channels
Input level meters LED VU meter, peak LED, via built-in display, via iPad / iPhone / iPod
Remote control via iPad, via Wi-Fi

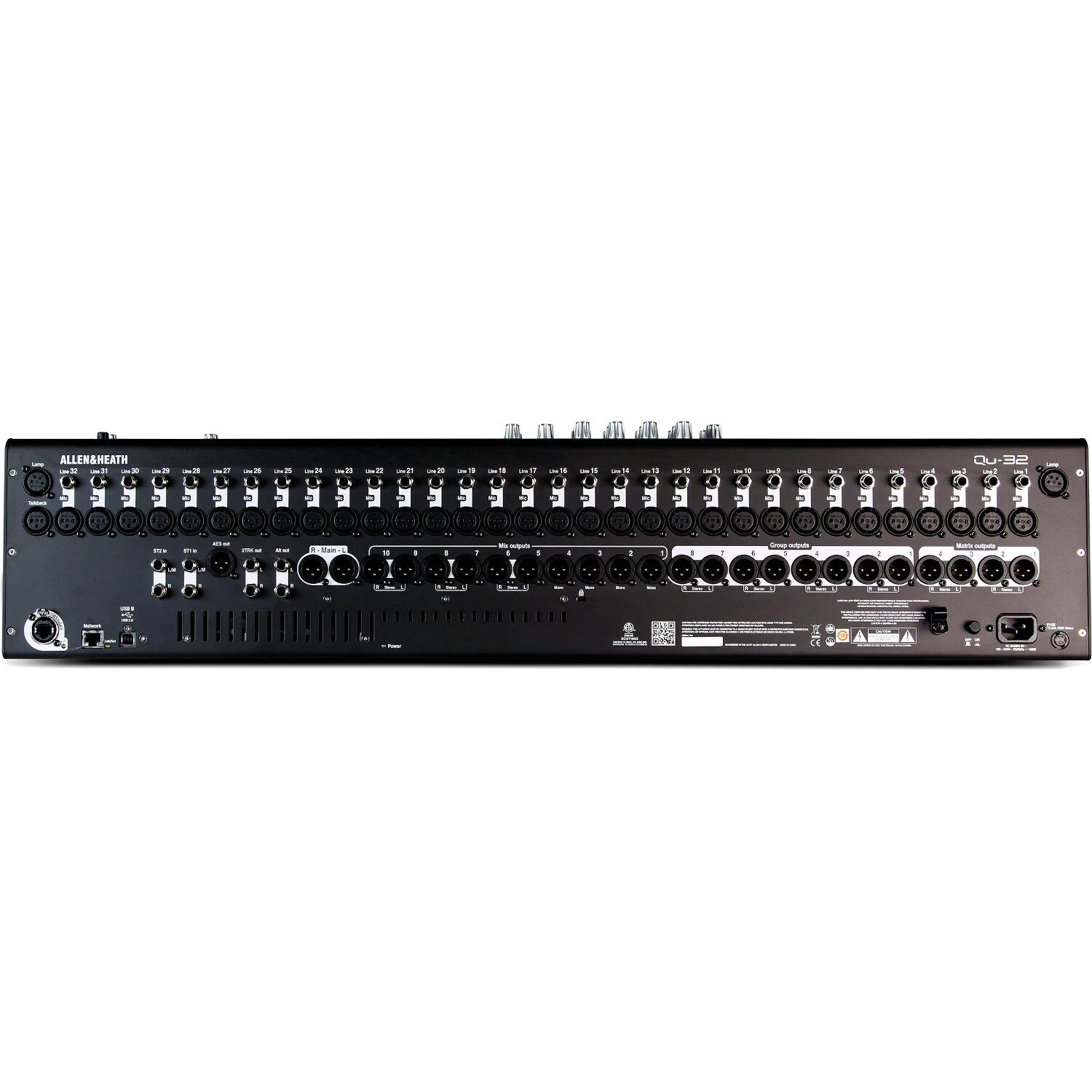

Connector position back
Type of display touch screen, colour
Expansion possibilities digitale snake
Output connector jack (6.3 mm) + XLR + RCA
Mixer power power cable
Volume control faders + knobs, via iPad / iPhone / iPod, via touchscreen
Weight and dimensions including packaging
Weight (incl. packaging)36.2 kg
Dimensions (incl. packaging)102.0 x 67.0 x 35.0 cm
Product specifications
digital mixer
38 channels
mono inputs: 32x (XLR, jack TRS), AnaLOGIQ preamps (recallable)
stereo inputs: 3x (jack TRS)
analogue outputs: 28x (stereo Master, 10x mix out, 8x group out, 4x matrix out, stereo 2Track out, stereo Alt out)
talkback mic input: 1x
digital outputs: AES
FX sends and returns: 4
FX engines: 4
soft keys: 10 (freely assignable)
channel strip: gain, polarity, HPF, insert, gate, 4-band PEQ, compressor, delay
bus strip: insert, 4-band PEQ, compressor, delay
faders: 33x ALPS motor faders (32 channel faders, 1 master fader)
display: 7-inch multi-colour touch screen
USB: built-in USB port
audio interface: 32 in – 32 out
iLive FX Library
signal generator: built-in
housing: metal
can also be used as a DAW controller
can be operated via iPad/iPhone app
