19 inches no
Number of analogue input channels 25 – 32
Number of analogue output channels 17 – 24
Number of channels 17-32
Number of microphone inputs 17 – 32
Digital inputsd Snake
Digital snake yes, available separately
Digital outputs AES/EBU (AES3)
Dynamics compressor, gate
Equalizer 4-band parametric
Input connector jack (6.3 mm), XLR
Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters LED VU meter, via built-in display, via iPad / iPhone / iPod
Remote control via iPad
Connector position back
Type of display touch screen, colour
Expansion possibilities digitale snake, personal monitoring system
Output connector jack (6.3 mm), XLR (3-pin), XLR AES/EBU
Mixer power power cable
Volume control motorised faders
Weight and dimensions including packaging
Weight (incl. packaging)18.0 kg
Dimensions (incl. packaging)79.0 x 67.0 x 35.0 cm
Product specifications

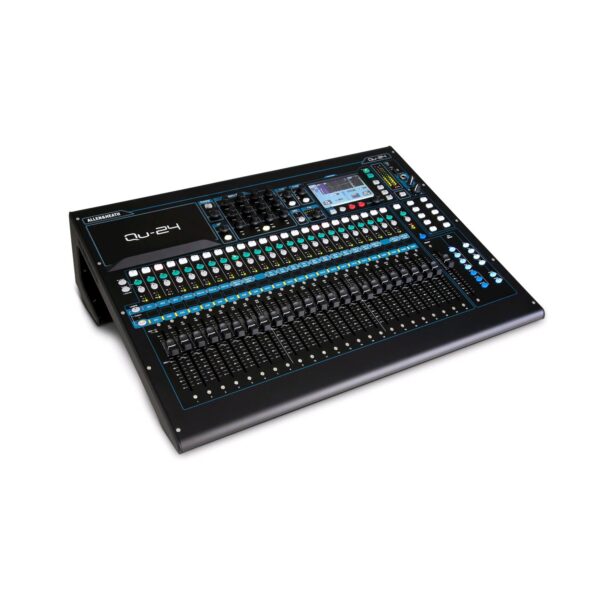

digital mixer for live and studio
24-channel mixer
durable metal housing
intuitive and fast processing
inputs: 30
outputs: 24
mono mic/line inputs: 24
stereo inputs: 3
FX sends and stereo returns: 4
Mix Outputs: 20
Talkback mic input
2-Track output
FX engines: 4
AES digital out
ALPS motor faders: 25
recallable AnaLOGIQ preamps
Qu-Drive direct multi-track recording / playback on USB drives
built-in USB audio interface
touch screen
resolution: 800 x 480 px
iLive FX Library
dSNAKE remote audio port
Qu-Pad iPad app
also suitable as a DAW MIDI Controller
4x mute groups
SuperStrip controlled gain, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all inputs
Built-in Signal Generator
RTA with Peak Band indication
dimensions: 632 x 471 x 190 mm
weight: 14 kg
