Allen & Heath QU-24 Digital Mixer

Original price was: €2,150.Current price is: €1,690.

Since the Allen & Heath QU-24 is the QU-16’s big brother, it’s just as easy to use, equally perfect for studio as well as live mixing and has 8 additional channels. The QU-24 also features no fewer than ten programmable SoftKeys, a built-in USB interface, motor faders, a dSnake connector and iLive series effects.

QU-24: ease of use

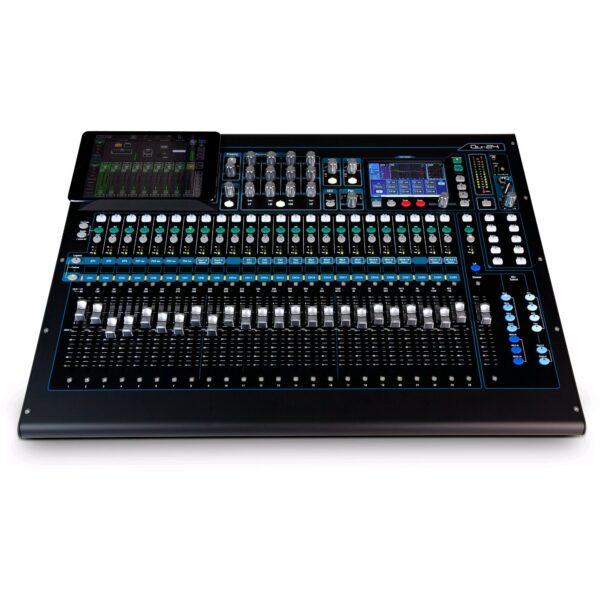

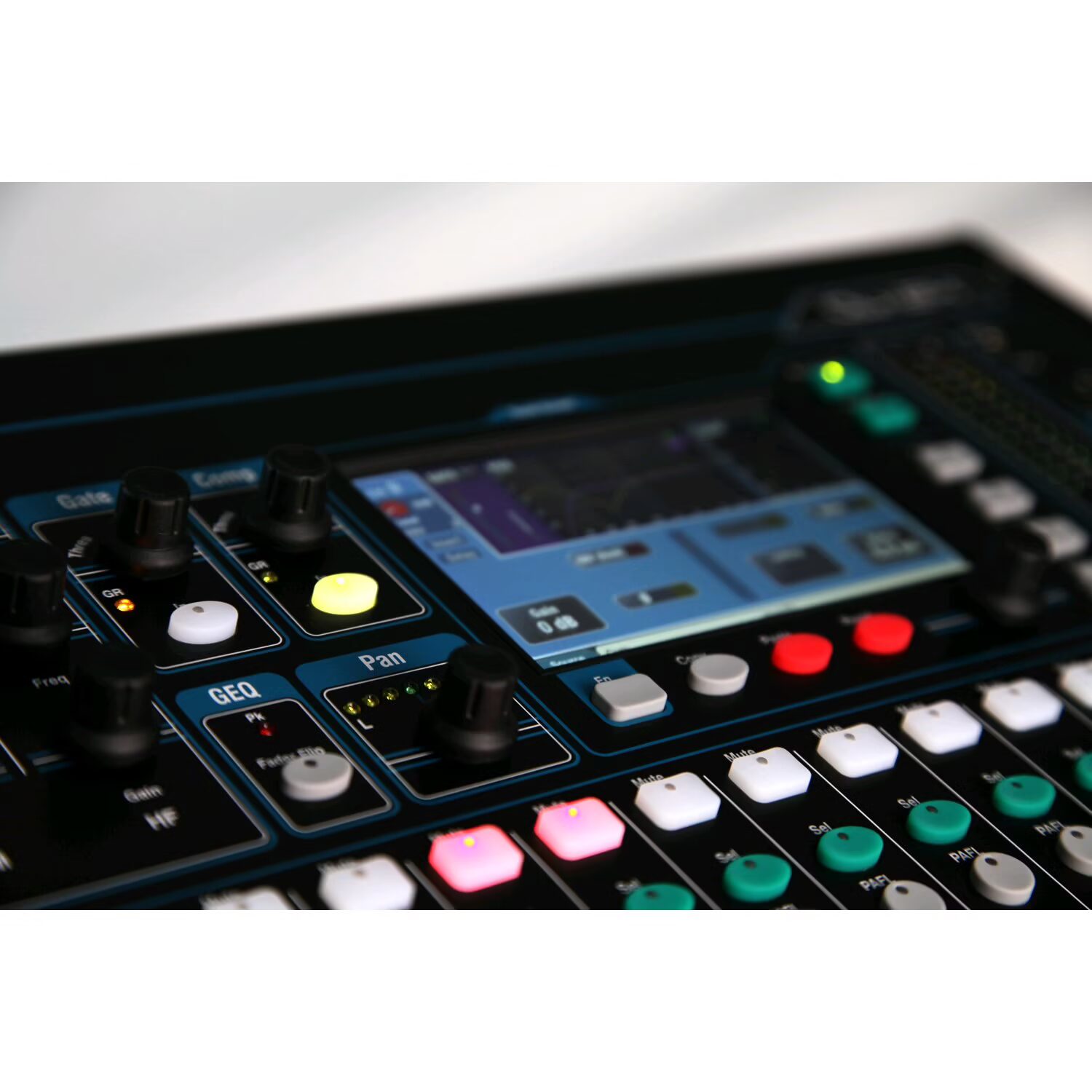

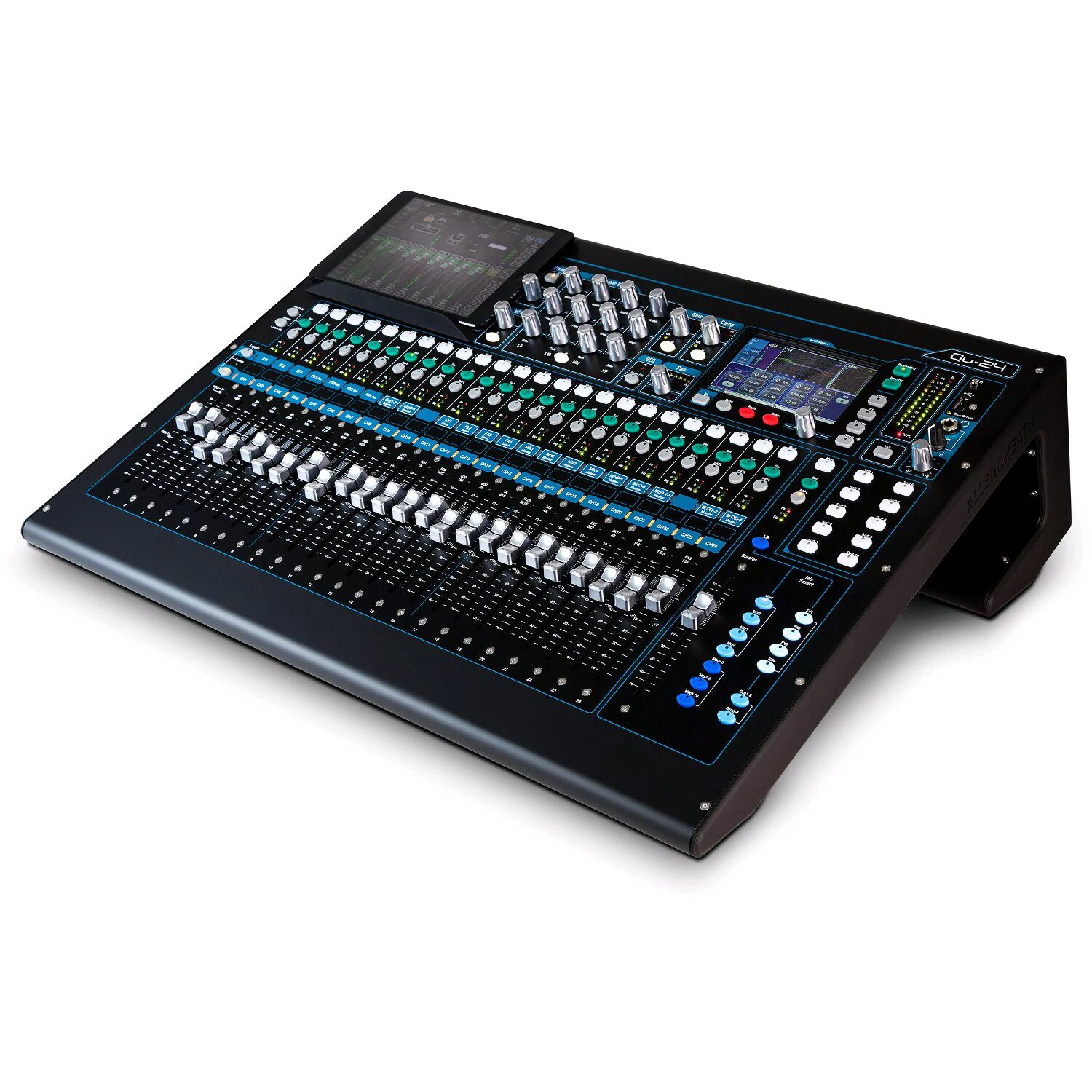

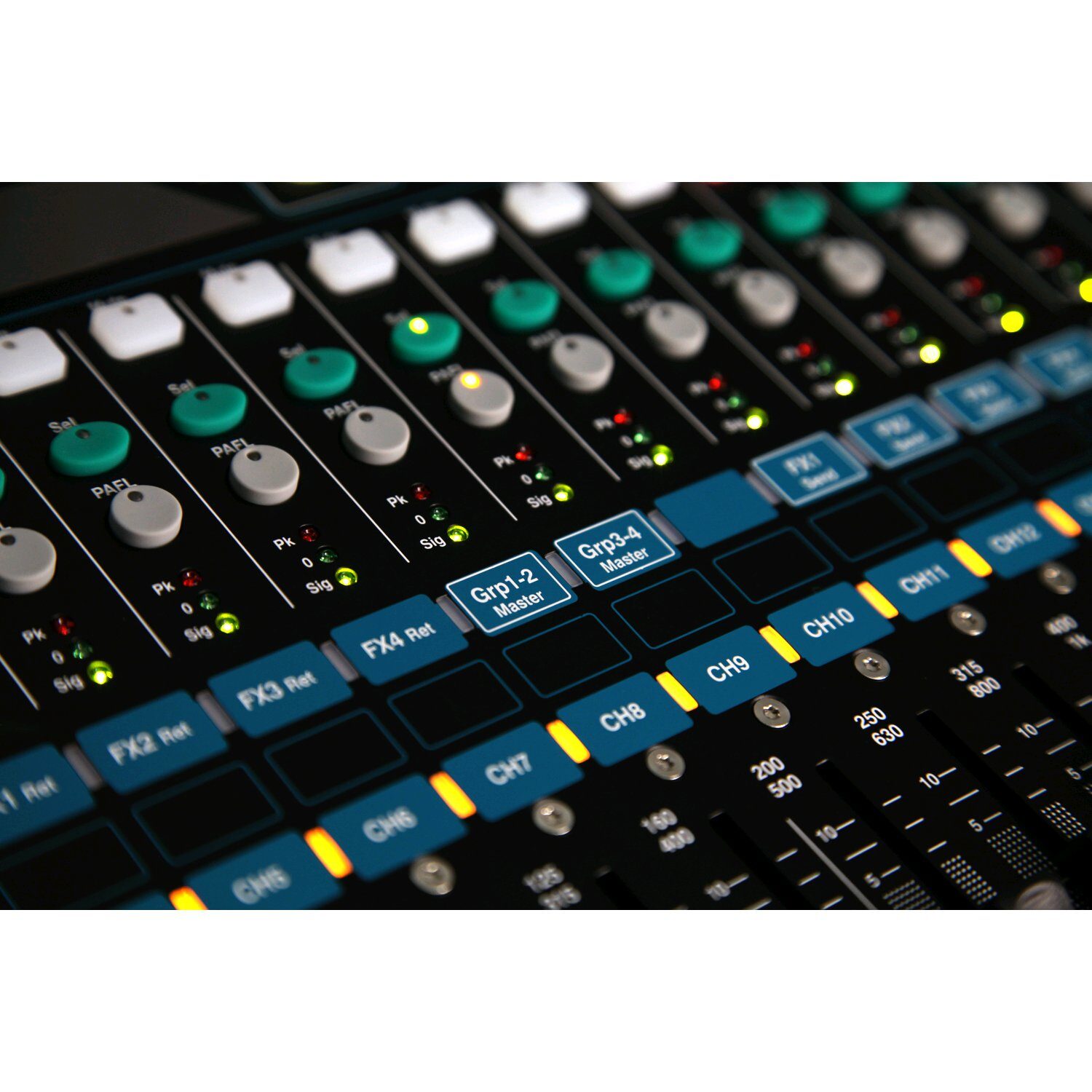

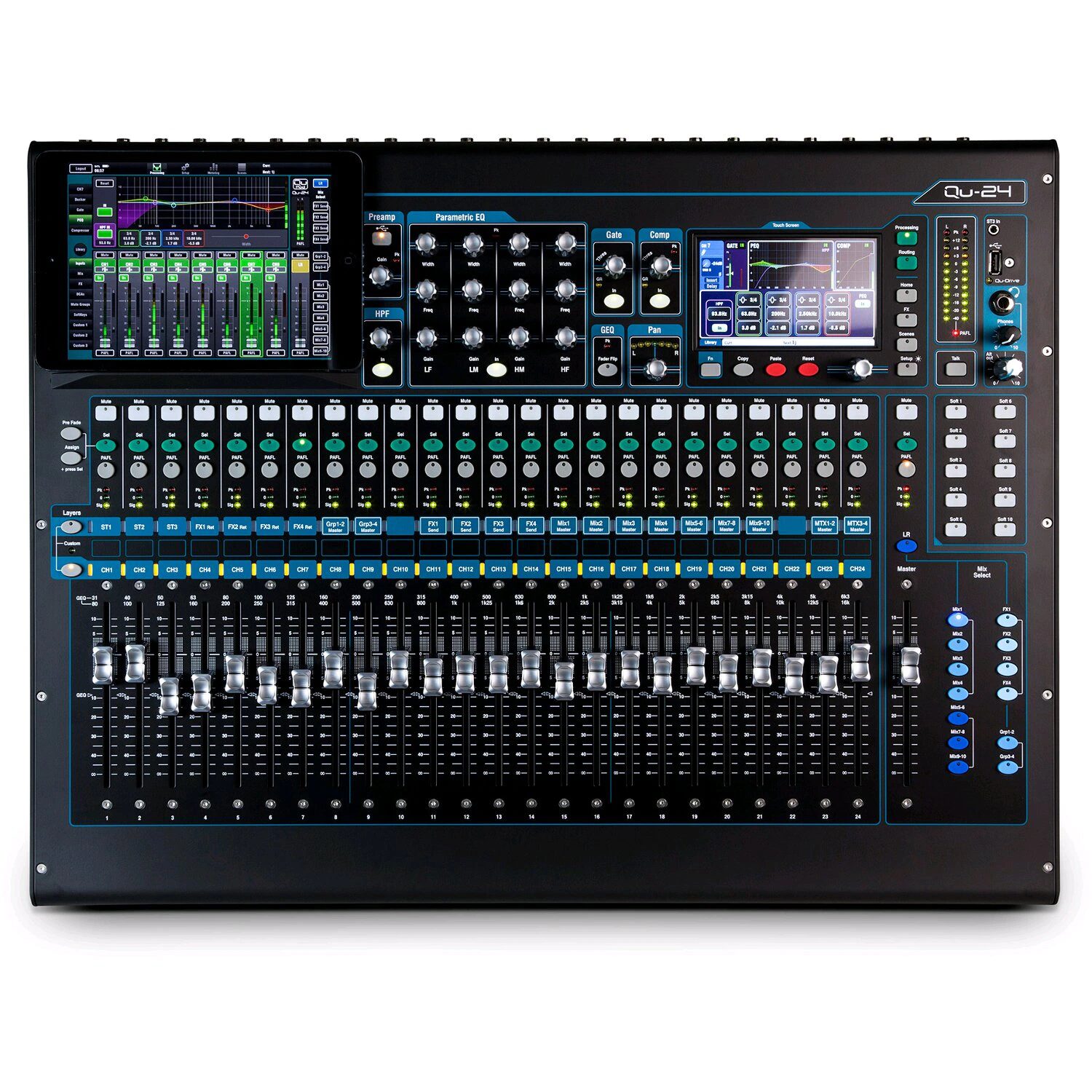

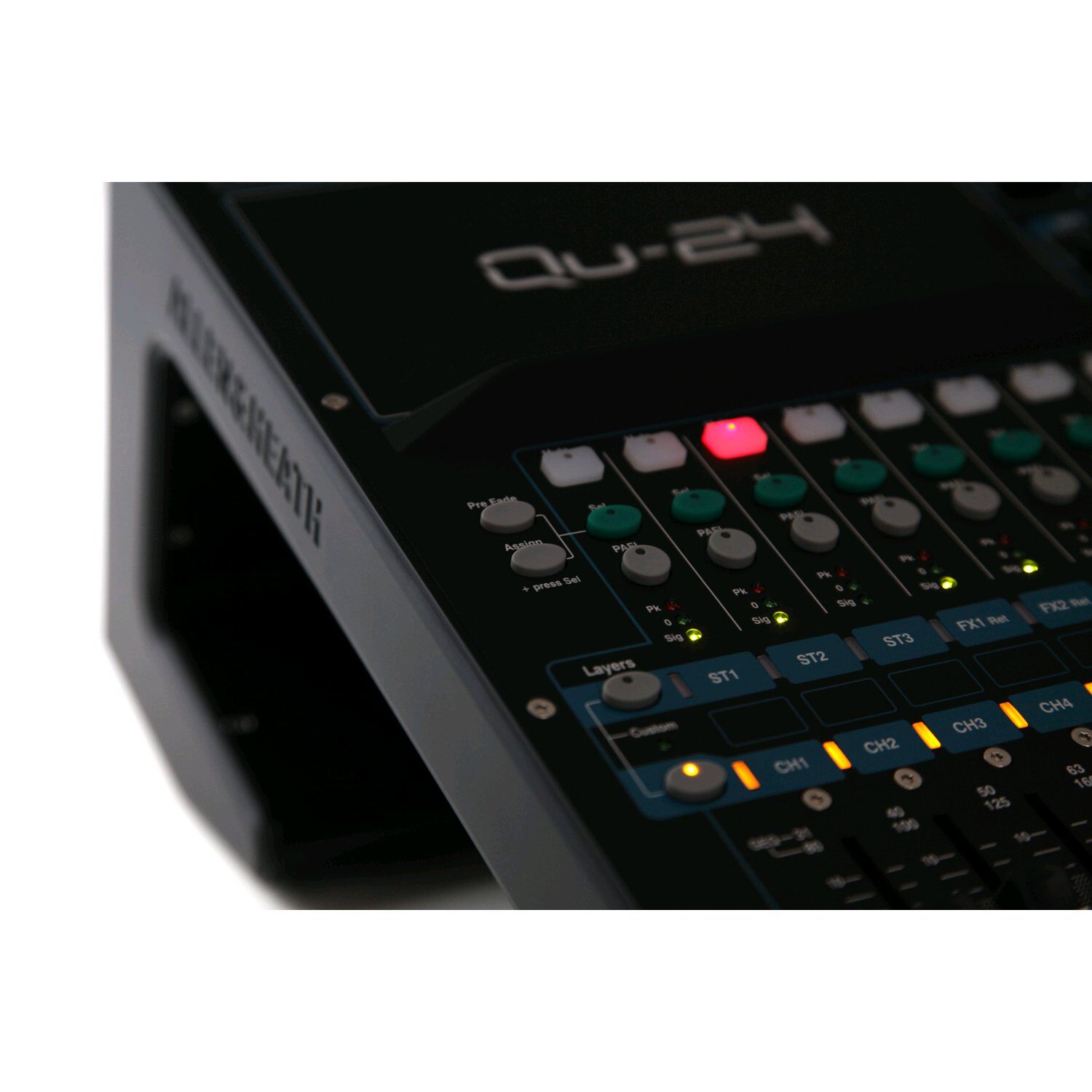

The QU-24 has a clear layout featuring 25 ALPS motor faders, one for the master and 24 with a double function. While these primarily control channel volume, via a toggle switch, they also control the buses, FX sends and FX returns. A third fader configuration can be completely customised. The most important parameters, like gain, a parametric EQ, panning and dynamics can be adjusted for each channel via the SuperStrip section and using the clear multi-colour touch screen, you can read the values and enjoy access to additional parameters like routing, effect and system settings.

SoftKeys and iPad App

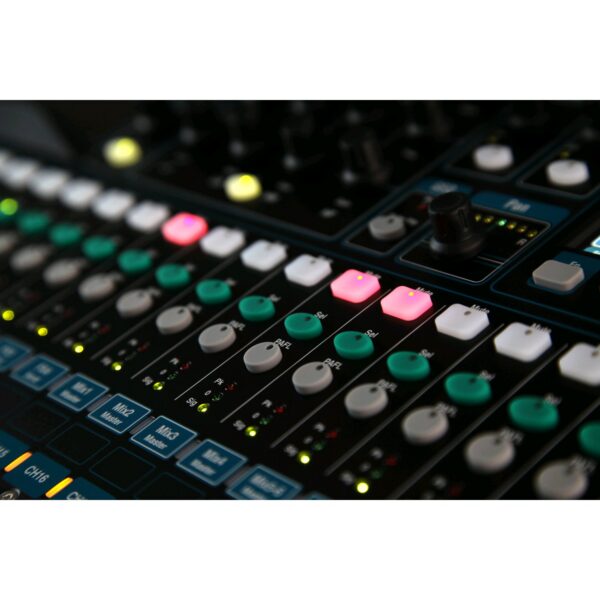

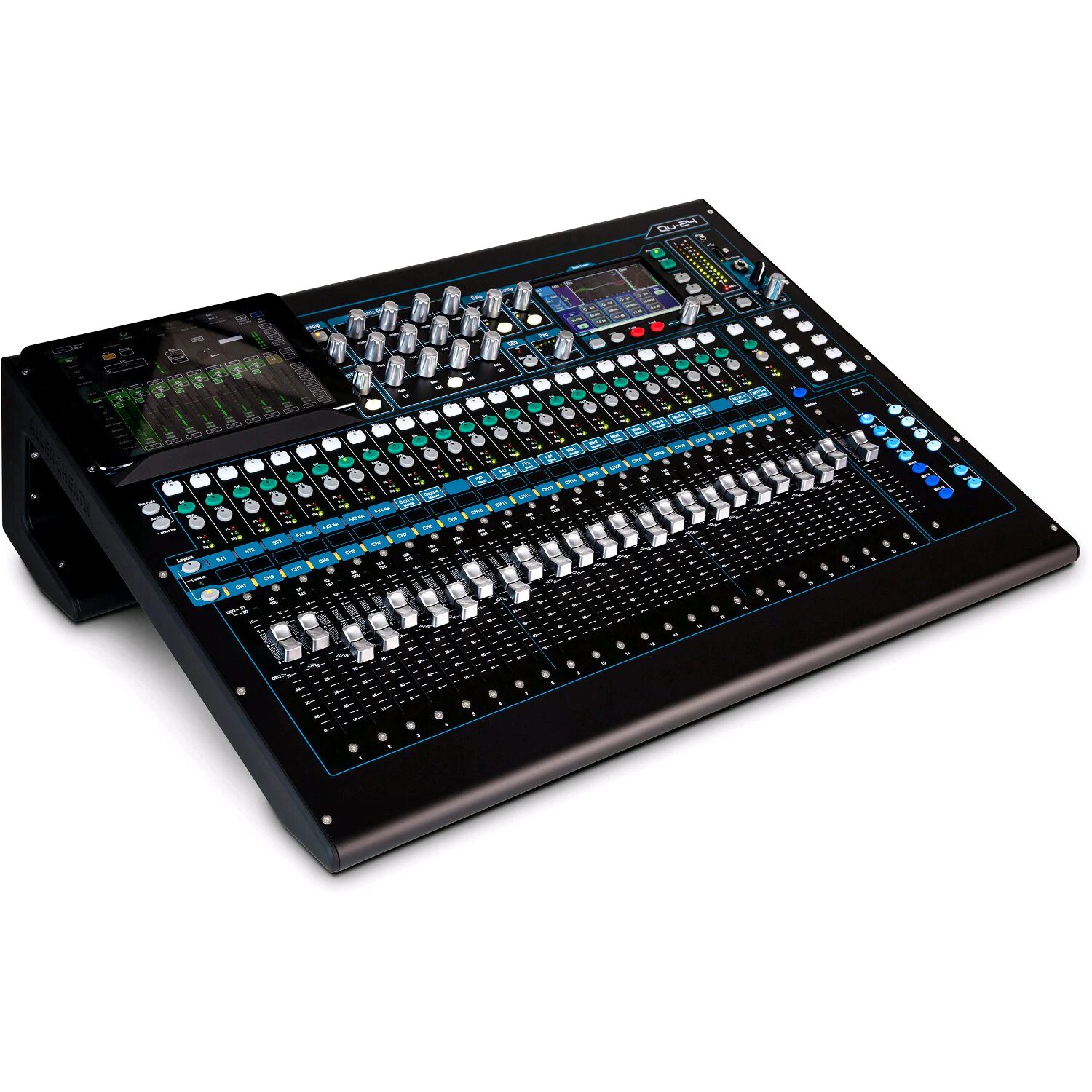

One of the most practical features of the Allen & Heath QU-24 are the SoftKeys. Multiple functions, like group muting and the opening and storing of Scenes, can be assigned to these programmable buttons. Furthermore, the Allen & Heath QU-24 can be remotely operated via your iPad and the special Qu-Pad app. Via Wi-Fi you have access to all live mixing parameters and settings.

dSnake and ME Personal Mixing System
The design of the Allen & Heath QU series is based on the much larger and more extensive GLD-80. The QU-24 has inherited its dSNAKE protocol from the GLD-80, for instance. It’s therefore compatible with digital AR Snakeboxes and the ME personal monitoring system by Allen & Heath. Via this system, each musician or band member can adjust their own monitor mix.

Description

Specifications

Product features
19 inches no
Number of analogue input channels 25 – 32
Number of analogue output channels 17 – 24
Number of channels 17-32
Number of microphone inputs 17 – 32
Digital inputsd Snake
Digital snake yes, available separately
Digital outputs AES/EBU (AES3)
Dynamics compressor, gate
Equalizer 4-band parametric
Input connector jack (6.3 mm), XLR
Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters LED VU meter, via built-in display, via iPad / iPhone / iPod
Remote control via iPad
Connector position back
Type of display touch screen, colour
Expansion possibilities digitale snake, personal monitoring system

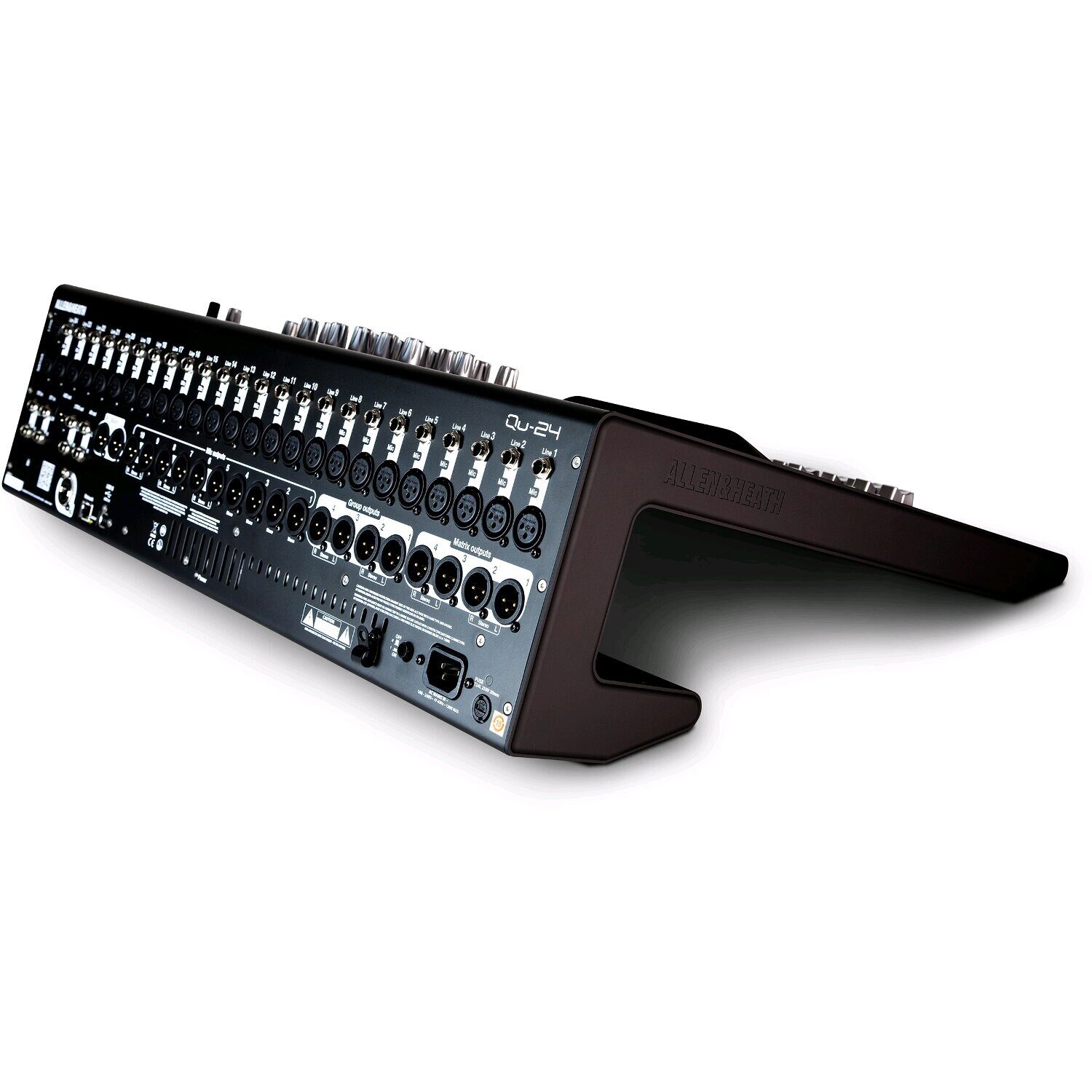

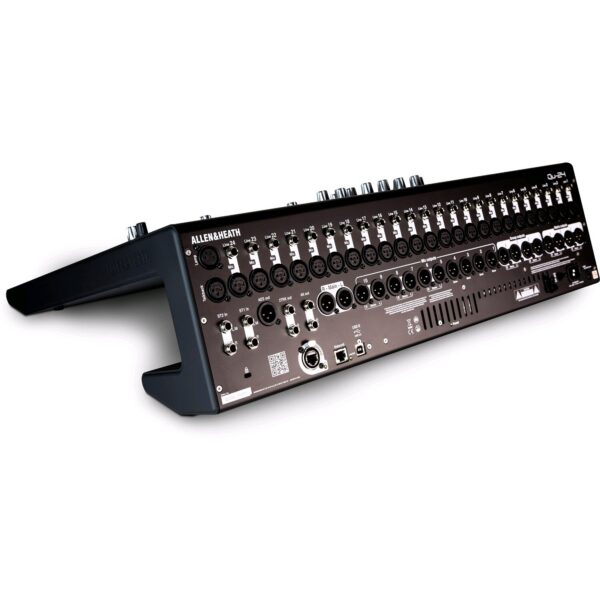

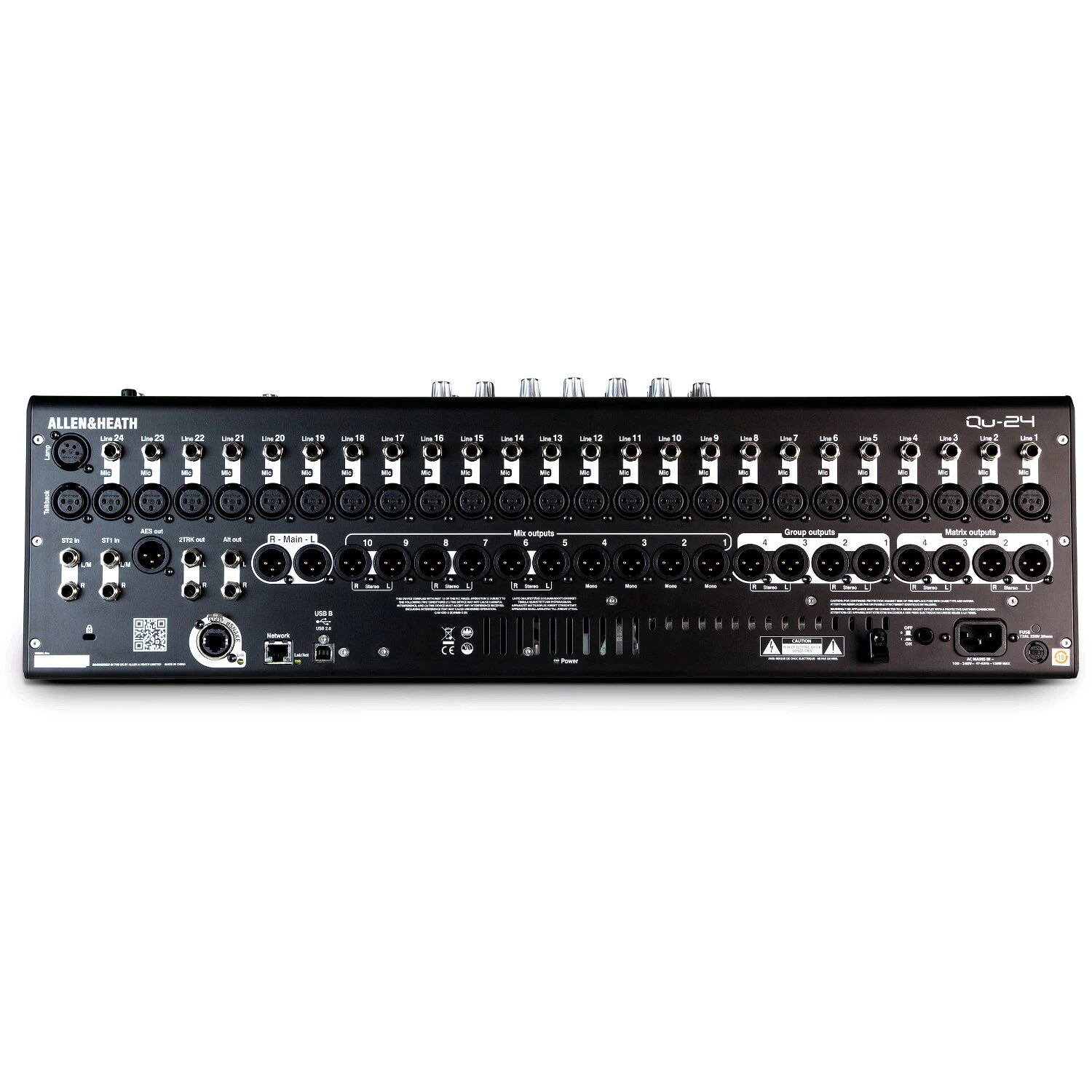

Output connector jack (6.3 mm), XLR (3-pin), XLR AES/EBU
Mixer power power cable
Volume control motorised faders
Weight and dimensions including packaging
Weight (incl. packaging)18.0 kg
Dimensions (incl. packaging)79.0 x 67.0 x 35.0 cm
Product specifications
digital mixer for live and studio applications
24-channel mixer

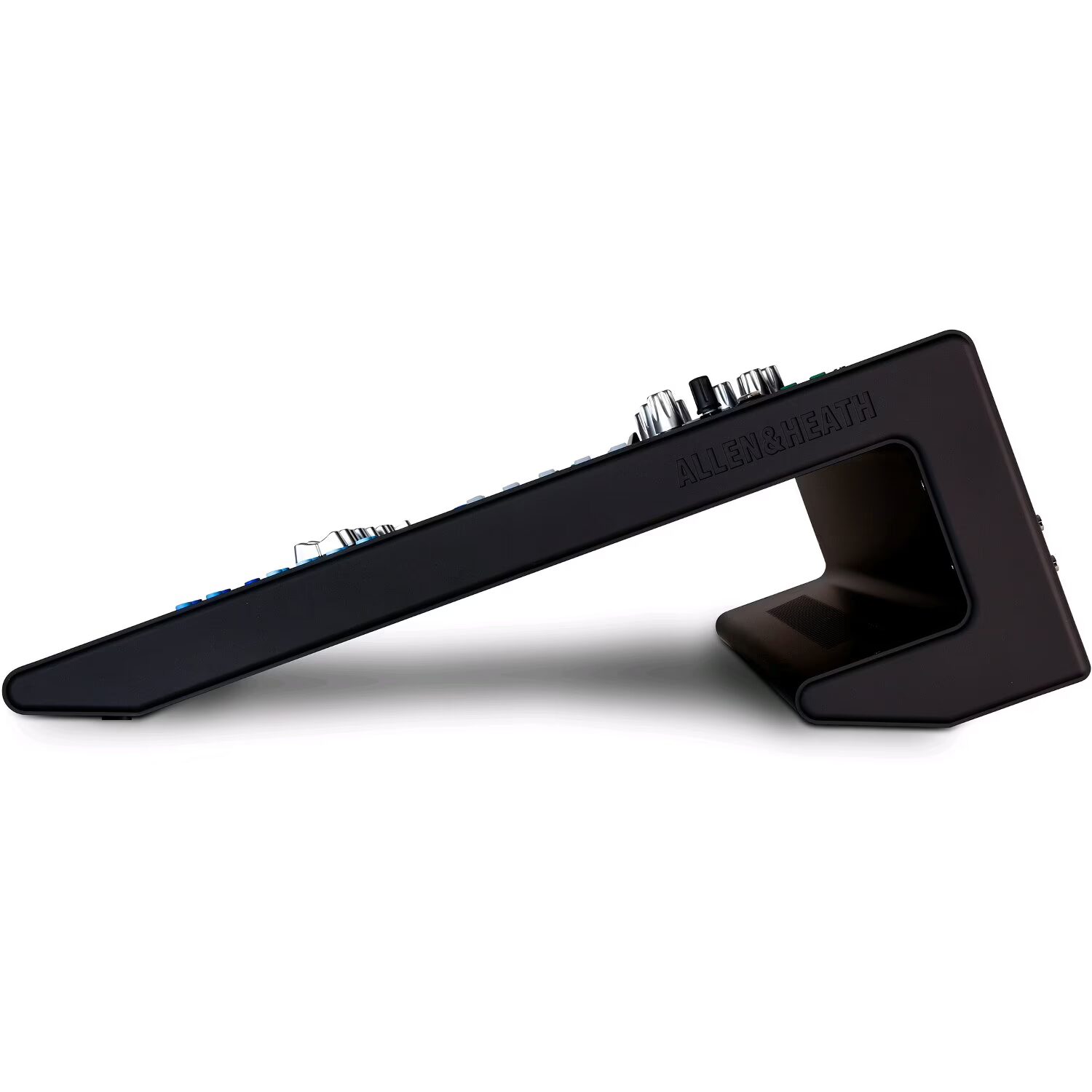

durable metal housing
intuitive and quick controls
inputs: 30
outputs: 24
mono mic/line inputs: 24
stereo inputs: 3
FX sends and stereo returns: 4
mix outputs: 20
talkback mic input
2-track output
FX engines: 4
AES digital out
ALPS motor faders: 25
recallable AnaLOGIQ preamps
Qu-Drive direct multitrack recording /playback on USB drives
built-in USB audio interface
touch screen
resolution: 800 x 480
iLive FX Library
dSNAKE remote audio port
Qu-Pad iPad app
also serves as a DAW MIDI controller
4 mute groups
SuperStrip operates gain, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all inputs
built-in Signal Generator
RTA with Peak Band indication
dimensions: 632 x 471 x 190 mm
weight: 14 kg
