Description
Specifications
Product features
ConnectorsExternal speaker(s), Footswitch
Number of channels 2
Number of speakers 1
Amp modelling no
Effects loop yes
Weight 25 – 29.9 kg
Built-in tuner no
Built-in effects reveb (analogue)
Colour black
Speaker diameter 12 inches
Power attenuator yes
Type of power amp tube 6V6
Amplifier type tube
Power in Watts 31 – 50 Watts
Can be powered by battery no
Weight and dimensions including packaging
Weight (incl. packaging)32.4 kg
Dimensions (incl. packaging)80.0 x 64.0 x 39.0 cm
Product specifications
guitar amplifier combo
speaker: Celestion Vintage 30, 12 inch
2 channels
power output: 45 W
preamp tubes: 5x 12AX7
power amp tubes: 4x 6V6
adjustable power: 9 – 45 W (4 steps)
spring reverb (footswitchable), with volume-control
presence-control
channel switch

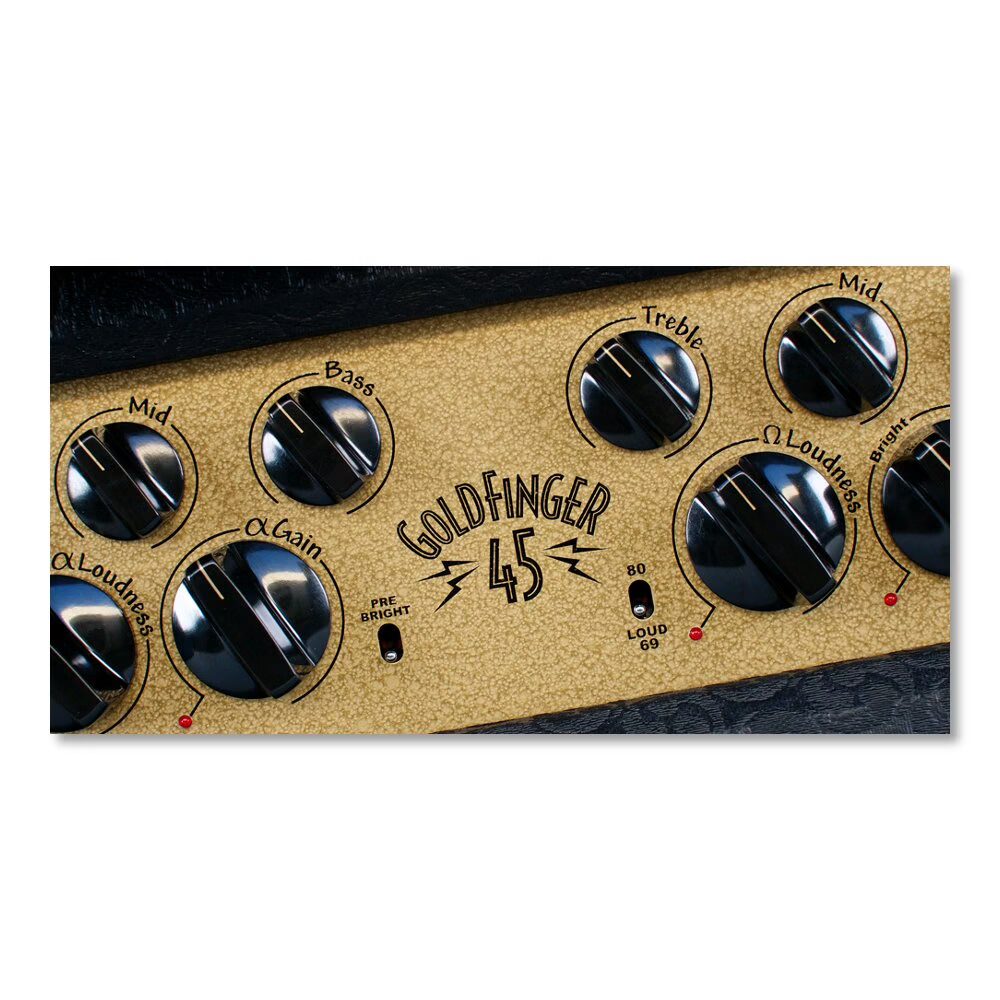

channel 1: bass, mid, treble, loudness, gain, post-bright, pre-bright
channel 2: bass, mid, treble, loudness, gain, gain EQ, 80/69
master volume
deep-switch
input: jack

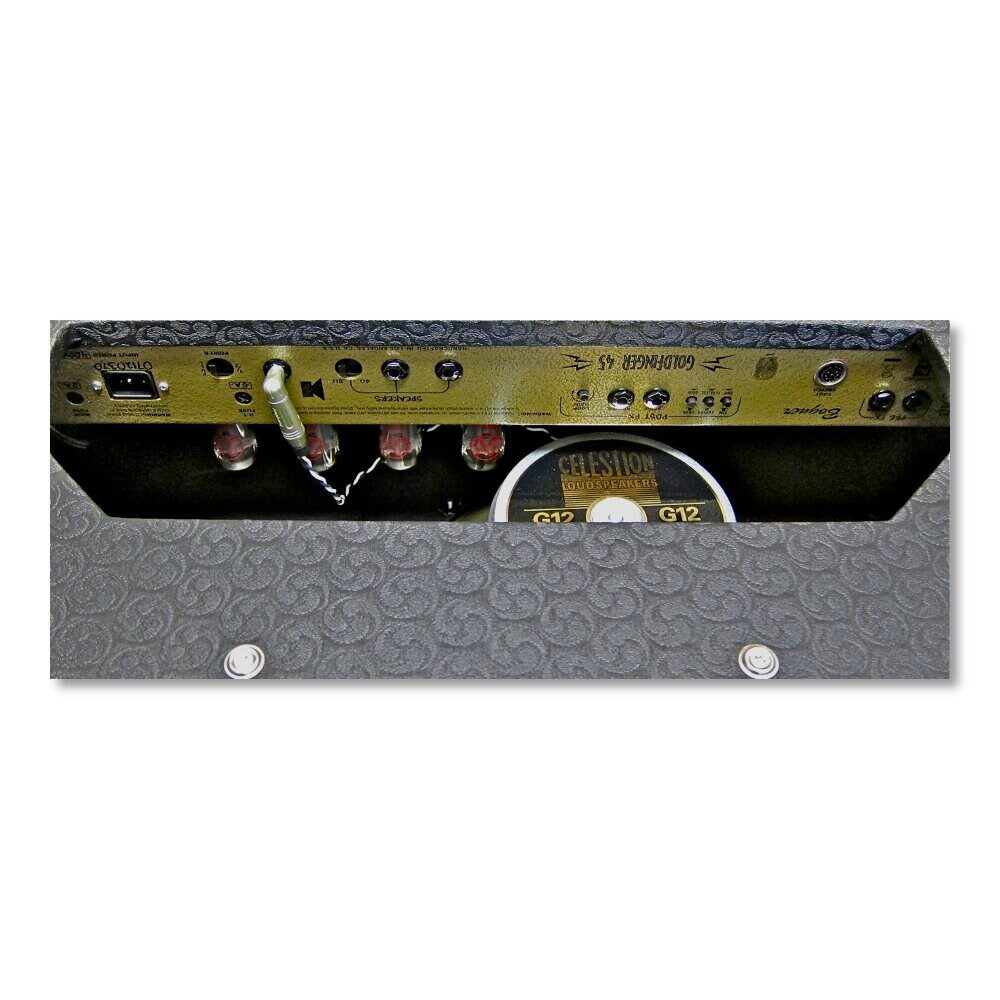

speaker (3x): 6.3 mm jack, dual (4 en 8 Ohm), single (16 Ohm)
effects-loop (pre fx): 2x 6.3 mm jack (send/return), pre fx boost (front)
effects-loop (post fx):
2x 6.3 mm jack (send/return)
series/parallel
on/off
+4 dB/-20 dB
loop gain-control
tube buffered
volume (front)
footswitch included (channel 1/2, chan. 1 boost/pre-fx, chan. 2 boost/pre-fx, reverb, post-fx)
dimensions: 495 x 648 x 273 mm
weight: 29.9 kg
