Description
Specifications
Product features
ConnectorsExternal speaker(s), Footswitch, Line-out
Number of channels 1
Number of speakers 1
Amp modelling no
Effects loop yes
Weight 25 – 29.9 kg
Built-in tuner no
Built-in effects reveb (analogue)
Colouraluminium / steel / silver, black

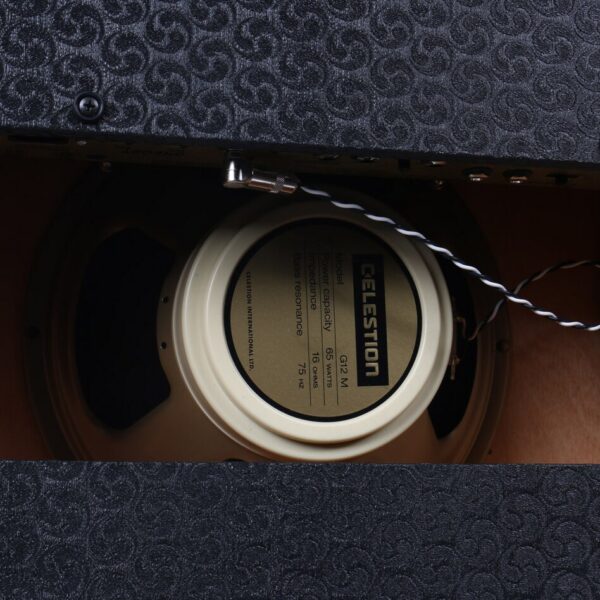

Speaker diameter 12 inches
Power attenuator yes
Type of power amp tube 6L6
Amplifier type tube
Power in Watts 51 – 75 Watts
Can be powered by battery no
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)29.8 kg
Dimensions (incl. packaging)70.0 x 66.0 x 39.0 cm
Product specifications
features:
one-channel tube amplifier
housing material:
boost with gain control adjustable via foot switch
solo boost adjustable via foot switch
tube-buffered FX loop via foot switch
3-step send level switch and FX return level control
FX trail mode switch
spring reverb via foot switch

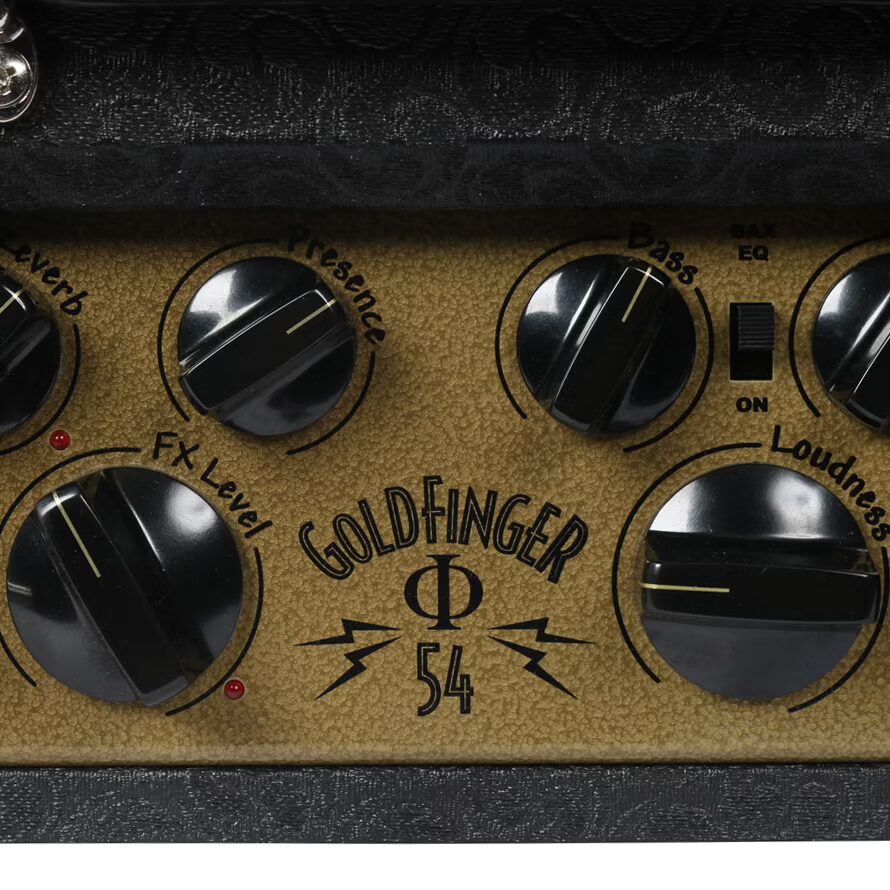

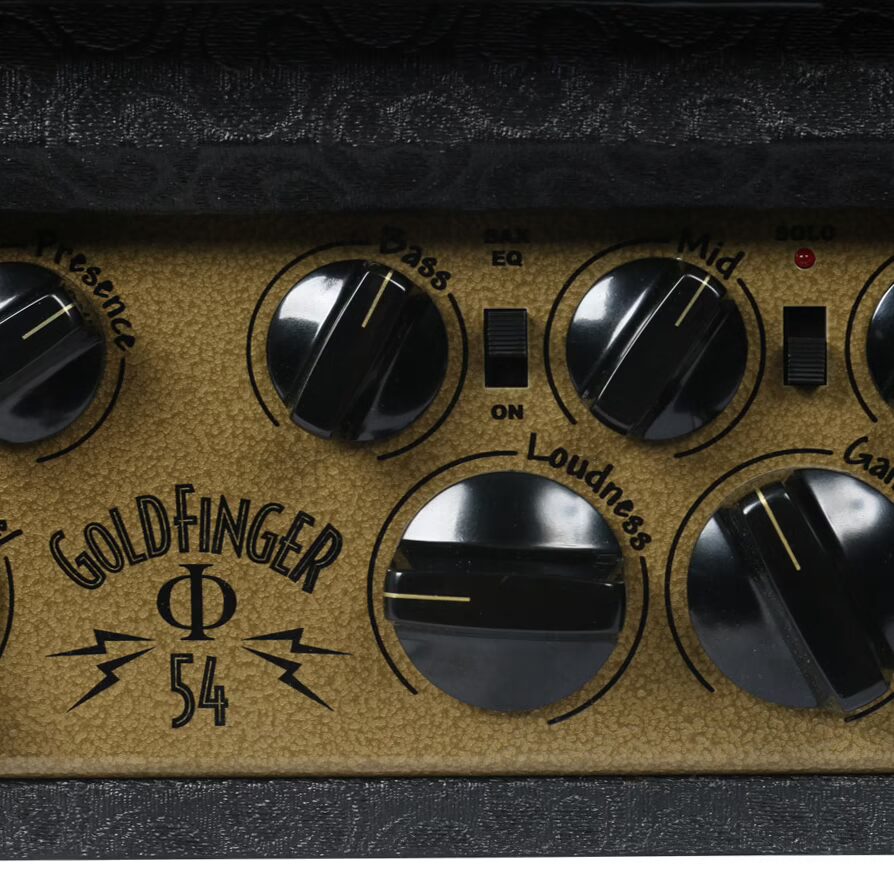

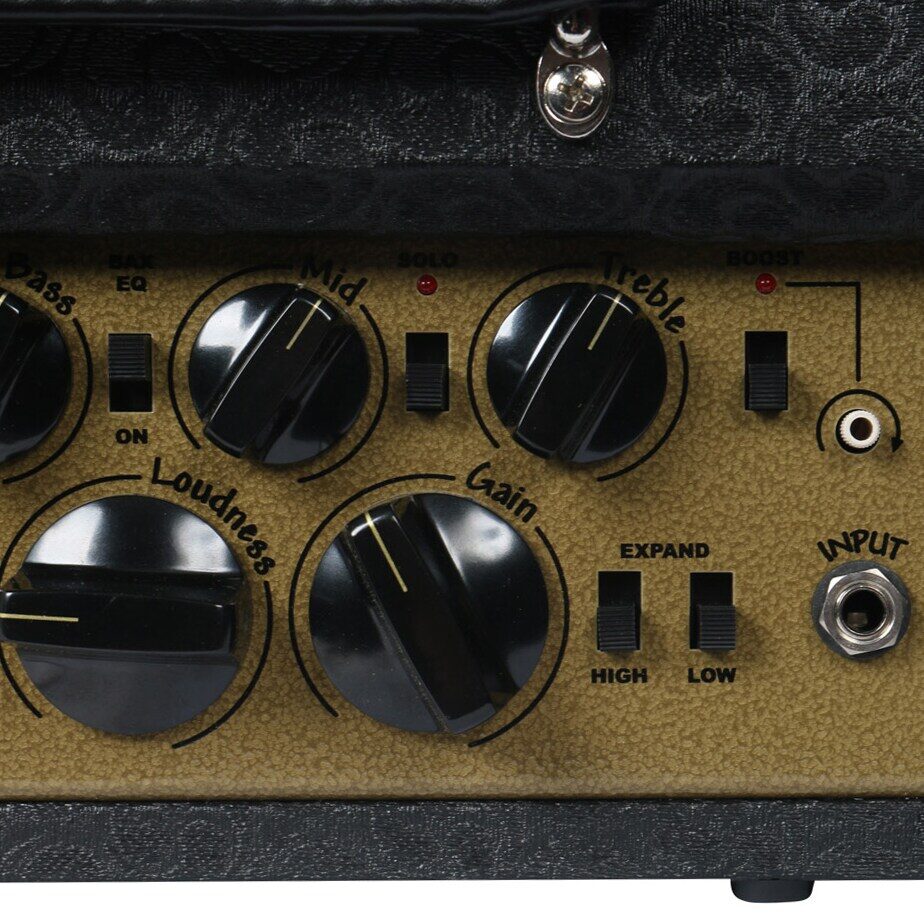

bass, mid, treble, presence, gain and loudness controls
BAX EQ switch
high and low EQ expand switches
2x 6V6 and 6L6 tube pairs, with individual mutes
3x 12AX7 preamp tubes

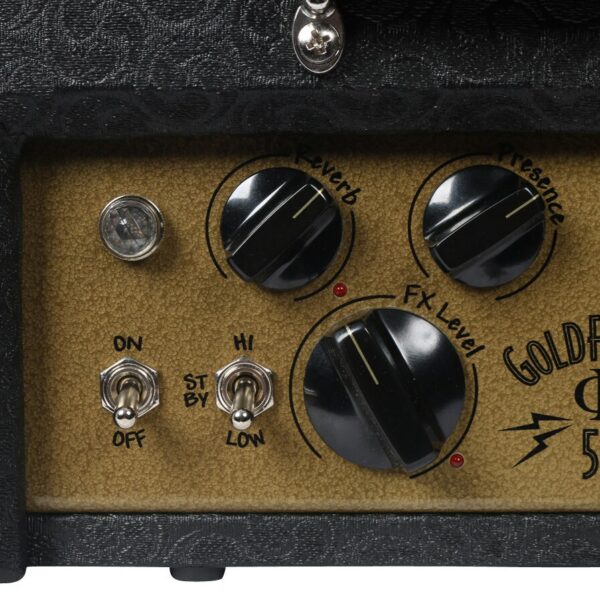

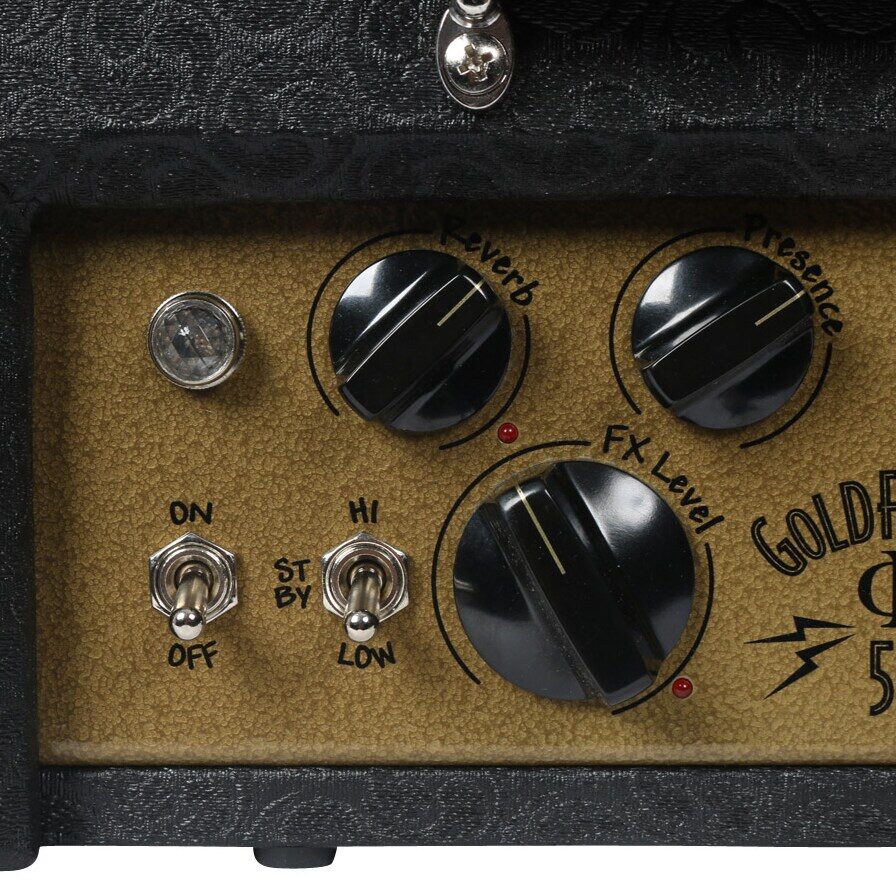

3-way standby switch for high or low output power level
output power switchable between 66, 58, 33, 27, 19 and 9 watts
single 16 and dual selectable 8 or 4 ohm speaker outputs
flat frequency line output with level control
foot switch functions: reverb, fx, loop, solo, boost
dimensions:
533 mm x 533 mm x 267 mm
weight:
27 kg
