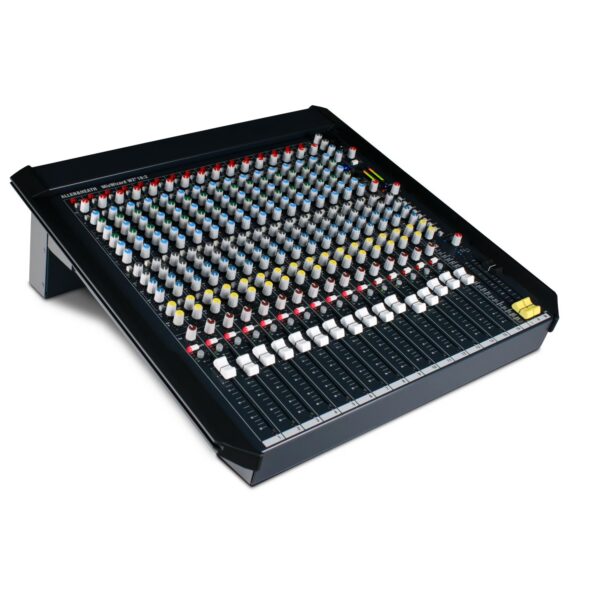

Allen & Heath MixWizard WZ4 16:2 Mixer

Original price was: €1,500.Current price is: €1,095.

Since the middle of the ’90s, the Allen & Heath MixWizard series has been an industry standard, thanks to its great audio quality, versatility and durability. The MixWizard series is used by rental companies, live stages, radio stations and audio studios, all over the world. So much so, that a fourth generation has now been released! Allen & Heath know what their customers want, which is why they’ve kept all the popular properties of the older versions, and improved the design and functions of the series.

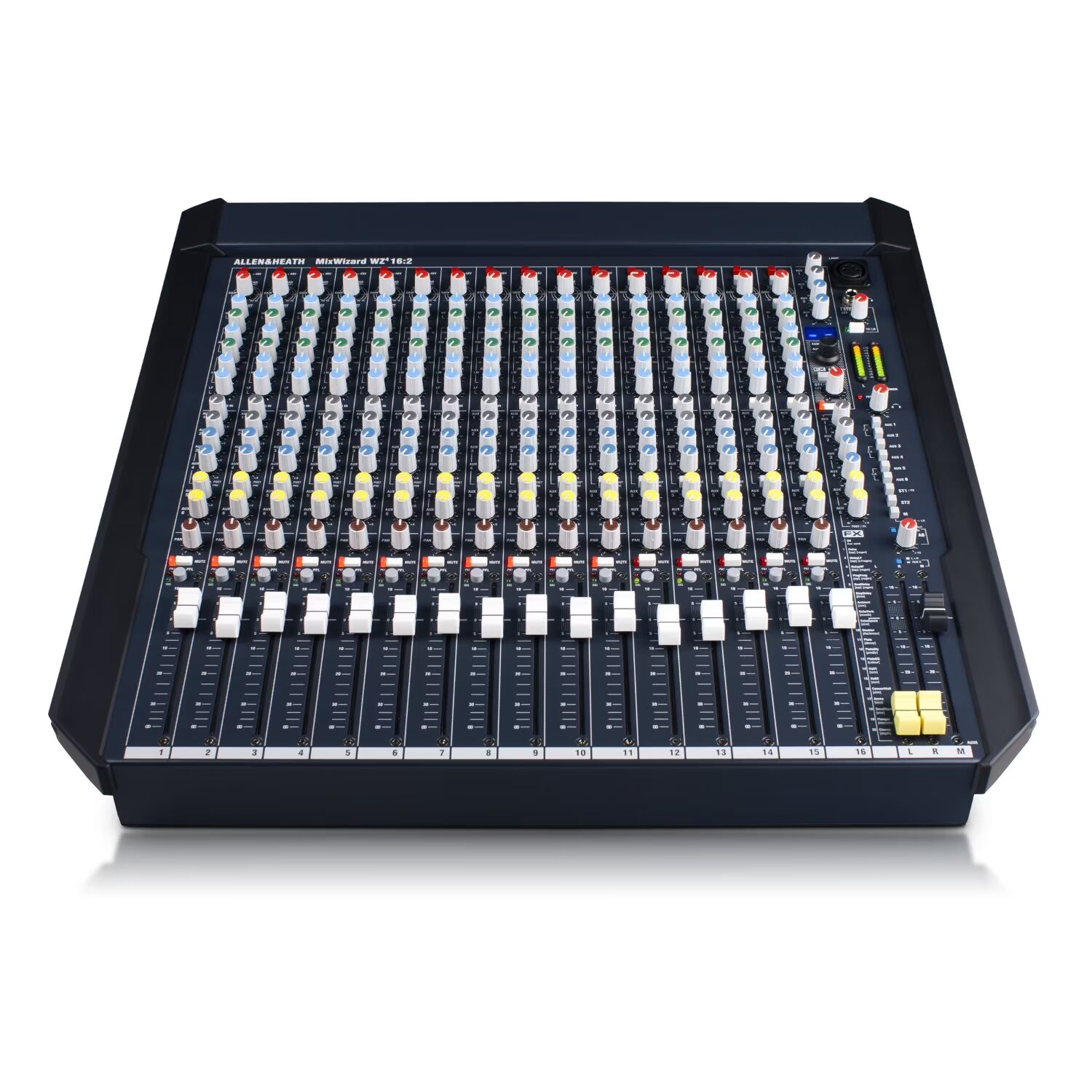

MixWizard WZ4 16:2

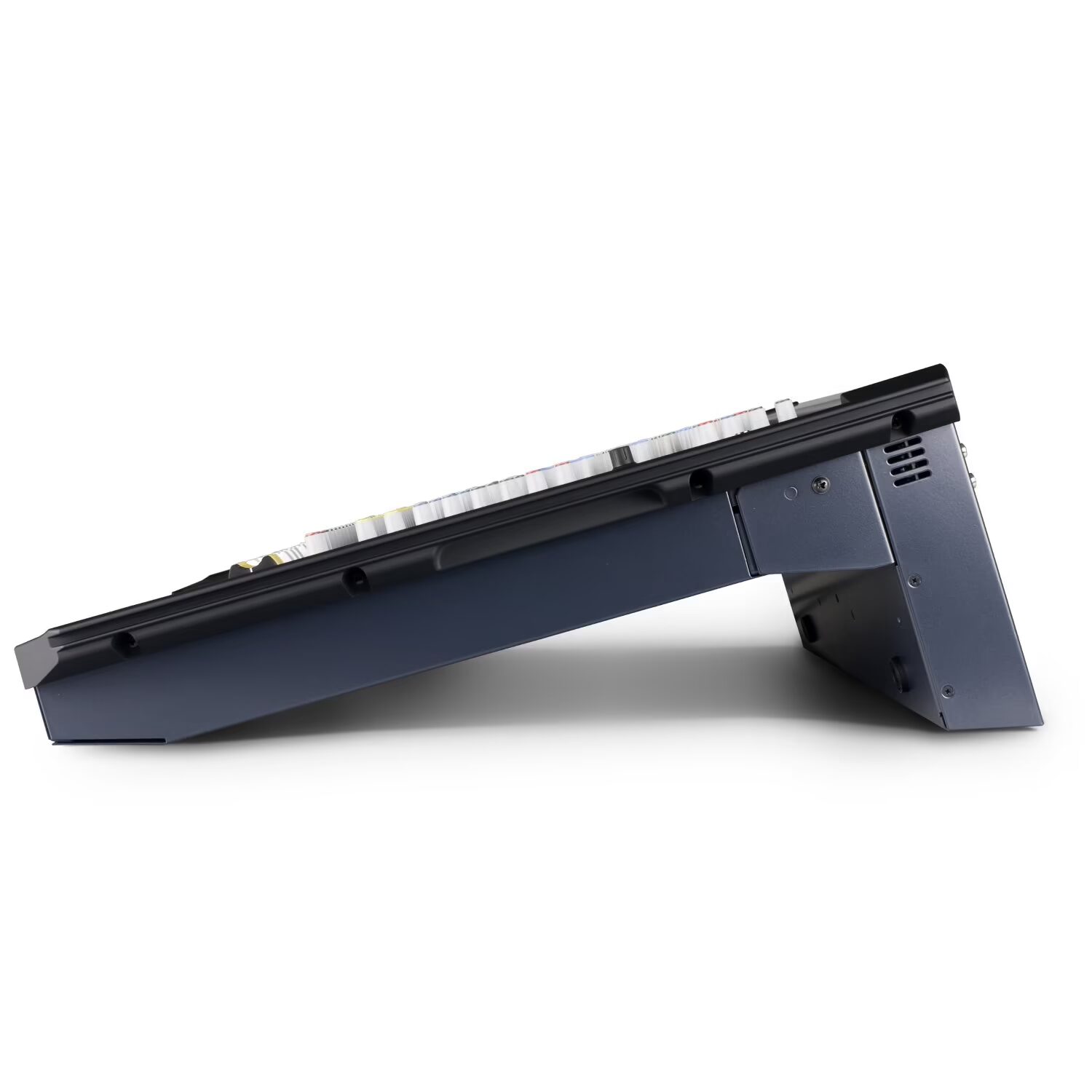

This user-friendly, high-quality mixer features 16 high-grade microphone/line inputs, with an insert and direct output per channel. Like every mixer from the MixWizard series, it has a four-part equalizer with two sweep mids, a twelve-part LED indicator, 100mm faders, 6 AUX sends, and the unique QCC connector panel. This panel can easily be tilted to make the MixWizard WZ4 16:2 fit for use in landscape orientation or mounting in a rack or flight case. The rack ears that are used for rack mounting are kept out of sight by the synthetic side panels.

New Functions of the Fourth Generation
An important addition is the optionally installable USB interface with 16-channel sound card. It allows you to easily create multi-track recordings with the MixWizard WZ4 16:2 and play back two tracks in stereo. Another new feature is an EQ on/off switch per channel, which is perfect if you want to amplify sound sources that have already been edited (like synthesizers). Finally, this 16-channel version of the MixWizard is equipped with two effects sections that have been completely redesigned by the same team that brought you the renowned effects sections of the iLive series. You can choose from 20 carefully selected, studio-quality presets that can be adjusted via tap tempo and a knob for the adjusting of parameters.

Tips or comments about this product
*optionally adjustable with internal jumpers

Description

Specifications

Product features
19 inches yes
Number of auxiliaries 5 – 6
Number of microphone inputs 13 – 16
Number of mono channels 16
Number of stereo channels 2
Number of submasters none
Phantom power yes
Headphone output yes
Built-in audio interface sold separately (via expansion card)
Built-in audio player no
Built-in effects yes
Built-in mixer effects reverb/delay/modulation, channel EQ
Insert connectors yes
Type of mixer inputs microphone input (XLR), balanced line input (TRS jack)
Type of mixer studio / PA mixer
Type of mixer outputs balanced line output (XLR), balanced line output (TRS jack), stereo headphone output (TRS jack or mini jack)
Volume control faders
Weight and dimensions including packaging
Weight (incl. packaging)16.0 kg
Dimensions (incl. packaging)64.0 x 33.0 x 30.0 cm
Product specifications
compact 16-channel mixer
can be mounted in a 19-inch rack
16 mic/line inputs with balanced XLR/jack
insert and direct out per channel
100mm faders
4-band equalizer with 2x sweepable mids
6 AUX sends (2x pre-fader, 2x switchable and 2x postfader*)
2x stereo return
mono output fader (L+R mono for centre speaker or fill, or for operating sub)
independent A-B output
tricolour, 12-segment light indicator
double effects section with 20 presets
+48V phantom power supply
signal and peak indicators
talkback microphone connector with trim
lamp connector
USB multi-track option
connector for foot switch
