Description
Specifications
Product features
19 inches no
Number of auxiliaries 5 – 6
Number of microphone inputs 17 – 32
Number of mono channels 32
Number of stereo channels 2
Number of submasters 4
Phantom power yes
Headphone output yes
Built-in audio interface no
Built-in audio player no
Built-in effects no
Built-in mixer effects channel EQ
Insert connectors yes, only mono channels

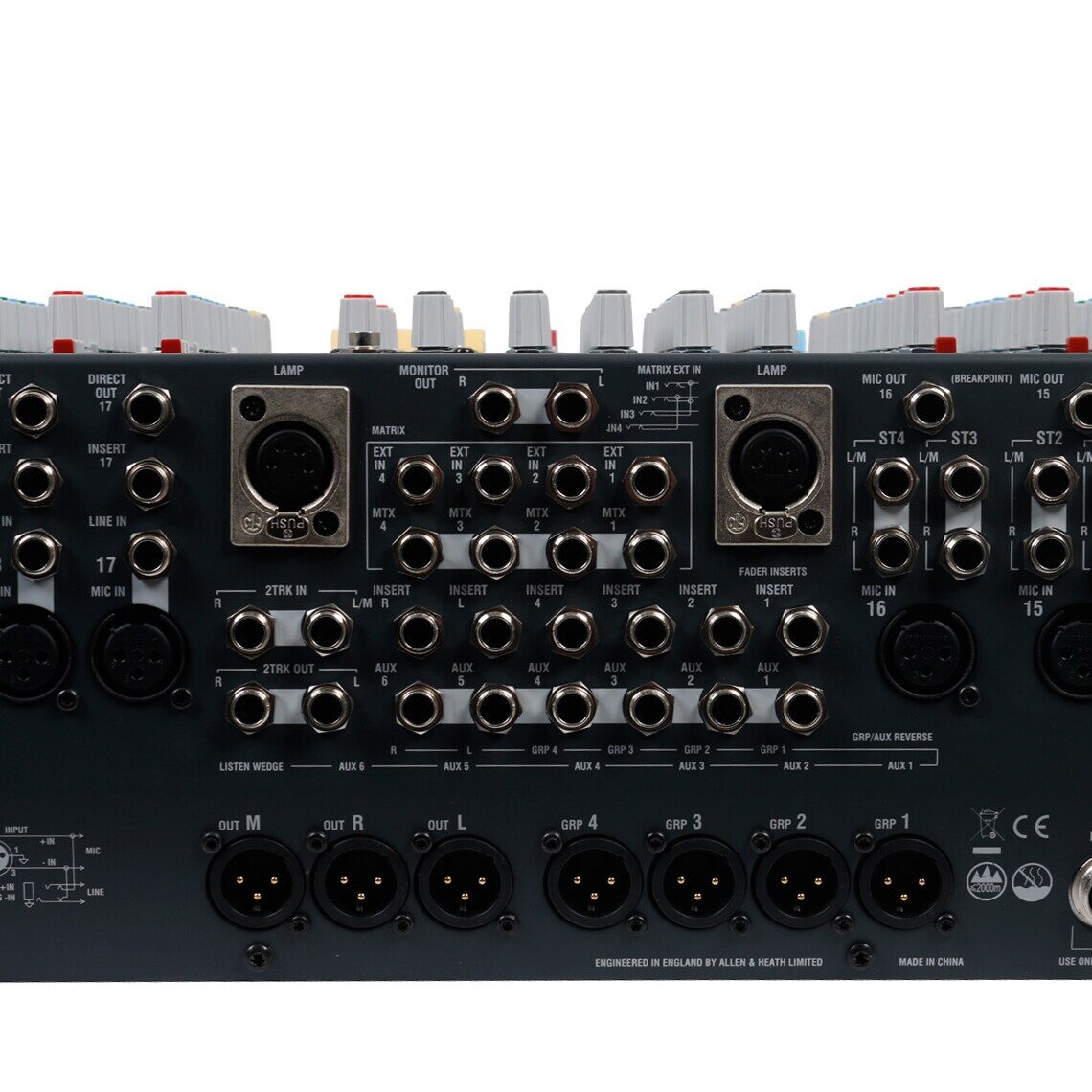

Type of mixer inputs microphone input (XLR), balanced line input (TRS jack)
Type of mixer studio / PA mixer
Type of mixer outputs balanced line output (XLR), balanced line output (TRS jack), stereo headphone output (TRS jack or mini jack)
Volume control faders
Weight and dimensions including packaging
Weight (incl. packaging)33.7 kg
Dimensions (incl. packaging)120.0 x 75.0 x 31.0 cm
Product specifications

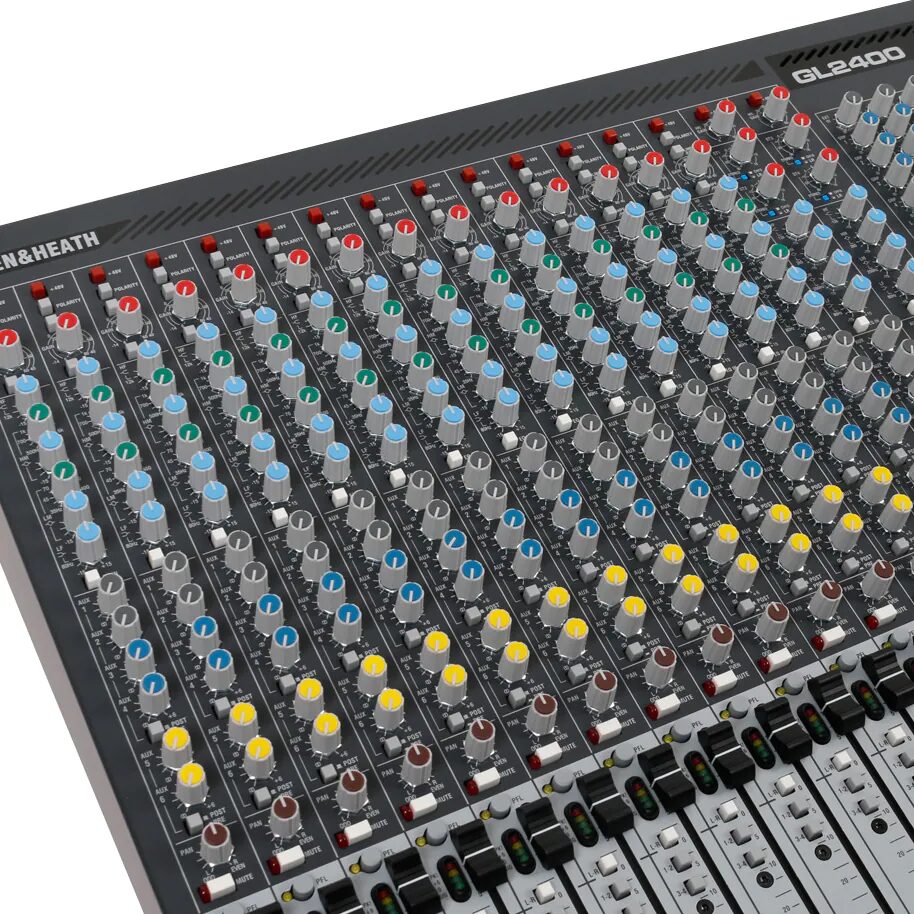

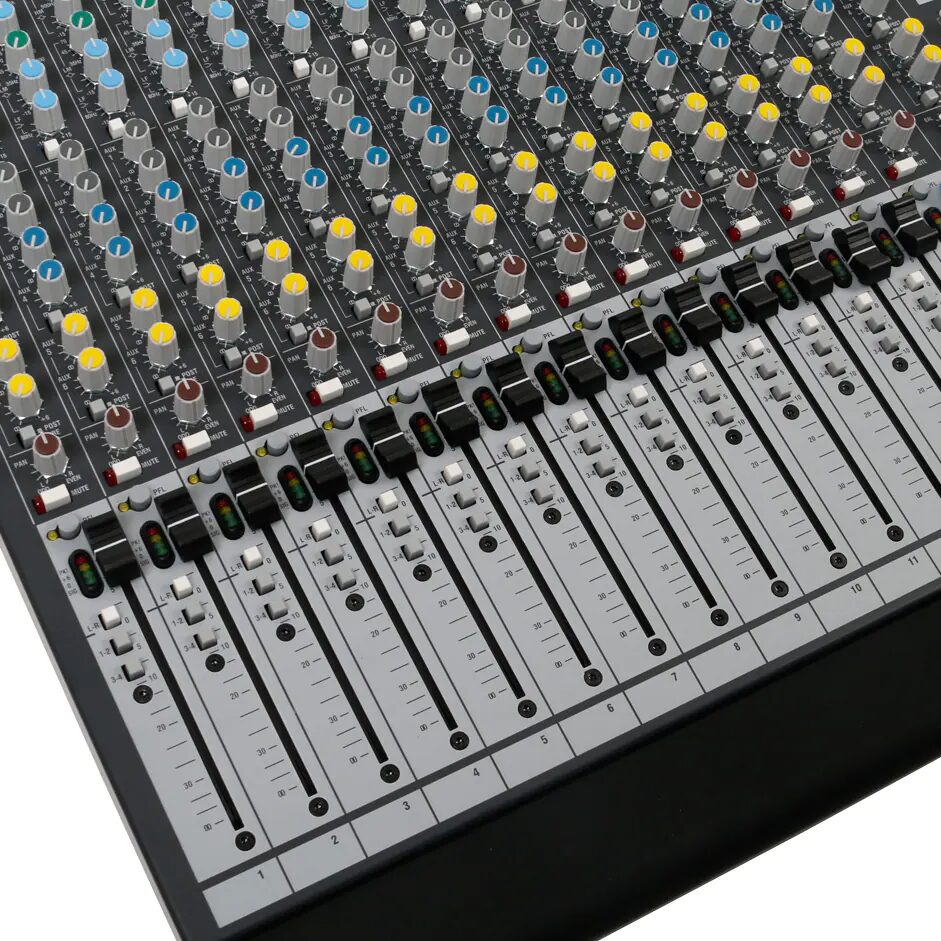

32 channel frames
LR and M headphone outputs

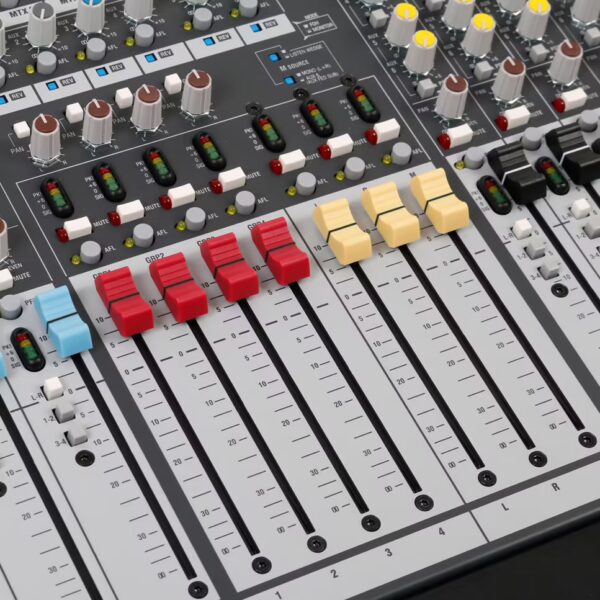

4 audio groups with pan control

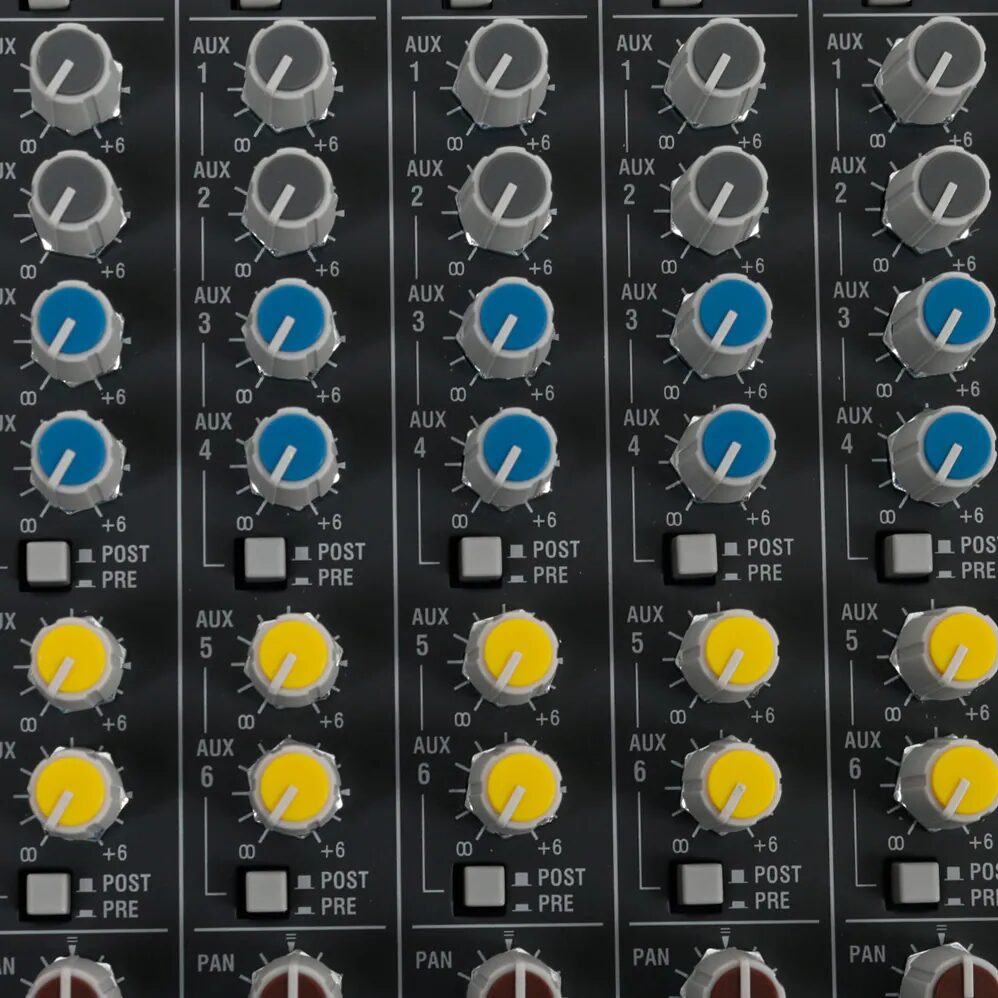

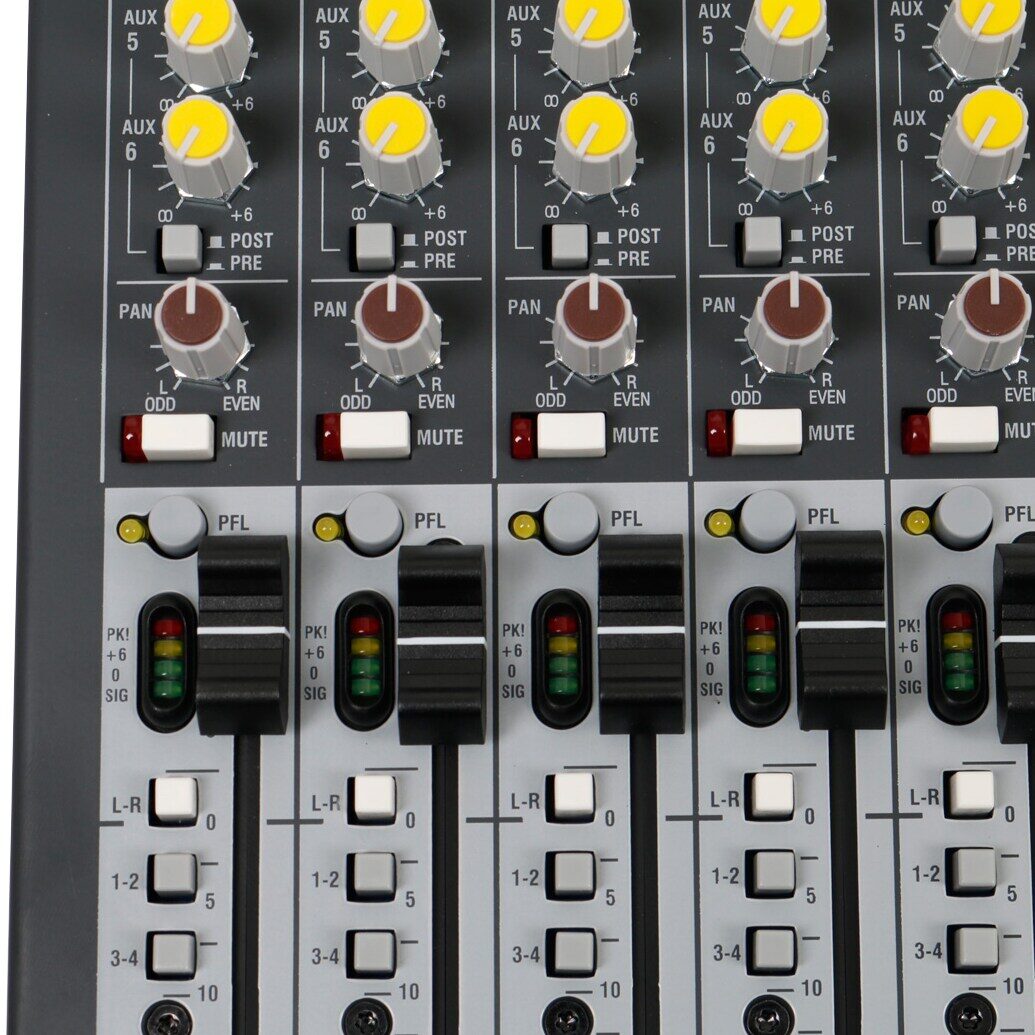

6 auxiliary sends with per-channel pre/post fader switching
2 stereo channels with a microphone and double stereo line inputs each

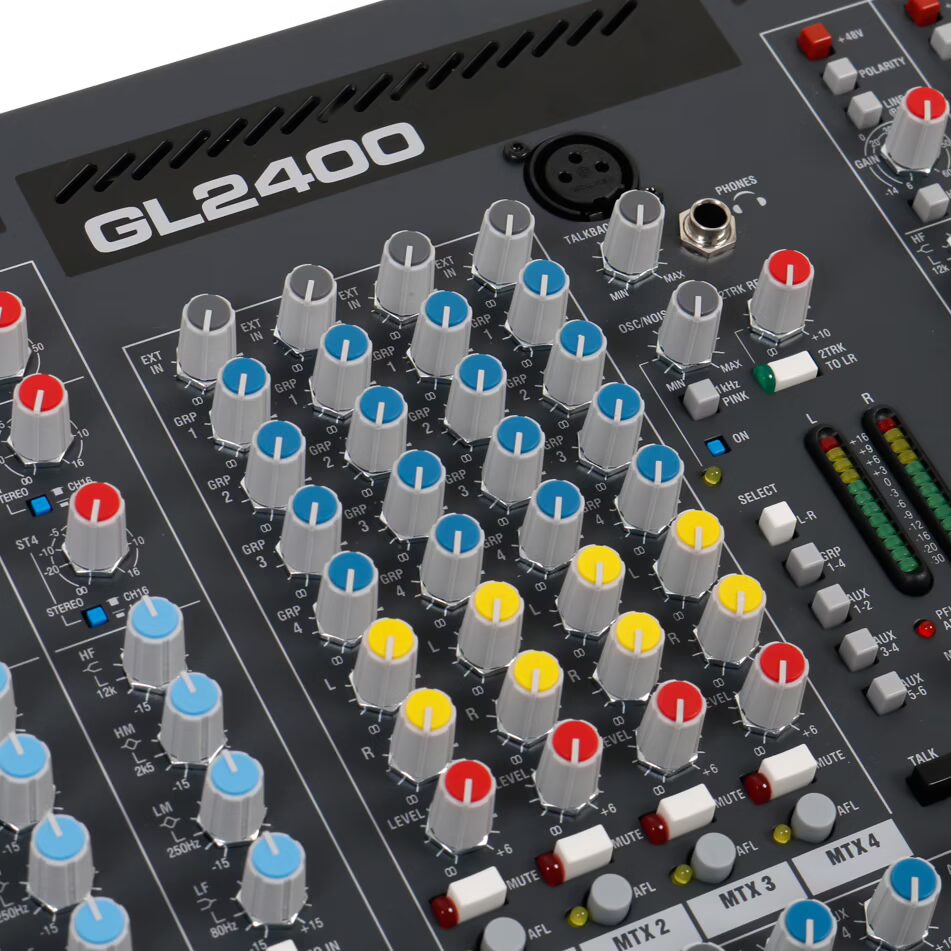

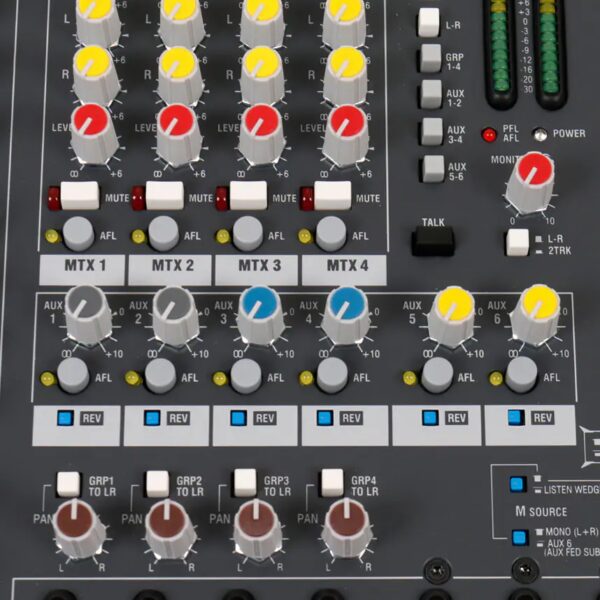

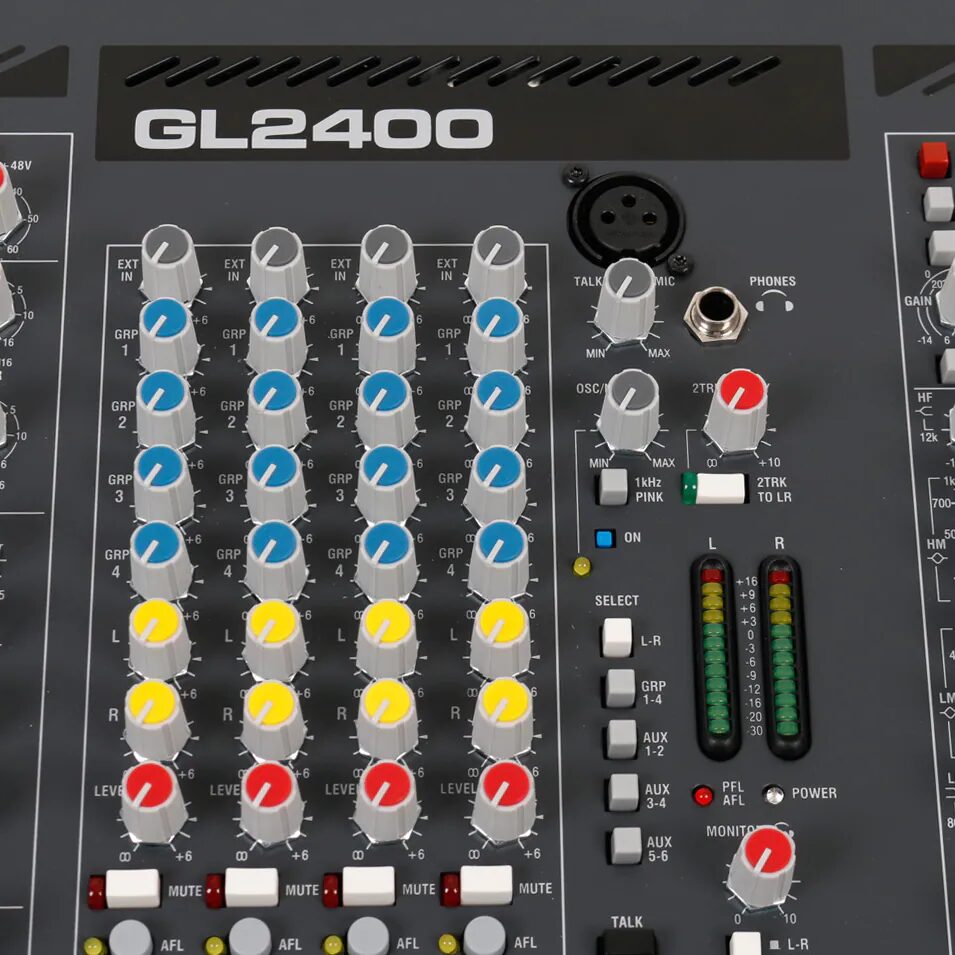

7×4 matrix
fit for FOH and/or monitor mixes
M can be configured as LR sum, wedge or AUX-fed sub or C master

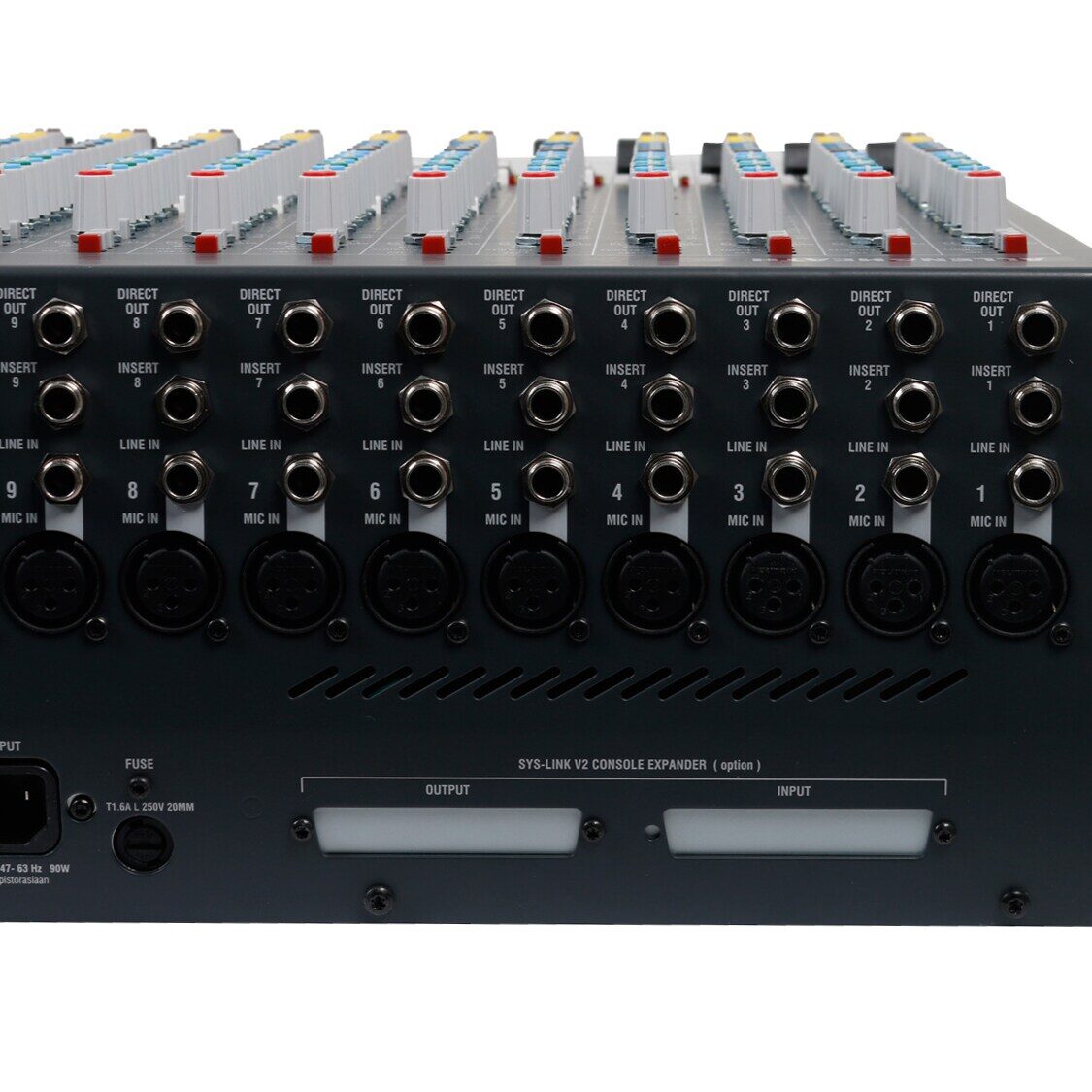

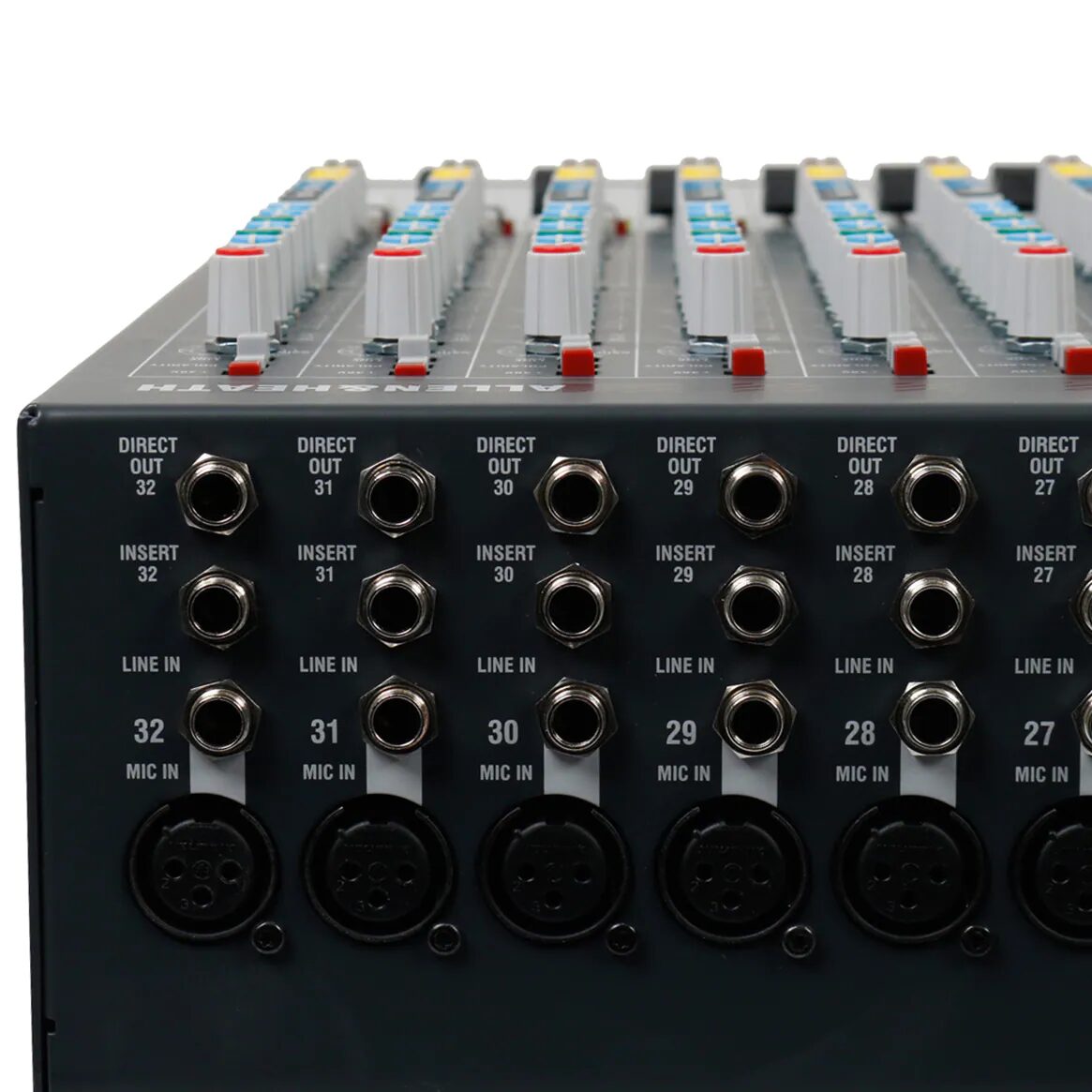

recording-capable with channel direct outputs
matrix external inputs with level trims and common input capacity
stereo line inputs can be routed independently to LR
stereo mic input breakpoints for cross patching in the matrix

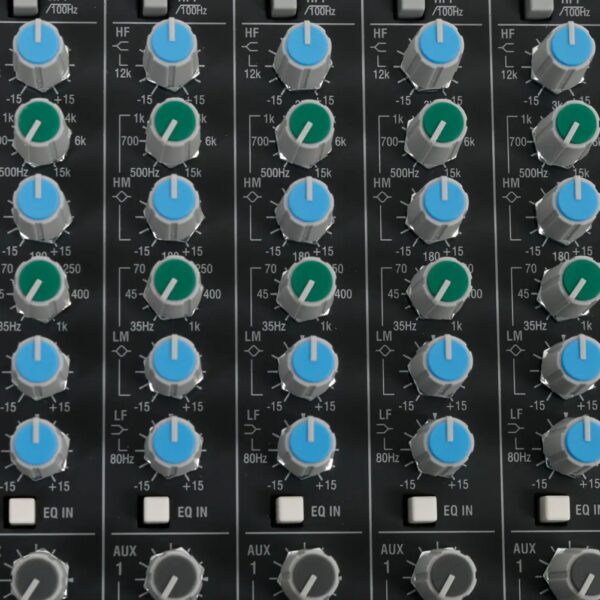

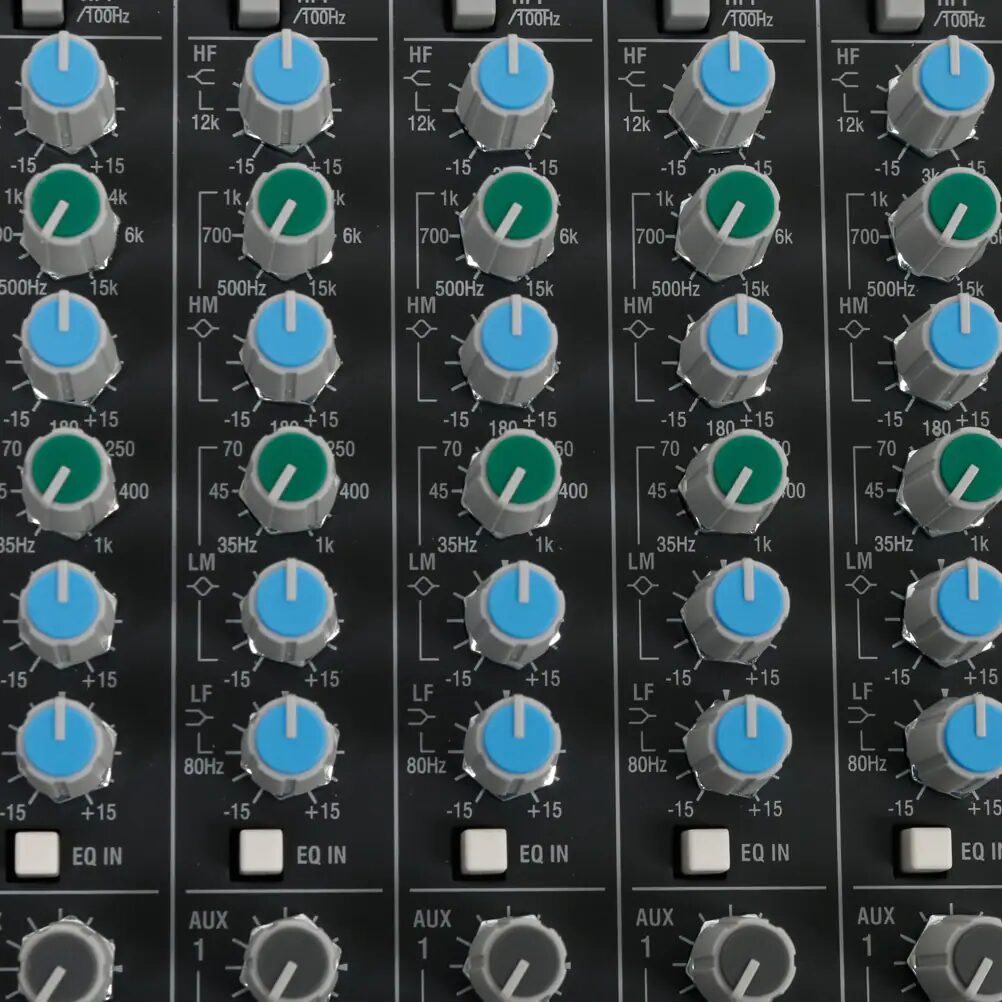

well-responding 4-band, 2-sweep EQ
100Hz channel high-pass filters

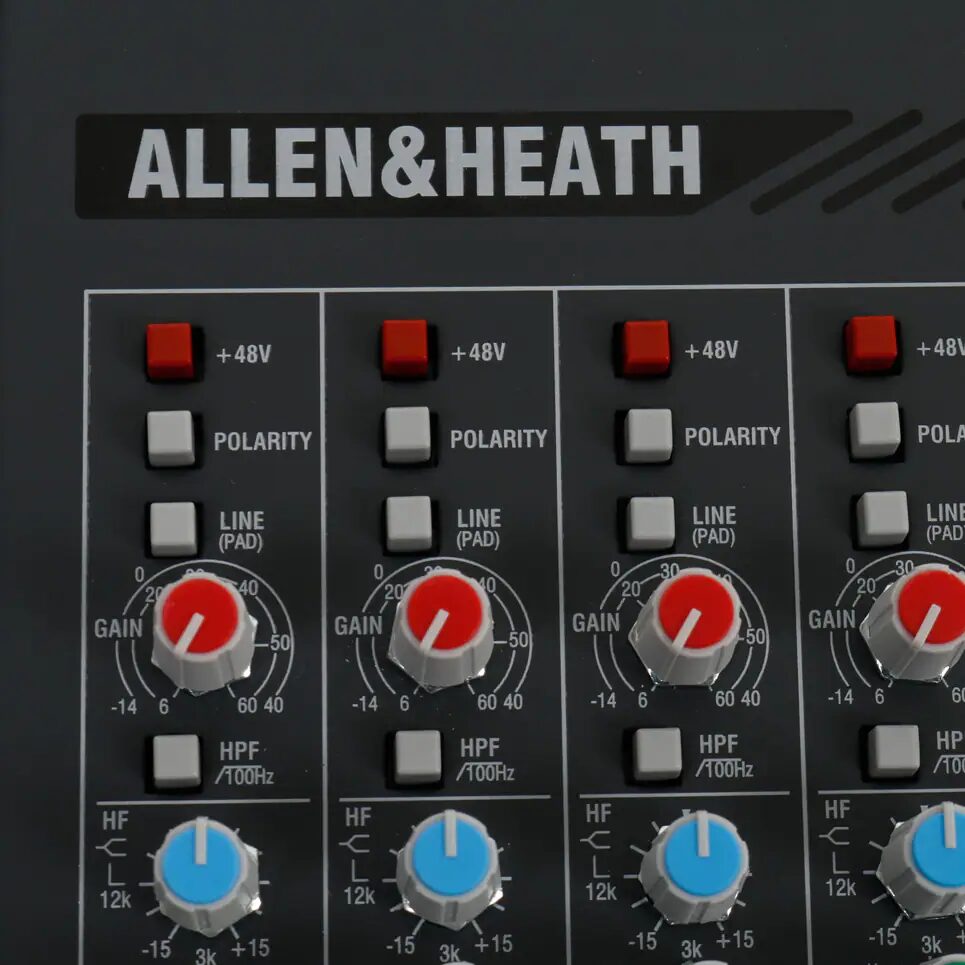

individual phantom power supply and polarity switching
special channel, master and stereo monitor VU meters
internal jumper plugs for pre/post EQ AUX, direct out and other options
mutes, meters and AFL on all fader masters
assignable talkback
1kHz oscillator and pink noise generator
2-track monitoring and replay to LR
headphones and local monitor outputs
electronically balanced XLR outputs with +26 dBu drive capability
preamp for mic or line for up to +34 dBu
ultra low-noise mix head amp design

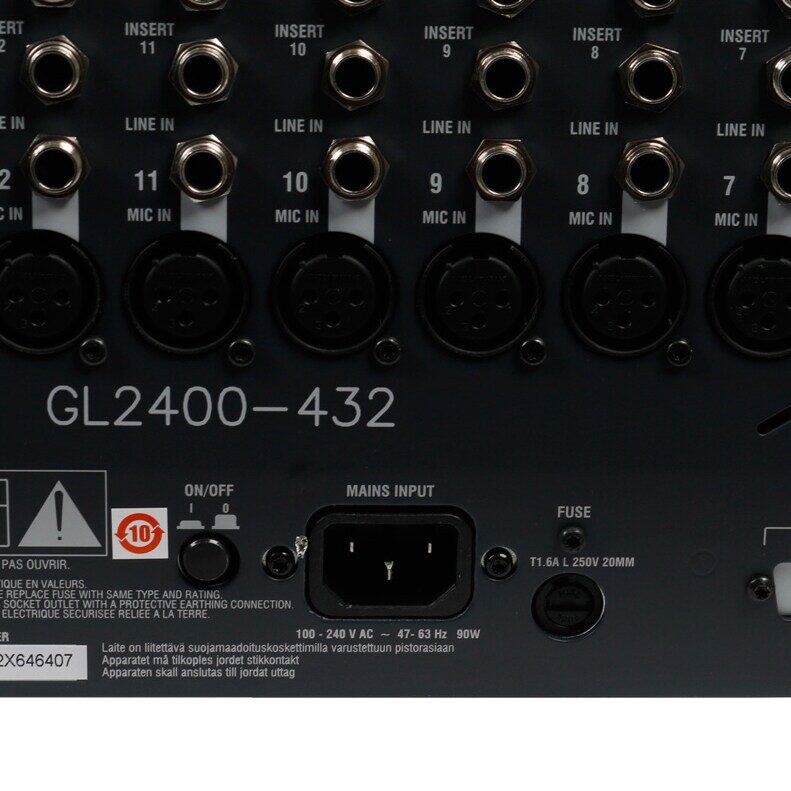

internal power supply with MPS12 backup power

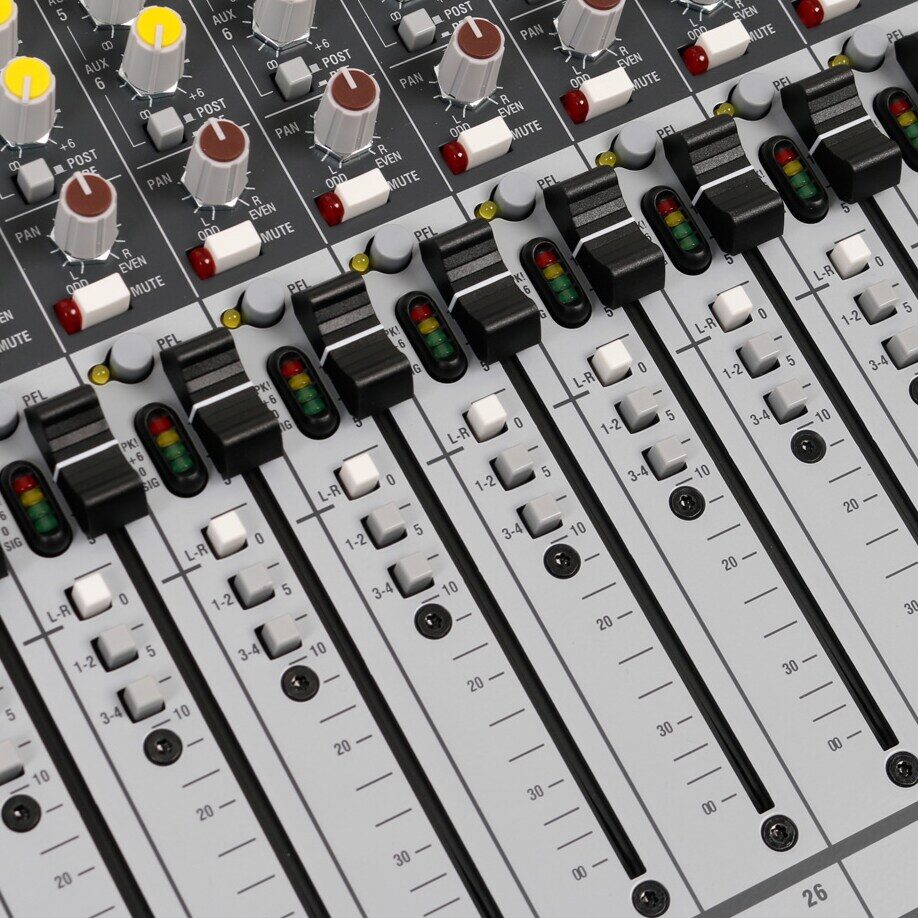

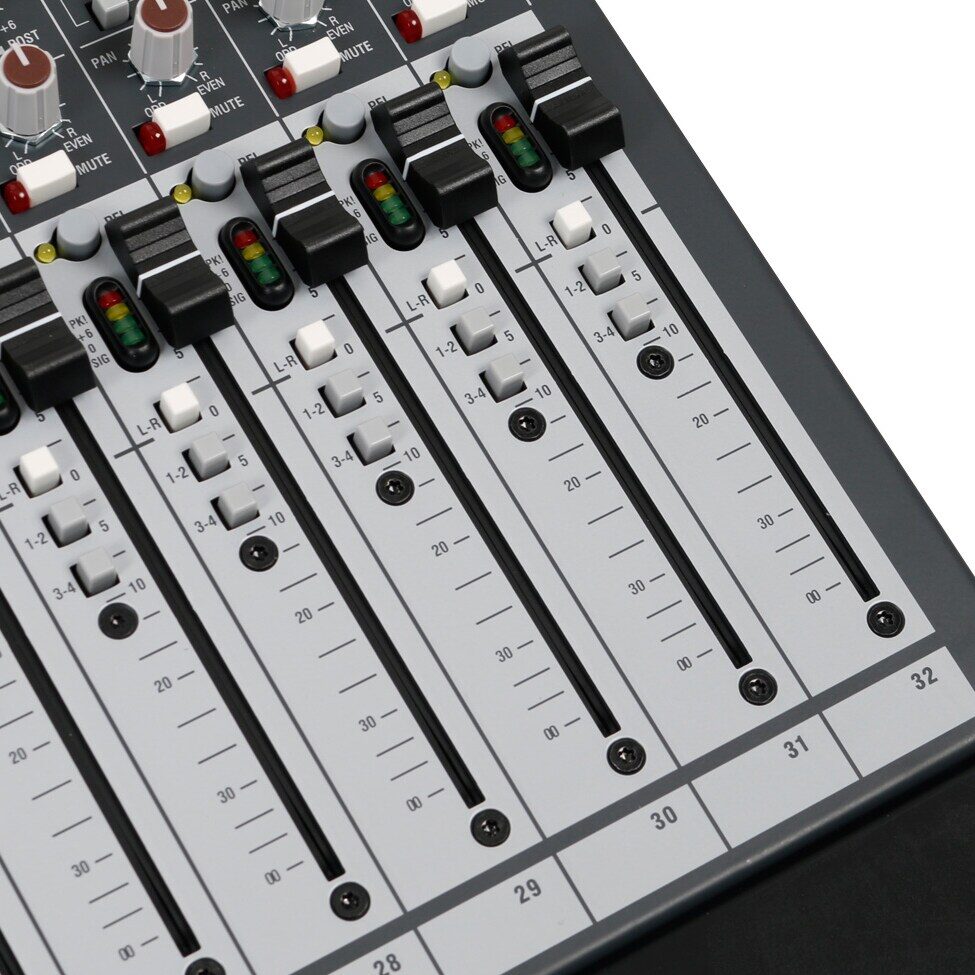

100mm dust-protected faders
metal jacks, gold-plated XLRs and sealed pots and switches
individual circuit card design with nutted pots
solid copper bus bar earthing

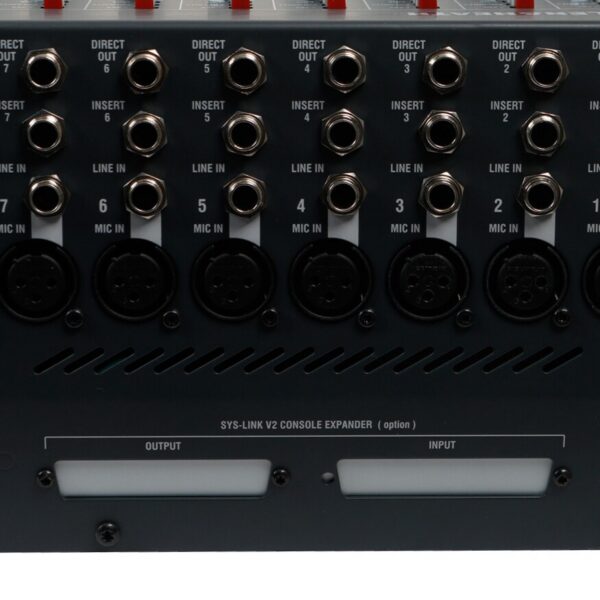

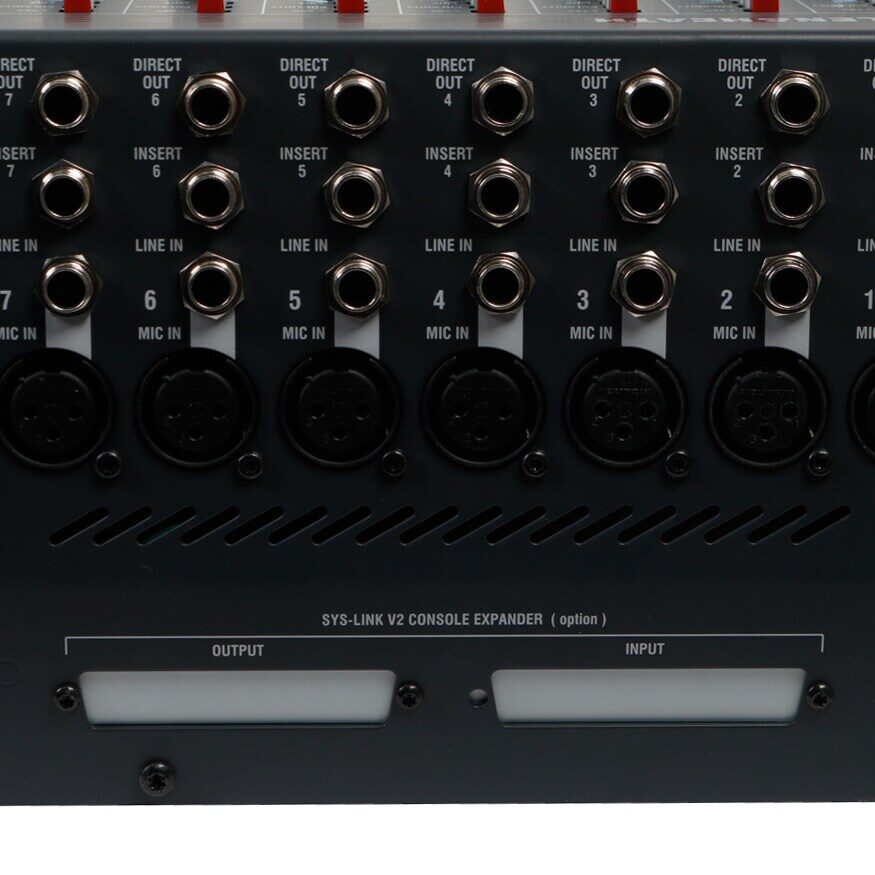

sys-link V2 console link option

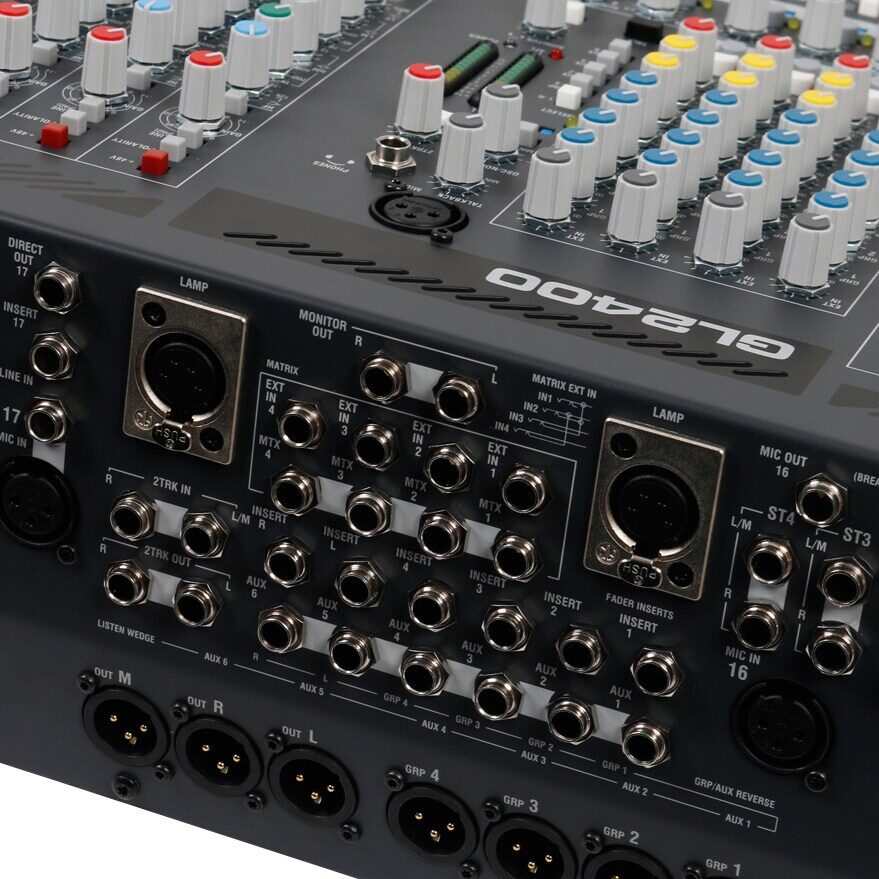

4-pin XLR lamp sockets
