Description
Specifications
Product features
19 inchesno
Number of auxiliaries 5 – 6
Number of microphone inputs 17 – 32
Number of mono channels 24
Number of stereo channels 2
Number of submasters 4
Phantom power yes
Headphone output yes
Built-in audio interface USB (2×2 I/O)
Built-in audio player no
Built-in effects no
Built-in mixer effects channel EQ
Insert connectors yes, only mono channels
Type of mixer inputs microphone input (XLR), balanced line input (TRS jack), unbalanced line input (RCA), Hi-Z input (TS jack)
Type of mixer studio / PA mixer
Type of mixer outputs balanced line output (XLR), balanced line output (TRS jack), unbalanced line output (RCA), stereo headphone output (TRS jack or mini jack)
Volume control faders
Weight and dimensions including packaging
Weight (incl. packaging)20.0 kg
Dimensions (incl. packaging)111.0 x 76.0 x 30.0 cm
Product specifications

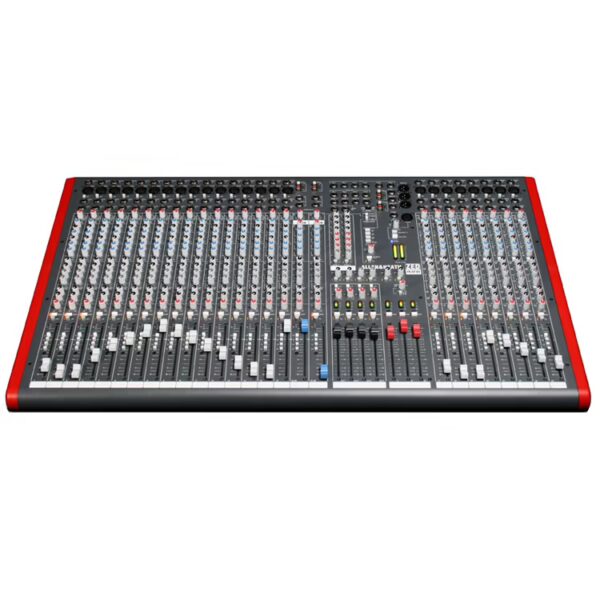

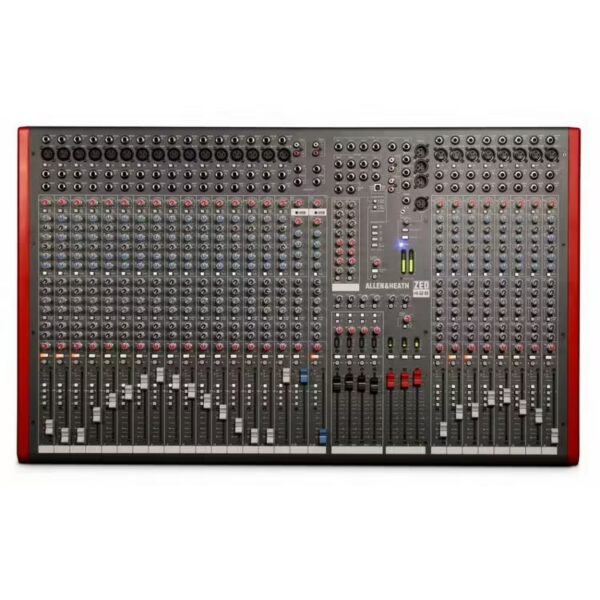

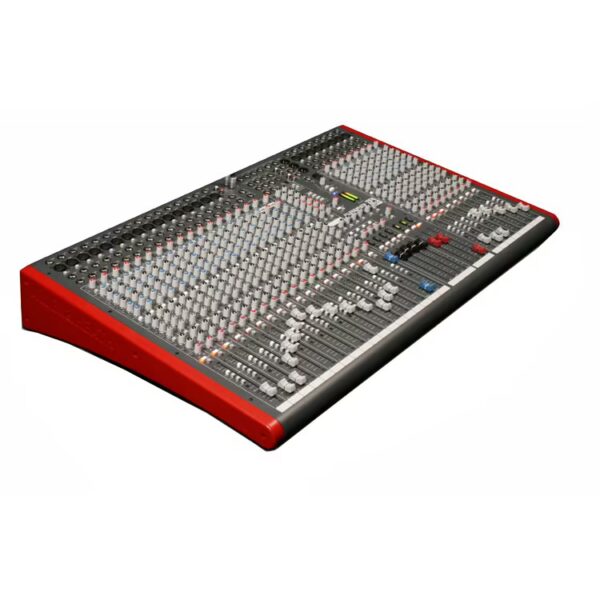

versatile PA mixer
24x mono channels
2x stereo inputs with 4-band equalizer
Neutrik XLR and jack connectors
channel inserts
wide-gain ‘DuoPre’ mic/line input
4-band EQ with dual mid and I/O switch
backlit mute button per channel
pan per channel
backlit PFL and peak indicators

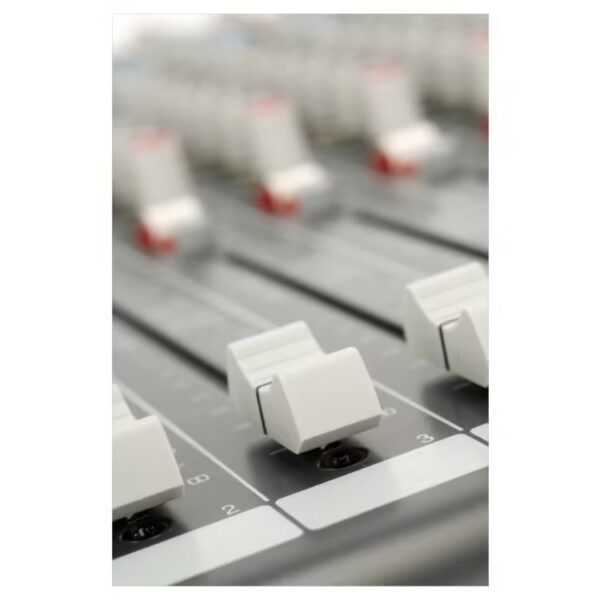

APLS 100mm faders

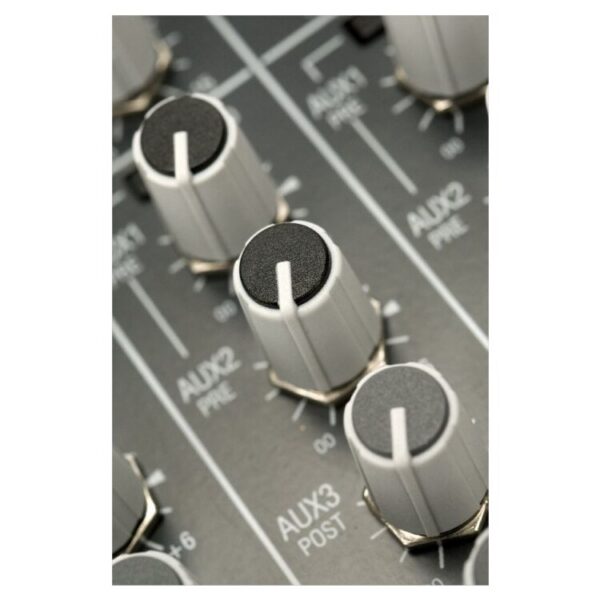

6x aux sends (2 pre, 2 post, 2 pre/post)
4 sub groups, powered per channel
all inputs with level control
12x bar meters
L, R, and Main mix outputs
2x matrix sections, send output via USB
individual +48V phantom power per channel
direct output on every mono channel
peak and signal indicators on each channel
configurable USB stereo I/O (also fur use with effects via PC)
Master level control on all outputs
simple layout, all control elements at the top
dimensions: 930 x 560 x 129 mm
weight: 18 kg
