Description
Specifications
Product features
Tube microphone no
Microphone sensitivity (dBV/PA)-35
Microphone impedance 250-299 ohms
Low-cut filter no
Maximum SPL 130 dB – 139 dB
Maximum frequency 20 – 20.9 kHz
Microphone accessories shock mount, case
Minimum frequency 20 – 21 Hz
Pad switch yes
Polar pattern cardioid, figure-8 / bi-directional, omni-directional
Stereono
Weight and dimensions including packaging
Weight (incl. packaging)1.6 kg
Dimensions (incl. packaging)25.5 x 18.5 x 6.0 cm
Product specifications

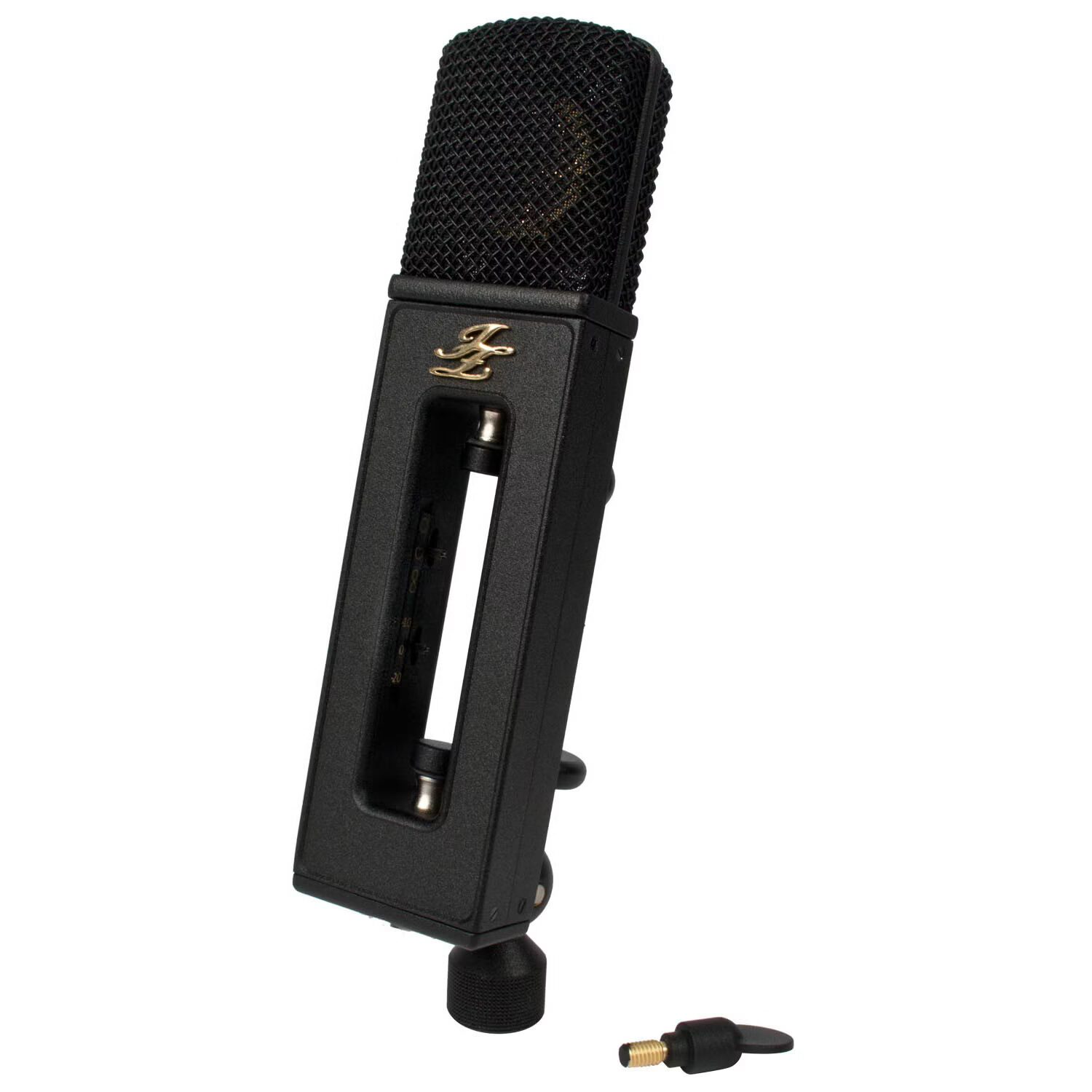

large-diaphragm condenser microphone
microphone type: electrostatic
operation: pressure gradient
active diaphragm diameter: 2 x 27 mm
frequency range: 20 Hz to 20 kHz
pickup patter: cardoid / omni / figure 8
output impedance: 50 Ohms
load impedance: > 250 Ohms
recommended load impedance: > 1000 Ohms
sensitivity at 1,000 Hz into 1,000 Ohm load: 18 mV/Pa
signal-to-noise ratio CCIR 468-3 weighted: 75.5 dB
signal-to-noise ratio DIN/IEC 651 A-weighted: 86.5 dB-A
equivalent noise ratio DIN/IEC A-weighted: 7.5 dB-A
maximum SPL for 0.5% THD at 1000 ohms load: 134.5 dB
dynamic range of mic preamp: 127 dB
phantom power on 2 and 3-pin XLR: +48 V (+/- 4 V)
power: 1.5 mA
output connector: 3-pin XLR, gold-plated contact points
dimensions: 203 (W) x 51 (H) x 28 (D) mm
special features:
comes packed in a wooden box including shockmount, thumb screw, warranty and manual
