Description
Specifications
Product features
19-inch rack size 5U
Number of analogue input channels 41 – 48
Number of analogue output channels 9 – 16
Weight and dimensions including packaging
Weight (incl. packaging)10.0 kg
Dimensions (incl. packaging)58.0 x 38.5 x 31.0 cm
Product specifications

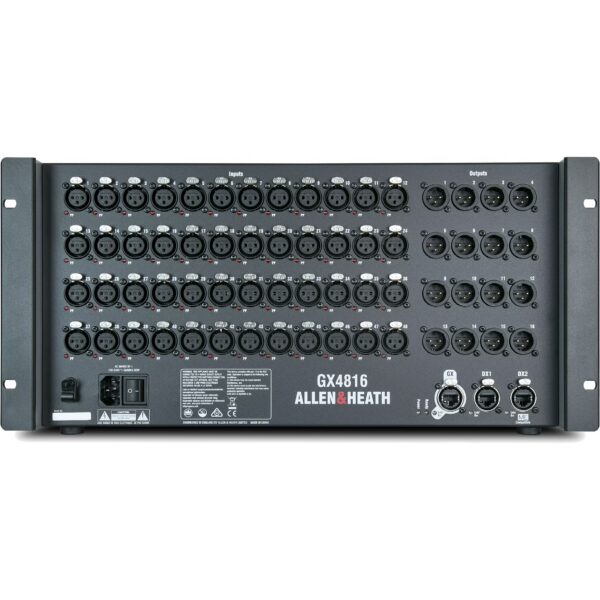

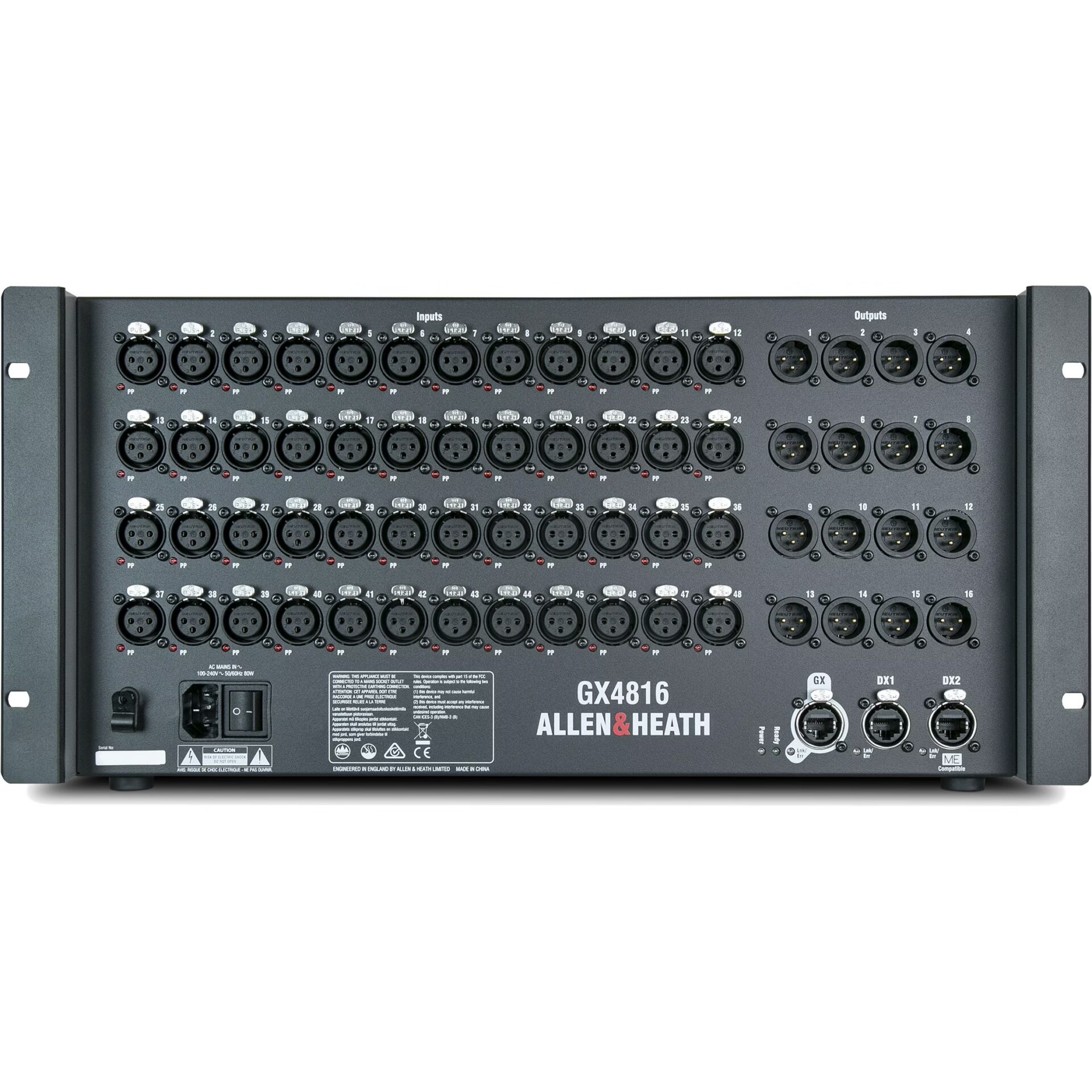

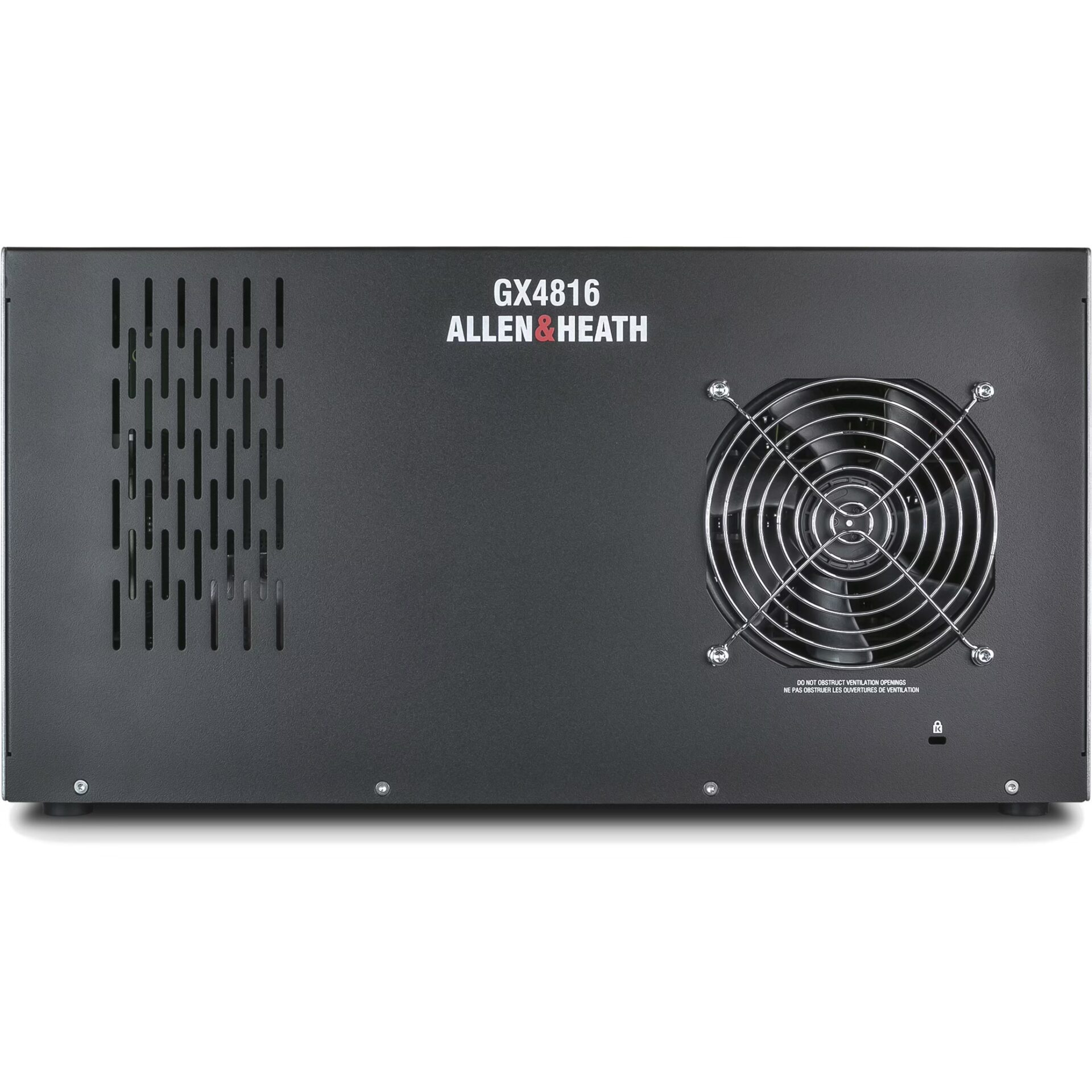

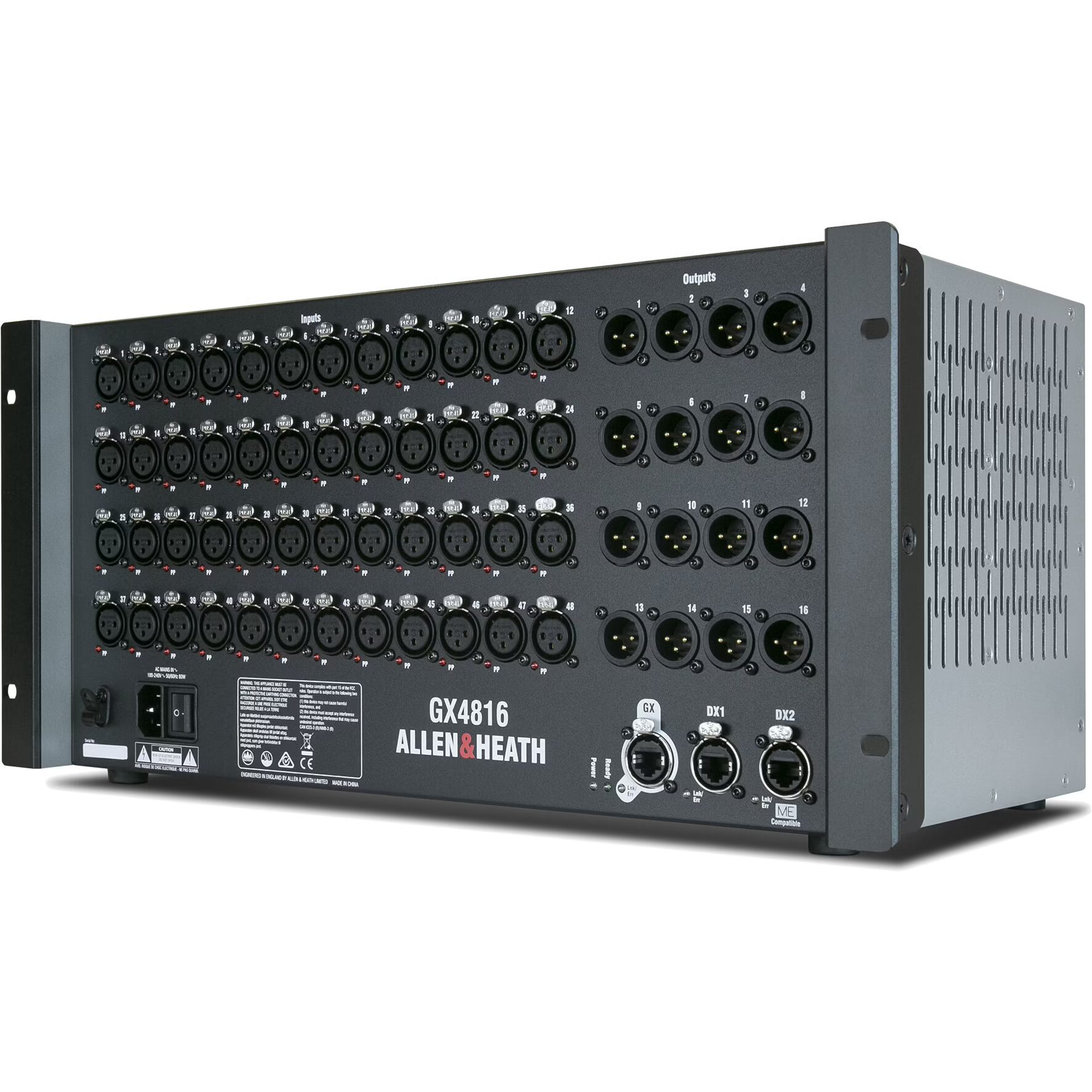

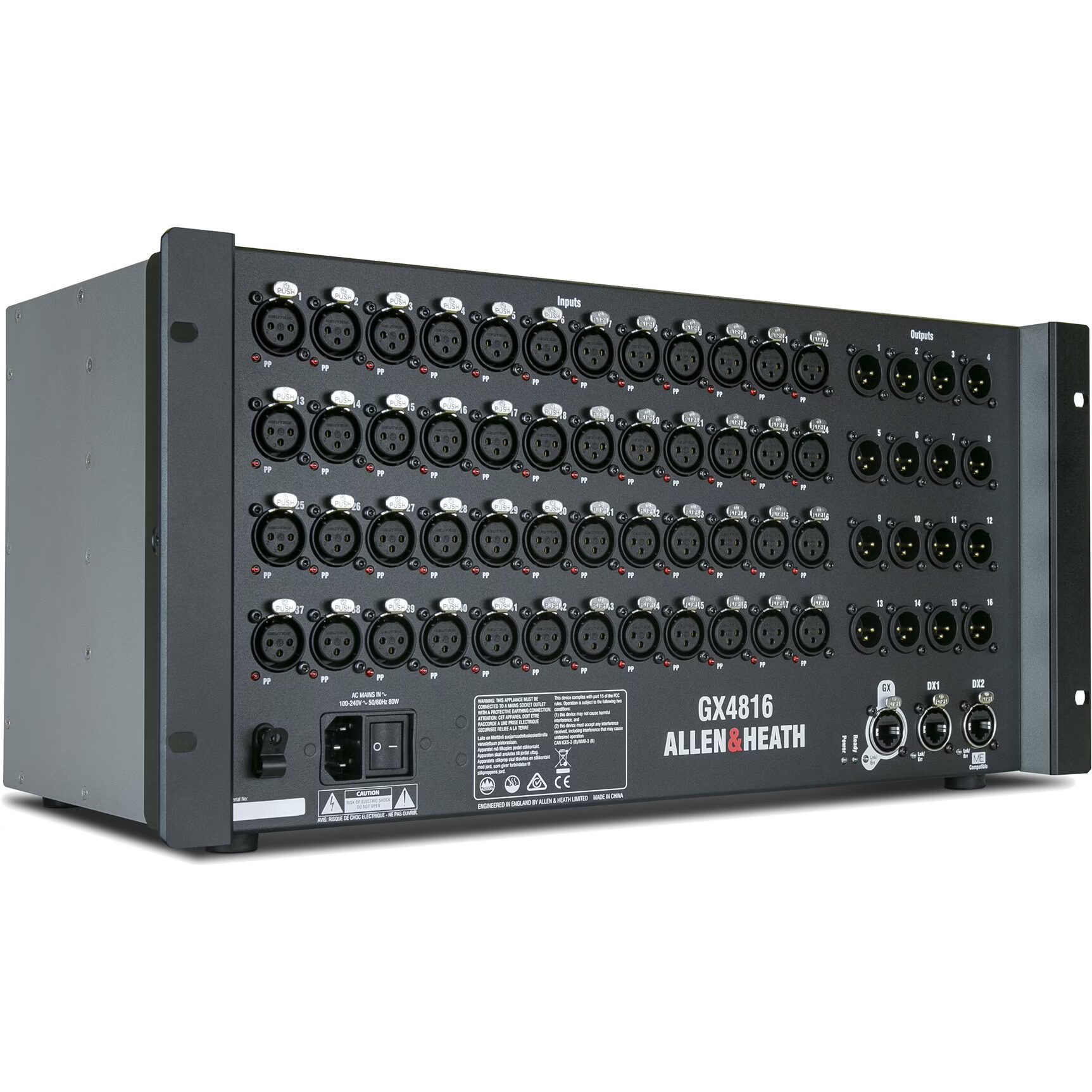

Allen & Heath GX4816
inputs
Mic/Line XLR inputs: balanced XLR, +48V phantom power supply
input sensitivity: -60 dBu to +15dBU
analogue amplification: +5 tot + 60dB, in 1dB steps
pad: -20dB Active PAD
Maximum Input Level: +30dBu (PAD in)
input impedance: >4kΩ (Pad out), >10kΩ (Pad in)
mic EIN: -127dB with 150 Ohm source
phantom power supply indicator: per socket, internal or external, triggered @ 24V

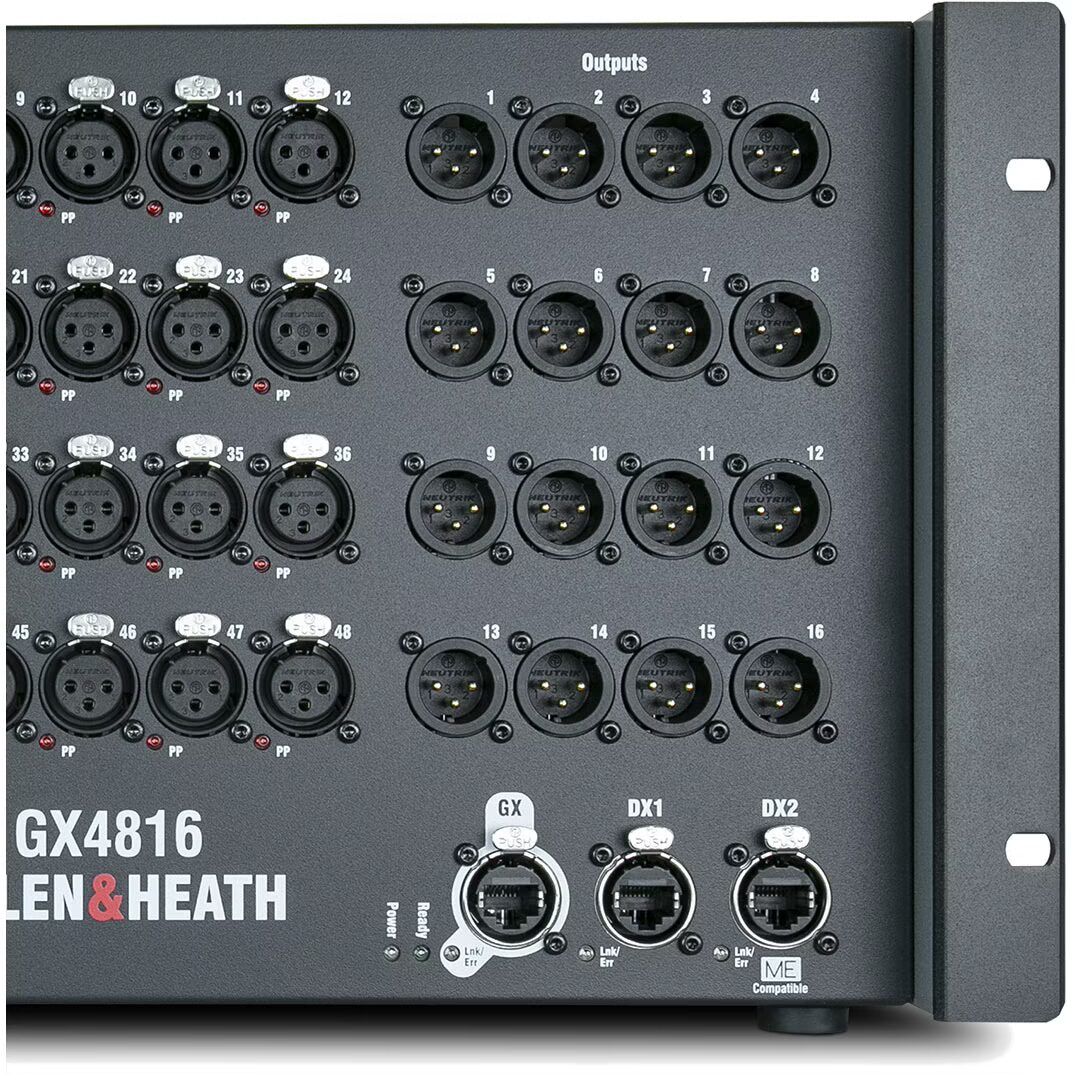

outputs
analogue XLR outputs: balanced, relay-protected
output impedance: 75 ohms
nominal output: +4dBu = 0dB meter reading
maximum output level: +21 dBu
multiple GX4816 units can be added to an existing system:
up to 2 GX4816s can be added to an SQ system
up to 3 GX4816s can be added to an Avantis system
up to 5 GX4816s can be added to a dLive S Class system
up to 3 GX4816s can be added to a dLive C Class system
Residual Output Noise: -95dBu (muted, 22Hz-22kHz)
power supply: 100-240 V, 50/50 Hz
power consumption: 80W max.
operating temperature: -0°C ~ +40°C
dimensions: 481.6 x 255 x 229.5mm (5U)
weight: 8 kg
