Allen & Heath DT168 Dante Audio Expander for dLive and SQ

Original price was: €1,620.Current price is: €1,095.

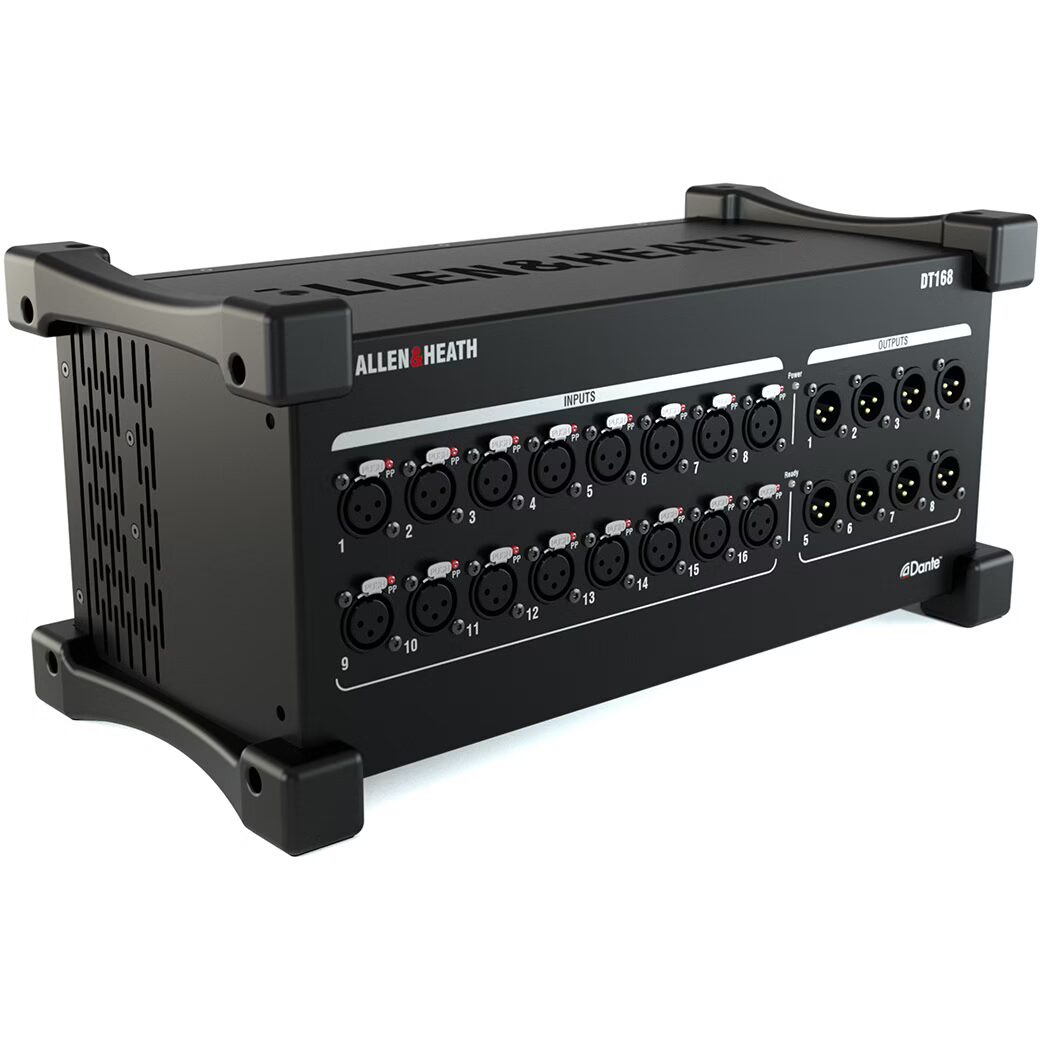

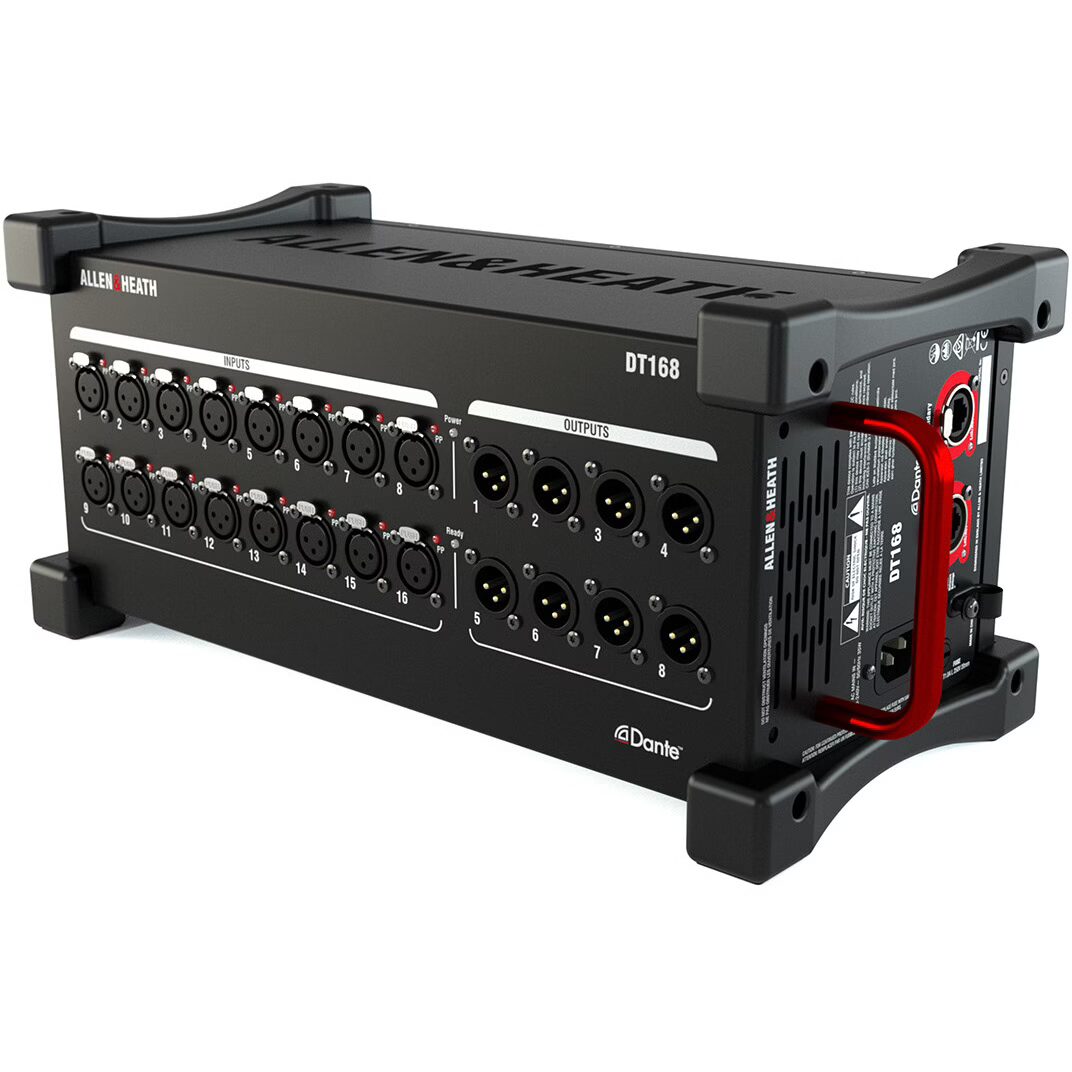

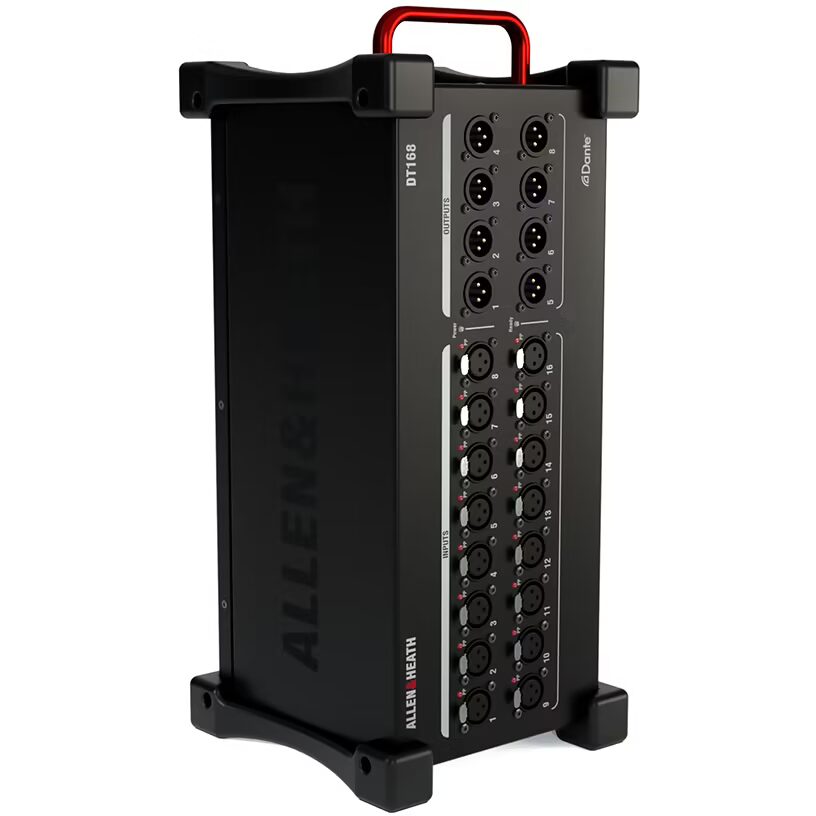

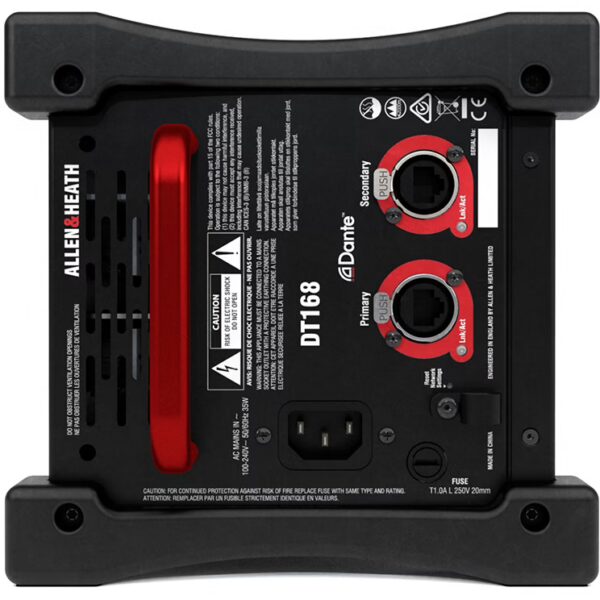

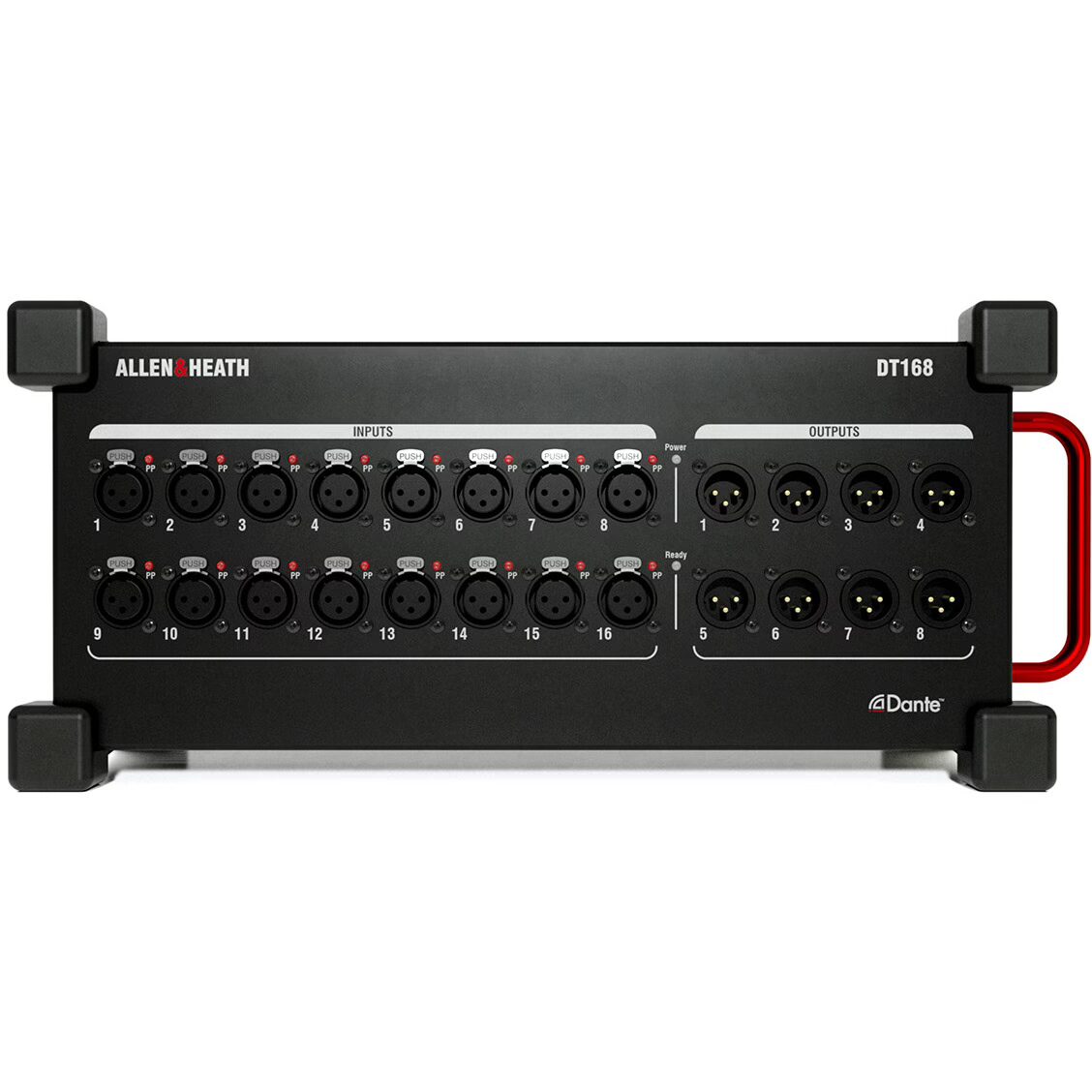

The Allen & Heath DT168 Dante Audio Expander for dLive and SQ network application comes in a stagebox form fitted with useful hand grips designed to withstand intense mobile use. As a result, this unit can be installed onstage or as a ‘drop-in’ expander. The face is covered with 16 inputs and 8 line outputs and each output is supported by a highly reliable, bona fide Allen & Heath preamplifier, complete with 96kHz converters for the best possible quality of audio transfer over the Dante network. The DT168 can also be placed in series using the primary and secondary ports; is compatible with AES67; can be rack mounted and is fully ‘Dante Domain Manager’ ready.

Description

Specifications

Product features
19-inch rack size not applicable
Number of analogue input channels 9 – 16
Number of analogue output channels 8
Weight and dimensions including packaging
Weight (incl. packaging)6.3 kg
Dimensions (incl. packaging)56.0 x 31.5 x 31.5 cm
Product specifications
Allen & Heath DT168
Dante audio expander
compatible with dLive en SQ
stage box format
mic / line XLR inputs: balanced, + 48V phantom power
mic / line preamplifier: fully controllable
input sensitivity: -60 to +15 dBu
analogue amplification: +5 tot + 60dB, in 1dB steps
pad: -20dB Actieve PAD
max. input level: + 30dBu (PAD in)
input impedance: >4k Ohm (Pad out), >10k Ohm (Pad in)
mic / line channel noise: 22-22 kHz, direct out unbalanced
mic EIN: -127dB with 150 Ohm source
unit gain (pad in): -90dBu
low amplification: (5dB, Pad out) -96dBu
mid gain: (30dB, Pad out) -90dBu
mic / line channel: THD + N 22-22 kHz, direct out unbalanced
unit amplification (Pad in): 0,003% -88dBu at 1kHz, 0dBu-export
low amplification: (5dB, Pad out) 0,002% -93dBu at 1kHz, 0dBu-export
mid-gain: (30dB, pad out) 0,003% -88dBu at 1kHz, 0dBu-export
balanced analogue XLR-outputs, relay protection
output impedance: < 75 Ohms
nominal output: + 4dBu = 0dB metered
maximum export level: + 22dBu
residual output noise: -92dBu (damped, 20-20kHz)
DANTE:
sample rate: 48kHz, 96kHz
bit depth: 24-bit
gain, pad, control: Allen & Heath dLive of SQ-systeem
power supply: 100-240V, 50/60 Hz, 40W max
dimensions: 410 x 190 x 185 mm
weight: 4.6 kg
