Description
Specifications
Product features
Number of microphones 1 microphone
Battery type AA
Battery life (approx.)8 hours
Frequency suitable for Belgium yes, licence required
Frequency suitable for Netherlands yes, no licence required
Frequency suitable for UK yes, with standard licence
Worldwide frequency use no
Frequency band Sennheiser BW (626 – 698 MHz)
Channel 40 (622 – 630 MHz), 41 (630 – 638 MHz), 42 (638 – 646 MHz), 43 (646 – 654 MHz), 44 (654 – 662 MHz), 45 (662 – 670 MHz), 46 (670 – 678 MHz), 47 (678 – 686 MHz), 48 (686 – 694 MHz), 49 (694 – 702 MHz)
Maximum SPL150 dB – 159 dB
Maximum frequency 18 – 18.9 kHz
Minimum frequency 80 – 99 Hz
Polar pattern super cardioid
Switchable frequencies yes
Analogue audio output type unbalanced line out (TS jack), balanced microphone out (XLR)
Type of frequency band 600 – 699 MHz
Transmission power 10 mW + 30 mW + 50 mW
Power adapter ungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)2.7 kg
Dimensions (incl. packaging)41.0 x 35.5 x 7.5 cm
Product specifications

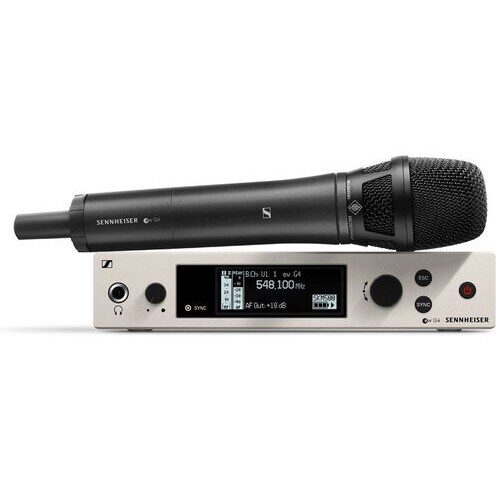

Sennheiser ew 500 G4-205-BW
wireless vocal set
frequency band BW: 626 – 698 MHz
system:
bandwidth: 88 MHz
range: max. 100 m
number of channels: 32

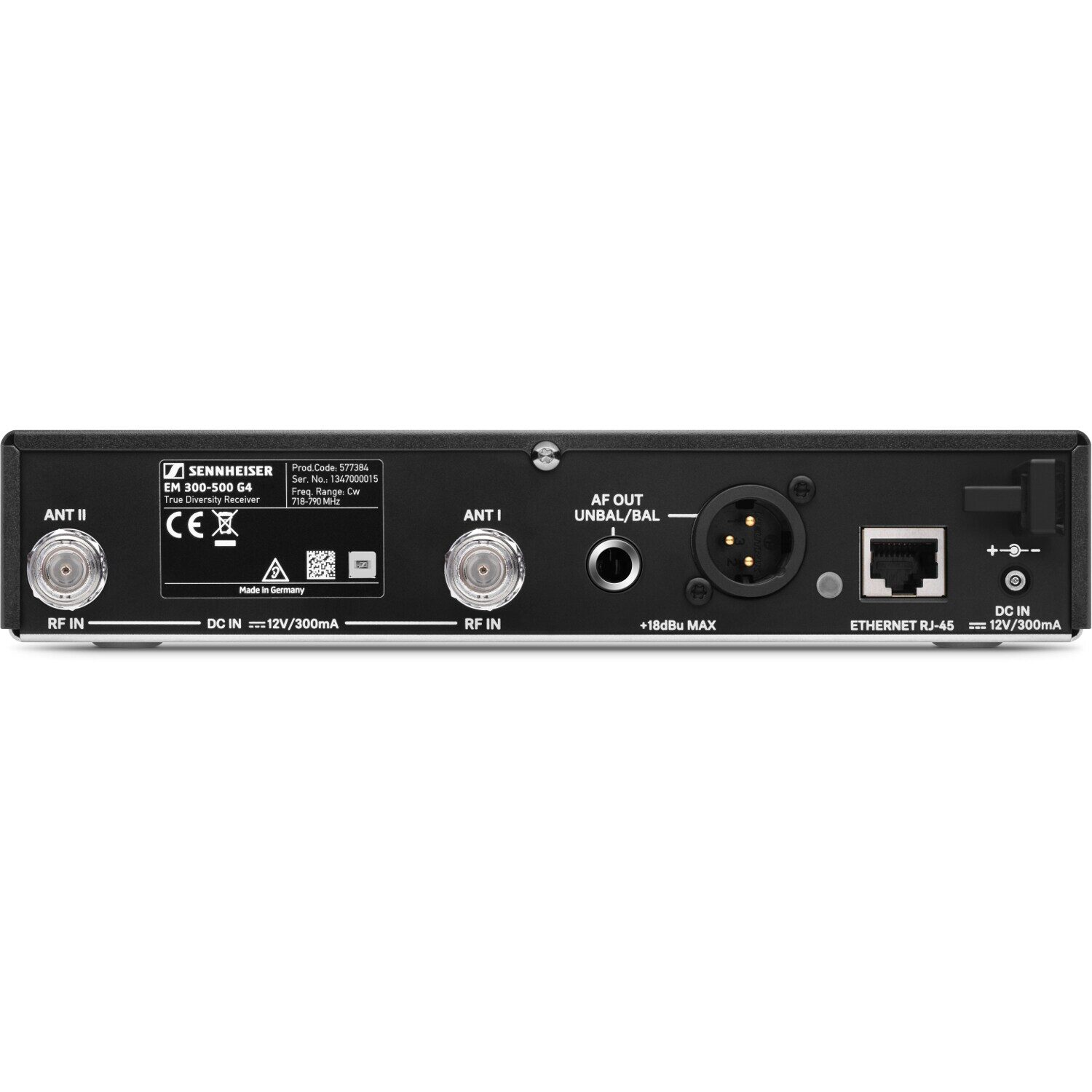

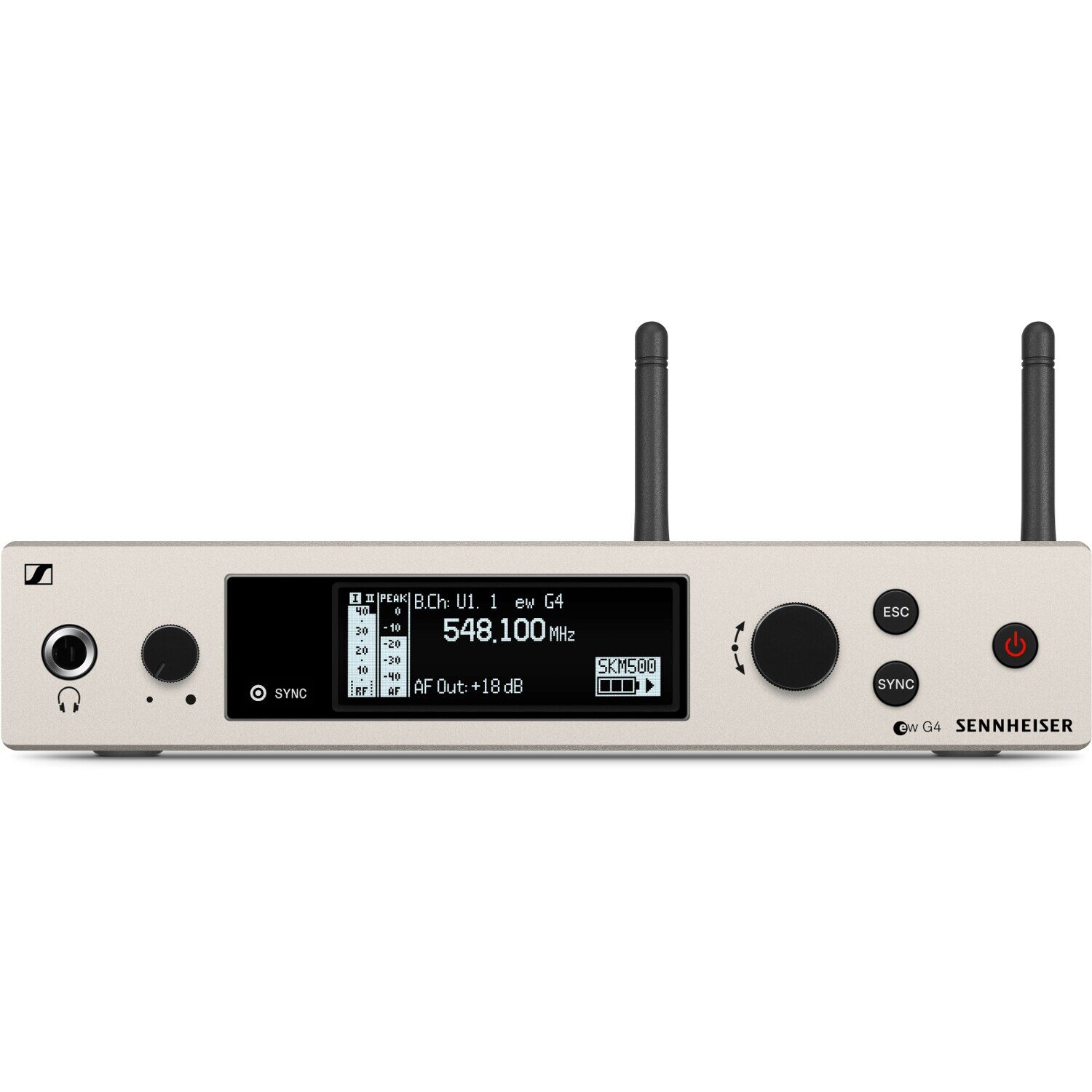

EM 300-500 G4 receiver:
outputs: XLR (balanced), jack (balanced or unbalanced)
Ethernet connection for frequency management
4x equalizer presets
dimensions: 202 x 212 x 43 mm
weight: 980 gr
SKM 500 G4 handheld transmitter

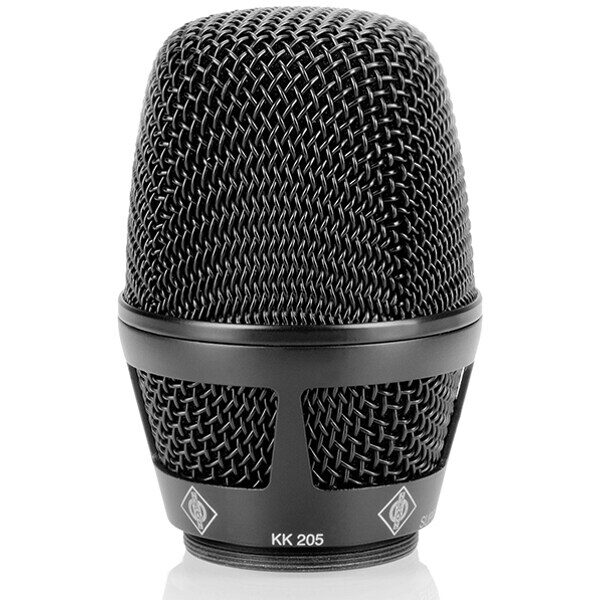

Neumann KK 205 capsule
frequency response: 40 Hz – 20 kHz
pickup pattern: can be switched between cardioid and super-cardioid
max. transmission capacity: 50 mW
equipped with mute button
power supply: 2x AA batteries or a separately available BA 2015 rechargeable battery
dimensions: 50 x 265 mm
weight: 450 g
included:
GA 3 rack mount set
MZQ 1 mic clip
mains power adapter for receiver
2x AA batteries
2x antennas
