Description
Specifications
Product features
Touch-sensitive keys Yes
Connectors Headphone (jack), Line-in (2x jack), Line-out (2x jack), Microphone input (jack), Sustain pedal
Number accompaniment styles 401 – 500
Number of keys 61
Aftertouch yes, monophonic
Arpeggiator/sequencer arpeg giator, sequencer, style maker
Weight 10 – 14.9 kg
Built-in sampler yes
Built-in speakers yes
Built-in amplifier 2x 33 W
Lyrics/score display lyrics, score
MIDI I/Oin/out, USB in / out
Pitch and modulation wheel yes
Polyphony (max.)128
Type of displayTFT, colour
Vocal harmony yes
Vocoder yes
Weight and dimensions including packaging
Weight (incl. packaging)15.1 kg
Dimensions (incl. packaging)116.5 x 54.5 x 26.0 cm
Product specifications

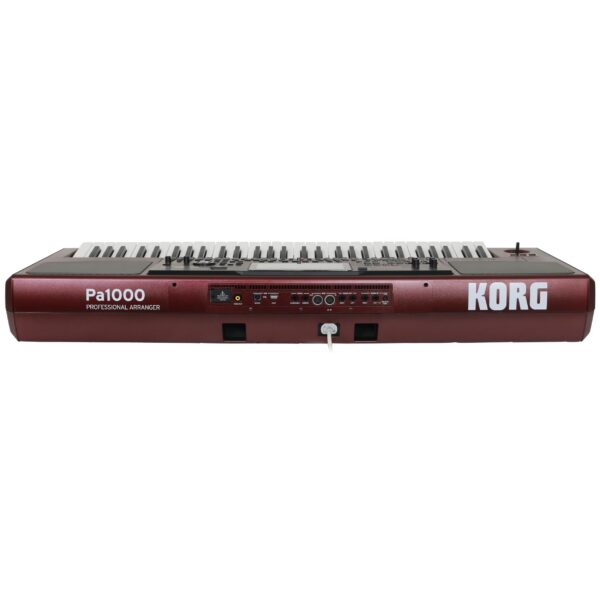

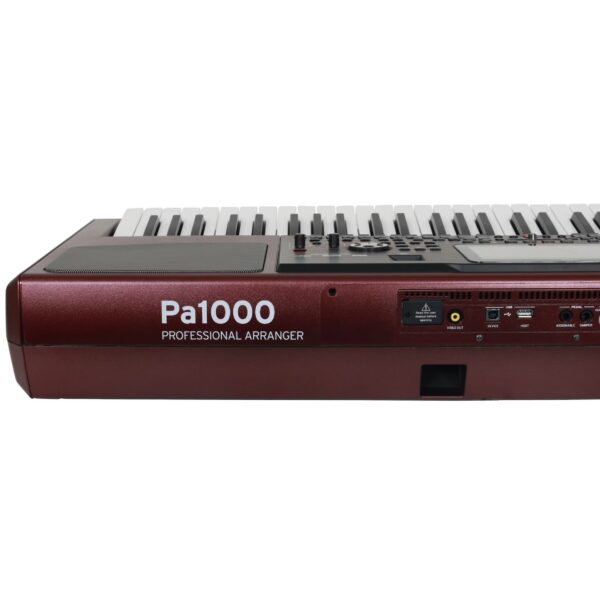

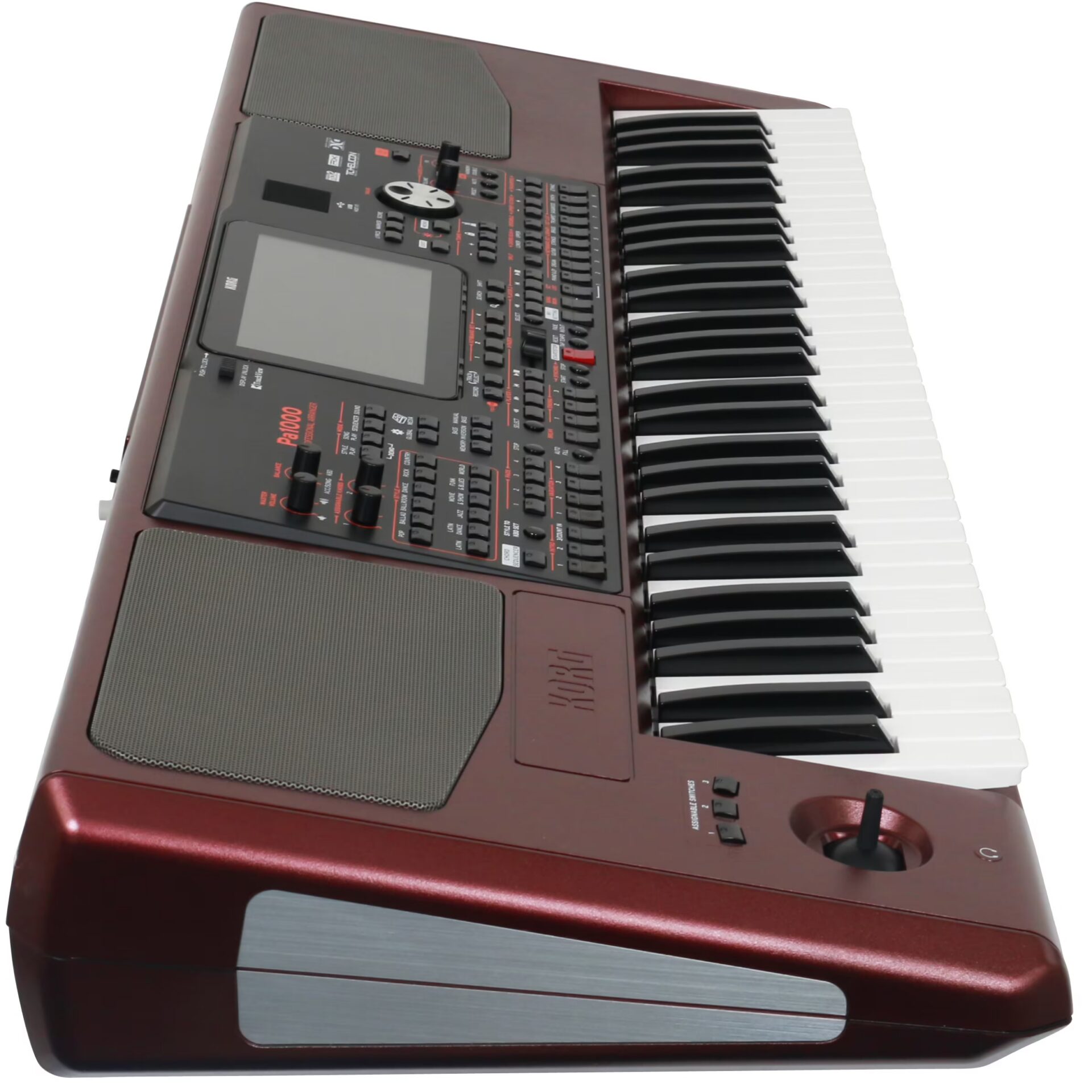

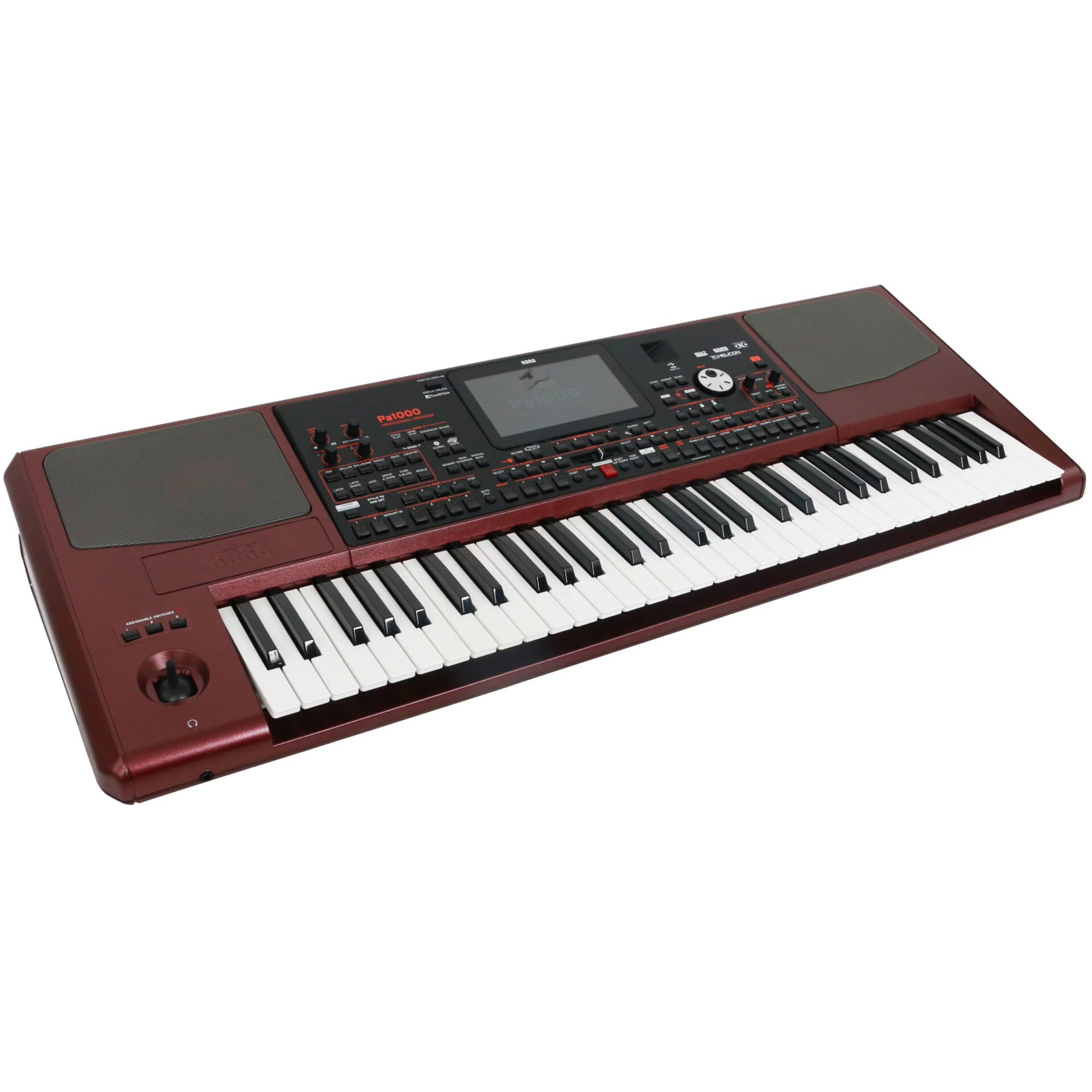

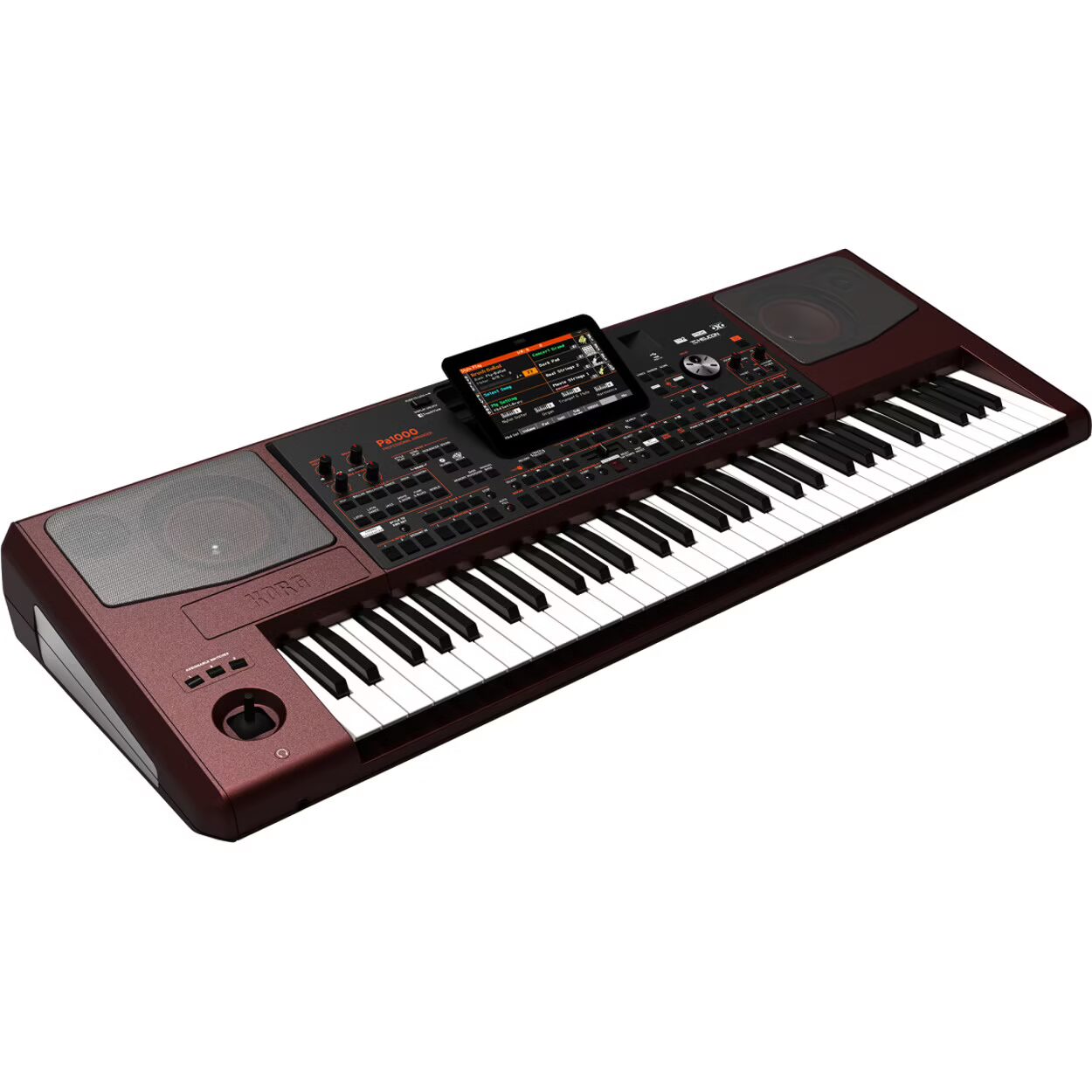

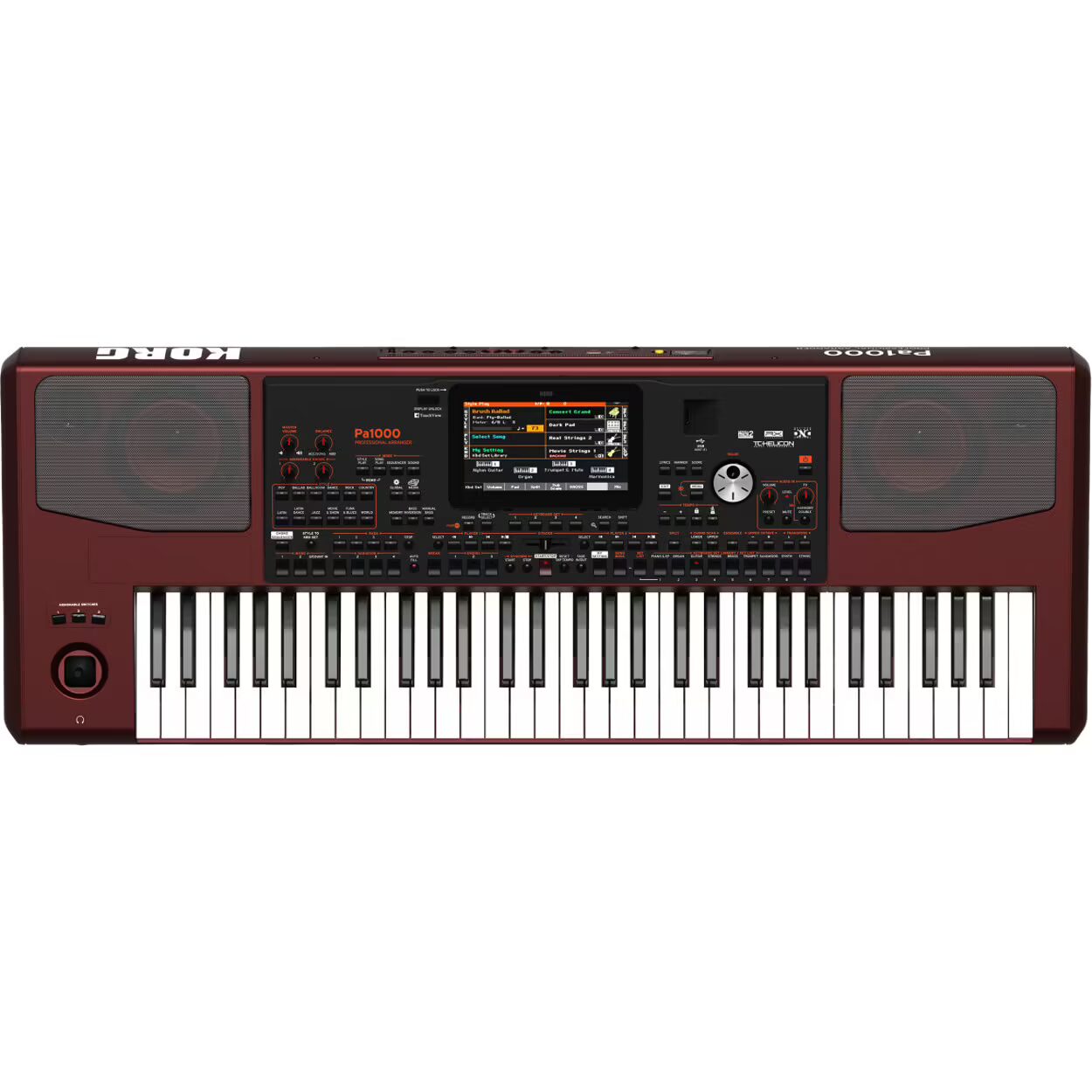

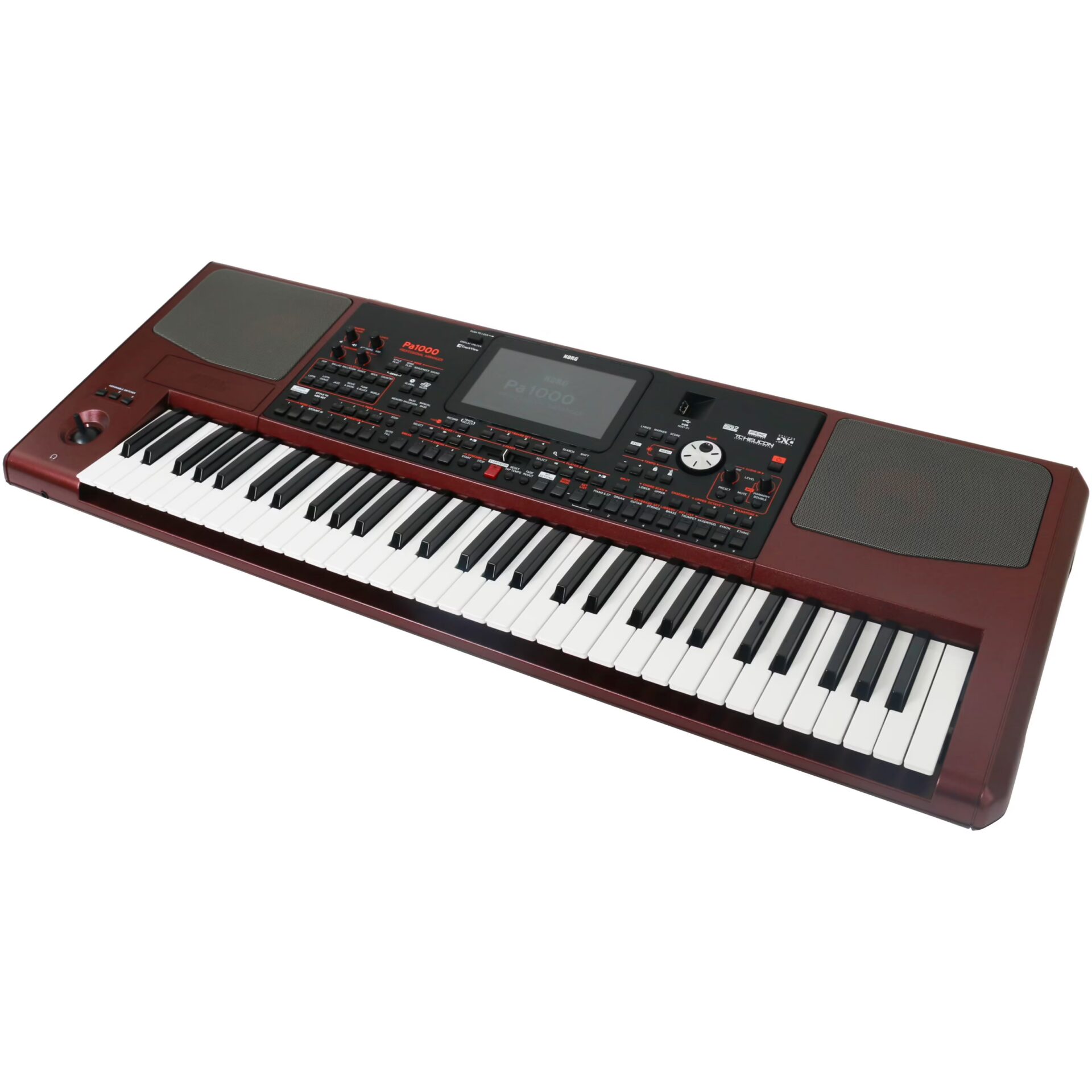

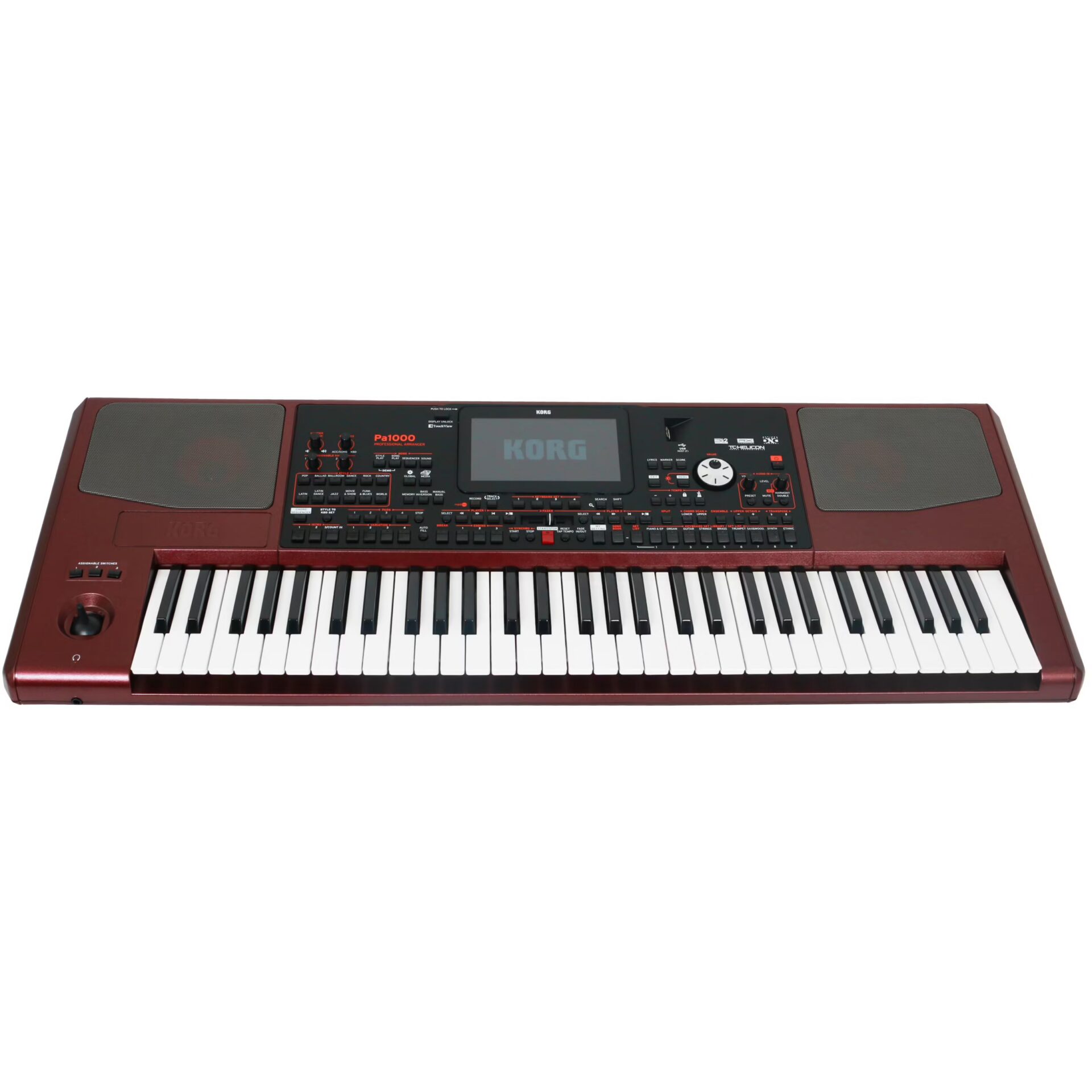

Korg Professional Arranger
keyboard: 61 semi-weighted, velocity-sensitive keys with aftertouch
Enhanced Definition Synthesis-eXpanded (EDS-X) sound engine
Defined Nuance Control
polyphony: 128 voices, 128 oscillators
preset sounds: more than 1,750, 107 drum kits
user presets: 512 sounds, 256 drum kits
preset styles: more than 430 (1,152 style slots available)
digital drawbars: 9
user PCM RAM: 300 MB compressed, equal to 600 MB of linear data
internal memory: 960 MB

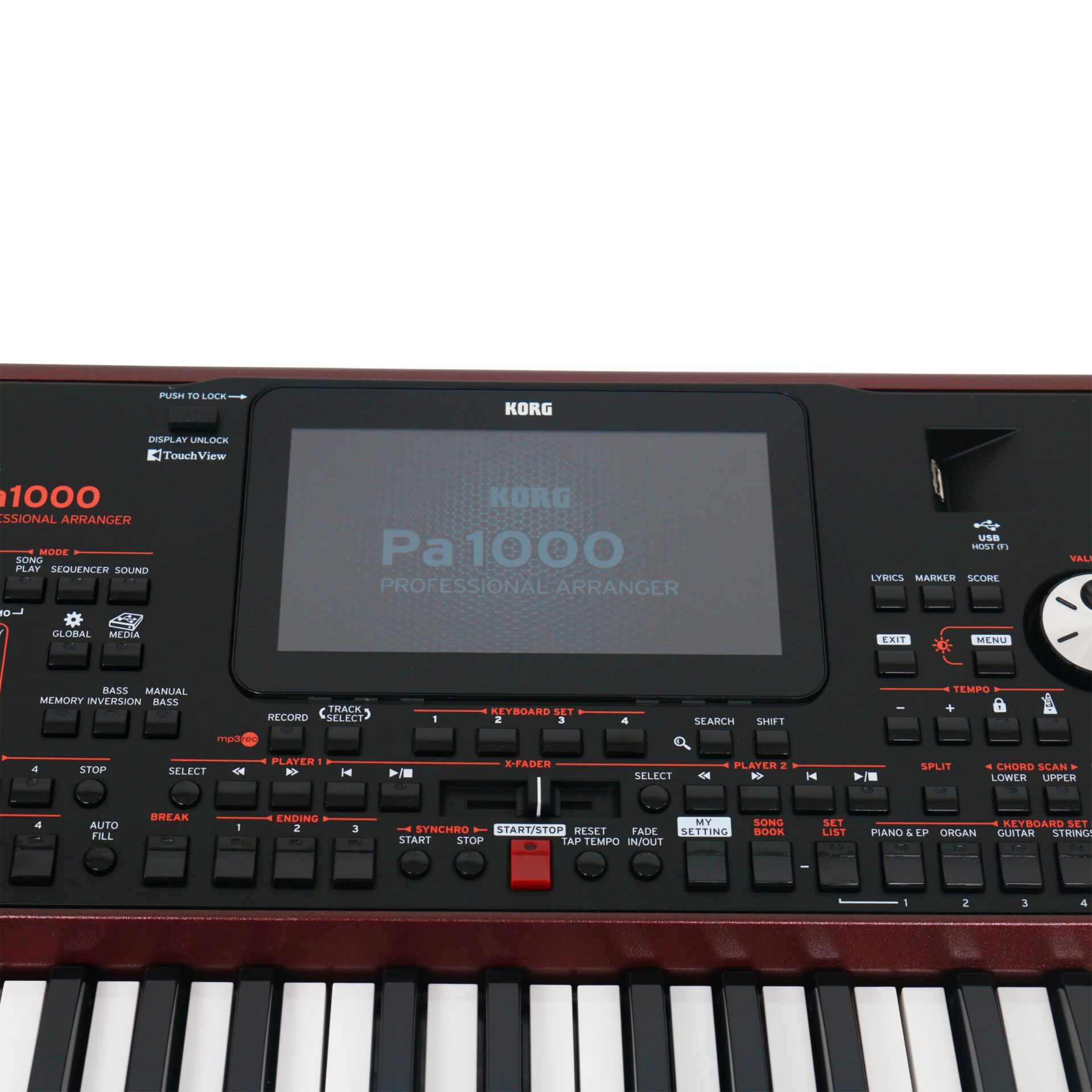

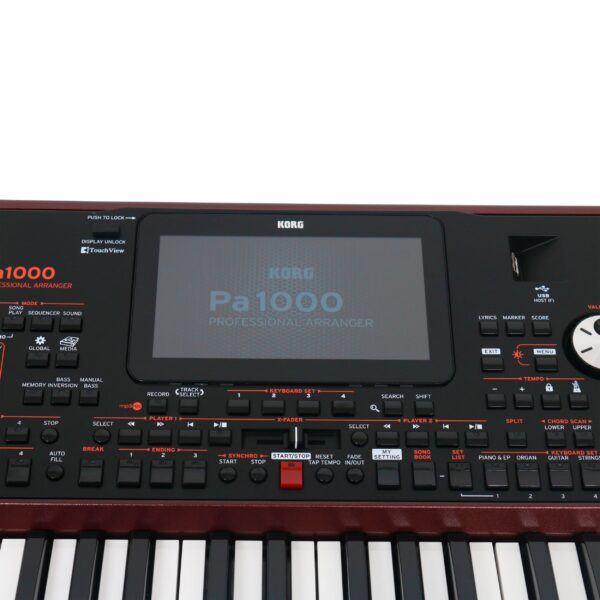

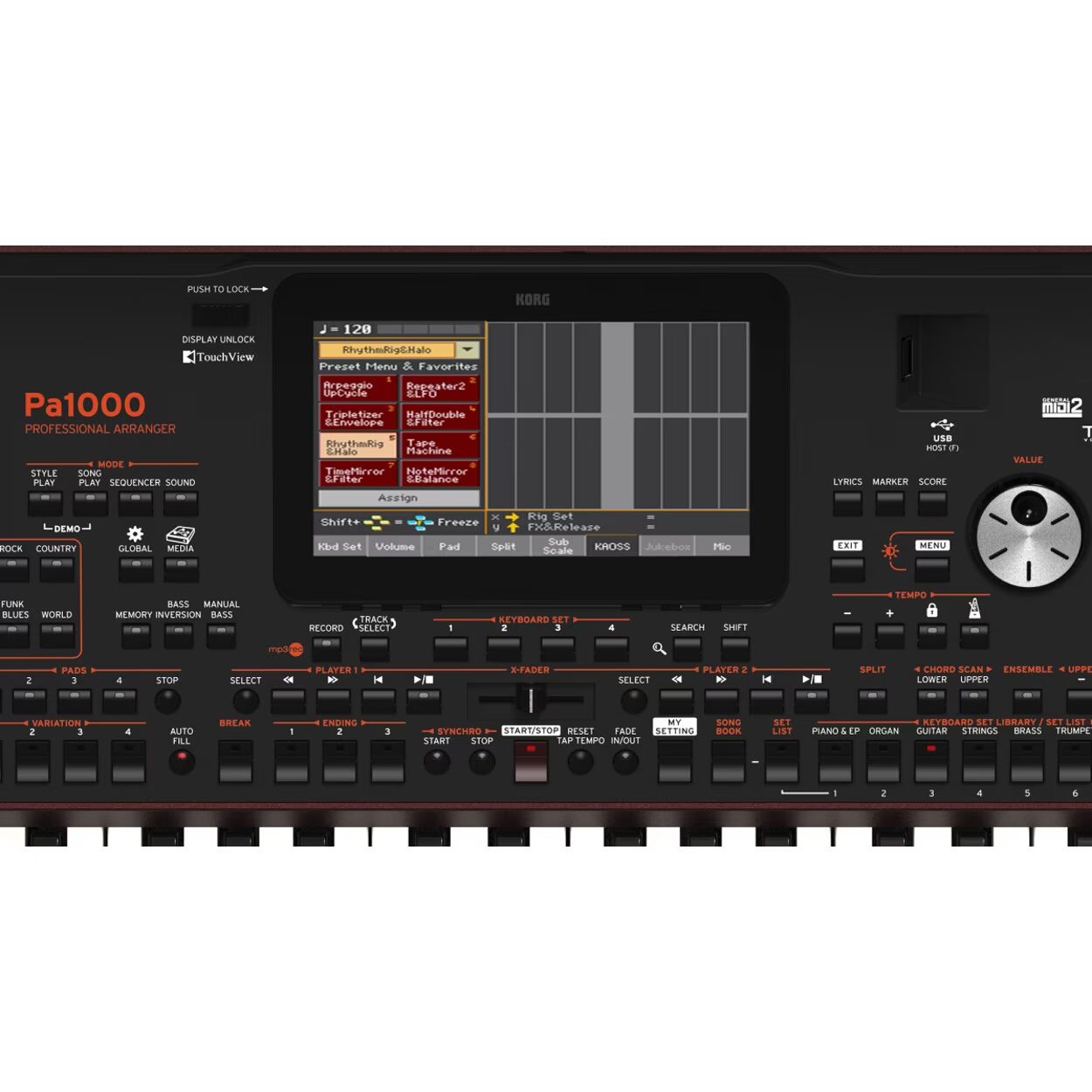

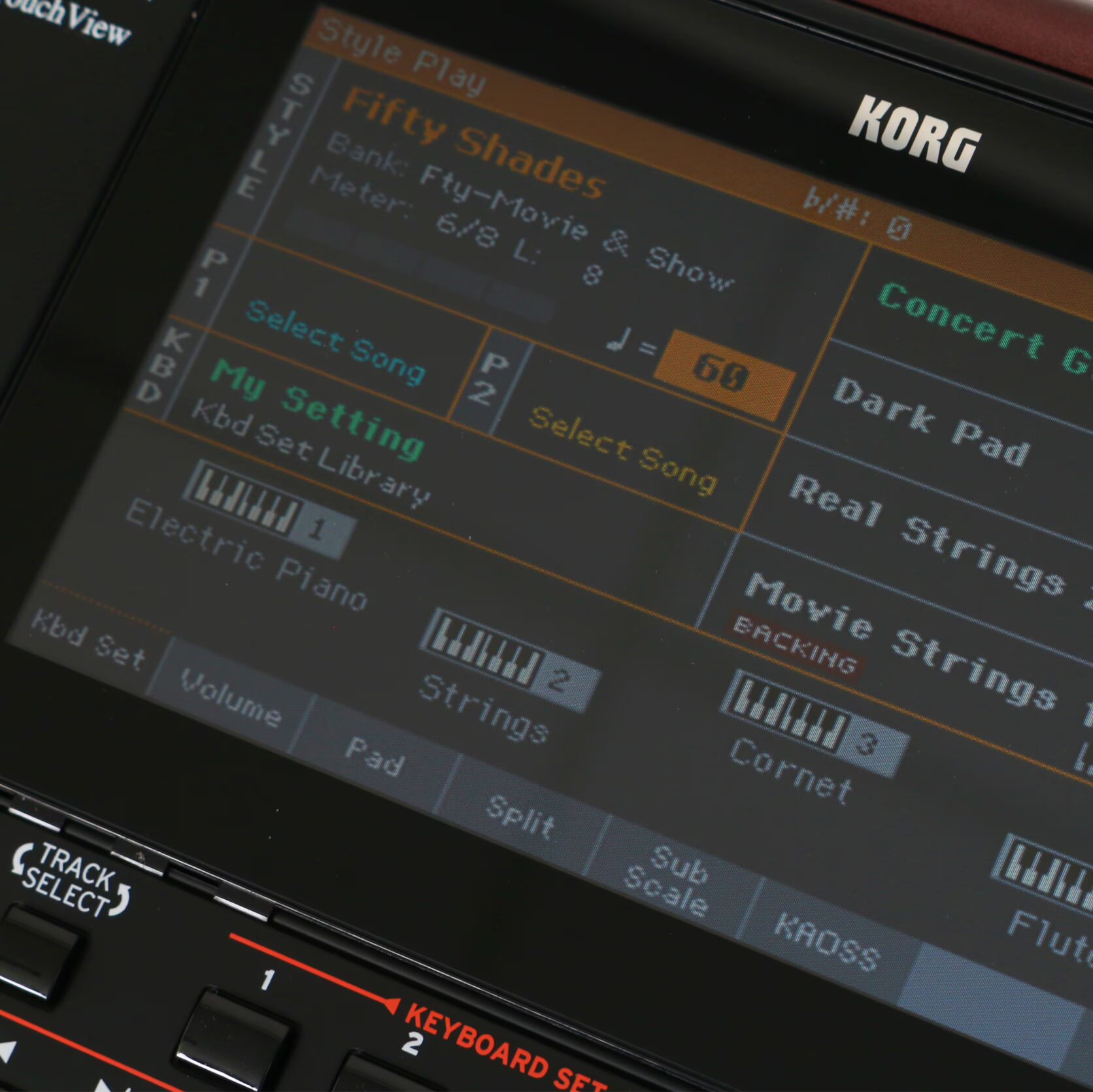

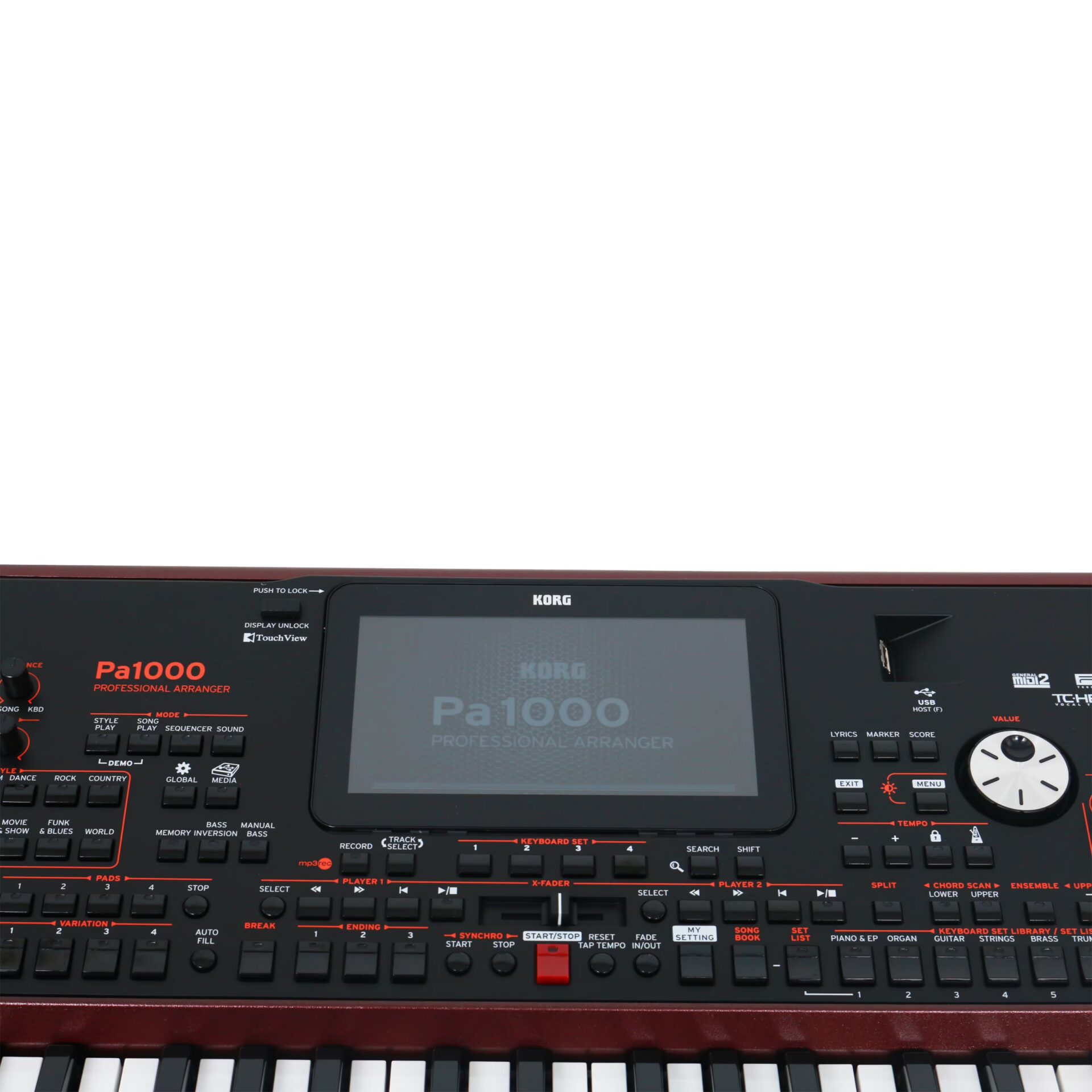

display: 7-inch TFT touch screen, tiltable
Enhanced Guitar Mode 2

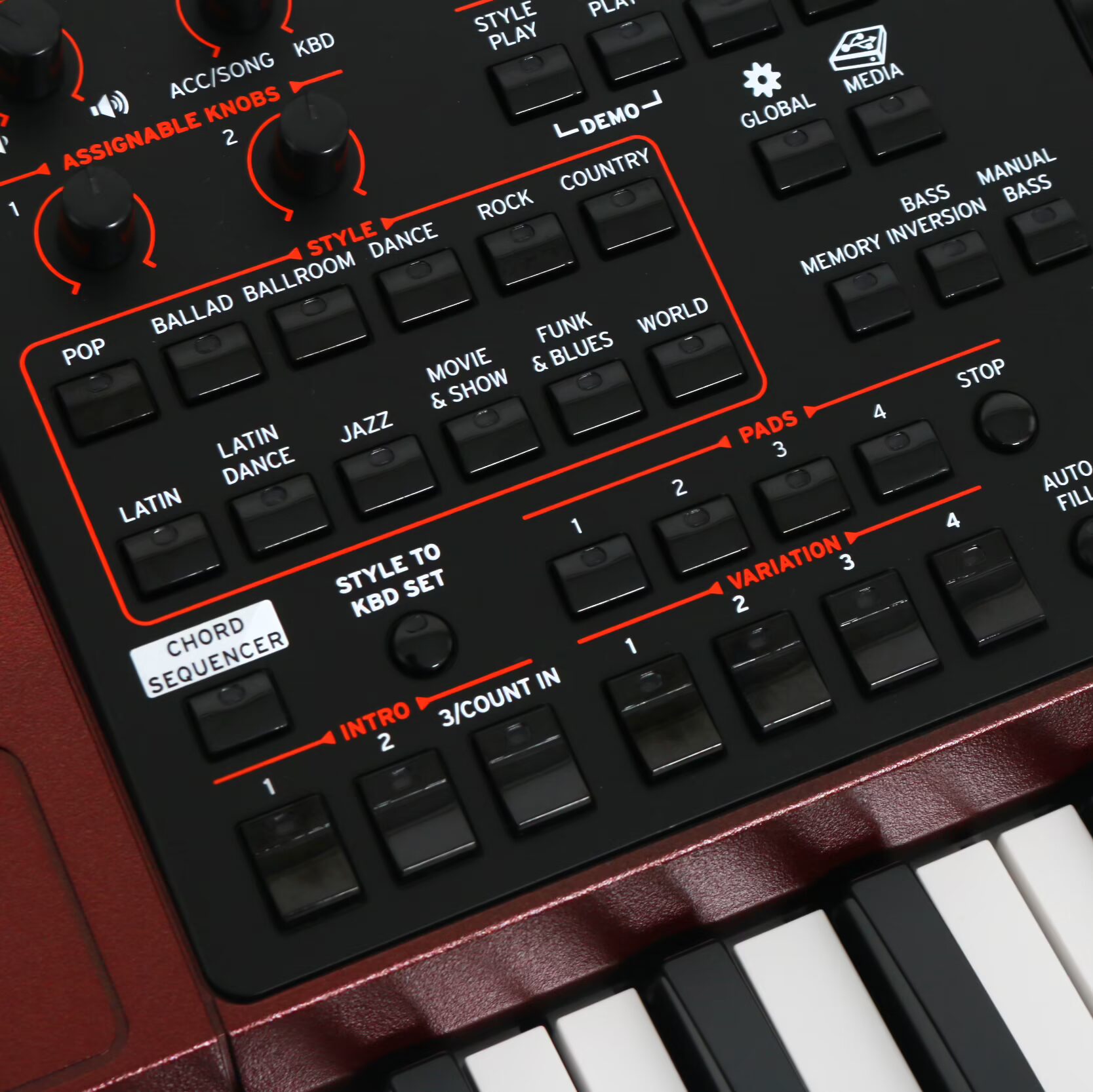

chord sequencer
Kaoss FX MIDI FX generator

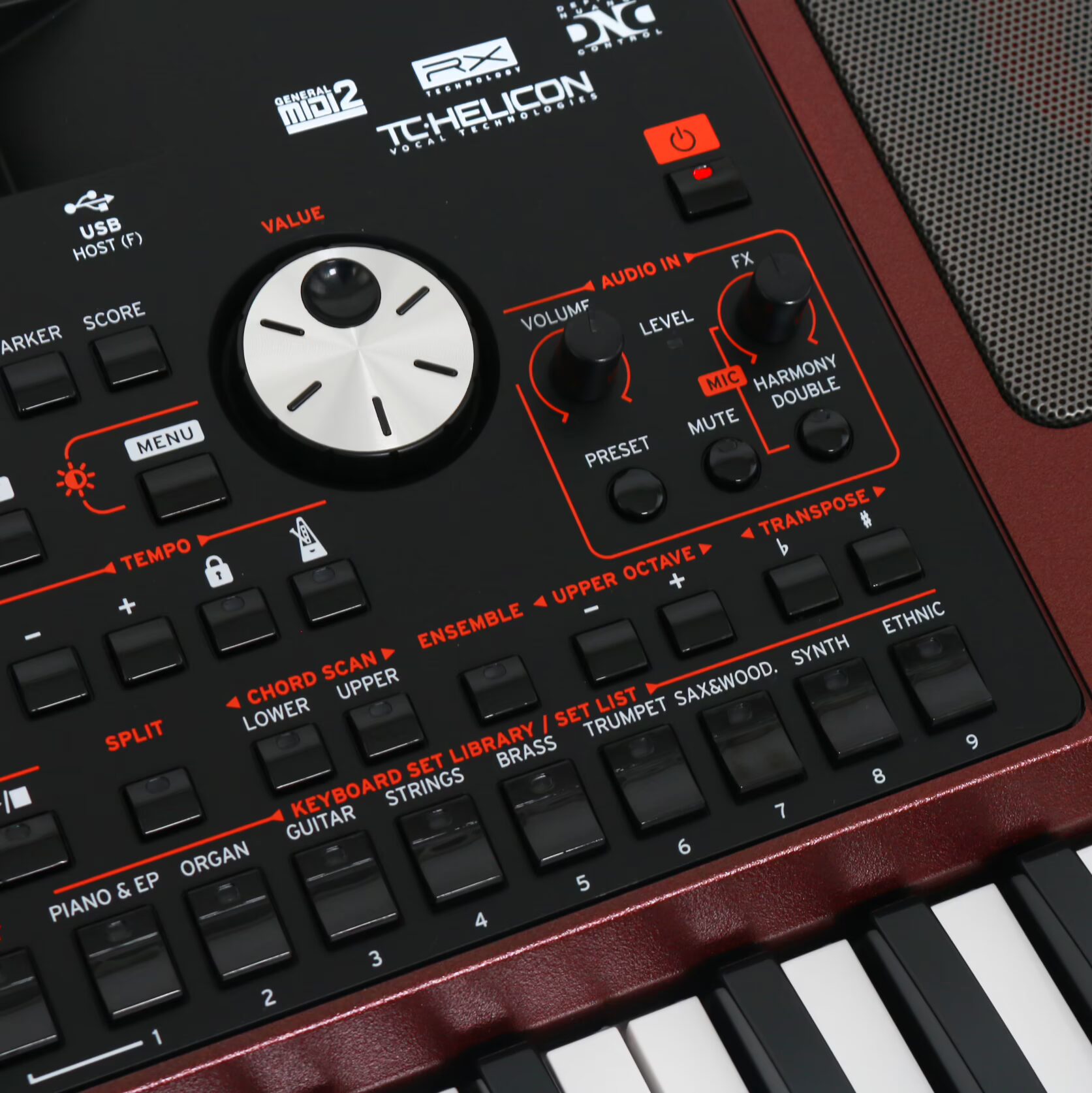

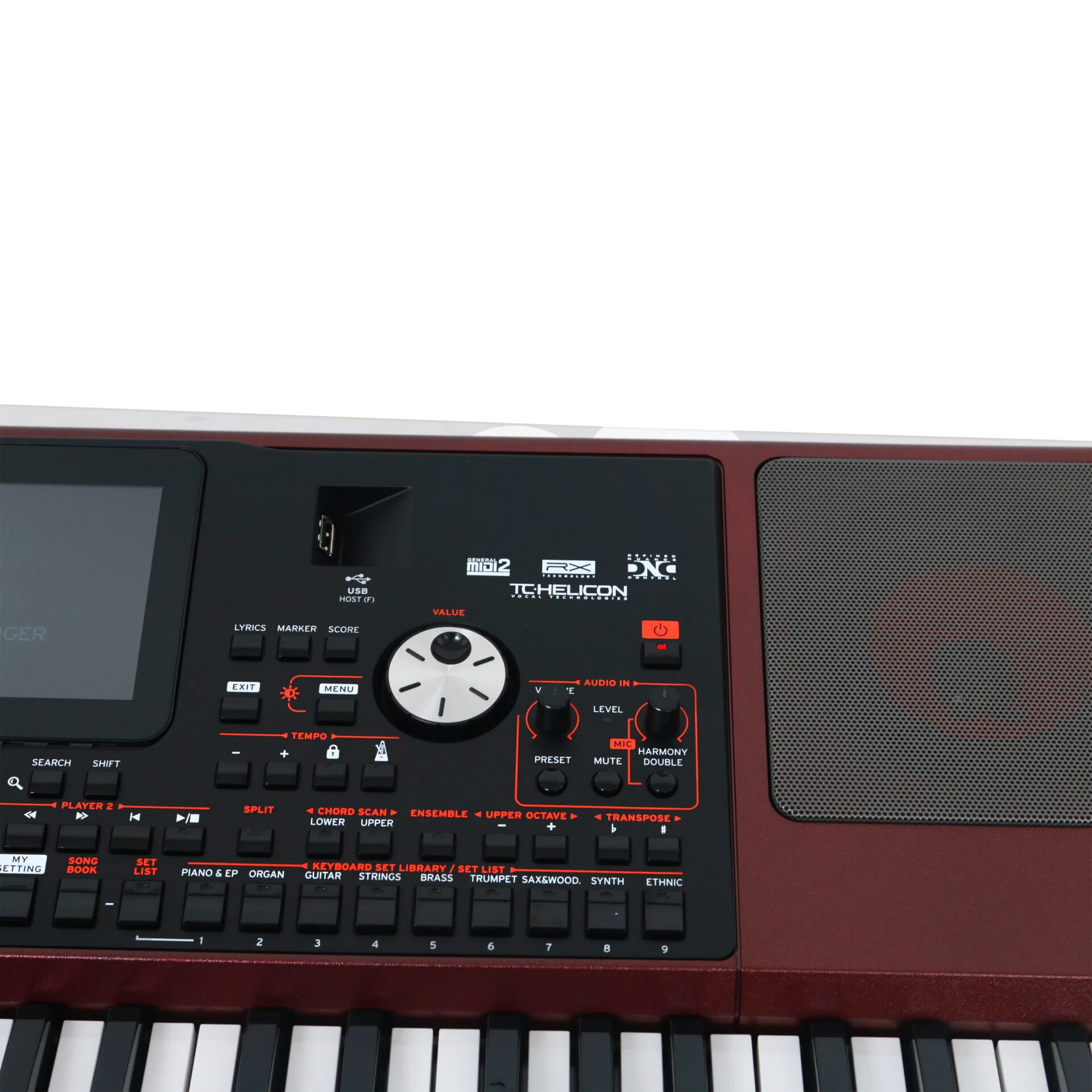

TC Helicon voice processor: 3 voices + reverb, delay and EQ
SongBook music database
double sequencer / player for MIDI, karaoke and MP3 (with vocal remover)
import: WAV, AIFF and SoundFont
export: WAV and AIFF
save to Micro SD or USB (not included)

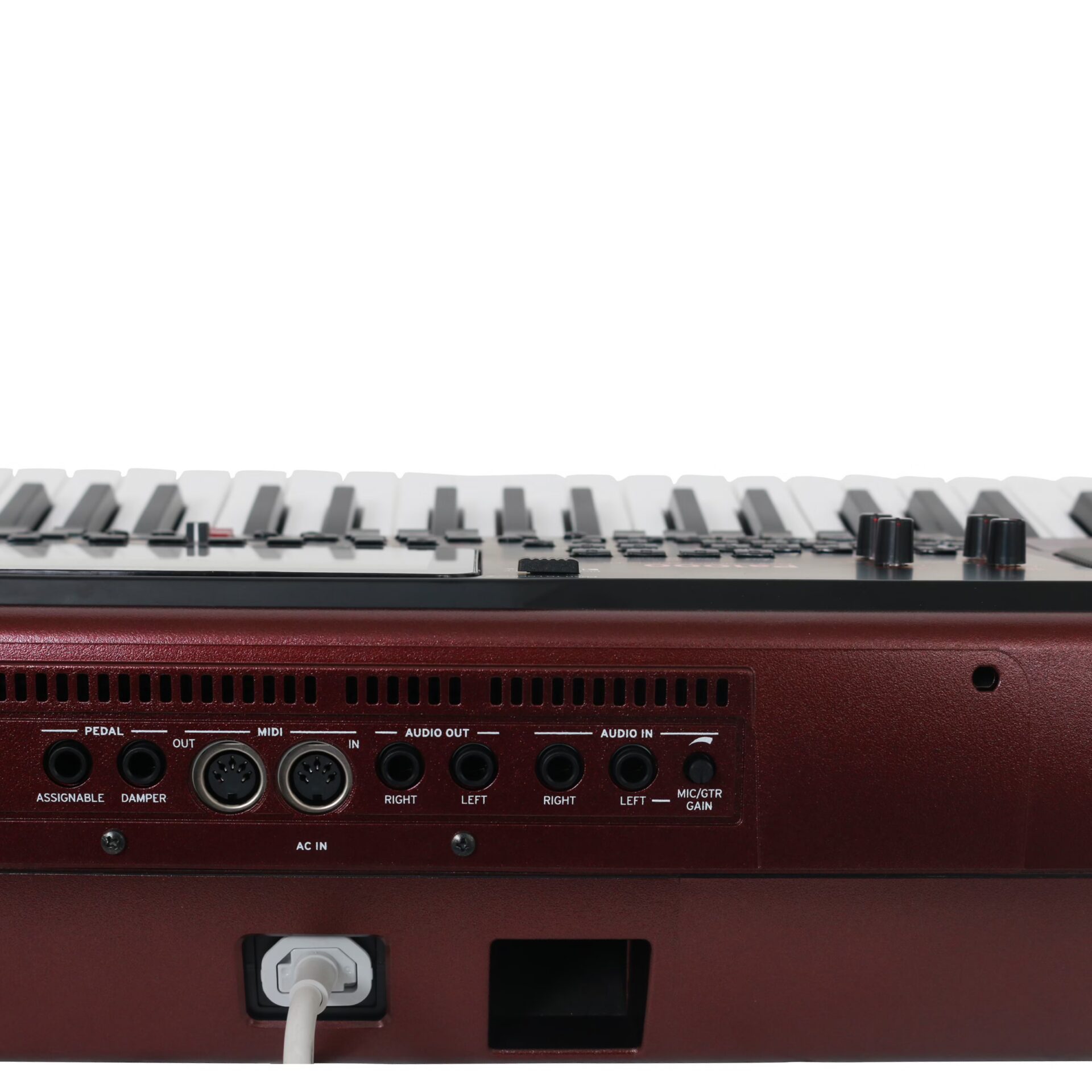

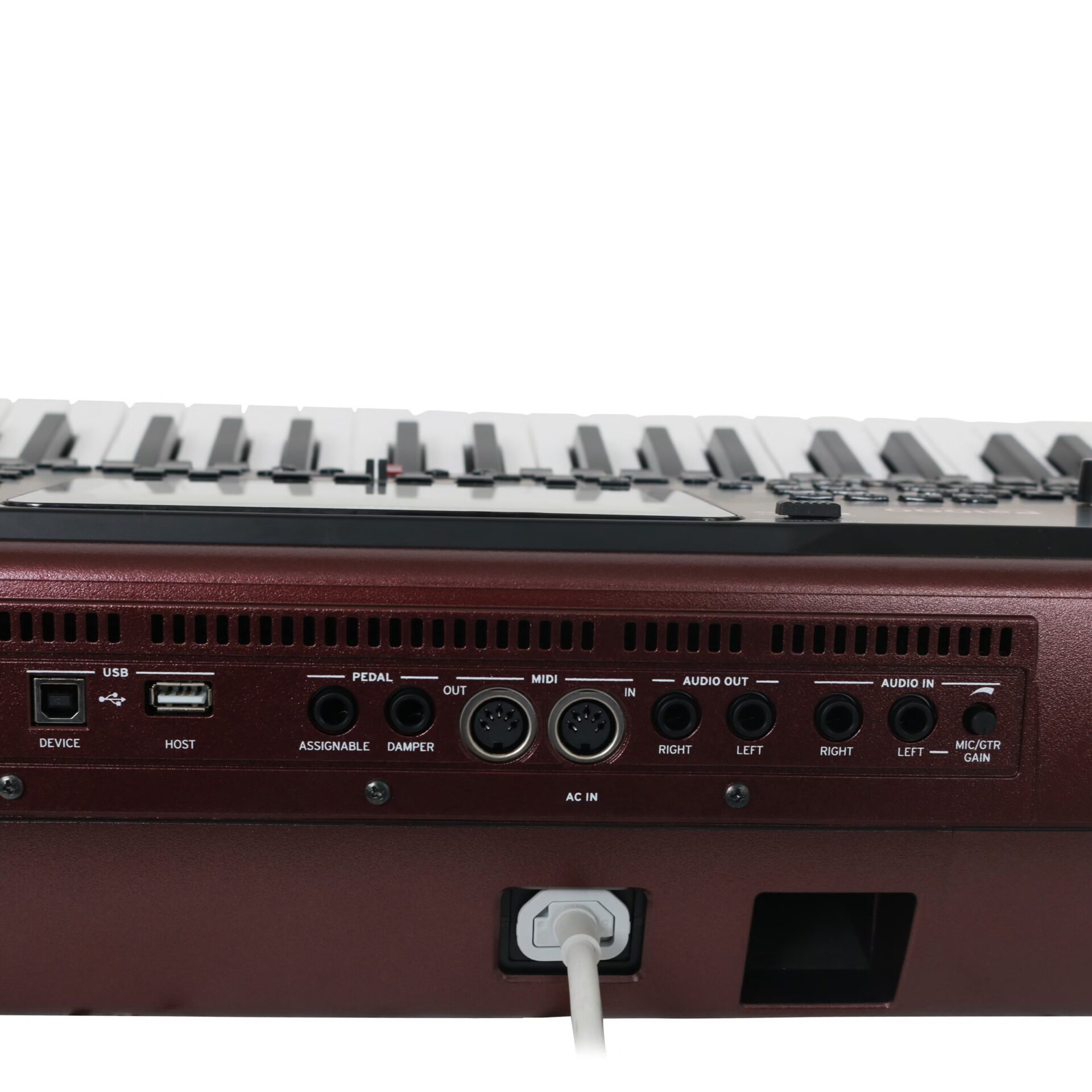

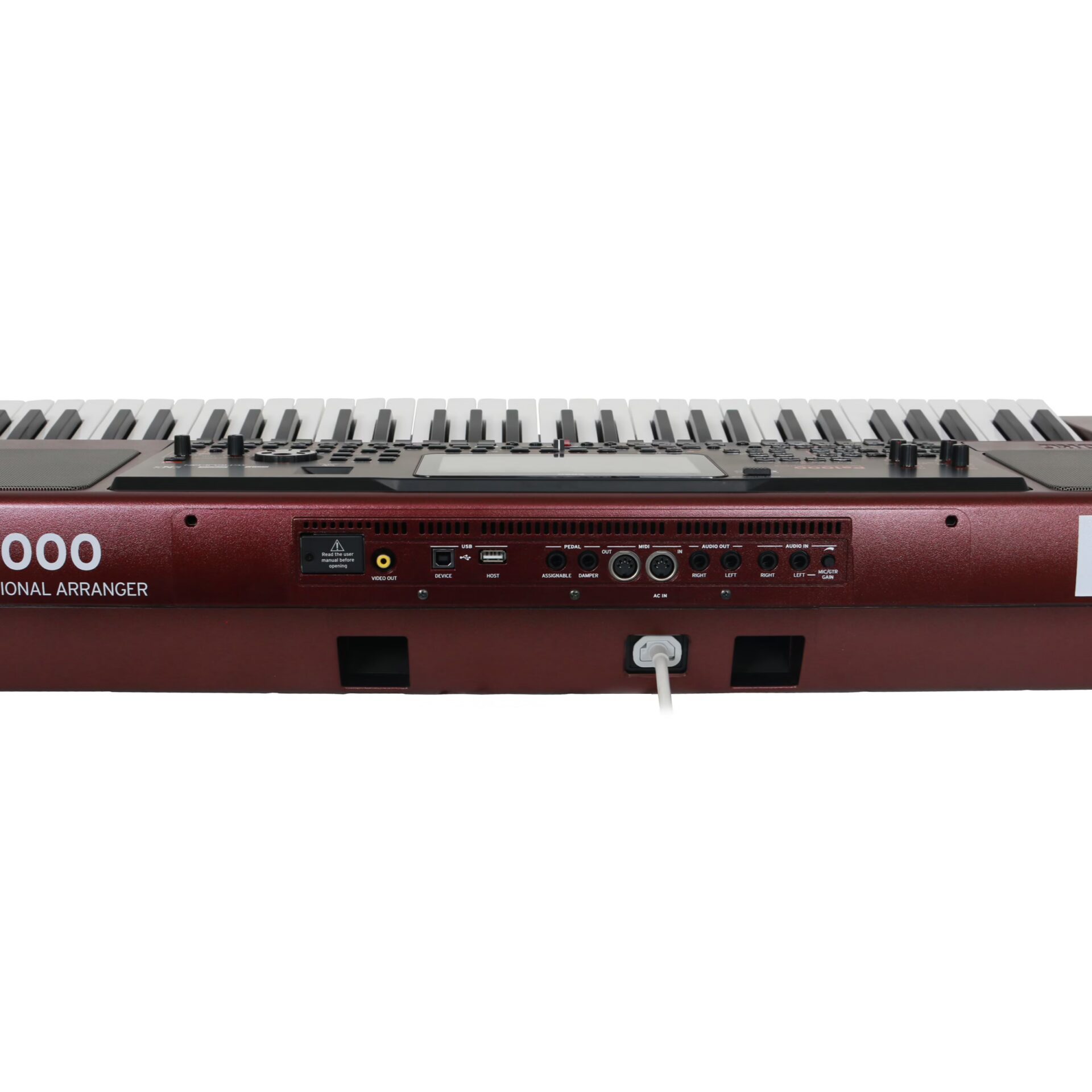

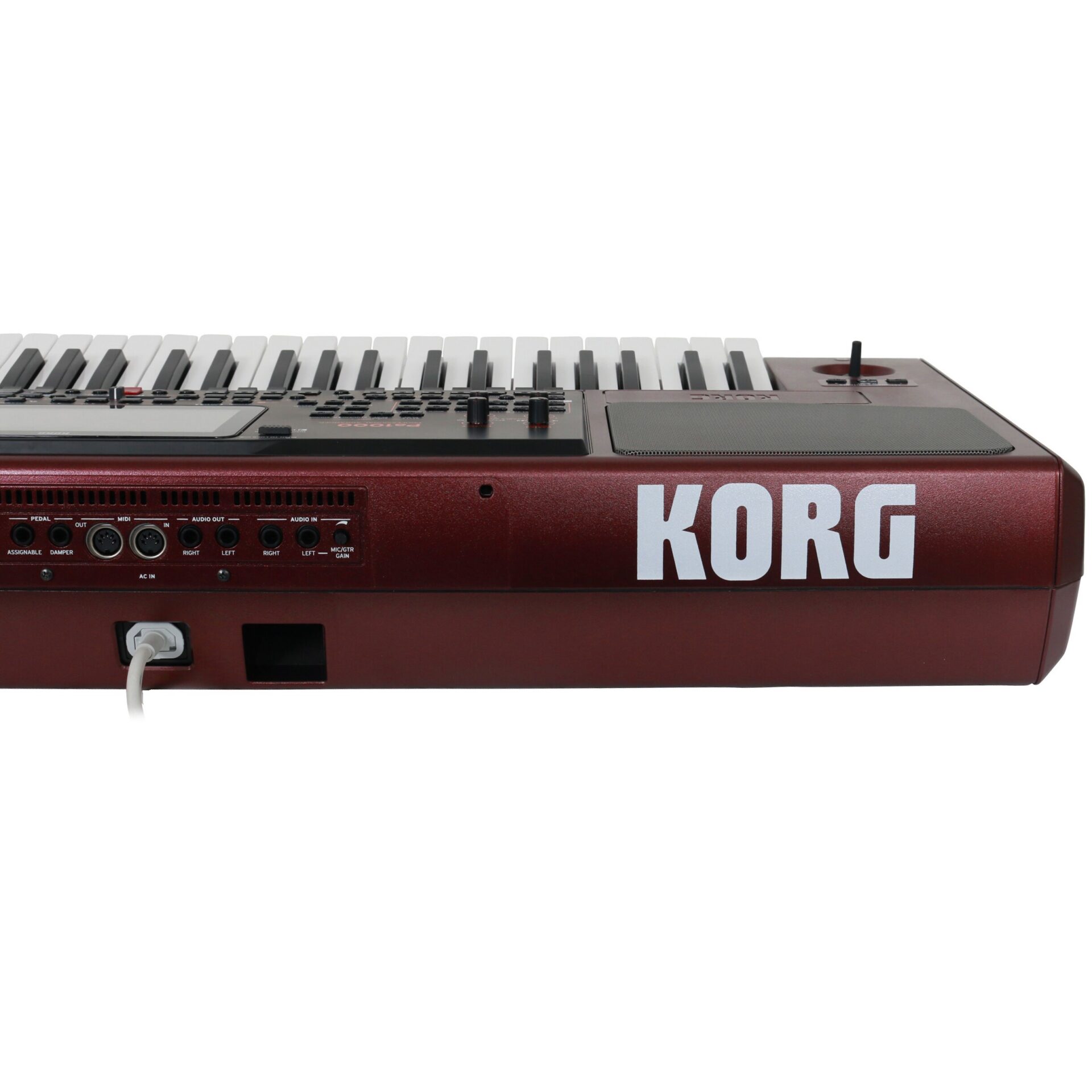

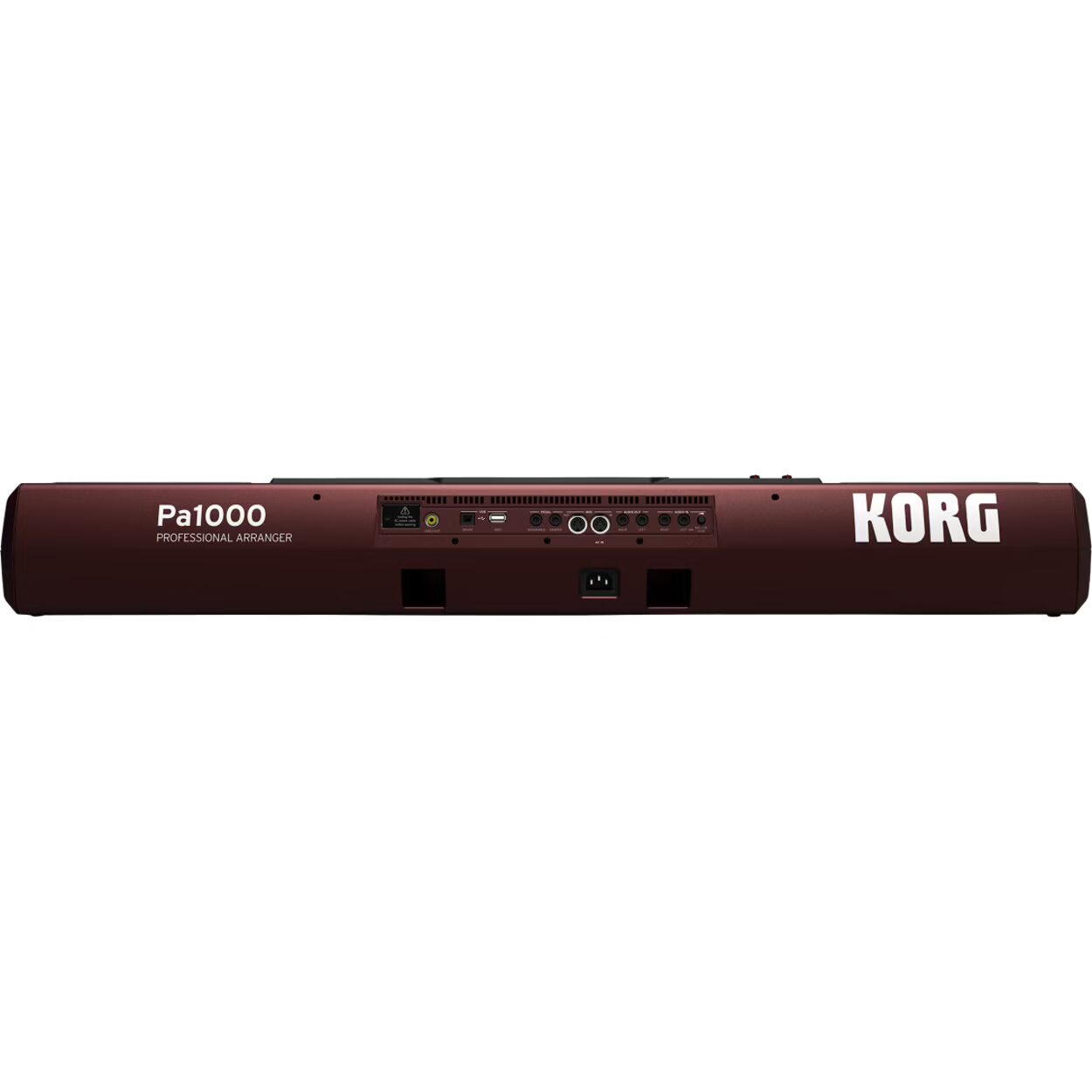

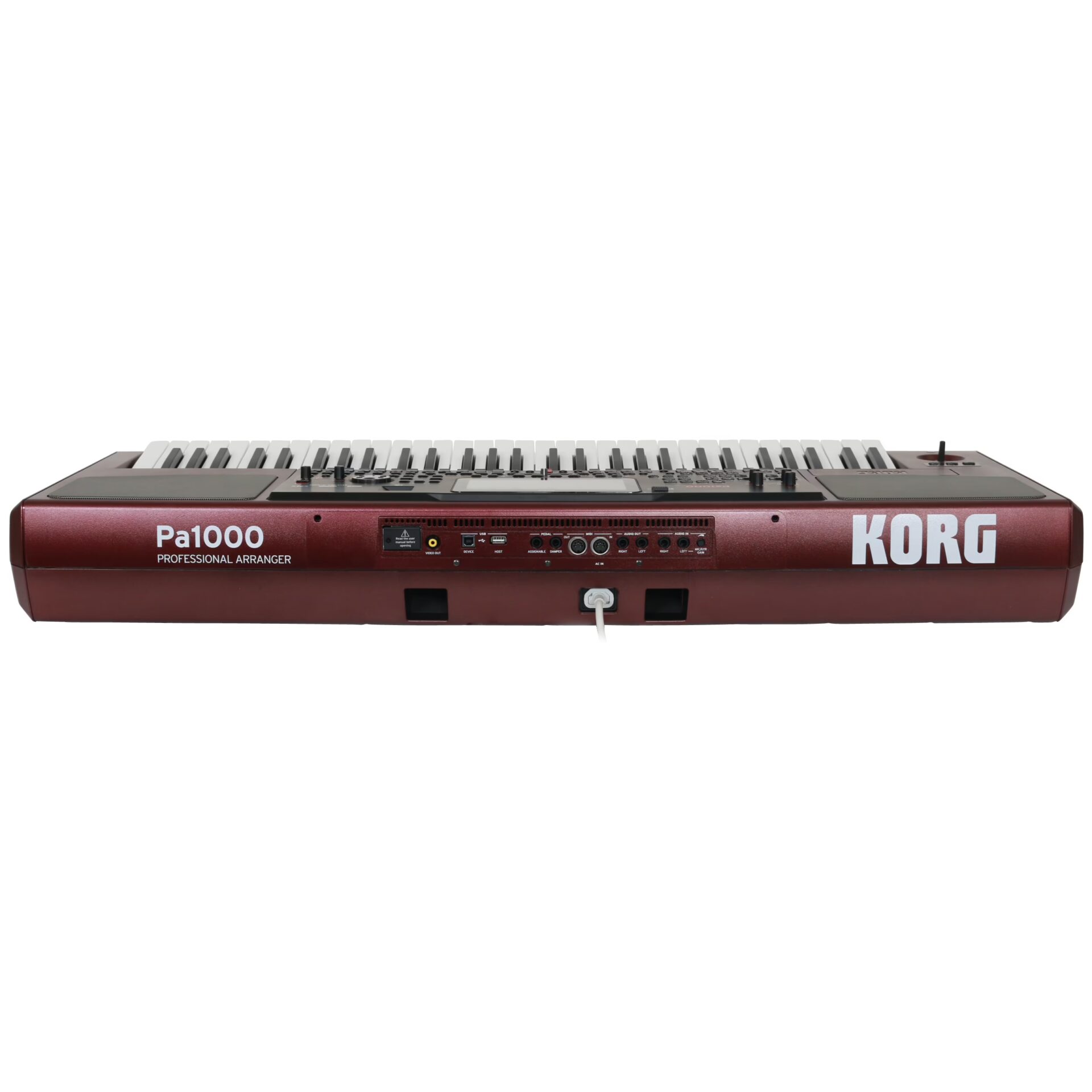

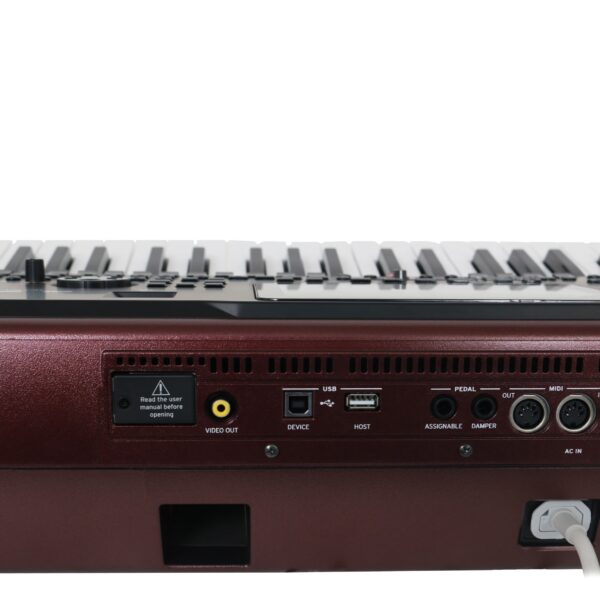

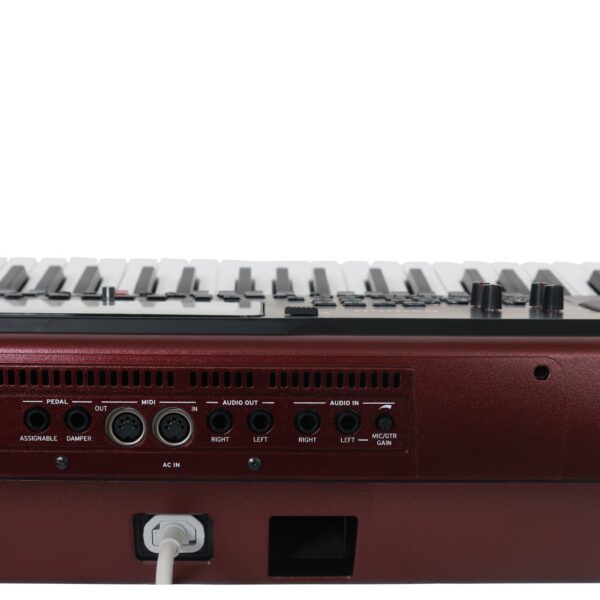

connections:
2x Line In Left/Right, jack
1x Mic/Guitar Left, jack
2x Line Out Left/Right, jack

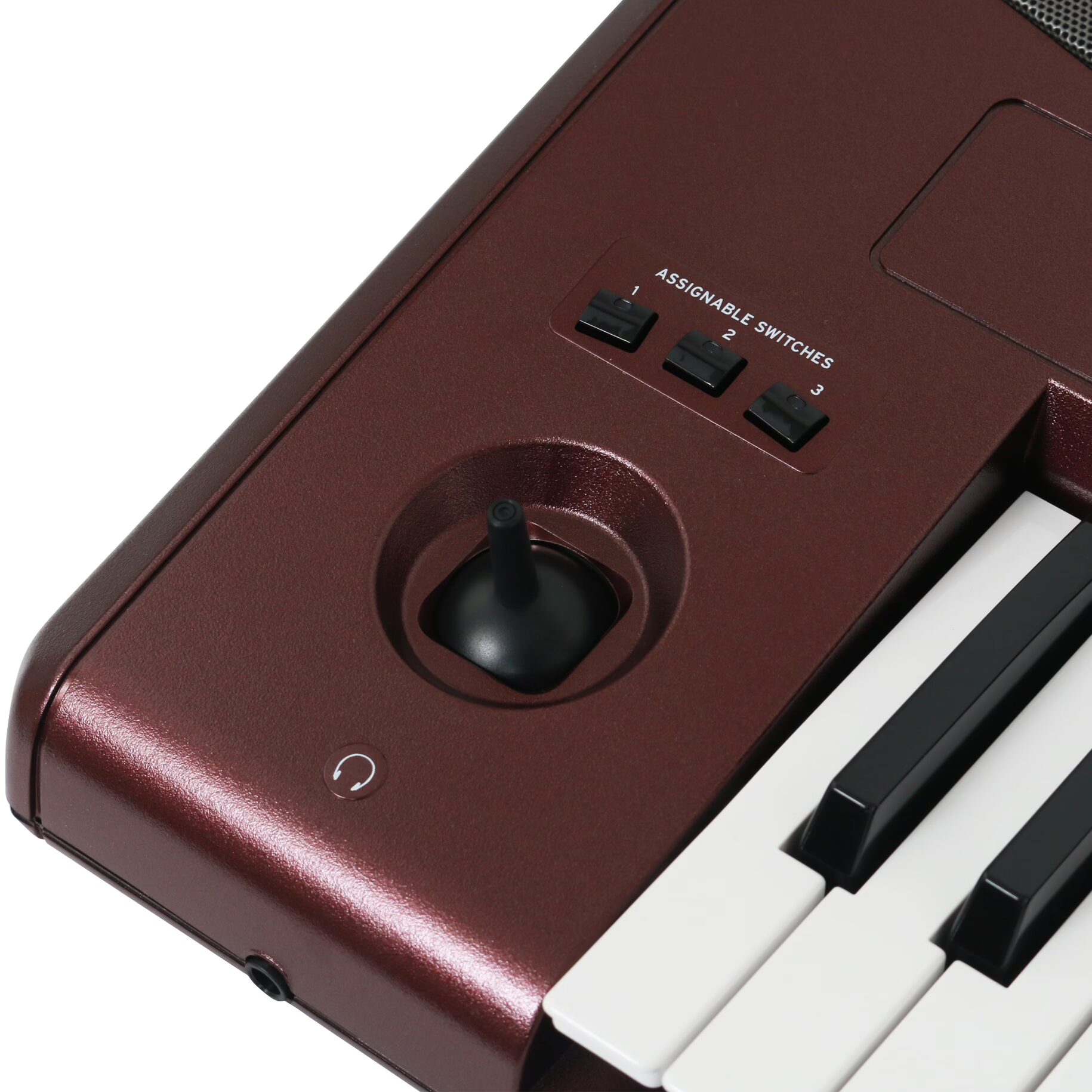

1x headphone output, jack
MIDI in/out (5-pin DIN)

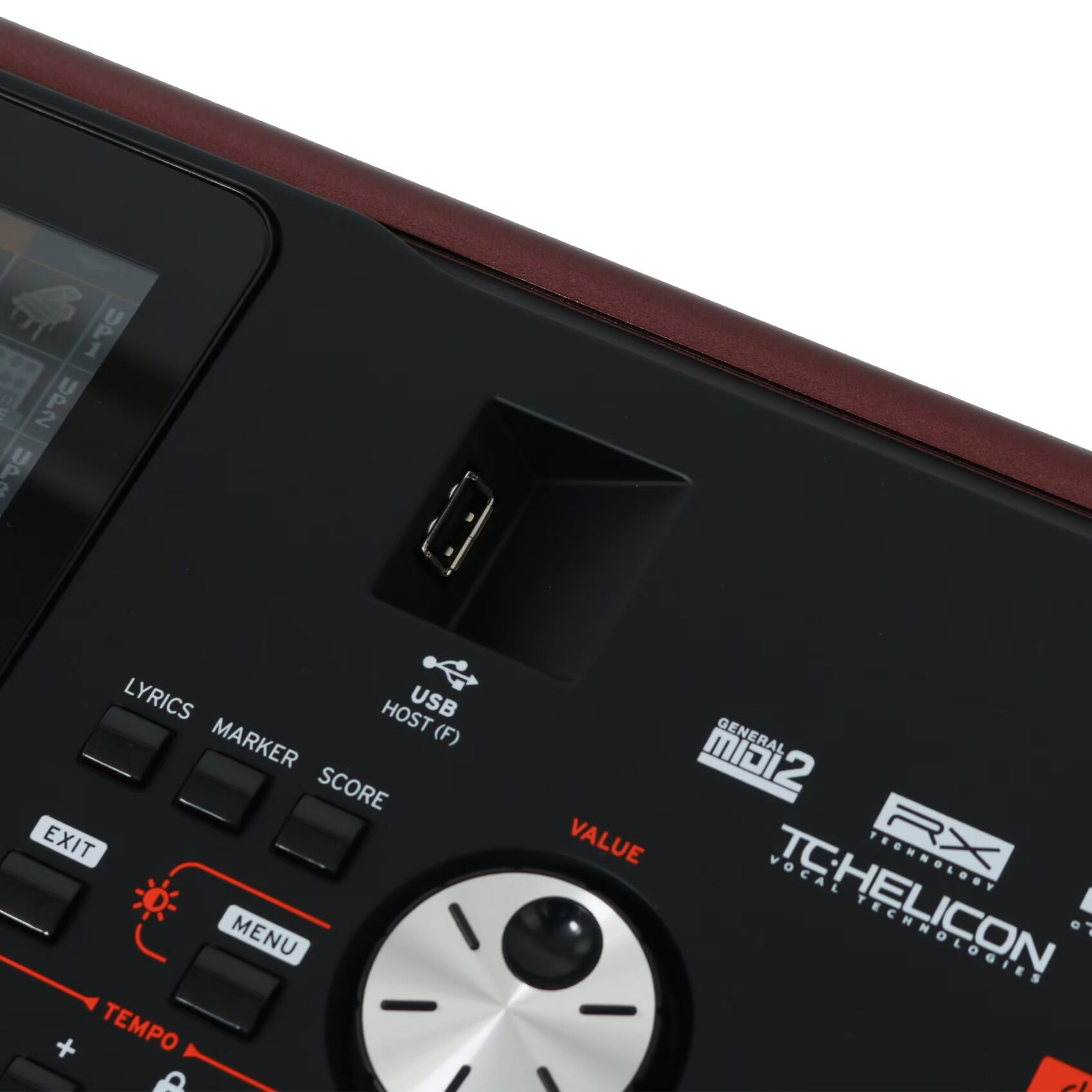

2x USB A
1x USB B
1x RCA video output
amplifiers: 2x 33W

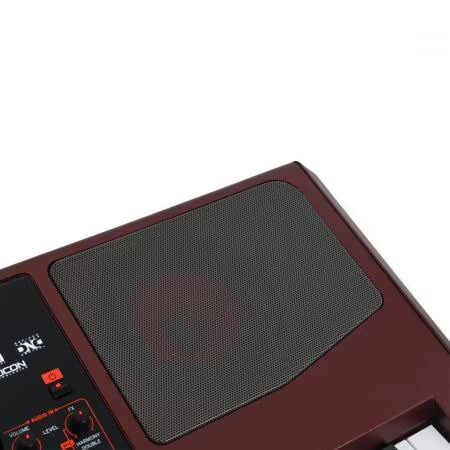

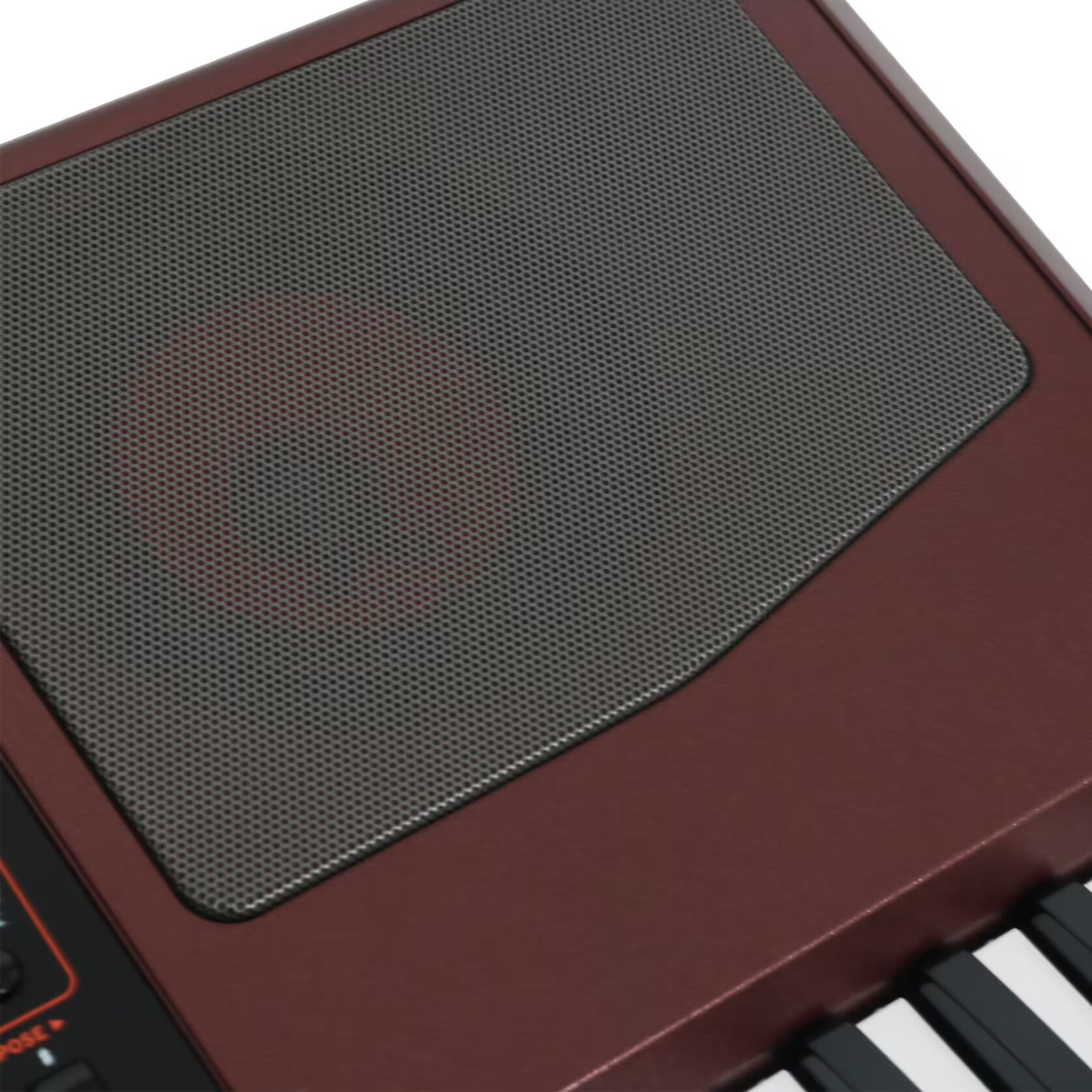

speakers: two-way, bass reflex system
dimensions: 1030 x 378.3 x 133 mm
weight: 10.75 kg
power consumption: 25 W, 100-240V 50/60 Hz
includes manual, power cable and music stand
