Description

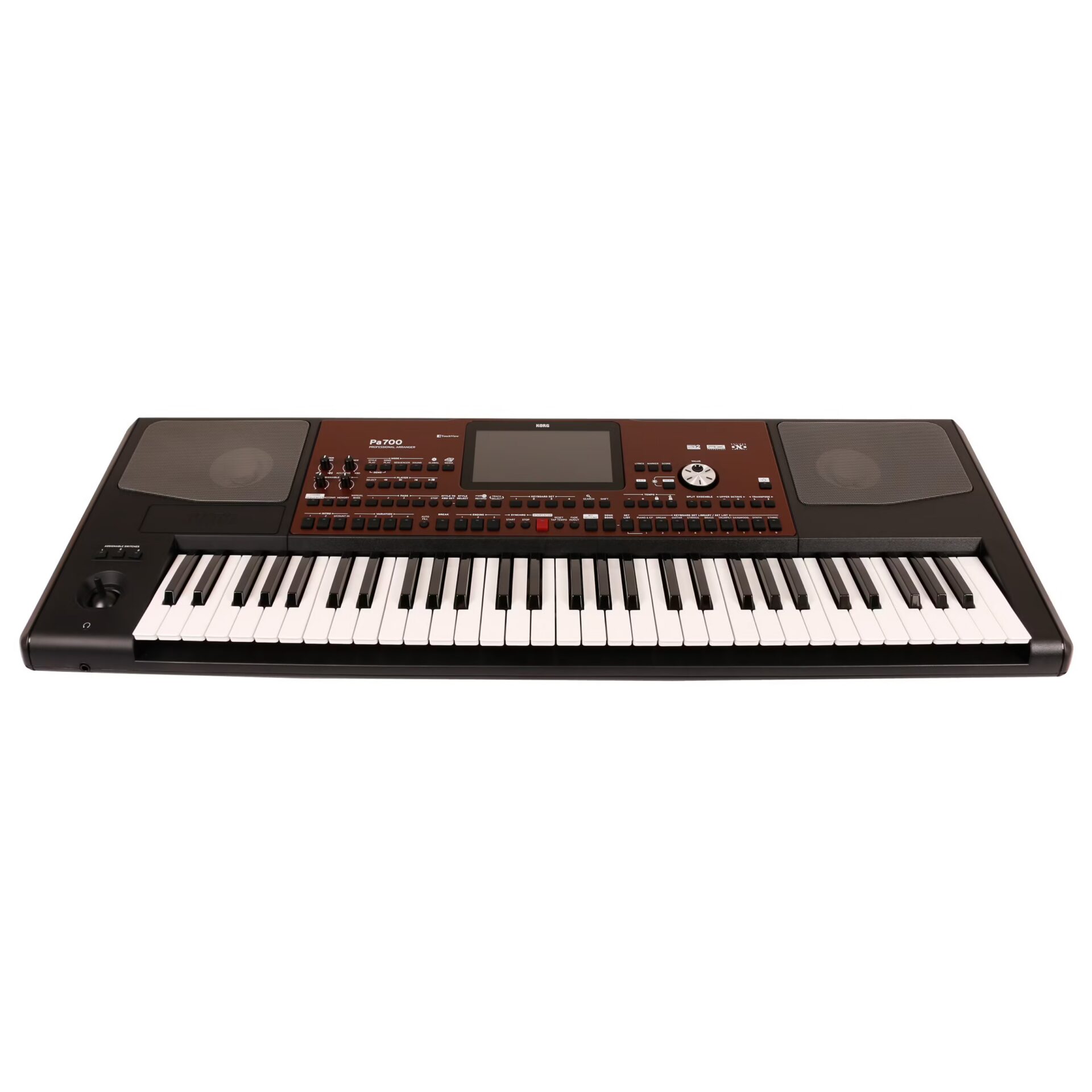

The Korg Pa700 OR is a high-quality Oriental Arranger Keyboard, which offers many innovative features in addition to its excellent sounds and a modern design. The keyboard contains a large selection of sounds and styles. By high-quality sounds and styles from the oriental range the instrument is optimally suitable around the Far Eastern music optimally and high-quality to give back. The capacitive Touch View Display can be operated like a Tablet PC and is activated at the lightest touch. In addition, the Pa700 OR provides a wide range of effects. An integrated payer/sequencer, a songbook function, good connectivity and last but not least a powerful amplifier system make the Pa700 OR a high-quality keyboard that will inspire you from the first note on.
Great sound diversity from Europe to the Orient
The Korg Pa700 OR is equipped with 1700 high-quality sounds. The collection offers a selection of classical and modern sounds, from classical to techno. An electronic Zugrigel organ with key on/on effect, a stereo grand piano, high-quality wind instruments, strings and basses are just a few examples. In addition, the Pa700 OR also contains sounds typical of the music genres of the Middle East. Ouds, bouzuks, kanouns, various percussion instruments and many other sounds are complemented by a variety of styles tailored to traditional and modern music styles.
Specifications
Product features
Touch-sensitive keys Yes

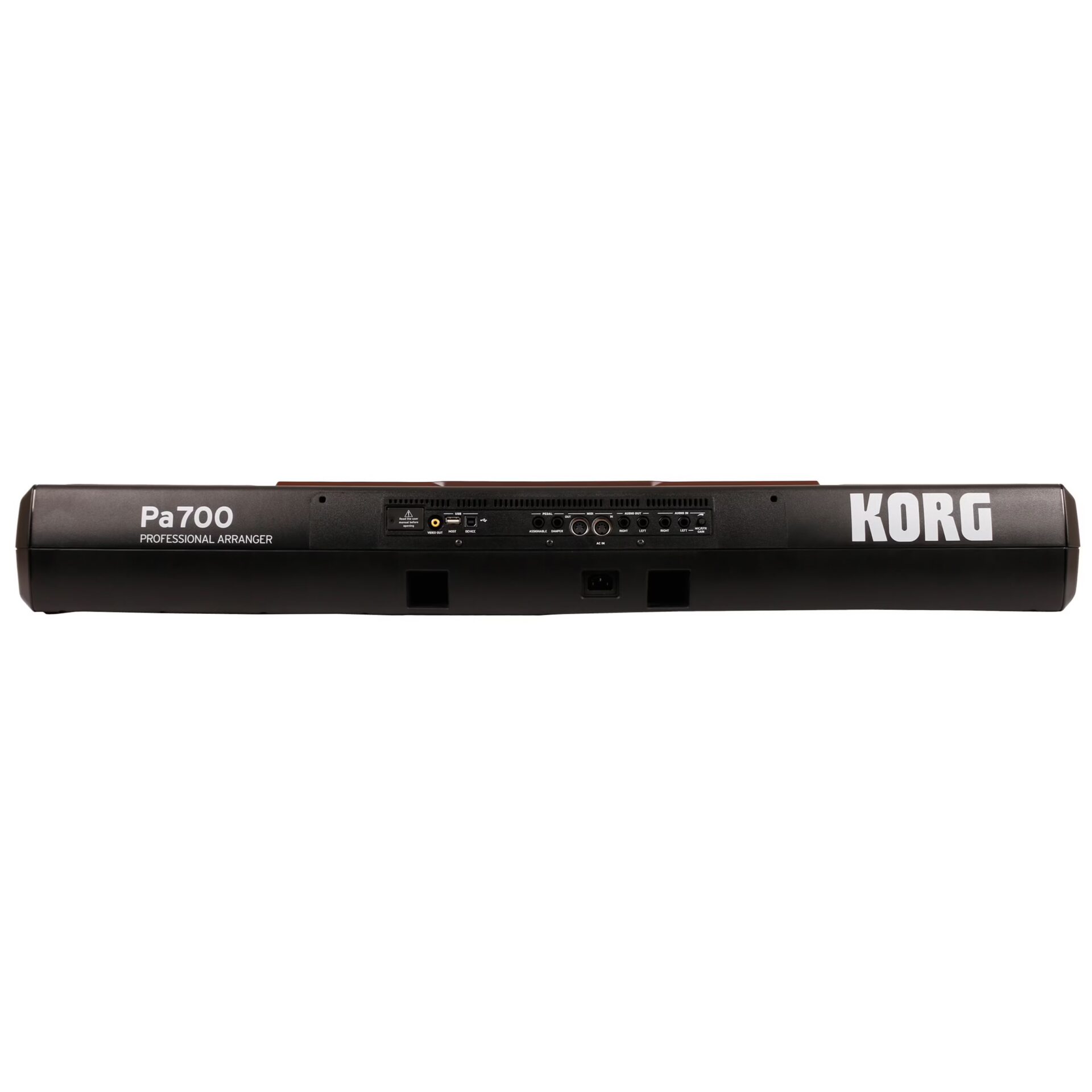

Connectors Headphone (jack), Line-in (jack), Line-out (jack), Microphone input (jack), Sustain pedal
Number accompaniment styles 301 – 400
Number of keys 61
Aftertouch no
Arpeggiator/sequencer sequencer, style maker
Weight 5 – 9.9 kg
Built-in sampler yes
Built-in speakers yes
Built-in amplifier 2x 25 W
Lyrics/score display lyrics, score
MIDI I/OUSB in / out
Pitch and modulation wheel no
Polyphony (max.)128
Type of display touch screen, colour
Vocal harmony no
Vocoder no
Weight and dimensions including packaging
Weight (incl. packaging)12.1 kg
Dimensions (incl. packaging)116.0 x 54.0 x 27.0 cm
Product specifications
Korg PA700 Oriental keyboard
equipped with Middle Eastern sounds, styles and scales
keys: 61 (C2-C7), velocity-sensitive
+ mini keyboard for quarter notes
system: multitasking, load while play, upgrade possibilities
sound generator:
EDS-X (Enhanced Definition Synthesis – eXpanded)
filters with resonance
3-band EQ on each sound
128 sounds, 128 oscillators
effects:
accompaniment/song: 2 insert effects, 2 master effects (148 types)
keyboard sounds: 1 insert effect, 2 master effects (148 types)
final mastering effects: Limiter, Master EQ
voice processor: 5 effects, 28 factory and 64 user effects (presets)
guitar processor: 45 factory and 64 user effects (presets)
sounds:
multilayer stereo piano with damper and housing resonance
GM/MX sound set and 106 drum Kits
user: 512 sounds and 256 drum kits
digital drawbar: 9 footages, percussion, key on/off, leakage and rotary speaker effect
DNC technology (Defined Nuance Control)
full sounds/drum kit edit
samples:
128 MB compressed (equal to 256 MB of linear data)
loads Korg, WAV, AIFF and SoundFont formats
saves Korg, WAV and AIFF formats
styles:
more than 370 factory styles, configurable
user: 1152 locations, including user and direct banks
eight accompaniment tracks, 4 keyboard sets, 4 pads per style
style settings (sounds and arranger parameters) for each style
Guitar Mode 2, Parallel and Fixed NTT (Note Transportation Table)
style/pad record with step record, track and event edit
Style Creator Bot (MIDI song to style converter)
style controls:
3 intros
4 variations
4 fills
3 endings
synchro start
synchro stop
tap tempo/reset
bass inversion
auto fill
manual bass
memory
accompaniment mute
drum mapping
snare & kick designation
style to keyboard set mode
chord sequencer
chord sequence recorder and player in Style Play mode
chord sequences can be saved to Style and SongBook Entries
functions: delete, copy from Style/SongBook, import/export to/from SMF
keyboard set library
memorise keyboard sound settings
more than 290 factory settings, adjustable
user: 864 locations, including user and direct banks
My Settings button
KAOSS FX
automatic MIDI FX generator
more than 65 factory presets
song playback
supported formats: MID, KAR, MP3 + lyrics, MP3+G
controls: Select, Start/Stop, Home, Rewind and Fast Forward
lyrics, score and chord information can be displayed in screen or an external monitor
Add, Delete, Edit and Loop function
Jukebox function
MP3 player/recorder
transpose (+6/-5 semitones), tempo change (+/- 30%)
Vocal Remover
records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, and KAOSS Effects
Sequencer
Quick Record, Multitrack and Step Record
16 tracks
up to 200,000 events
SMF (MID) format
Songbook
fully programmable music database
based on Styles, MIDI Songs (MID and KAR files)
selection of StylePlay and Song Play modes
filter and sort options
compatible with:
Pa series: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads
i-Series: Styles
four assignable pads with stop buttons
pad recording function
general controls:
master volume
fade in/out
keyboard-acc/song balance
ensemble
octave transpose
master transpose

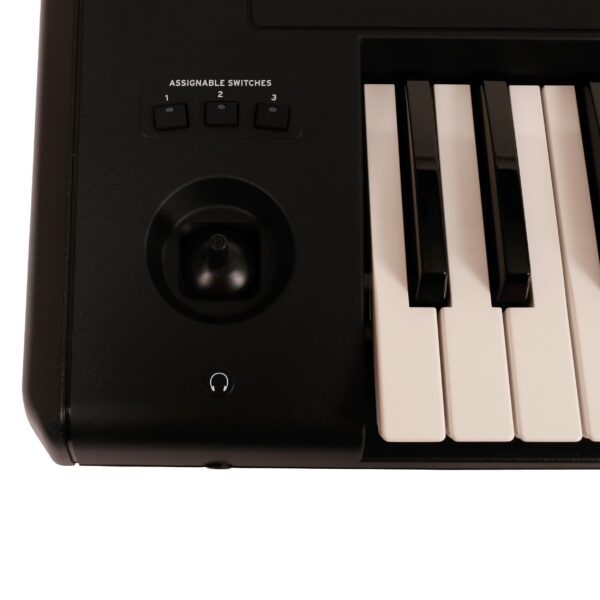

joystick
2 assignable knobs
3 assignable switches
tempo +/-, tempo lock
metronome on/off
dial
search
shift split
record
scale controls: Virtual Quarter |Tone SubScale Keypad, 4x Scale presets
control inputs: Damper pedal (supports half-pedaling with the optional DS-1H)
audio inputs: line (left/right), jacks, +20 dBm, 12 kOhms
mic/guitar (left): jack, with gain control (0 – +40dB)
12 kOhms (Mic) / 500 kOhms (guitar) audio outputs left/right, jack, +21 dBm, 0.003% THD+N@+18 dBm
headphone output (jack), 16-200 Ohms (50 Ohms suggested) Speaker System Amplification: 2 x 25W

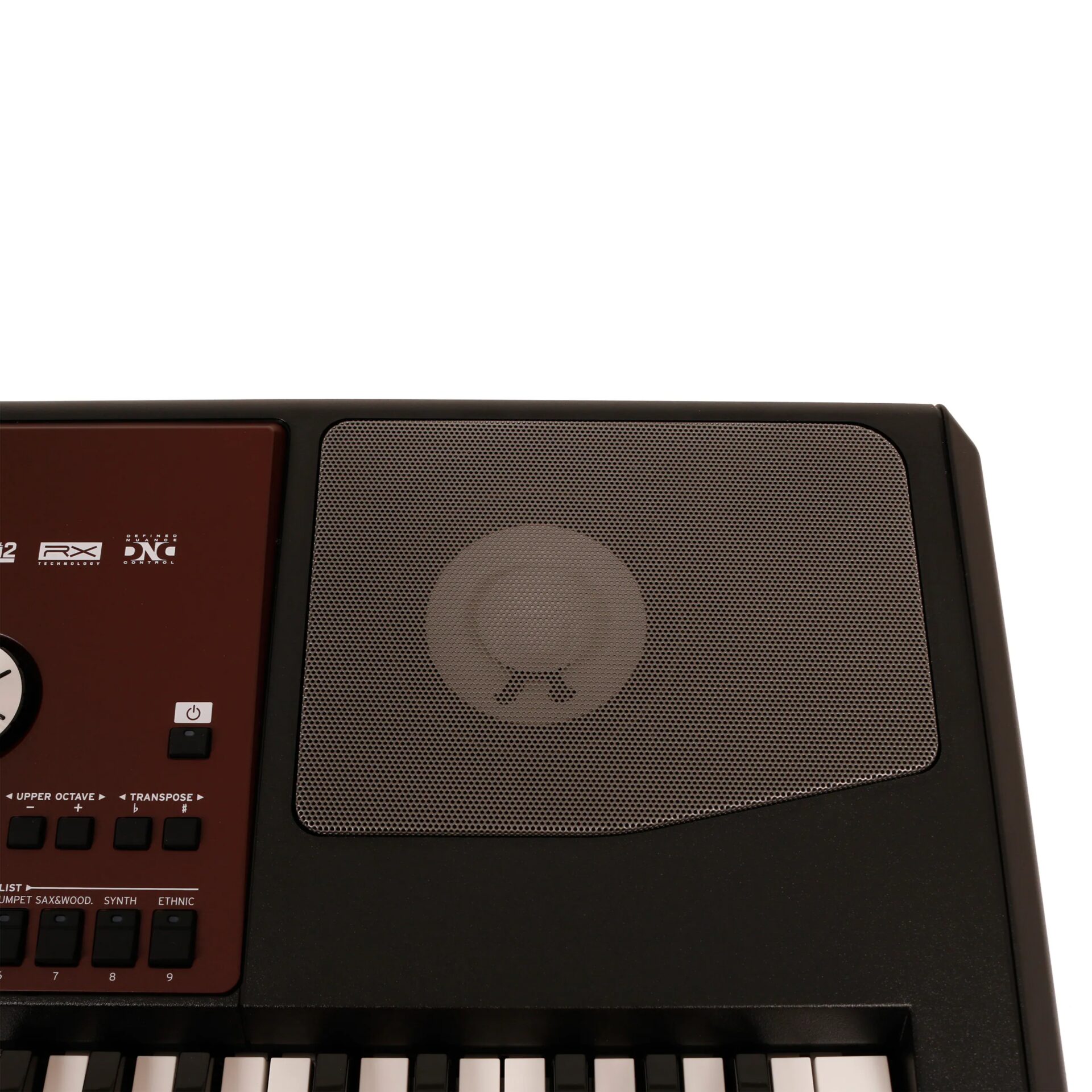

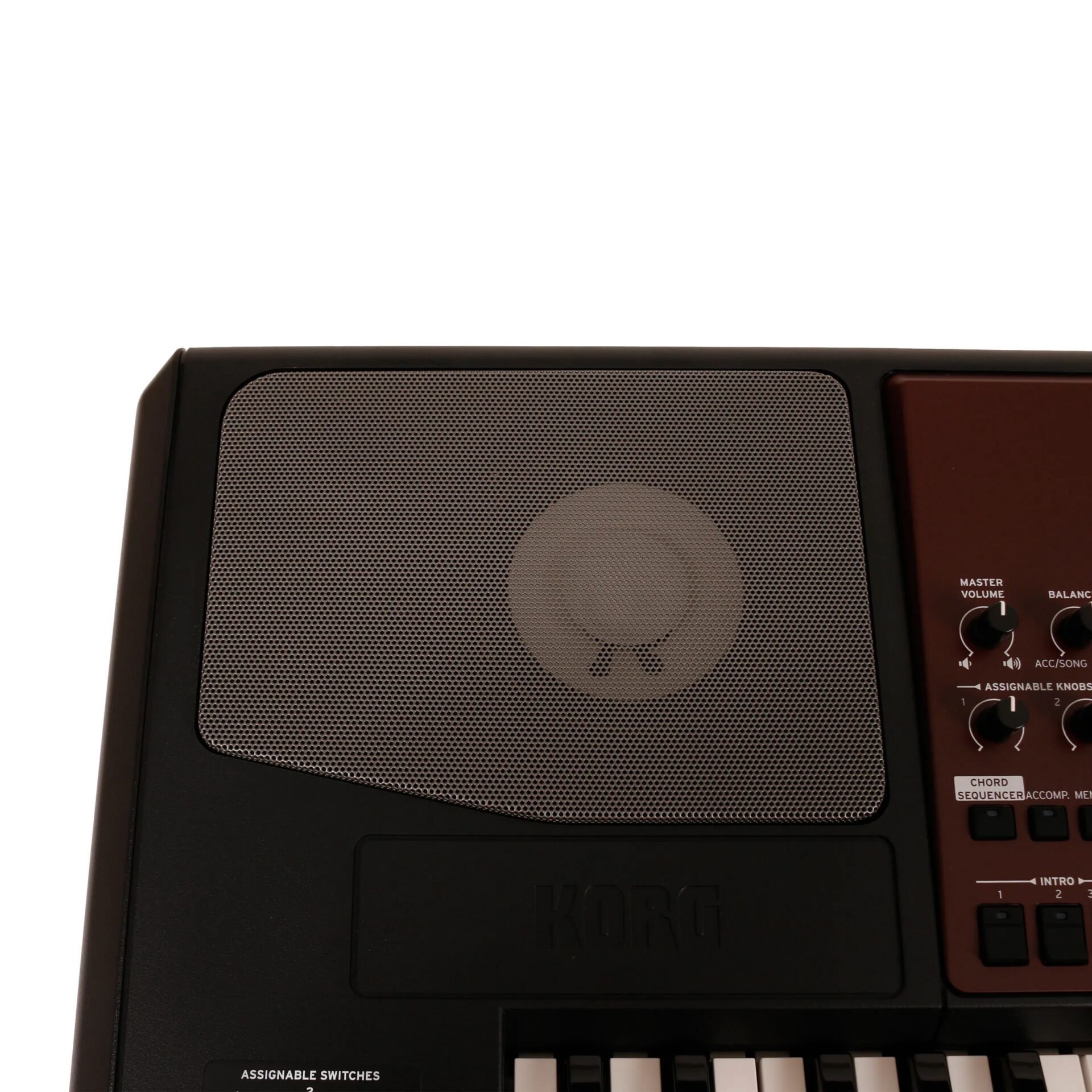

speakers: 2 x Dual Cone Speakers in Bass Reflex Box MIDI IN, OUT standard MIDI connectors
USB to MIDI
7-inch LCD display
power consumption: 100-240 Volt, 50/60 Hz, 25 Watt normal / < 0.3 Watt in standby
dimensions: 1030 x 378.3 x 132 mm
included: AC power cable, music stand, Quick Guide manual
