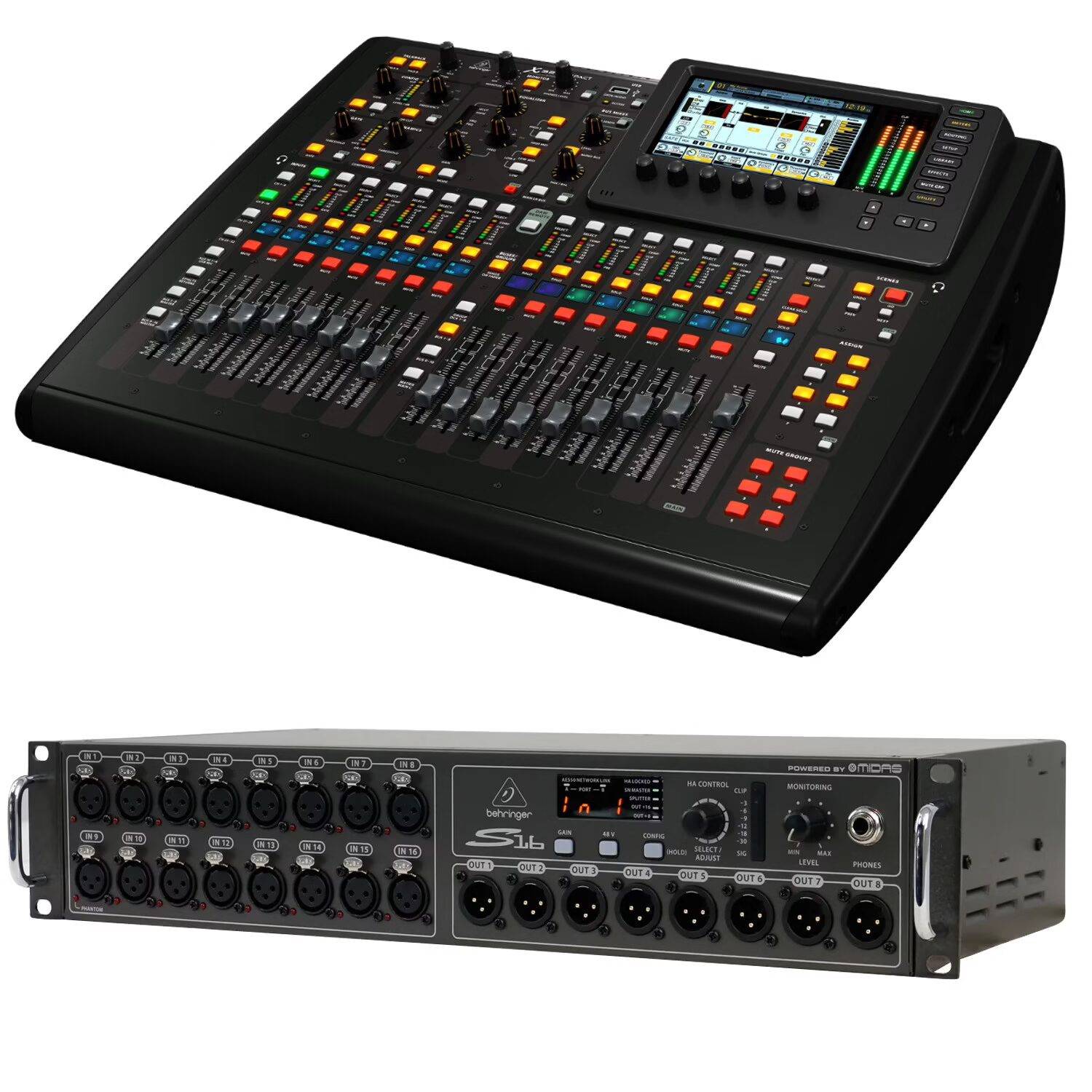

Behringer X32 Compact Digital Mixer 1x Behringer X32 Compact Digital Mixer
The smaller sibling of the ever popular Behringer X32, the Behringer X32 Compact might offer a few less faders, but bears a more slimline housing and the same processing power – perfect for space-poor studios and mobile engineers.
Product features
19 inches no
Number of analogue input channels 9 – 16
Number of analogue output channels 8
Number of channels 17-32
Number of microphone inputs 13 – 16
Category Sound & PA
Digital inputs AES50
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), AES50, Ultranet
Dynamics compressor, gate
Equalizer 4-band with parametric mids, Master EQ
Input connector jack (6.3 mm), RCA, XLR
Built-in audio interface USB (multi track)
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meters LED VU meter, via built-in display
Remote control via iPad, via iPhone, via Ethernet, via Wi-Fi
Connector position back
Type of display TFT, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card, USB interface expansion card, digitale snake, personal monitoring system
Output connector jack (6.3 mm), RCA, XLR (3-pin), XLR AES/EBU
Mixer power power cable
Volume control motorised faders
Weight and dimensions including packaging
Weight (incl. packaging)20.0 kg
Dimensions (incl. packaging)76.0 x 64.0 x 33.0 cm
Product specifications
Behringer X32 COMPACT digital mixer
number of channels:
32x input channels
8 aux channels
8 FX return channels
16x aux buses
6 matrices
main LRC
internal effects stereo/mono: 8/16
number of scenes (inc. preamp and Fader): 100
signal processing: 40-bit
A/D-D/A conversion: 24-bit at 44.1 / 48 kHz, 114dB dynamic range
local latency: 0.8 ms
network latency: 1.1 ms
connections:
XLR inputs: 16x (programmable MIDAS preamps)
XLR Talkback-input: 1x
RCA inputs/outputs: 2/2x
XLR outputs: 8x
TRS monitors: 2x (balanced)
TRS aux inputs/outputs: 6/6x
TRS headphone: 2x
AES/EBU output, XLR: 1x
AES50 SuperMAC: 2x
expansion slot: 32 channel audio input/output
P-16 Ultranet: 1x
MIDI inputs/outputs: 1/1x
RJ45 Ethernet: 1x
USB-A for audio and data: 1x
USB-B for system updates: 1x
microphone ports:
MIDAS preamp
max. input level: 23 dBu
phantom power, switchable: 48V
equivalent input noise level: -128dBu
frequency response: 10Hz – 22kHz
display:
display screen: 7 inch, 800 x 480, 262k colour TFT
channel LCD screen: 128 x 64, LCD with RGB colour backlight
Main-meter: 24-segments (-57dB to clip)
power: 100-240V (50/60Hz)
power consumption: 120W
operating temperature: 5°C – 40°C (41°F – 104°F)
dimensions (W x D x H): 62.5 x 51.0 x 21.5cm
weight: 15.4 kg
Behringer Digital Snake S16 digital IO break-out box 1x Behringer Digital Snake S16 digital IO break-out box
The Behringer S16 Digital Snake is a digital break-out box with which signals can be transferred to a stable, disturbance-free network connection via AES50. It has 16 inputs and 8 outputs!
Product features
19-inch rack size2U
Number of analogue input channels9 – 16
Number of analogue output channels8
Weight and dimensions including packaging
Weight (incl. packaging)5.9 kg
Dimensions (incl. packaging)54.6 x 30.6 x 15.0 cm
Product specifications
– digital snake for the X32 mixer, among others
– works via AES50 protocol
– 16 input with microphone preamps, remote-controllable
– 8 output, servo-balanced
– AES50 protocol via Klark Teknik SuperMac technology
– very low latency (fit for in-ear monitoring)
– distances of up to 100 metres achievable via CAT-5e
– no routers required, extra outputs for several S-16 or AES50 devices
– several S-16 snakes can be used simultaneously (for 32 in, 16 out applications)
– precise LED VU meter for on-stage signal checking
– headphones output, assignable to each of the 8 outputs
– equipped with connector for Behringer P-16 system
– double ADAT outputs for use in splitter mode and stand-alone multi-core use
– MIDI in and output for bidirectional communication between FOH console and MIDI equipment
– USB connector for system updates via computer
– ‘Planet earth’ switching power supply, 100-240V AC, noise-free, stable, energy efficient
– robust housing
– 19-inch, 2U build-in height
