Description
Specifications

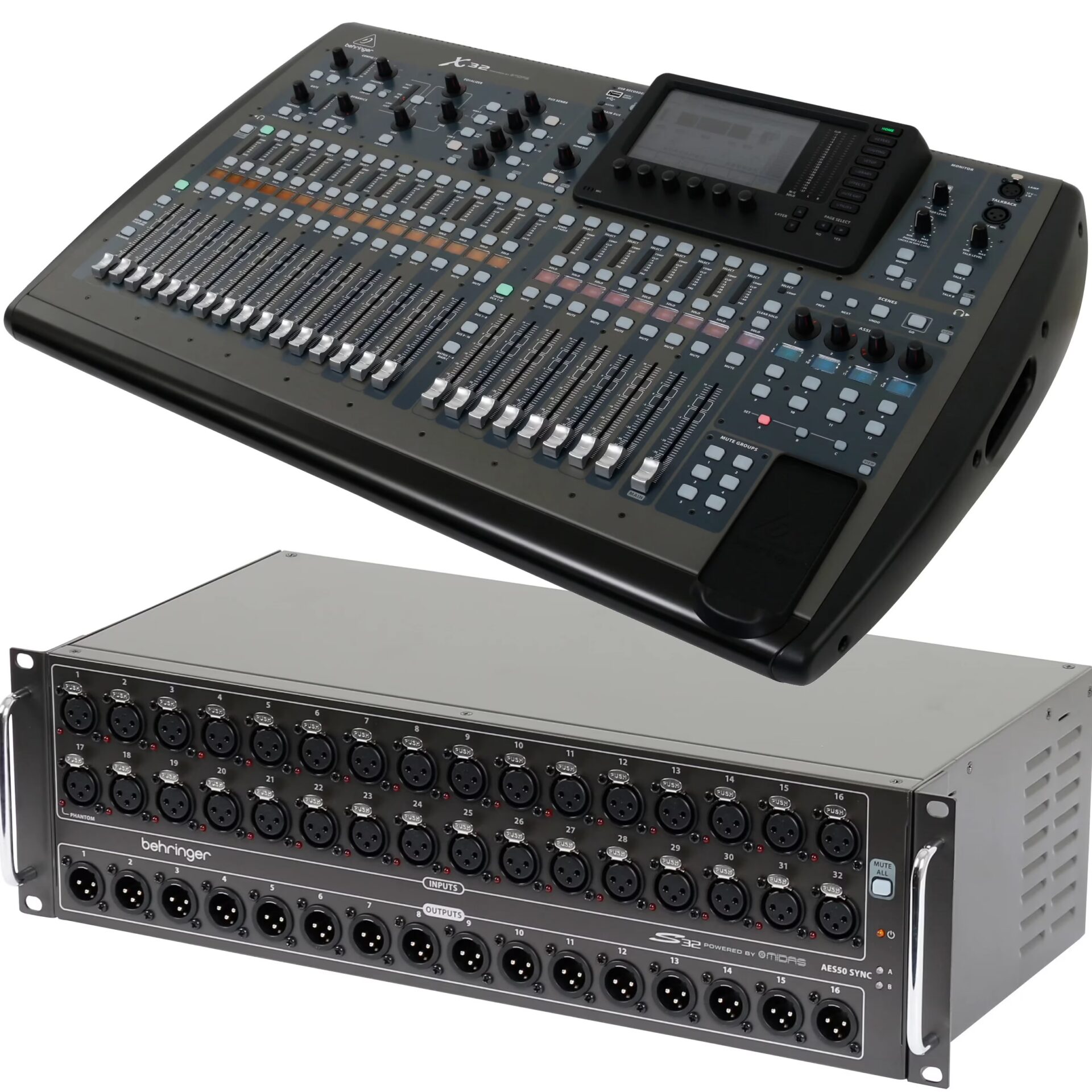

Behringer X32 digital mixer and USB MIDI controller 1x Behringer X32 digital mixer and USB MIDI controller

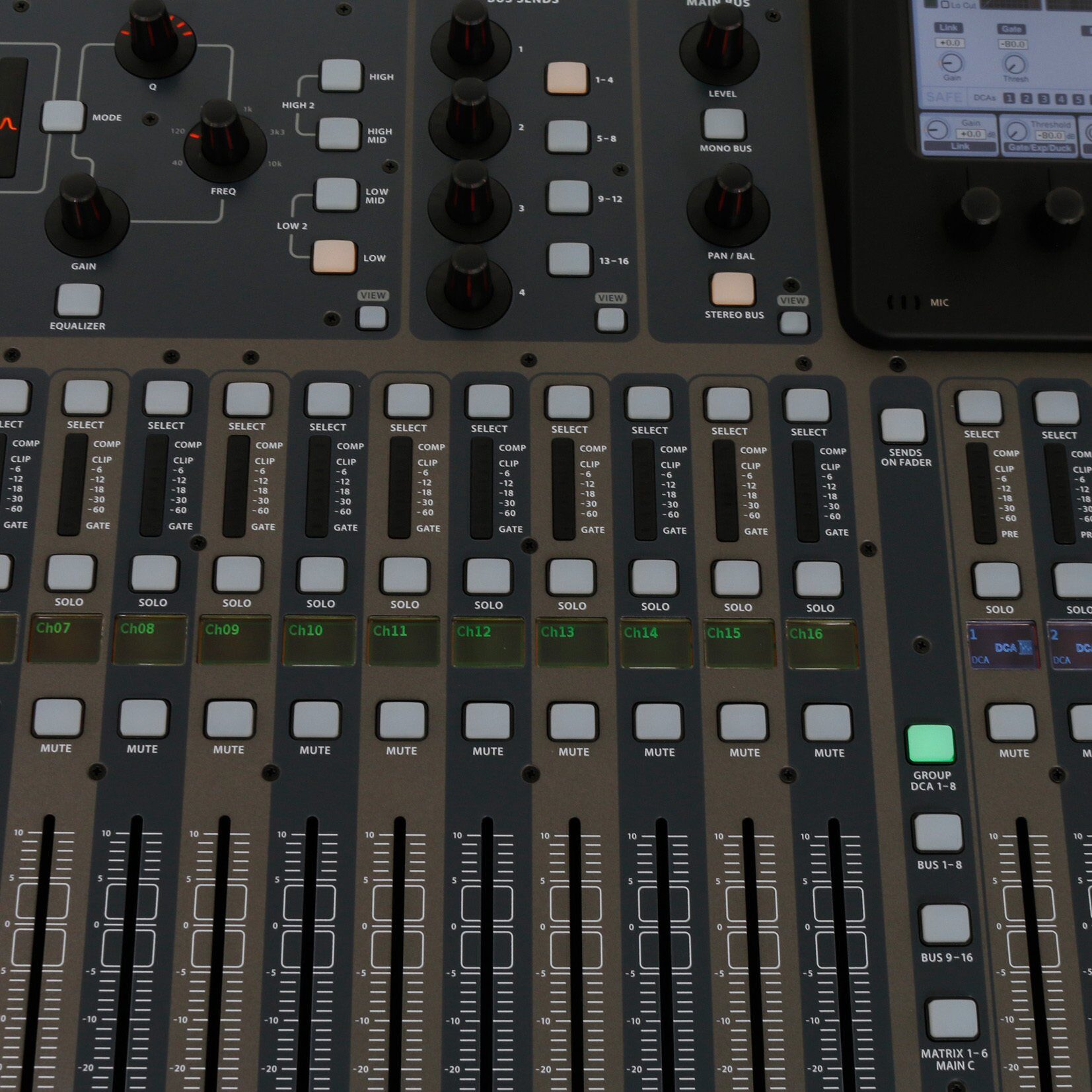

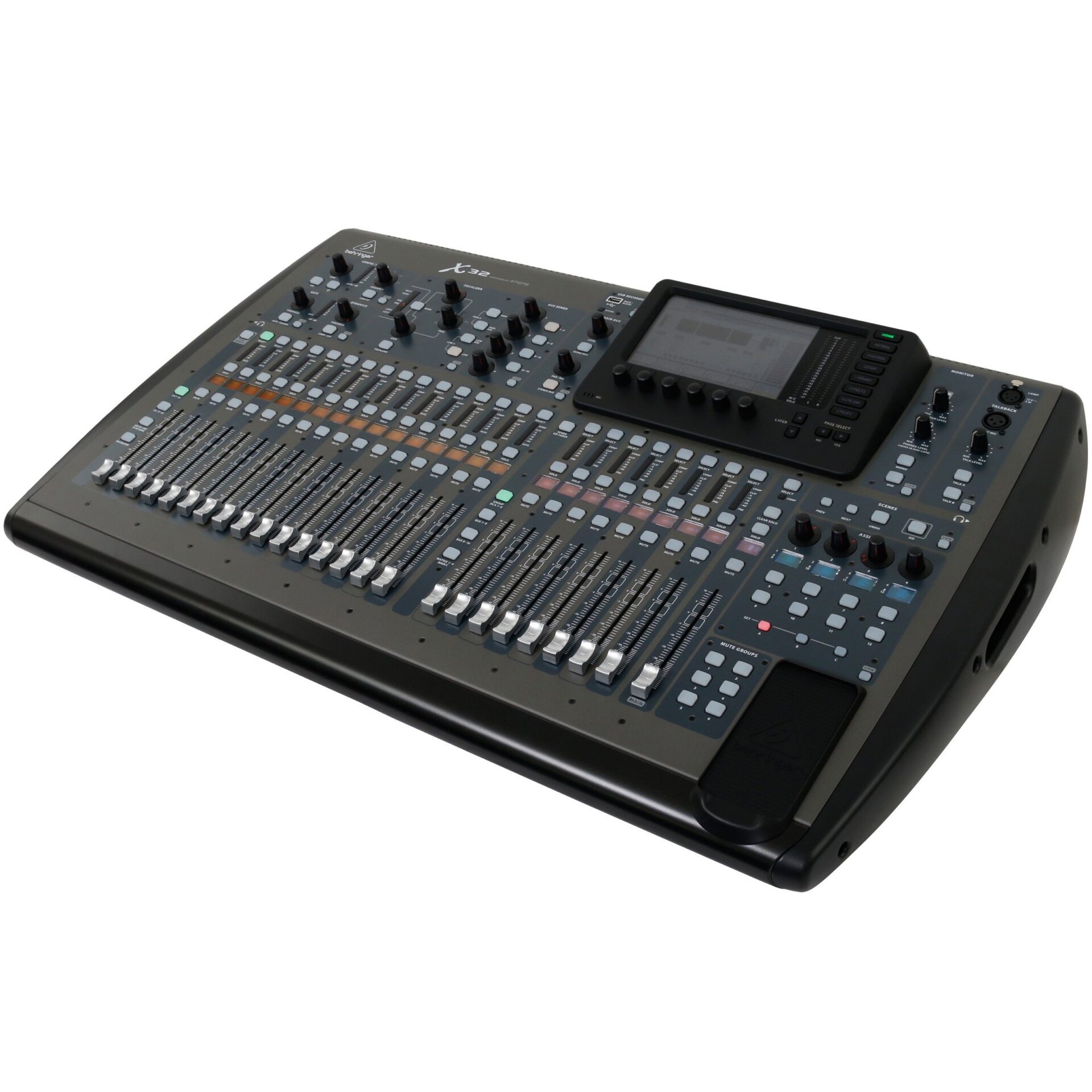

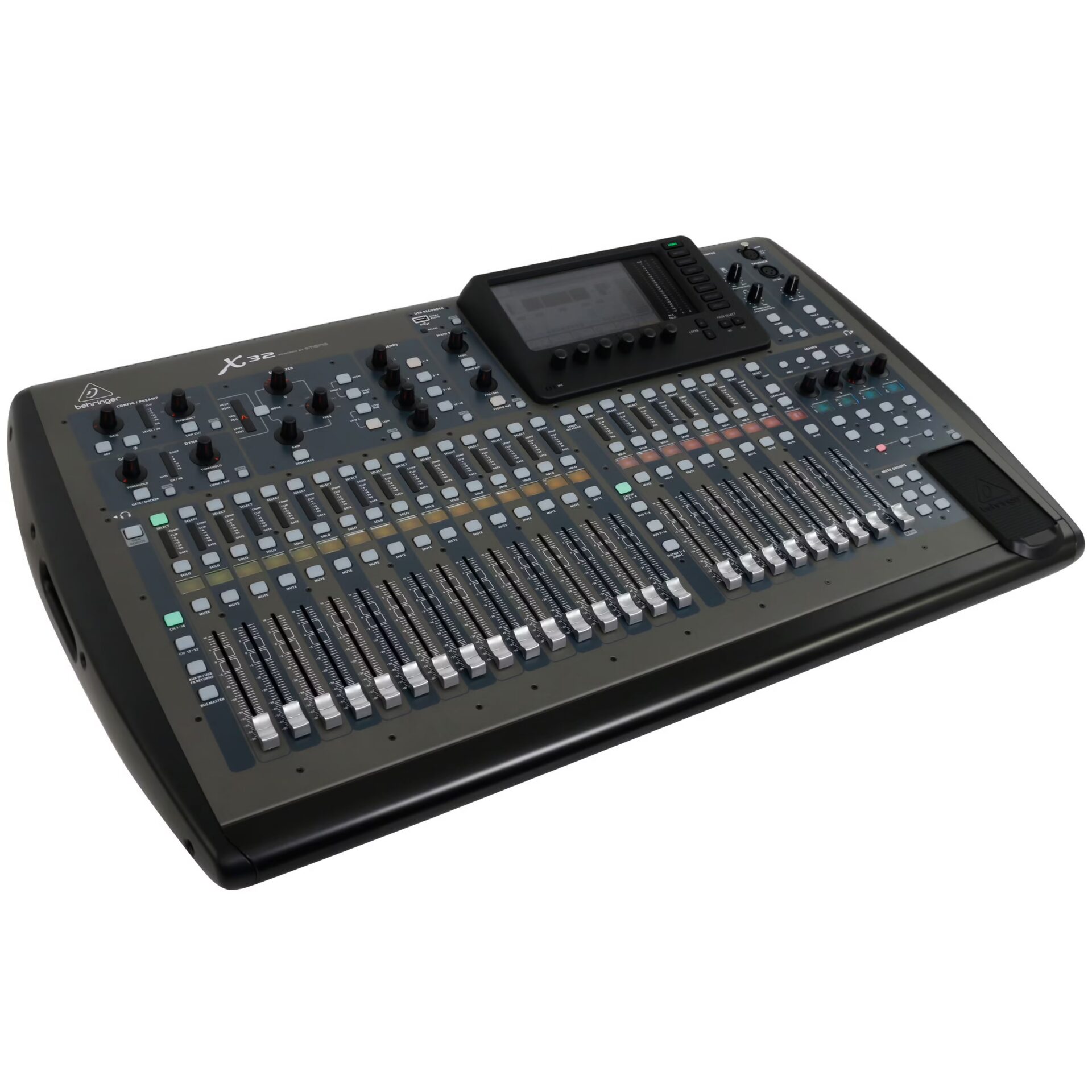

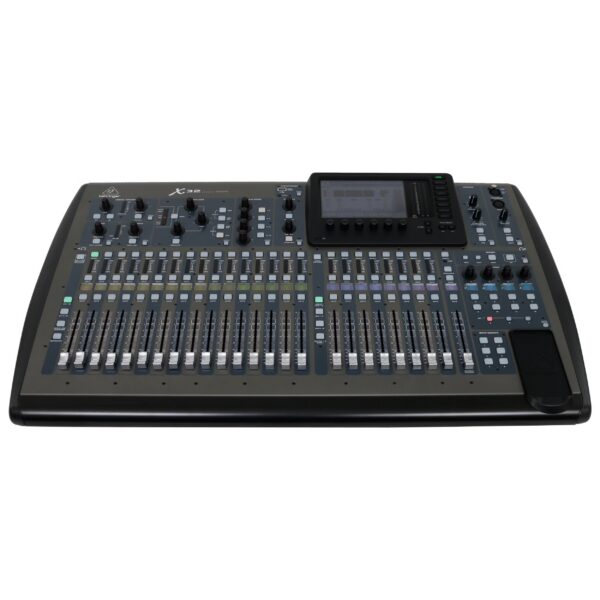

The Behringer X32 is a 32-channel, 16-bus, digital mixer for studio and live purposes. It has everything you desire: 32 analogue inputs, 6 aux, motorized faders, and more. It also functions as a MIDI controller.
Product features
19 inches no
Number of analogue input channels 25 – 32
Number of analogue output channels 17 – 24
Number of channels 17-32
Number of microphone inputs 17 – 32
Digital inputs AES50
Digital snake yes, available separately
Digital outputs AES/EBU (AES3), AES50, Ultranet
Dynamics compressor, expander, gate
Equalizer 4-band parametric, Master EQ
Input connector jack (6.3 mm), RCA, XLR
Built-in audio interface USB (multi track), FireWire
Built-in audio player USB
Built-in effects yes
Insert connectors no
Input level meter sLED VU meter, via built-in display
Remote control via iPad, via iPhone, via Ethernet, via Wi-Fi
Connector positiontop
Type of display TFT, colour
Expansion possibilities ADAT expansion card, DANTE expansion card, MADI expansion card, USB interface expansion card, digitale snake, personal monitoring system
Output connector jack (6.3 mm), RCA, XLR (3-pin), XLR AES/EBU
Mixer power power cable
Volume control motorised faders
Weight and dimensions including packaging
Weight (incl. packaging)28.7 kg
Dimensions (incl. packaging)102.0 x 66.0 x 32.0 cm
Product specifications
– digital mixer
– 32 channels
– fully programmable high-end microphone preamplifiers
– 16 mix buses, configurable as sub groups
– main LCR and all 16 mix buses feature inserts and 6-band parametric EQs
– dynamics processing per mix bus including main LCR
– 16 analogue XLR outputs plus 6 additional line in- and outputs
– 2 headphone outputs
– talkback section with integrated or external microphone
– suited for 48-channel digital snake via AES50 ports
– Klark Teknik’s SuperMAC networking capability
– built-in expansion slot for Firewire/USB/ADAT card
– suited for 16-channel stand-alone recorder or other networking interfaces
– virtual effect rack with 8 stereo FX slots
– high-grade simulations of famous external gear
– Klark Teknik DN780 and EMT250 simulations included
– 40-bit floating-point DSP with ‘unlimited’ dynamic range
– AD/DA conversion: 24-bit (44.1/48 kHz)
– no internal overload and near-zero latency between in- and outputs
– 6 mute groups and 8 DCA groups on 8 assigned 100 mm motorised faders
– user-friendly interface and assigned channel strip section
– direct access to all buttons for intuitive use
– 7-inch coloured TFT with high resolution
– associated buttons and individual RGB-illuminated graphic LCDs for every channel
– 25 motorised 100 mm faders
– elaborate channel strip plus assigned, user-definable control section
– USB flash connector for file storage of uncompressed recordings
– show presets and system updates via USB
– connectivity for Behringer Powerplay 16
– AES/EBU stereo digital output
– MIDI
– 6 independent matrix mix buses with inserts, 6-band parametric EQ
– dynamic processing on the matrix mix buses
– adjustable line delays available for every physical in- and output
– network control or show setups with Remote Editor software via USB and Ethernet (included)
– powerful scene management for simplifying complex productions
– power consumption: 120 watts
– weight: 20.6 kg
Behringer S32 Digital Snake I/O Multi 1x Behringer S32 Digital Snake I/O Multi

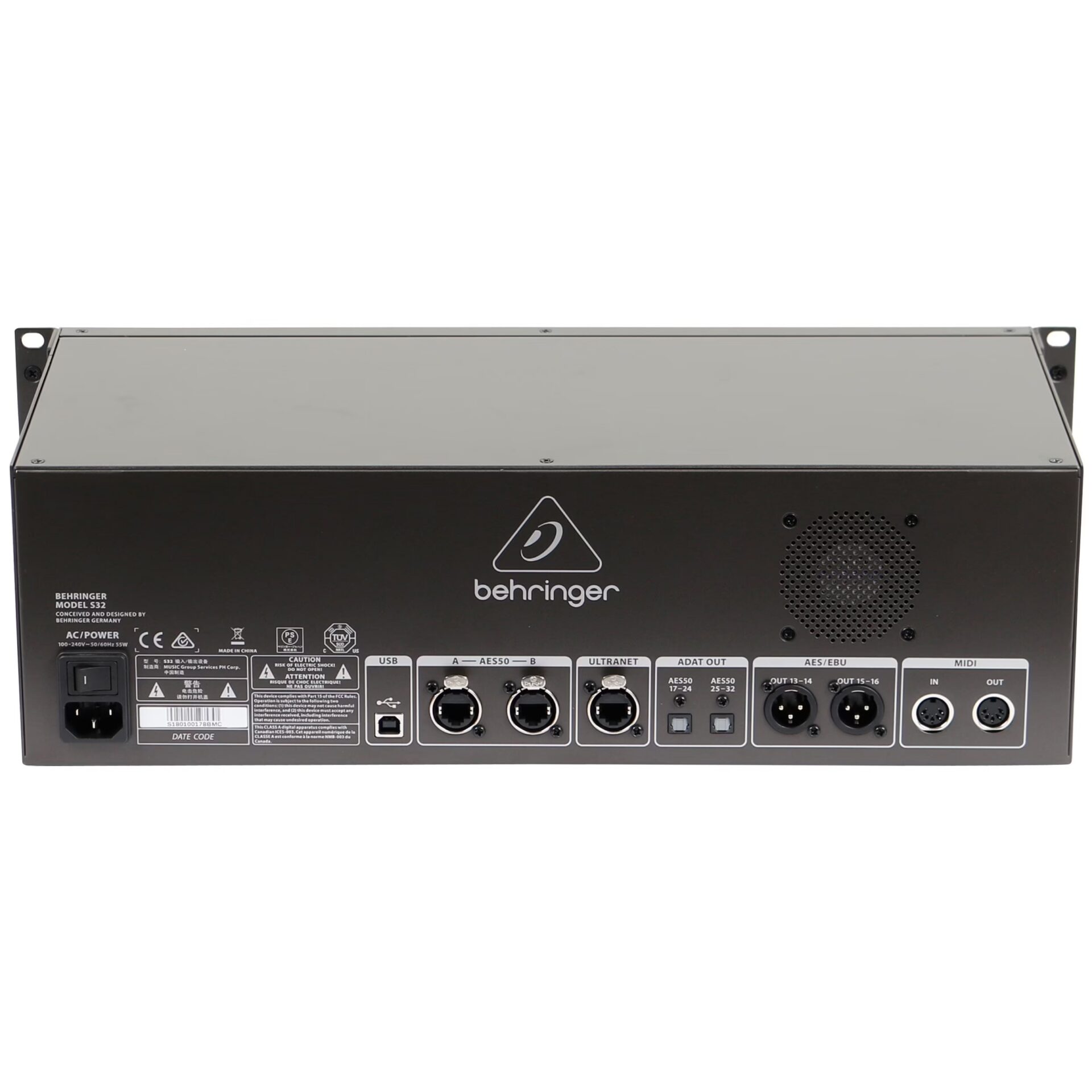

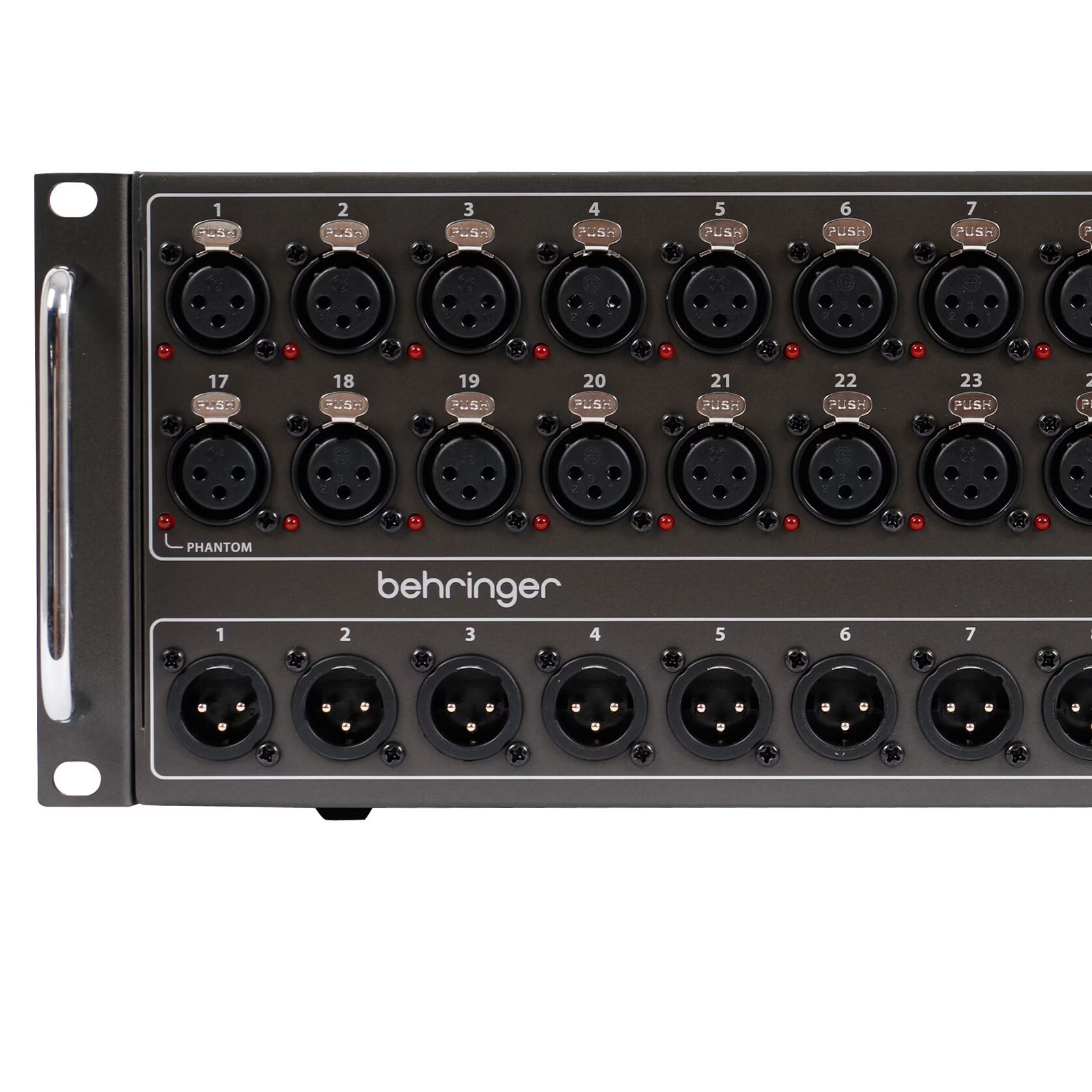

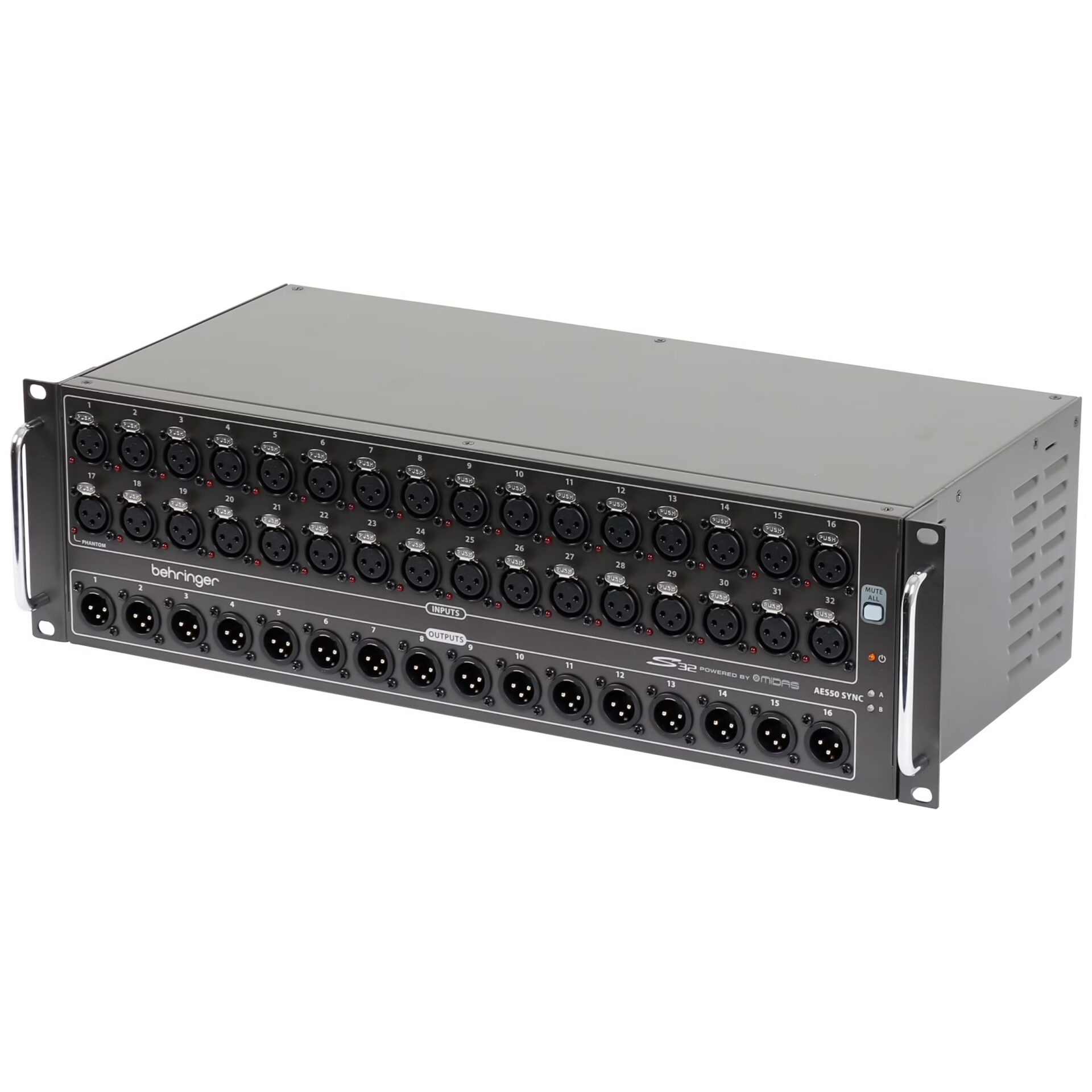

The Behringer S32 is a digital I/O box. This 19-inch 3U digital rack snake is equipped with 32 legendary Midas preamps, 16 outputs, 2 AES50 network ports and Ultranet connectivity.
Product features
19-inch rack size3U
Number of analogue input channels25 – 32
Number of analogue output channels9 – 16
CategorySound & PA
Weight and dimensions including packaging
Weight (incl. packaging)5.6 kg
Dimensions (incl. packaging)54.6 x 31.1 x 21.6 cm
Product specifications
I/O box
32 remote-controllable Midas preamps
16 analogue XLR outputs
two AES-3 network ports (AES/EBU)
remote operation up to 100m via CAT-5E cable (not included)
dual AES50 port (no router required)
dual ADAT outputs for use in splitter mode and stand alone digital multi-cord applications
MIDI I/O for bi-directional communication between FOH console and on-stage MIDI devices
USB connector for system updates via PC
universal power supply for maximum flexibility: 110 V, 240 V
noise-free audio
low energy consumption
extremely robust housing
mute-all-inputs function for patching inputs on stage
