Speaker connections XLR input
Active or passive active
Tweeter diameterribbon
Woofer diameter 1 x 9 inches + 1 x 4 inches
Maximum frequency 40 – 50 kHz
Minimum frequency 30 – 34 Hz
Monitor set single speaker
RMS power in watts 750 – 1,499 W
Type of studio monitor 3-way (tweeter + midrange + woofer)
Weight and dimensions including packaging
Weight (incl. packaging)30.5 kg
Dimensions (incl. packaging)70.0 x 47.5 x 41.5 cm
Product specifications

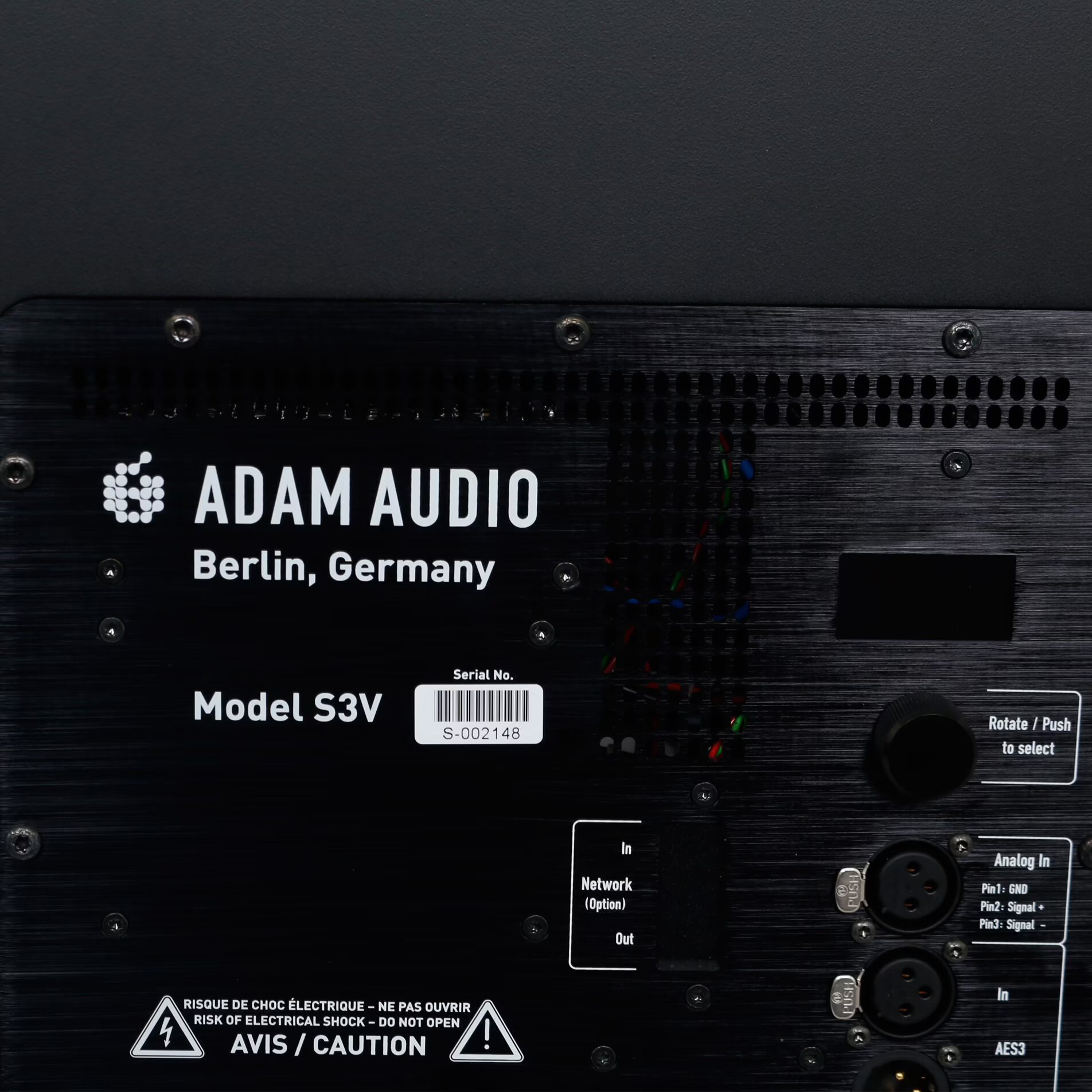

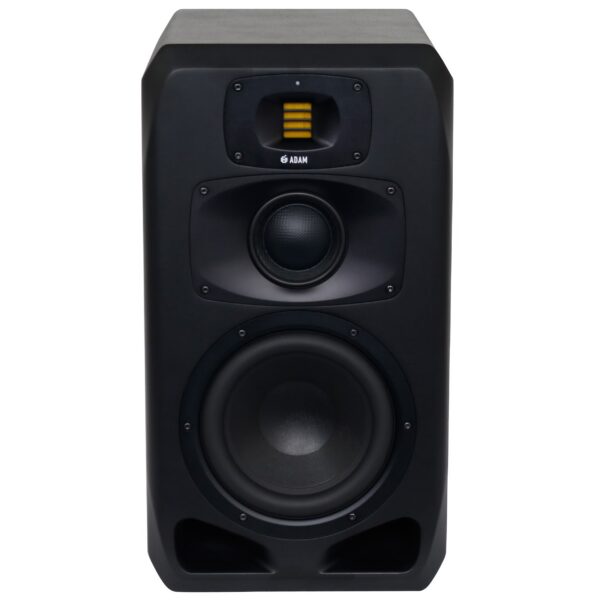

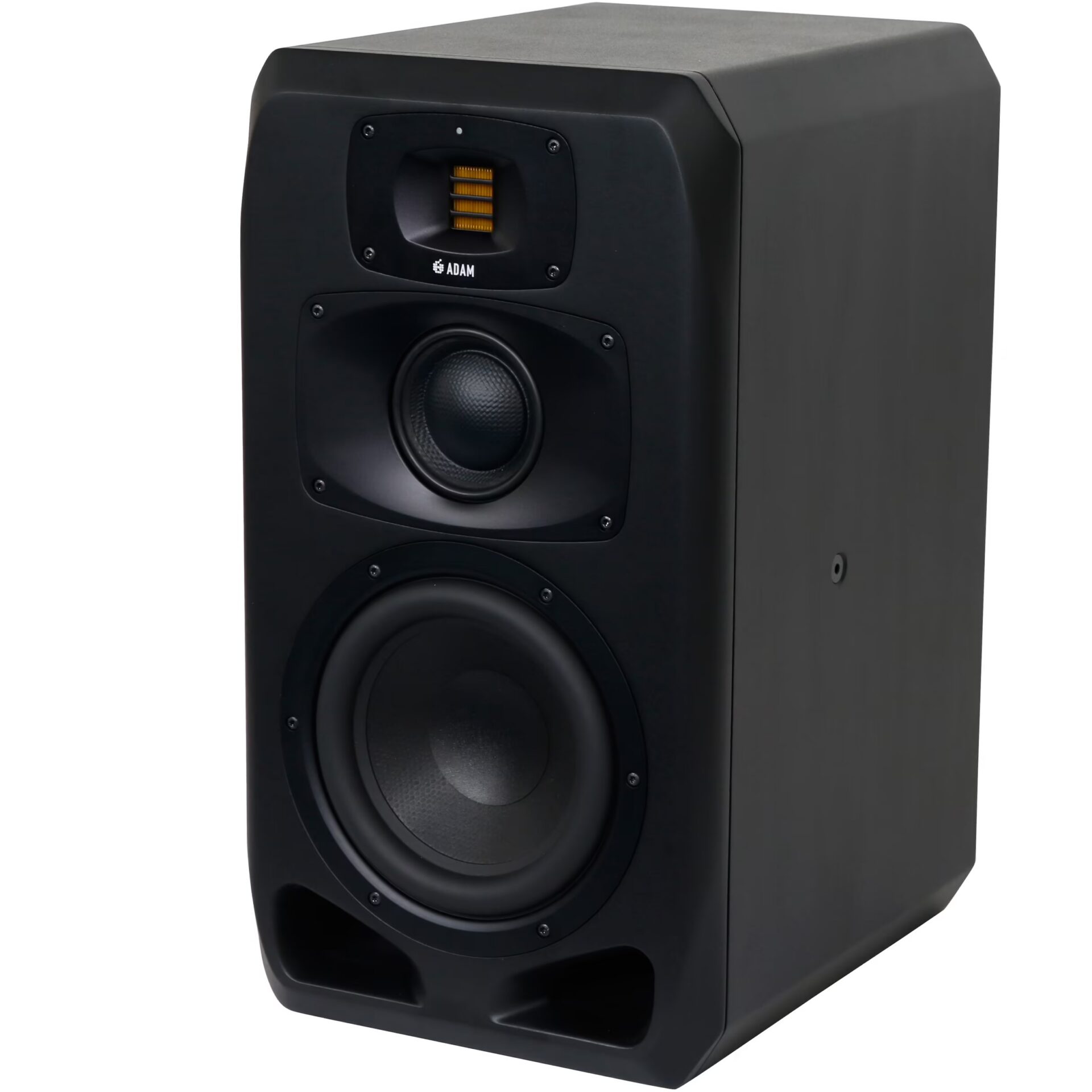

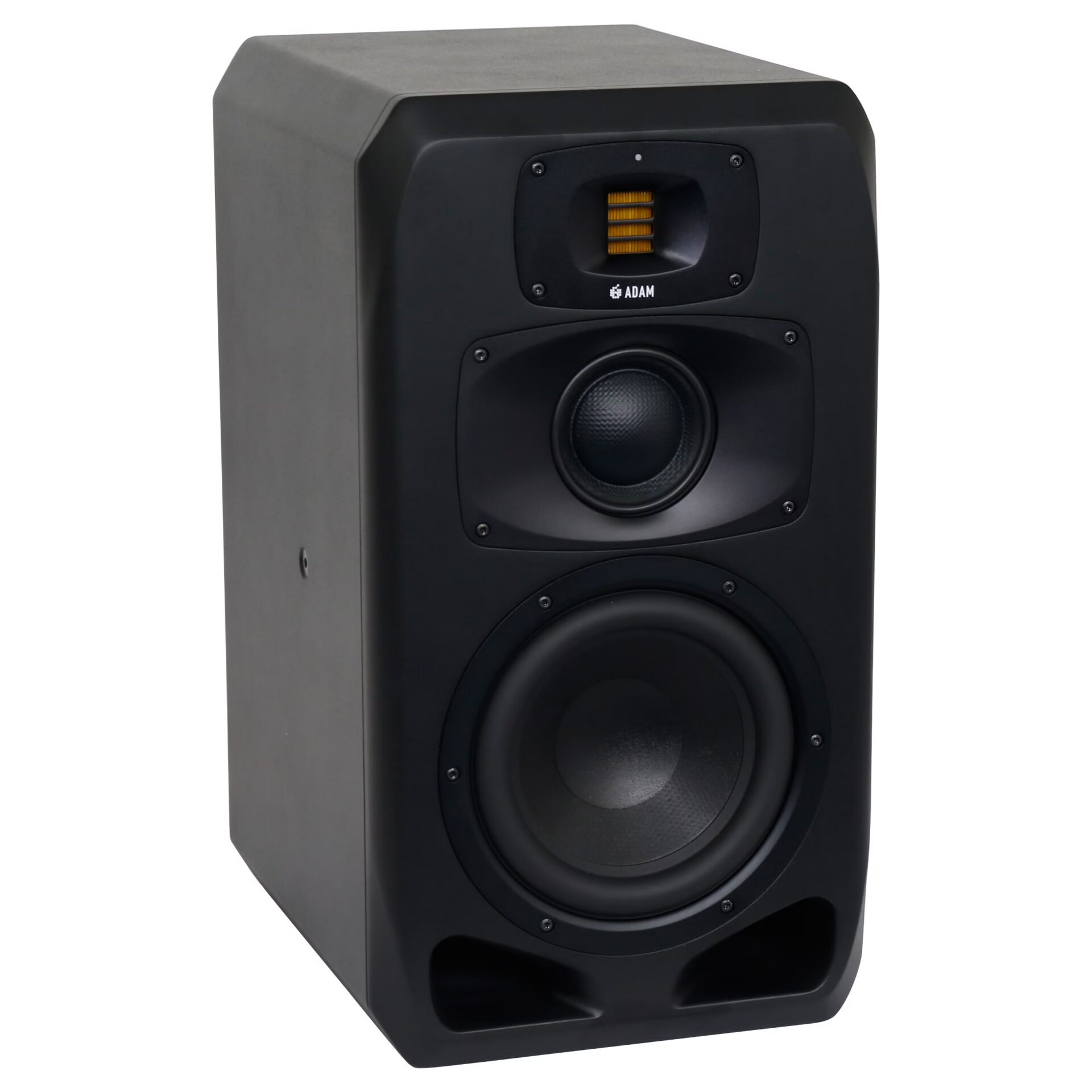

Adam S3V
active studio monitor
target group: professional recording studios

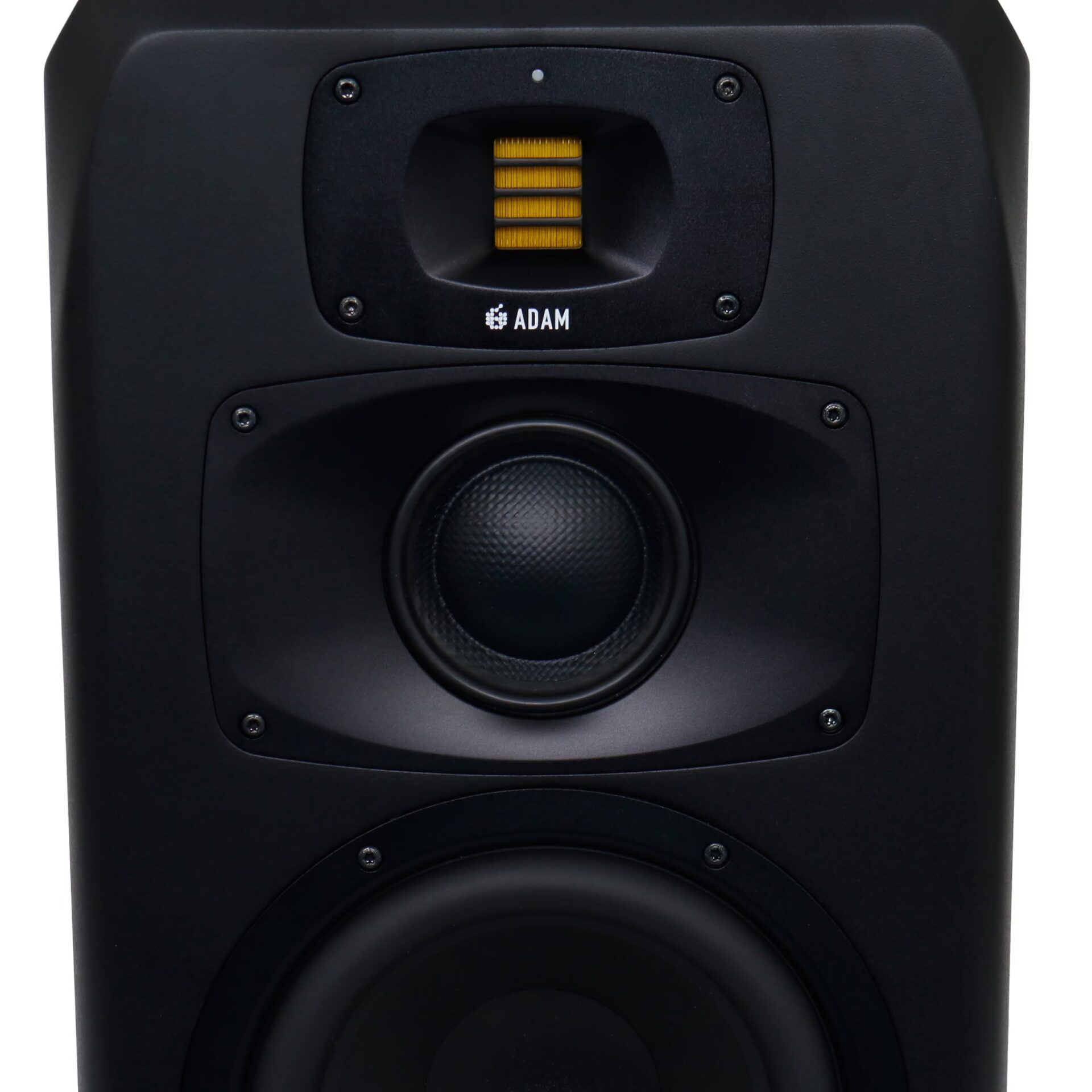

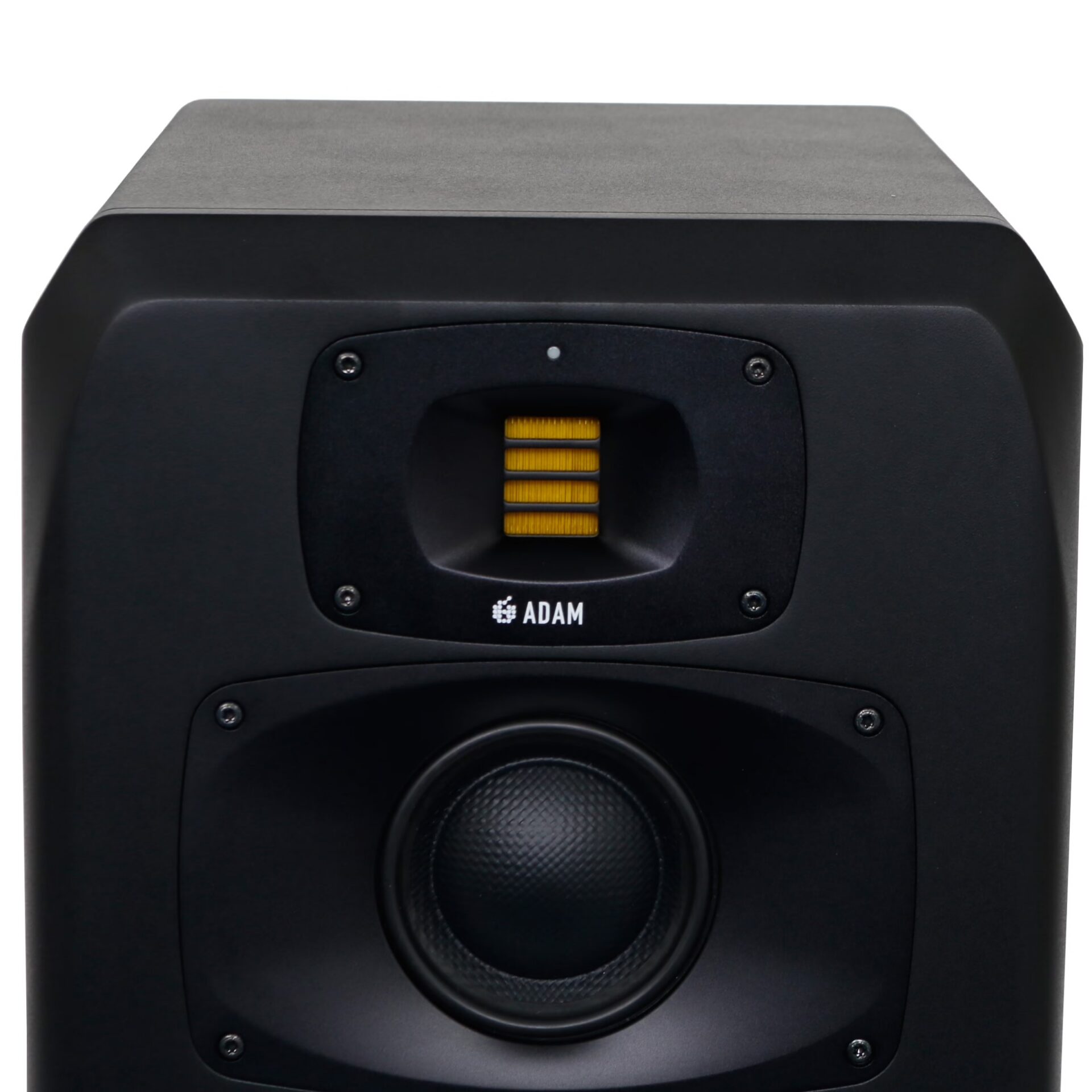

tweeter: 4-inch S-ART ribbon with HPS waveguide (manufactured by hand in Germany)
mid: 4-inch carbon composite

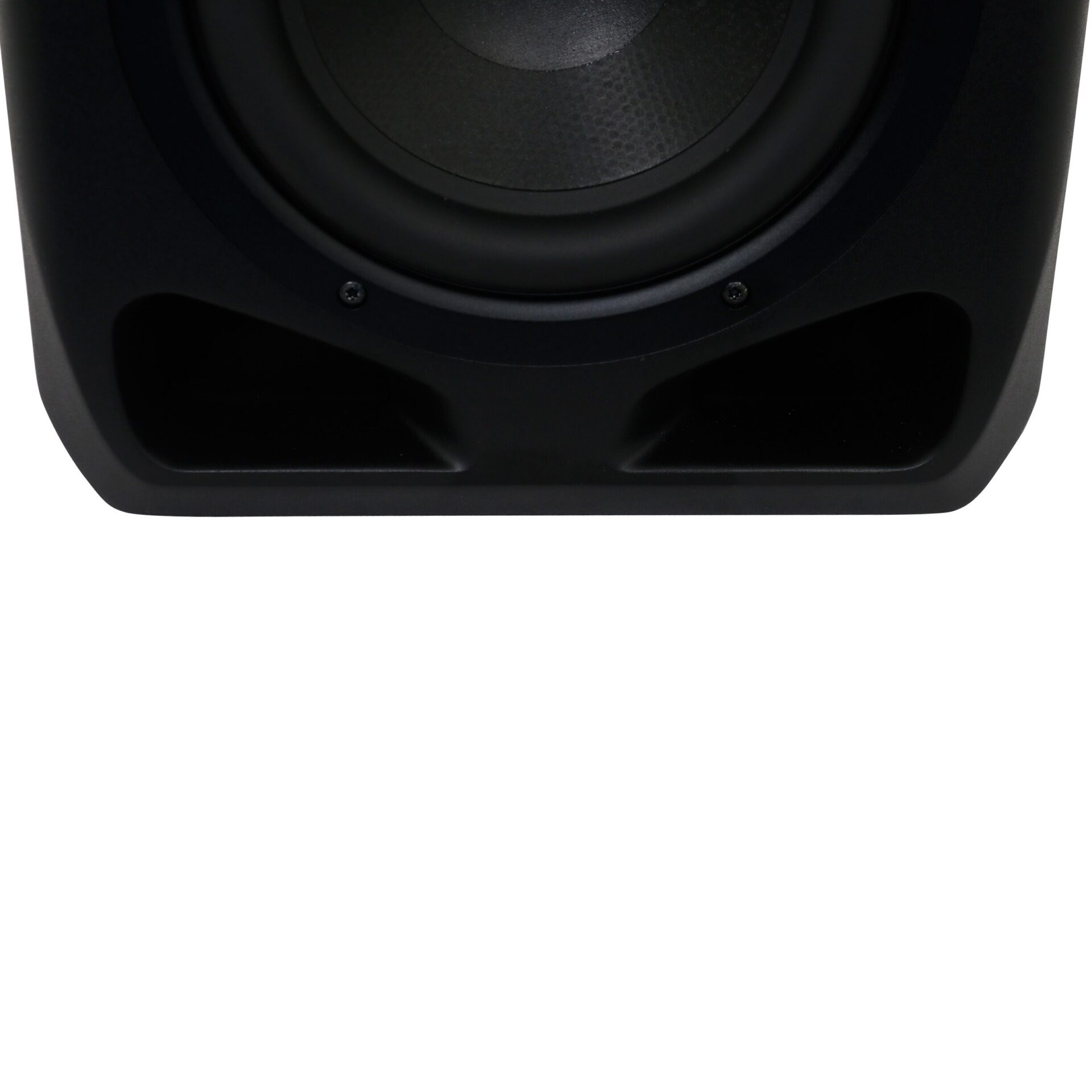

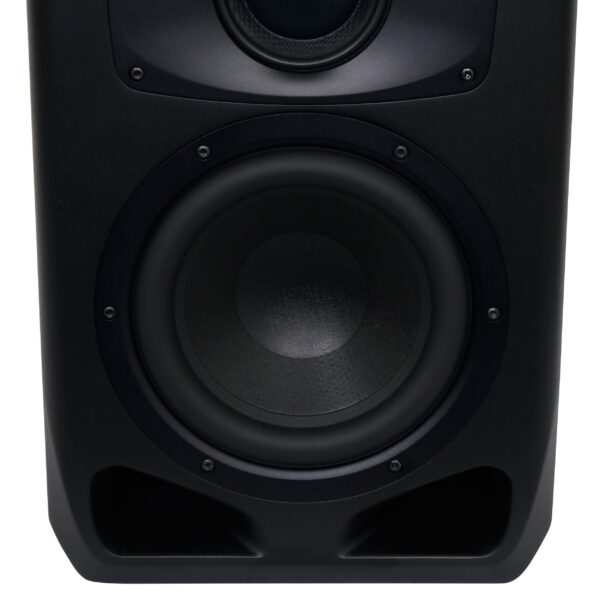

woofer: 9-inch HexaCone
Amplification: 850 W RMS
frequency response: 32 Hz – 50 kHz
crossover: 250 Hz, 3 kHz
SPL per set @ 1m: +/- 124 dB SPL
accurate audio with tight high tones
digital characteristics:
crossover
equalizer
can be optimised for acoustic space
limiter

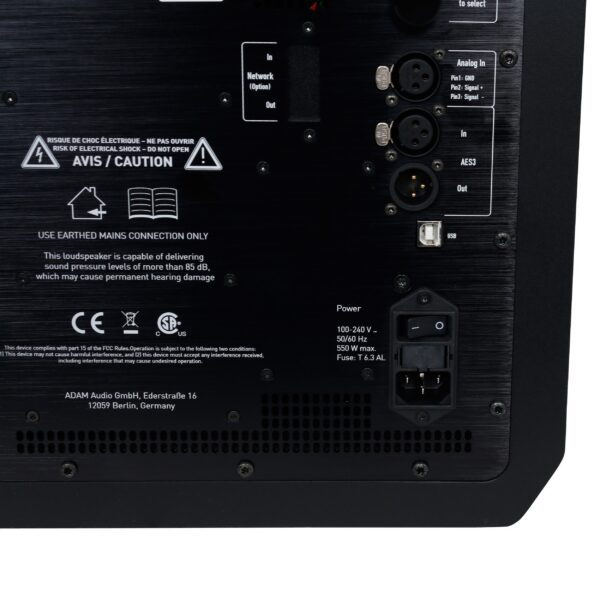

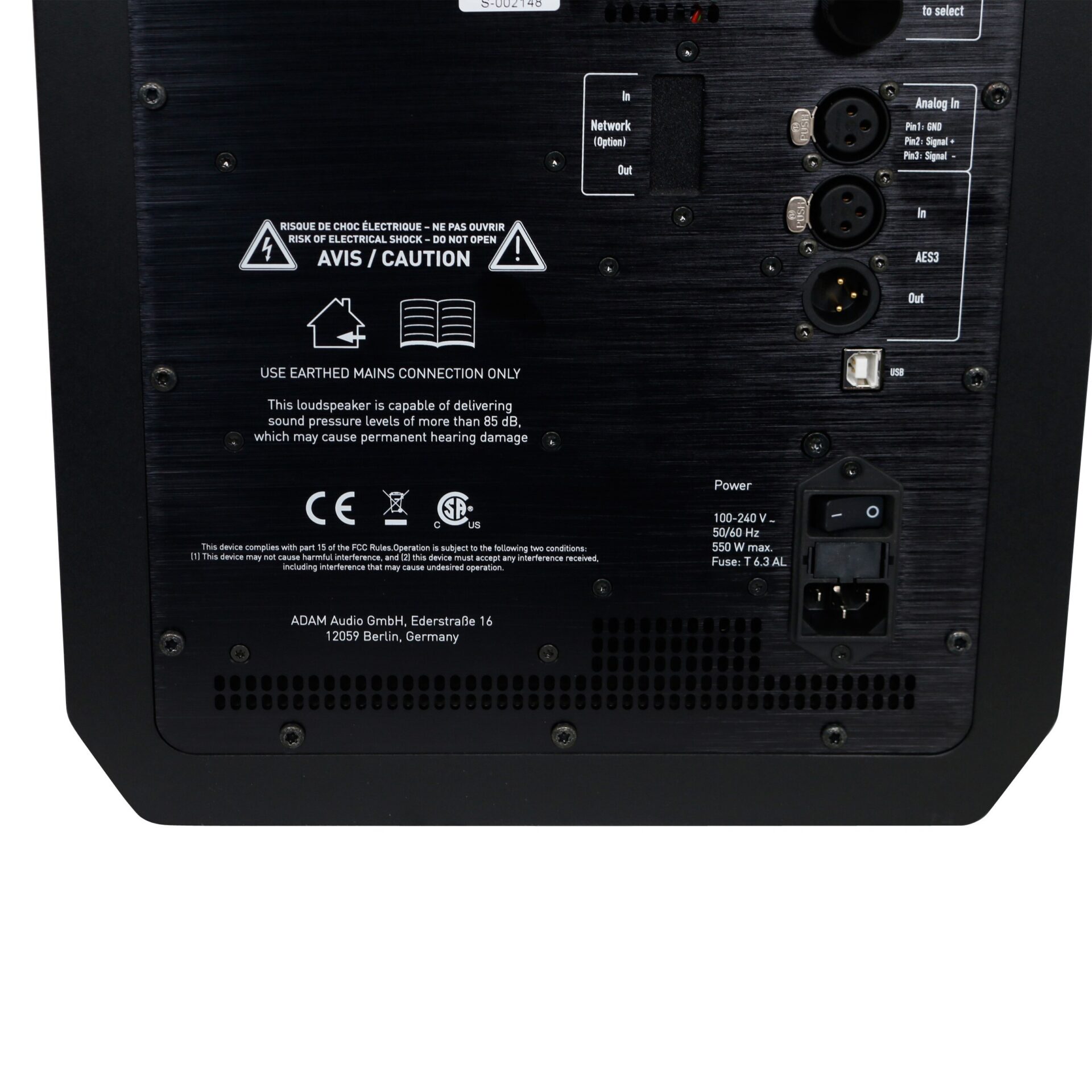

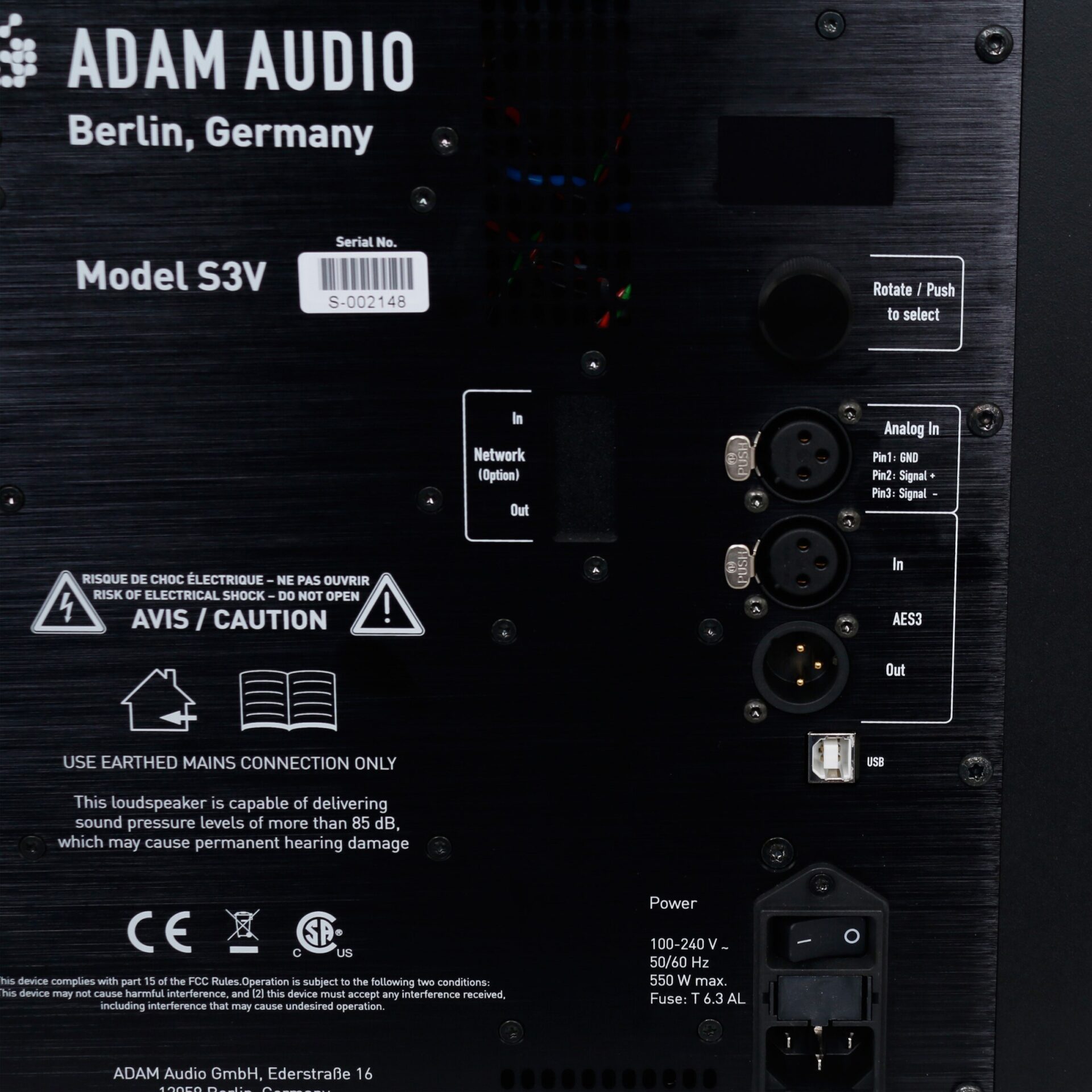

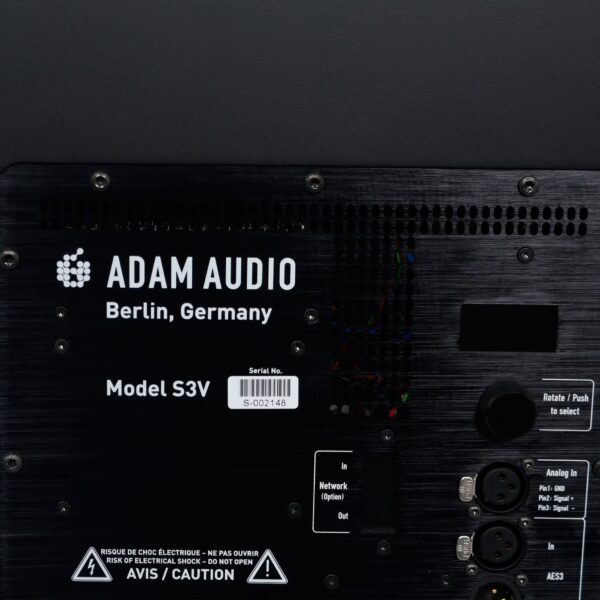

AES3 in + out
connectors for expansions
USB for software upgrades

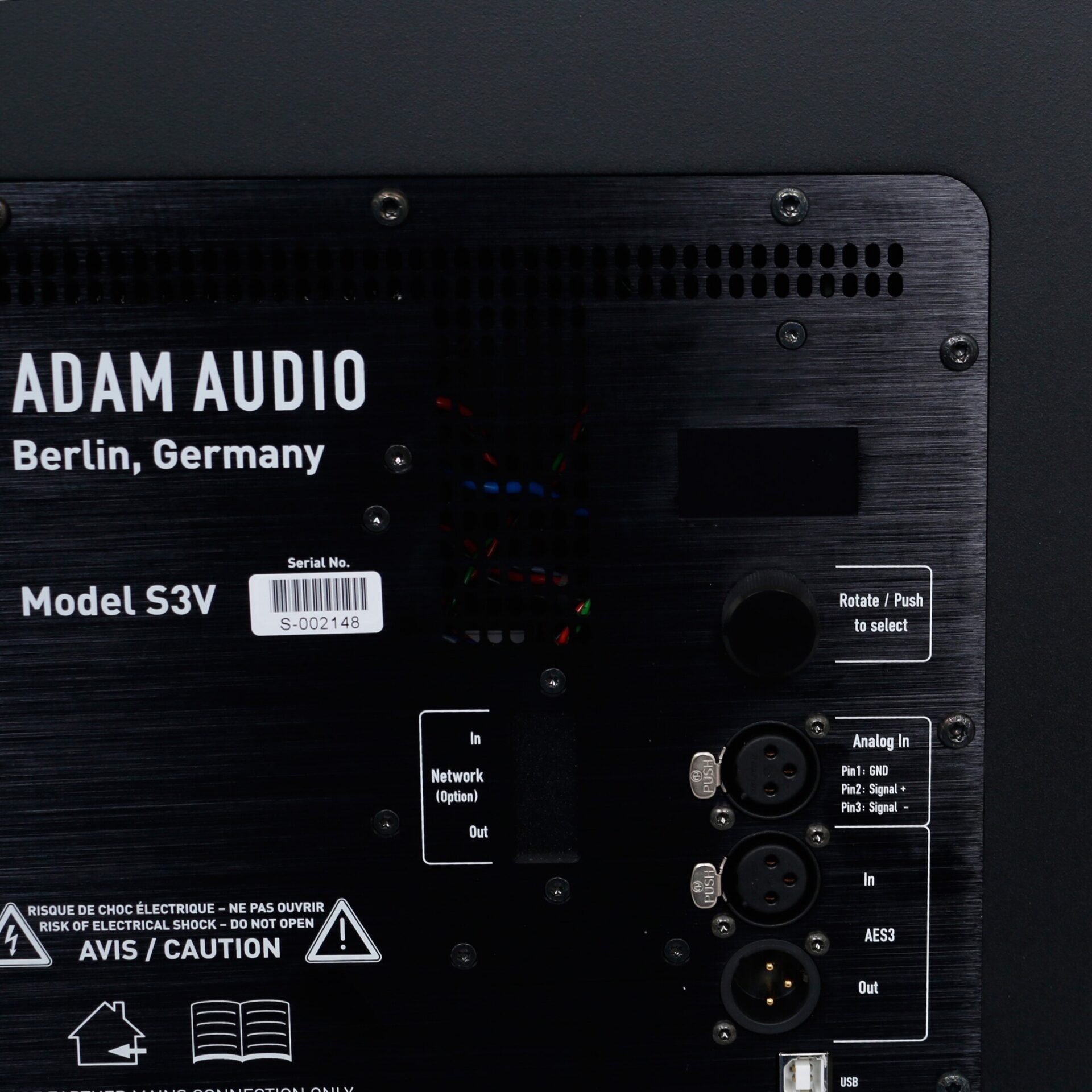

analogue input: XLR
display for settings with rotate/push button
including power cable and manual
dimensions: 536 x 293 x 380 mm
weight: 25 kg
