Description
Specifications
Product features
Speaker connections XLR input
Active or passive active
Tweeter diameterribbon
Woofer diameter not specified
Maximum frequency 40 – 50 kHz
Minimum frequency 22 – 24 Hz
Monitor set single speaker
RMS power in watts 1,500 – 3,000 W
Type of studio monitor 3-way (tweeter + midrange + woofer)
Weight and dimensions including packaging
Weight (incl. packaging)0 gr
Product specifications

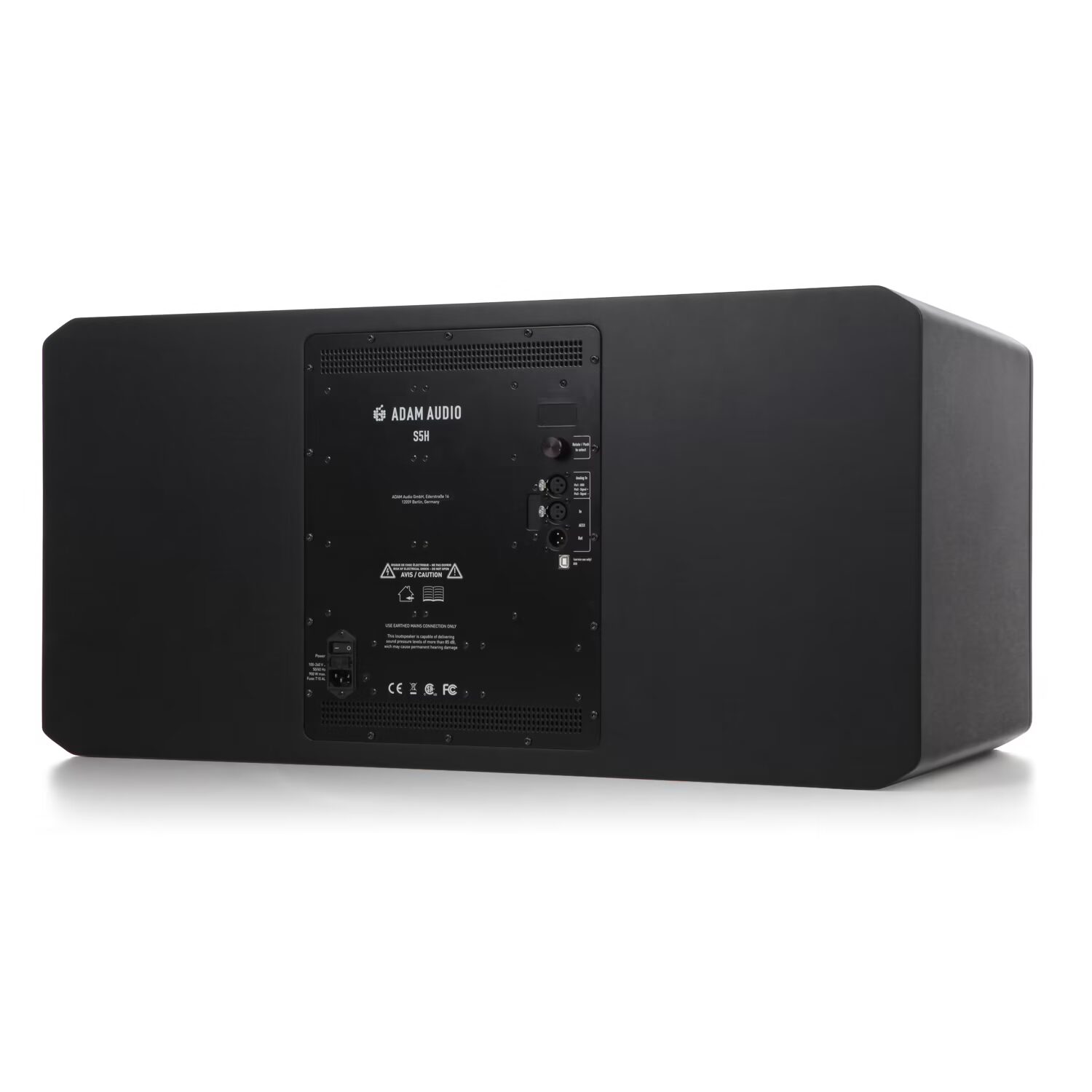

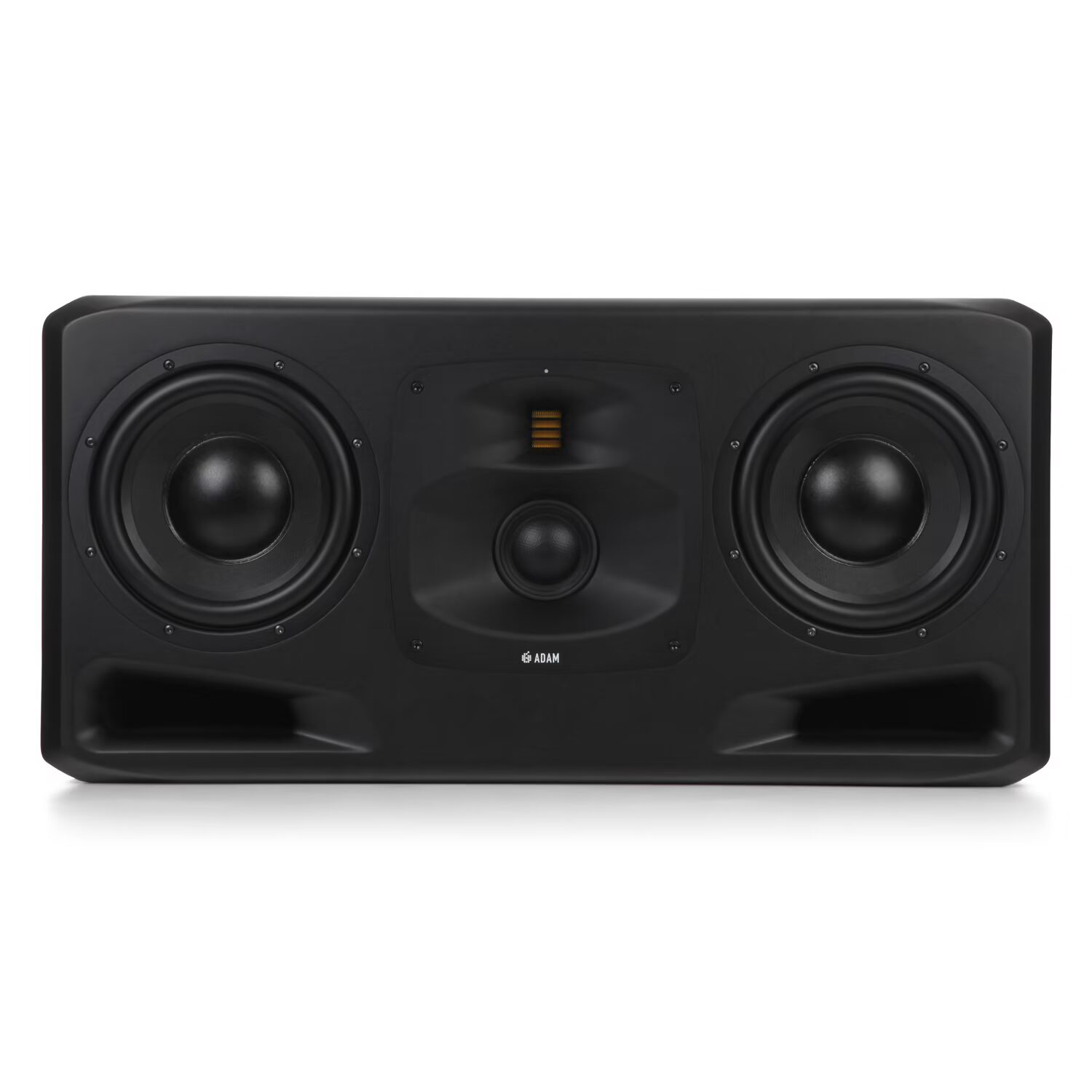

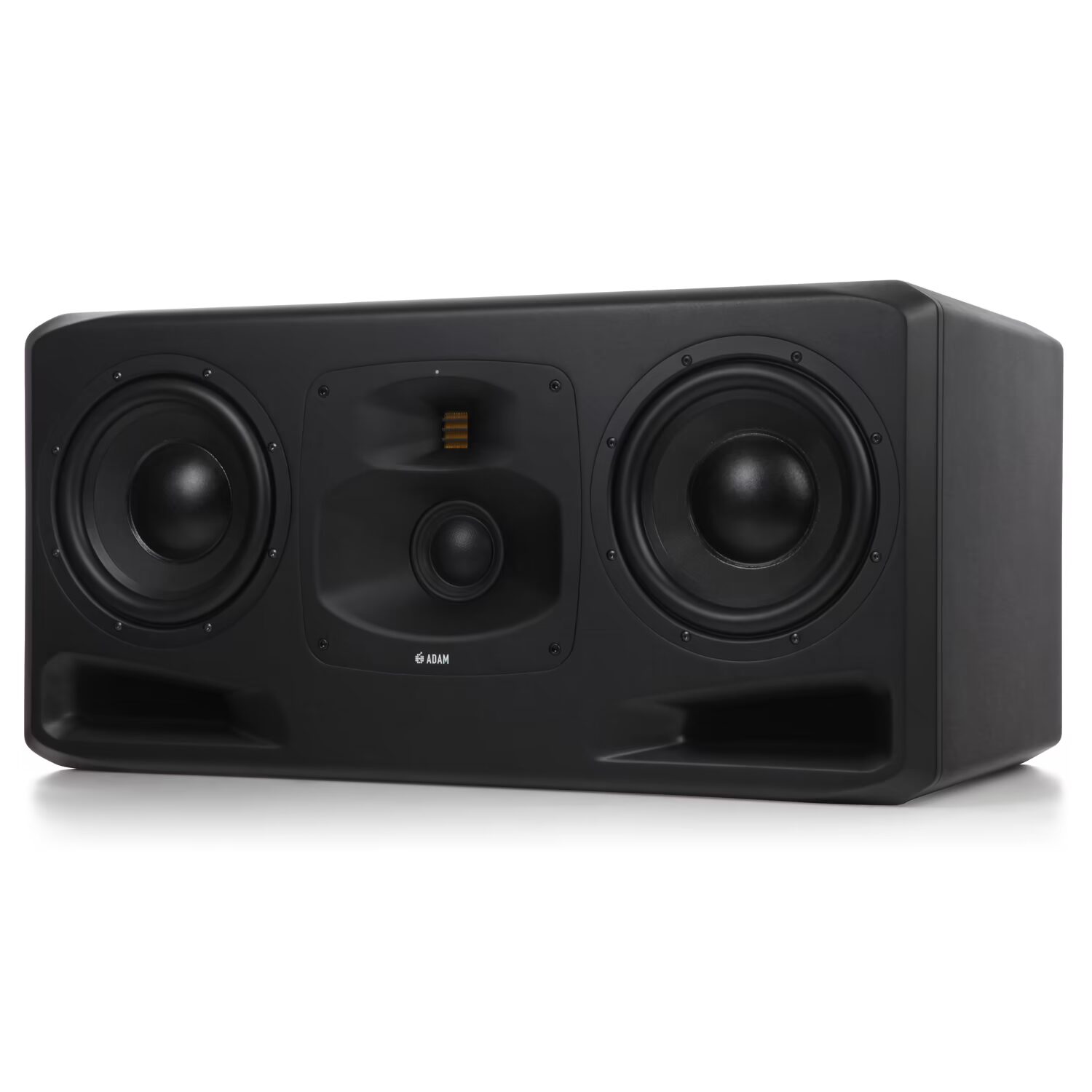

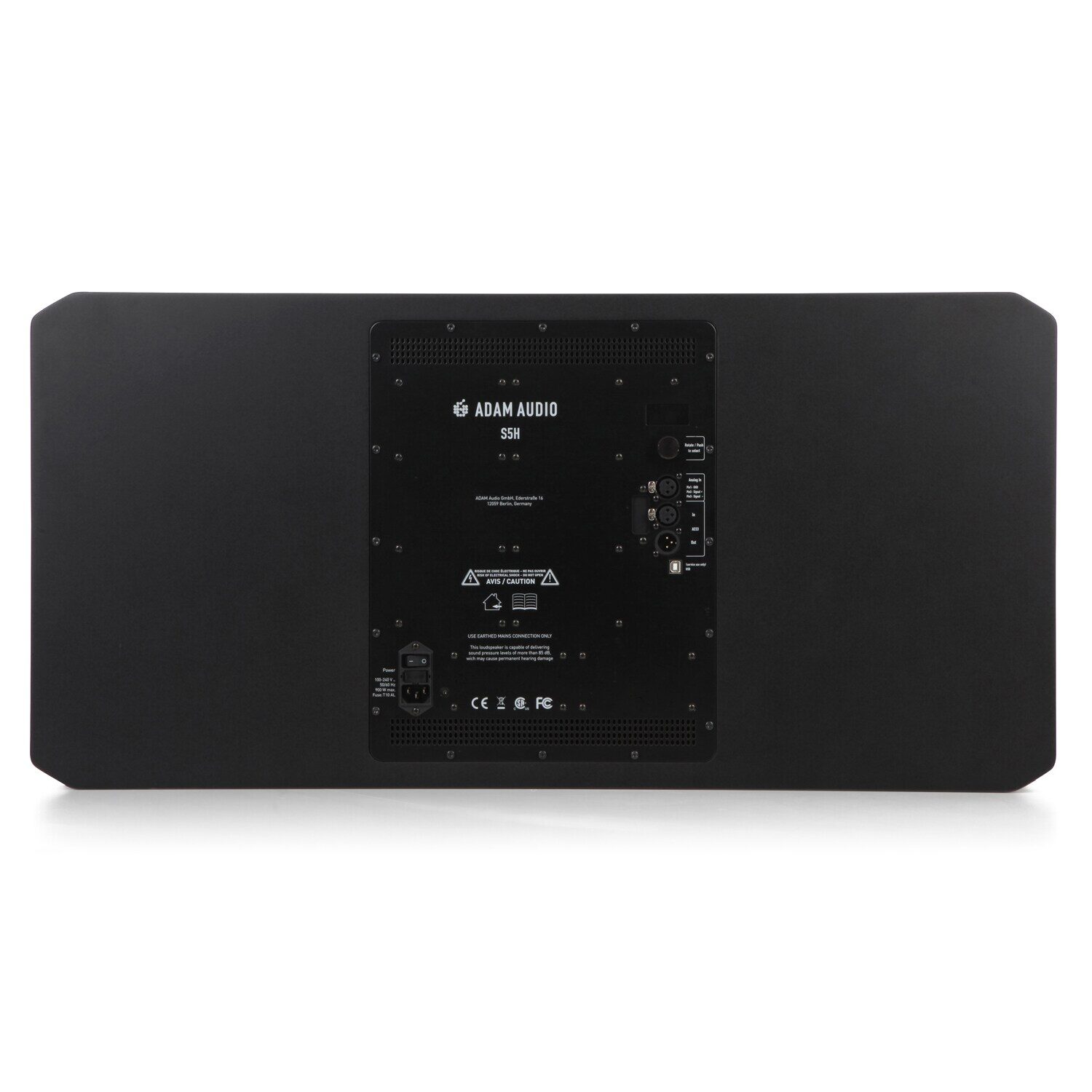

Adam S5H
active studio monitor
target group: demanding high-end studios
tweeter: 4-inch S-ART ribbon with HPS waveguide (manufactured by hand in Germany)
mid: 4-inch carbon composite with MPS waveguide
woofer: 2x 10-inch HexaCone
amplification: 1800W RMS
frequency response: 24 Hz – 50 kHz
crossover: 250 Hz, 3 kHz
SPL per set @ 1m: +/- 131 dB SPL
accurate audio with tight high tones
digital characteristics:
crossover
equalizer
can be optimised for acoustic space
limiter
AES3 in + out
connectors for expansions
USB for software upgrades
analogue input: XLR
display for settings with rotate/push button
including power cable and manual
dimensions: 430 x 885 x 500 mm
weight: 72.6 kg
