Description
Specifications
Product features
Speaker connections XLR input
Active or passive active
Tweeter diameterribbon
Woofer diameter not specified
Maximum frequency 40 – 50 kHz
Minimum frequency 25 – 29 Hz
Monitor set single speaker
RMS power in watts 750 – 1,499 W
Type of studio monitor 3-way (tweeter + midrange + woofer)
Weight and dimensions including packaging
Weight (incl. packaging)0 gr
Product specifications

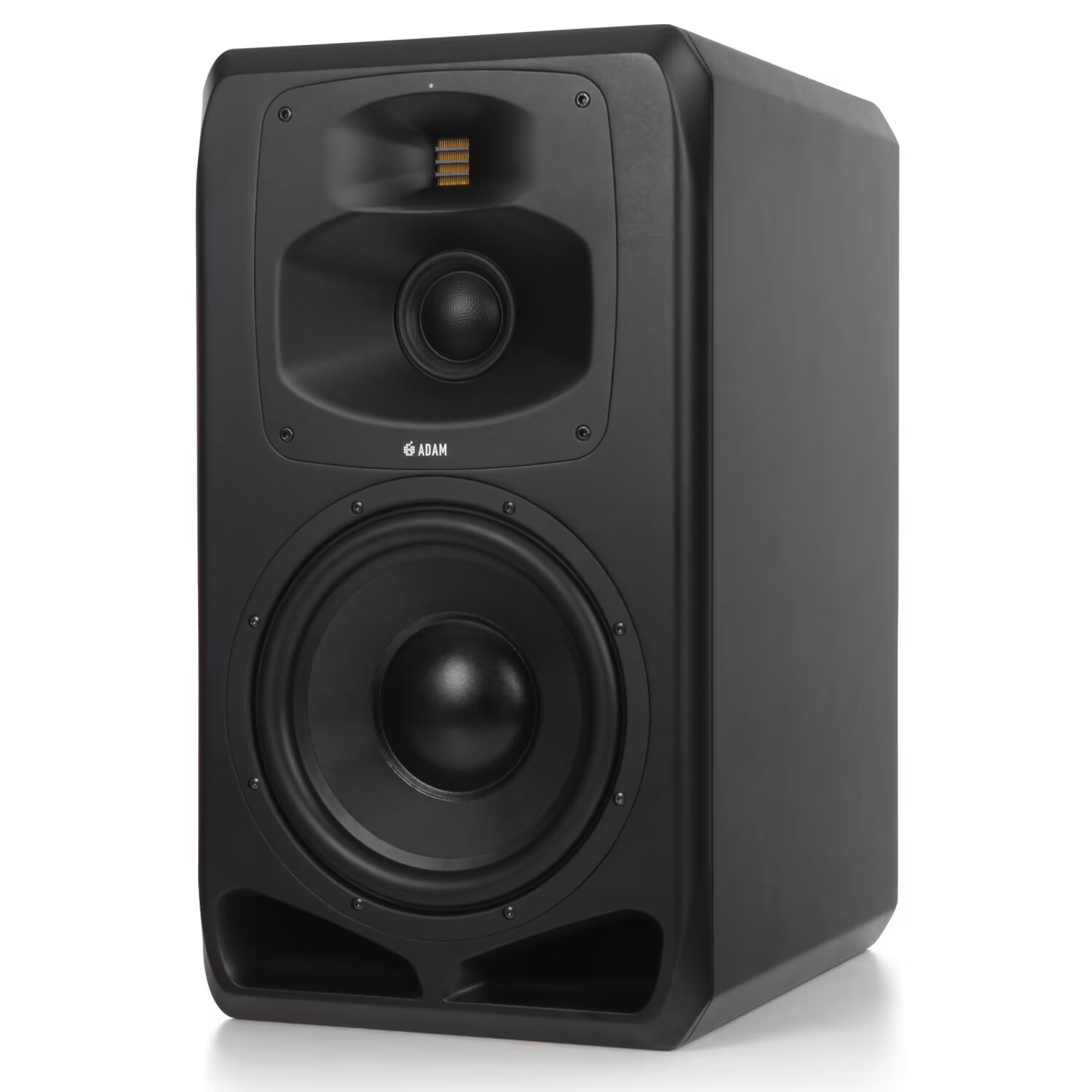

Adam S5V
active studio monitor
target group: demanding high-end studios
tweeter: 4-inch S-ART ribbon with HPS waveguide (manufactured by hand in Germany)
mid: 4-inch carbon composite with MPS waveguide
woofer: 12-inch HexaCone
amplification: 1100W RMS
frequency response: 26 Hz – 50 kHz
crossover: 250 Hz, 3 kHz
SPL per set @ 1m: +/- 128dB SPL
accurate audio with tight high tones
digital characteristics:
crossover
equalizer
can be optimised for acoustic space
limiter
AES3 in + out
connectors for expansions
USB for software upgrades
analogue input: XLR
display for settings with rotate/push button
including power cable and manual
dimensions: 698 x 390 x 520 mm
weight: 52 kg
