Product features
Speaker connections XLR input, out / link / thru
Active or passive active
Tweeter diameter 1.5 inches
Woofer diameter 12 inches
Weight per speaker 18 kg
Built-in equalise rno
Built-in limiter yes
Maximum SPL 130 dB – 139 dB
Maximum frequency 20 – 20.9 kHz
Minimum frequency 50 – 59 Hz
Peak power in watts 750 – 999 watts
RMS power in watts 1,500 – 3,000 W
Locking speaker connectors no
Power adapter Europlug, Schucko or CEE 7/7 plug
Weight and dimensions including packaging
Weight (incl. packaging)17.5 kg
Dimensions (incl. packaging)66.0 x 37.8 x 30.5 cm
Product specifications

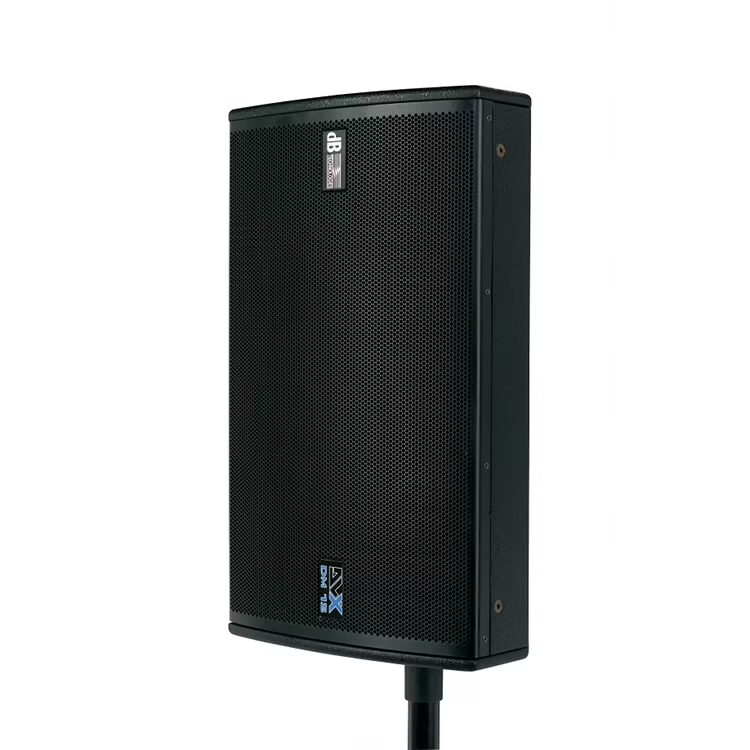

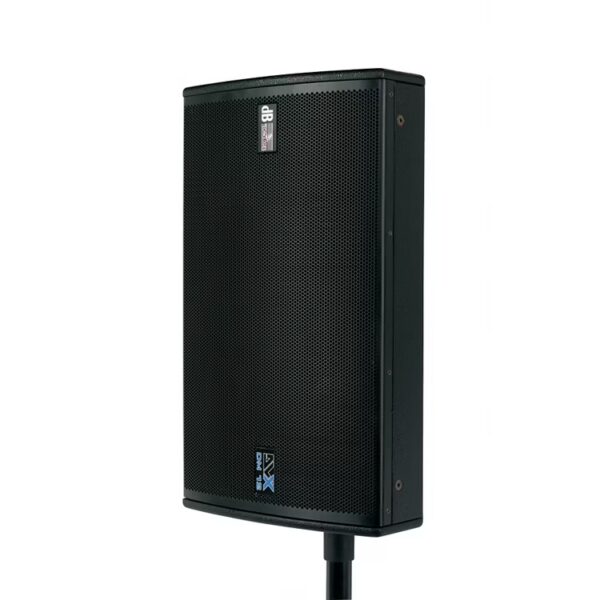

2-way active speaker
frequency response at -10 dB from 55 to 20,000 Hz
frequency response at 3 dB from 68 to 19,000 Hz
maximum sound pressure: 131 dB (SPL)
1.4-inch RCF neodymium compression-driven speaker for HR, with 2.5-inch titanium voice coil
directivity: 40 x 90 degrees
rotating aluminium CD horn
12-inch RCF neodymium speaker for LF, with 3-inch voice coil
Digipro amplification technology
class D amplifier
HF amplification 250 watts
LF amplification 500 watts
convection cooling
DSP controller 24 bit / 48 kHz
flat and monitor system presets
RMS, peak, thermal and multi-band limiters
crossover frequency MF-HR 1,320 Hz
curve MF-HF 24 dB / octave
symmetrical XLR female input and symmetrical 6.3mm jack input
input sensitivity -00 max. -30 dBu
symmetrical XLR male output and symmetrical 6.3mm jack output
lockable power input for power supply
inconspicuous black finish
multiplex birch housing with textured acrylic lacquer
1 hand grip per side
suited for 36mm speaker stands
35 and 55-degree positioning for use as monitor
1.5mm metal front grille, backed with acoustic foam
6x M8 mounting points
power supply: 240 V
dimensions: 660 x 305 x 378 mm (W x H x D)
weight: 17.5 kg
