Description
Specifications
Product features
Speaker connections XLR input
Active or passive active
Tweeter diameterribbon
Woofer diameter 7 inches
Maximum frequency 40 – 50 kHz
Minimum frequency 35 – 39 Hz
Monitor set single speaker
RMS power in watts 350 – 499 W
Type of studio monitor 2-way (tweeter + woofer)
Weight and dimensions including packaging
Weight (incl. packaging)14.0 kg
Dimensions (incl. packaging)51.0 x 43.0 x 35.5 cm
Product specifications

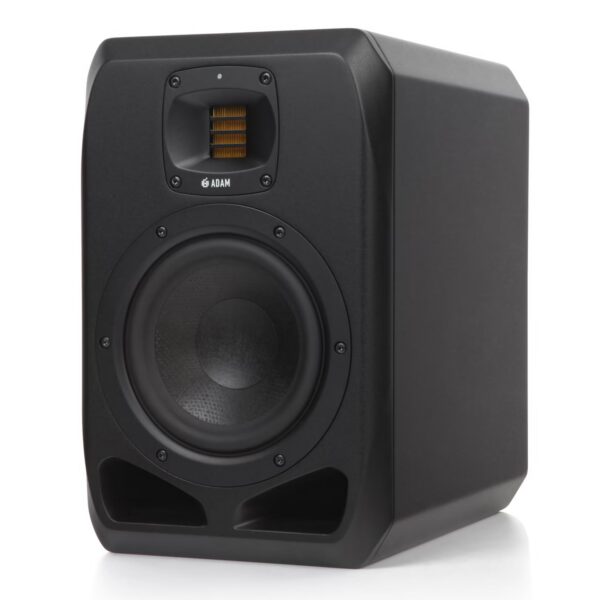

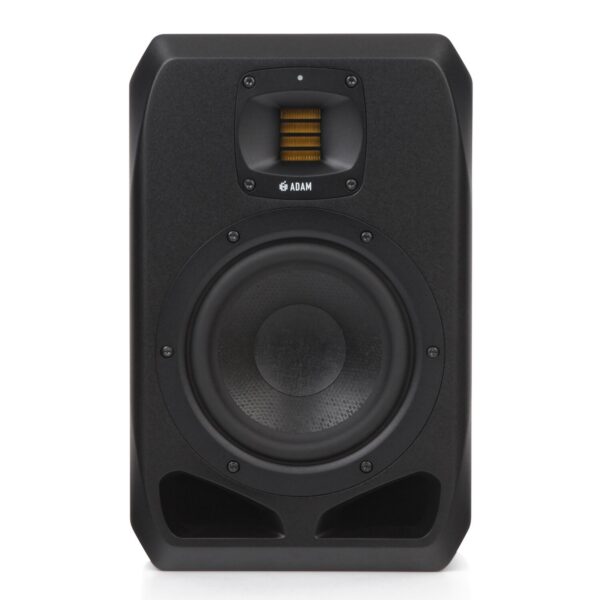

Adam S2V
active studio monitor
target group: professional recording studios
tweeter: 4-inch S-ART ribbon with HPS waveguide (manufactured by hand in Germany)
woofer: 7-inch HexaCone
amplification: 350W RMS
frequency response: 35 Hz – 50 kHz
crossover: 3 kHz
SPL per set @ 1m: +/- 120 dB SPL
accurate audio with tight high tones
digital characteristics:
crossover
equalizer
can be optimised for acoustic space
limiter
AES3 in + out
connectors for expansions
USB for software upgrades
analogue input: XLR
display for settings with rotate/push button
including power cable and manual
dimensions: 346 x 222 x 338 mm
weight: 11 kg
